Surgical Equipment Exporter Top-Grade Anesthesia Machine with Workstation (JinLing 850)
Surgical Equipment Exporter Top-Grade Anesthesia Machine with Workstation (JinLing 850)
Surgical Equipment Exporter Top-Grade Anesthesia Machine with Workstation (JinLing 850)
Surgical Equipment Exporter Top-Grade Anesthesia Machine with Workstation (JinLing 850)
Surgical Equipment Exporter Top-Grade Anesthesia Machine with Workstation (JinLing 850)
1 / 5
Surgical Equipment Exporter Top-Grade Anesthesia Machine with Workstation (JinLing 850)
Surgical Equipment Exporter Top-Grade Anesthesia Machine with Workstation (JinLing 850)
Surgical Equipment Exporter Top-Grade Anesthesia Machine with Workstation (JinLing 850)
Surgical Equipment Exporter Top-Grade Anesthesia Machine with Workstation (JinLing 850)
Surgical Equipment Exporter Top-Grade Anesthesia Machine with Workstation (JinLing 850)

Surgical Equipment Exporter Top-Grade Anesthesia Machine with Workstation (JinLing 850)

Customization: Available
Type: Anaesthesia Machine
Kind: Surgery
Send Inquiry

Product Description

Basic Information

Model NO.
JinLing 850
Certification
ISO13485, ISO9001
Group
Adult
LCD Display
With LCD Display
Display Size
8.4 Inch LCD Color Screen
Tidal Volume
0-1500ml
Respiratory Rate
1-100bpm
Trademark
JINLING
Origin
China
HS Code
9018907010

Product Description

Top-Grade Anesthesia Machine with Workstation (JinLing 850)

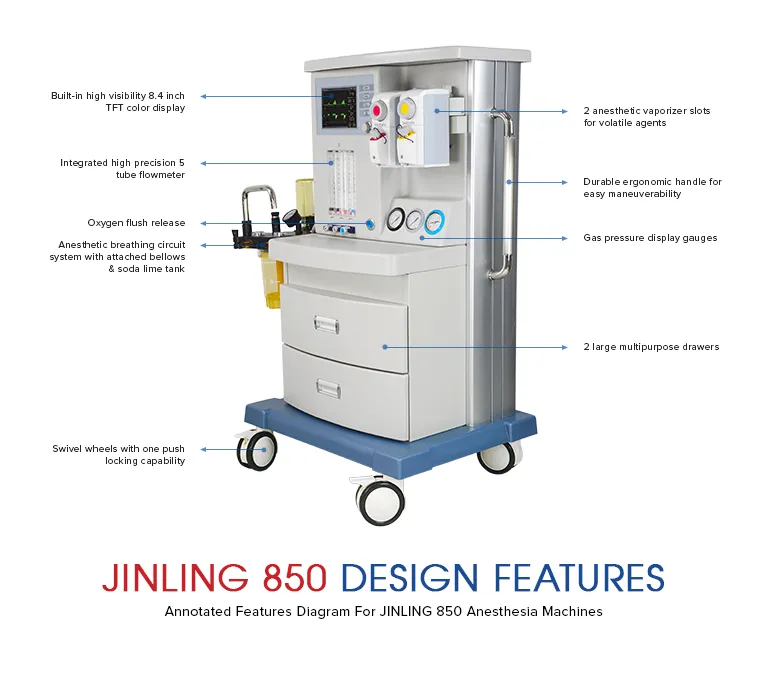

Anesthesia Machine JinLing 850

Key Features

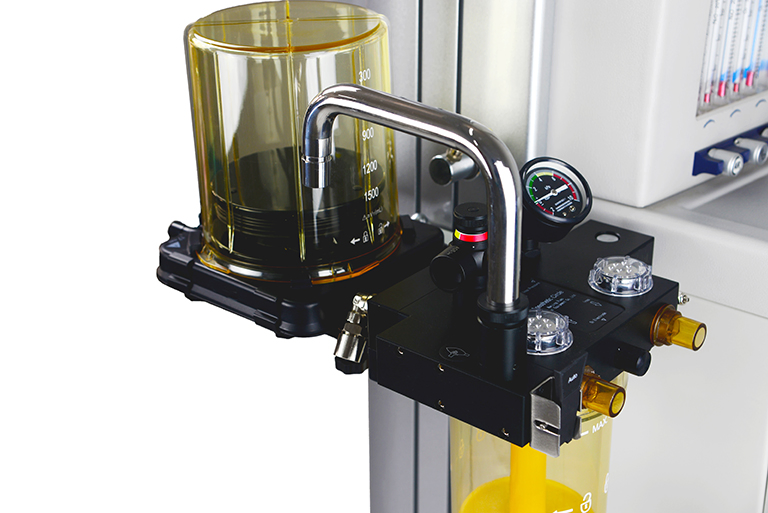

  • Standard integrated metallic modular respiratory circuit; solves gas sealing under high temperature disinfection, easy to clean.
  • High precision five tube flowmeter, fitted with interlocking oxygen-nitrous oxide supply, guarantees oxygen output ≥ 21%.
  • Nonhazardous environmentally friendly frame, precise construction, equipped with automated self-checking and self-calibrating sensor.
  • Advanced and stable Adjustable Pressure Limiting (APL) valve, suitable for low and ultra low flow anesthesia.
  • Equipped with advanced international rotating Na-lime tank, easy one-hand operation, uses imported PPSU material (temperature resistant to 134°C).
  • Multi-parameter Patient Monitor: Optional.

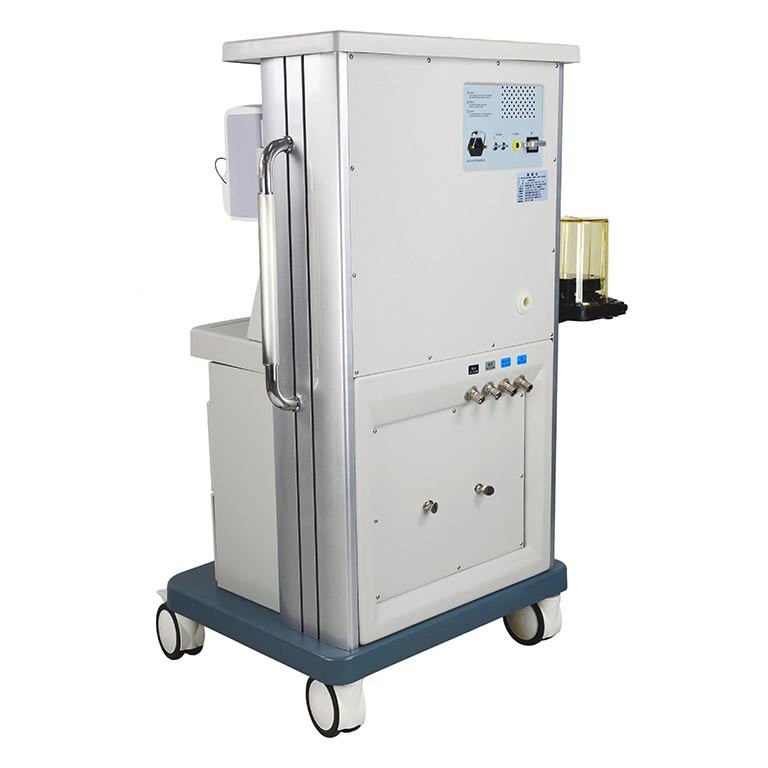

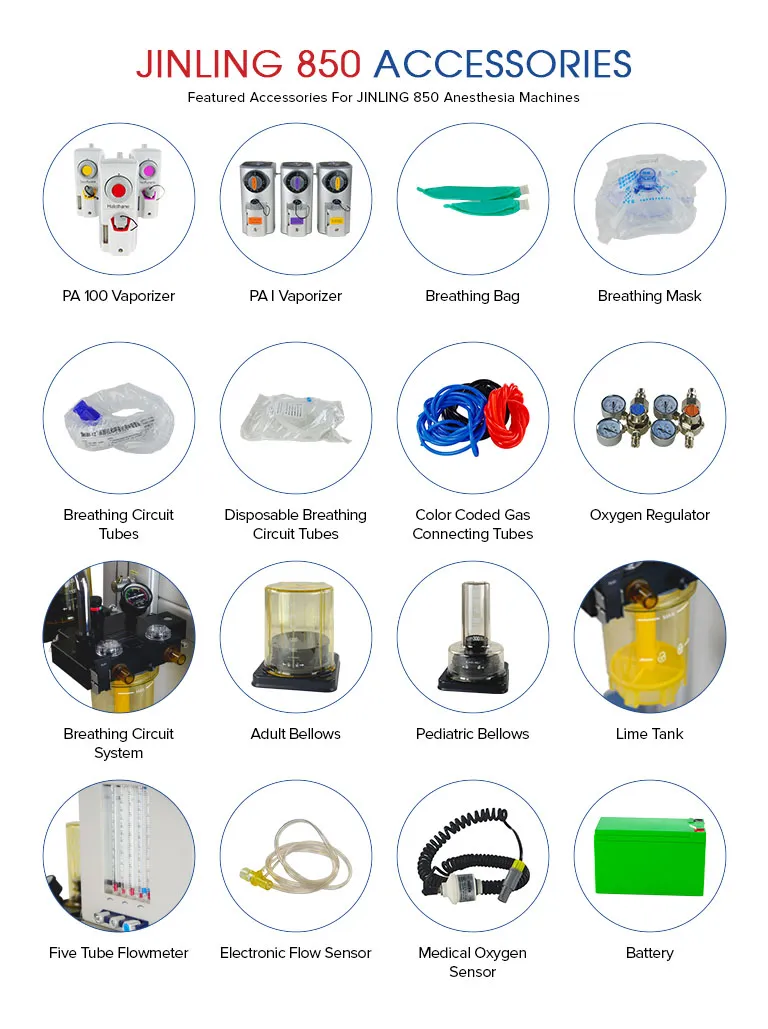

JinLing 850 Side View JinLing 850 Detail

Technical Specifications

Model 850 (Standard Model)

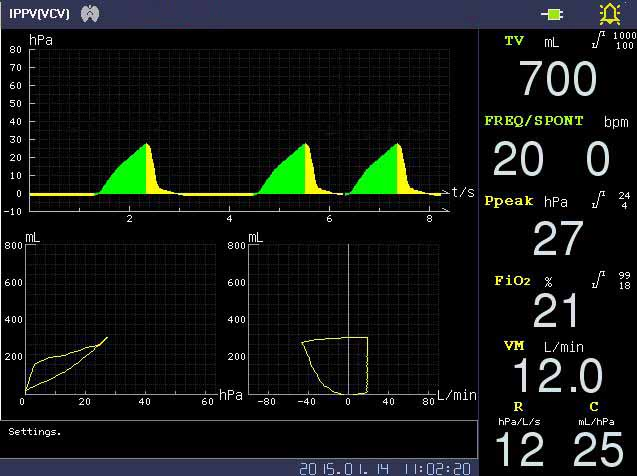

Display 8.4 inch TFT display
Flowmeter Range O2: 0.1-10L/min; N2O: 0.1-10L/min; Air: 0.1-10L/min
Ventilation Mode IPPV, SIPPV, VCV, IMV, SIMV, MANUAL, Standby
Back-up Power At least 4 hours
Tidal Volume Adjustable: 10-1500ml; Display range: 0-2000ml
I:E Ratio 8:1-1:10 (Capable of inverse ratio ventilation)
PEEP Range 0-20cmH2O (Electronically controlled)
Oxygen Monitor Inhaled Oxygen Concentration Monitor: 21-100%
Vaporizer Double PA-I type slots; Concentration: 0-5%
JinLing 850 Component JinLing 850 System

Frequently Asked Questions

What are the available ventilation modes for the JinLing 850?
The machine supports multiple modes including IPPV, SIPPV, VCV, IMV, SIMV, MANUAL, and Standby mode.
Does the anesthesia machine include a backup battery?
Yes, it is equipped with a back-up power supply that lasts for at least 4 hours.
What is the range of tidal volume adjustment?
The tidal volume is adjustable from 10ml to 1500ml, making it suitable for a wide range of patients.
How is the oxygen concentration monitored?
It features an integrated inhaled oxygen concentration monitor with a range of 21% to 100%.
Is the respiratory circuit easy to disinfect?
Yes, it uses a standard integrated metallic modular respiratory circuit designed for high-temperature disinfection and easy cleaning.
What type of display does the workstation use?
It is equipped with an 8.4-inch TFT LCD color screen for clear parameter monitoring.
