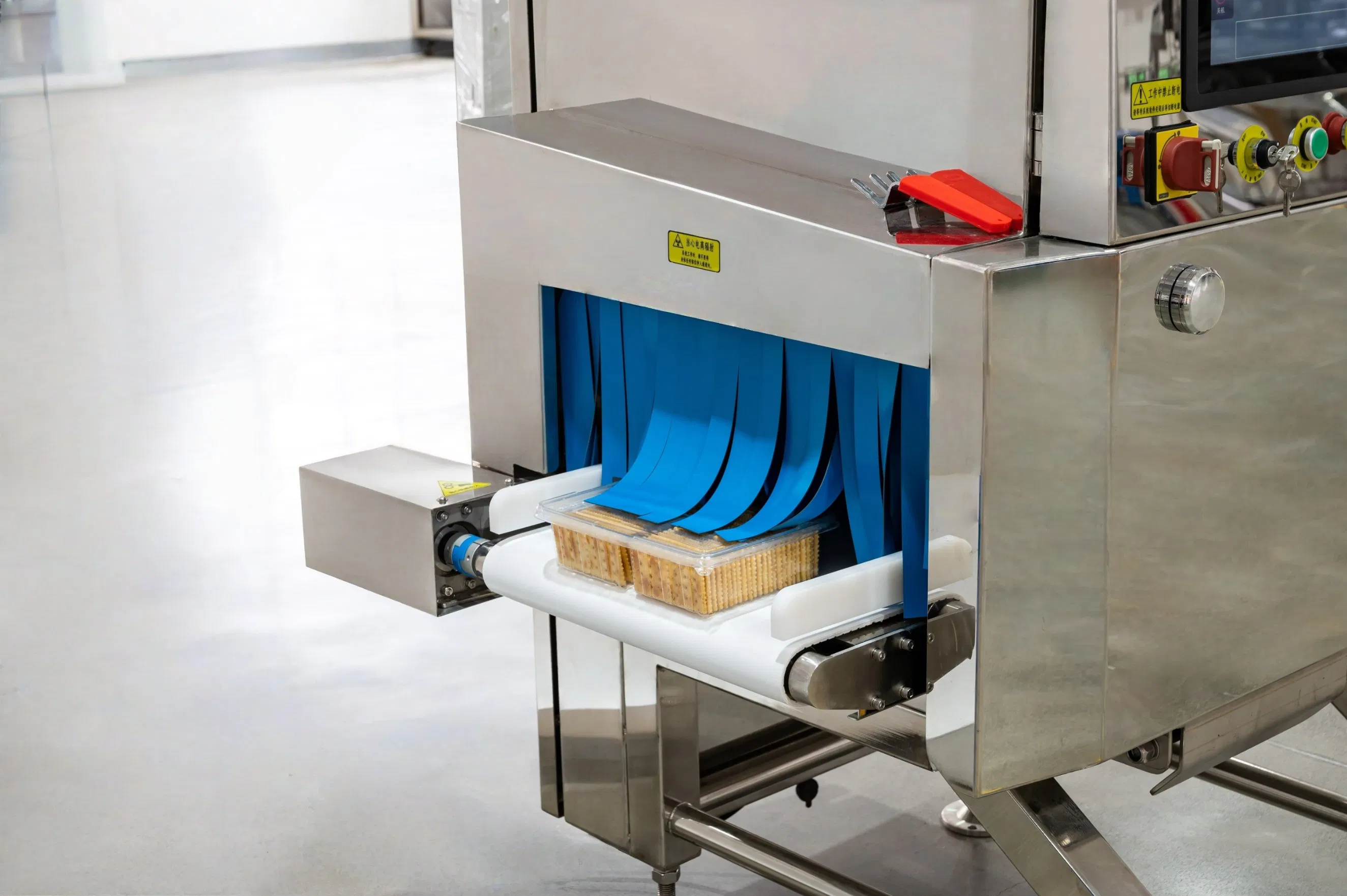

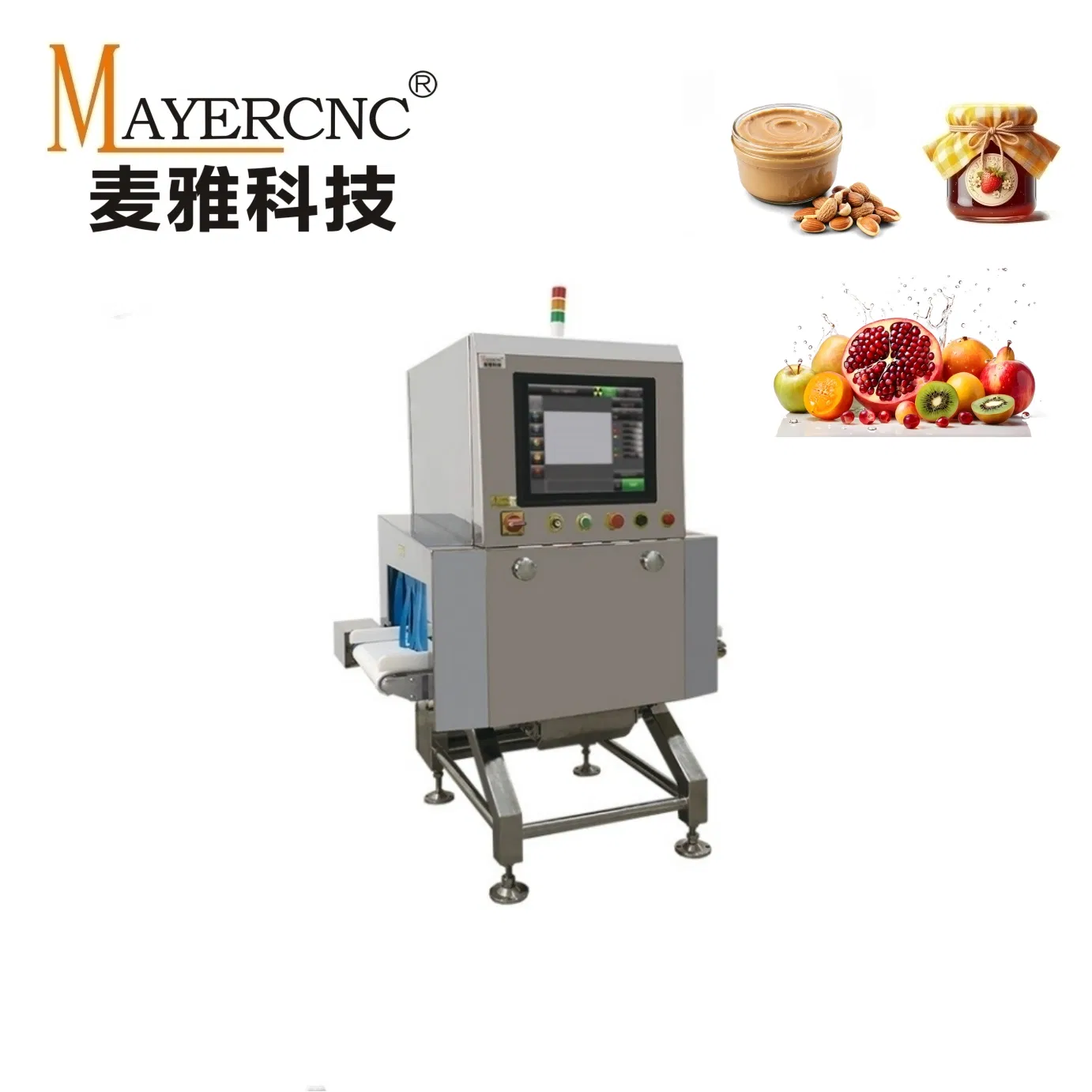

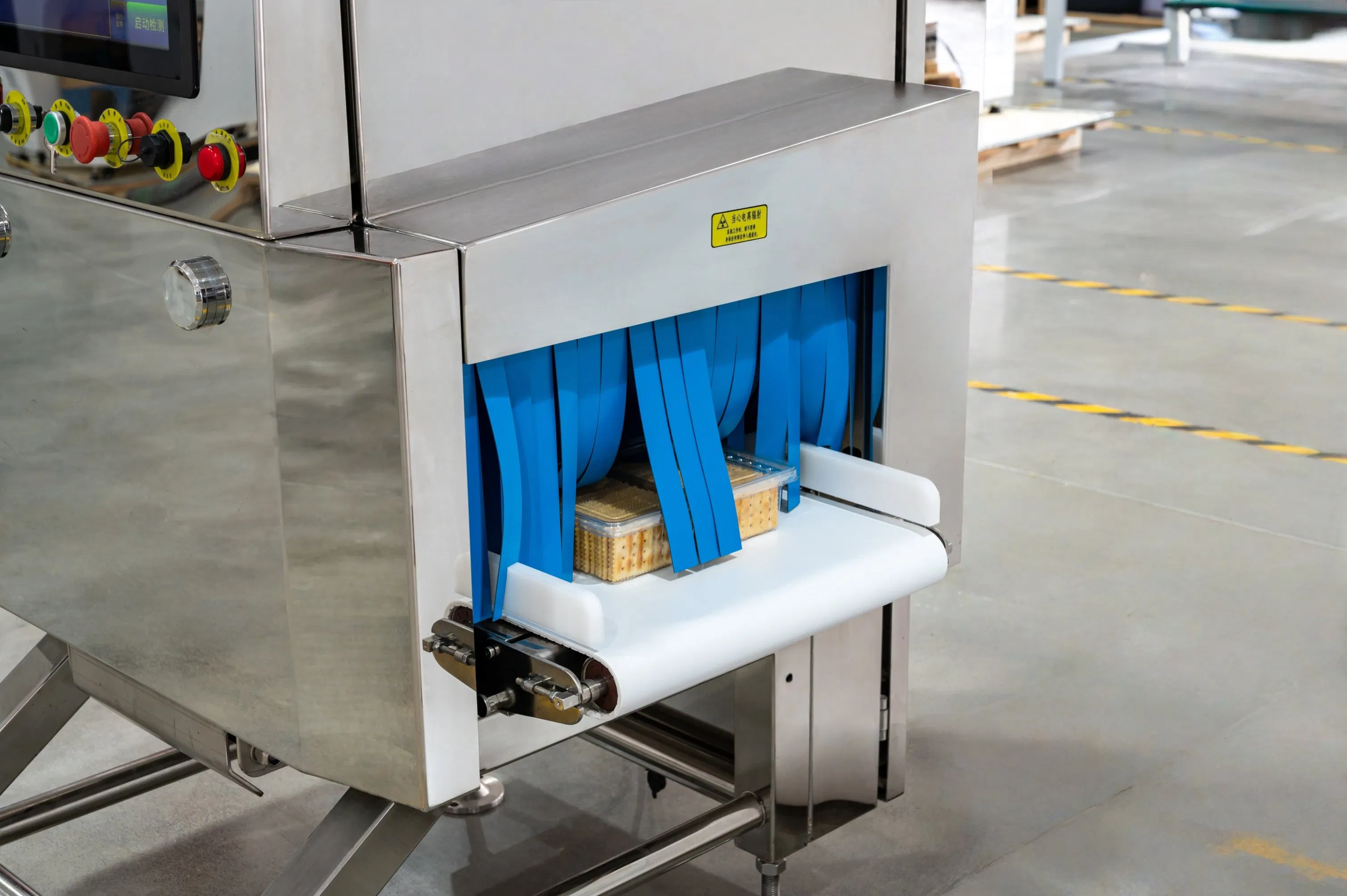

Reliable X-ray Inspection Machine for Lightweight Product Handling

Customization:	Available
After-sales Service:	Online
Warranty:	12 Months

Send Inquiry

Product Description

Basic Info

Model NO.

MY-XD-4016

Portable

Non Portable

Form

Flatbed

Application

Industrial

Type

Conveying X-ray Detector

Certification

CE, ISO

Customized

Alarm Form

Sound and Light Alarm

Display

17-Inch Touch Screen

Conveyor Speed

5~60m/Min

Max Product Weight

10kg

Protection

Conveyor IP66, Other Parts IP40

Specification

SUS304

HS Code

9022199090

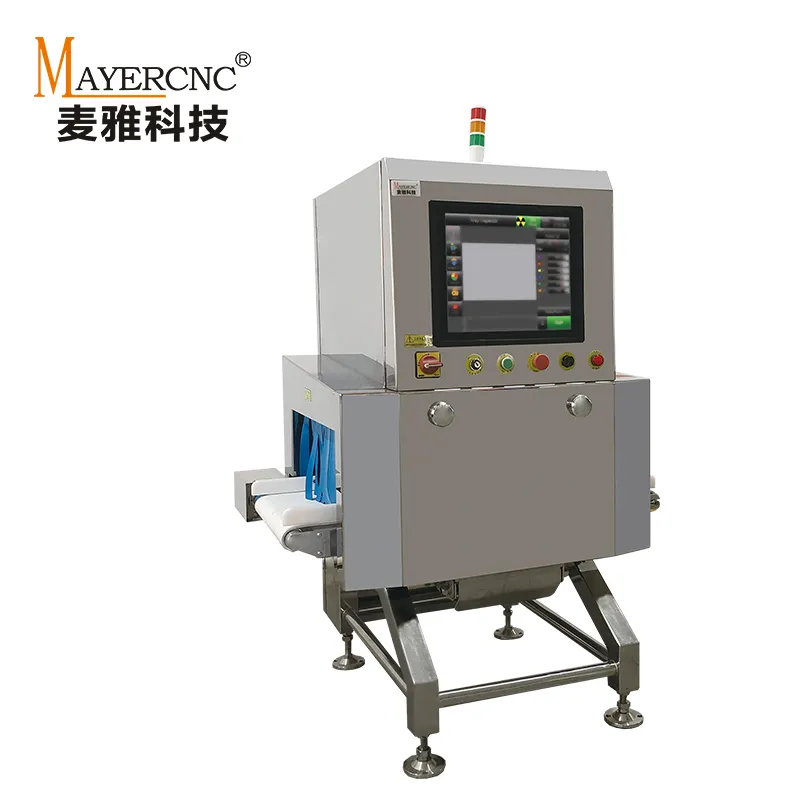

Product Description

X-ray metal detectors are critical safety equipment in modern food production lines. Its core function is to use the penetrating power of X-rays to efficiently detect various physical foreign matter mixed in food. It not only includes all metals such as iron, stainless steel, copper, and aluminum, but can also effectively identify non-metallic impurities such as glass, ceramics, gravel, hard plastic, and high-density bones.

Specially designed for small and medium-sized packaged dairy products, snack foods, meat products, baked goods, quick-frozen products, and fruit and vegetable products.

Key Features & Benefits

High-Precision Inspection: Detects metallic and non-metallic objects like glass, ceramics, stone, and high-density bone using advanced X-ray absorption analysis.

Efficient Automation: Non-destructive testing integrated with automatic rejection systems for real-time removal of defective products.

Wide Adaptability: Suitable for cans, glass bottles, and aluminum foil packaging across food and pharmaceutical industries.

AI Algorithm: Intelligent guided learning for new products. Customized AI algorithms precisely match specific products to improve accuracy.

Remote Connectivity: 4G wireless connectivity for rapid remote technical support and automated fault alerts.

Technical Specifications

Model Number	MY-XD-2412	MY-XD-4016
Ray source	150W	210W
Detection accuracy	Stainless steel ball: 0.3mm, wire: 0.2*2mm, ceramic glass: 1.0mm
Operating system	Linux
Display	17-inch touch LCD screen
Conveyor speed	5~60m/min
Max Product Weight	5Kg	10Kg
Max Product Dimensions	240mm (W) x 120mm (H)	400mm (W) x 160mm (H)
Power supply	AC220V, 50Hz-60Hz
Material	304 Stainless Steel

Main Product Portfolio

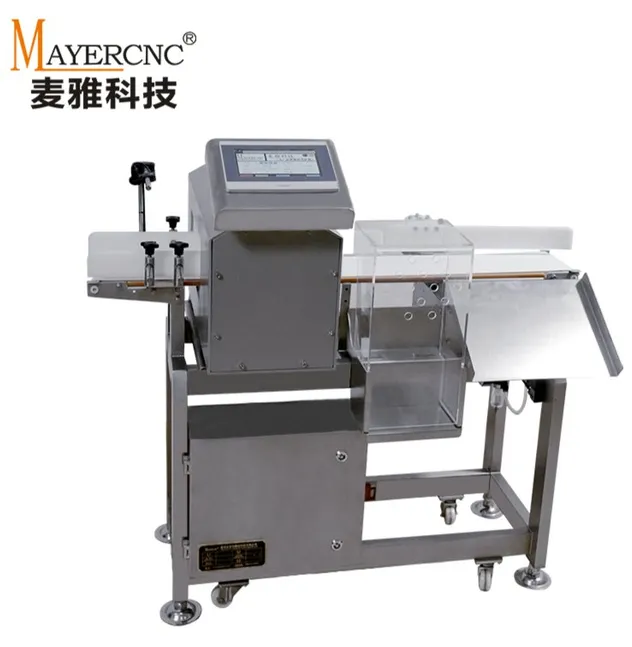

Online Conveyor Metal Detector

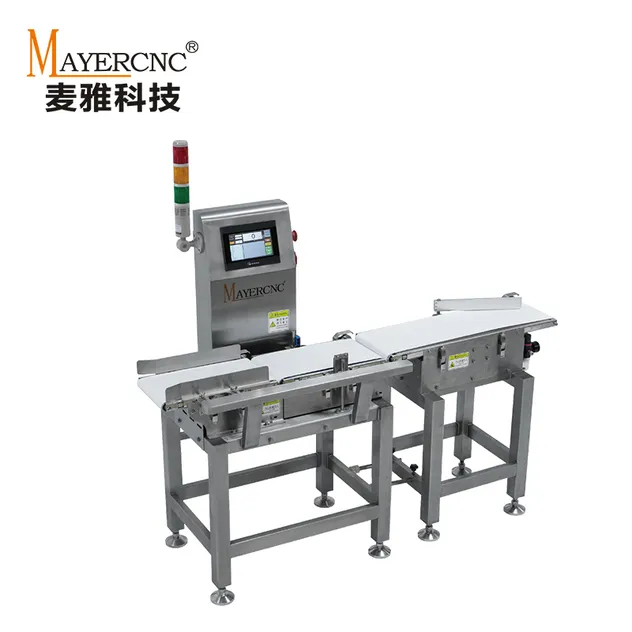

Checkweigher

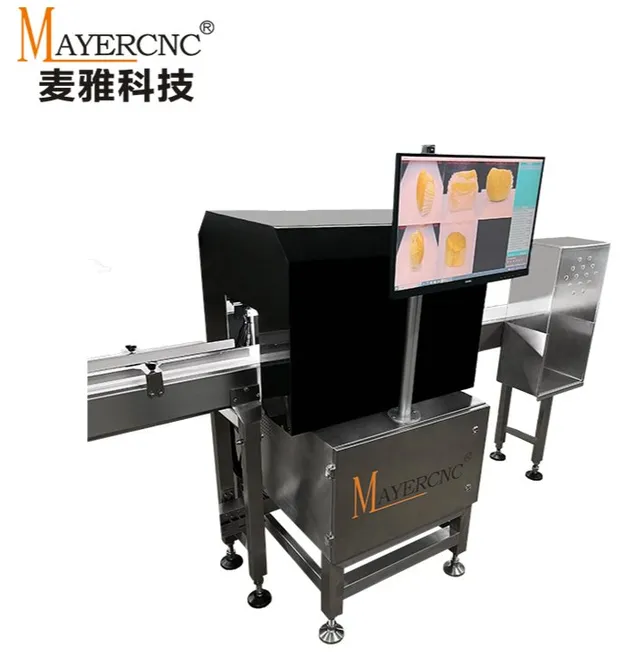

Visual Inspection System

Frequently Asked Questions

Are you a manufacturer?

Yes, we have 18 years of production experience dedicated to professional design and production of testing equipment.

What are your main products?

Our main products include metal detectors, checkweighers, X-ray foreign body detection systems, vision inspection systems, and laser marking machines.

Do you accept customization?

All of our products can be customized according to customer requirements and product characteristics.

How do I operate the machine?

The machines feature LCD displays with multilingual menus (Chinese/English) for easy operation according to the instruction manual.

What is the warranty period?

The warranty period for our equipment is one year.

Do you provide technical assistance after delivery?

Yes, our technicians can remotely assist with machine installation and provide training. We offer online technical support and instant communication.
