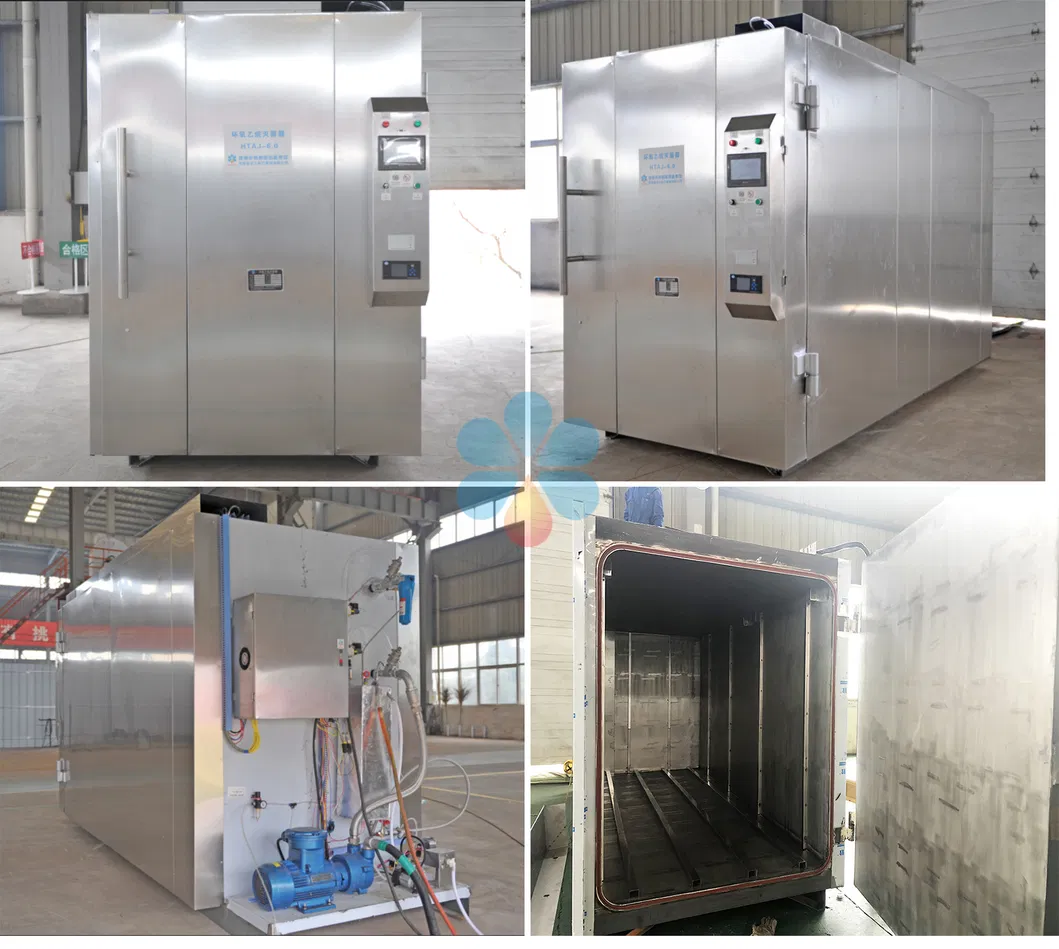

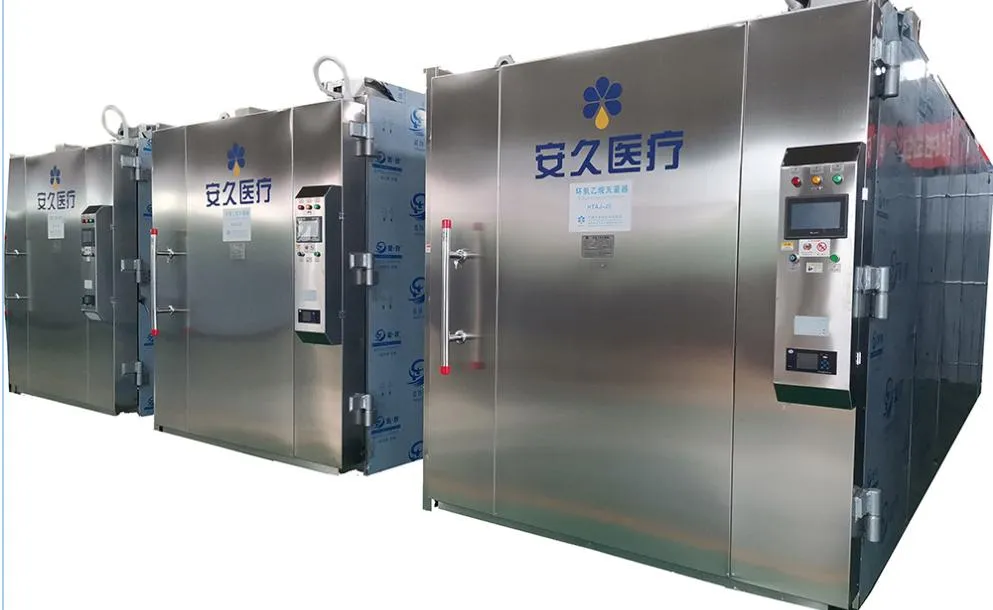

The HTAJ series ethylene oxide sterilizer is designed based on the advantages of similar products worldwide, utilizing advanced computer technology, automation technology, welding technology, and precise process design. This intelligent all-in-one machine features one-button operation, divided into three critical stages:
Reaching the optimal environment before sterilization.
Adjustable sterilization time for maximum efficiency.
Compulsory elimination of gas residuals with adjustable cycles.

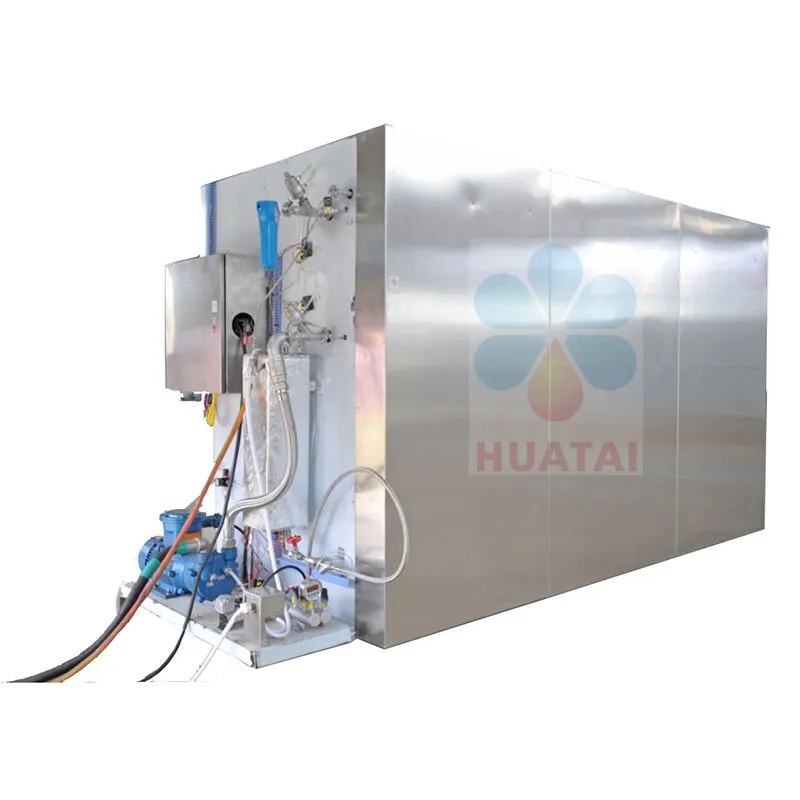

1. Power: Connect the main wire from the power distribution cabinet.
2. Air Supply: Connect the air hose to the air compressor or tank.
3. Water Inlet: Connect the water inlet pipe to the water supply.
4. Drainage: Connect water and air drainage pipes to the sewage outlet.
5. Overflow: Connect the overflow pipe to the sewage outlet.
6. Dosing: Connect the stainless steel dosing pipe to the ethylene oxide bottle.
| Model | HTAJ-2cube | HTAJ-3cube | HTAJ-6cube |
|---|---|---|---|
| Rated Power | 9KW | 12KW | 18KW |
| Liner Size (L*W*H mm) | 1500*1000*1400 | 1700×1200×1500 | 3000*1200*1700 |
| Outer Size (L*W*H mm) | 2400*1300*1800 | 2600×1500×1900 | 3950×1570×2190 |
| Working Pressure | -60Kpa~0 | -60Kpa~0 | -60Kpa~0 |
| Working Temperature | 30ºC~50ºC | 30ºC~50ºC | 30ºC~50ºC |
| Weight | 1500kg | 2000kg | 3200kg |
| Model | HTAJ-10cube | HTAJ-15cube | HTAJ-20cube |
|---|---|---|---|
| Rated Power | 24KW | 30KW | 35KW |
| Liner Size (L*W*H mm) | 4000*1500*1800 | 5800×1500×1800 | 6000*1750*1950 |
| Outer Size (L*W*H mm) | 4950*1870*2350 | 6750×1870×2350 | 6950×2120×2450 |
| Sterilization Time | 3-99 hrs | 3-99 hrs | 3-99 hrs |
| Chamber Material | SS304 | SS304 | SS304 |
| Weight | 4600kg | 6500kg | 8000kg |
Place in well-ventilated areas away from fire sources. Reserve 51cm of space on all sides for maintenance.
Store below 40ºC in ventilated areas. Avoid ignition sources and static electricity. Training is mandatory for staff.
