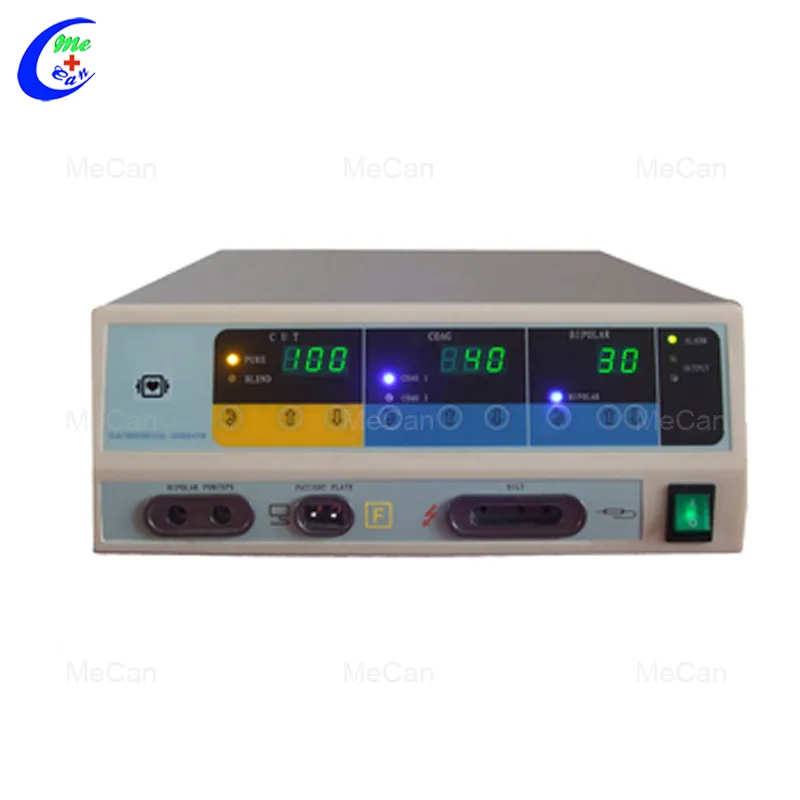

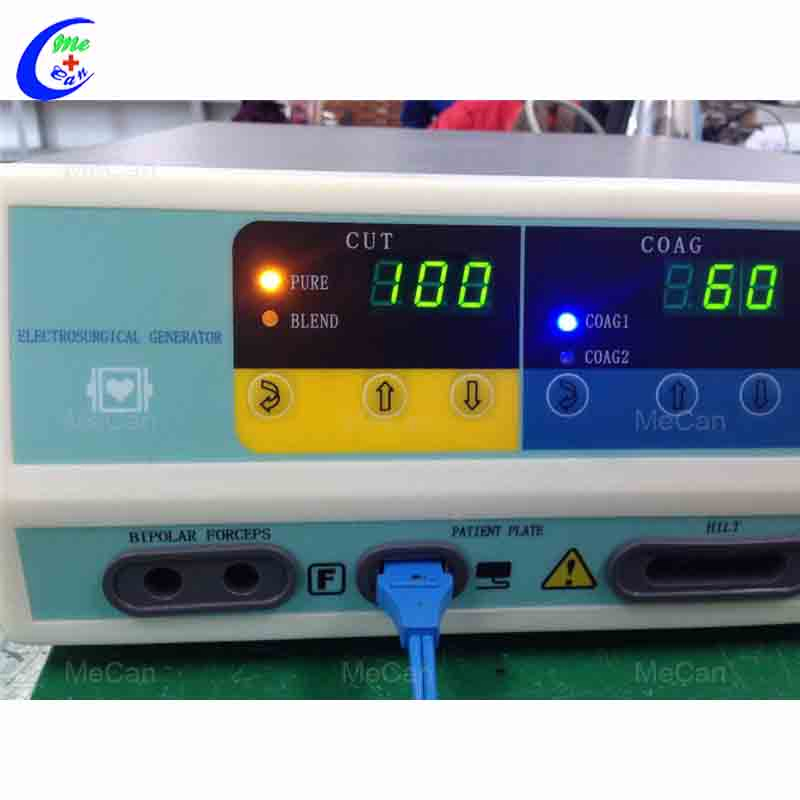

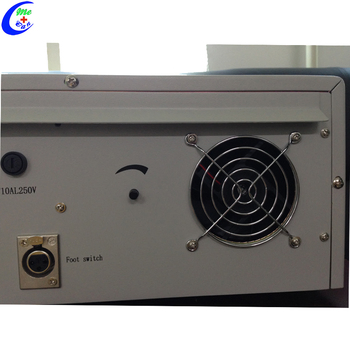

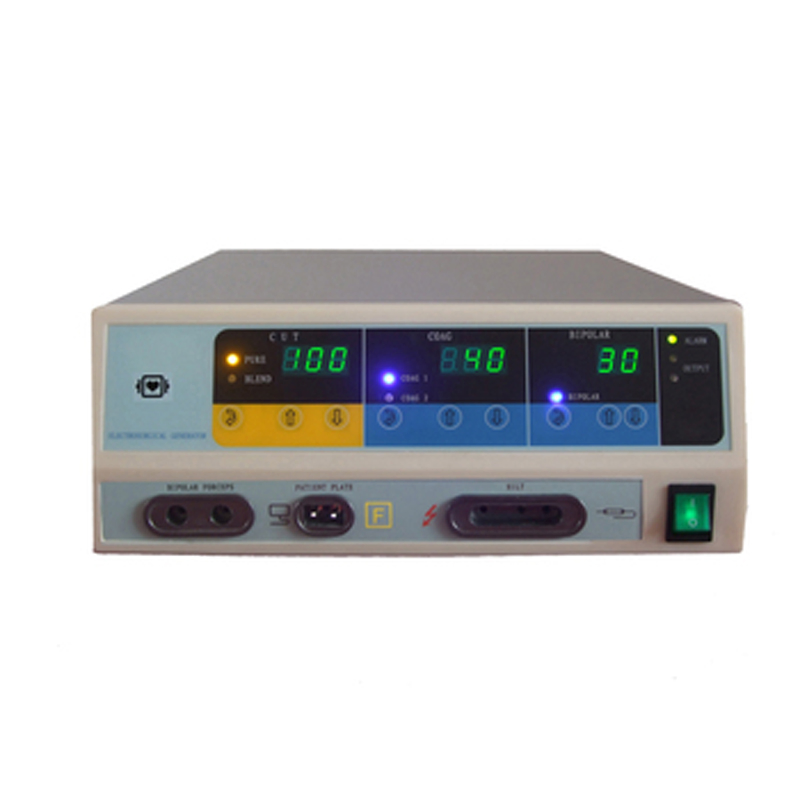

Electrosurgical Generator Portable Surgical Diathermy, High Frequency Electrosurgical Unit
Electrosurgical Generator Portable Surgical Diathermy, High Frequency Electrosurgical Unit
Electrosurgical Generator Portable Surgical Diathermy, High Frequency Electrosurgical Unit
Electrosurgical Generator Portable Surgical Diathermy, High Frequency Electrosurgical Unit
Electrosurgical Generator Portable Surgical Diathermy, High Frequency Electrosurgical Unit
1 / 5
Electrosurgical Generator Portable Surgical Diathermy, High Frequency Electrosurgical Unit
Electrosurgical Generator Portable Surgical Diathermy, High Frequency Electrosurgical Unit
Electrosurgical Generator Portable Surgical Diathermy, High Frequency Electrosurgical Unit
Electrosurgical Generator Portable Surgical Diathermy, High Frequency Electrosurgical Unit
Electrosurgical Generator Portable Surgical Diathermy, High Frequency Electrosurgical Unit

Electrosurgical Generator Portable Surgical Diathermy, High Frequency Electrosurgical Unit

Customization: Available
Type: Electric Surgical Unit
Application: Orthopedic, Anorectal, Urology, General Surgery, Cardiology, Gyne
Send Inquiry

Product Description

📋 Basic Information
Model NO.
MCS0013
Feature
Reusable
Certification
CE
Group
Adult
Product Name
Electrosurgical Unit
Applications
General Surgery, Orthopedic, Cardiology, Gyne
Electrosurgical Generator
Max 300W with Mono-Polar and Bipolar Function
Bipolar Coagulation
1W~50W( Load 200Ω)
Five Working Modes
Pure Cut, Blend, Spray Coag, Forced Coag, Bipolar
Microprocessor Controlled
Digital Display
Protection Against
Over-Voltage and Over-Current
Production Capacity
1000 Pieces / Month
⚡ Electrosurgical Generator Portable Surgical Diathermy

Model: MCS0013

High Frequency Electrosurgical Unit
🌟 Key Features
Max 300W Electrosurgical Generator, with mono-polar and bipolar function.
Five working modes: pure cut, blend, spray coag, forced coag, bipolar coag.
Wide clinical applications: general, thoracic, orthopedic, cardiology, gynecology, urology (under water TUR), etc.
Microprocessor controlled with digital display and audible/visual error indicators.
Return Electrode Monitoring system and Power Peak System to minimize tissue damage.
Dual control: Both hand and foot switch operation supported.
Independent power display and sockets for each mode; individually configurable.
Internal memory stores at least 10 frequently used programs.
Remote control functionality via ESU pencil power control.
Compatible with laparoscopes, endoscopes, and other surgical instruments.
Built-in protection against over-voltage, over-current, and defibrillation.
Meets international safety standards EN60601-1 and EN60601-2.
📊 Technical Parameters
Category Specifications & Range
Mono-polar Cut (Pure)1W~300W (Load 800Ω)
Mono-polar Cut (Blend)1W~200W (Load 800Ω)
Mono-polar Coag (Spray)1W~80W (Load 800Ω)
Mono-polar Coag (Forced)1W~120W (Load 800Ω)
Bipolar Coagulation1W~50W (Load 200Ω)
Power Consumption≤1100VA
Power Supply220V±22V, 50Hz±1Hz (110V±11V, 60Hz)
Operating Frequency512KHz
Power Rating1100VA±10%
🔍 Product Details

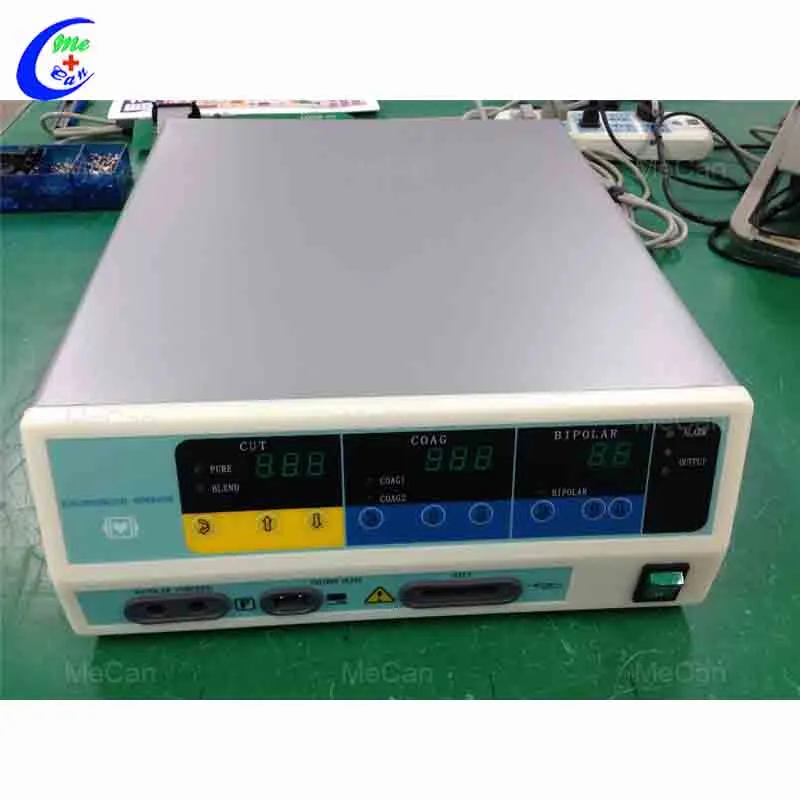

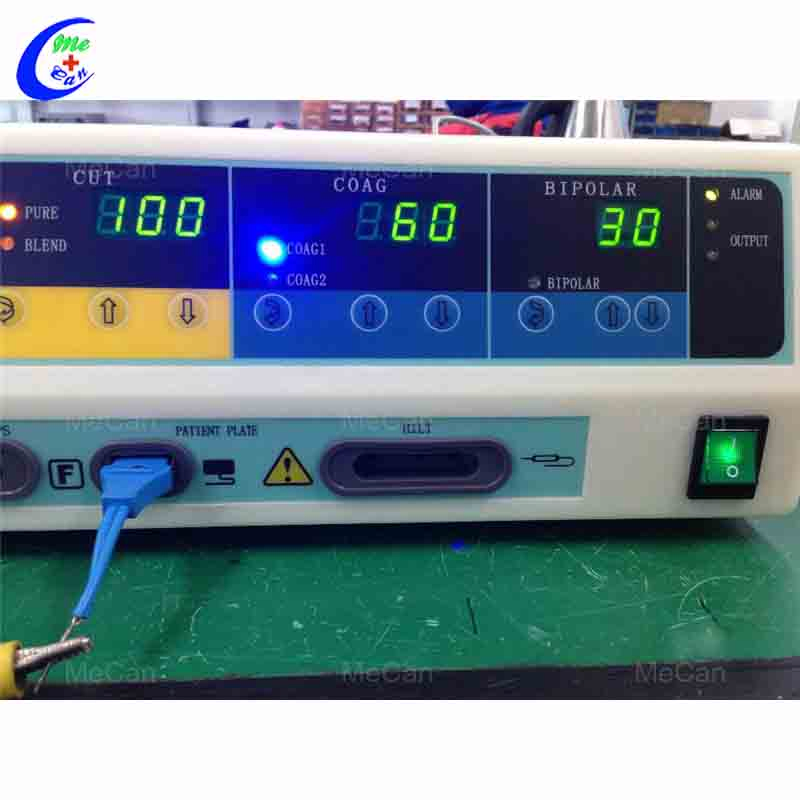

Detail 1

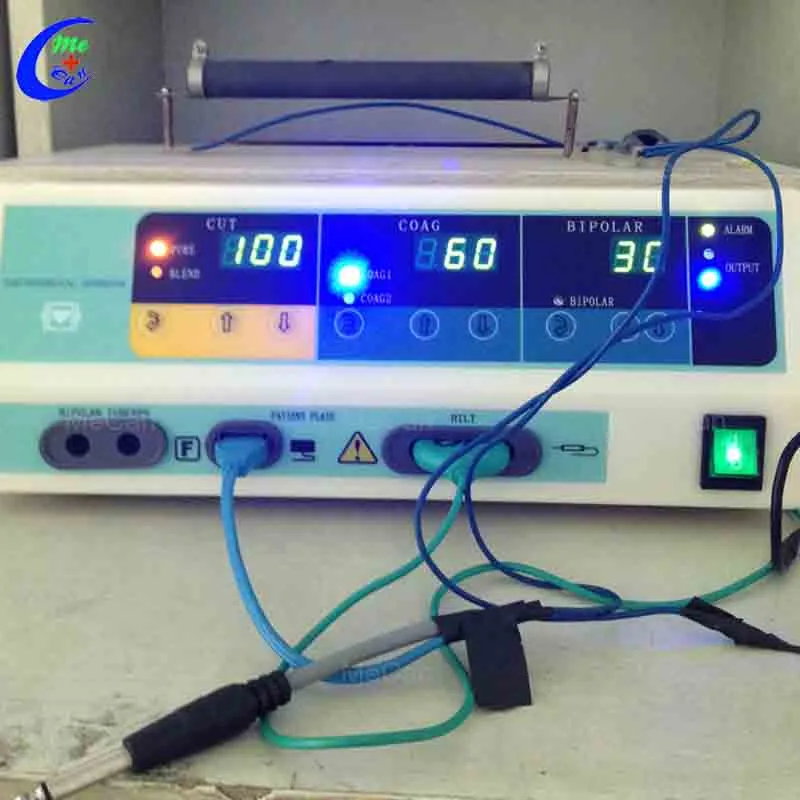

Detail 2

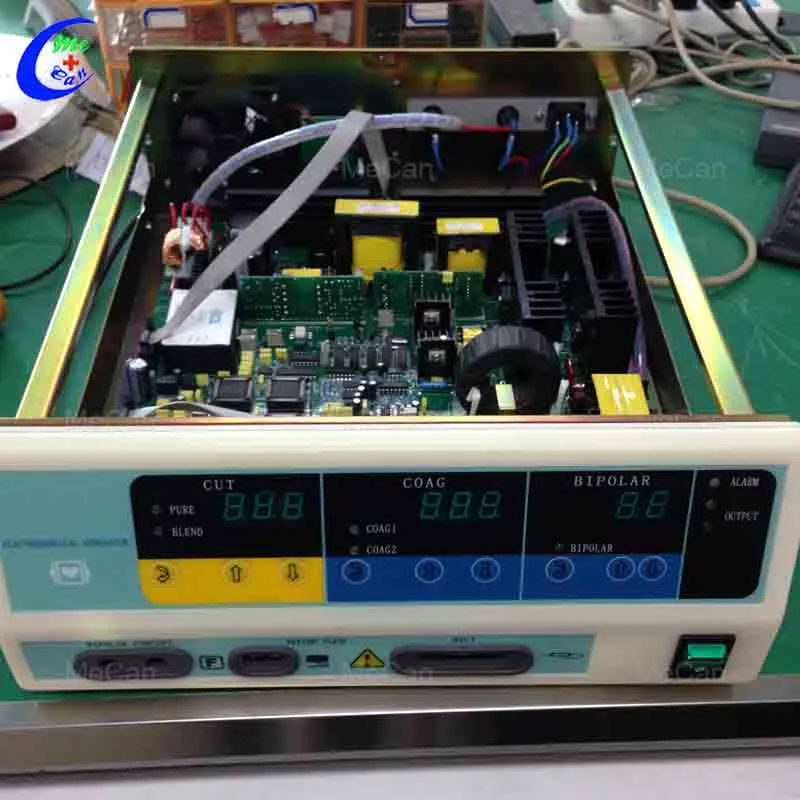

Detail 3
📦 Other Related Products
Other Surgical Products
🏭 Professional Production & Facilities
Facility 1
Facility 2
Facility 3
Facility 4
Facility 5
Frequently Asked Questions
Q1: What are the main working modes of this Electrosurgical Unit?
A: The unit features five professional working modes: Pure Cut, Blend, Spray Coag, Forced Coag, and Bipolar Coagulation, making it suitable for a wide range of surgical needs.
Q2: Can the MCS0013 be used for endoscopic surgeries?
A: Yes, this ESU unit is designed to be compatible with both laparoscopes and endoscopes, providing versatile performance in modern operating rooms.
Q3: What safety features ensure patient and user protection?
A: It is equipped with a Return Electrode Monitoring (REM) system and Power Peak System to minimize tissue damage, along with protection against over-voltage, over-current, and defibrillation.
Q4: Is the power output adjustable during a procedure?
A: Yes, the surgeon can adjust the outputs via a remote control function using a power-controlled ESU pencil or through the digital interface on the main unit.
Q5: Which clinical departments benefit most from this device?
A: It is widely used in general surgery, orthopedic surgery, thoracic surgery, cardiology, gynecology, urology (including underwater TUR), oncology, and neurosurgery.
Q6: Does the device have memory functions for surgical settings?
A: Yes, the microprocessor-controlled system includes a memory feature that can store at least 10 frequently used surgical programs for quick setup and efficiency.
