Product Description

SY-AC048 Portable Color Ultrasound Machine USB Digital Device

Portable Color Ultrasound Machine
📋 Basic Info
Model NO.
SY-AC048
Group
Medical
Warranty
2 Years
Certification
CE
Power Source
Electric
Image Format
JPEG, Dicom
Cine-Loop
1024 Frames
Capacity
500 Sets/Month
⚙️ Technical Specifications
Monitor 6 inch LCD high-resolution (1280*720) full touch screen
Operating System Android
Probe Type 128 elements
Frequency Convex array 2-5MHZ / Linear array 5-10MHZ
Imaging Mode B, C, M, PW, Steer
Grayscale 256 level
Memory 64GB
Battery Built-in 5400mAh (2h continuous scanning)
Wireless WIFI, BLUETOOTH, 3G/4G (LTE, WCDMA/EDGE/GPRS/GSM)
Weight Convex: 570g / Linear: 550g
🏥 Clinical Applications
🔹 Dialysis & Vascular Access
🔹 Pain management & Anesthesia
🔹 Point-of-Care (POC)
🔹 Line Placement (CVC, PICC)
🔹 Emergency & ICU
🔹 General Practitioners
🔹 Urological
🔹 OB/GYN
🔹 Abdominal Imaging
🔹 Primary Care
🔍 Product Details

Image Processing: Line smoothing, Frame smoothing, Transversal filter, Longitudinal filter, Sharpening, Gamma transformation, etc.

Interface: Micro USB2.0, HDMI, 3.5mm headphone jack.

Languages: Over 60 different languages supported including English, Spanish, German, Russian, Portuguese, Turkish, Polish, Italian, etc.

Measurement Tools: Length, Area, Arrow, Angle, Perimeter, Text.

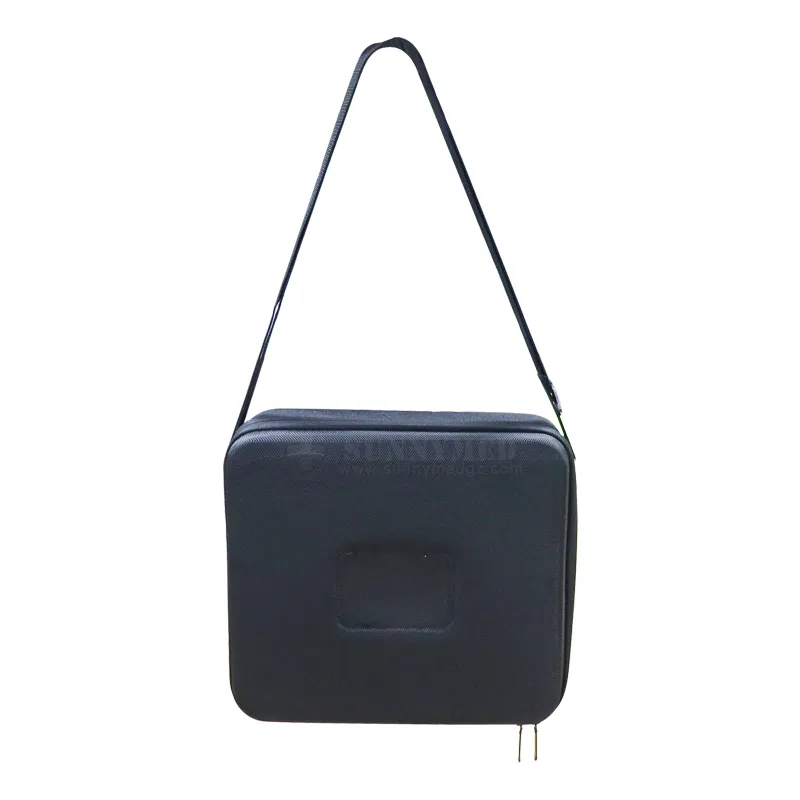

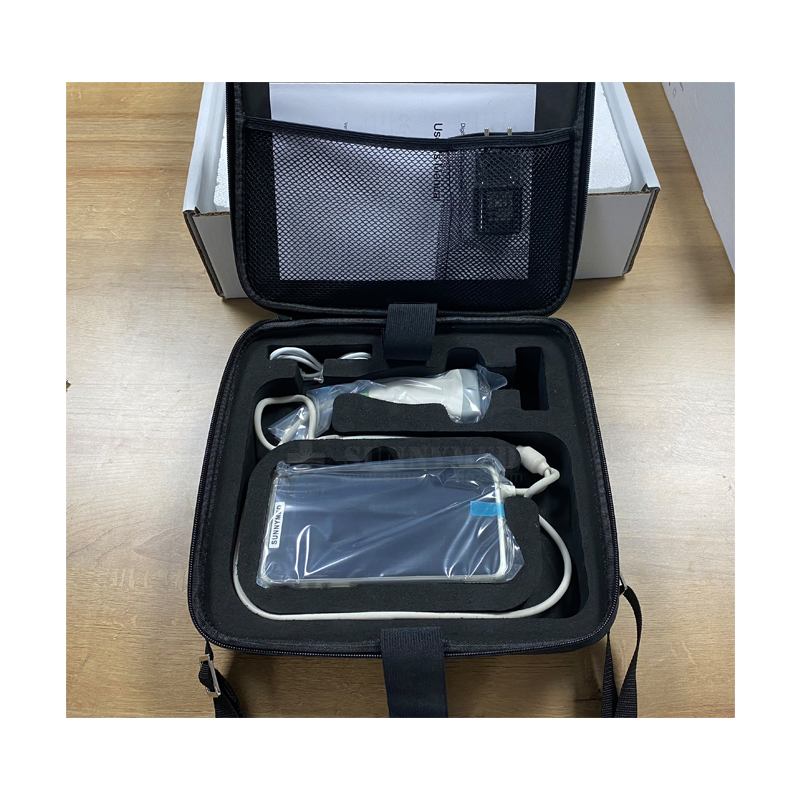

Standard Configuration: Main unit (Monitor and 1pc Transducer included), USB wire, Adapter, Carrying bag.

📸 Product Gallery
Ultrasound Detail 1
Ultrasound Detail 2
Ultrasound Detail 3
Ultrasound Detail 4
❓ Frequently Asked Questions
🔹 What is the screen size and type?
The device features a 6-inch high-resolution (1280*720) LCD full touch screen for clear image visualization and easy operation.
🔹 Which imaging modes are supported?
It supports multiple imaging modes including B, C (Color Doppler), M, PW (Pulse Wave Doppler), and Steer mode.
🔹 How long does the battery last?
The built-in 5400mAh battery provides up to 2 hours of continuous scanning, making it ideal for point-of-care applications.
🔹 What image formats can be exported?
The system supports standard medical imaging formats including JPEG and DICOM for seamless integration with hospital systems.
🔹 Is the device compatible with wireless networks?
Yes, it features built-in WIFI and Bluetooth, and supports 3G/4G (LTE/WCDMA) for data transmission and cloud file management.
🔹 What is included in the standard package?
The standard configuration includes the main unit (Monitor and 1pc Transducer), a USB wire, an adapter, and a protective carrying bag.
