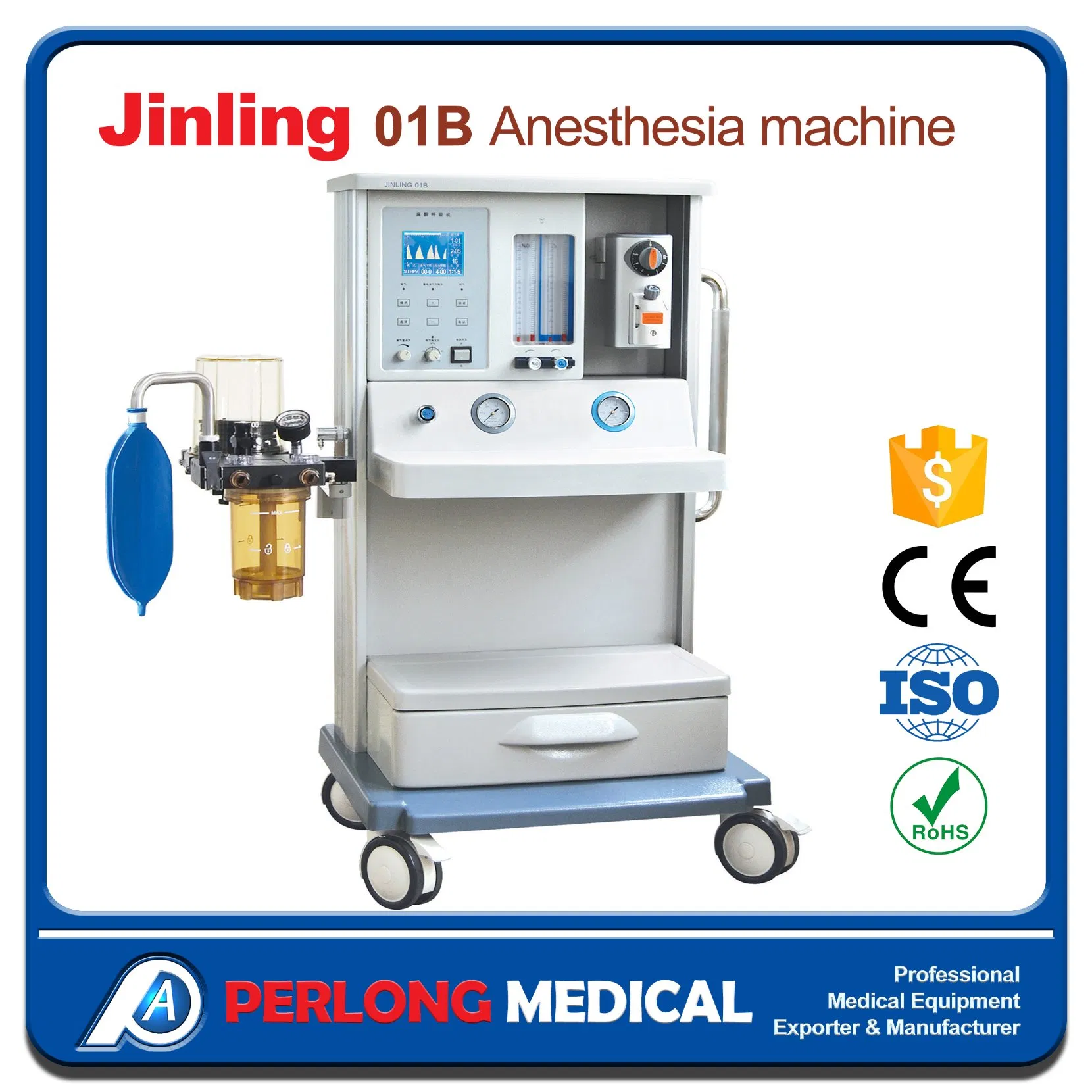

New Arrival Portable Anesthesia Machine Manufacturer with Low Price

Customization:	Available
Type:	Anaesthesia Machine
Kind:	Surgery & ICU Equipment

Send Inquiry

Product Description

Basic Info

Model NO.Jinling-01(Standard Model)

CertificationISO13485

GroupAdult

LCD DisplayTFT Display

Display Size5.4 Inch TFT

Flowmeter RangeO2: 0.1-10L/Min, N2O: 0.1-10L/Min

Ventilation ModeIPPV, SIPPV, IMV, SIMV, Manual

Back-up PowerAt least 4 Hours

Tidal Volume50-1500ml (Adjustable)

Respiratory Rate1-99bpm

Oxygen Supply25~75L/Min

I:E Ratio4:1-1:10

Sigh1 sigh every 80-160 breaths

Vaporizer SlotsSingle PA-I Type Slot

Transport PackageStandard Export Carton with Foams

Specification660*620*350, 23kg

Product Features

Operating Modes: Pneumatically driven & electronically controlled, offering closed, semi-closed, and semi-open options.
Anesthesia Ventilator: Built-in 5.4 inch TFT display showing Pressure-Time and Frequency-Time waveforms instantly.
Metallic Modular Circuit: Standard integrated design allows for high-temperature disinfection and easy cleaning.
Safety Assurance: Equipped with automated self-checking during startup and an automatic self-calibrating sensor.
High Precision Flowmeter: Four-tube system with interlocking O2-N2O supply to ensure oxygen output is never below 21%.
Emergency Protection: Audio-visual alarms for tidal volume, airway pressure, and power/oxygen failure; automatically switches to backup power.
Advanced Components: Features an infrared turbine flow sensor and a rotating Na-lime tank made of temperature-resistant PPSU material.
Flexible Vaporizer: Supports Enflurane, Isoflurane, and Sevoflurane with self-compensating functionality.

Detailed Specifications

Feature	Economic Model	Standard Model	Advanced Model
Model	JINLING-01B Economic	JINLING-01B Standard	JINLING-01B Advanced
Display	5.4 inch TFT display
Flowmeter Range	O2: 0.1-10L/min; N2O: 0.1-10L/min
Ventilation Mode	IPPV, SIPPV, IMV, SIMV, MANUAL
Back-up Power	At least 4 hours
Tidal Volume	Adjustable: 50-1500ml; Display: 0-2000ml
Respiratory Rate	1-99bpm
Oxygen Supply	25~75L/min
I:E Ratio	4:1-1:10 (Inverse ratio capable)
Vaporizer Slots	Single PA-80 type	Single PA-I type	Double PA-I type
Gas Supply	O2/N2O: 0.32MPa~0.6MPa

Frequently Asked Questions

Q: What ventilation modes are supported by the Jinling-01? A: It supports IPPV, SIPPV, IMV, SIMV, and Manual ventilation modes to suit various clinical needs.

Q: How long does the backup battery last during a power failure? A: The system includes a backup power supply that provides at least 4 hours of operation during AC power outages.

Q: What is the adjustable range for tidal volume? A: The tidal volume can be adjusted from 50ml to 1500ml, with a display range of up to 2000ml.

Q: Does the machine have built-in safety alarms? A: Yes, it features audible and visual alarms for tidal volume, airway pressure, power failure, and oxygen failure.

Q: Can the respiratory circuit be disinfected at high temperatures? A: Yes, the integrated metallic modular circuit is designed to solve gas sealing problems under high-temperature disinfection.

Q: What gas supplies are required for operation? A: It requires O2 and N2O with a supply pressure range of 0.32MPa to 0.6MPa.
