Operation Room Medical Anesthesia Equipment Anesthesia Machine Systems
Operation Room Medical Anesthesia Equipment Anesthesia Machine Systems
Operation Room Medical Anesthesia Equipment Anesthesia Machine Systems
Operation Room Medical Anesthesia Equipment Anesthesia Machine Systems
Operation Room Medical Anesthesia Equipment Anesthesia Machine Systems
1 / 5
Operation Room Medical Anesthesia Equipment Anesthesia Machine Systems
Operation Room Medical Anesthesia Equipment Anesthesia Machine Systems
Operation Room Medical Anesthesia Equipment Anesthesia Machine Systems
Operation Room Medical Anesthesia Equipment Anesthesia Machine Systems
Operation Room Medical Anesthesia Equipment Anesthesia Machine Systems

Operation Room Medical Anesthesia Equipment Anesthesia Machine Systems

Customization: Available
Classification: Physiological Functions of Diagnosis and Monitoring Equipment
Certification: CE, ISO13485
Send Inquiry

Product Description

i

Basic Information

Model NO.FN-201A
GroupMiddle-aged and Old
CertificateCE
ServiceOne-Stop Solution
OEMAccept OEM
UsageHospital Medical
Transport PackageWooden Case
SpecificationStandard
OriginChina
★

Product Overview

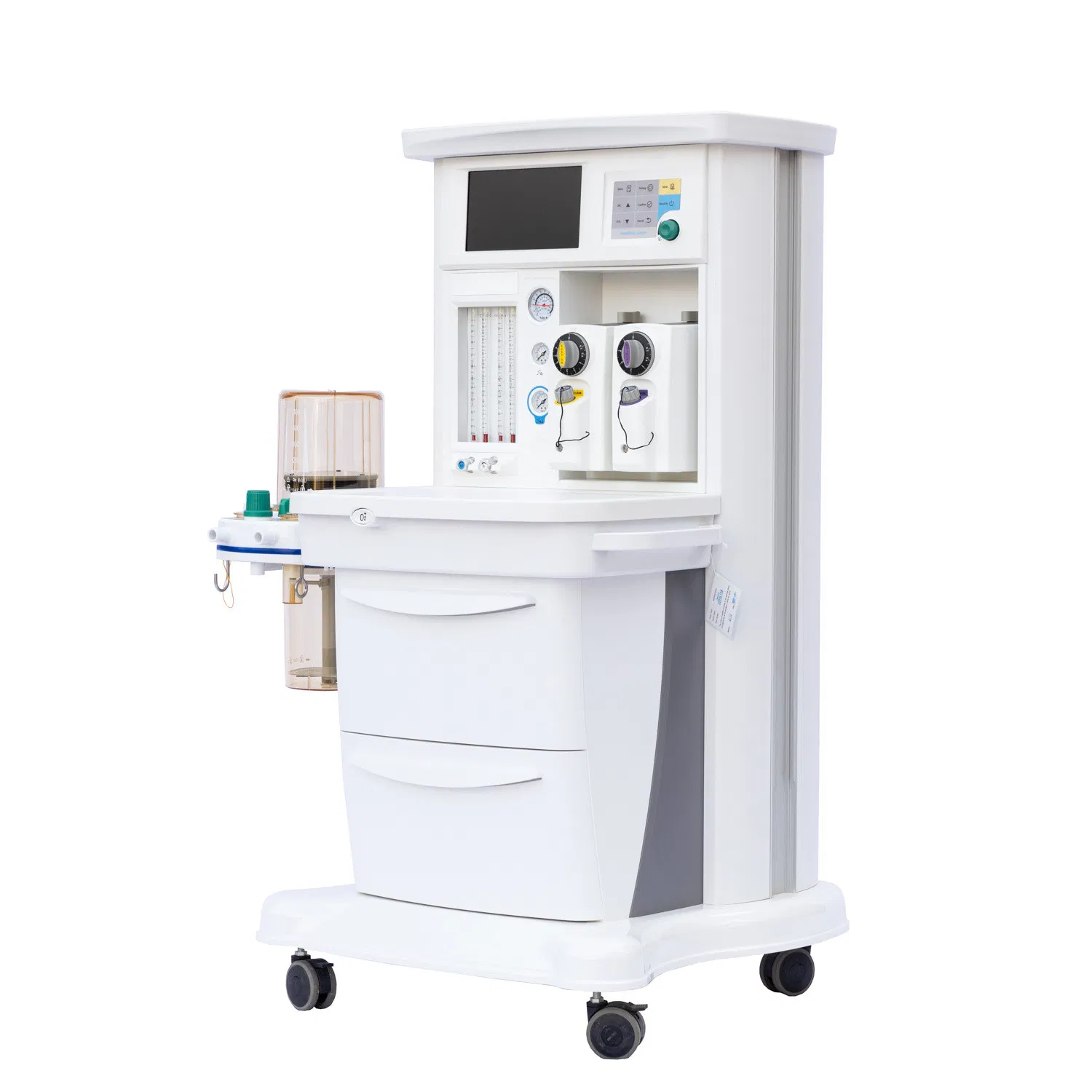

Anesthesia Machine

This medical anesthesia equipment is designed for modern operation rooms, providing a comprehensive one-stop solution for surgical environments. With 18 years of manufacturing experience and multiple production bases covering 160,000 square meters, these systems are built to meet high-grade clinical standards.

Main Product Scope:

Covers surgical equipment, X-ray machines, Patient Monitors, Ultrasound Scanners, Sterilizers, and Dental Equipment.

Global Reach:

Exporting to more than 100 countries across Asia, Africa, and the Americas, supporting over 2,000 hospitals worldwide.

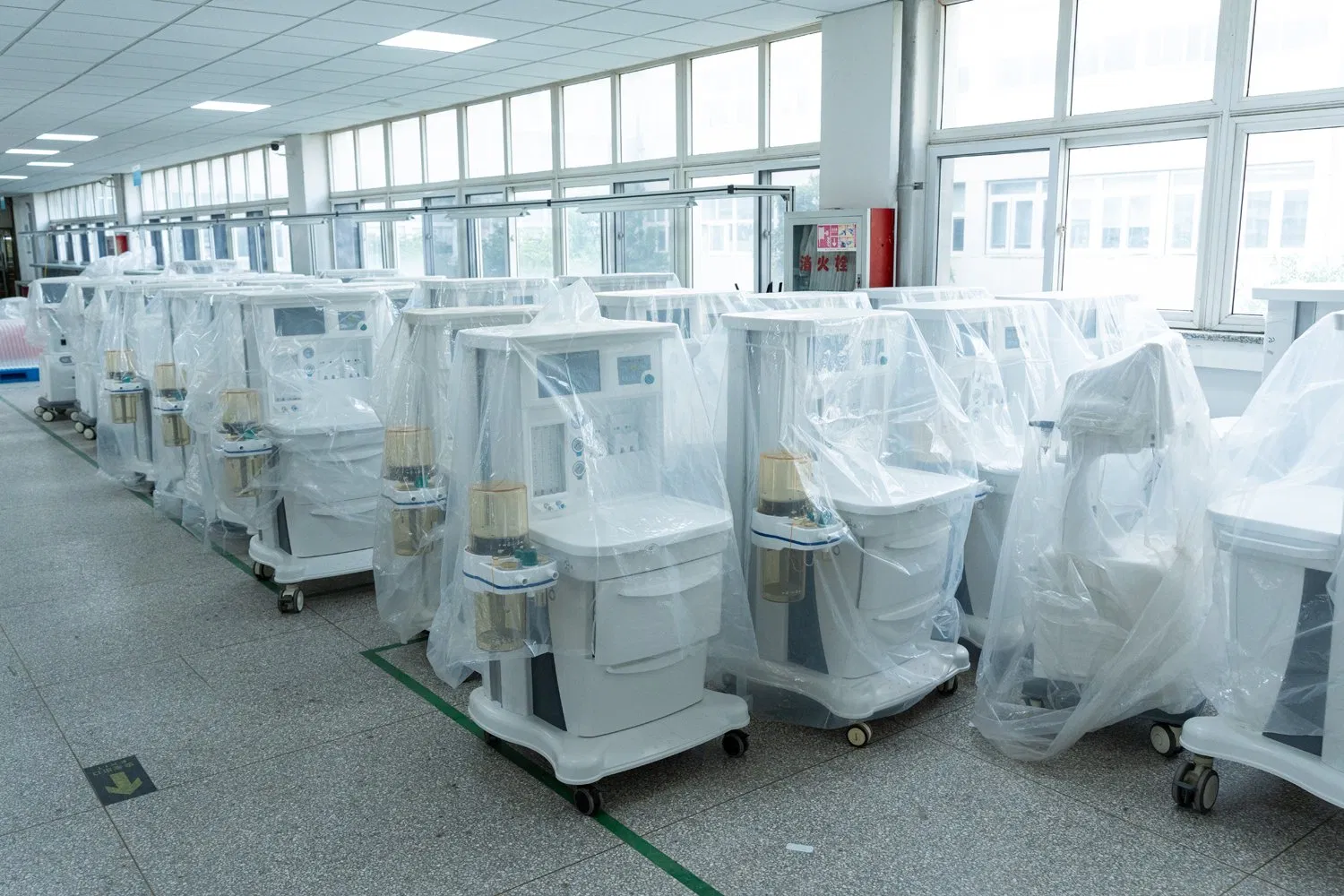

Manufacturing Support
⚙

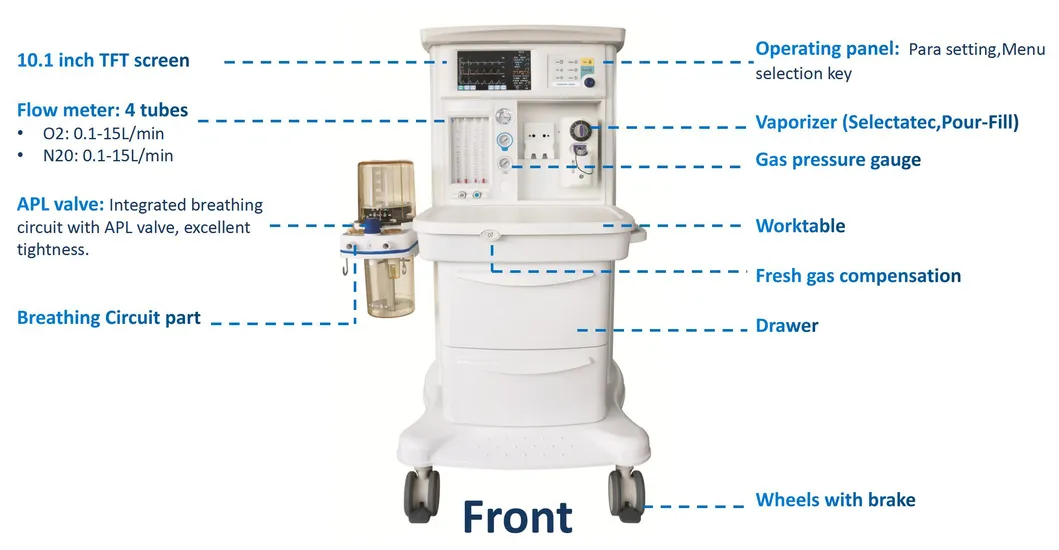

Technical Features

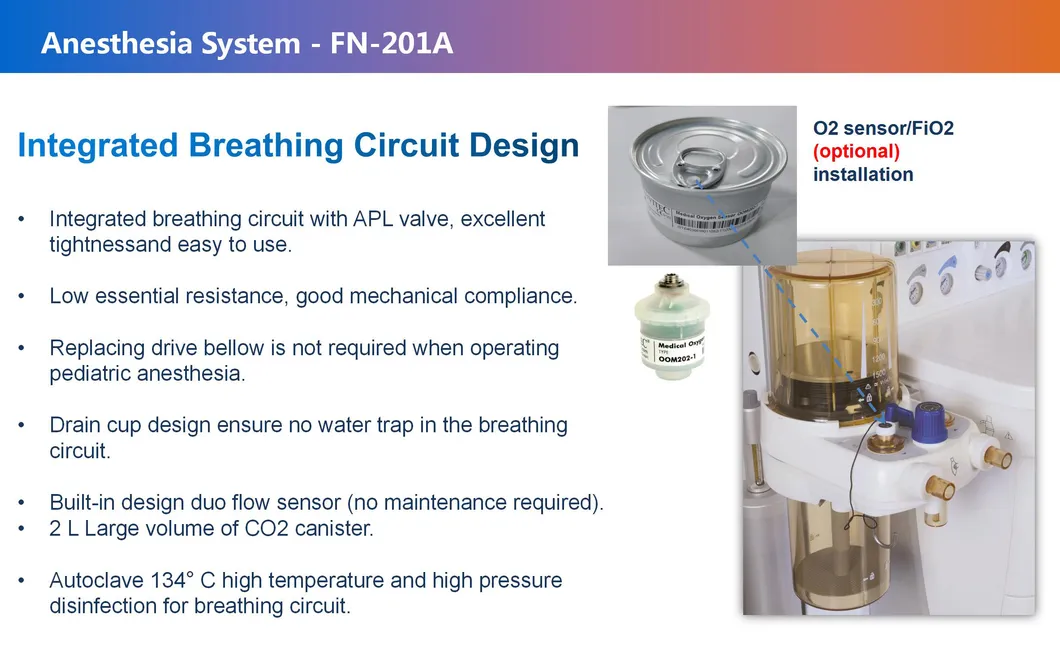

  • Integrated breathing circuit with APL valve, excellent tightness.
  • Replacing drive bellow is NOT required when operating adult/pediatric anesthesia.
  • Applied with 1 high-precision vaporizer (Selectatec).
  • 10.1 inch large LCD screen for real-time monitoring.
  • Real-time detection for loops, Paw, BPM, VT, and compliance.
  • Comprehensive monitoring: ventilation parameters, preset alarms, and breathing waveforms.
  • ACGO available to connect with T/Bain circuit for open operation (Optional).
Anesthesia Machine Systems
📋

Specifications

Physical Specs

Dimensions: 70*85*140cm
Weight: 65kg
Casters: Front wheels with lock
Screen: 10.1 inch LCD

Power & Supply

Power: AC 110V-240V, 50Hz/60Hz
Battery: ≥180 mins

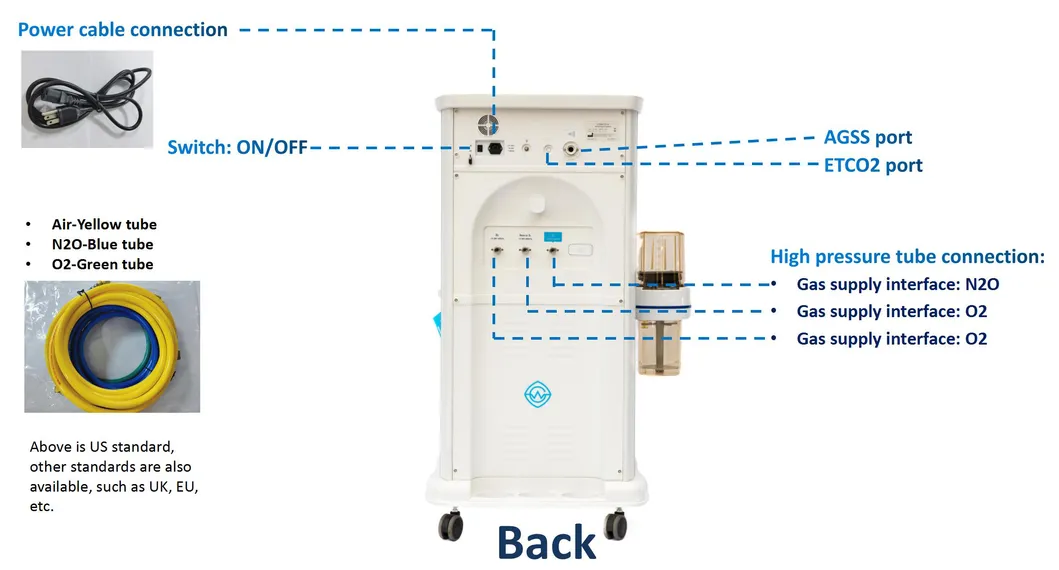

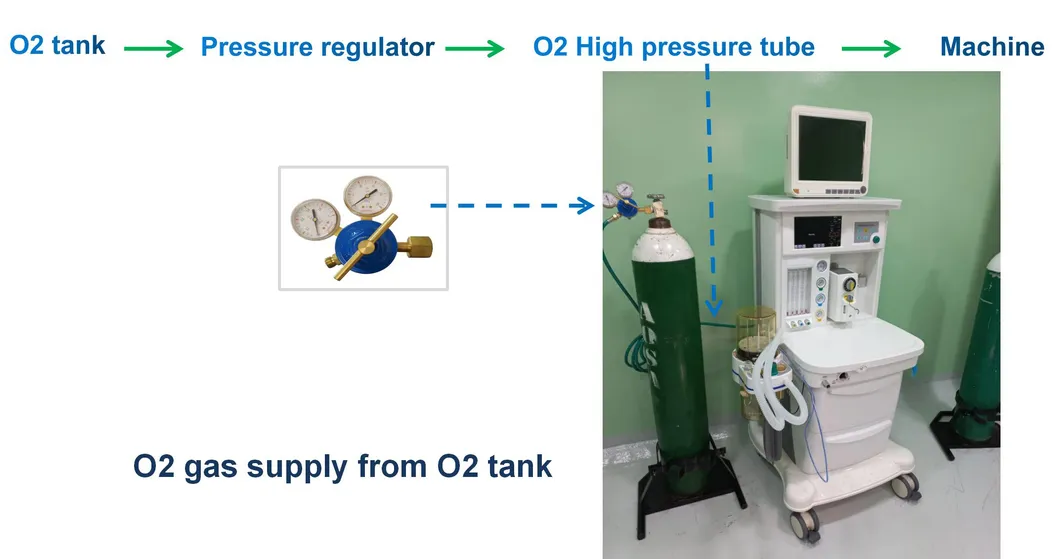

Gas Configuration: O2, N2O, Air(Optional)

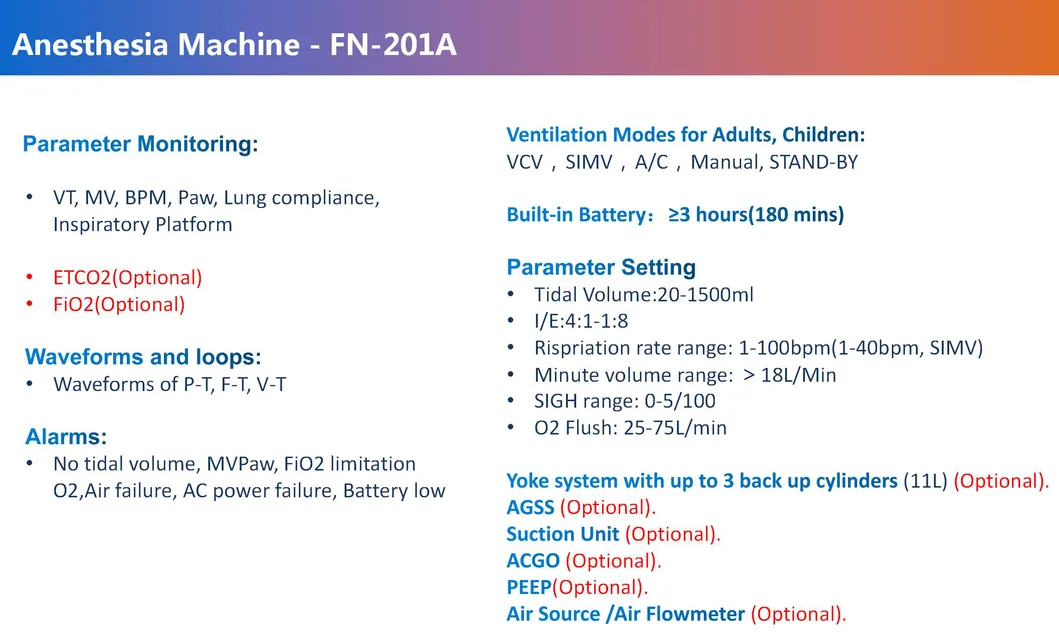

Ventilator Modes

VCV (Volume Control), SIMV, Manual, STAND-BY, A/C (Assist/Control)

System Performance

Tidal Volume20-1500ml
Pressure Range5-60cmH2O
Respiration Rate1-100bpm
I:E Range4:1-1:8
Safety Valve< 12.5Kpa
📷

Product Details & Logistics

Feature 1 Feature 2 Feature 3
Feature 4 Feature 5
Certification Packaging
?

Frequently Asked Questions

1. What patient range does this anesthesia machine support?
The system is designed for both adult and pediatric patients. Replacing the drive bellow is not required when switching between these patient groups.
2. What are the key ventilation modes available?
It supports multiple modes including VCV (Volume Control Ventilation), SIMV (Synchronized Intermittent Mandatory Ventilation), A/C (Assist/Control), and Manual modes.
3. How long is the backup battery life?
The integrated battery power provides ≥180 minutes of continuous operation in case of an AC power failure.
4. Does the machine include a monitoring screen?
Yes, it features a 10.1-inch LCD screen that displays real-time graphics including waveforms of P-T, F-T, and V-T.
5. What safety systems are integrated into the device?
The machine includes a hypoxic guard system (N2O cut-off valve), O2 concentration monitoring (>25%), a safety valve (<12.5Kpa), and various audio/visual alarms.
6. Is OEM manufacturing supported?
Yes, we welcome OEM manufacturing and have extensive experience in customizing products with your own logo and branding.
