Medical Endoscopy System Olympus Electronic Gastroenteroscope CV170/290
Medical Endoscopy System Olympus Electronic Gastroenteroscope CV170/290
Medical Endoscopy System Olympus Electronic Gastroenteroscope CV170/290
Medical Endoscopy System Olympus Electronic Gastroenteroscope CV170/290
Medical Endoscopy System Olympus Electronic Gastroenteroscope CV170/290
1 / 5
Medical Endoscopy System Olympus Electronic Gastroenteroscope CV170/290
Medical Endoscopy System Olympus Electronic Gastroenteroscope CV170/290
Medical Endoscopy System Olympus Electronic Gastroenteroscope CV170/290
Medical Endoscopy System Olympus Electronic Gastroenteroscope CV170/290
Medical Endoscopy System Olympus Electronic Gastroenteroscope CV170/290

Medical Endoscopy System Olympus Electronic Gastroenteroscope CV170/290

Customization: Available
Type: Electrosurgical
Application: Emr-ESD-Ercp
Send Inquiry

Product Description

i

Basic Information

Model NO.
CV170/290
Feature
Reusable
Group
Children and Adult
Function
Flexible
Language
Multi Language
Imaging
Evis Lucera Elite
Trademark
Olympus
Origin
Japan
D

Product Description

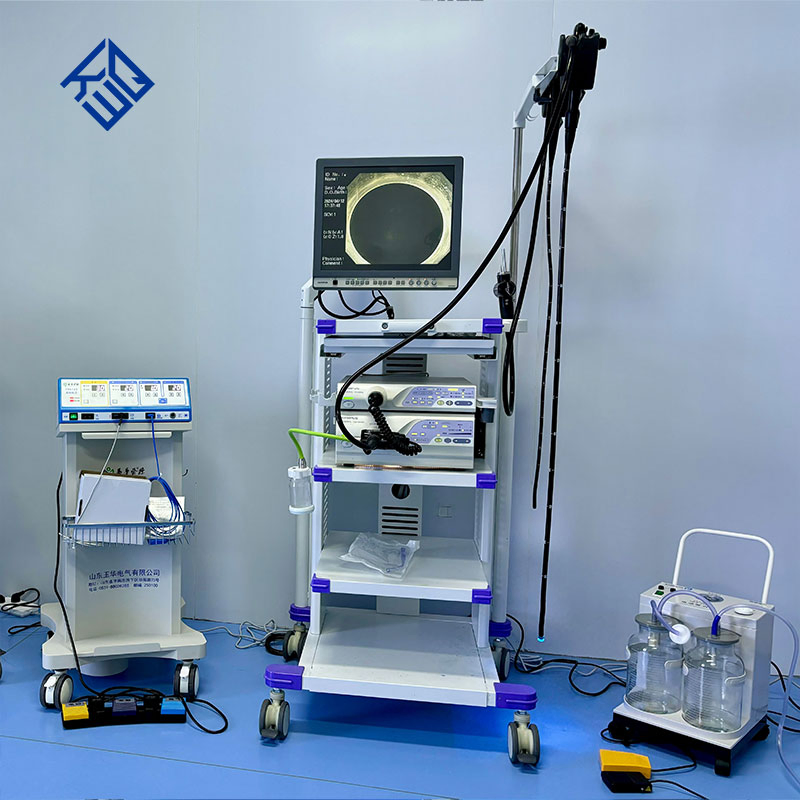

Medical Endoscopy System

CV-290 + CLV-290SL + GIF-HQ290 + CF-HQ290I

A New Standard for High-definition Upper Gastrointestinal Tract Endoscopes with Further Improved Approachability and Operability.

F

Product Features

Feature 1
Feature 2
Feature 3

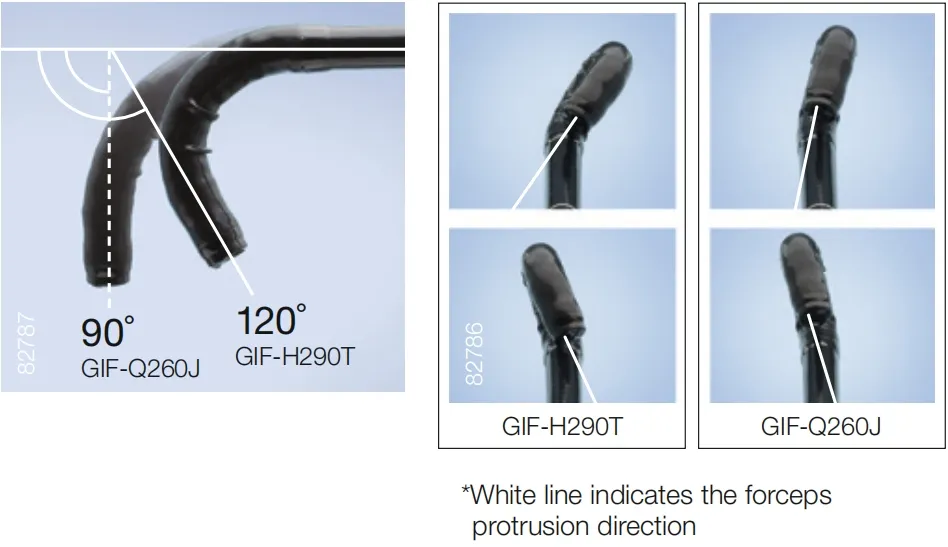

Improved Approach to Lesion

The down angle of the GIF-H290T expanded to 120˚ from 90˚. Moveable range in up angle position is extended for easier approach.

Supports Rapid Hemostasis

Improved position of the auxiliary water channel close to the instrument channel supports hemostasis without adjustment.

HD Images Support

Equipped with a high-definition CCD, providing high-resolution HD images to improve treatment accuracy.

P

Product Parameters

Optical System Field of view 140º
Direction of view 0° (Forward viewing)
Depth of field 3-100 mm
Insertion Section Distal end outer diameter 9.8 mm
Insertion tube outer diameter 9.9 mm
Working length 1030 mm
Minimum visible distance 3 mm
Bending Section Angulation range Up 210º / Down 120º / Right 100º / Left 100º
Compatible System Video System Center CV-290, Xenon Light Source CLV-290SL / CLV-290

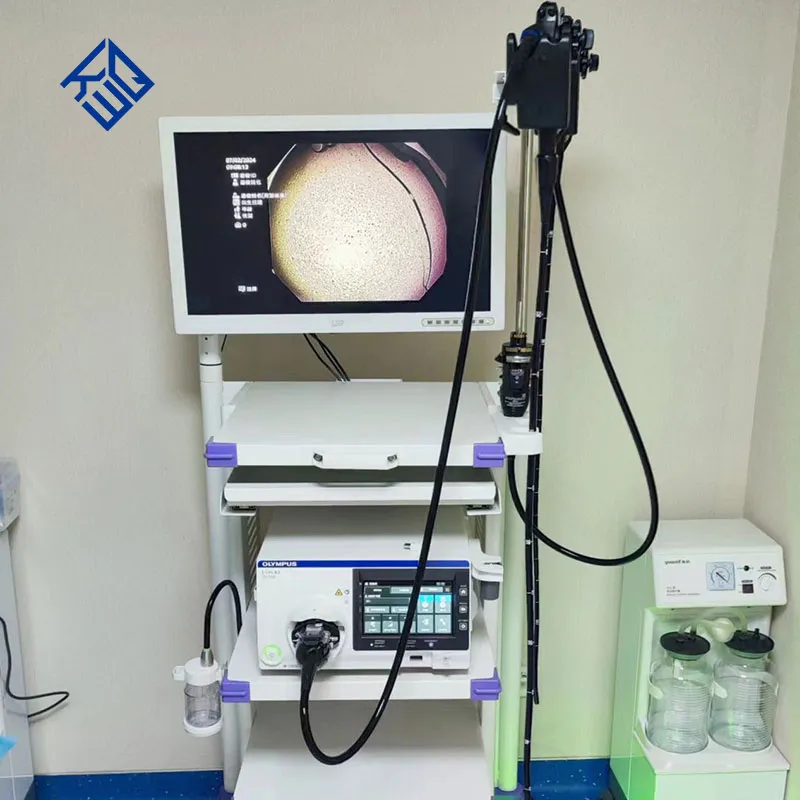

Detail 1

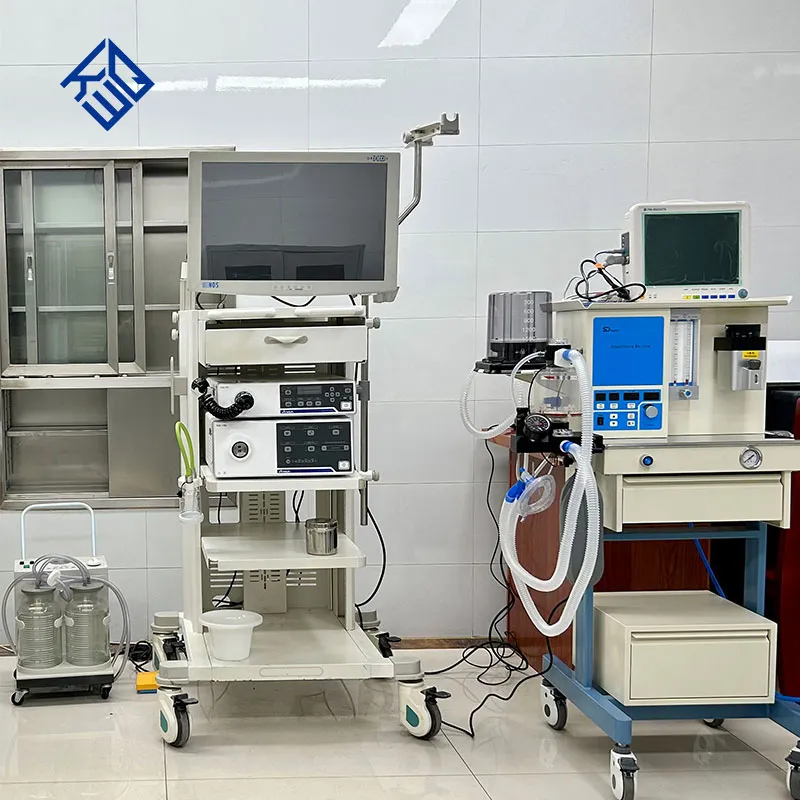

Detail 2

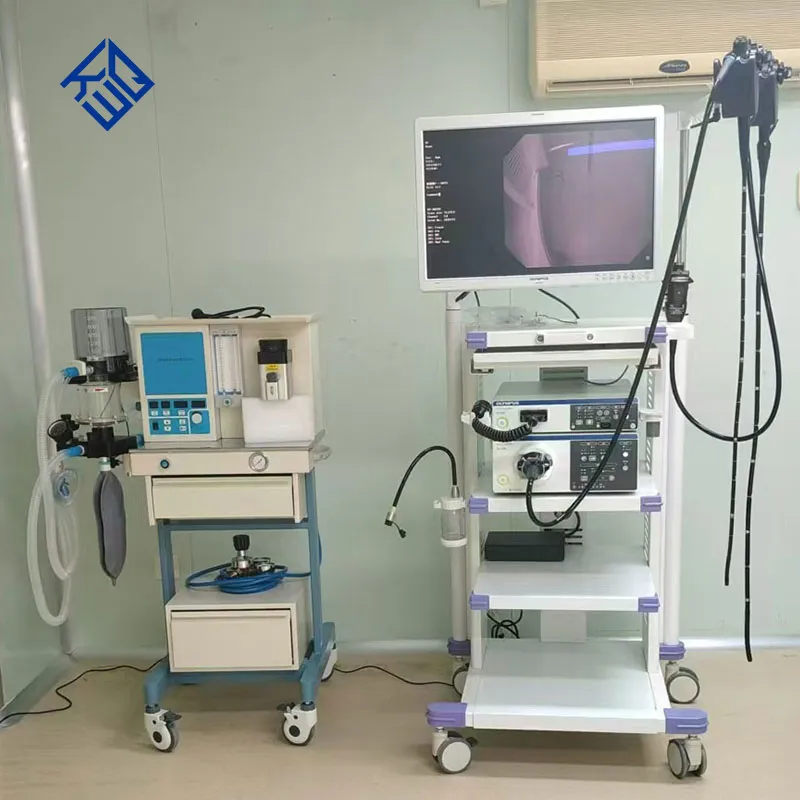

Detail 3
?

Frequently Asked Questions

What models does this endoscopy system support?
The system is compatible with CV-170, CV-190, and CV-290 series, including specific scopes like GIF-HQ290 and CF-HQ290I.
What is the advantage of the expanded bending range?
The expanded 120˚ down angle and wider left/right range allow for significantly better approachability to difficult lesions during procedures.
Is the system suitable for both adult and pediatric use?
Yes, the equipment group is designed to accommodate both children and adult clinical requirements.
How does the auxiliary water channel assist in surgery?
By positioning the water channel close to the instrument channel, it facilitates rapid hemostasis and clearer visualization without needing to reposition the scope.
What imaging technology is used in this system?
It utilizes the Evis Lucera Elite imaging system equipped with high-definition CCDs for superior diagnostic accuracy.
What are the dimensions of the insertion tube?
The distal end outer diameter is 9.8 mm, with an insertion tube diameter of 9.9 mm and a working length of 1030 mm.
