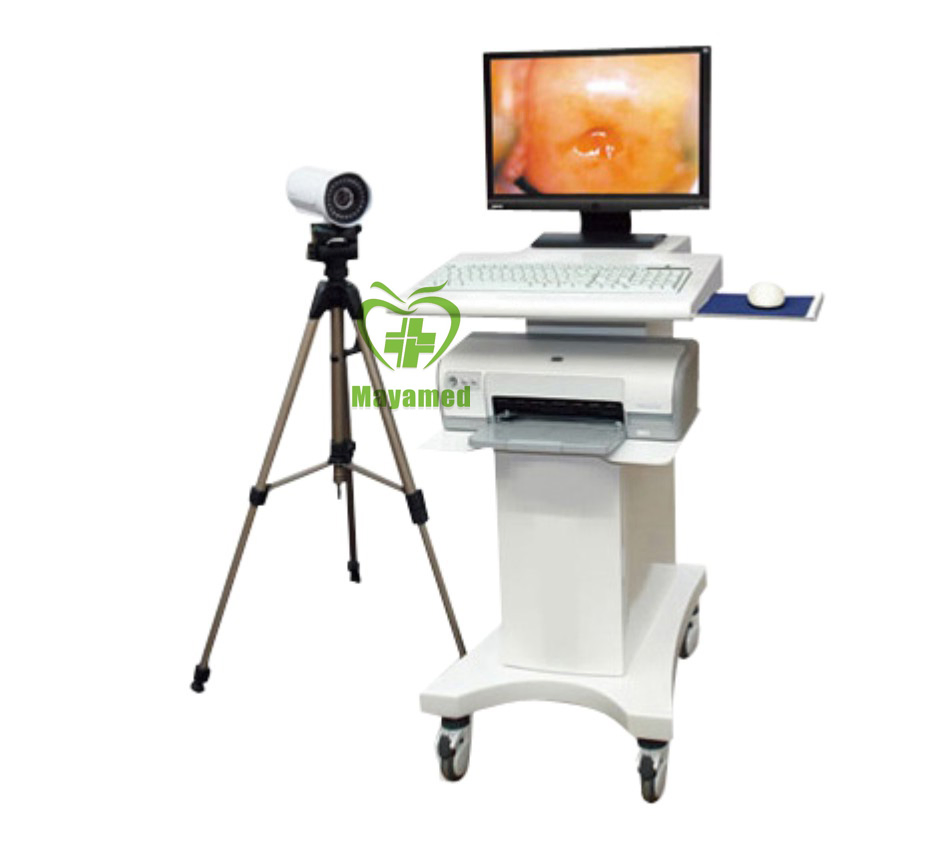

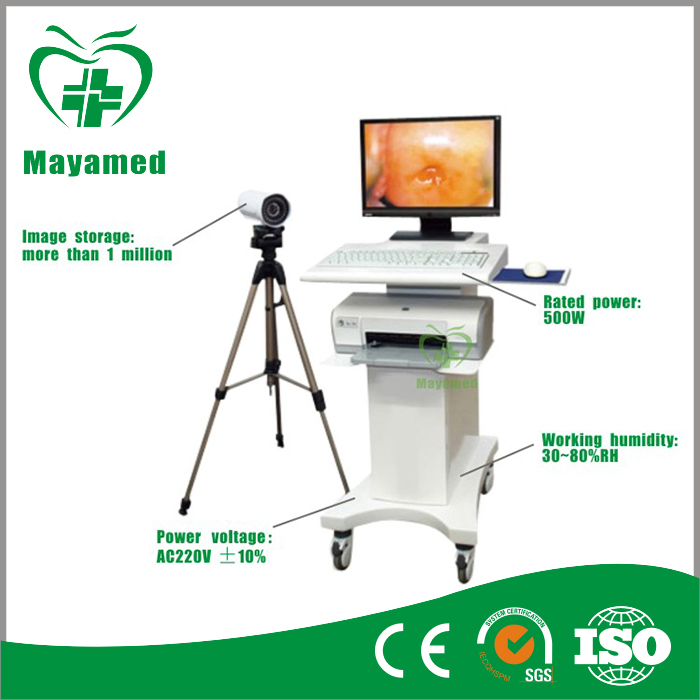

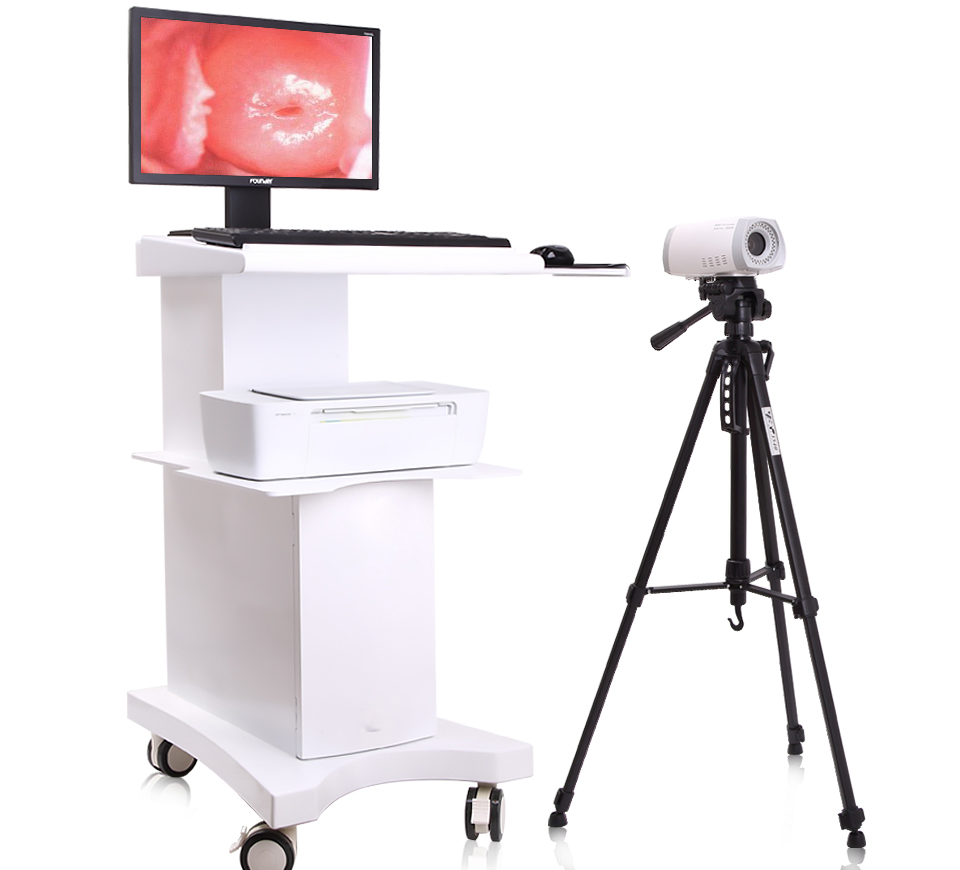

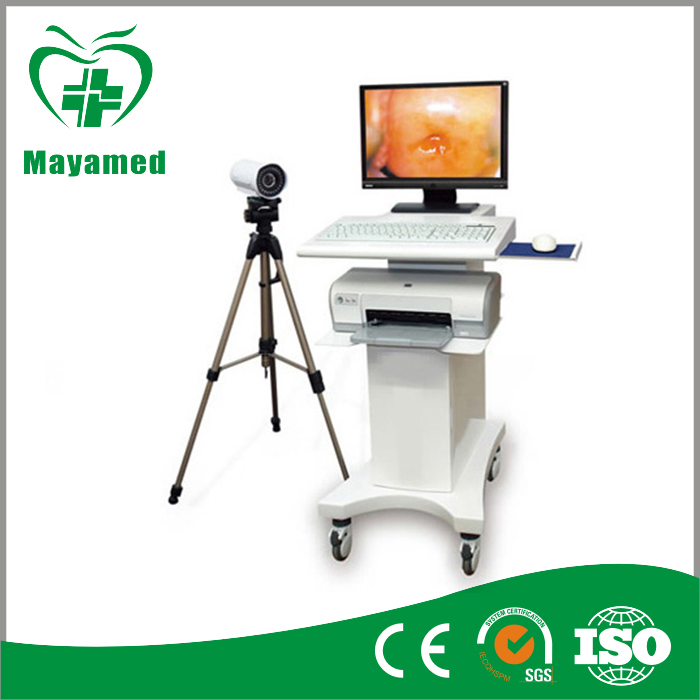

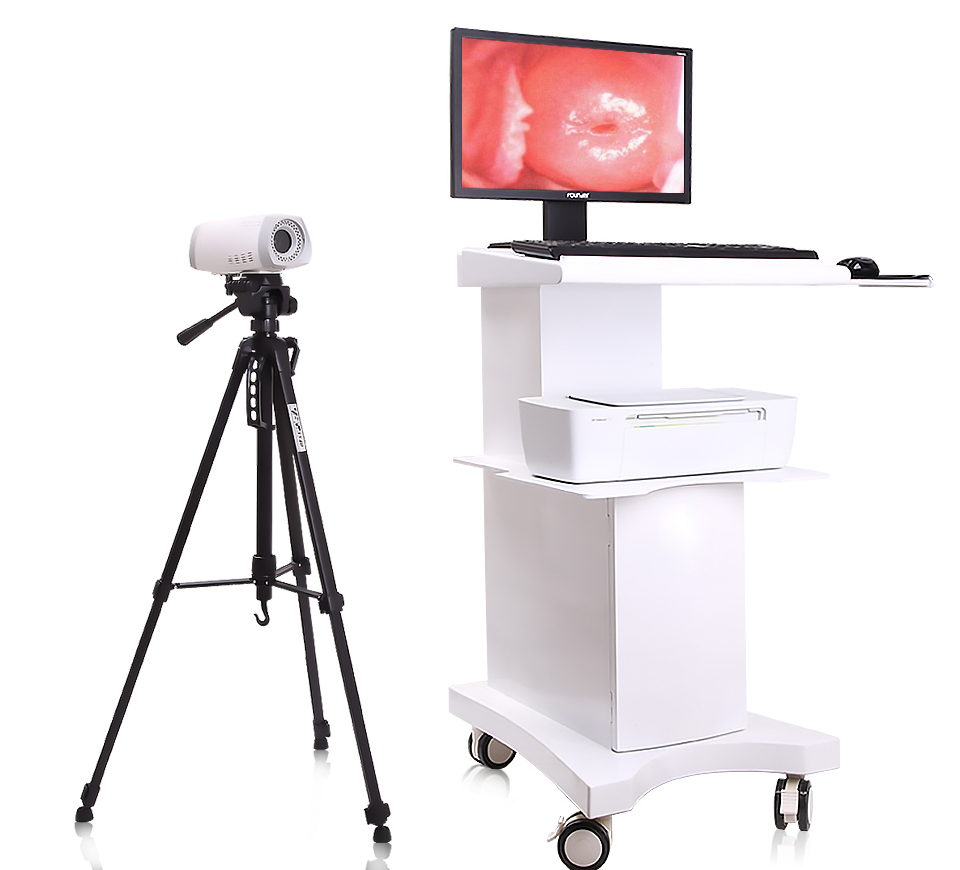

My-F004 Hospital Electronic Handheld Digital Video Colposcope

My-F004 Hospital Electronic Handheld Digital Video Colposcope

My-F004 Hospital Electronic Handheld Digital Video Colposcope

My-F004 Hospital Electronic Handheld Digital Video Colposcope

My-F004 Hospital Electronic Handheld Digital Video Colposcope

1 / 5

My-F004 Hospital Electronic Handheld Digital Video Colposcope

My-F004 Hospital Electronic Handheld Digital Video Colposcope

My-F004 Hospital Electronic Handheld Digital Video Colposcope

My-F004 Hospital Electronic Handheld Digital Video Colposcope

My-F004 Hospital Electronic Handheld Digital Video Colposcope

My-F004 Hospital Electronic Handheld Digital Video Colposcope

Customization:	Available
Classification:	Imaging Diagnostic Equipment
Type:	Digital Imaging System

Send Inquiry

Product Description

i

Basic Specifications

Model NO.MY-F004

CertificationCE, MSDS, ISO13485

GroupFemale

NameHandheld Digital Video Colposcope

Lens White BalanceAWB

Light SourceLED

Image Storage> 1 Million

Rated Power500W

Working Temp-10°C ~ 50°C

Capacity500 Sets/Month

✓

Key Features

● Imported color digital CCD with 480,000 pixels; 1-128 magnification.
● Continuously variable adjustment for high definition image quality.
● Ultra-bright white LED light source, 60% brighter than traditional halogen lamps.
● Long-life LED (100,000 hours) ensures vivid color temperature.
● Special image halo filtering technology for superior clarity.
● Advanced software for image catching, freezing, processing, and report printing.
● Measurement tools for distance, circumference, and area calculations.
● Super-large memory capable of storing up to 100,000 cases.

Electronic Handheld Digital Video Colposcope MY-F004

⚙

Technical Specifications

Lens Resolution: 1/4" Super HAD color CCD, 480,000 pixels

Axial Resolution: 470 lines | S/N Ratio: 50dB

Focus Distance: Standard 100~400mm (Support 10~1000mm)

Image Output: Video, S-Video, PAL

AE Control: Auto/Manual/Brightness/EV/Backlighting compensation

Power Supply: AC220V ± 10%, 500W

Humidity: 30~80% RH

?

Frequently Asked Questions

1. What is the camera resolution of the MY-F004?

The device features an imported 1/4" Super HAD color CCD with a precision of 480,000 pixels and 470 lines of axial resolution.

2. Does it support magnification for detailed exams?

Yes, it supports a magnification range of 1 to 128 times with continuously variable adjustment.

3. What kind of lighting does this colposcope use?

It uses a high-power white LED system that provides 60% more brightness than traditional halogen lamps and has a lifetime of 100,000 hours.

4. How many patient records can be stored in the system?

The system features super-large memory storage, allowing for more than 1 million images and up to 100,000 clinical cases.

5. Can the system perform measurements on images?

Yes, the software includes functions for measuring distance, circumference, and area directly on the captured diagnostic images.

6. What certifications does this medical device hold?

The MY-F004 colposcope is certified with CE, MSDS, and ISO13485 standards for medical equipment safety and quality.
