My-D023G Medical Supplier 300mA Dr Medical Hf Digital Radiography X Ray Machine for Human
My-D023G Medical Supplier 300mA Dr Medical Hf Digital Radiography X Ray Machine for Human
My-D023G Medical Supplier 300mA Dr Medical Hf Digital Radiography X Ray Machine for Human
My-D023G Medical Supplier 300mA Dr Medical Hf Digital Radiography X Ray Machine for Human
My-D023G Medical Supplier 300mA Dr Medical Hf Digital Radiography X Ray Machine for Human
1 / 5
My-D023G Medical Supplier 300mA Dr Medical Hf Digital Radiography X Ray Machine for Human
My-D023G Medical Supplier 300mA Dr Medical Hf Digital Radiography X Ray Machine for Human
My-D023G Medical Supplier 300mA Dr Medical Hf Digital Radiography X Ray Machine for Human
My-D023G Medical Supplier 300mA Dr Medical Hf Digital Radiography X Ray Machine for Human
My-D023G Medical Supplier 300mA Dr Medical Hf Digital Radiography X Ray Machine for Human

My-D023G Medical Supplier 300mA Dr Medical Hf Digital Radiography X Ray Machine for Human

Customization: Available
Type: X Ray Equipment
Certification: ISO13485
Send Inquiry

Product Description

Basic Information
Model NO.
MY-D023G
Group
Middle-aged and Old
Keyword
Digital X-ray Machine
MOQ
1 Unit
Frequency
50kHz-220kHz
Kv Range
40~150kv
Origin
China
Specification
223*80*78cm
Product Description

300mA DR Medical HF Digital Radiography X-ray Machine

⚡ High Frequency Generator
• Power Rating: 50KW
• Line Nominal, Phase: 380VAC, 3Φ
• Working frequency: 50kHz-220kHz
• kV Range: 40~150KV / mA Range: 10~630mA
• mAs Range: 0.4 ~1000mAs
• Exposure Time Range: 1ms~10000ms

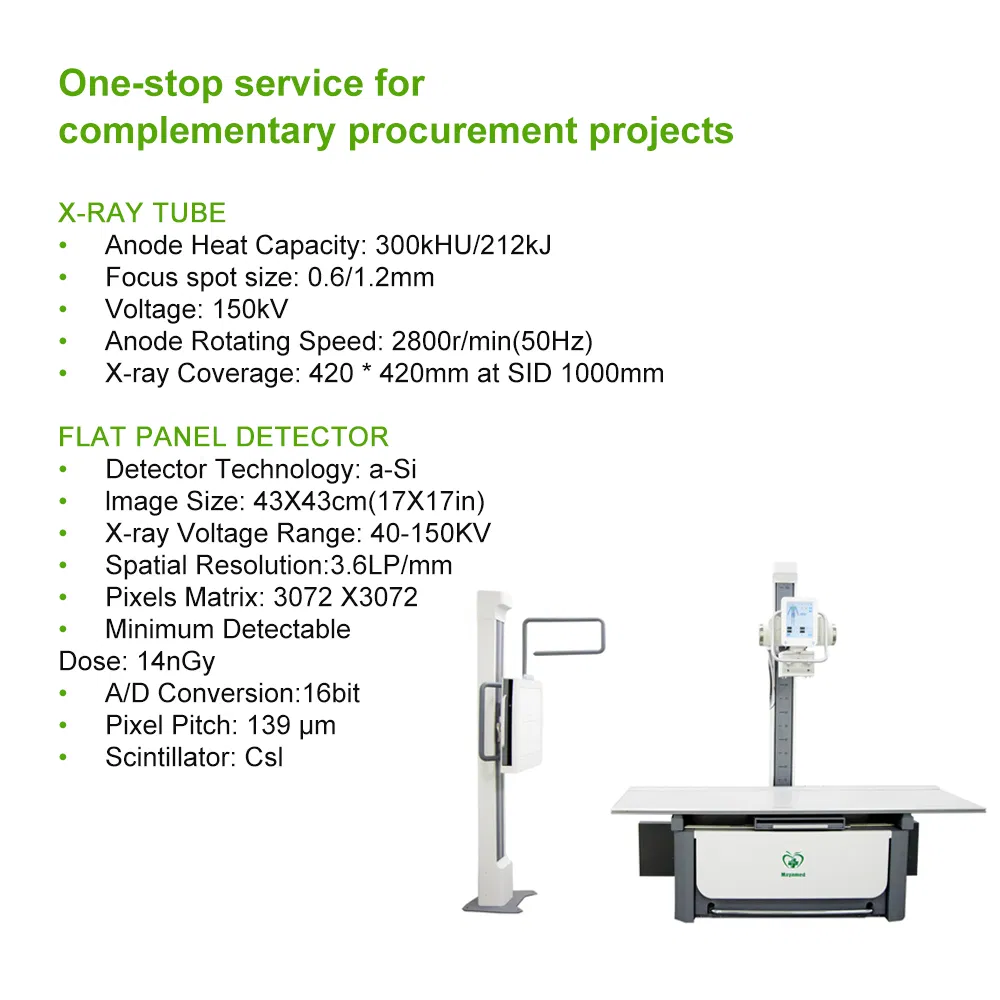

🔭 X-Ray Tube & Collimator
• Anode Heat Capacity: 300kHU/212kJ
• Focus spot size: 0.6/1.2mm
• Anode Rotating Speed: 2800r/min(50Hz)
• Collimator Power: 150W (Manual Operation)
• Auto-close Time: 35s±5s (adjustable)
🖥️ Flat Panel Detector
• Technology: a-Si | Scintillator: Csl
• Image Size: 43X43cm (17X17in)
• Pixels Matrix: 3072 X 3072
• Pixel Pitch: 139 μm
• A/D Conversion: 16bit
• Spatial Resolution: 3.6LP/mm
🏗️ Mechanical System
• Tube Stand: Longitudinal stroke 1600mm; Vertical stroke 1300mm; Rotation ±90°
• 4-Way Floating Table: 2200*740*680mm; EM lock control
• Wall Bucky Stand: Vertical range 610mm; Mechanical lock
💻 Workstation Hardware
• OS: Windows Operating System
• CPU: i5 / 3.3 GHz | RAM: 8 GB
• Storage: 1T Hard Drive
• Display: 24-inch Professional Displayer
Product Visuals

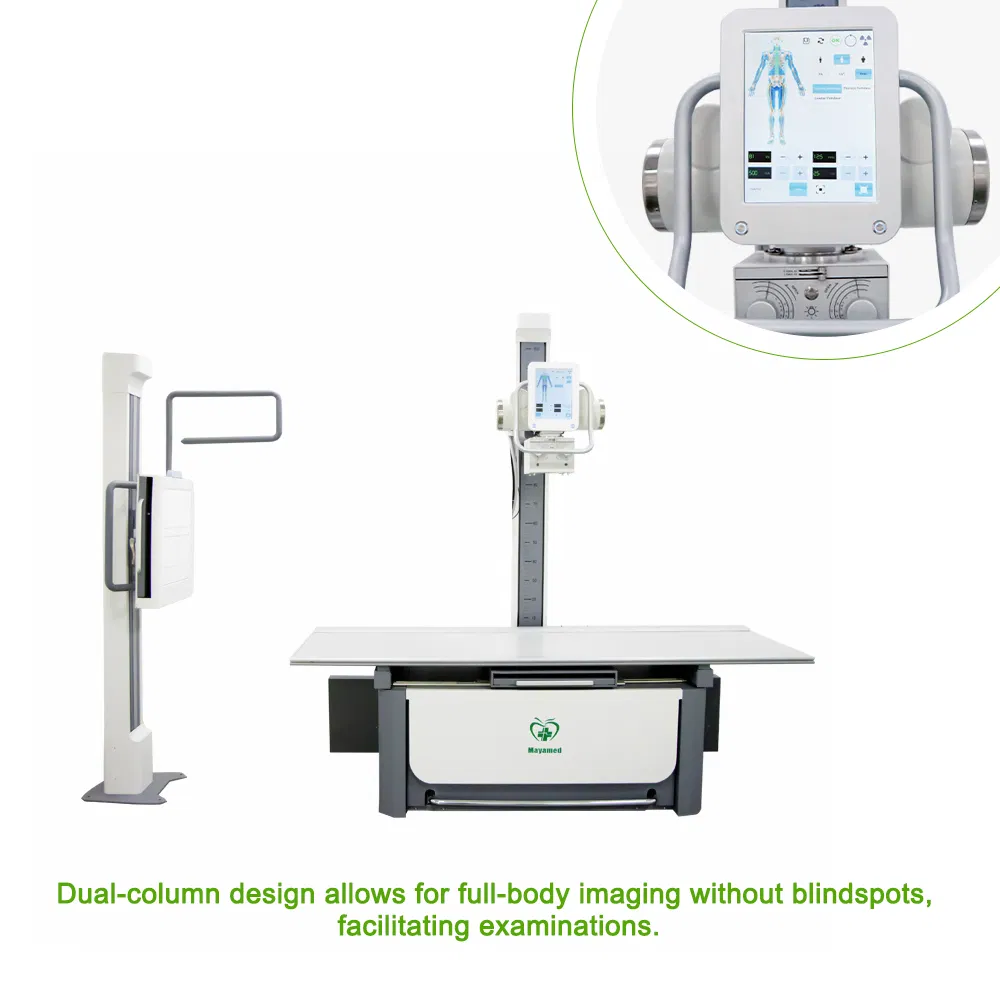

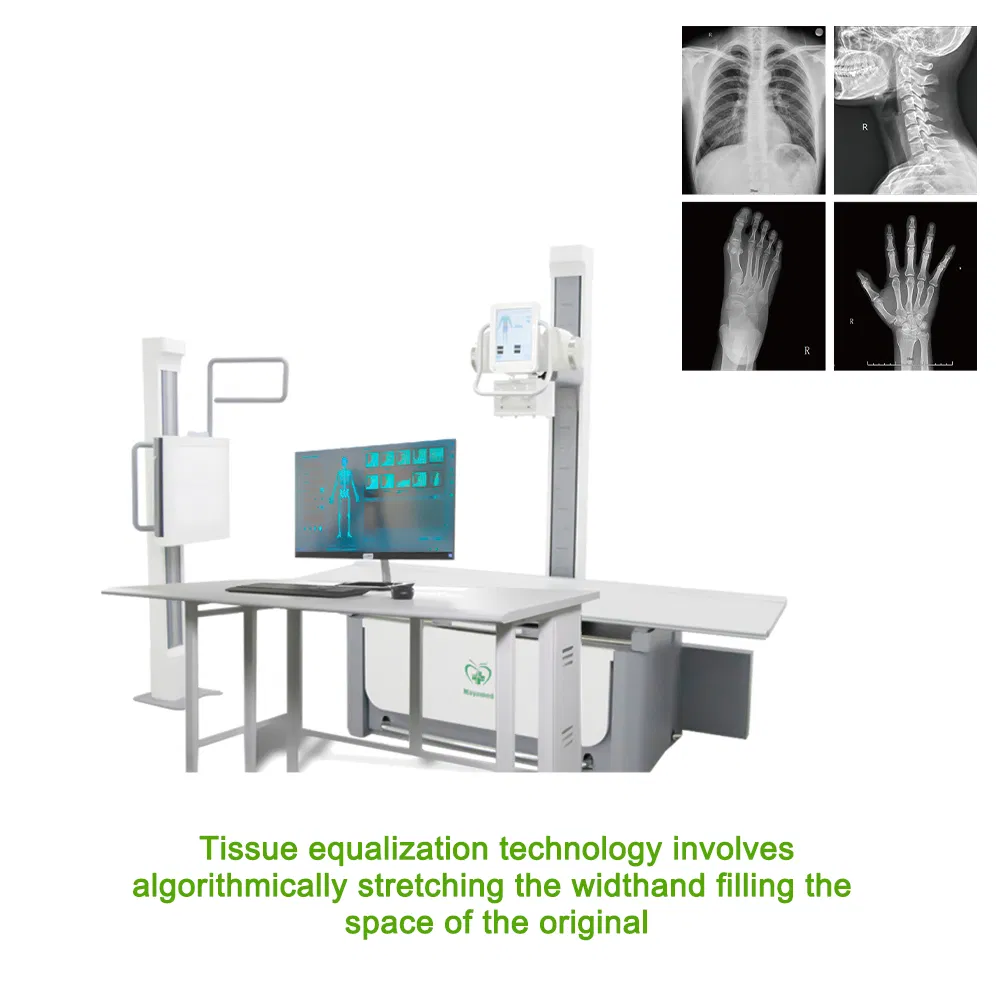

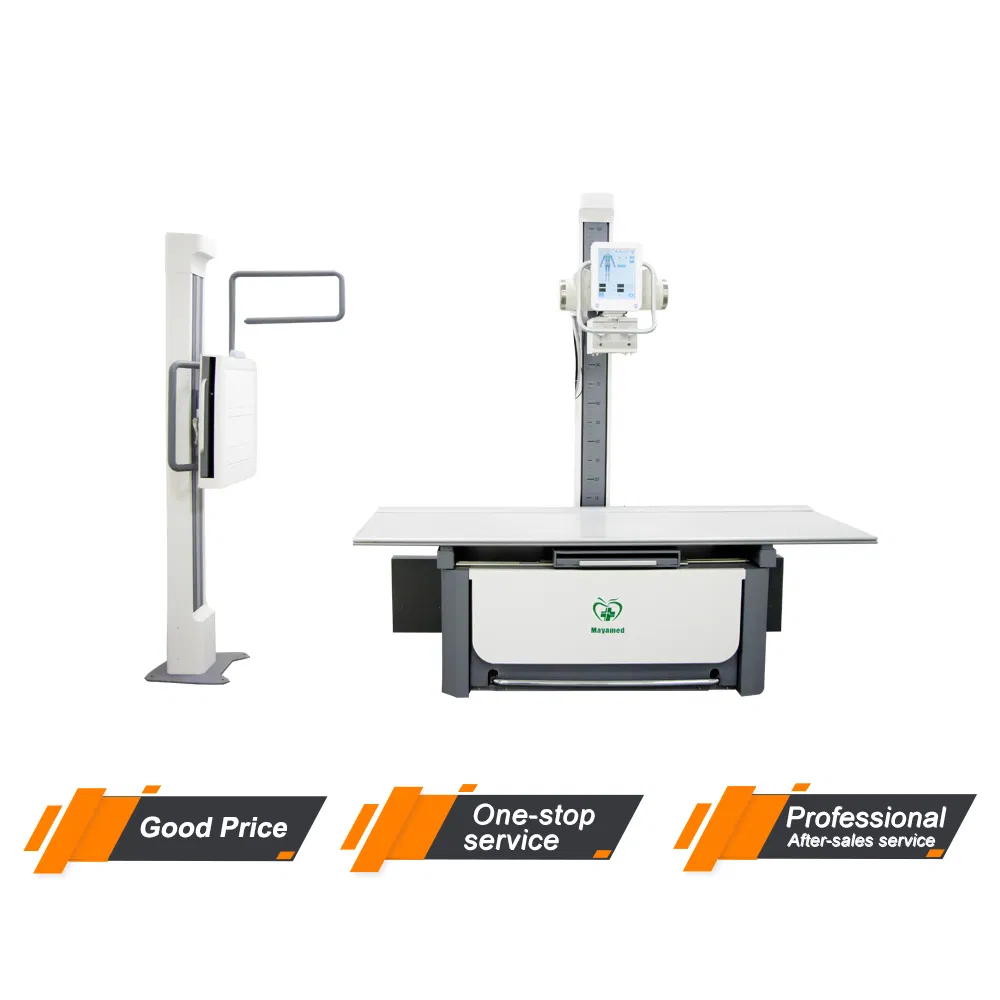

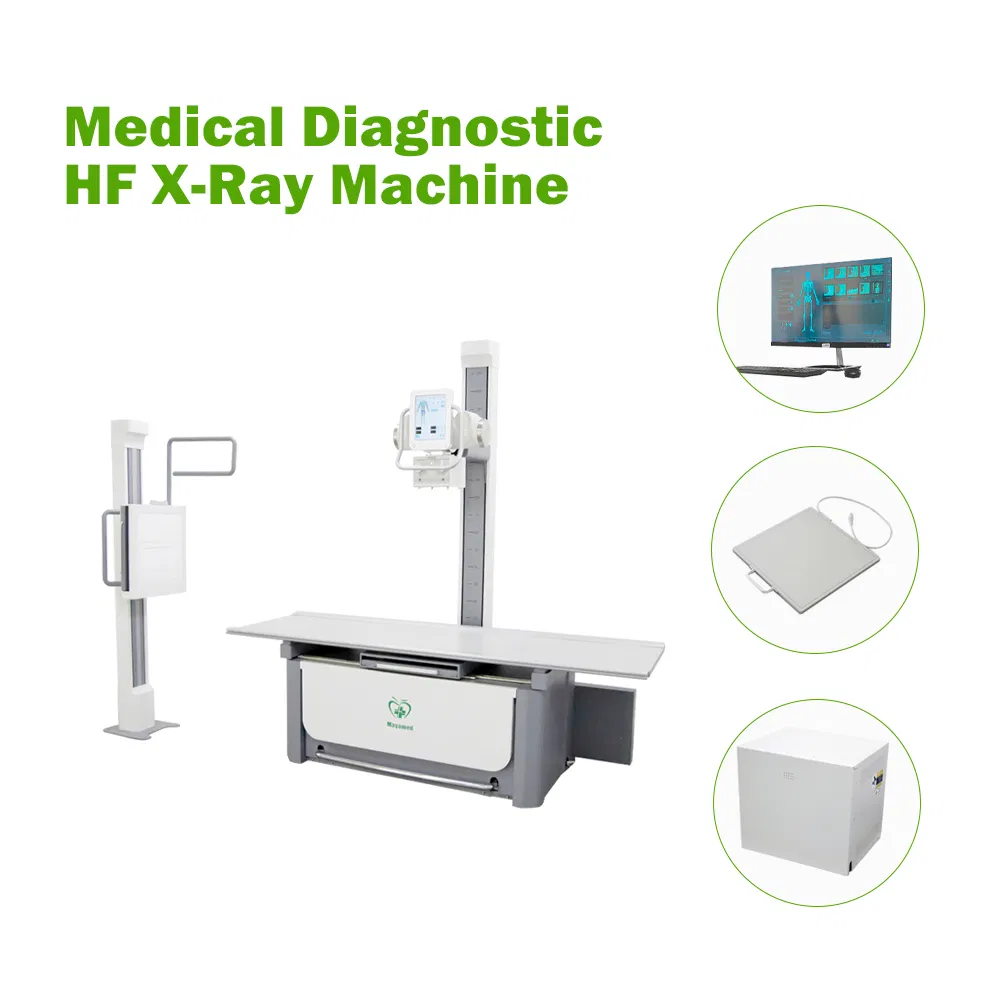

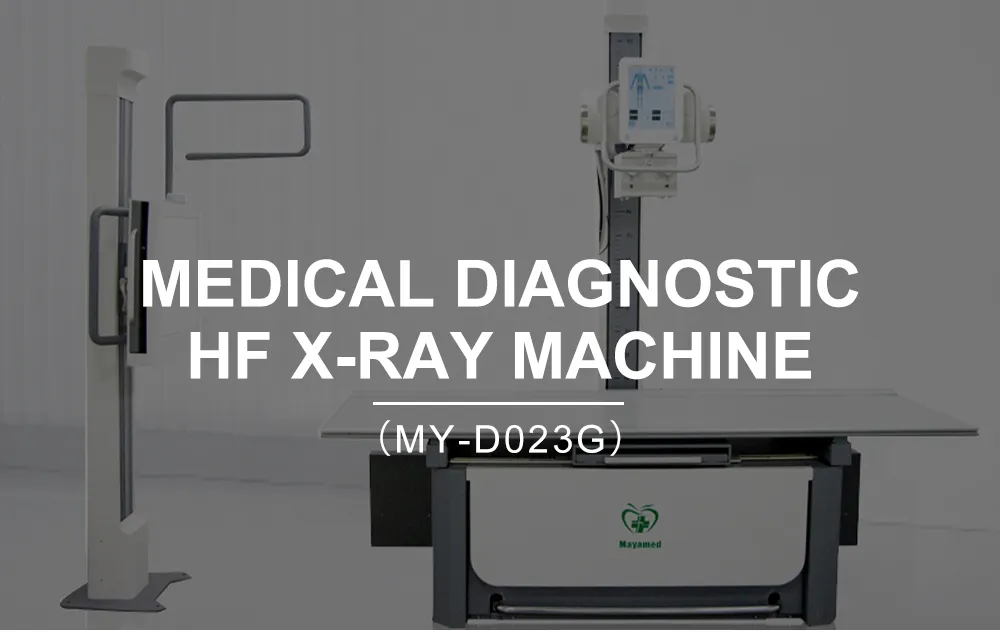

Digital Radiography System Overview

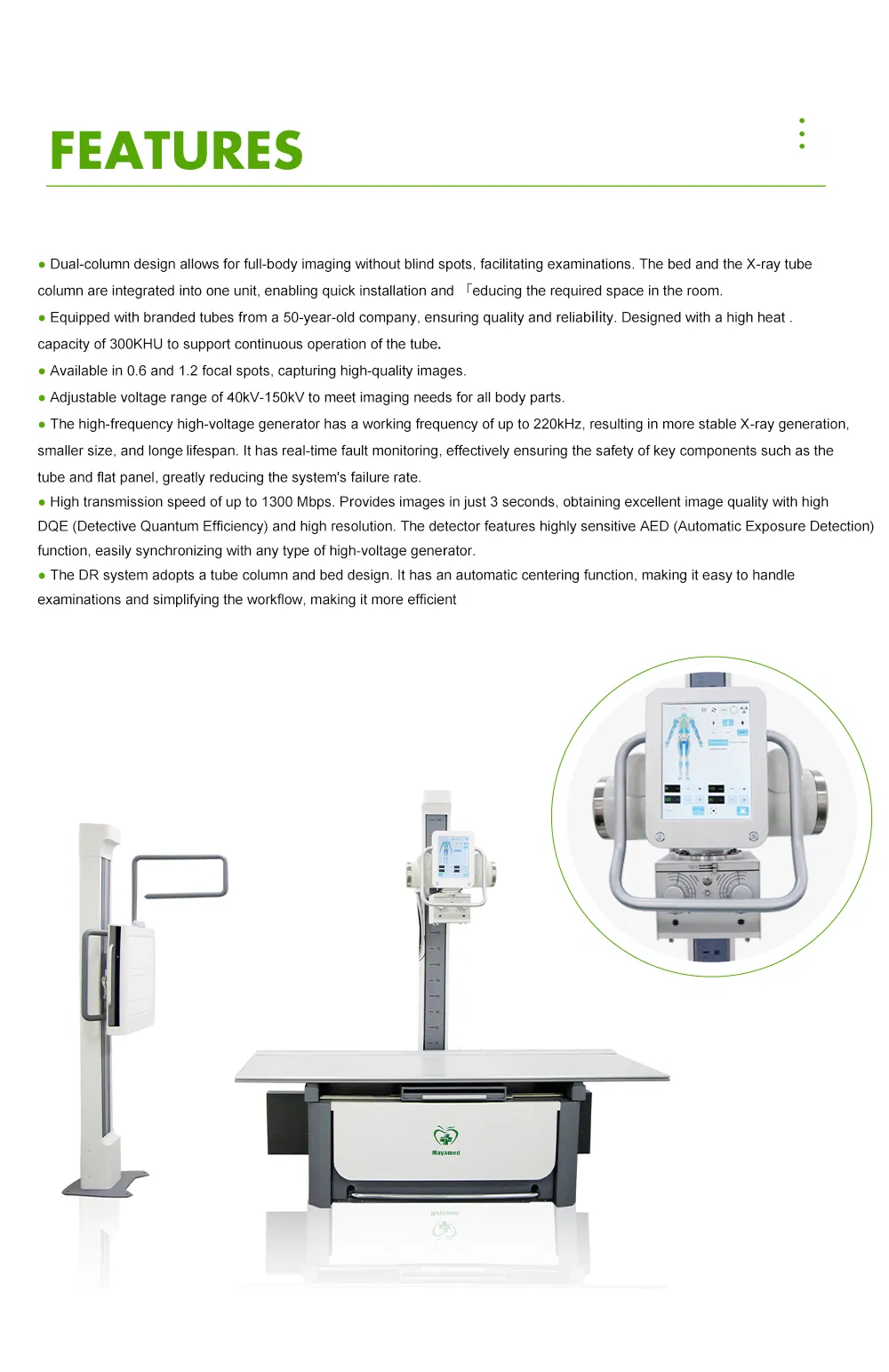

X-ray Machine Detail
Detector and Collimator Detail

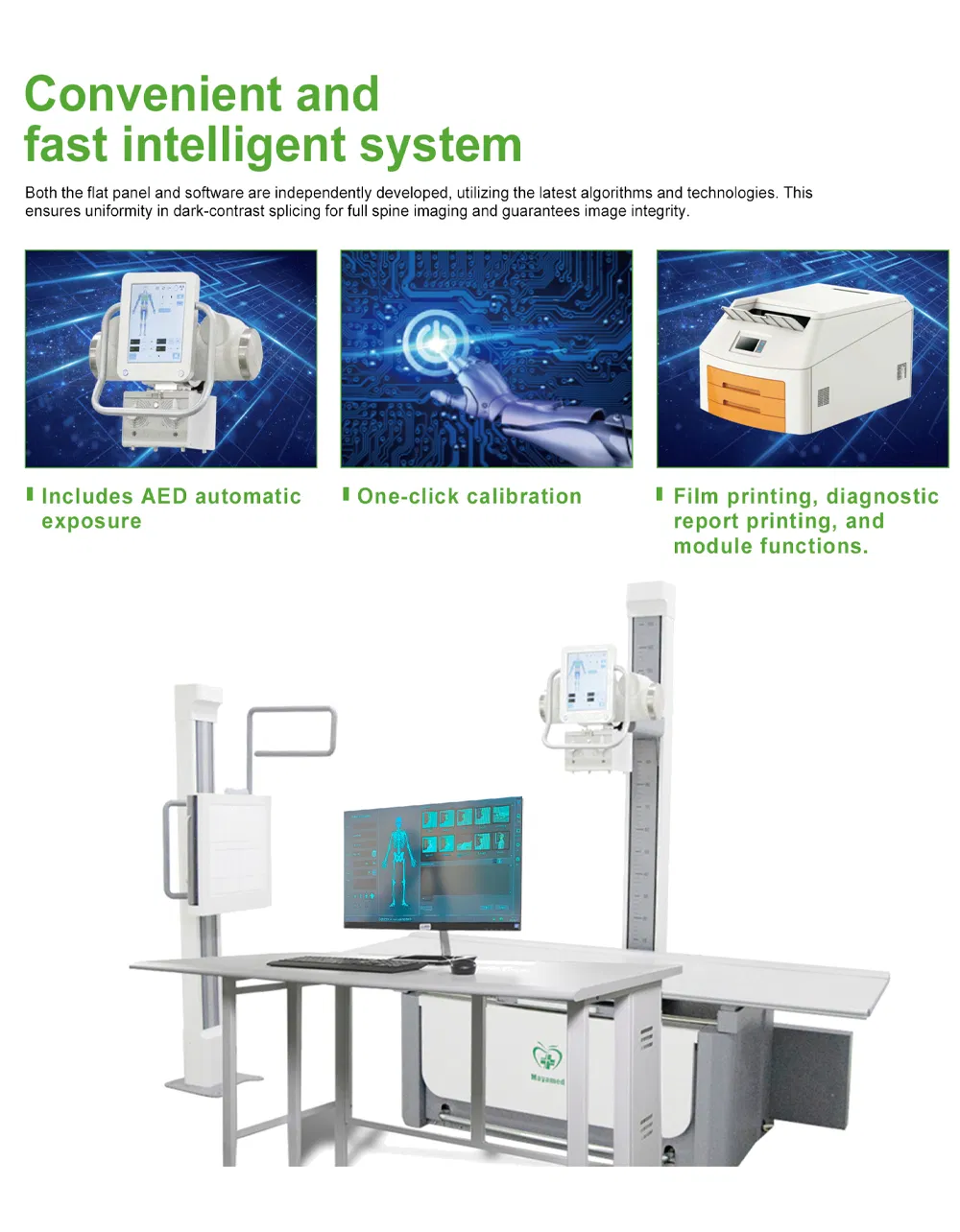

Control System
Mechanical Stand
Frequently Asked Questions
What is the imaging area of the flat panel detector?
The system features a large 43X43cm (17X17 inch) imaging area, providing comprehensive coverage for various diagnostic requirements.
What are the power requirements for this X-ray machine?
The unit operates on a 50KW power rating with a nominal line voltage of 380VAC, 3-phase.
How flexible is the tube stand movement?
The tube stand offers high flexibility with a longitudinal stroke of 1600mm, a vertical stroke of 1300mm, and a rotation angle of ±90°.
What type of detector technology is used?
It utilizes high-quality a-Si (Amorphous Silicon) technology with a Csl (Cesium Iodide) scintillator for superior image clarity.
Does the workstation come with specific software?
Yes, the workstation is equipped with a Windows-based operating system, an i5 processor, 8GB RAM, and a 1TB hard drive for efficient image processing and storage.
What is the focus spot size of the X-ray tube?
The X-ray tube features a dual focus spot size of 0.6mm and 1.2mm, allowing for both high-resolution and high-load imaging.
