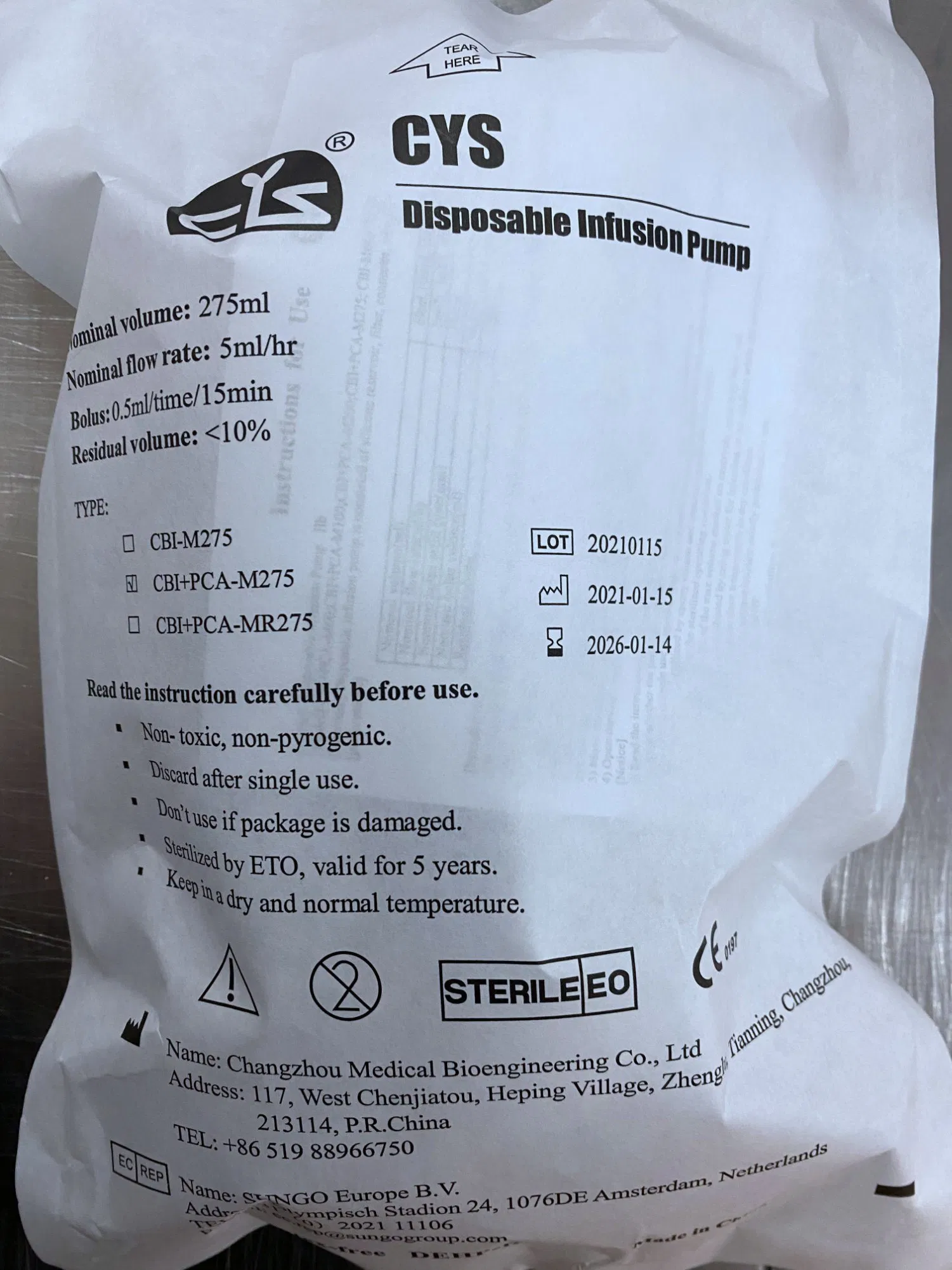

Multirate+PCA 100ml Disposable Medical Elastomeric Infusion Pump

1 / 5

Multirate+PCA 100ml Disposable Medical Elastomeric Infusion Pump

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Disposable Medical Elastomeric Infusion Pump

📋 Basic Specifications

Model NO.

PCA

Sterilization

Ethylene Oxide (EO)

Quality Guarantee

Five Years

Target Group

Adult

Nominal Volume

100ml

Mean Flow Rate

2/4/6/8 Ml/Hr

Specification

ISO / CE

HS Code

90183900

Production Capacity

500,000 pieces/Year

💡 Product Usage

This device is designed for continuous infusion during clinical ease-pain treatments. It is primarily used to relieve or lenitive pain effectively through controlled medical delivery.

📊 Technical Parameters

Type	Product Code	Max Capacity (ml)	Flow Rate (ml/h)	Bolus (ml/time)	Time Lock-out (min)
Without Bolus	CBI-M60	60	2.0/3.0/4.0/5.0	/	/
Without Bolus	CBI-M100	100	2.0/3.0/4.0/5.0	/	/
With Bolus	CBI+PCA-M100	100	2.0/3.0/4.0/5.0	0.5	15
With Bolus	CBI+PCA-M200	200	2.0/3.0/4.0/5.0	0.5	15
Multirate	CBI+PCA-MR100	100	2-4-6-8	0.5	15
Multirate	CBI+PCA-MR275	275	2-4-6-8	0.5	15

🔍 Product Classifications

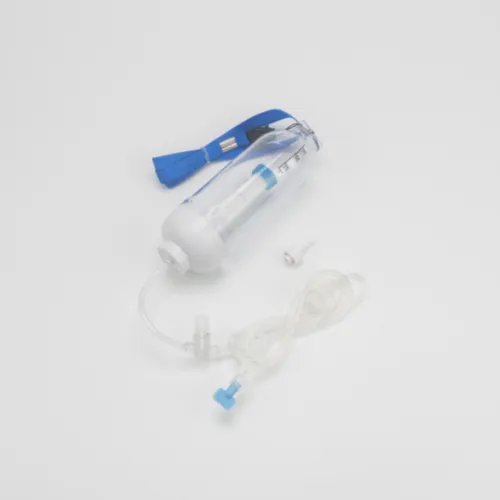

CBI Type (Single Speed)

Without Bolus. Constant infusion rate for painkillers and chemotherapy.

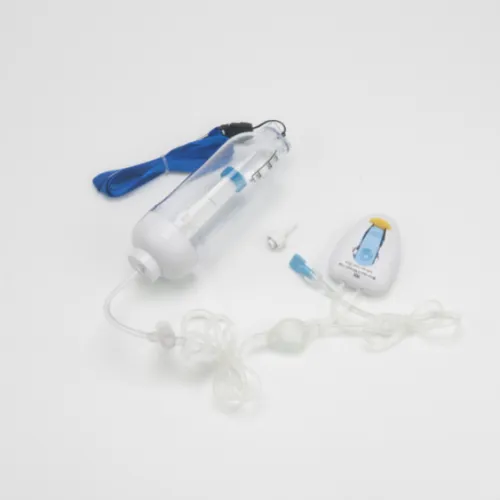

CBI+PCA Type

With Bolus. Patient-Controlled Analgesia (0.5ml/15min) at single speed.

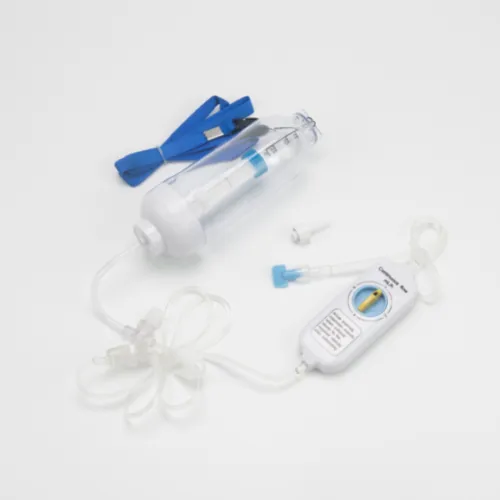

Multirate Type

Without Bolus. Equipped with a Four-speed Multirate Controller.

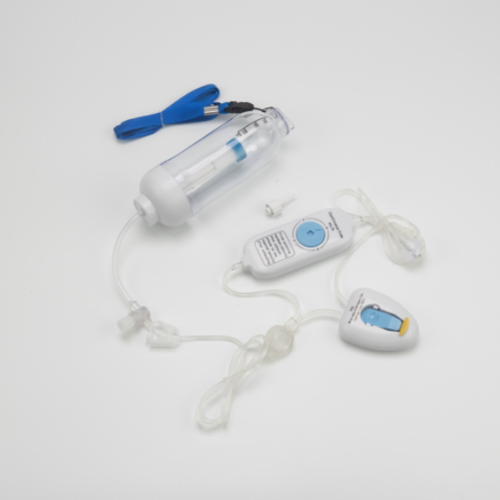

Multirate + PCA Type

With Bolus & Four-speed Controller for maximum infusion flexibility.

⚙️ Instructions for Use

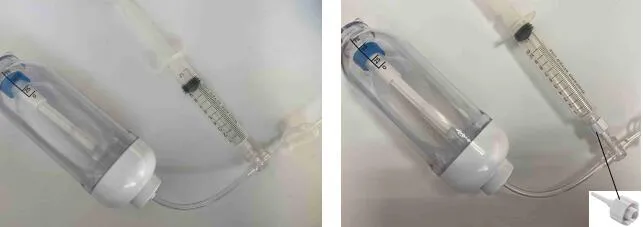

Close the clip, use a syringe to add medicine into the reservoir from the injection set. Repeat steps until the specified volume is injected. Connect the white set with the syringe to ensure the drug returns to the syringe for proper dispensing.

🏥 Clinical Application

Departments: Emergency room, Operating room, Pediatrics, Obstetrics and Gynecology, Hematology, and General Surgery.

Applications: Widely used for injection of blood pressure medications, anticoagulants, hormones, oxytocin, chemotherapy drugs, and continuous analgesic delivery.

⭐ Key Features

✔

Medical level silicone reservoir ensuring precise and steady flow rates.

✔

Small, lightweight, and portable for patient mobility.

✔

Unique adding port & valve design with syringe extraction function.

✔

Integrated filter effectively removes air bubbles, germs, and particles.

✔

Efficient infusion capacity exceeding 95%.

⚠️ Important Attention

Volume must not exceed 10% of the marked max volume to prevent blowouts.
Strictly prohibited for use with Adrenalin, CAT (calcium antagonists), or fat-soluble drugs (e.g., Fat Emulsion).
DEHP-free product.
Rated at environmental temperatures of 23ºC±2ºC using water for injection.

📜 Certifications

CE 0197

ISO 13485

Free Sales Certificate

CFDA Registered

Frequently Asked Questions (FAQ)

Q1: What is the primary function of this elastomeric infusion pump? A: It is used for continuous, controlled infusion of liquid medicine such as analgesics, chemotherapy drugs, and hormones to manage clinical pain or provide steady medication delivery.

Q2: What materials is the medicine reservoir made of? A: The reservoir is made of high-quality medical-level silicone, which provides the flexibility needed for constant minimal drop control.

Q3: What is the quality guarantee period for this device? A: The product comes with a quality guarantee period of five years.

Q4: Can this pump be used for fat-soluble drugs? A: No, the product is not suitable for the infusion of fat-soluble drugs such as fat emulsions.

Q5: Is the infusion pump safe from air bubbles and bacteria? A: Yes, it includes a filter that effectively screens off air bubbles, germs, and particles to prevent dose blockage and ensure patient safety.

Q6: What happens if I overfill the reservoir? A: Medicine volume should not exceed 10% of the marked maximum volume; exceeding this limit may cause the reservoir to blow out.
