(MS-1050) Mobile High Frequency X-ray Radiography C-Arm X Ray Machine

Classification:	Imaging Diagnostic Equipment
Type:	X Ray Equipment
Certification:	CE, EEC, MSDS, ISO13485

Send Inquiry

Product Description

Basic Information

Model NO. MS-1050

Group Middle-aged and Old

Specification C-Arm System

Trademark customized

Origin China

Production Capacity 1000PCS/Year

Product Display

Product Description

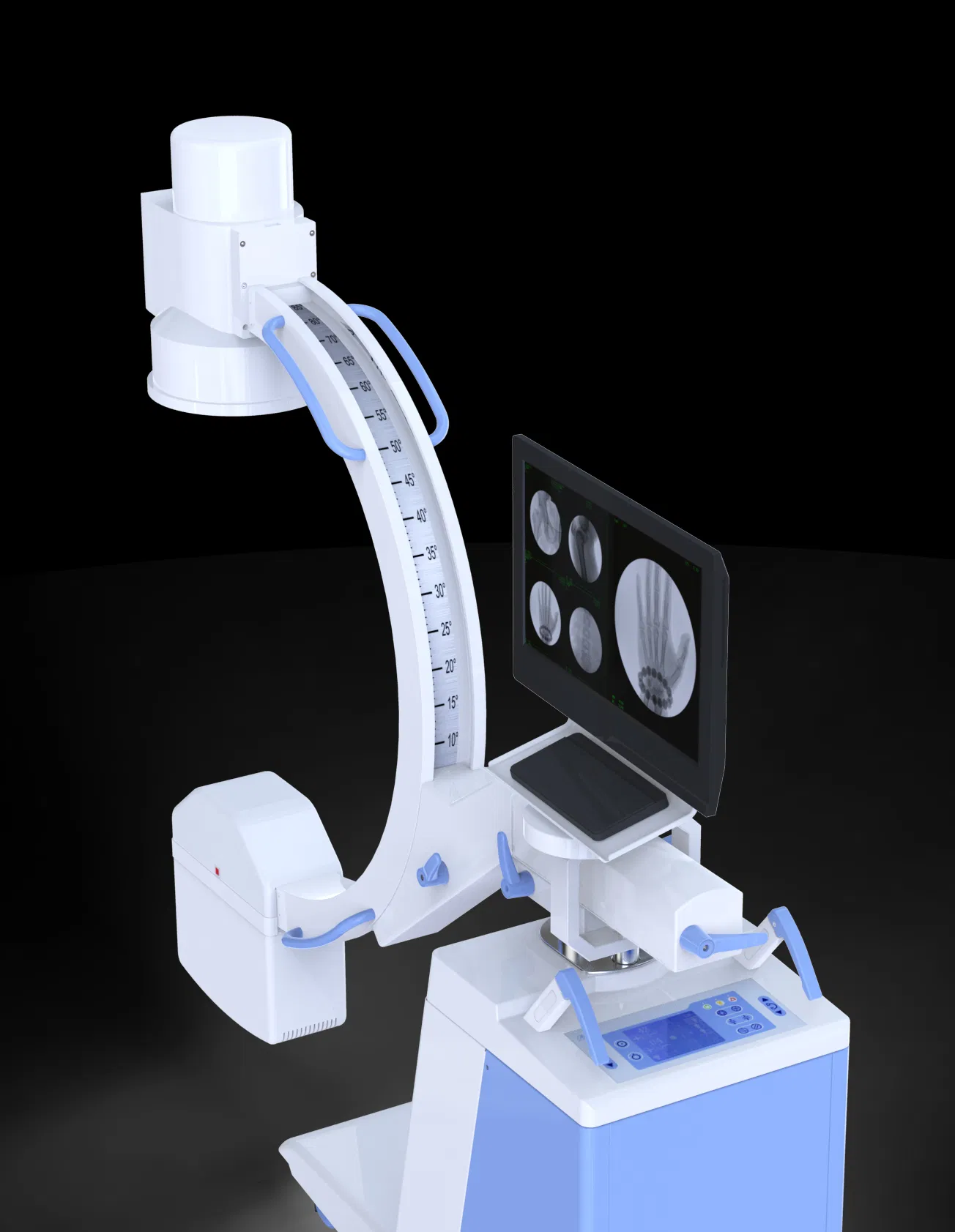

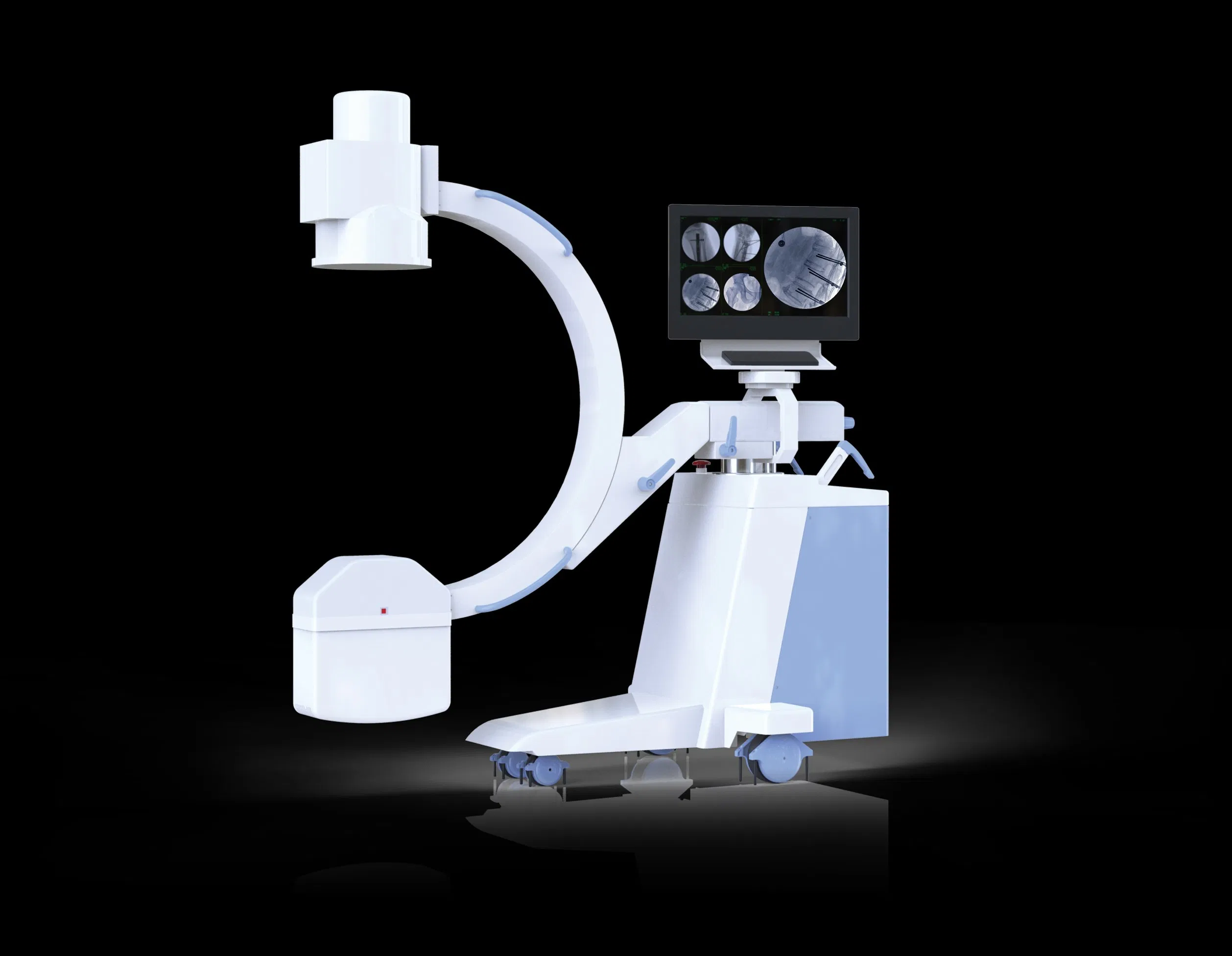

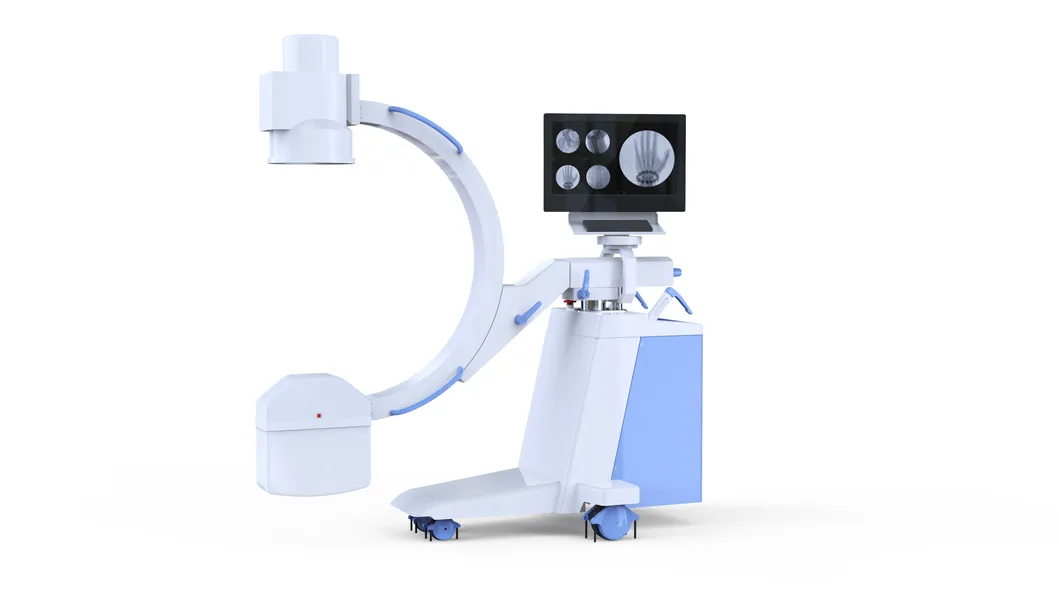

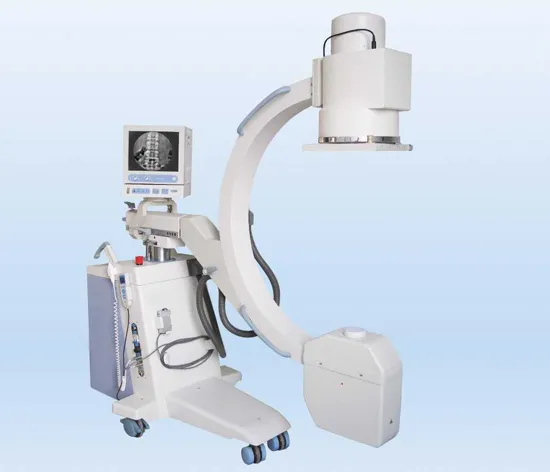

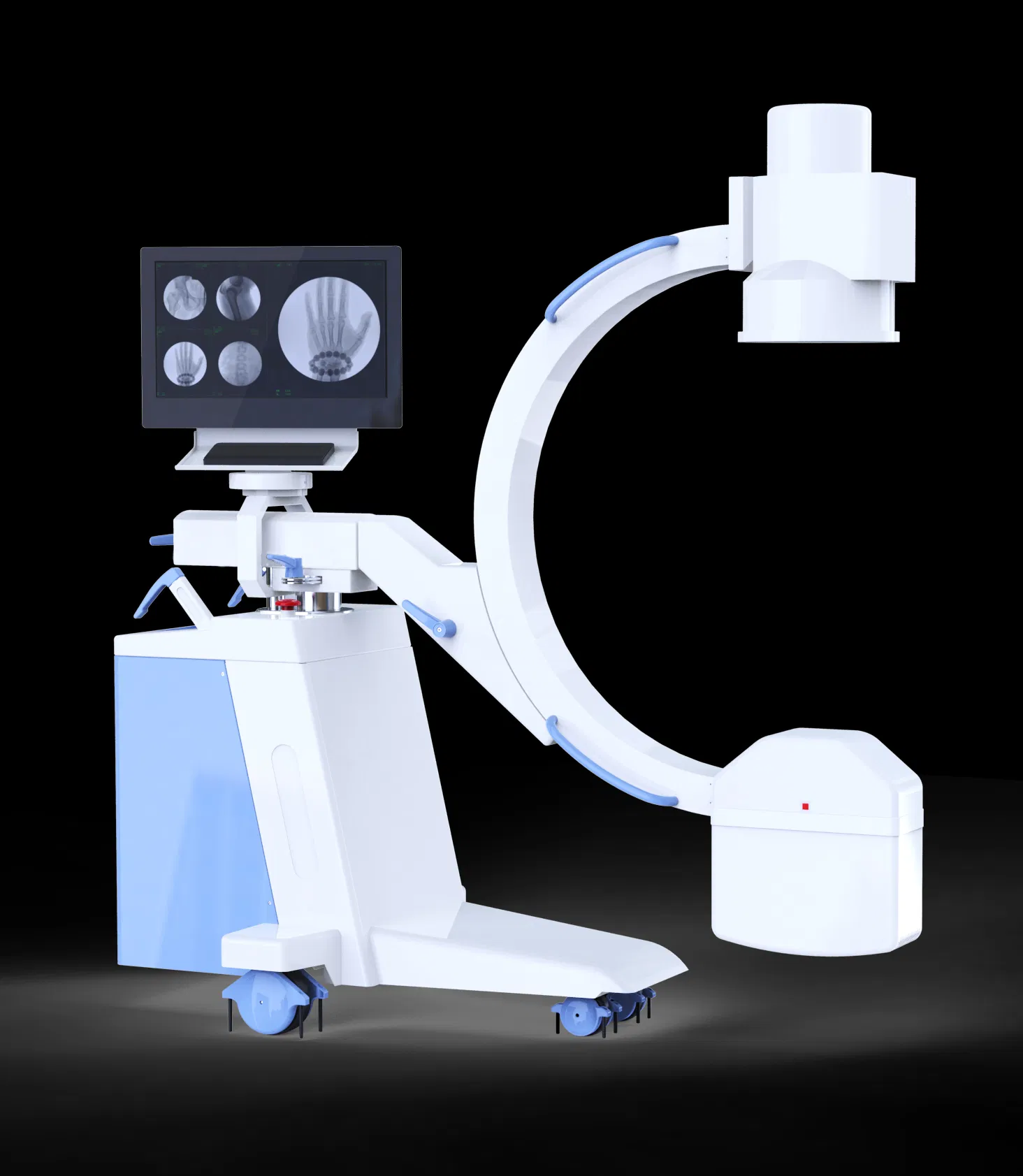

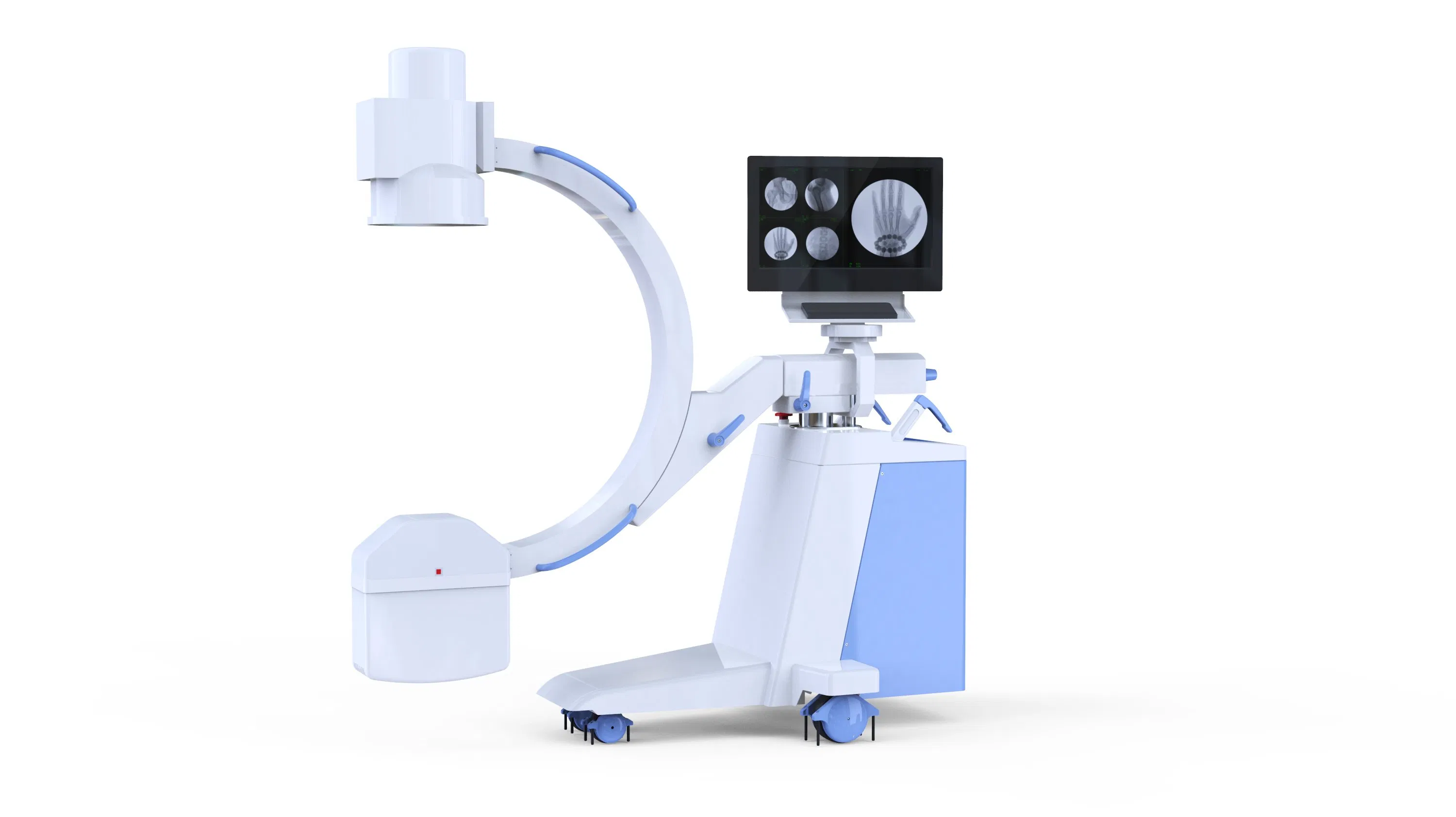

MS-1050 High frequency Mobile C-Arm X ray System

I. Application

Orthopaedics: osteopathy, diaplasis, nailing.
Surgery: removing foreign body, cardiac catheter, implanting pace maker, interventional therapy, partial radiography, local photography, and other work.

II. Key Features

New integrated design, compact appearance, and convenient operation.
Unique hand-held remote controller for more flexible operation.
Graphical colorful LCD touch screen console interface with fashionable design.
High-quality combined HF-HV X-ray generator, significantly reducing X-ray irradiation.
Toshiba image intensifier ensures stable, high-definition image quality.
Perspective KV and MA automatic tracking for optimal image brightness and definition.
Medical high-resolution progressive output TV system with eight-image storage capability.

III. System Configuration

New C-arm main rack with electric auxiliary support arm (1 set).
HF-HV X-ray generator and high-frequency inverter power supply (5.0KW, 40KHZ, 120KV) (1 set).
Toshiba 9-inch image intensifier (1 set).
1 million pixel ultra-low-light digital camera (1 set).
High-definition progressive output CCU main-control system (1 set).
High-thickness grids and electric adjustable collimator (1 set each).
14-inch high-definition medical monitor (1 set).
Unique hand-held remote controller (1 set).

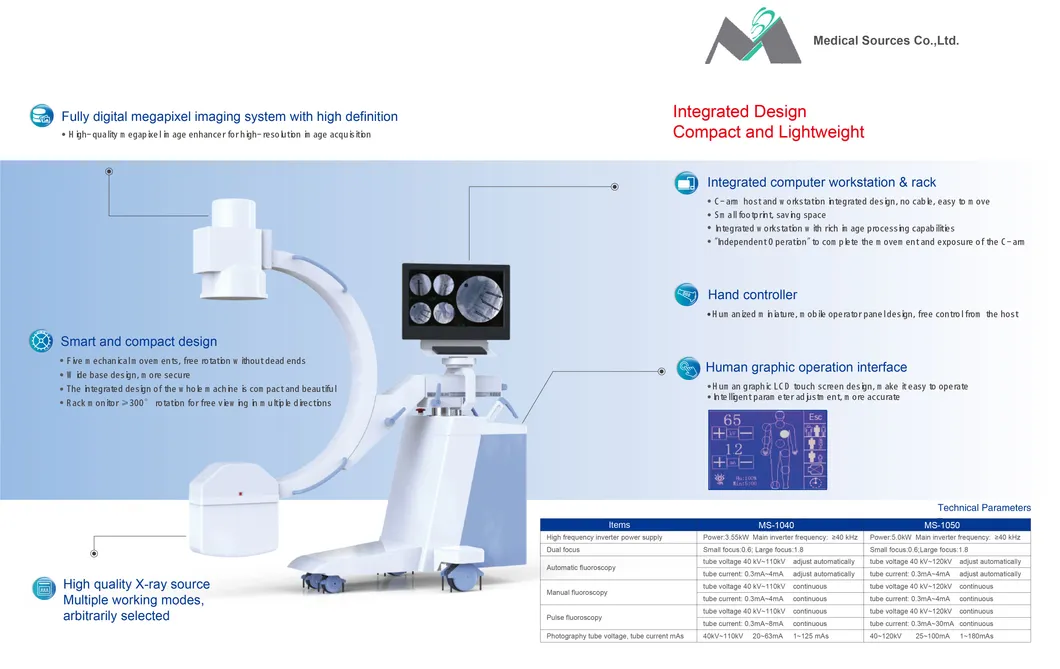

Technical Specifications

Category	Project	Content
Electrical Performance	Photography Capacity	5.0KW
	Fluoroscopy Capacity	Tube current: 8mA, Tube Voltage: 120KV
	Automatic Fluoroscopy	40kV ~ 120kV auto adjustment; 0.3mA ~ 4mA auto adjustment
	Manual Fluoroscopy	40kV ~ 120kV Continuous; 0.3mA ~ 4mA Continuous
	Pulse Fluoroscopy	40kV ~ 120kV Continuous; 4.1mA ~ 8mA Continuous
	Film holder Size	200mm×250mm(8″×10″) or 250mm×300mm(10″×12″)
X-ray Tube	High Frequency Special	Fixed anode, Dual-focus (0.3/1.5), 40KHz, thermal capacity 35KJ
Video System	Image Intensifier	TOSHIBA (9″) Image Intensifier
	CCD Video camera	Ultra low-light CCD camera
	Monitor	Horizontal center resolution 1000/L, Visual bandwidth 12.5MHz
	CCU Main Control	8 level Noise Reduction, 8 image storage, vertical/horizontal flip
Structure	Wheel System	Directive wheel 360° rotation, major wheel ±90° rotation
Structure	C-arm Movement	Ascending/Descend ≥400mm, Rotation ±135°, Slip on orbit: 120°

Frequently Asked Questions (FAQ)

Q: What are the main clinical applications for the MS-1050 C-Arm? A: It is widely used in orthopaedics for osteopathy and nailing, and in general surgery for removing foreign bodies, cardiac catheterization, and interventional therapy.

Q: Does this C-Arm system feature automatic imaging adjustments? A: Yes, it includes automatic tracking features for KV and MA, which automatically set the optimal image brightness and definition for the user.

Q: What imaging technology is used in the MS-1050? A: The system uses a high-quality Toshiba 9-inch image intensifier coupled with a 1 million pixel ultra-low-light digital camera for high-definition output.

Q: How does the system minimize radiation exposure? A: It utilizes a high-frequency high-voltage X-ray generator (5.0KW, 40KHZ), which significantly reduces radiation levels compared to traditional systems.

Q: Can the unit store captured images for later review? A: Yes, the CCU main-control system supports 8-level noise reduction and has the capacity to store 8 high-definition images for immediate convenience.

Q: What is the mobility of the C-arm structure? A: The C-arm features electric ascending and descending (≥400mm), 360° rotation wheels for easy movement, and a rotation range of ±135° for the monitor.
