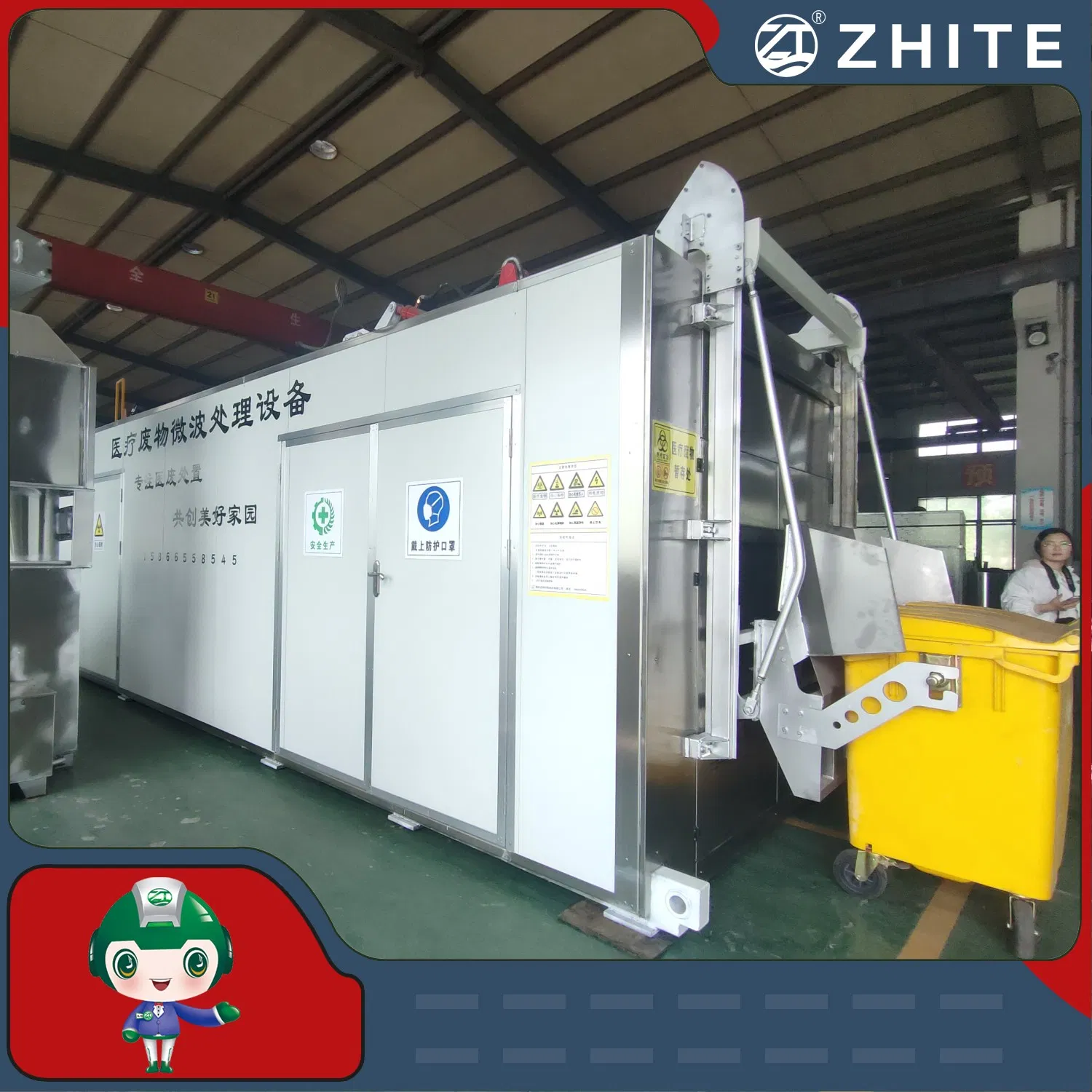

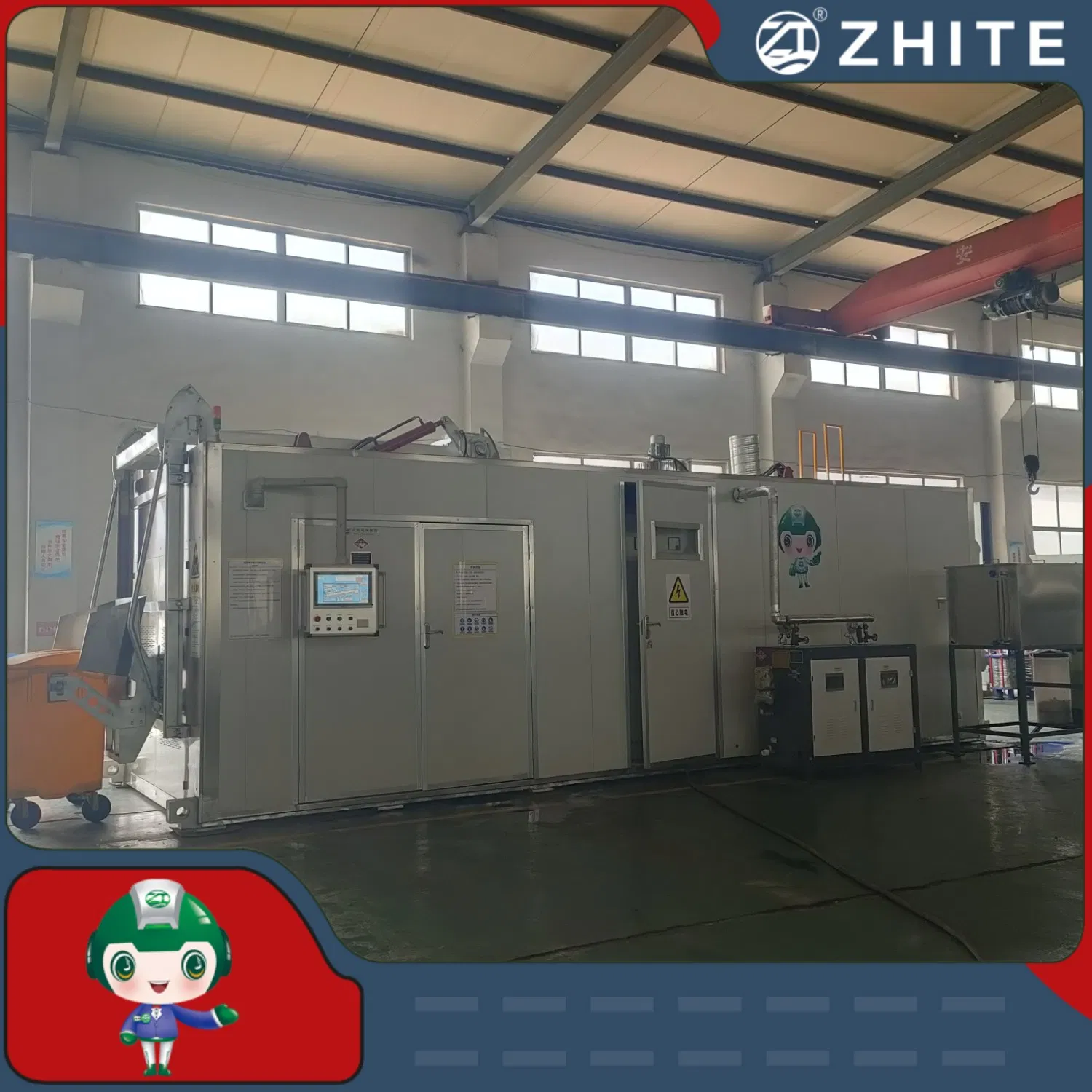

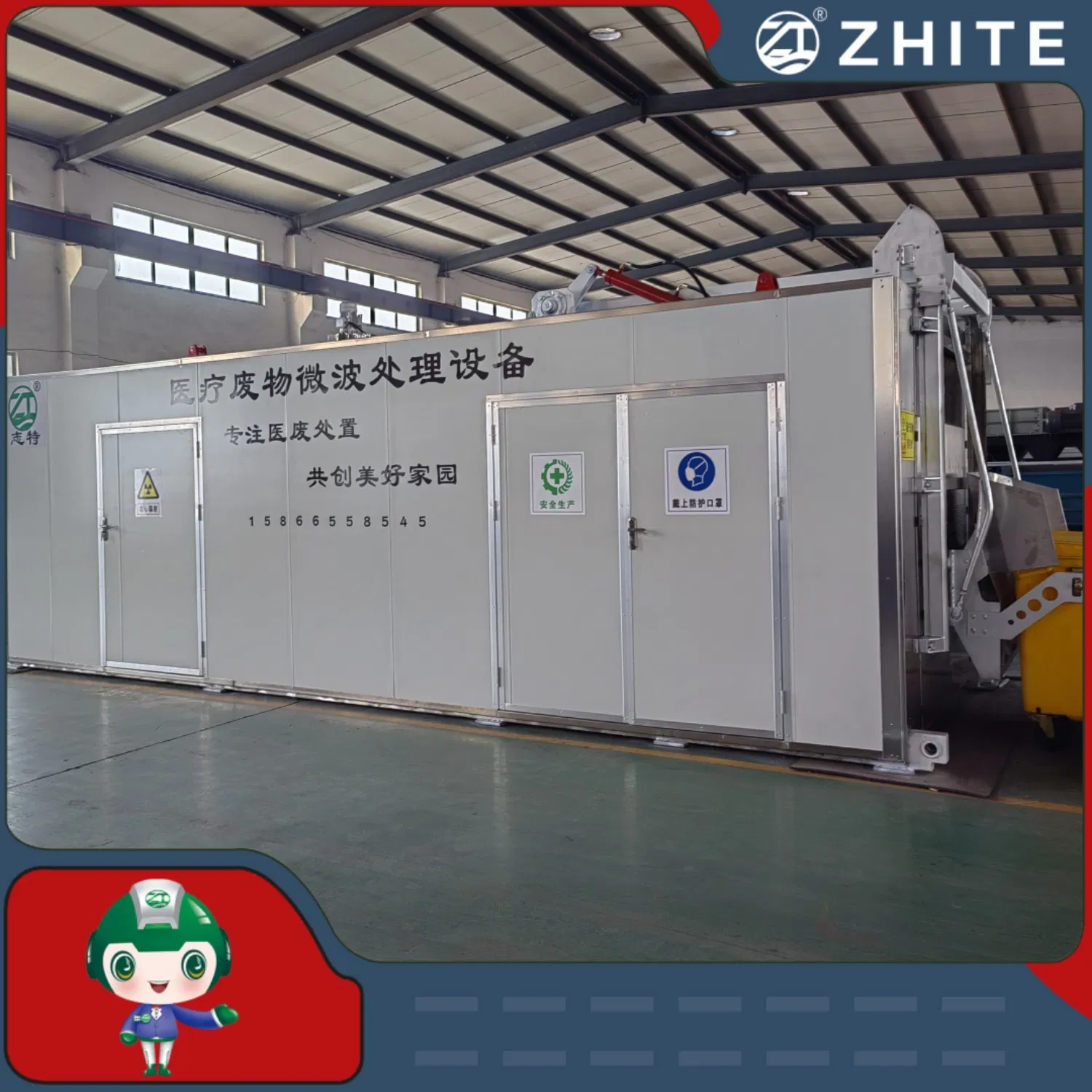

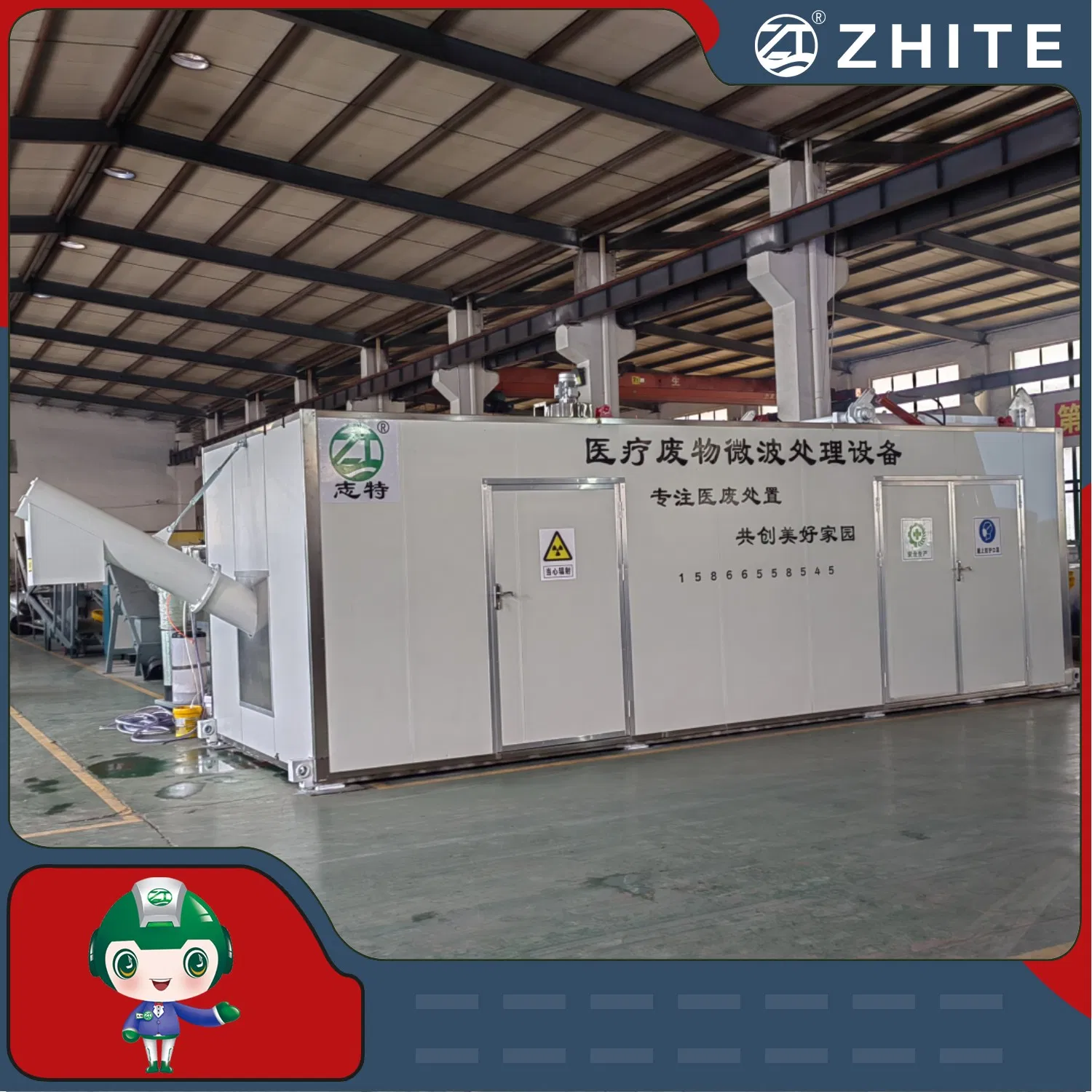

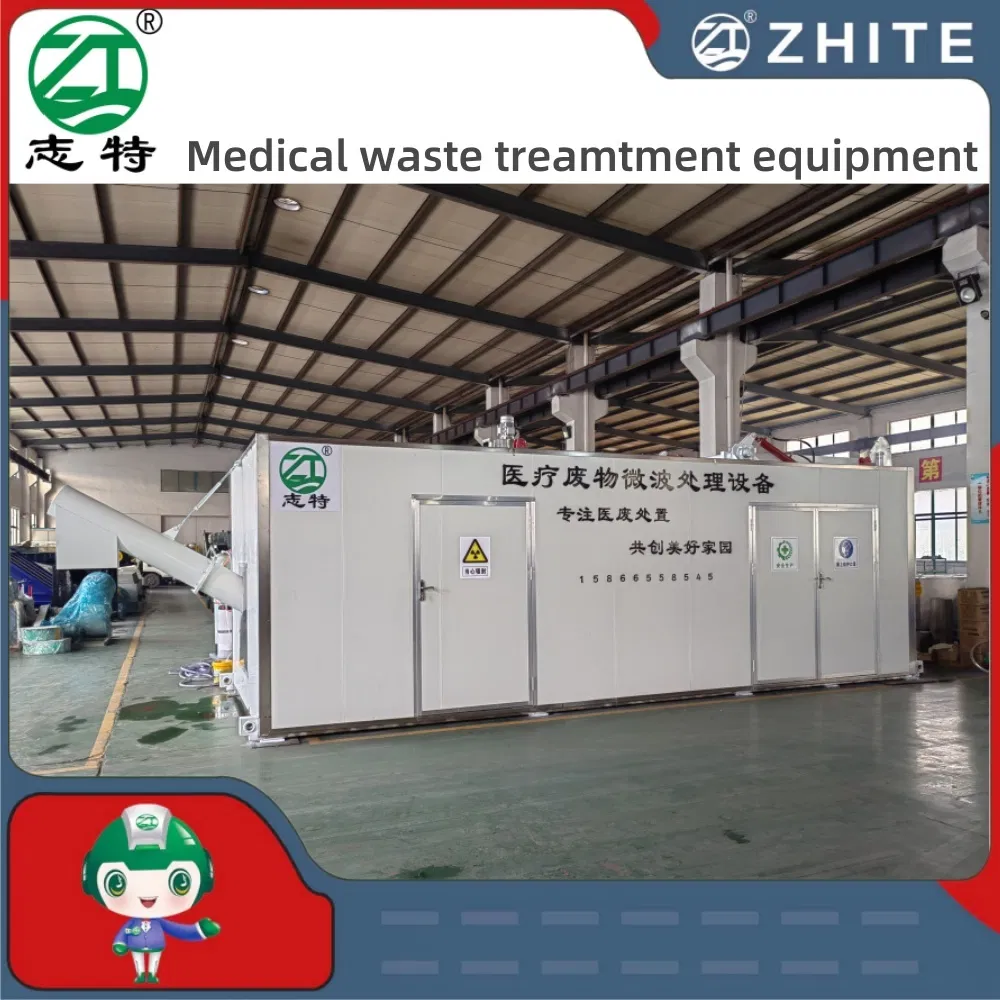

Microwave Treatment Equipment for Hospital Medical Waste Sterilization

Customization: Available
After-sales Service: Lifelong Technical Services
Warranty: 1 Year

Product Description

Basic Info.
Model NO.ZT-MWT-5ConditionNew
CertificationISOAutomationAutomatic
Capacity(T/D)3.0 T/DTotal Power97kw
ScrewCustomizationMicrowave Generator1.5kw*8set
TreatmentHigh Temperature SterilizationElectronic Control SystemPLC
Stock Bin Volume1 Cubic MeterStock Bin Material4 mm Stainless Steel
Cutter MaterialD550 Imported MaterialCrushing Power22 Kw
Weight(Kg)9000kgDimensions (mm)8500*2900*2350
Product Description
This equipment can handle medical waste such as medical infection, injury and pathology, and carry out harmless disposal of medical waste. Equipment integrated design, a full set of equipment low energy consumption, automatic operation, simple operation, anytime and anywhere treatment of medical waste, fixed, mobile can be customized according to demand, convenient and flexible.
Microwave disinfection treatment system is an integrated equipment, the equipment at least by automatic feeding unit, airtight bin unit, multi-function airtight crushing unit, negative pressure pumping unit, microwave disinfection sterilization bin unit, microwave generator unit, steam heating system, discharging unit, automatic control unit, waste gas treatment unit 10 units and alarm system.
1. The thermal effect of microwave energy: Under the action of a certain intensity of microwave field, bacteria will absorb microwave energy due to the polarization of molecules, thus making Protein and Physiologically active substance deforms and loses its biological activity.
2. Non-thermal effect of microwave energy: The high frequency electric field changes the structure of polarized molecules, leading to protein and physiological active substances in the microbial body mutation and loss of vitality or death.
Product Parameters
System Unit Item ZT-MWT-3000 ZT-MWT-5000 ZT-MWT-10000
Hoisting System Garbage can 660L 660L 660L
Stock Bin Volume 1m³ 1.2m³ 1.2m³
Crushing system Power 22kw 30kw 30kw
Sterilization chamber Microwave generator 1.5kw*8 1.5kw*8 1.5kw*20
Total power Power 97kw 120kw 176kw
Capacity(t/d) Daily Capacity 3 5 10

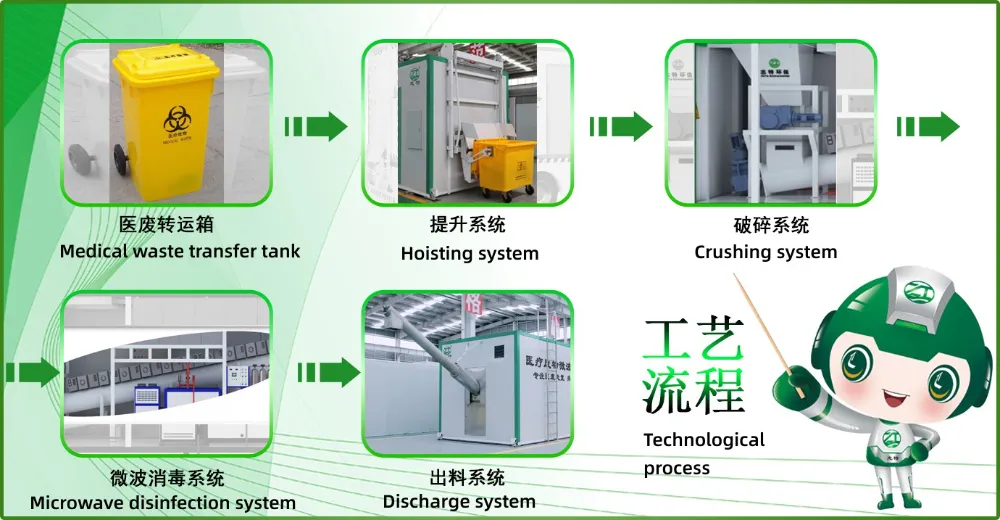

Process Flow
Process Flow
  • Medical waste is transported to the feeding area and sent to the closed silo under negative pressure.
  • Multi-function crushing module reduces waste to small pieces (about 5cm).
  • Small pieces enter the spiral microwave disinfection chamber for uniform mixing.
  • High-temperature steam and microwave energy work together to complete sterilization at 95ºC for 45 minutes.
  • Waste residue is discharged through an automatic discharge spiral system.
Equipment & Technical Characteristics

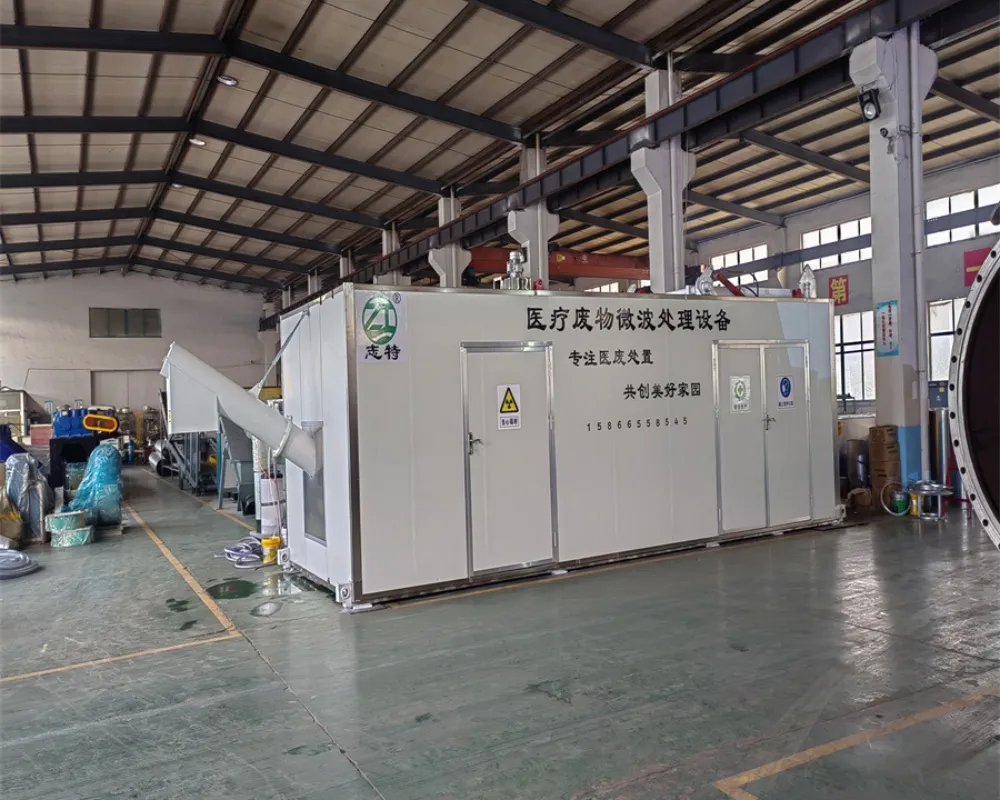

Detail 1

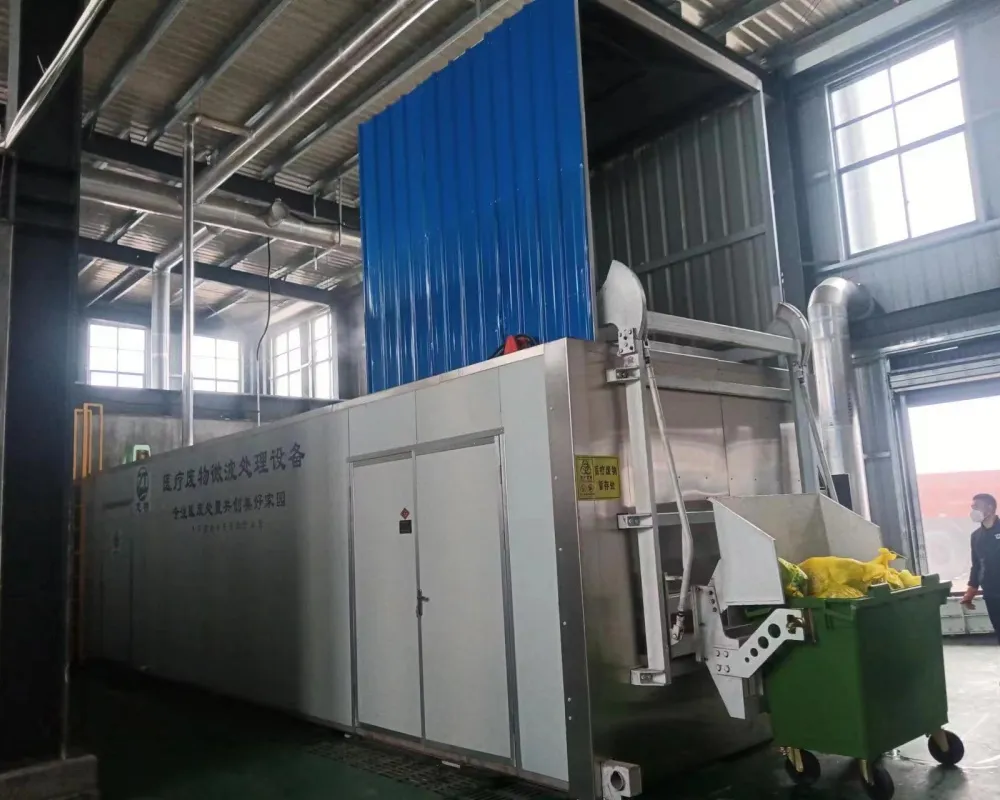

Detail 2

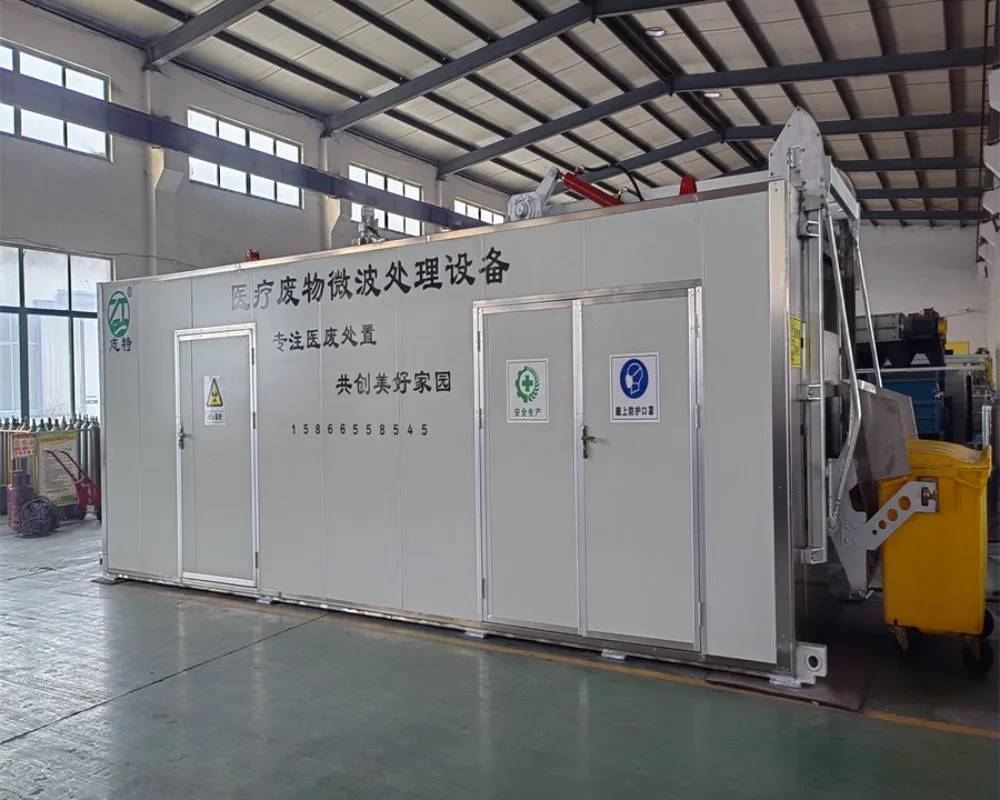

Detail 3
  • Energy Saving: Instantaneous penetration and uniform heating with no energy loss.
  • Low Operating Temperature: Slower heat loss and minimal residue damage compared to ordinary heating.
  • Wide Spectrum: Non-selective effect kills all kinds of microorganisms and pathogens.
  • Eco-friendly: No dioxins, no odorous gases, and no wastewater discharge.
Detailed Photos
Equipment Overview
Internal Components
Packaging & Shipping
Packaging

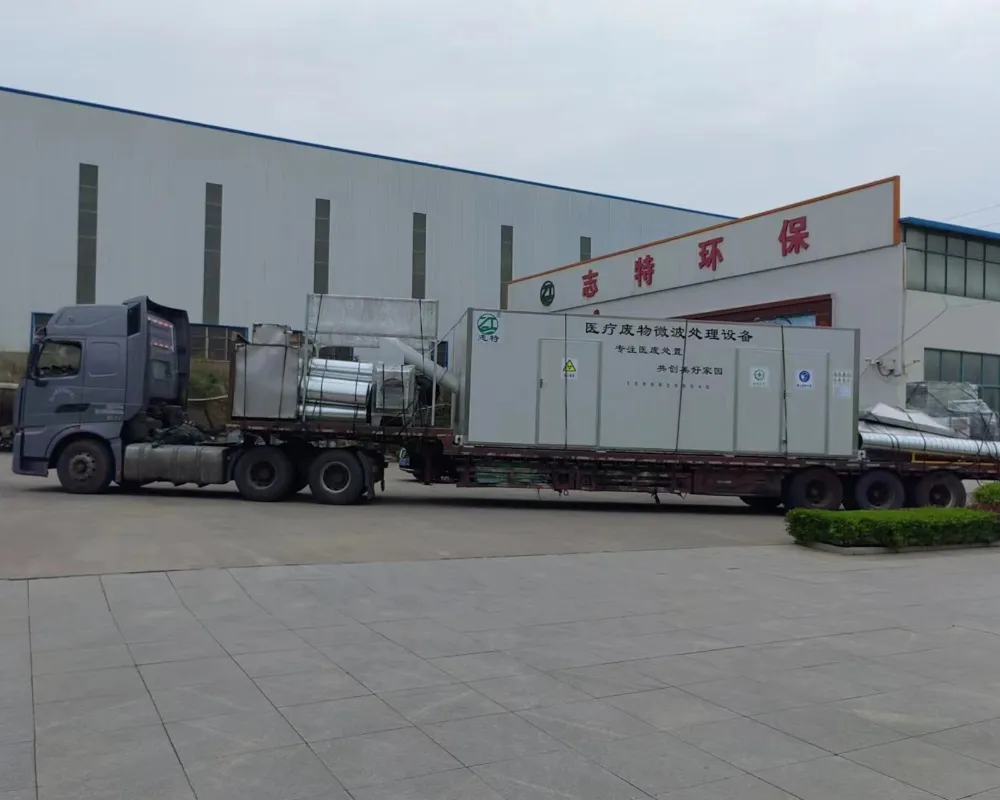

Shipping
Other Products

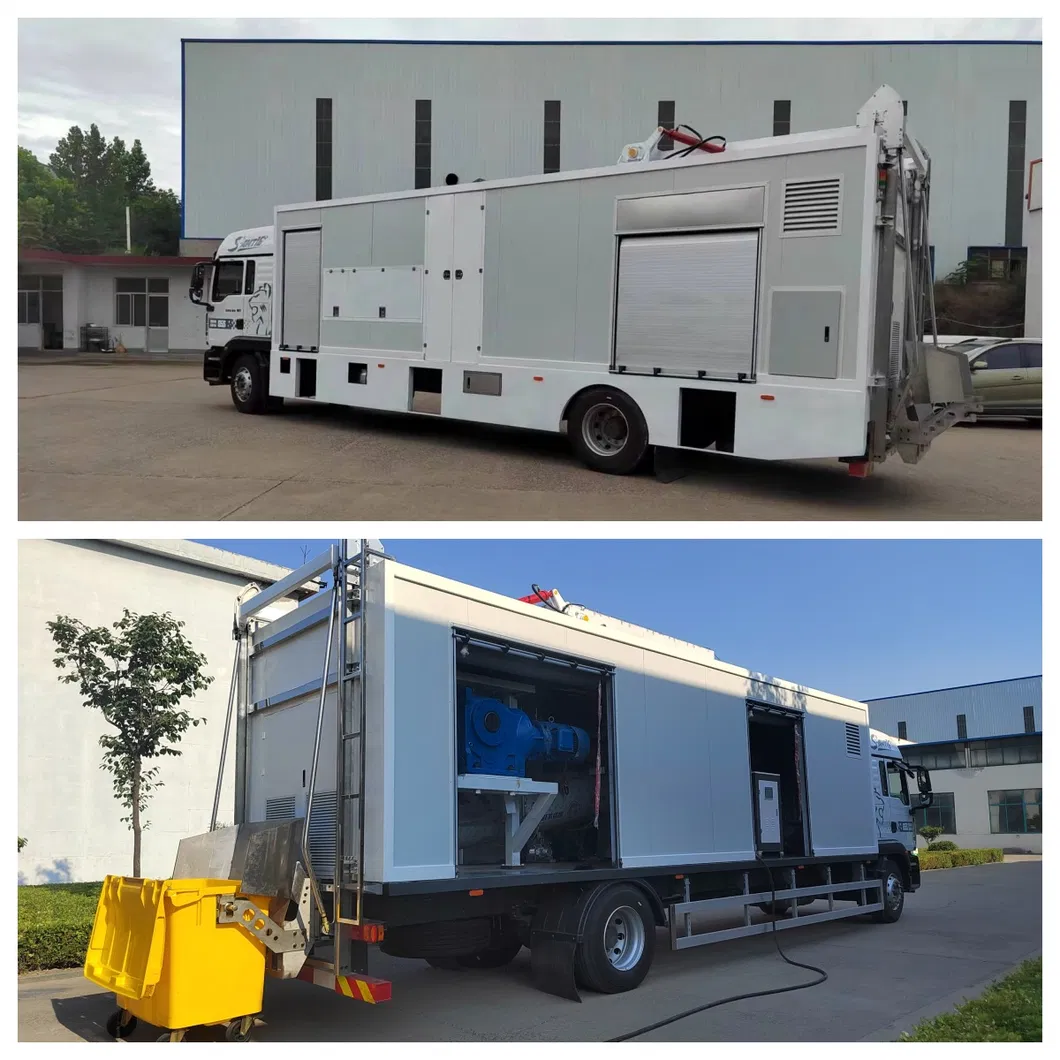

Mobile Type

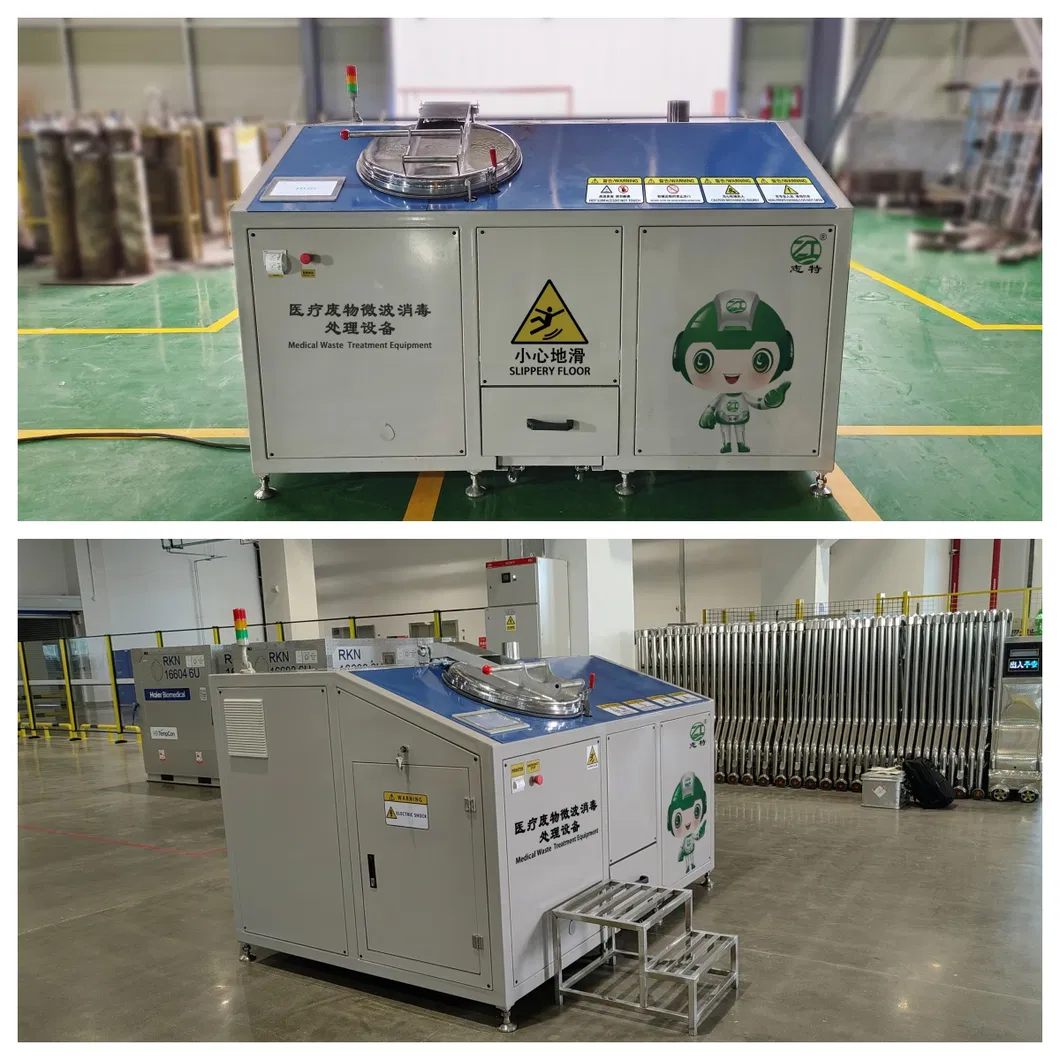

Small Type

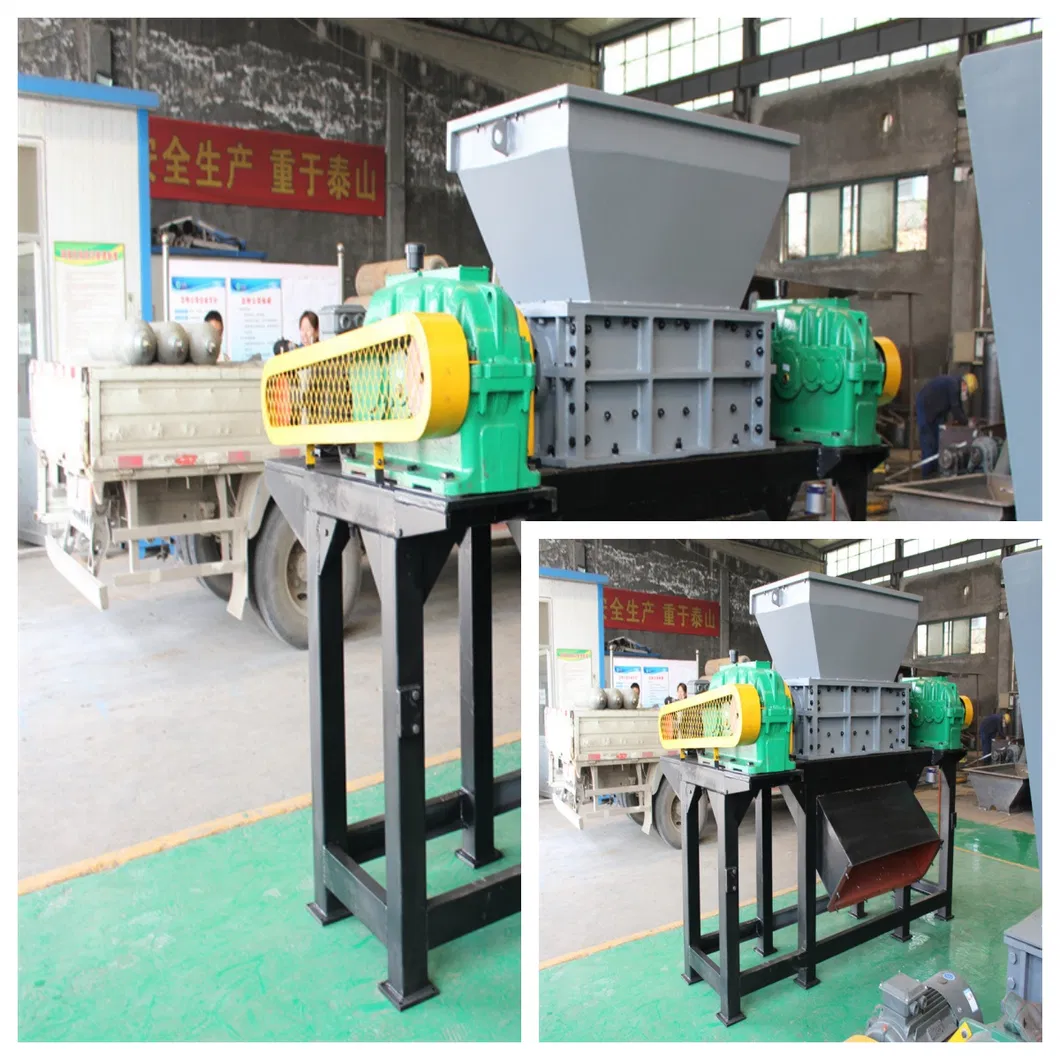

Shredder
Mobile type medical waste microwave treatment equipment Small type medical waste microwave treatment equipment Shredder
Customer Visit & About Us
Customer Visit
We are a comprehensive domestic enterprise integrating scientific research and development, engineering design, production and installation and commissioning services. The main products are medical waste treatment equipment, diseased livestock and poultry harmless treatment equipment, household waste treatment equipment, kitchen waste treatment equipment, tail vegetable treatment equipment, sludge treatment equipment and all kinds of shredding equipment.
Facility 1
Facility 2
FAQ
1. Q: Are you a factory or trading company?
A: Manufacturer with own trading company. Welcome to take a visit!
2. Q: How to choose a shredder machine?
A: With our technical consulting services, we can help you choose the most suitable machine and program based on your specific needs and site requirements.
3. Q: How about the service?
A: We provide after-sales service, including on-site installation, commissioning equipment, guidance and training of operators, and regular return visits.
4. Q: How long is your delivery time?
A: Generally, it will be about 20-35 working days after deposit.
5. Q: How do you ensure the quality?
A: You can send your sample materials for testing. We can provide test videos or you can visit our factory to test the machine in person.
6. Q: Is your price competitive?
A: Surely we will give you the best factory price based on superior product and service.
