Product Description

!Basic Specifications

Model NO.
HRXS-MWT-C00010
Condition
New
Certification
GMA, QS, FDA, ISO, CE
Automation
Automatic
Treatment
Microwave
Capacity
3t/D
Sterilization
10mm Stainless Steel Blade
Total Power
97kw
Main Dimension
7000*2900*2650 mm
Total Weight
11000kg

iProduct Description

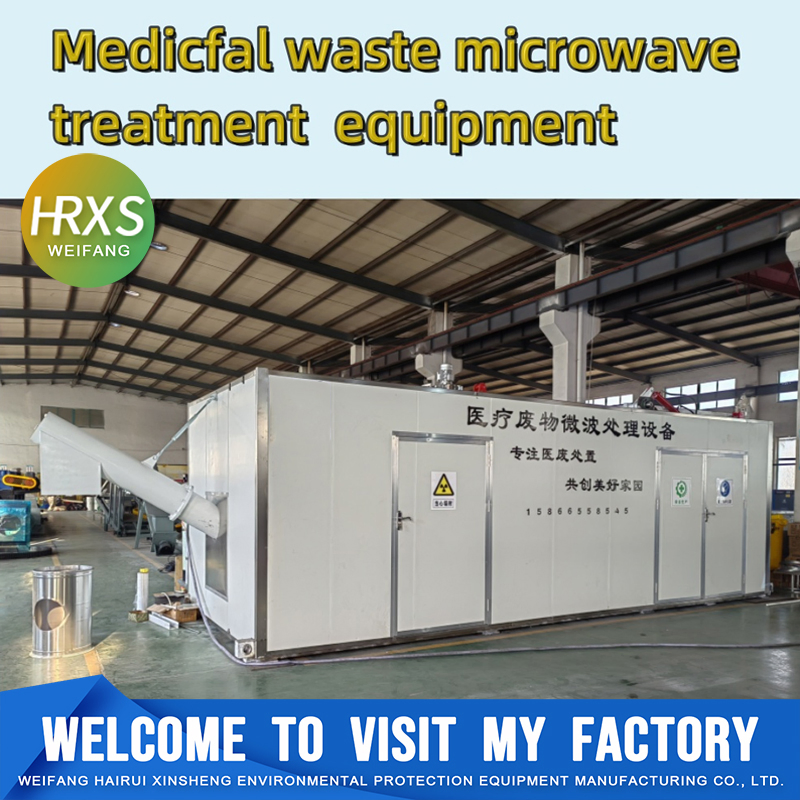

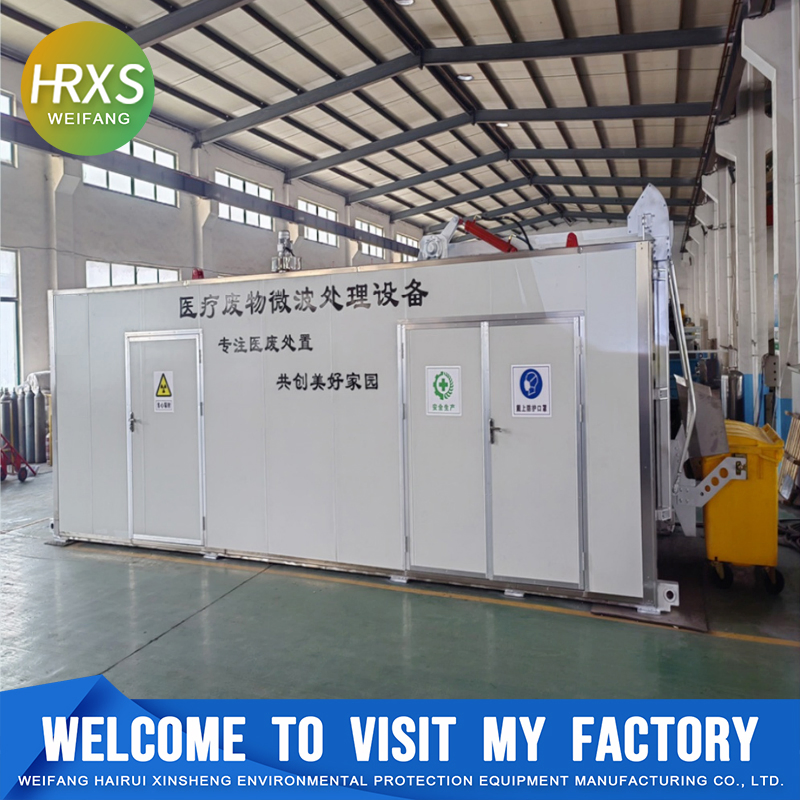

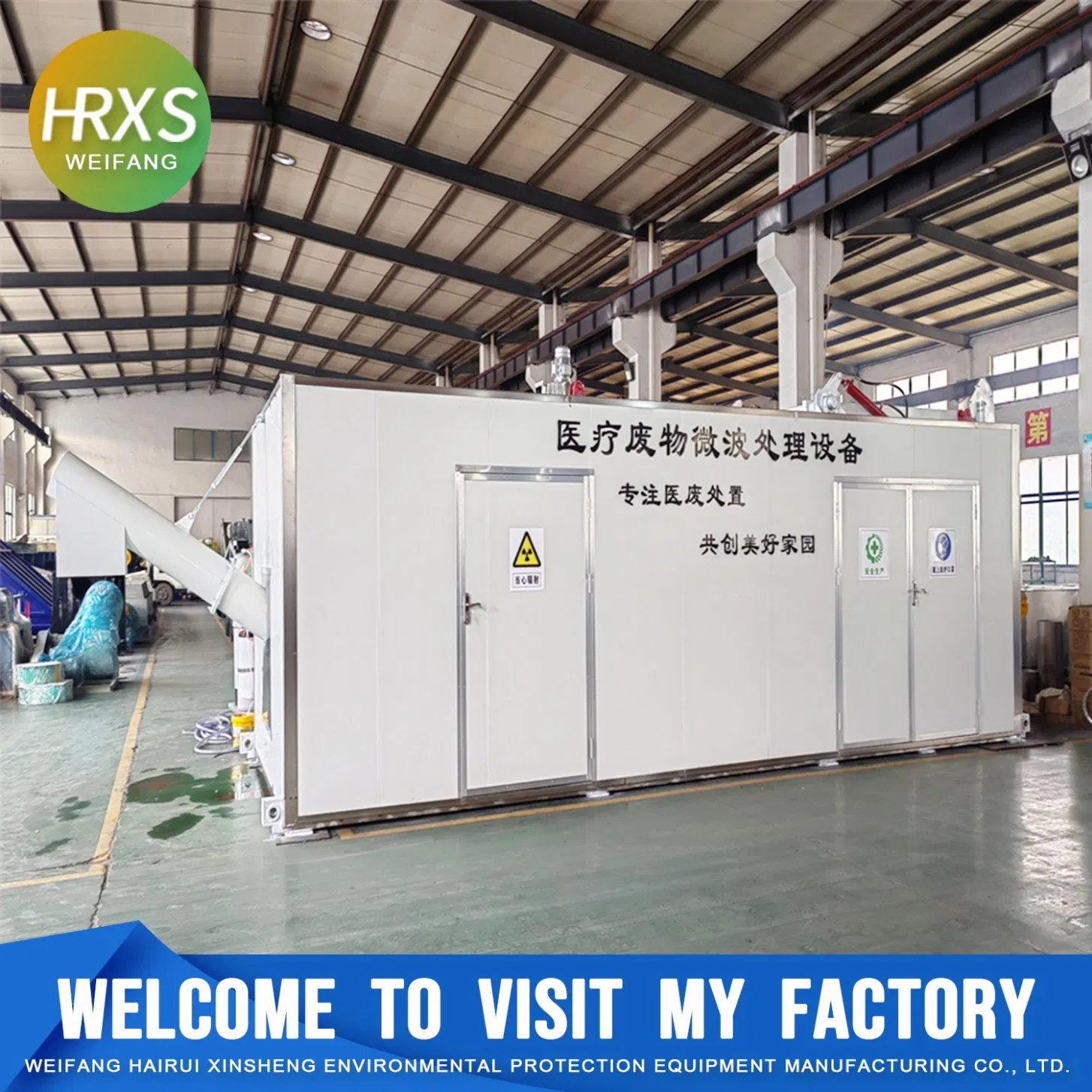

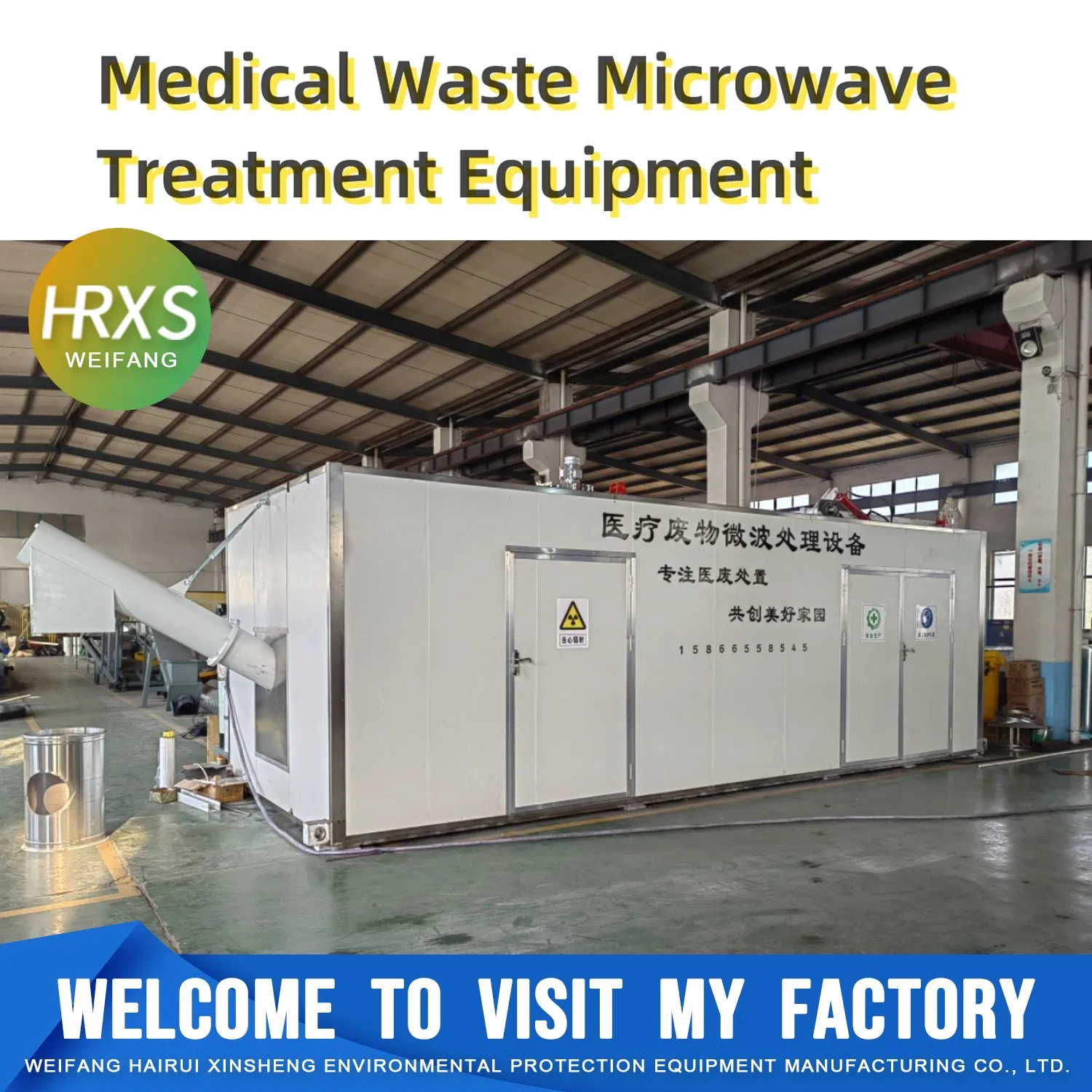

Medical Waste Microwave Sterilization Disposal Equipment

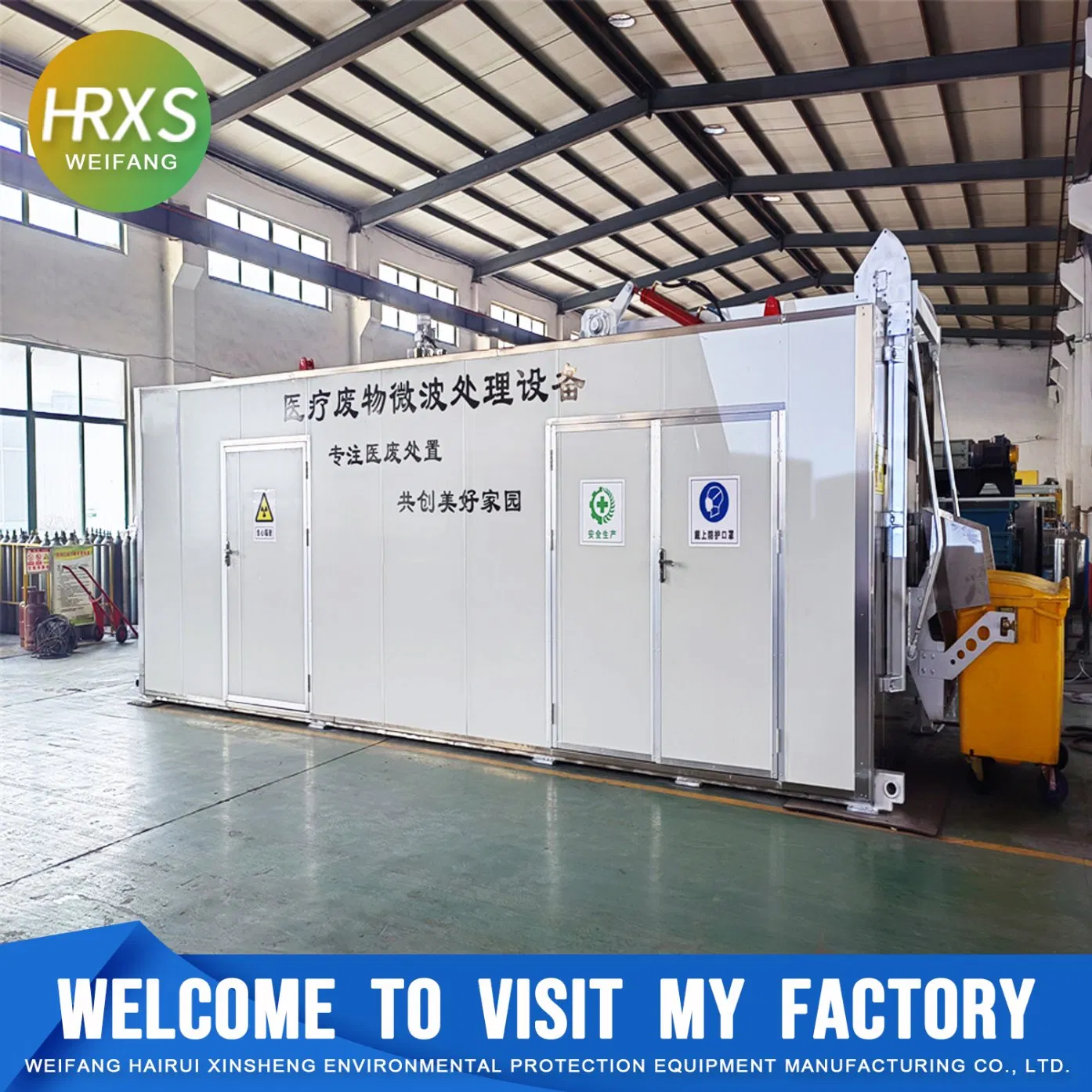

The microwave disinfection treatment system is an integrated equipment designed to handle medical waste such as medical infection, injury, and pathology. It carries out harmless disposal through an automated, low-energy consumption process. The system can be customized as fixed or mobile units according to specific healthcare demands.

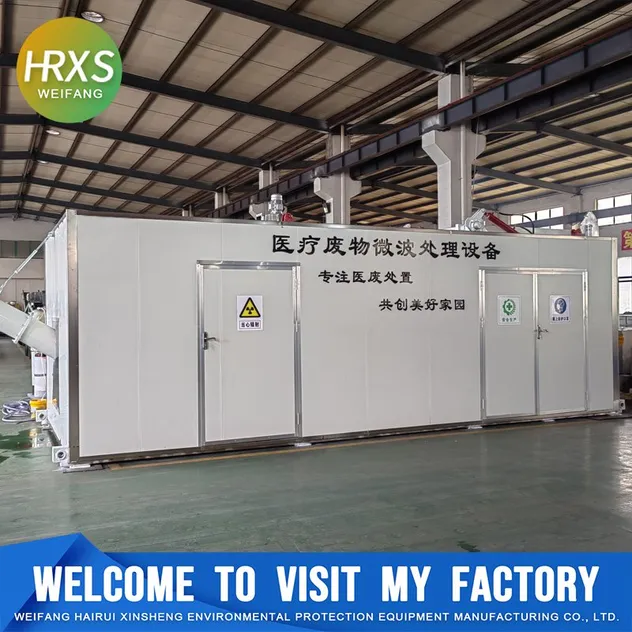

Medical Waste Equipment 1

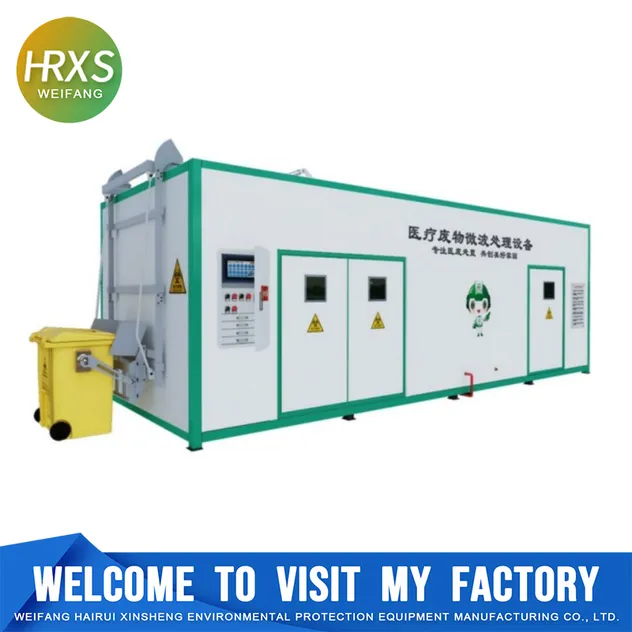

Medical Waste Equipment 2

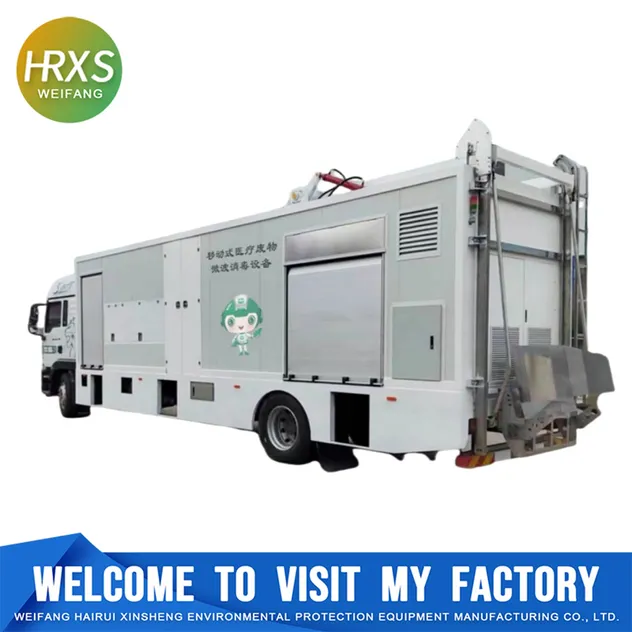

Medical Waste Equipment 3
The core technology utilizes high-temperature microwave sterilization (wet heat sterilization). Microwave energy penetrates deep into the waste, releasing latent heat contained in steam. This rapidly raises the temperature to the sterilization level, solidifying bacterial proteins and killing all microorganisms, including bacterial spores.

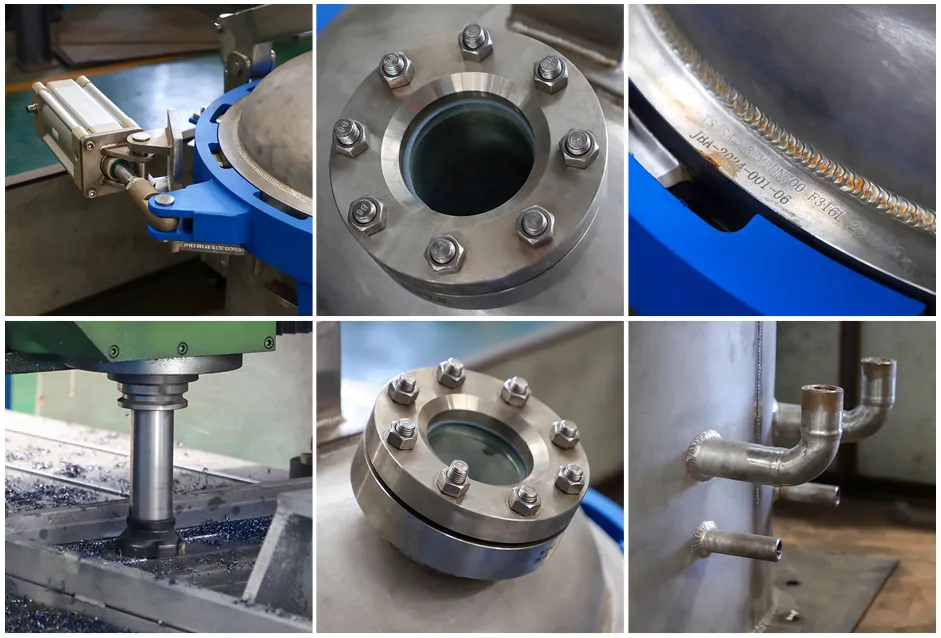

Microwave System Overview

PThe Treatment Process

  1. Feeding: Medical waste is automatically fed into a closed silo under negative pressure to prevent harmful overflow.
  2. Crushing: Multi-function crushing modules reduce waste into small pieces (approx. 5cm).
  3. Sterilization: Waste enters the spiral chamber. Under the interaction of high-temperature steam (95ºC) and microwave electromagnetic waves for 45 minutes, full sterilization is achieved.
  4. Discharge: Sterilized residue is discharged through an automatic spiral system.
Process Diagram

STechnical Specifications

System Unit Item HRXS-MWT-3000 HRXS-MWT-5000 HRXS-MWT-10000
Hoisting System Garbage Can 660L 660L 660L
Crushing System Power 22kw 30kw 30kw
Sterilization Chamber Microwave Gen. 1.5kw*8 1.5kw*10 1.5kw*20
Dimensions Main Body (mm) 7000*2900*2650 8000*2900*2650 10500*290*2650
Performance Capacity (t/d) 3 5 10

CProfessional Capacity

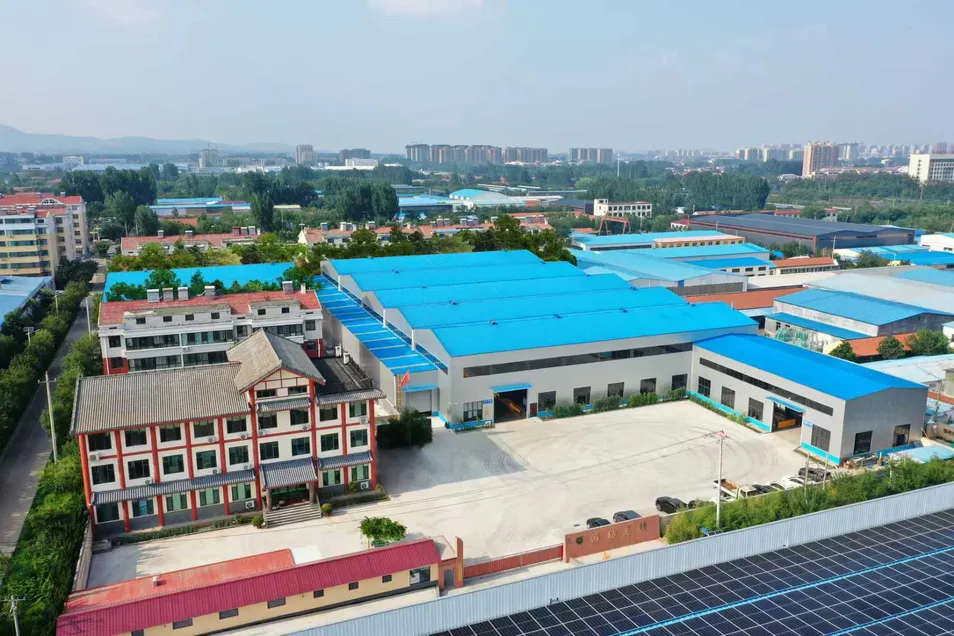

Factory View
Production Line
Certifications Display
Customer Cooperation

Frequently Asked Questions

What are the payment terms?
TT and L/C are acceptable. Generally, a 30% deposit is required before production, with the 70% balance settled before loading via TT.
What is the typical delivery time?
Delivery time depends on the order quantity, but it is generally within 3 to 4 weeks.
How is the equipment protected against corrosion?
We use world-renowned industrial paints, such as epoxy-coal tar pitch, applied strictly according to standard coating processes.
How is installation handled at the destination?
We provide detailed illustrations and can send technicians to guide installation, debugging, and staff training for maintenance and operation.
What is the warranty policy?
We provide a solution within 24 hours for any malfunction. For non-human-caused issues during the warranty period, we provide free repairs and guarantee equipment restoration.
Which certifications does the equipment hold?
The equipment is certified under CE, ISO9001, OHSAS18001, and ISO14001 standards.
