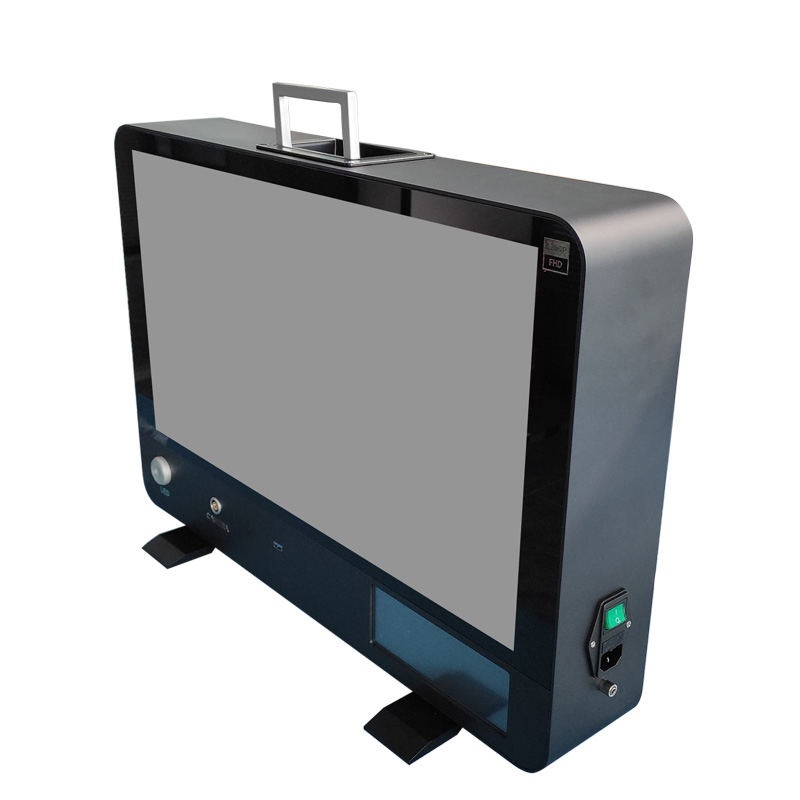

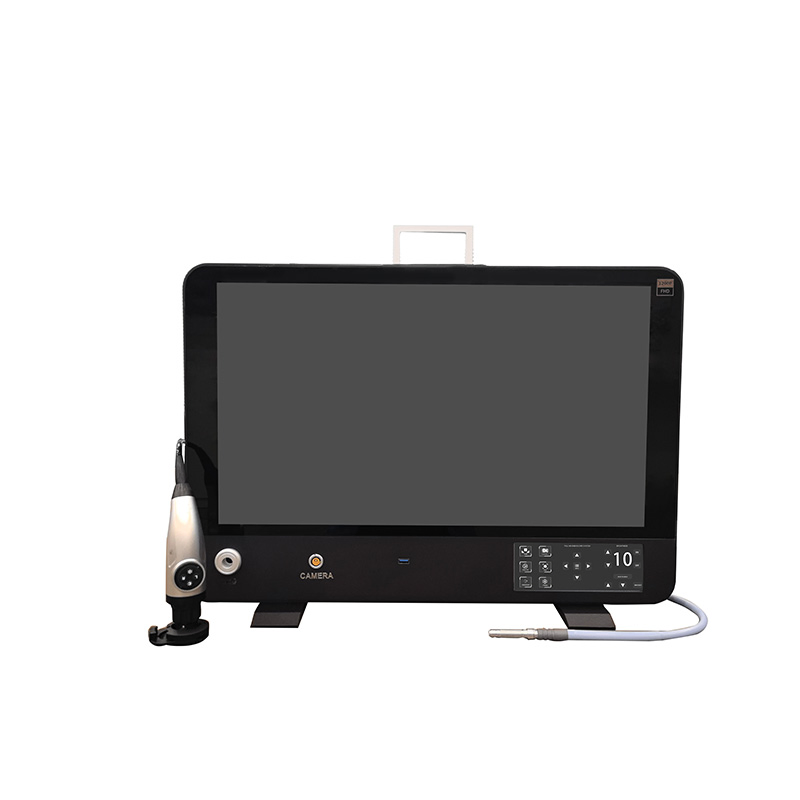

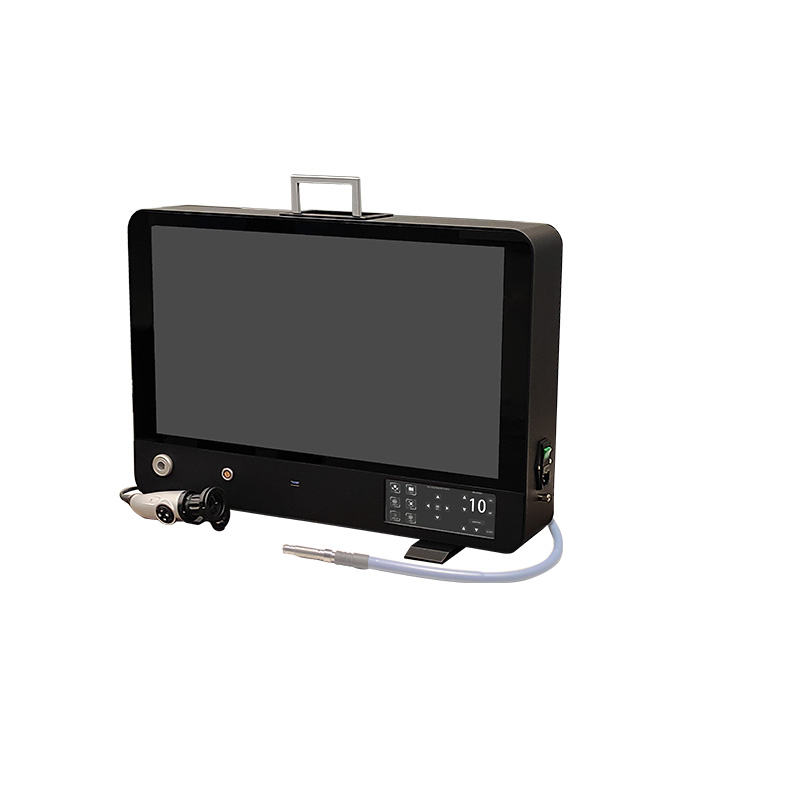

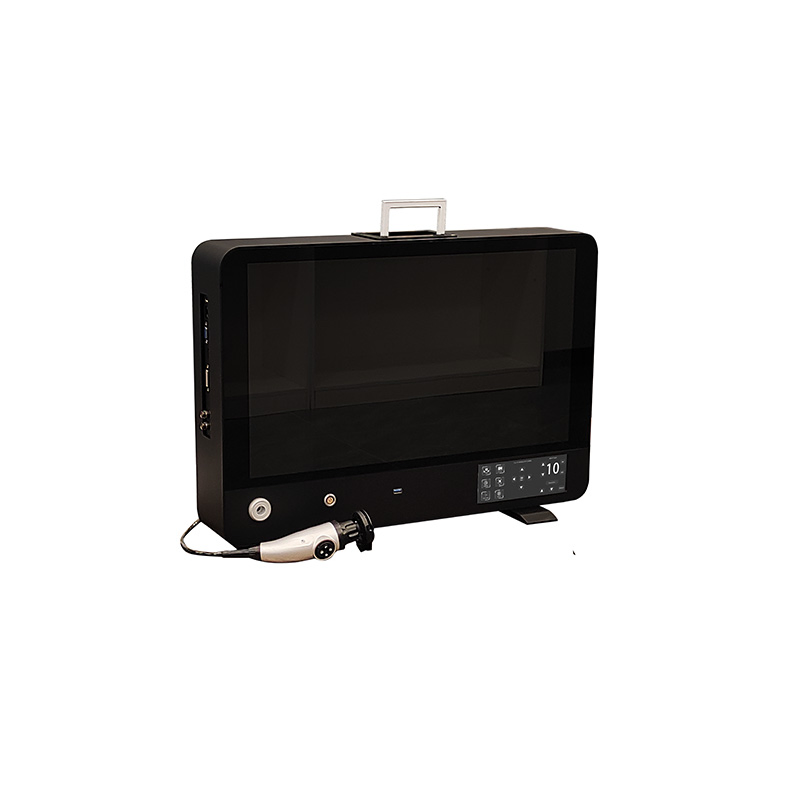

Medical Grade Endoscopy Camera System with 24” Display

Customization: Available
Model Number: Borealis
Safety Standard: En149-2001+A1-2009

Product Description

Basic Specifications

Model:
Borealis
Classification:
Class I
Warranty:
2 Years
Selling Units:
Single Item
Power Source:
Electric
Certification:
ISO
After-Sale Service:
Free Spare Parts
Origin:
Jiangsu, China

Product Description

Borealis Telepack: The Ultimate All-in-One FHD Endoscopy Camera System

Introducing the Borealis Telepack - a cutting-edge, fully integrated Full HD endoscopy camera system engineered for seamless use across diverse medical specialties. Housed in a rugged full-aluminum alloy chassis and paired with a 24-inch medical-grade display featuring fully laminated, anti-microbial glass, it delivers exceptional durability and crystal-clear imaging every time.

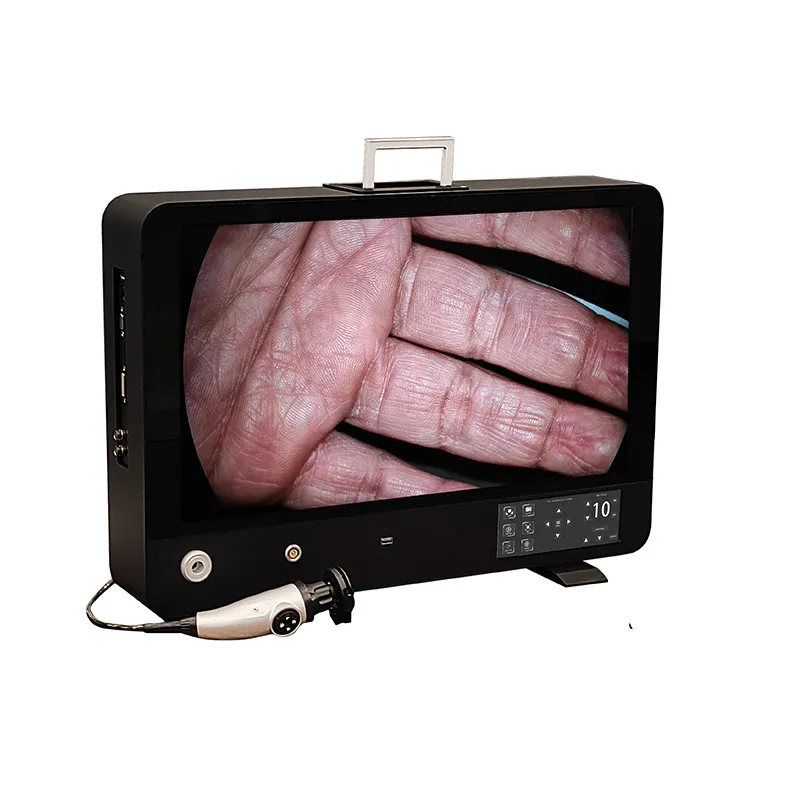

Endoscopy Camera System Display

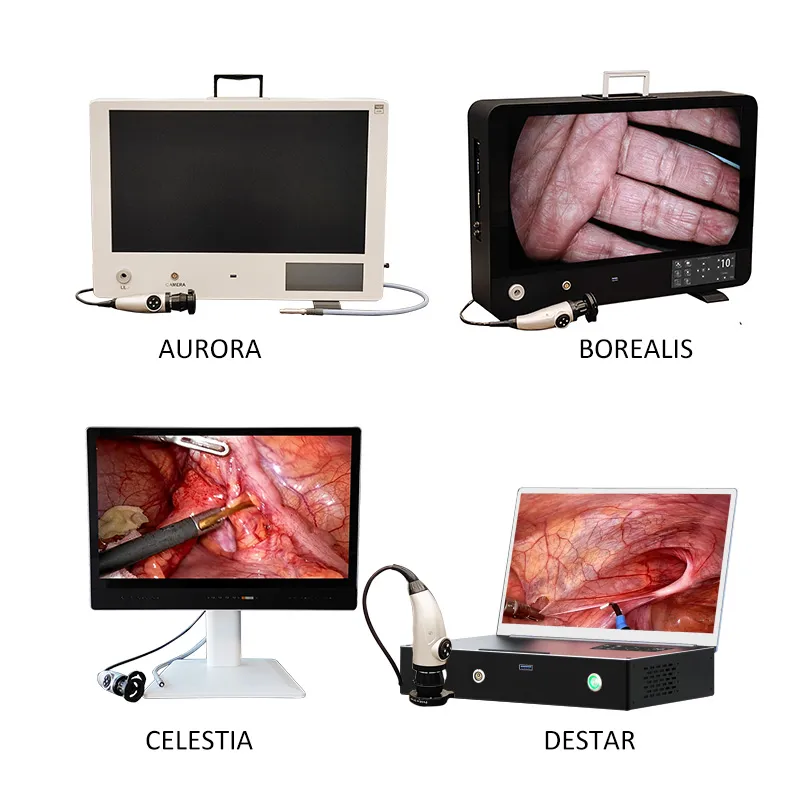

Endoscopy Device Details

🚀 Key Technical Advantages

  • Premium Sony CMOS Sensor: 1/1.8" sensor with 2.1 million pixels for razor-sharp visuals.
  • Full HD Performance: 1920×1080 at 60 FPS with >56dB signal-to-noise ratio.
  • Medical Grade Monitor: 24-inch screen protected by anti-microbial glass.
  • 10 Specialty Modes: Pre-set for Laparoscopy, Urology, Gynecology, ENT, and more.
  • IPX8 Waterproof: High-standard sterilization ready camera head.

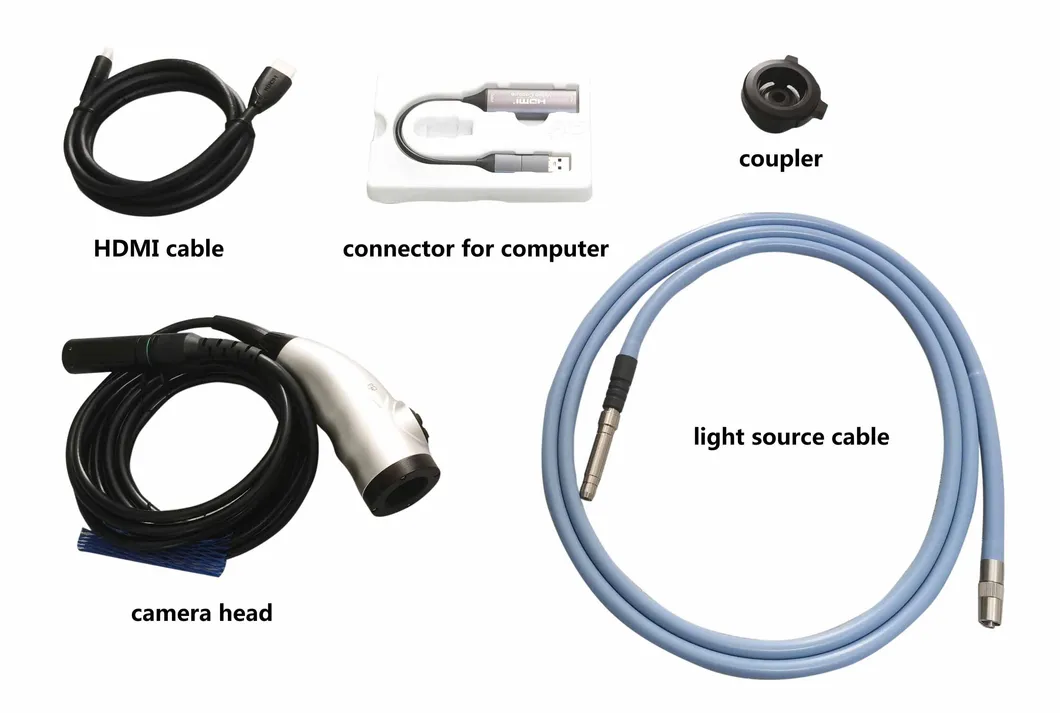

Endoscopy Camera Components

Technical Specifications

Parameter Details
Product NameEndoscope Camera System
Resolution1920x1080 / 60fps (1200 TVL)
Waterproof LevelIPX8 (Camera Head)
Control FunctionsAWB, Freeze, Capture, Record, Zoom, Cineloop
Screen Size Options19 / 24 Inch
Light SourceBuilt-in 80W-100W LED Cold Light Source
Output PortsHDMI, DVI, VGA, SDI, BNC, USB

Standard Package List

Packaging Presentation
  • Main Camera Unit
  • Waterproof Camera Head
  • Optical Coupler (F22)
  • High-Speed HDMI Cable
  • 32G USB Storage
  • Fiber Optic Light Cable
  • Capture Software for PC

Professional Manufacturing

As a leading professional supplier founded in 1996, we specialize in the R&D and manufacture of medical visualization devices. Our facilities are ISO 9001 and ISO 13485 certified, ensuring every product meets rigorous international quality standards. With over 20 years of expertise, our distribution network spans across 80 countries worldwide.

Manufacturing Facility

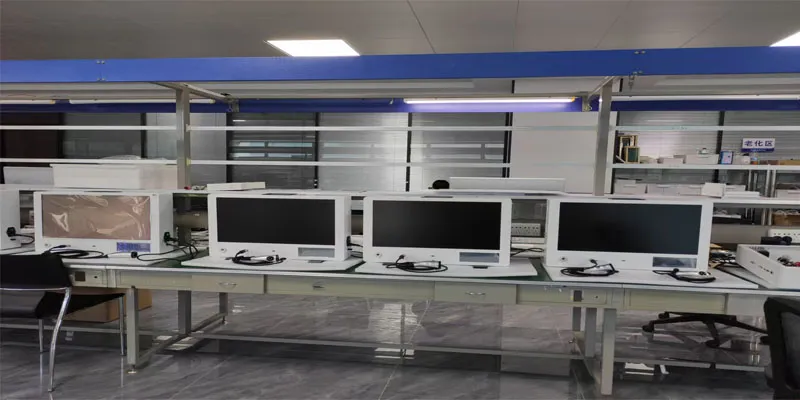

Quality Control
Certifications

Frequently Asked Questions

What are the primary applications for this endoscopy system?
The system is designed for a wide range of specialties including Laparoscopy, Urology, Gynecology, ENT, Neurosurgery, and Orthopedics (Arthroscopy).
Does the system support image and video recording?
Yes, it features dual recording modes via an internal hard drive and external USB ports for secure and convenient data capture.
Is the camera head autoclavable or waterproof?
The camera head is IPX8 waterproof, making it compatible with standard high-level disinfection and sterilization liquid soaking protocols.
Can I customize the system with my own branding?
Yes, we provide professional OEM/ODM services, allowing you to customize logos, boot screens, and physical frame designs.
What is the warranty period and after-sales support?
We provide a 2-year warranty and offer free spare parts as part of our comprehensive after-sales service commitment.
What languages does the On-Screen Display support?
The system supports multiple languages including English, Spanish, French, Russian, and Portuguese to accommodate global medical teams.
