Me -50f High Frequency Electrosurgical Unit  Electrosurgical/Hf Surgical/Hf Electric
Me -50f High Frequency Electrosurgical Unit  Electrosurgical/Hf Surgical/Hf Electric
Me -50f High Frequency Electrosurgical Unit  Electrosurgical/Hf Surgical/Hf Electric
Me -50f High Frequency Electrosurgical Unit  Electrosurgical/Hf Surgical/Hf Electric
Me -50f High Frequency Electrosurgical Unit  Electrosurgical/Hf Surgical/Hf Electric
1 / 5
Me -50f High Frequency Electrosurgical Unit  Electrosurgical/Hf Surgical/Hf Electric
Me -50f High Frequency Electrosurgical Unit  Electrosurgical/Hf Surgical/Hf Electric
Me -50f High Frequency Electrosurgical Unit  Electrosurgical/Hf Surgical/Hf Electric
Me -50f High Frequency Electrosurgical Unit  Electrosurgical/Hf Surgical/Hf Electric
Me -50f High Frequency Electrosurgical Unit  Electrosurgical/Hf Surgical/Hf Electric

Me -50f High Frequency Electrosurgical Unit  Electrosurgical/Hf Surgical/Hf Electric

Customization: Available
Type: Welding
Certification: CE, ISO13485
Send Inquiry

Product Description

Basic Information

Model NO.
ME -50F High Frequency Electrosurgical Unit
Group
Adult
Main Frequency
625kHz±5%
Modulate Frequency
25kHz±5%
Working Mode
Intermittent and Continuous, 10s/30s
Classification
Class I Type CF
Dimension
410mm×320mm×155mm
Environment Temp
+5c~+40c
Relative Humidity
≤85%
Specification
CE
Trademark
Mermaid
Origin
China
Capacity
300 per Month

Product Overview

ME-50F High Frequency Electrosurgical Unit is a high-performance electronic surgical equipment designed for versatile medical applications including monopolar and bipolar modes.

✓7 Monopolar modes & 2 Bipolar modes
✓Endoscopic surgery compatibility
✓CE and ISO Certified

Technical Specifications

Spec. Mode Power Range Resistance
Monopolar Pure cutting2~350W500Ω
Monopolar Blend 12~250W500Ω
Monopolar Blend 22~200W500Ω
Monopolar Blend 32~200W500Ω
Monopolar Contact Coagulation2~200W500Ω
Monopolar Standard Coagulation2~200W500Ω
Monopolar Spray Coagulation1~70W150Ω
Bipolar Standard Coagulation1~70W150Ω
Bipolar Accurate Coagulation1~70W150Ω

Key Features & Indicators

●Automatic Storage: Working modes and power settings can be stored for up to 100 years.
●High Frequency Safety: Leakage current < 150mA; neutral electrode is isolated from earth.
●Visual & Audio Indicators: Distinct color coding (Yellow for Cutting, Blue for Coagulation) and adjustable volume indicators.
●Intelligent Monitoring: Features NE Continuity Monitor and CQM (Contact Quality Monitor) for patient safety.

Intended Use: Suitable for big-middle hospitals performing general surgery, orthopedic surgery, chest surgery, cardiovascular surgery, gynecology, urology, tumor treatment, gastroenterology, and neurology.

Surgical Mode Pure Blend 1-3 Coag 1-3 Bipolar 1-2
Rated Power 350W 250W - 200W 200W - 100W 70W
Rated Load 500Ω 500Ω 500Ω 150Ω

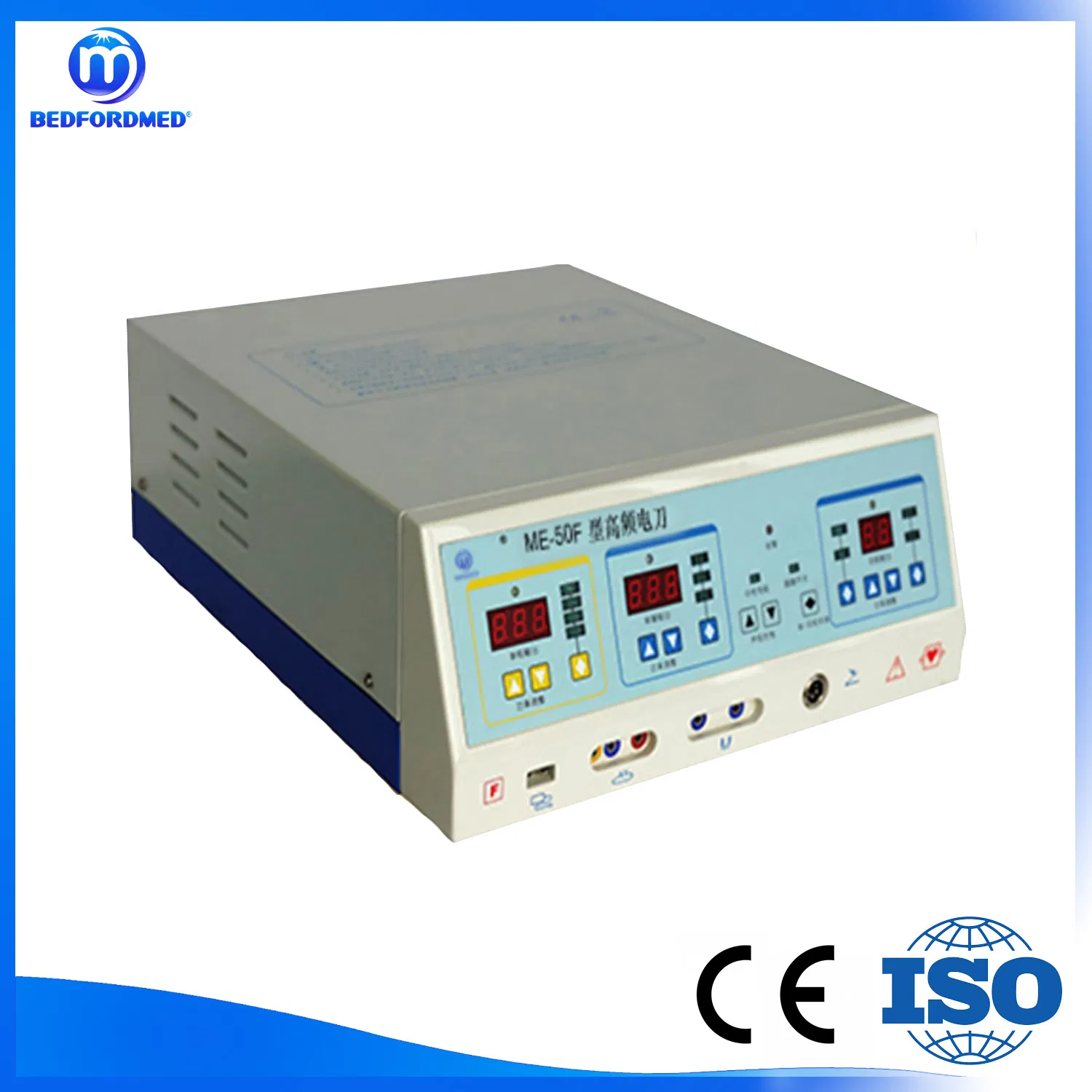

ME-50F Electrosurgical Unit Front View
ME-50F Electrosurgical Unit Detail View

Frequently Asked Questions

Q: What surgical departments can use the ME-50F unit?
A: It is intended for a wide range of departments including general surgery, orthopedics, chest surgery, cardiovascular surgery, gynecology, urology, neurology, and more.
Q: Does the unit support endoscopic procedures?
A: Yes, the ME-50F system is designed to be used together with endoscopes to perform various endoscopic surgeries.
Q: How many working modes are available?
A: The unit offers 9 modes in total: 7 monopolar modes (Pure Cut, Blend 1-3, and various Coagulation modes) and 2 bipolar modes.
Q: What safety monitoring systems are included?
A: It includes a Neutral Electrode (NE) continuity monitor and a Contact Quality Monitor (CQM) to ensure patient safety and alert staff if connections are insufficient.
Q: Can the device save custom power settings?
A: Yes, the unit features automatic storage that can retain the working mode and output power settings for up to 100 years.
Q: What are the control options for monopolar and bipolar modes?
A: Monopolar modes can be operated via Hand or Foot control, while Bipolar modes support Foot control and Automatic control.
