Product Description

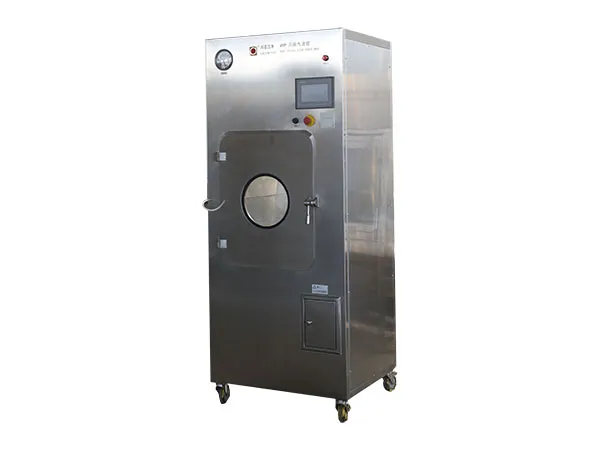

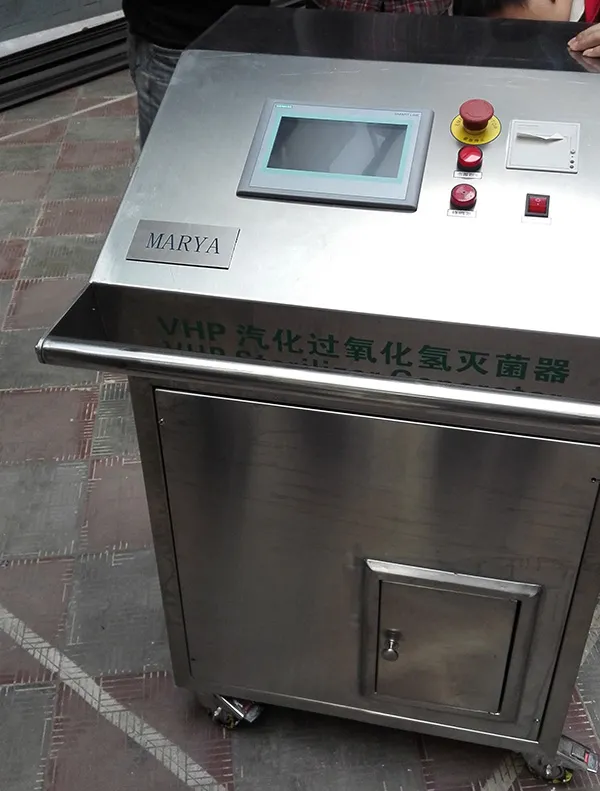

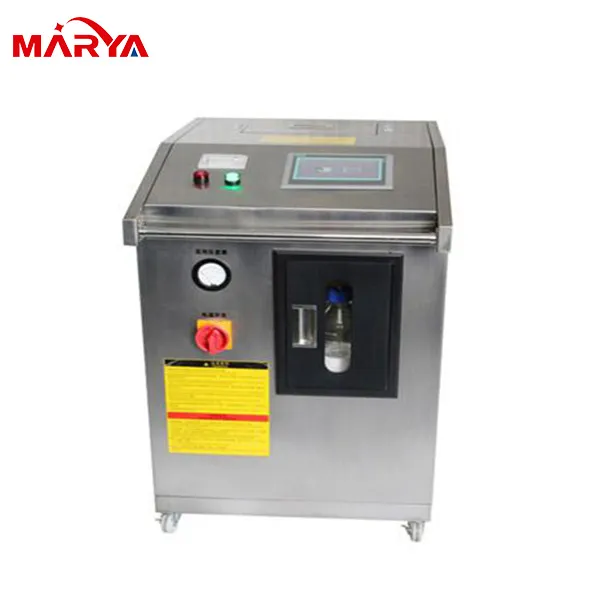

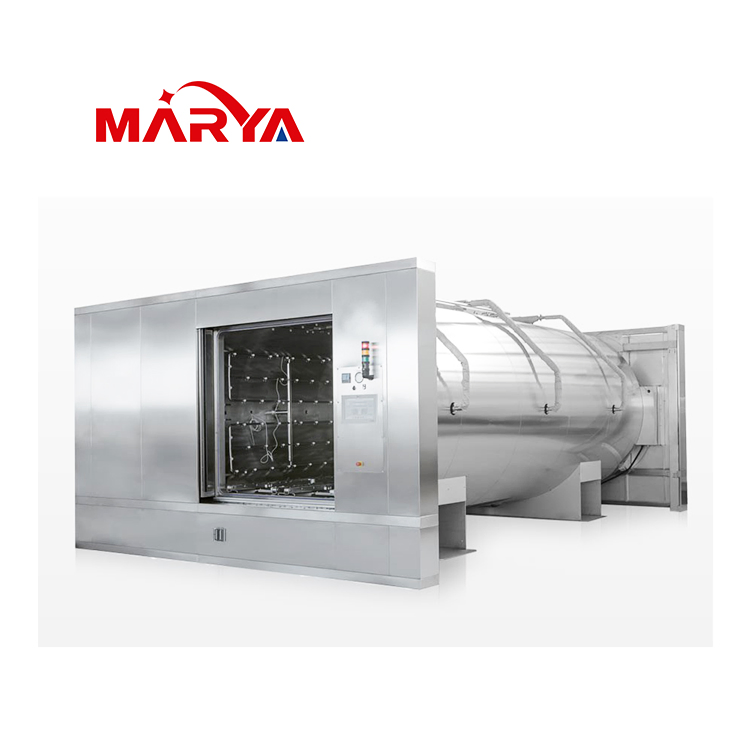

VHP Space Sterilization Equipment for Pharmaceutical Cleanrooms

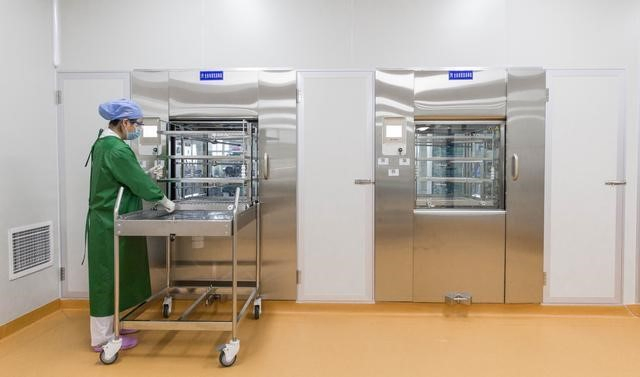

This equipment provides advanced space sterilization by integrating the vaporization of hydrogen peroxide. It effectively sterilizes all exposed surfaces inside pass boxes and cleanrooms. By using hydrogen peroxide gas rather than liquid state at room temperature, it offers a superior ability to kill spores. The process generates free hydroxyl radicals to attack cellular components including lipids, proteins, and DNA, replacing traditional ultraviolet disinfection methods to achieve total sterilization requirements.

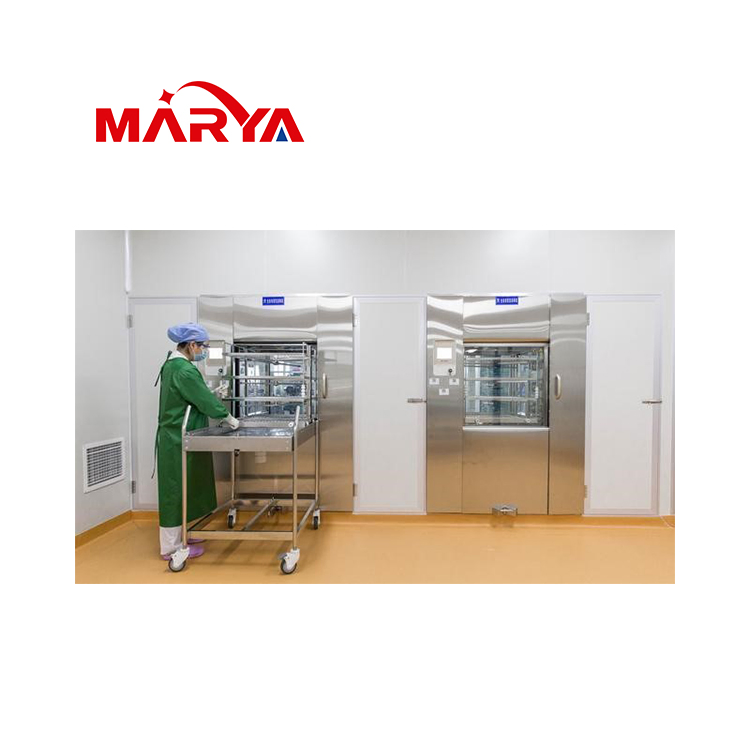

Vaporized hydrogen peroxide sterilization is ideal for low-temperature applications. It features excellent material compatibility and decomposes naturally into water and oxygen, leaving no harmful residues. It is widely used in the pharmaceutical industry for aseptic cleanroom transfers and SIP (Sterilization In Place) for isolators, freeze dryers, and sterile liquid mixing tanks.
Technical Parameters
➤ Working Method: Continuous work

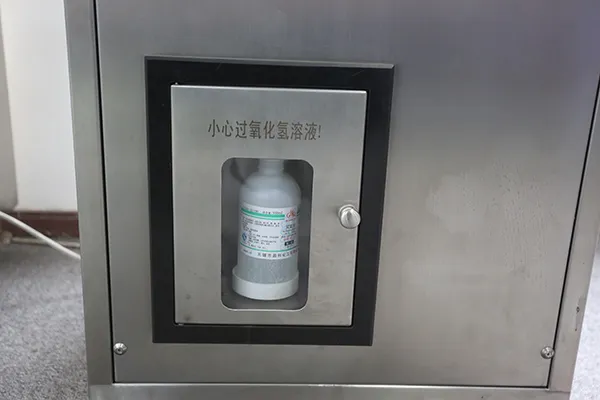

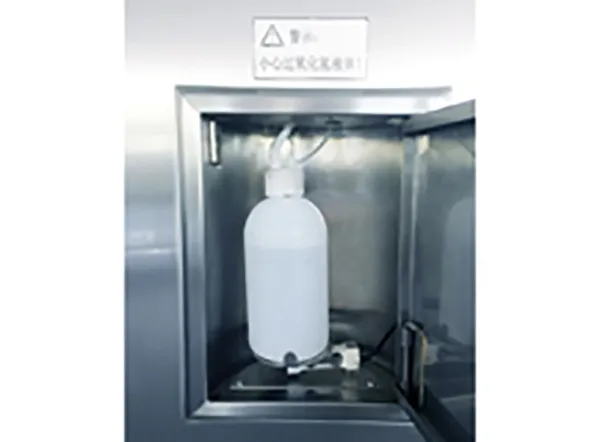

➤ Bactericide: Food-grade H2O2 solution (mass concentration ≥30%)
➤ Vaporization Temp: ≤ 40 ºC
➤ Injection Rate: 0 ~ 30 g / min
➤ Decontamination Ability: 6log reduction of thermophilic fatty spores
➤ Dimensions: 530x700x1300mm
➤ Power: 1.2kw
➤ Sterilization Volume: 100m³, 200m³, 300m³ (Optional)
Frequently Asked Questions
How effective is VHP sterilization?
VHP sterilization is highly effective, reaching a 6log reduction (99.9999%) in bacteria and spores, ensuring a high level of biological decontamination.
Does the sterilization process leave any toxic residues?
No, the decomposition products of vaporized hydrogen peroxide are only water vapor and oxygen, making it safe for the environment and operators.
What materials are compatible with VHP?
VHP has excellent material compatibility with most pharmaceutical cleanroom surfaces, including stainless steel, glass, and many plastics.
What is the typical vaporization temperature?
The vaporization temperature is typically kept low, less than 40°C, which is ideal for heat-sensitive products and environments.
Can the sterilization volume be customized?
Yes, we offer options for various sterilization volumes such as 100m³, 200m³, and 300m³ to suit different cleanroom and laboratory needs.
Is the equipment portable or stationary?
The equipment is designed for industrial use in pharmaceutical settings, suitable for on-line sterilization (SIP) for isolators and sterile pass boxes.
