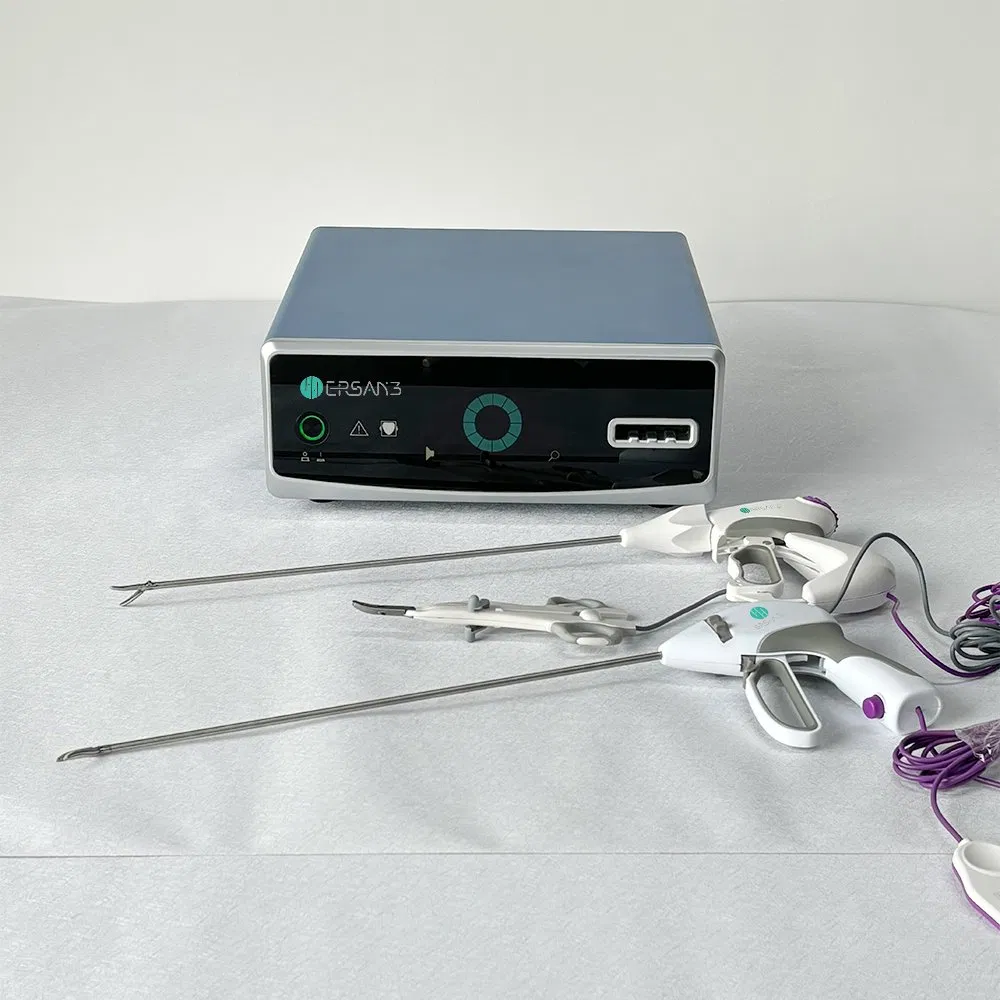

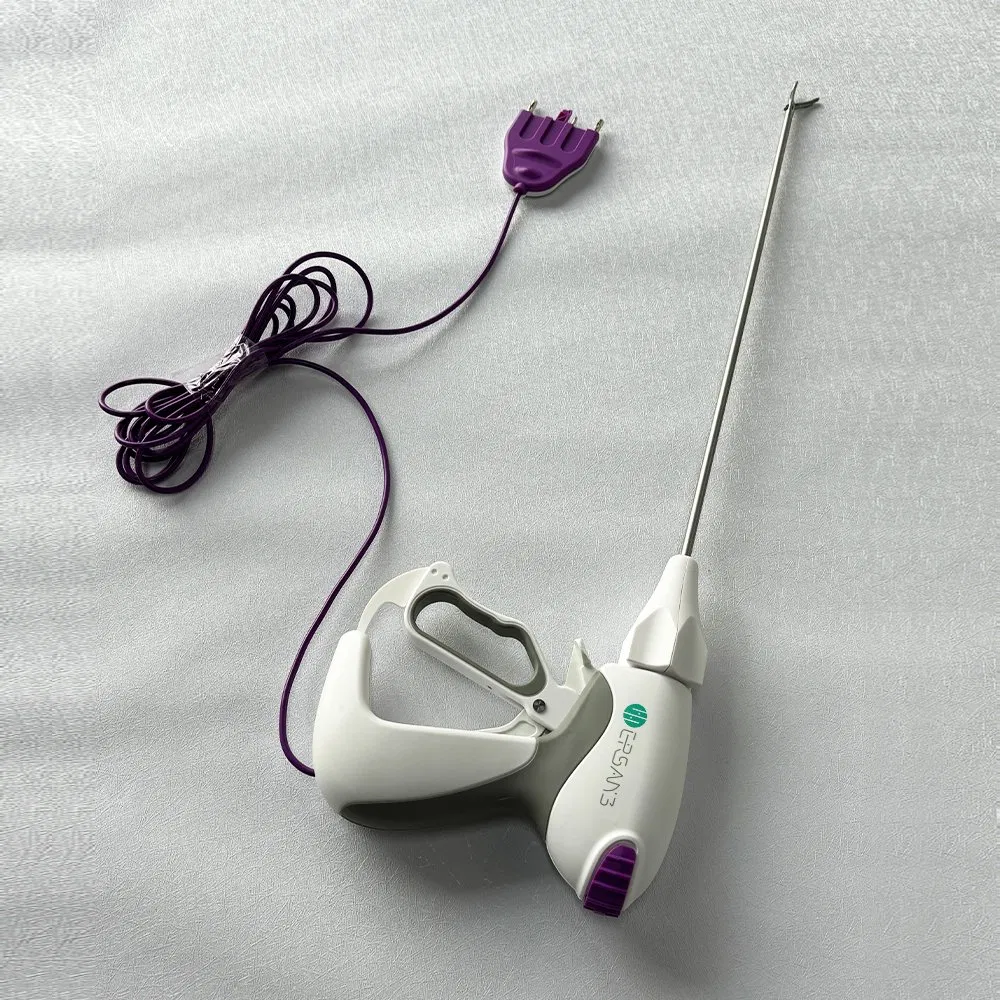

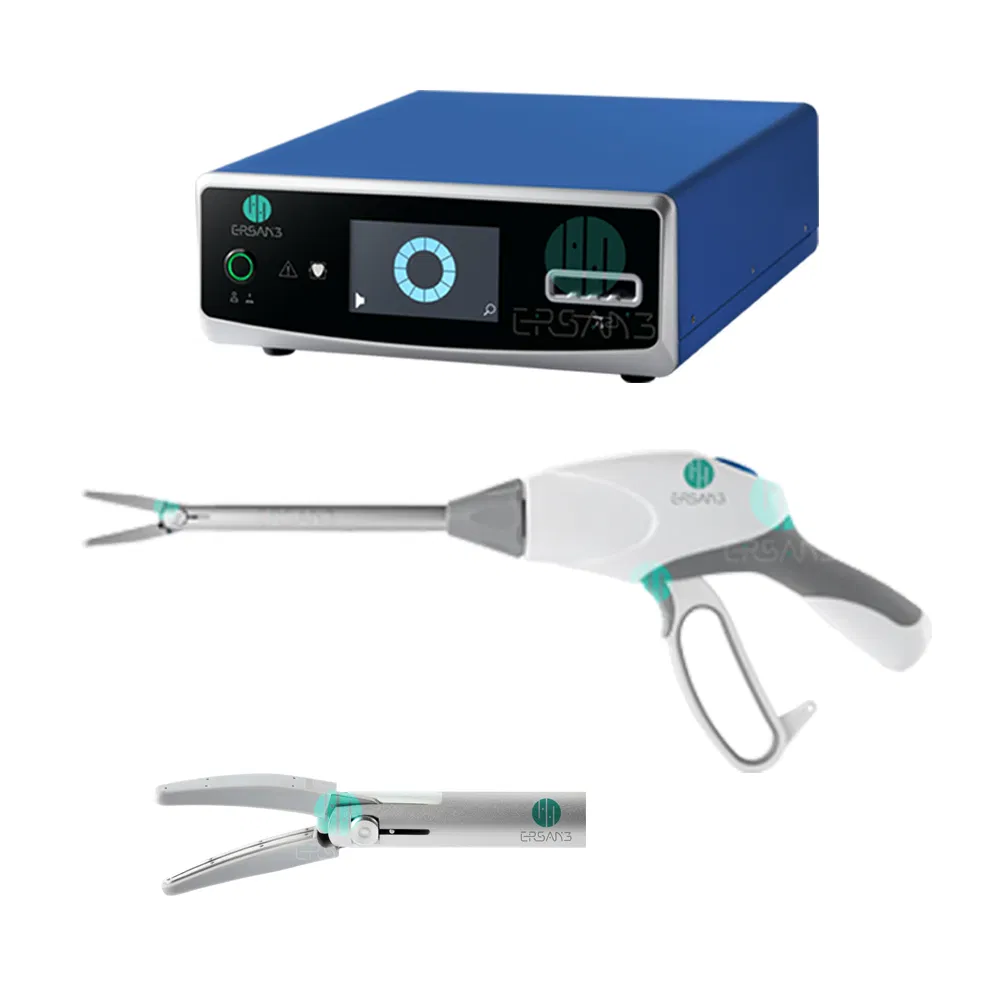

Ligasure 15 37cm Open and Laparoscopic Electrosurgical Bipolar Ligasure Instrument

Customization: Available
Type: Scalpel
Application: Orthopedic, Abdominal, Ent, Neurosurgery, Microsurgery, Anorectal, Urology, Burns

Product Description

i

Basic Information

Model NO.E-196
MaterialMetal
FeatureDisposable, Reusable
CertificationCE, ISO13485
Product NameLigasure Instrument Electrosurgical Generator
UsageVessel Sealing and Tissue Cutting
FunctionClosure of a 7 mm Diameter Vessel
Shaft Length230/370/440 mm
OriginChina
Production Capacity100,000 pieces/Year

Product Description

Ligasure vessel sealing LS10 provides the function of cutting coagulation and closing 7mm large blood vessels.

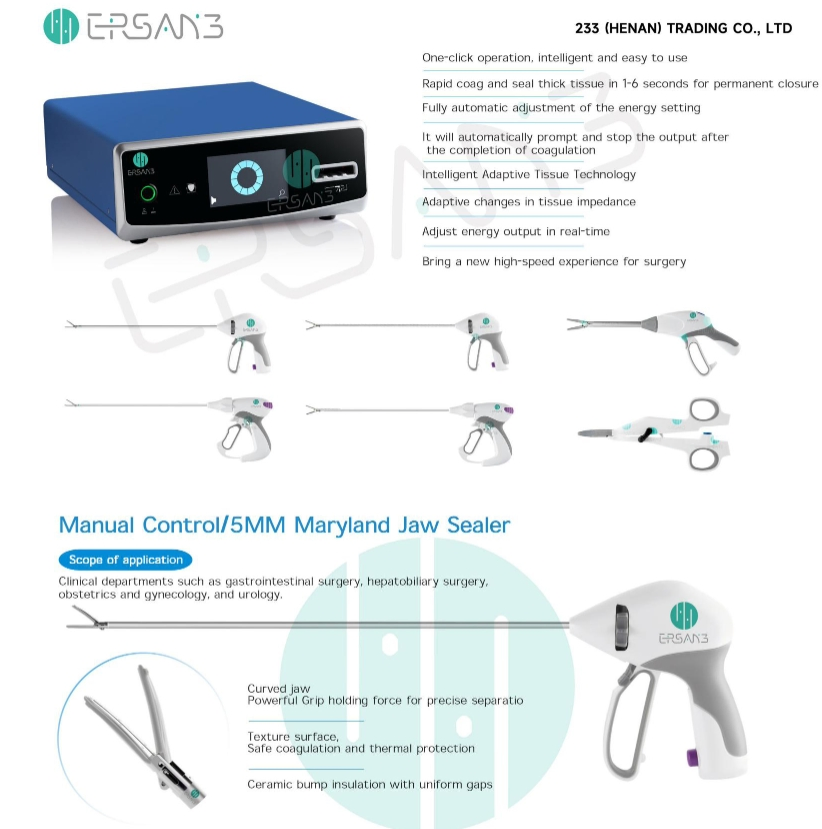

The generator features one-click operation, making it intelligent and easy to use. It achieves rapid coagulation and seals thick tissue in 1-6 seconds for permanent closure. The system includes fully automatic energy adjustment and provides an automatic prompt to stop output once coagulation is complete.

Utilizing Intelligent Adaptive Tissue Technology, the device senses changes in tissue impedance and adjusts energy output in real-time, delivering a high-speed experience for modern surgery.

Ligasure Open and Laparoscopic Instrument 1

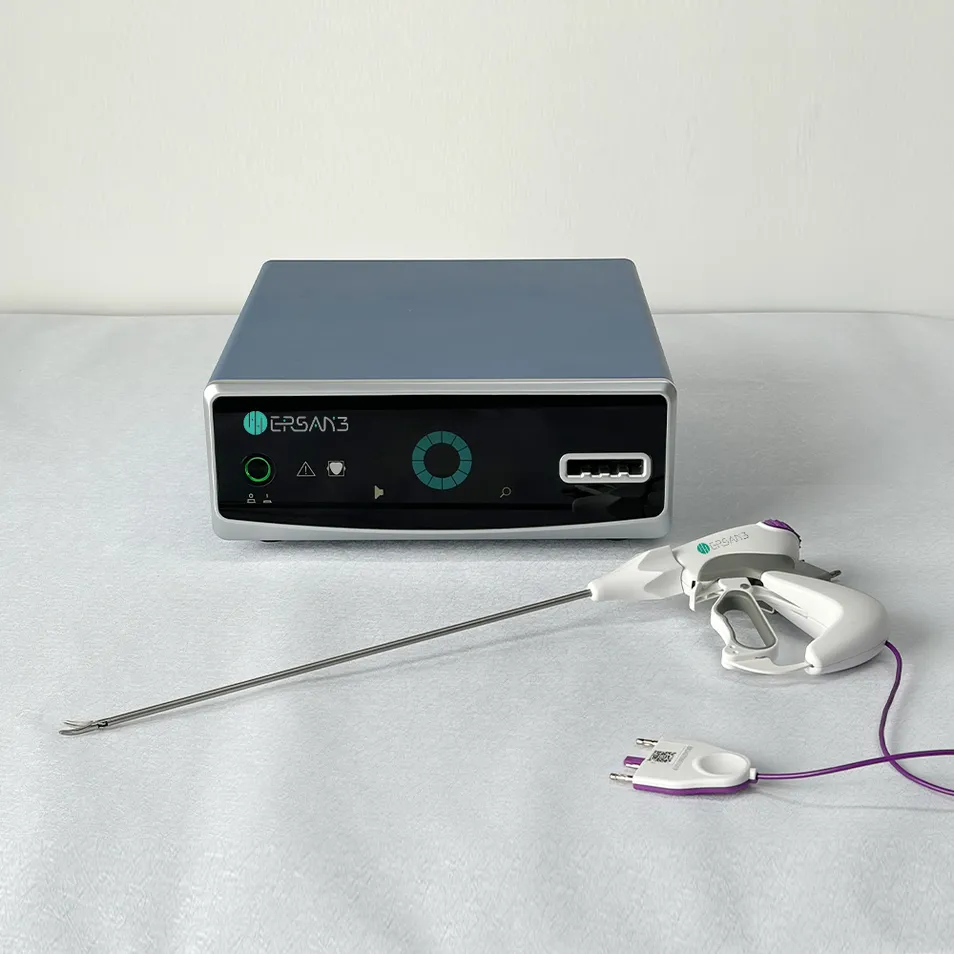

Ligasure Open and Laparoscopic Instrument 2

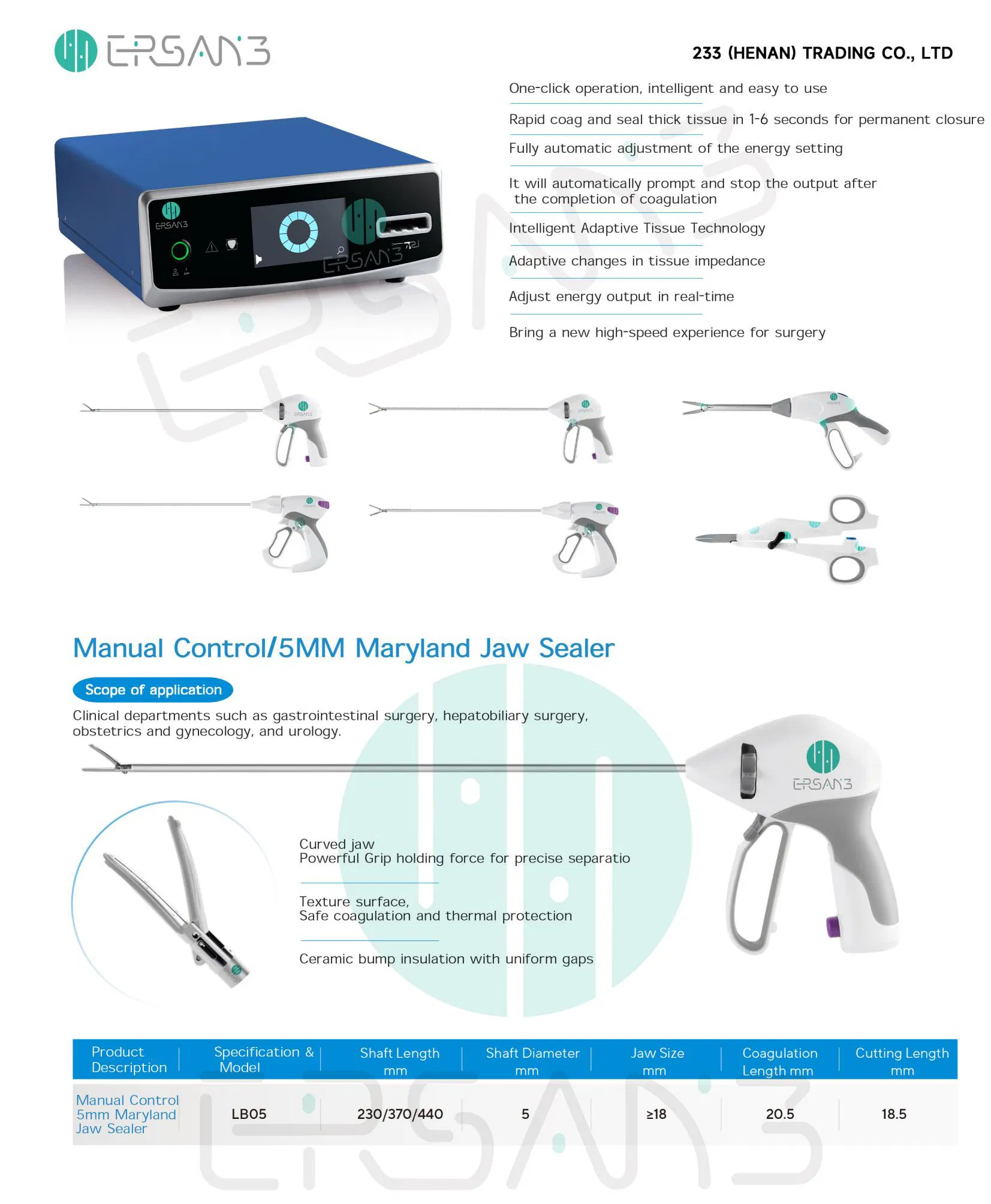

Ligasure Detail 1

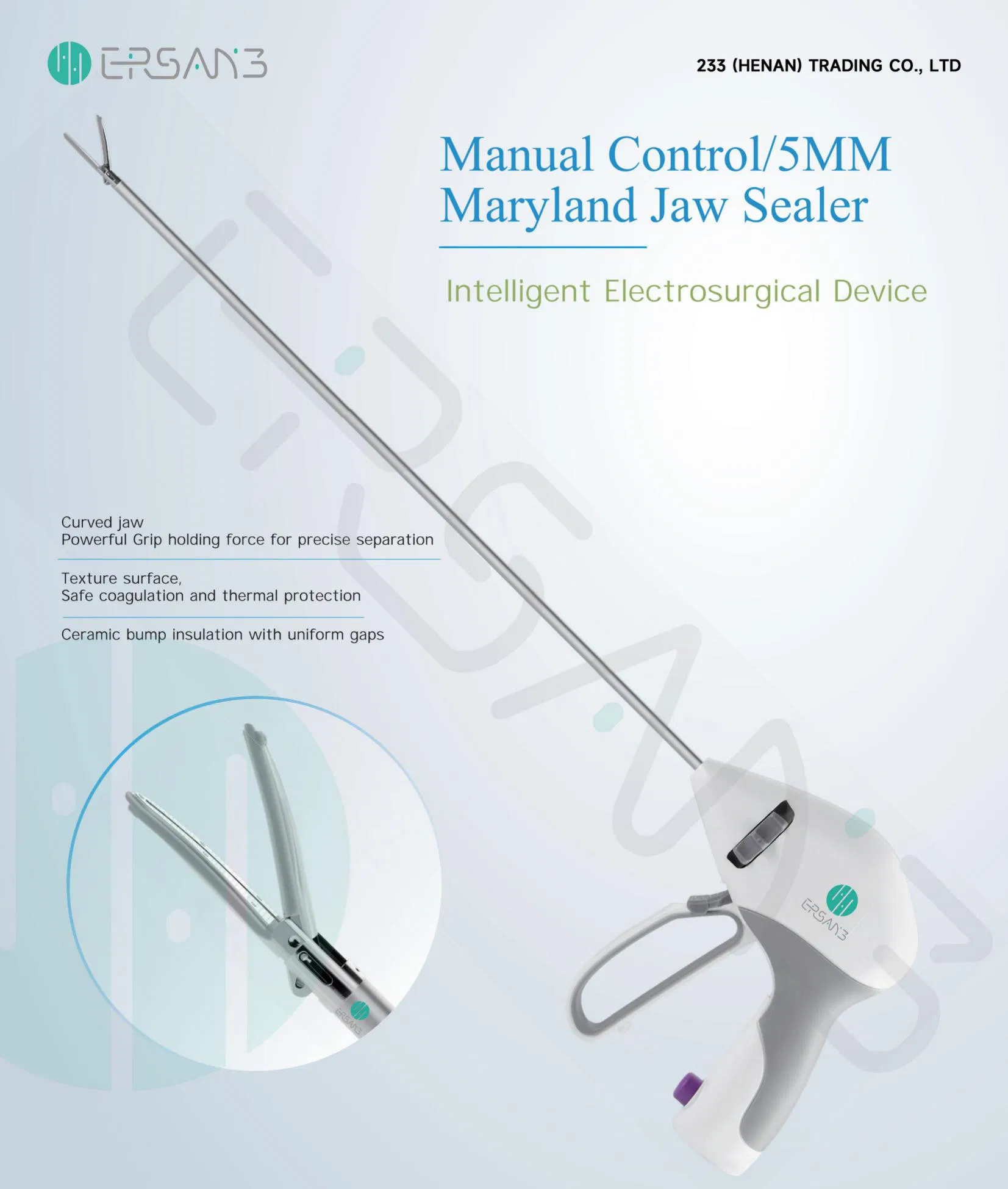

Ligasure Detail 2

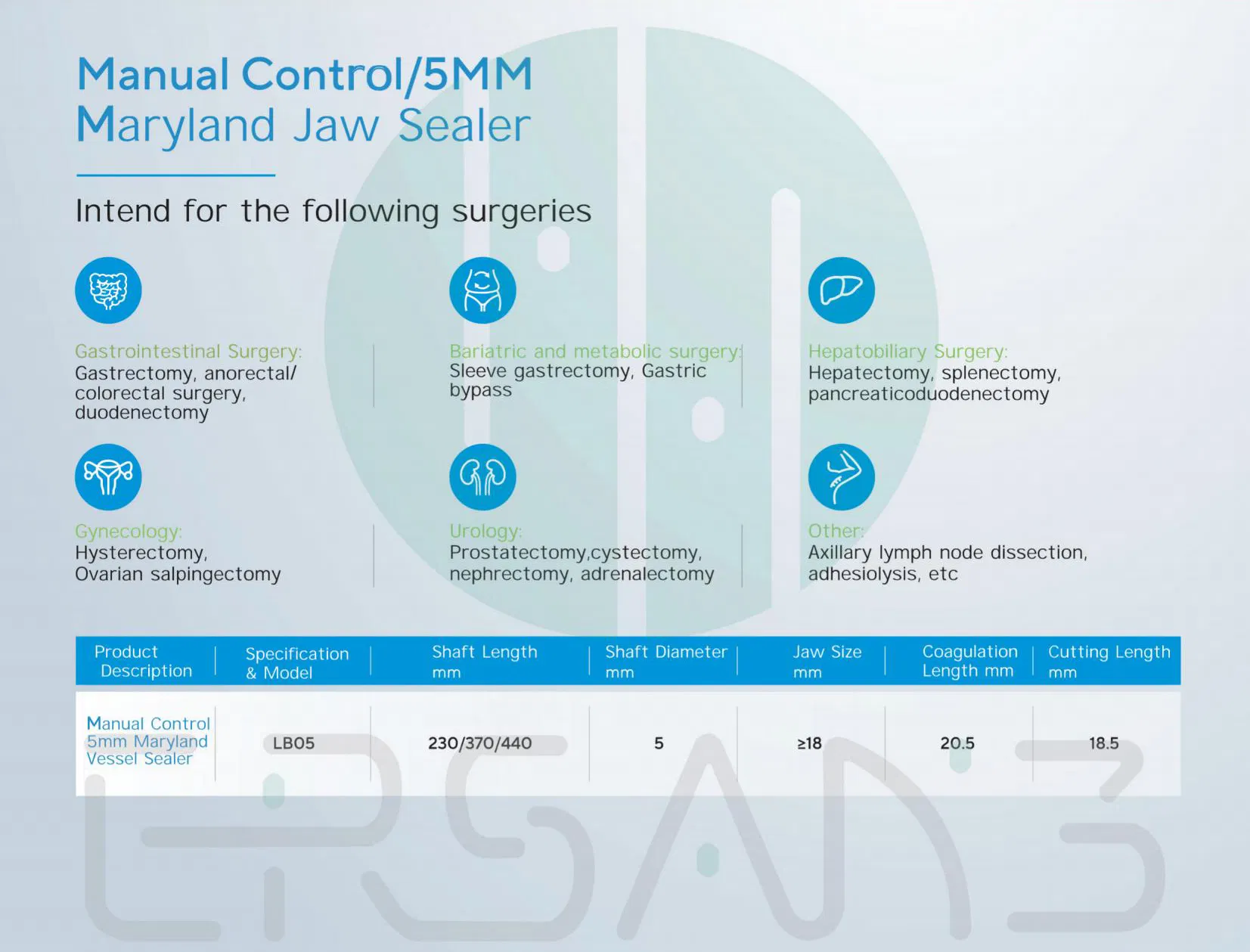

Ligasure Detail 3

Product Parameters

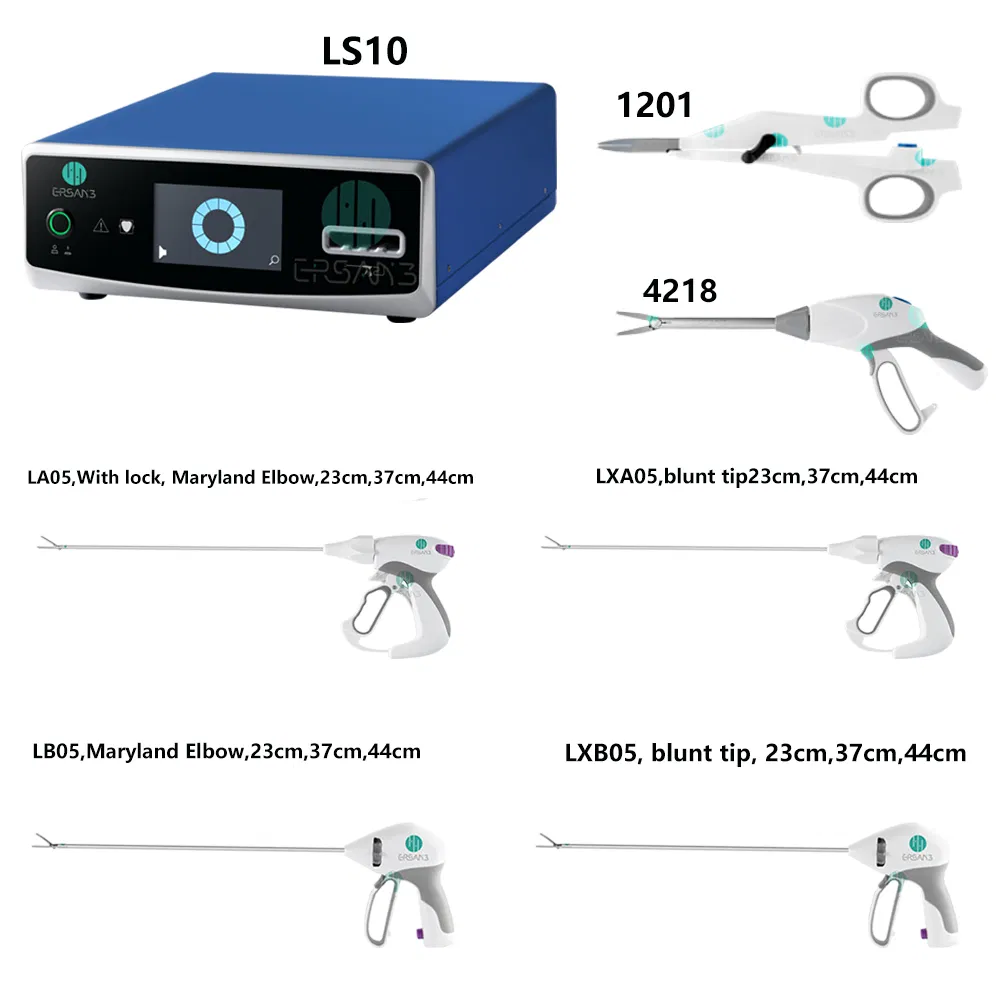

Product Description Specification & Model Shaft Length (mm) Shaft Diameter (mm) Jaw Size (mm) Coagulation Length (mm) Cutting Length (mm)
Manual Control 5mm Vessel Sealer LB05 230/370/440 5 ≥18 20.5 18.5
Manual Control 5mm Blunt Tip Laparoscopic Sealer LXB05 230/370/440 5 ≥18 22 20
Manual Control 13mm Open Tissue Sealer 4218 180 13 ≥18 36 34
Manual Control Small Jaw Open Sealer 1201 / / ≥18 22 20

Enterprise Profile

Established in 2016, we specialize in the sales of medical devices. With rich experience in the medical equipment and supplies industry, our products have obtained CE, FSC, and Anvisa certifications. Our range is exported to 150 countries and regions, receiving widespread praise internationally.

Main products include surgical instruments and medical consumables such as ultrasonic scalpel systems, endoscope camera systems, ligasure units, electrosurgical units, and biopsy needles.

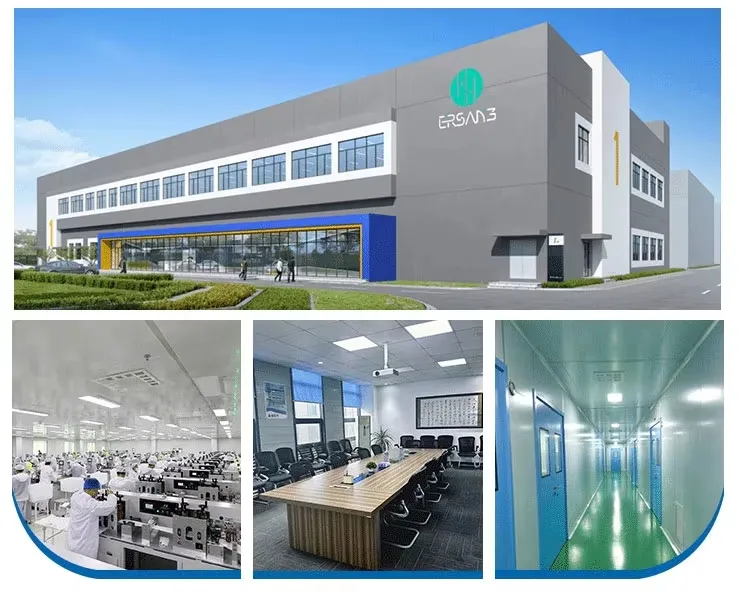

Facility 1
Facility 2
Certification
Product Range
?

Frequently Asked Questions

1. What is the primary use of the Ligasure Instrument?
The instrument is designed for vessel sealing and tissue cutting, capable of closing blood vessels up to 7mm in diameter permanently.
2. How long does the sealing process take?
The device provides rapid coagulation and seals thick tissue within 1 to 6 seconds using intelligent energy adjustment.
3. What certifications do these medical devices hold?
Our products are certified with CE, FSC, ISO13485, and Anvisa, ensuring international quality standards.
4. What shaft lengths are available for the sealers?
We offer multiple shaft lengths including 230mm, 370mm, and 440mm to accommodate different surgical requirements.
5. What other surgical products do you provide?
In addition to Ligasure, we supply ultrasonic surgical scalpel systems, electrosurgical units, endoscope camera systems, and various medical consumables.
6. How is the quality of the products guaranteed?
We maintain strict quality control with 20 years of production experience, always providing a pre-production sample and a final inspection before shipment.
