Featured Products 700/500 LED Operation Lamp Square Arm Double Dome Surgical Light

1 / 5

Featured Products 700/500 LED Operation Lamp Square Arm Double Dome Surgical Light

Customization:	Available
Type:	Operating Light
Certification:	CE, FDA, ISO13485

Send Inquiry

Product Description

Basic Specifications

Model NO.

II Series LED operation light 700/500

Group

Adult

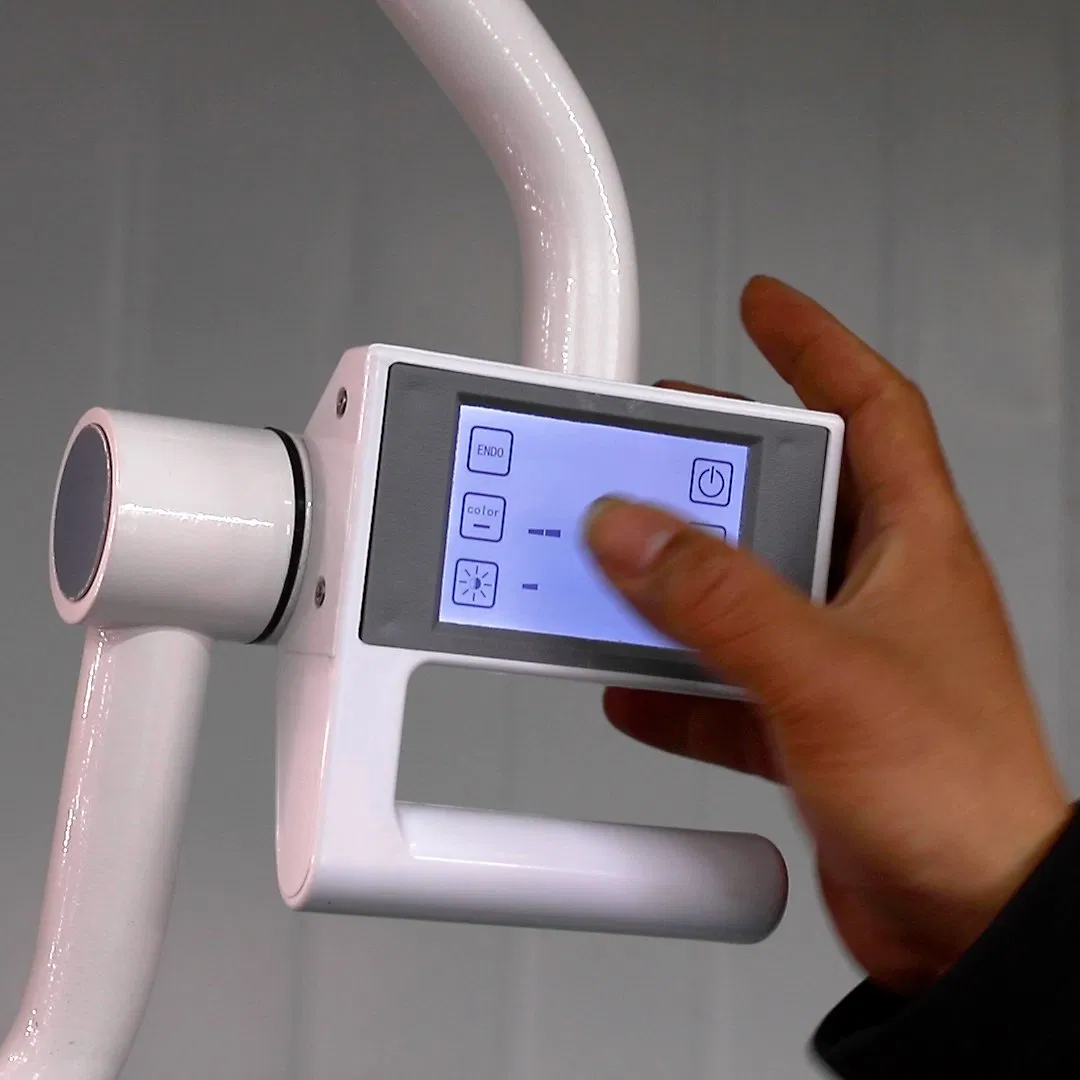

LCD Display

With LCD Display

Central Illumination

40,000~160,000 Lux

Color Temperature

3500~5000K

Depth of Focus

> 700mm

Color Index Ra

>95

Light Life

>50,000 Hours

Light-Field Size

120~300mm

Power

110~240V 50/60Hz

Origin

China

Capacity

5000 PCS

Product Description

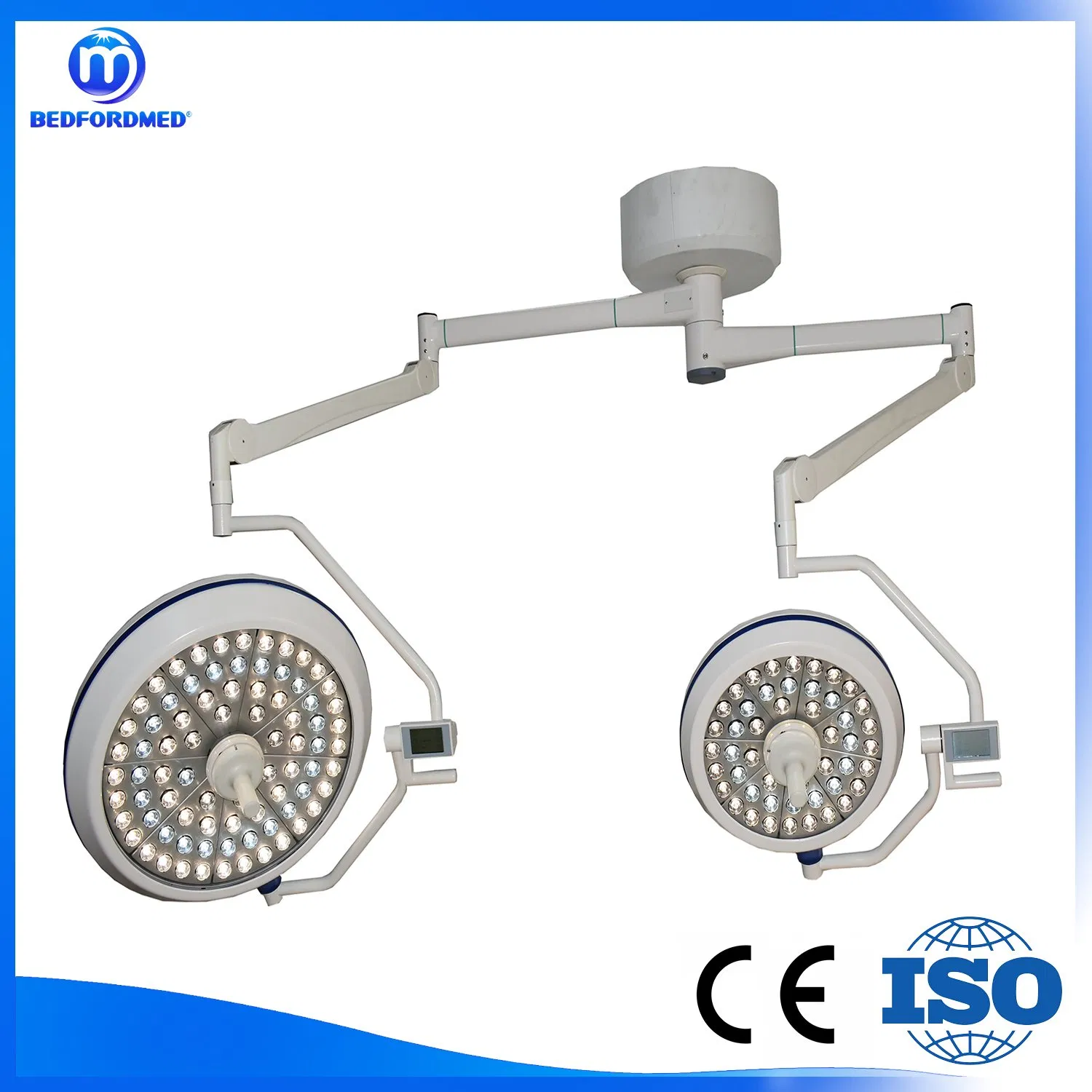

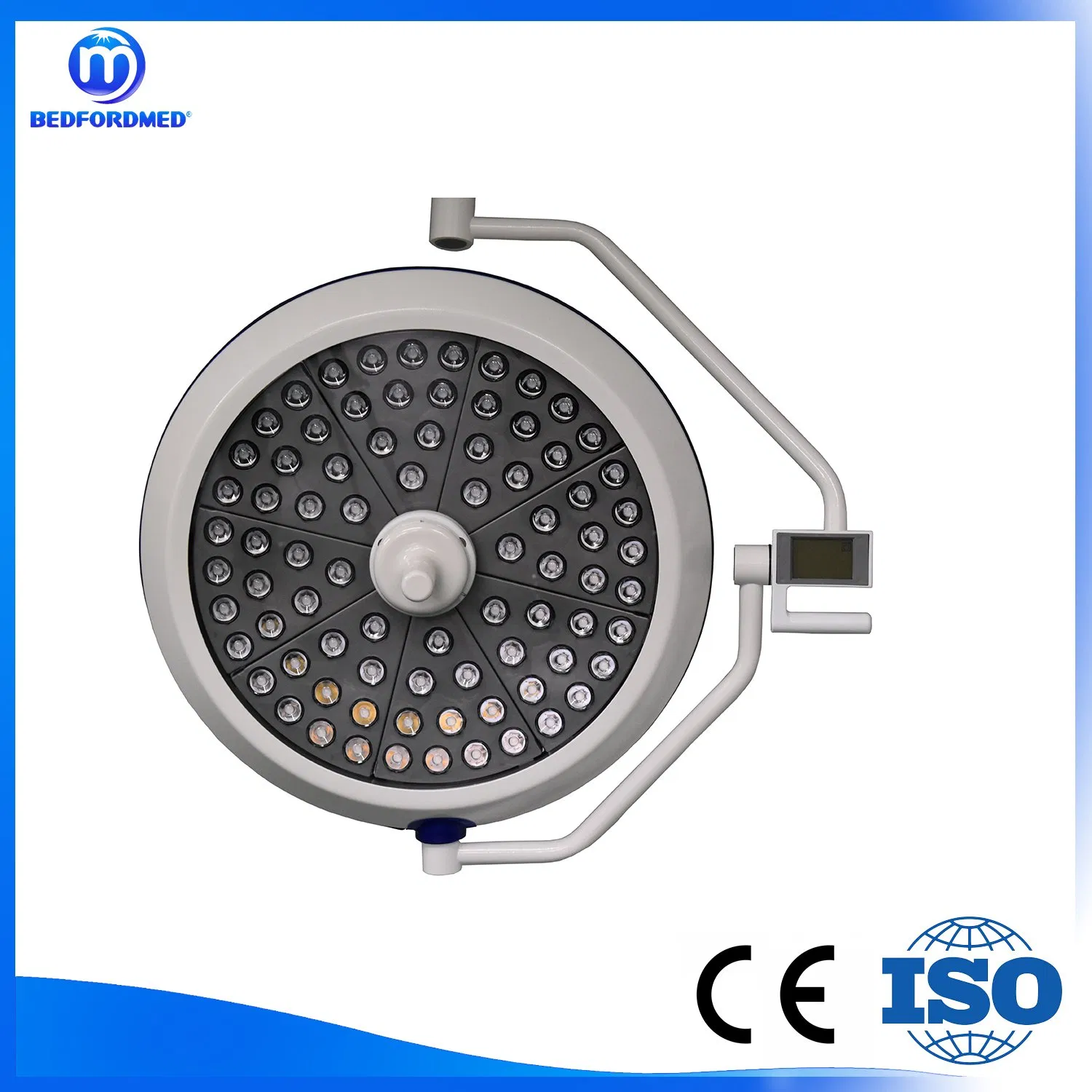

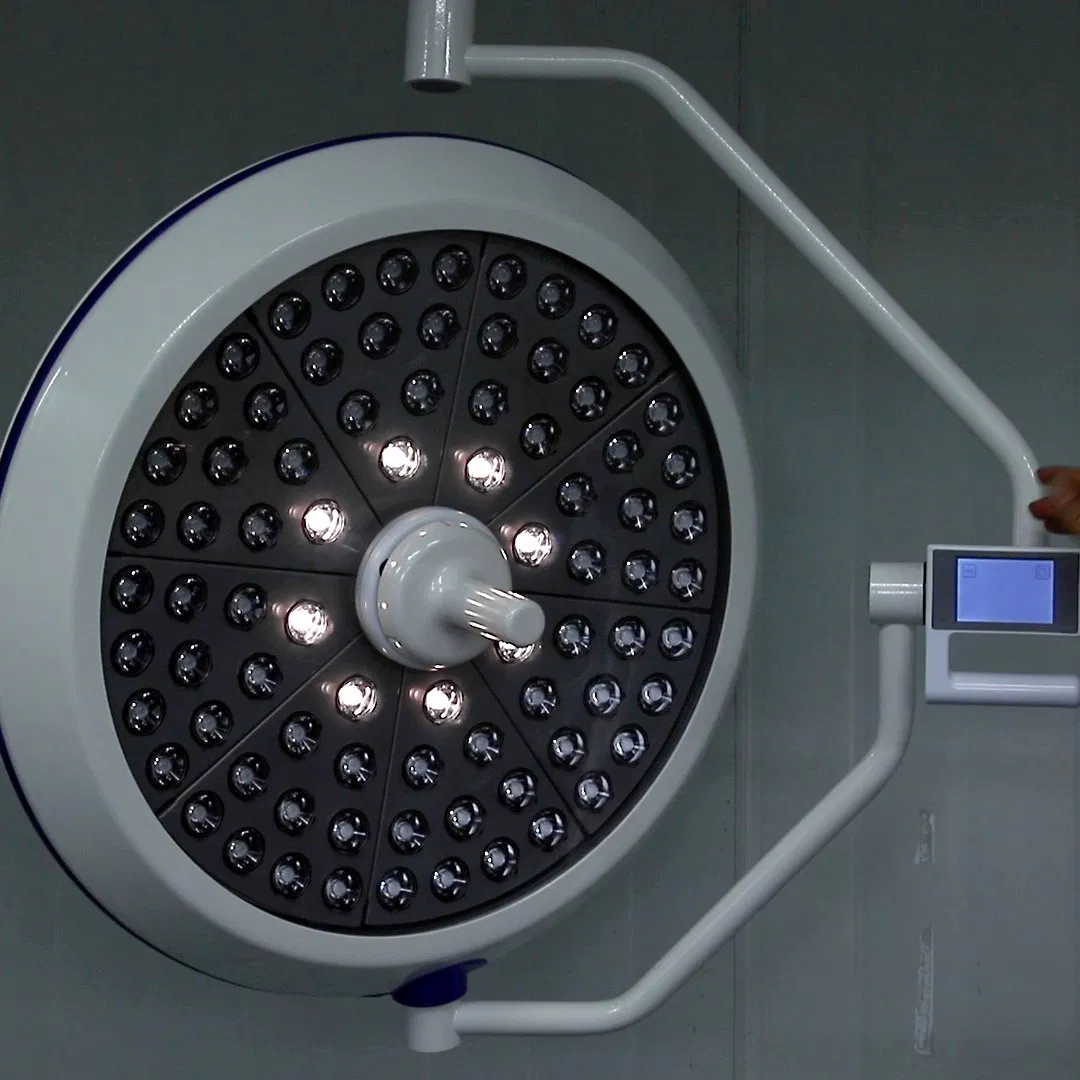

II 700/500 LED Operation Lamp Square Arm Double Dome Surgical Light

The II LED shadowless Operating Light is designed for all types of surgical procedures. Its streamlined design meets the strict requirements of modern laminar flow operation rooms. Featuring a long service life and high reliability, this system utilizes imported German LED light sources.

◈ Durability: Over 50,000 hours of effective working life. Each LED bulb is individually replaceable to minimize maintenance costs.
◈ Premium Light Source: Equipped with top-level LED modules and German imported light sources for superior illumination.
◈ Flexibility: Features a high-quality Square Arm capable of unlimited 360-degree rotation, ensuring easy and free movement.
◈ Hygiene: The sterilizer handle is made of high-strength plastic and can be autoclaved at 135ºC more than 3,000 times.

Technical Specifications (700 Series)

Feature	Details
Central illuminance at 1m	40,000~160,000 lux
Focusable light-field size	120~300mm
Colour temperature	3500~5000K

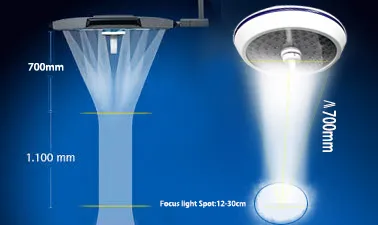

Depth of Focus	>700mm
Colour Index Ra	95
Effective bulb service life	>50,000h
Diameter of lamp housing	500mm
Power consumption (W)	48
Lamp Head LED bulbs Qty	48
Installation height	280-320 cm

Configuration Options

II LED700/700 (Double 700mm Head)

II LED700/500 (700mm + 550mm Head)

II LED 700/500 with Camera System

II LED 700 Single Dome Ceiling Type

II LED 500 Single Dome Ceiling Type

II LED 700/500 Mobile & Wall Types

Mobile Type with Battery Backup

Product Visuals

Our Mission

✓ Flexible and efficient one-stop outsourcing solutions for medical equipment.
✓ Professional medical equipment supply chain management.
✓ Customer-driven responsiveness and support.
✓ Providing unmatched value from the customer's perspective.

Frequently Asked Questions

● What is the lifespan of the LED bulbs in this surgical light?

The LED bulbs have an effective working life of over 50,000 hours, significantly reducing maintenance requirements for hospitals.

● Can individual LED bulbs be replaced?

Yes, each LED bulb can be replaced individually, which helps in saving maintenance costs over the long term.

● Is the light handle sterilizable?

The sterilizer handle is made from high-strength plastic and can withstand autoclave sterilization at 135ºC for more than 3,000 cycles.

● What kind of maneuverability does the arm system offer?

The system utilizes a high-quality square arm that allows for unlimited 360-degree rotation, enabling the light head to be positioned freely and easily.

● Does the light support different installation types?

Yes, the II Series is available in ceiling-mounted (single or double dome), wall-mounted, and mobile versions (including battery-powered options).

● What is the range of color temperature?

The color temperature is adjustable within the range of 3500K to 5000K to suit various surgical requirements.
