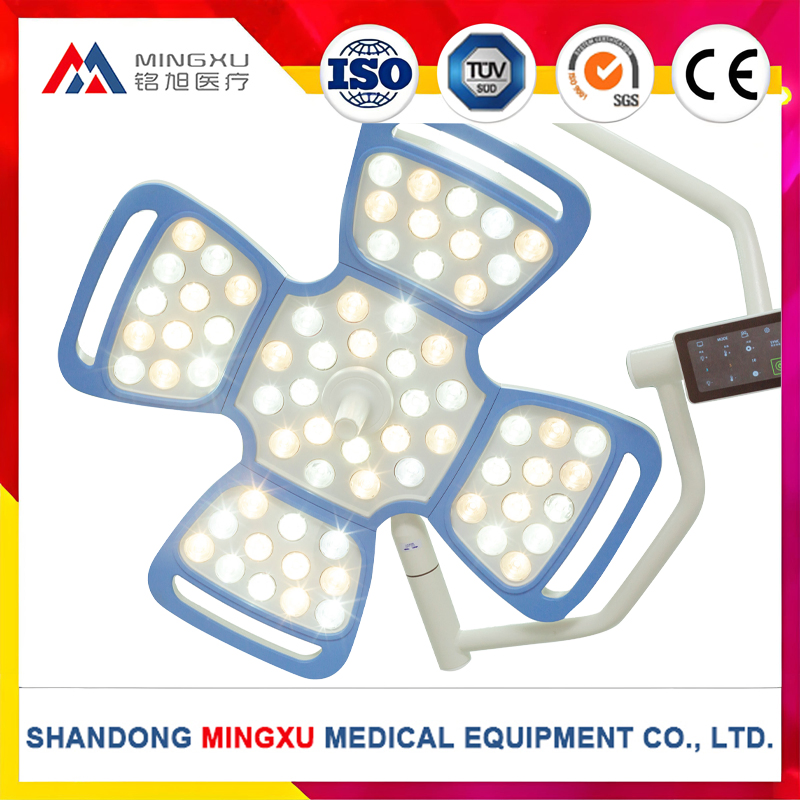

Advanced LED Surgical Ceiling Light for Medical Clinics

Customization: Available
Kind: Operating Room Equipment
Certification: ISO9001/ISO14001/Hsas18001/TUV

Product Description

i

Basic Information

Model NO.:
MX LED 700/500
Warranty:
1 year
Certificate:
CE ISO
MOQ:
1 set
After-Sale Service:
Free Spare Parts
OEM/ODM:
Yes
Average Bulb Life:
≥ 60,000 Hours
Bulb Power:
1W
Mounting Height:
2800-3000 mm
Net Weight:
44.3kg

Product Description

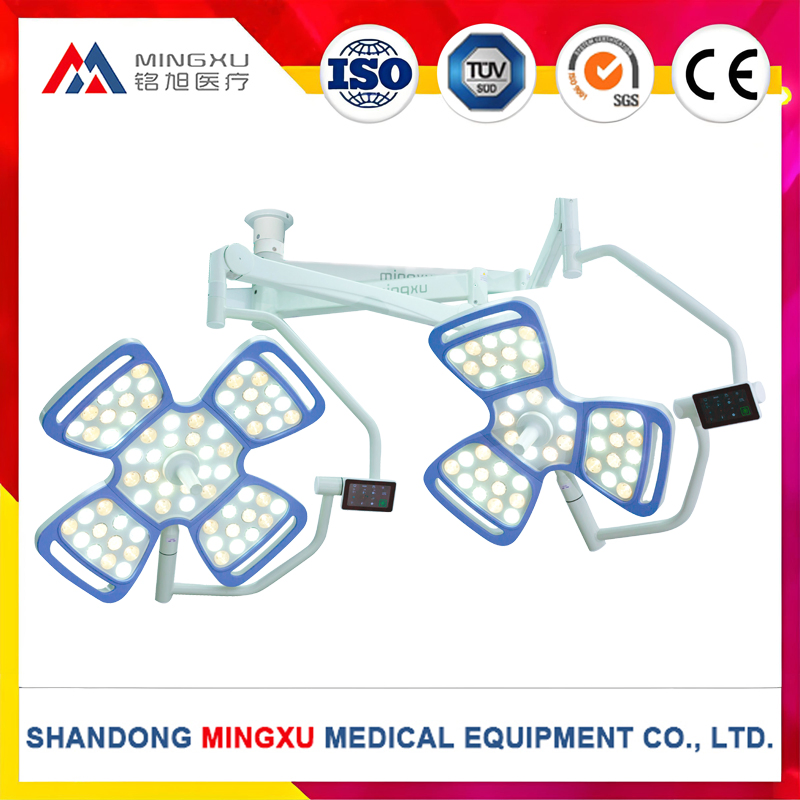

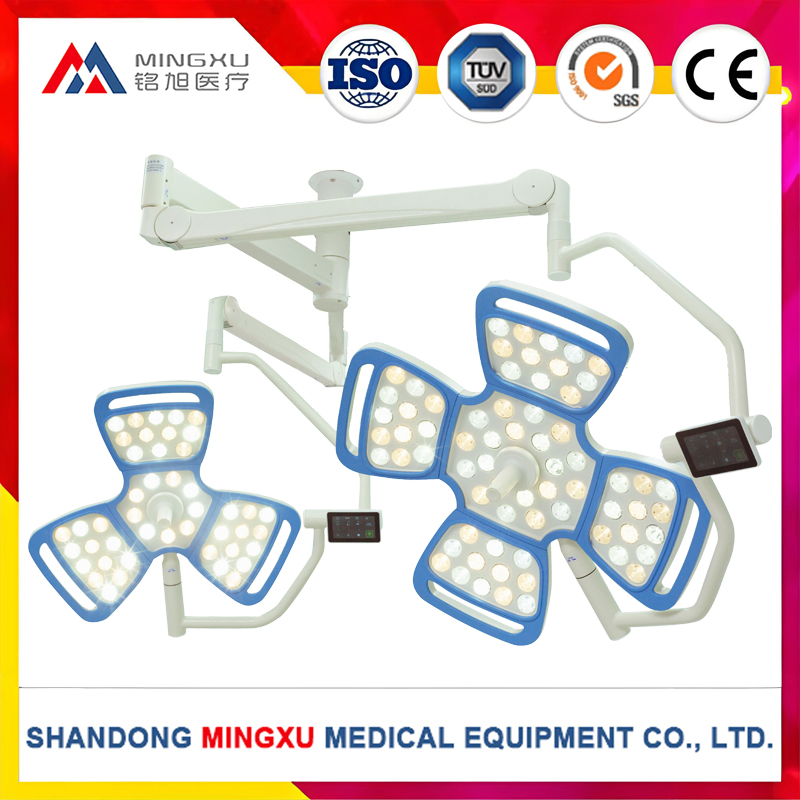

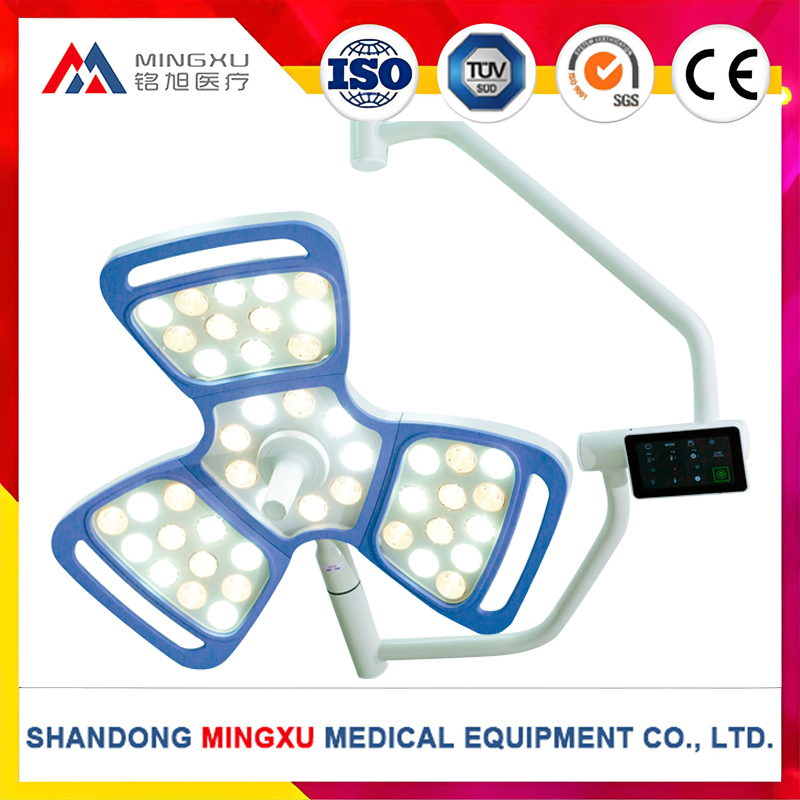

Advanced LED Surgical Ceiling Light
Surgical Light Detail
Surgical Light Structure

Product Specifications

Parameter MXLED 700 MXLED 500
Number of lamp beads7239
Center Illuminance (LUX)130,000-160,000 (adjustable)100,000-130,000 (adjustable)
Color Temperature (K)4300±500 (adjustable)4300±500 (adjustable)
Color Rendering Index (Ra)≥95%≥95%
Spot diameter (mm)160-300160-300
Light beam depth (mm)≥1200≥1200
Head temperature rise (ºC)≤1≤1
Operating radius (mm)≥2200≥2200
Input Power150VA150VA
Average life of lamp (h)≥60000≥60000
Product Configuration
Product Configuration List: Unveil the comprehensive configuration of the Medical Operating Light. Each component is meticulously crafted to ensure optimal performance.
No. Name Quantity Remark
1Base1-
2Cross arm2-
3360° Balance Arm2-
4Lamp holder2-
5Lamp beads111-
6Handle22 extra
7Hexagon wrench set1 eachs=3,4,5,6,8
10Certificate1-
11User Manual1-
Operating Light Feature 1
Operating Light Feature 2
Operating Light Feature 3
Operating Light Feature 4
Operating Light Feature 5
?

Frequently Asked Questions

What is the service life of the LED surgical shadowless lamp?
The average life of the high-quality LED bulbs used in our surgical shadowless lamps is up to 60,000 hours, ensuring long-term reliability and reduced maintenance.
How should I choose the right LED surgical shadowless lamp?
Clarify your operating room requirements for brightness, color rendering, and flexibility. Evaluate the efficiency, adjustment range of the lamp head, and ensure the light color meets clinical observation needs.
What are the routine maintenance tasks?
Regularly check all connection parts annually to prevent loosening. Adjust rotation limits, check bulb working voltage, and inspect the balance system. Always cut off power after operation.
What troubleshooting steps should be taken if the light fails?
If the main light is out but the auxiliary is on, replace the main bulb. If no light is on, check the fuse and power supply voltage. Major issues like transformer damage require professional repair.
Is the color temperature adjustable?
Yes, the color temperature is adjustable at 4300±500K to provide the best visual contrast for different types of surgical procedures.
Does the system support OEM/ODM customization?
Yes, we provide OEM and ODM services to meet specific medical facility requirements and technical specifications.
