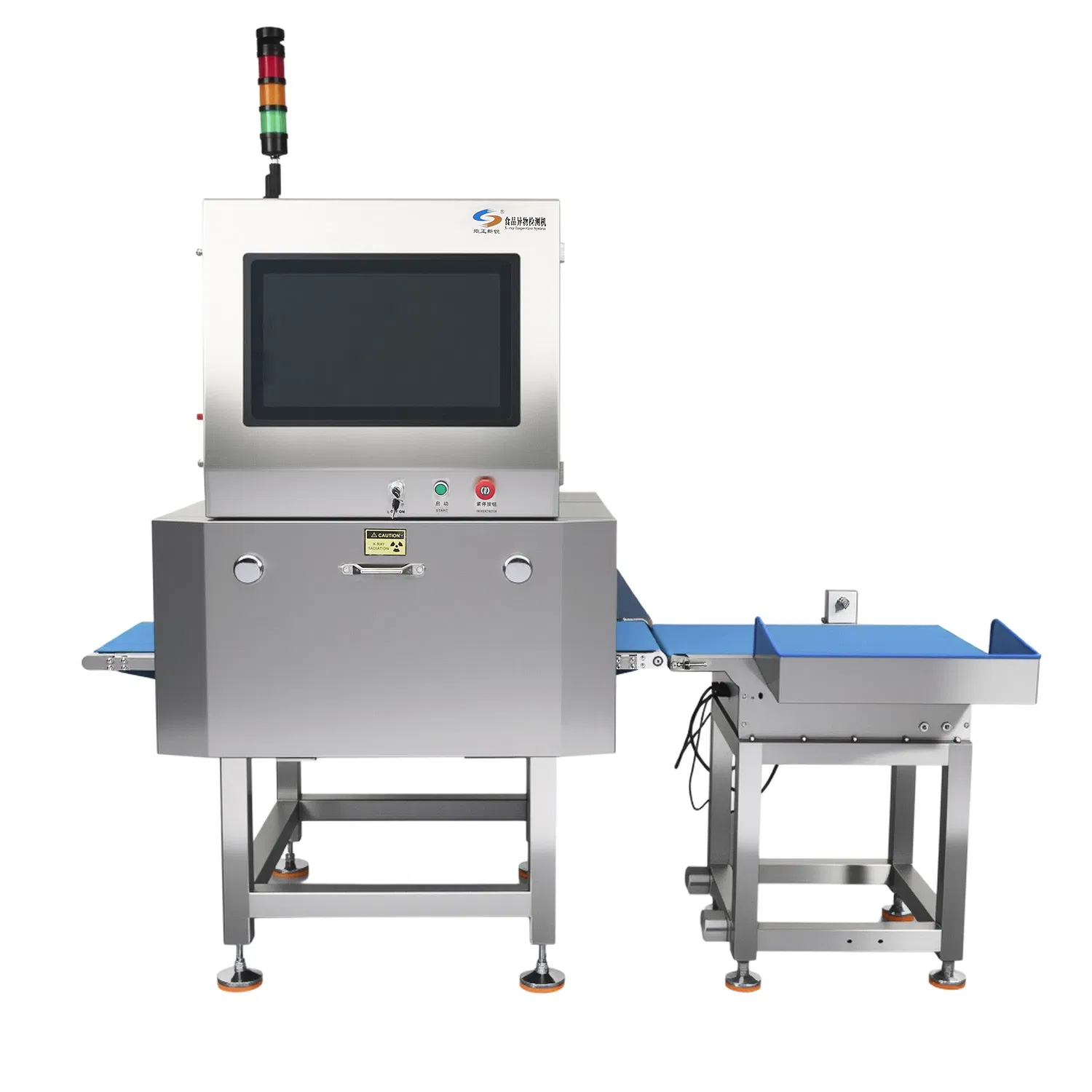

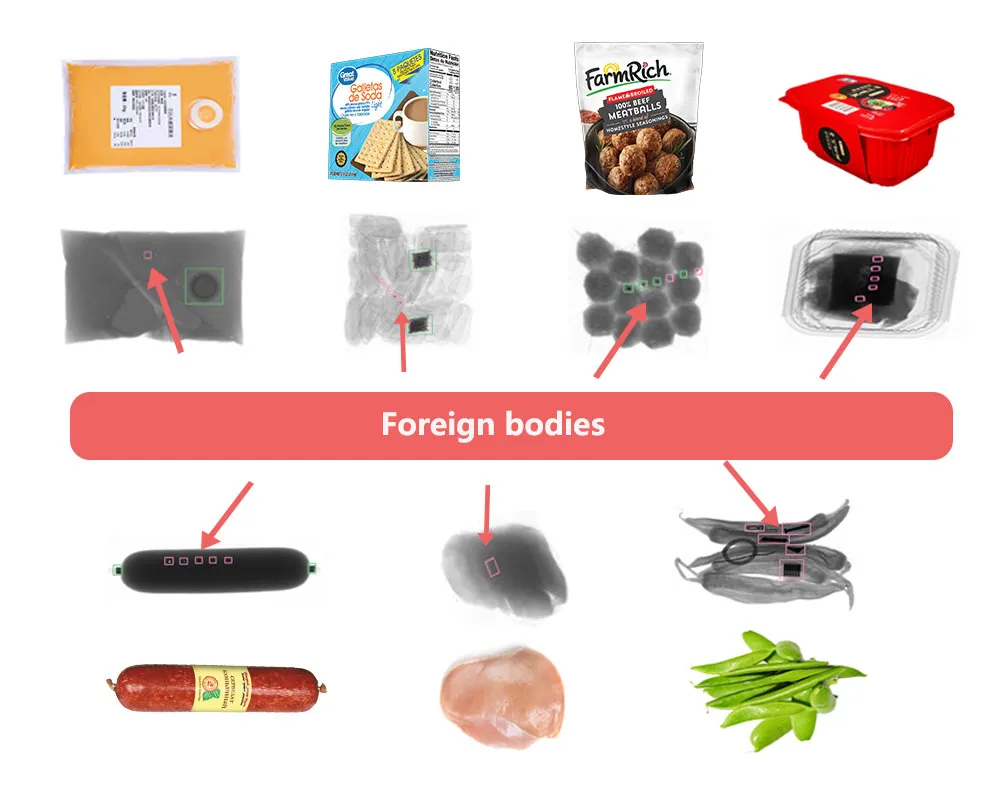

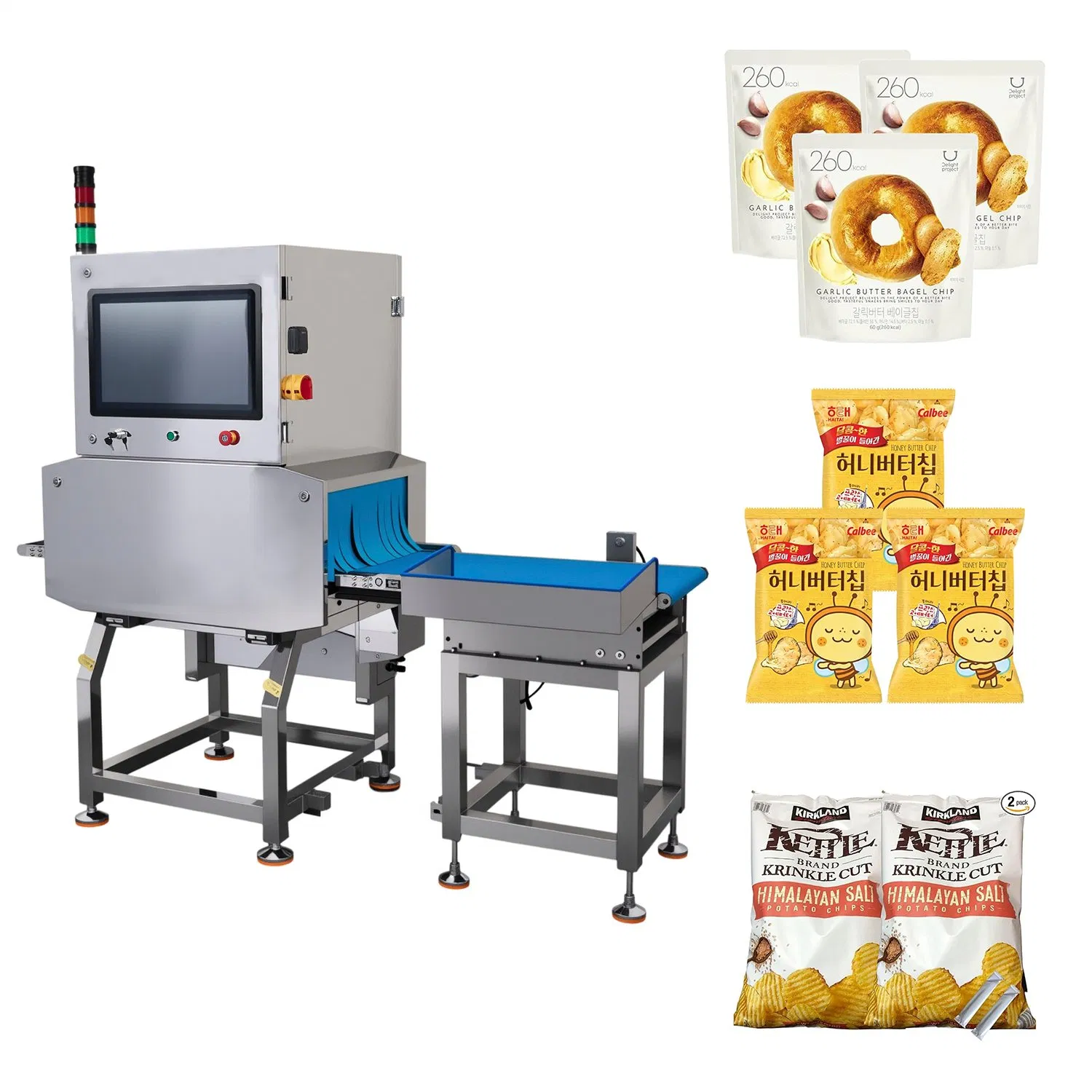

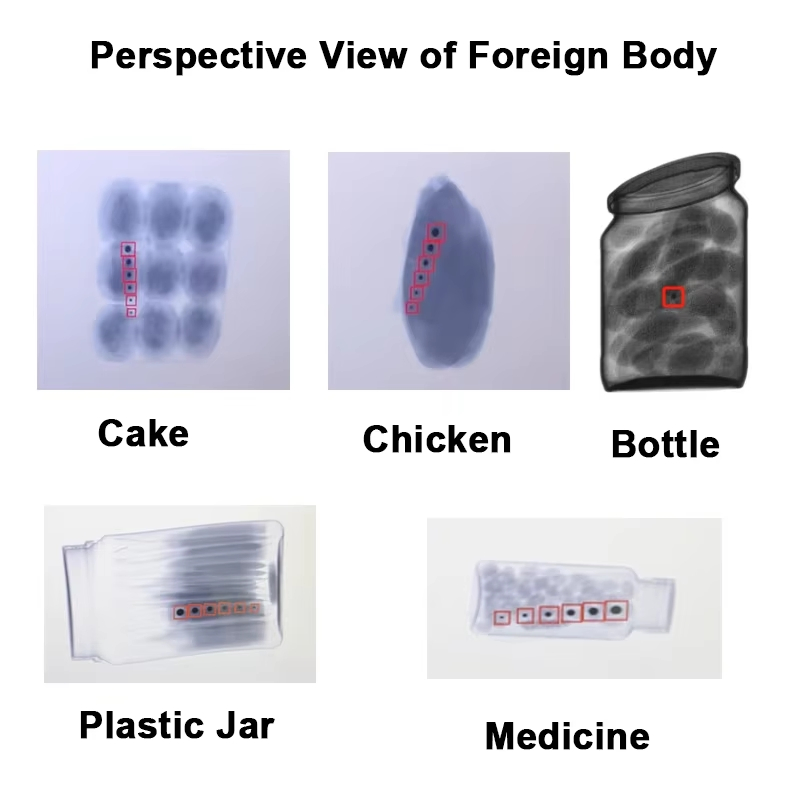

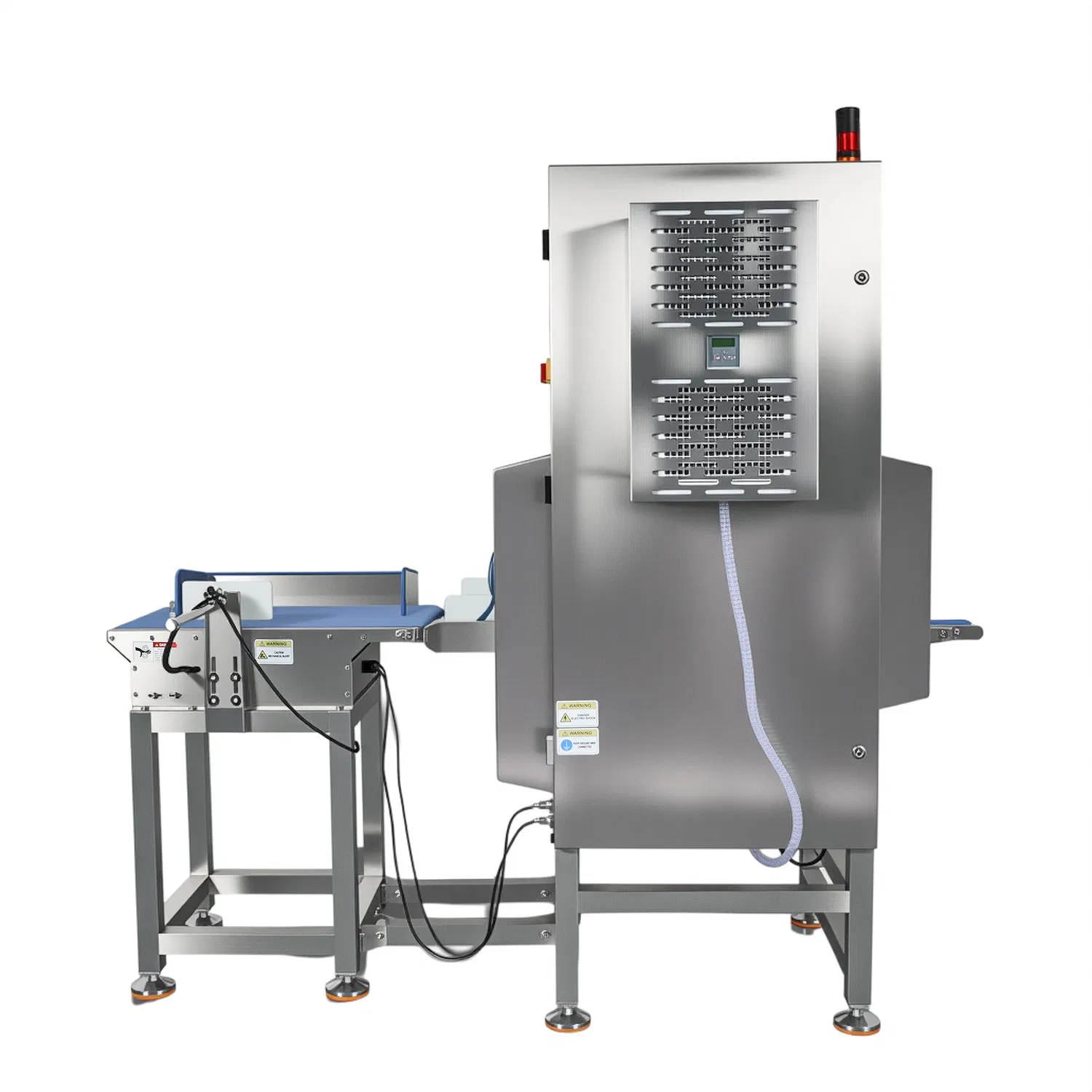

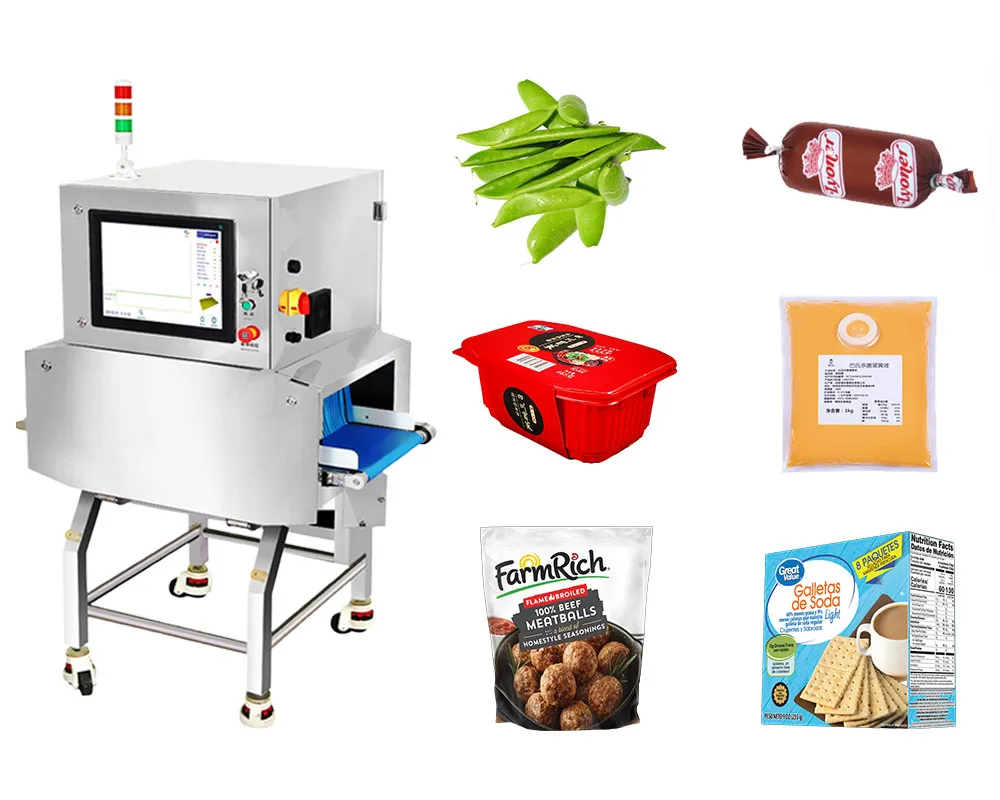

X-Ray Inspection Systems provide highly cost-effective contaminant detection for food and pharmaceutical manufacturers. The XR-500D series is specifically designed for detecting contaminants inside small packaged products. It identifies impurities based on density differences, ensuring the highest level of product safety.
| Model | XR-500D |
| X-ray source | Standard: 150W, 80kV. Optional: 350W, 100kV |
| Tunnel size (W*H) | 400 * 200 mm |
| Max sensitivity | SUS: ≥Φ0.4mm, Ceramic: ≥Φ1.0mm, Glass: ≥1.5mm |
| Conveying speed | 10-40 m/min |

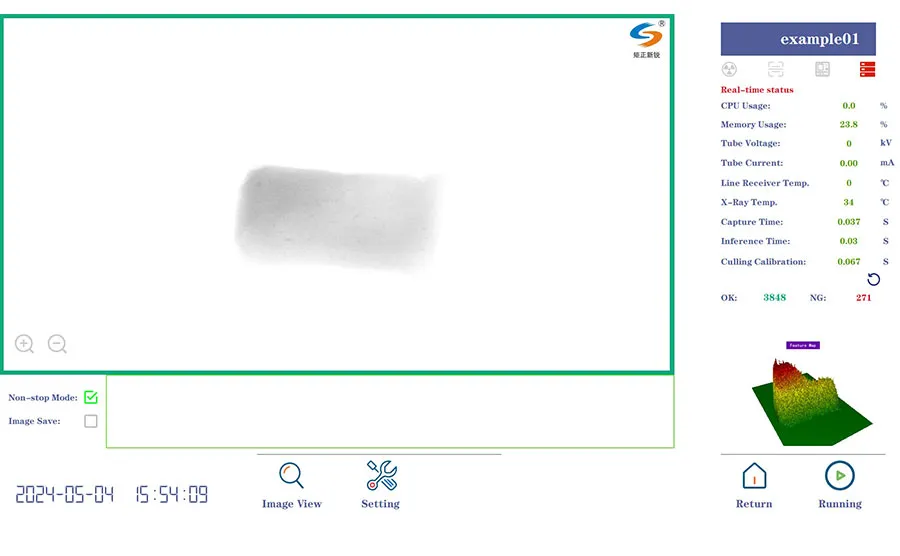

| Screen | 21.5 inch full color touchable screen |
| Data Interface | LAN port, USB port |
| Environment | Temp: -10-40ºC, Humidity: 30%-90% |

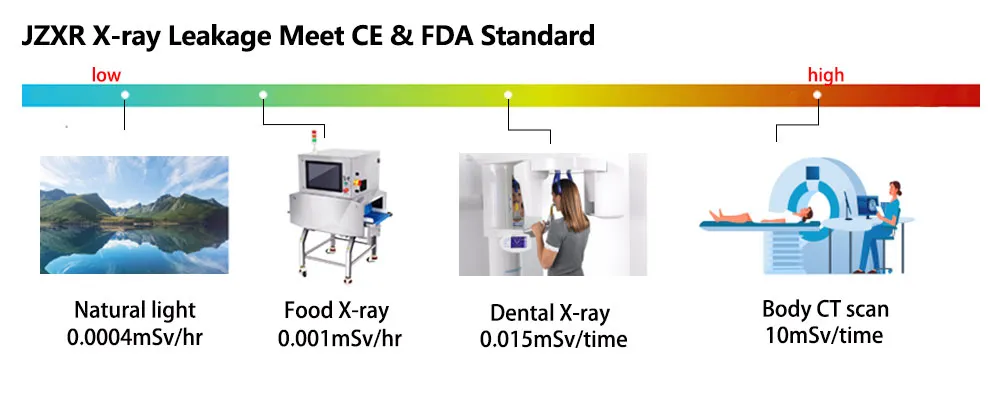

| X-ray leakage | <1µSv/hour |

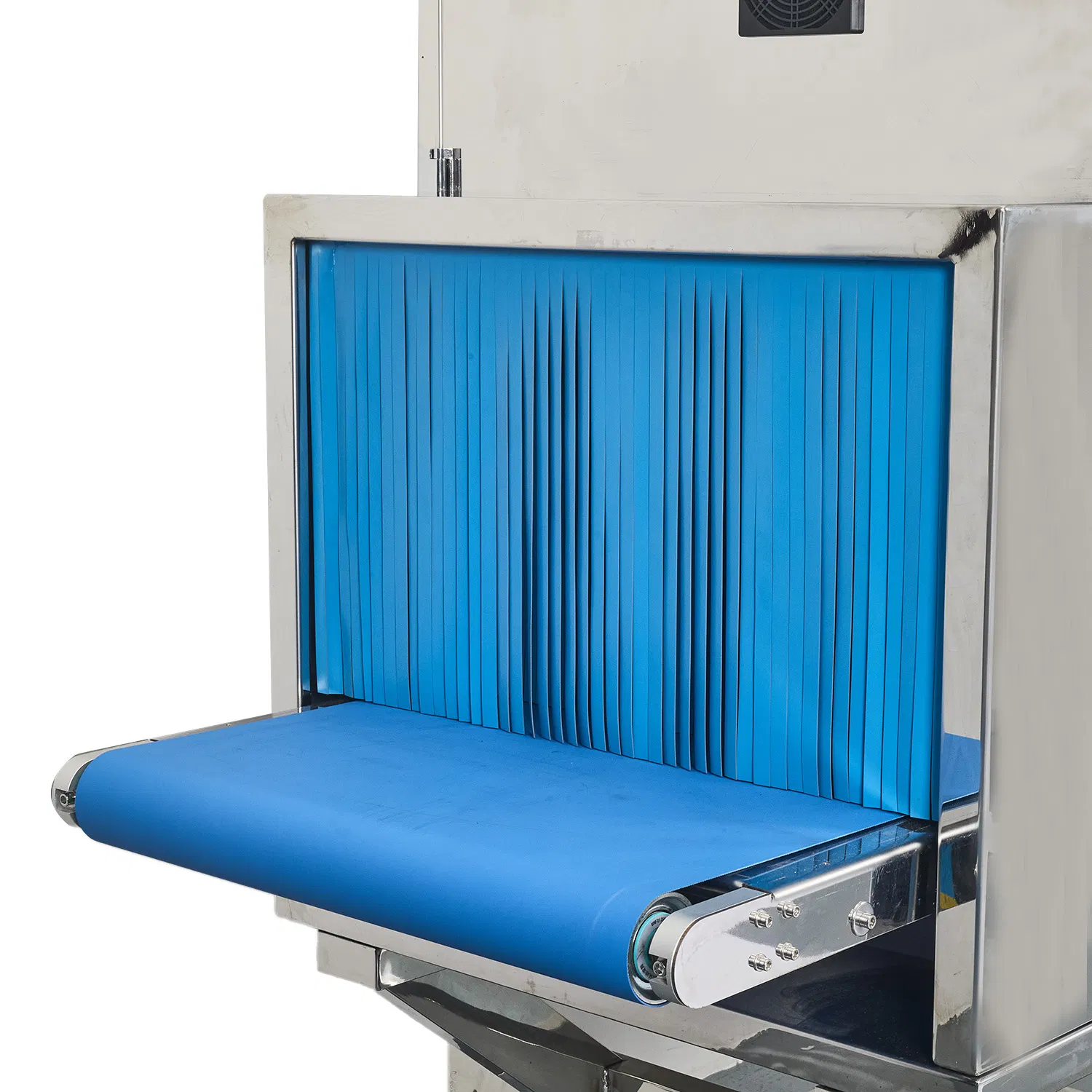

| Protective mode | 6 layers of non-lead food grade soft curtain |
| Alarm System | Sound and light alarm (Optional: Stop/Rejection system) |
| Power supply | AC220V ±10% 50/60Hz, 1.5kVA Max |

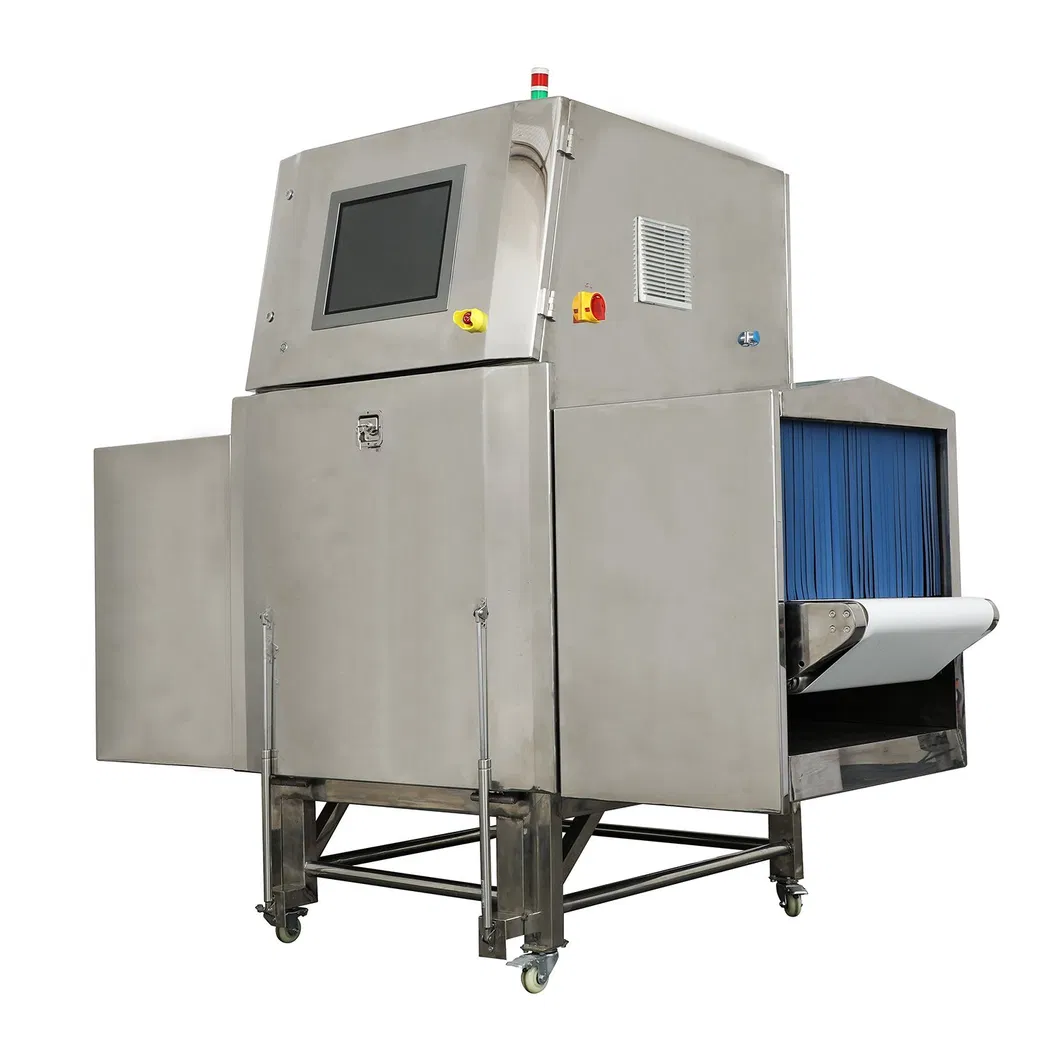

X-ray System for Big Packaged Food

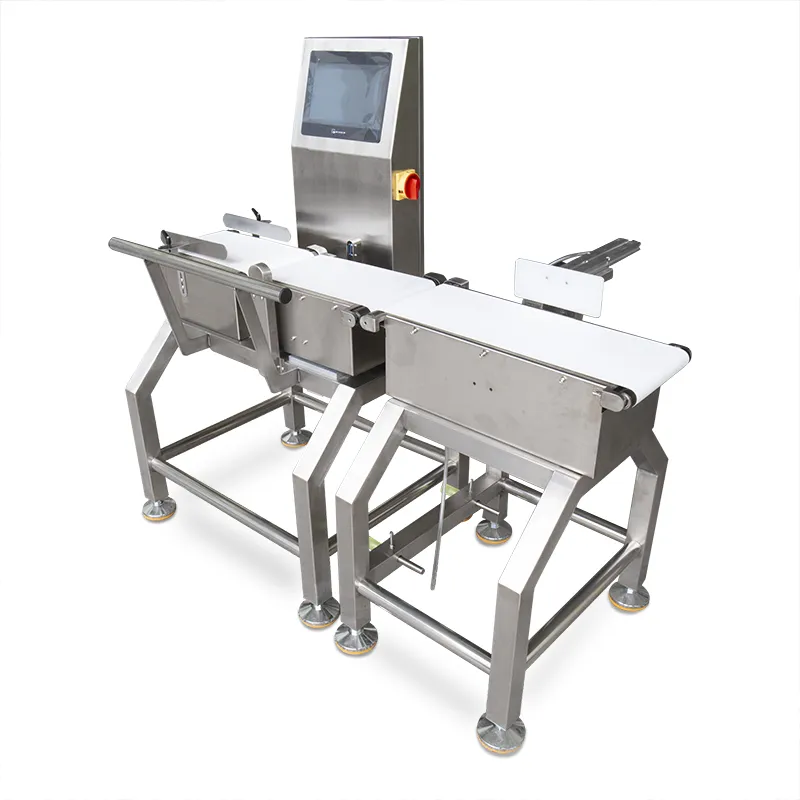

High Precise Checkweigher

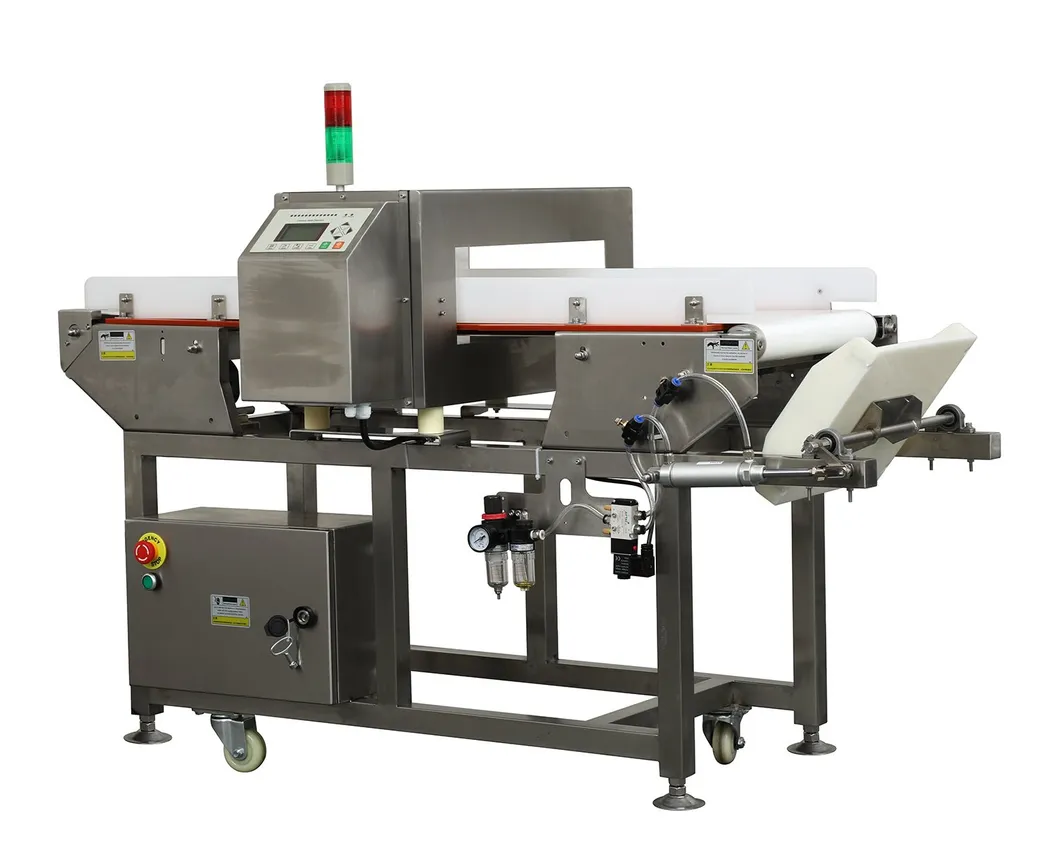

Conveyor Metal Detector

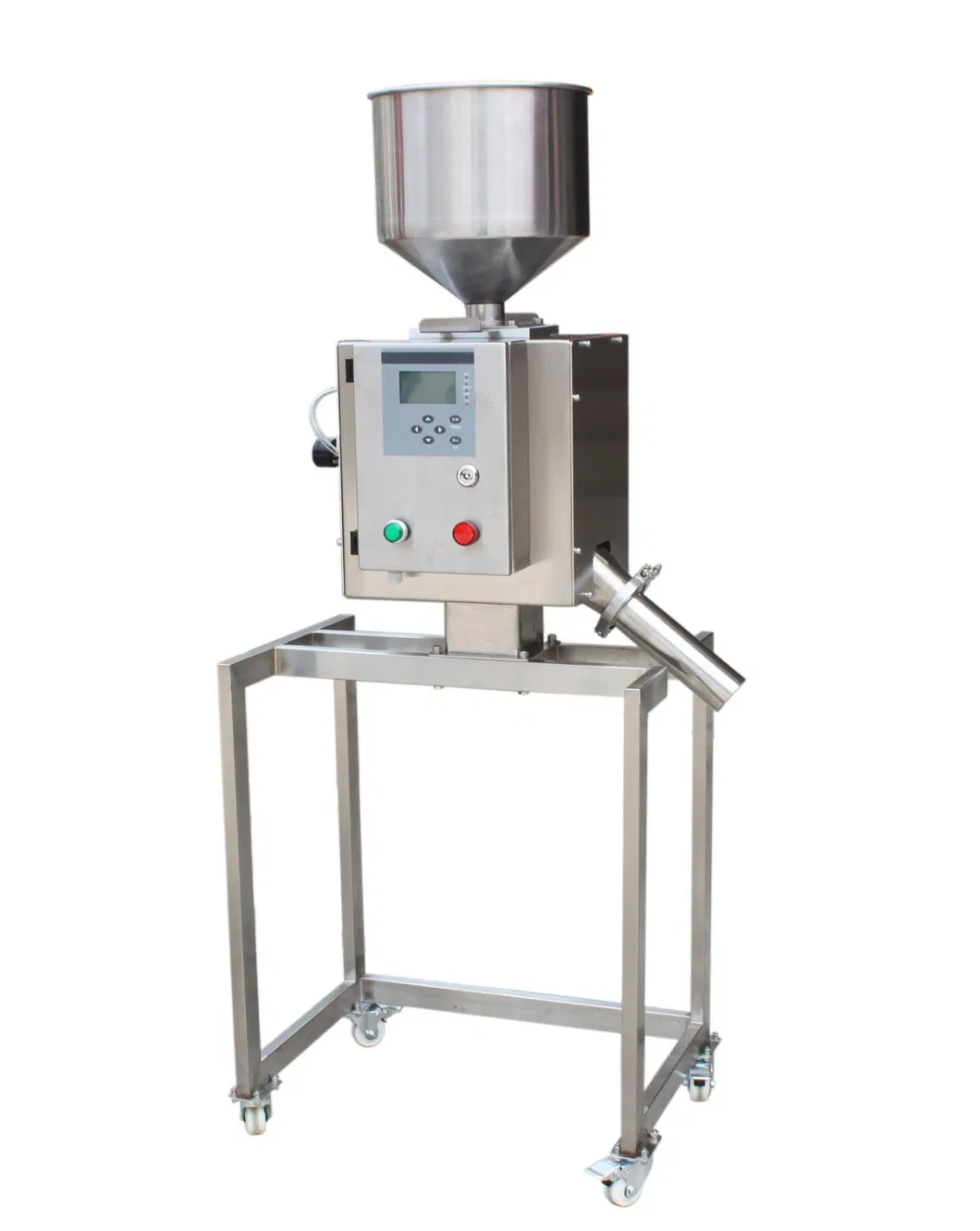

Vertical Fall Metal Detector
