? Basic Information
Certification
CE, ISO13485
Power Supply
AC110/220V +/-10%
Camera Device
2.3 Million Pixel 1/2.8" CMOS
Illumination
Color: 1 Lux / BW: 0.5 Lux
Specification
1944(H)*1092(V)
⚙ Technology Data Specifications
| Camera device |
1/2.8 inch CMOS |
1/2.8 inch CMOS |
1/2.8 inch CMOS |
| Monitor size |
15.6" |
15.6" |
17.3" |
| Effective pixel |
2010(H)×1108(v) |
2010(H)*1108(v) |
2010(H)*1108(v) |
| White balance |
Automatic/Manual |
Automatic/Manual |
Automatic/Manual |
| Resolution (Digital) |
1024×720 |
1920×1080 |
1920×1200 |
| Video output signal |
3G-SDI / CVBS |
3G-SDI / CVBS |
3G-SDI / CVBS |
| Handle wire |
2.3 m |
2.3 m |
2.3 m |
| Color temperature |
3000K-7000K |
3000K-7000K |
3000K-7000K |
| Illumination |
1,600,000 lx |
1,600,000 lx |
1,600,000 lx |
| Luminous flux |
600 lm |
600 lm |
600 lm |

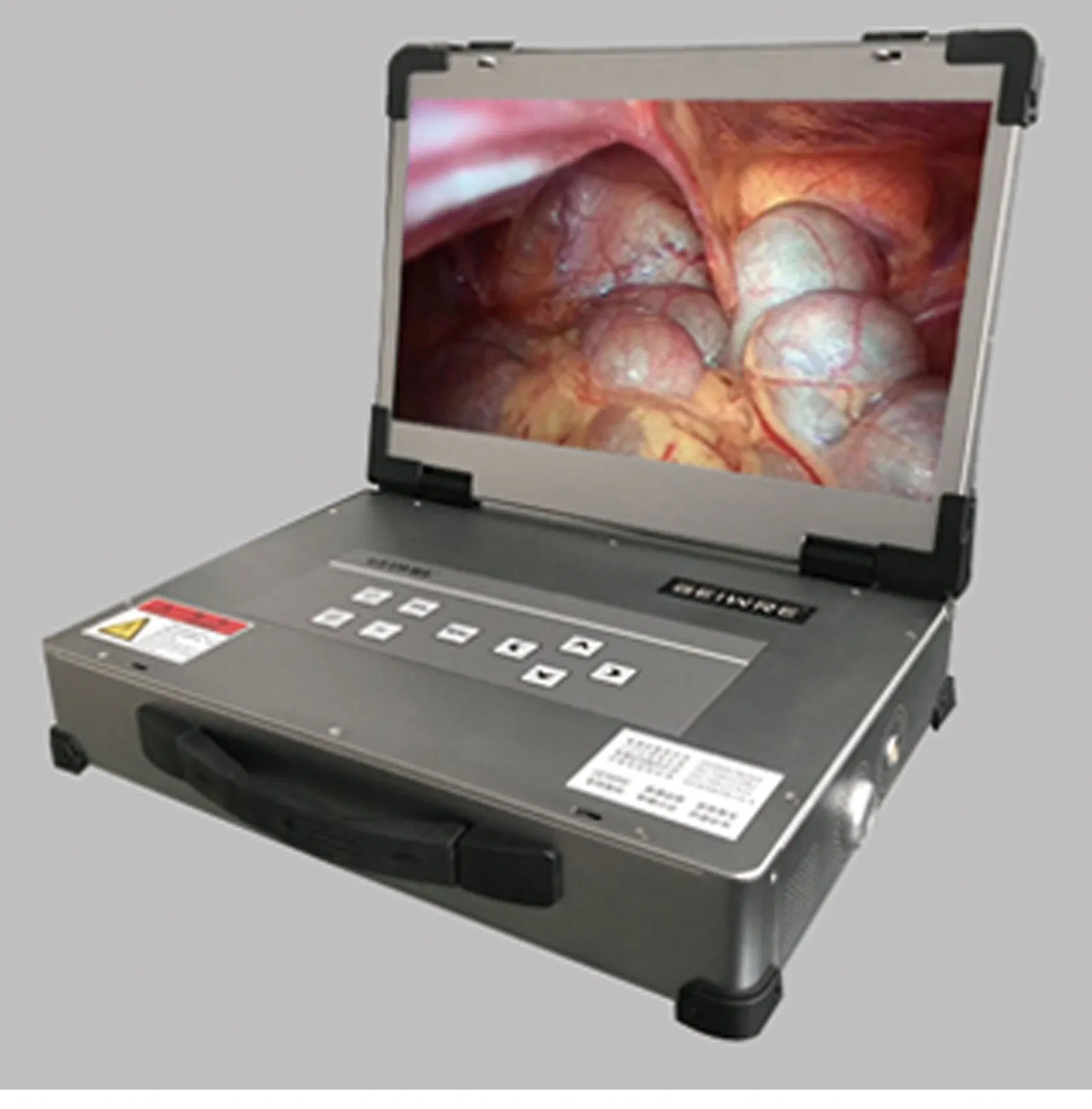

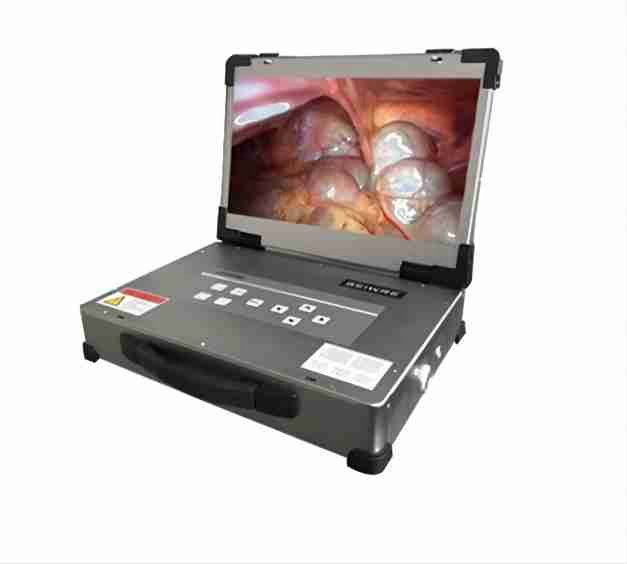

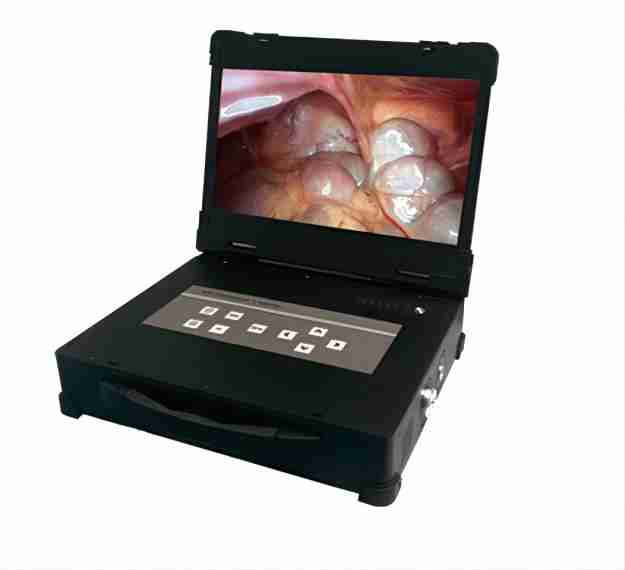

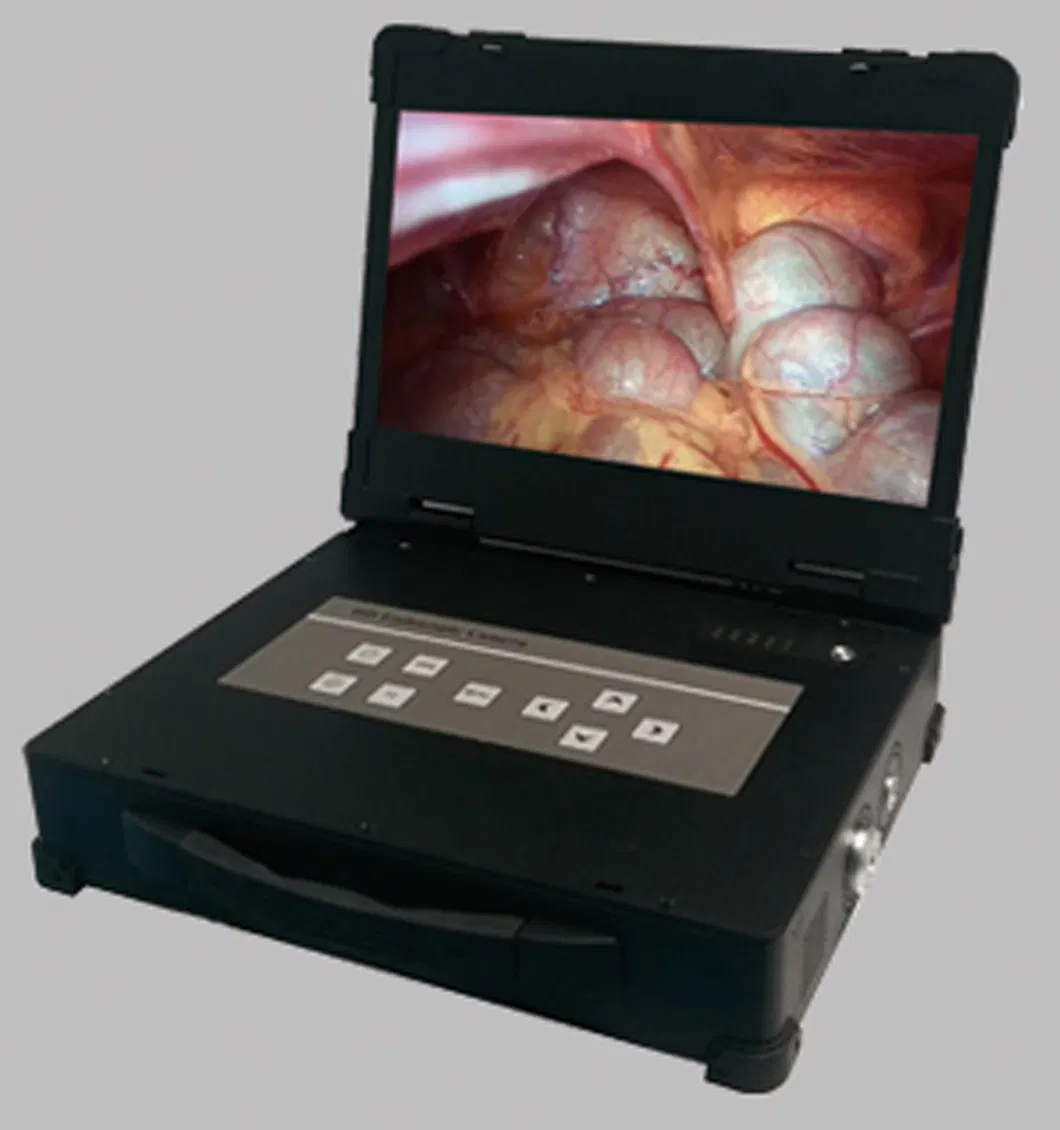

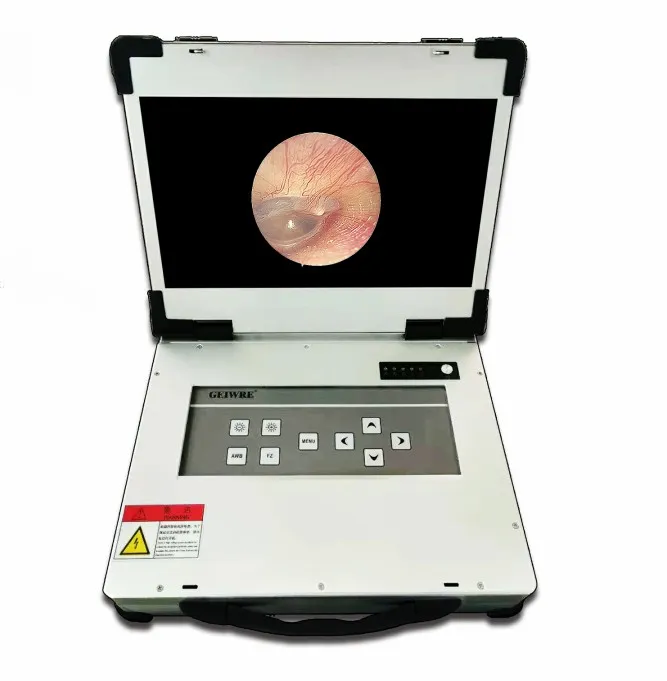

🖼 Product Display
✔ Key Features & Advantages
1
High-Definition Imaging:
Uses a digital photographic chip for 1920x1080p output. ENH color enhancement provides sharp mucosal morphology and clear vascular structures.
2
Convenient Operation:
Features integrated functions for brightness, white balance, image freeze, and color enhancement for clinical efficiency.
3
Precision Viewing:
Electronic amplification function allows for easy identification of small lesions during procedures.
4
Visual Comfort:
An extinction rate of less than 0.1 second reduces visual fatigue for surgeons during long operations.
5
Smart Interface:
Equipped with an open interface for third-party systems or tablets to save high-quality images and video.
6
User Friendly Menu:
Simple and practical menu settings allow users to adjust various parameters according to specific clinical requirements.
FAQ Frequently Asked Questions
Q1: What is the maximum resolution supported by the HD330 model?
The HD330 model supports a high-definition digital resolution of up to 1920×1200 pixels.
Q2: Can the white balance be adjusted manually?
Yes, the system supports both automatic and manual white balance settings to suit different surgical environments.
Q3: What type of image sensor does this endoscopy camera use?
The system utilizes a high-performance 1/2.8 inch CMOS image sensor with approximately 2.3 million effective pixels.
Q4: What are the available video output signals?
The camera provides both digital (3G-SDI) and analog (NTSC/PAL CVBS) video output signals for broad compatibility.
Q5: Is the system compatible with external tablets or recording devices?
Yes, the rear panel is equipped with an integrated interface that allows connection to third-party systems or tablets for saving images and videos.
Q6: What is the benefit of the ENH color enhancement feature?
It enhances the clarity of mucosal morphology and capillaries, making blood vessels and tissue structures appear more vivid and true-to-life.
