Inspection X-ray Food Production Line Detecting Snacks Biscuit Canned Metal Glass Machine

1 / 5

Inspection X-ray Food Production Line Detecting Snacks Biscuit Canned Metal Glass Machine

Customization:	Available
Portable:	Non Portable
Form:	Conveyor Belt

Send Inquiry

Product Description

Basic Information

Model NO.

SAXR4035

Application

Security Check / Food Production

Type

Conveying X-ray Detector

Certification

CE, ISO

Alarm Form

Audible Alarm

Load Ability

200kg

Body Material

Stainless Steel SUS304

HS Code

9031499090

Product Description

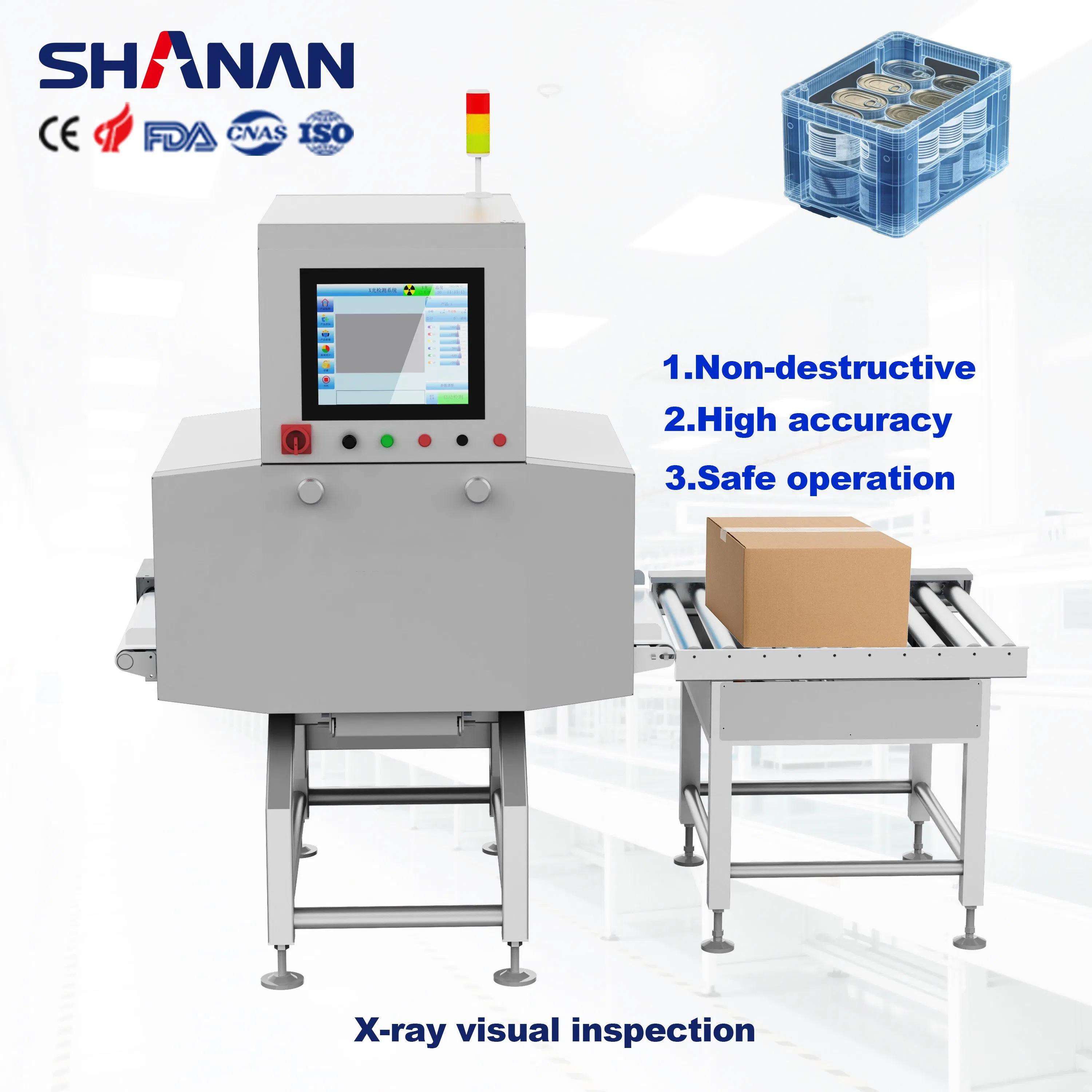

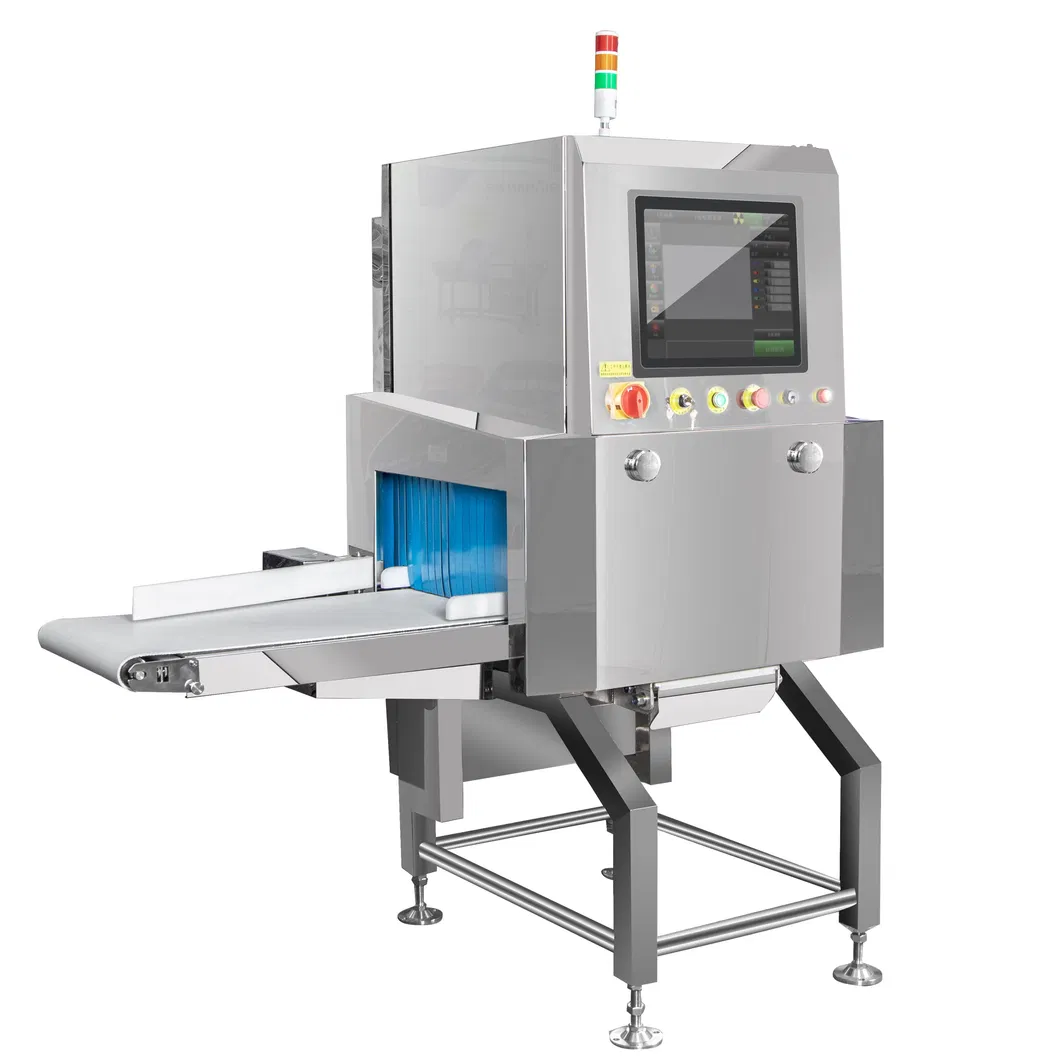

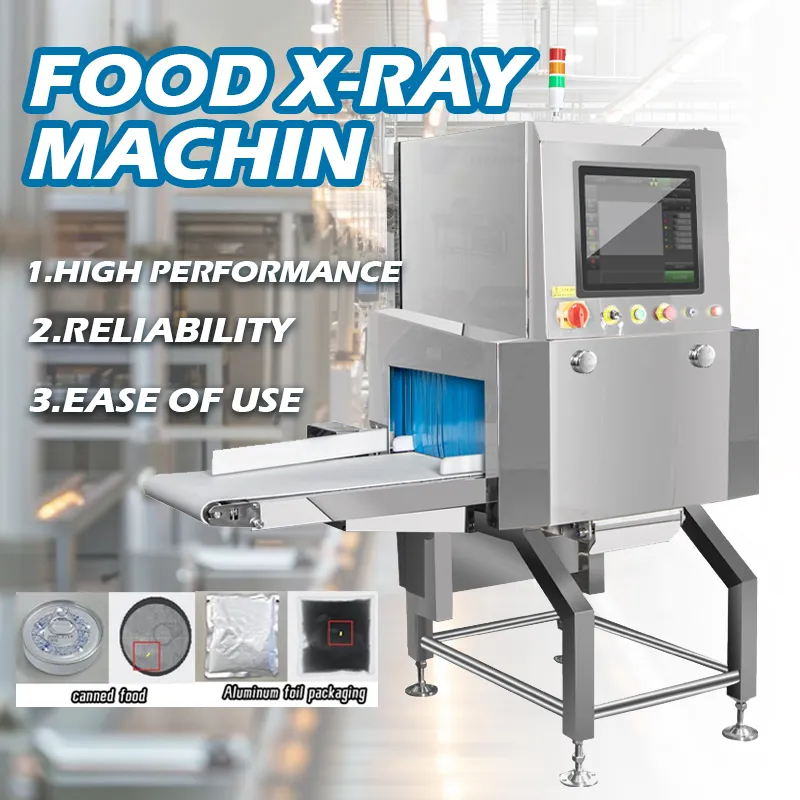

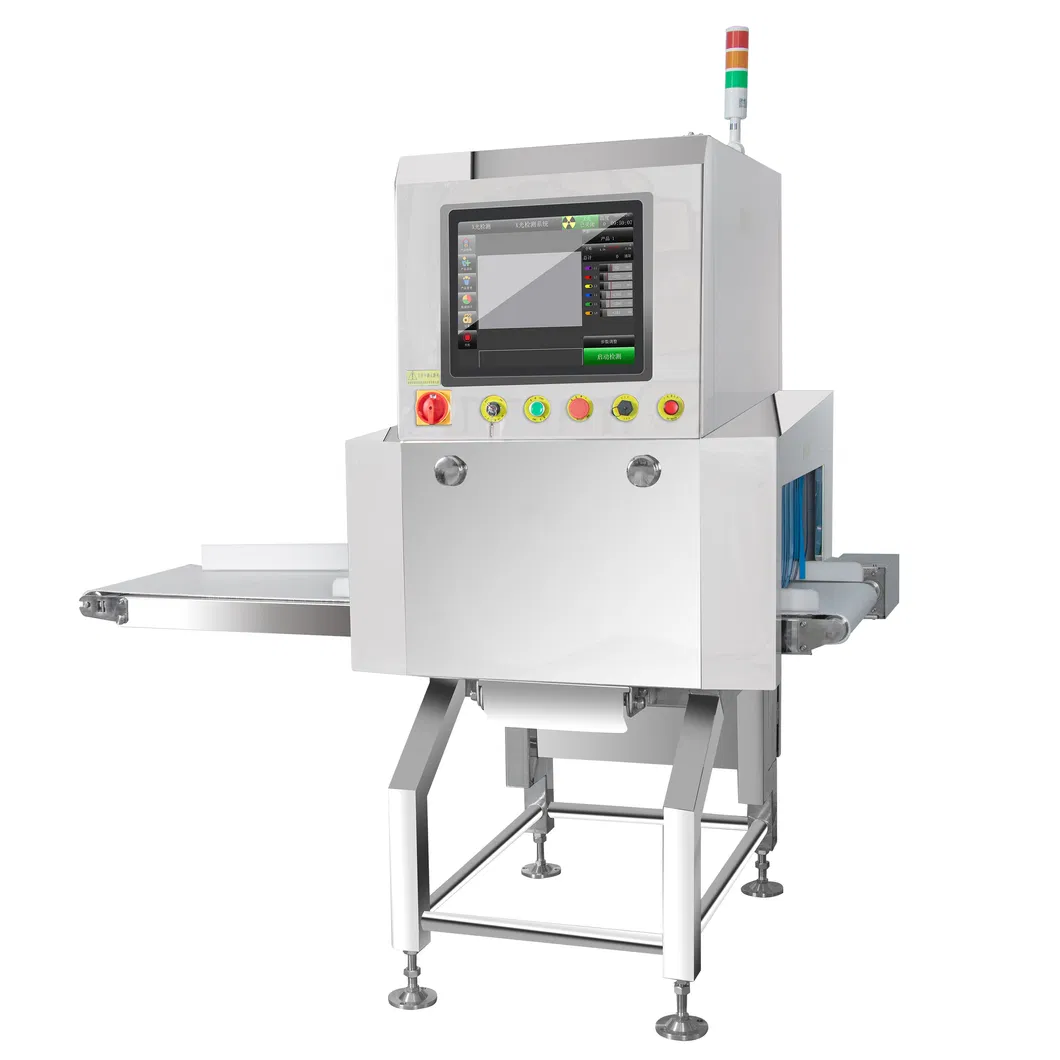

High-Precision Automatic Food Rejection X-ray Machine

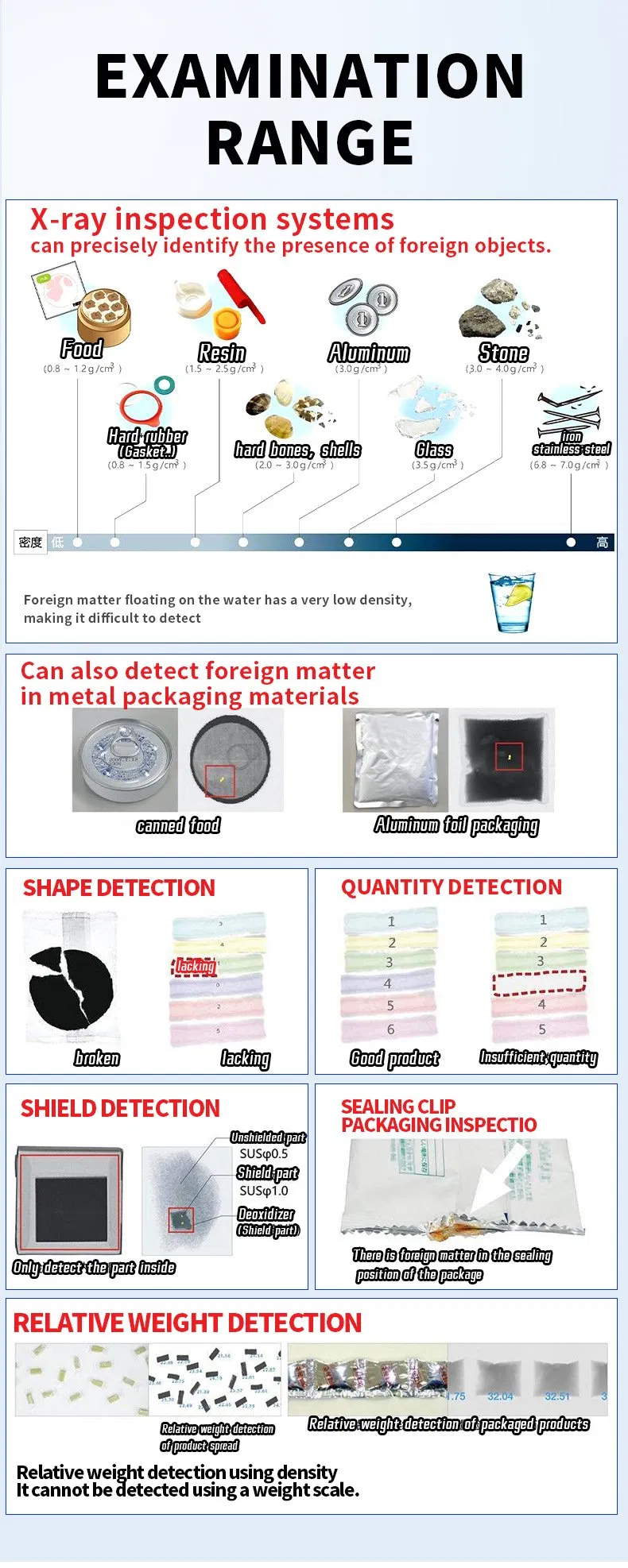

The X-Ray Food Inspection System utilizes advanced penetration technology to identify contaminants including all types of metals (Fe, non-Fe, stainless steel), bones, glass, ceramics, stones, sand, rigid plastics, and desiccants.

It automatically detects internal defects (voids, cracks) and foreign bodies in products that are invisible to the naked eye, ensuring premium quality control for food production lines.

Technical Specifications

Parameter	SAXR-3025	SAXR-4025	SAXR-6025
X-Ray Tube	100KV
Inspection Width	300mm	400mm	600mm
Inspection Height	190mm	250mm	350mm
Sensitivity	SS Ball Φ0.3mm; SS Wire Φ0.2*2mm; Ceramics Φ1.0; Glass Φ1.0
Conveyor Speed	10-70m/min
Display Screen	17 inches colored touch screen
Interfaces	LAN Port, USB Port
Waterproof Level	IP66 for tunnel, IP54 for body
X-Ray Leakage	<1 uSv/h (CE Standard)

System Advantages

🛡️ Shielding Function

Users can block parts not needing detection, such as aluminum film packaging, desiccants, or product boundaries.

🔍 Defect Detection

Beyond foreign objects, the system counts missing items and identifies broken products automatically.

💧 IP66 Waterproof

Separate light source and electrical cabinets for better maintenance and protection in washdown environments.

🌡️ Environmental Adaptability

Operates in extreme environments (-10°C to 40°C) with up to 90% humidity thanks to built-in air conditioning.

❄️ Stable Performance

Circulating pipe cooling system prevents condensation at low temperatures and maintains cooling at high temperatures.

🌐 Remote Support

Built-in software allows after-sales teams to remotely assist in troubleshooting and solving operational issues.

Frequently Asked Questions

1. What types of contaminants can the X-ray inspection system detect?

The system can detect a wide range of foreign objects, including all metals (ferrous, non-ferrous, and stainless steel), glass, ceramics, stones, bones, and high-density plastics.

2. Is this machine suitable for wet or humid food production environments?

Yes, the detecting tunnel is certified to IP66 waterproof standards, and the machine is equipped with a dehumidifier and internal air conditioning to handle up to 90% humidity.

3. Can the system ignore aluminum packaging or desiccants?

Yes, the system features a professional shielding function that allows users to block out specific items like aluminum film packaging or desiccant packets that do not need to be detected.

4. How high is the detection sensitivity?

The system is highly precise, capable of detecting stainless steel balls as small as Φ0.3mm and stainless steel wires as small as Φ0.2*2mm.

5. Does the system provide an alarm or automatic rejection when a defect is found?

The machine features multiple reaction modes including sound and light indicators, stopping the conveyor belt, or triggering an automatic rejection device to remove the defective item.

6. What happens if I encounter technical issues with the machine?

The system supports remote assistance. Our technical team can access the built-in software remotely to diagnose problems and help solve operational issues or failures efficiently.
