Product Description

Basic Information
Model NO.
jinling-01B
Certification
ISO13485, RoHS
Group
Adult and Children
LCD Display
5.4 Inch TFT Display
Ventilation Mode
IPPV, SIPPV, SIMV, Manual
Back-up Power
At least 4 Hours
Tidal Volume
50~1500ml
Respiratory Rate
1~99bpm
Oxygen Flush
25-75L/Min
Vaporizer Range
0~5%
Origin
China
HS Code
9018907010
Product Overview

5.4 inch TFT display Hospital Medical equipment Anesthesia machine with two vaporizers

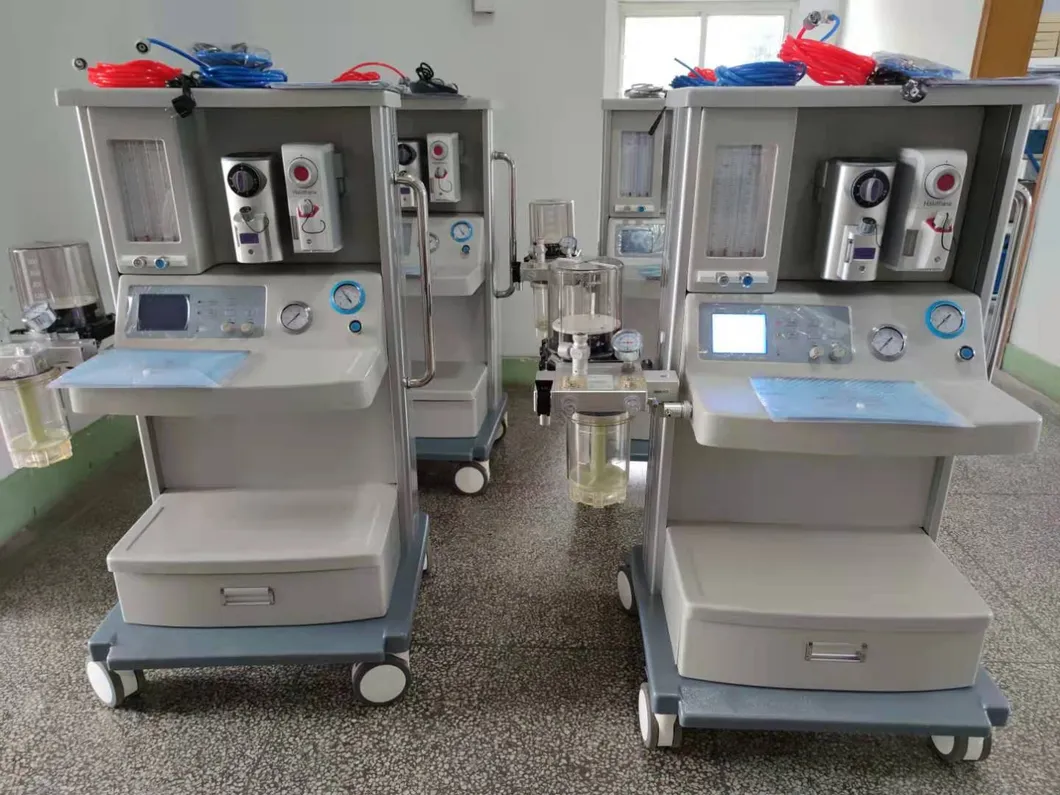

Anesthesia Machine Display
Medical Equipment Side View
  • Equipped with electronic pressure differential flow sensor and imported respiratory control valve.
  • High-quality Vaporizer: Imported tank components assembled locally; supports Enflurane, Isoflurane, Sevoflurane, and Halothane with self-compensating functionality.
  • High precision four-tube flowmeter with interlocking oxygen-nitrous oxide supply, ensuring oxygen output never falls below 21%.
  • Non-hazardous environmentally friendly frame with automated self-checking and self-calibrating sensors.
  • Power Failure Support: Automatically converts to backup power mode during AC power outages.

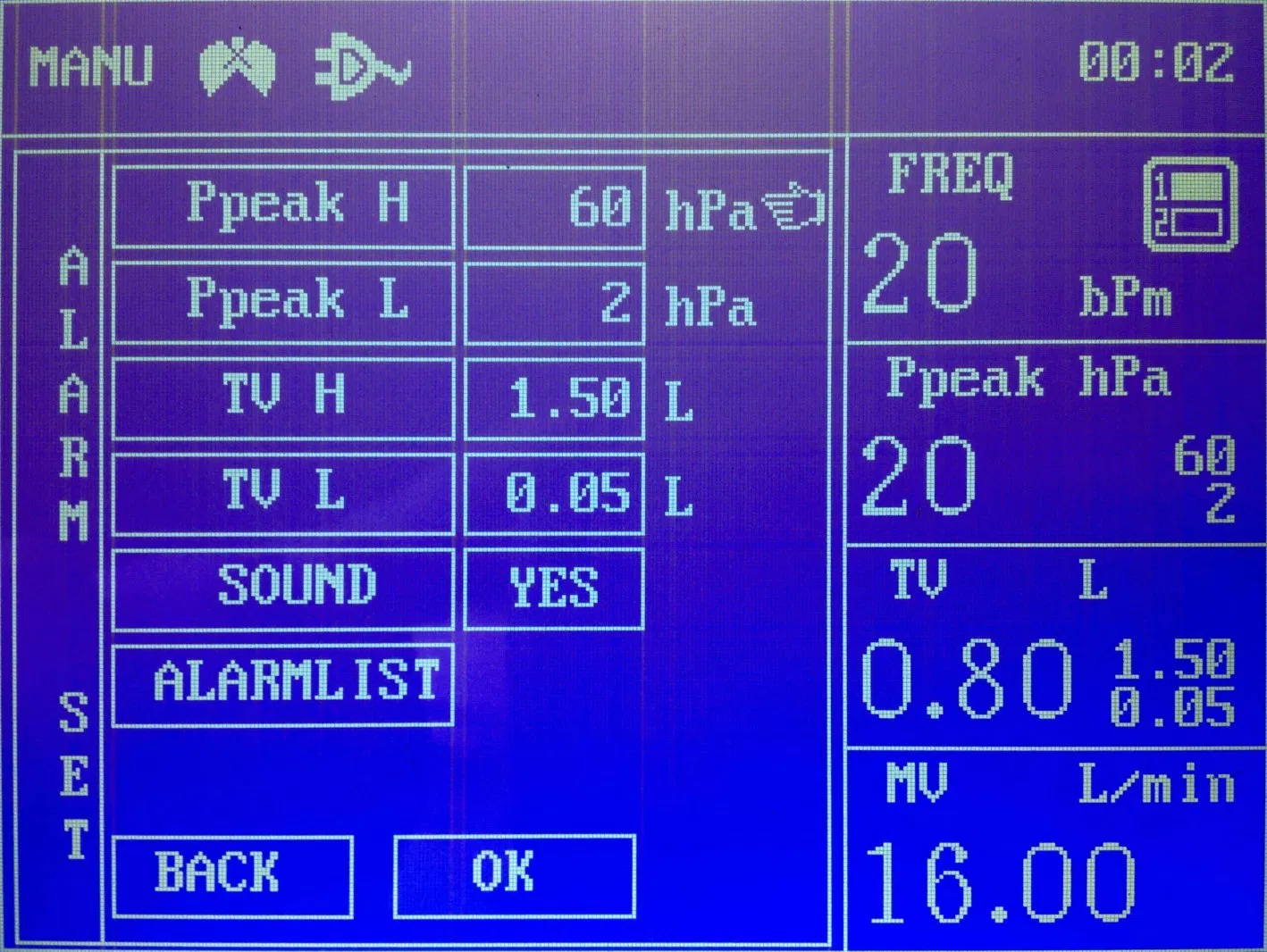

  • Comprehensive Alarms: Audible and visual alerts for tidal volume, airway pressure, asphyxia, power failure, and oxygen failure.
  • Advanced rotating Na-lime tank using imported PPSU material, temperature resistant to 134°C.

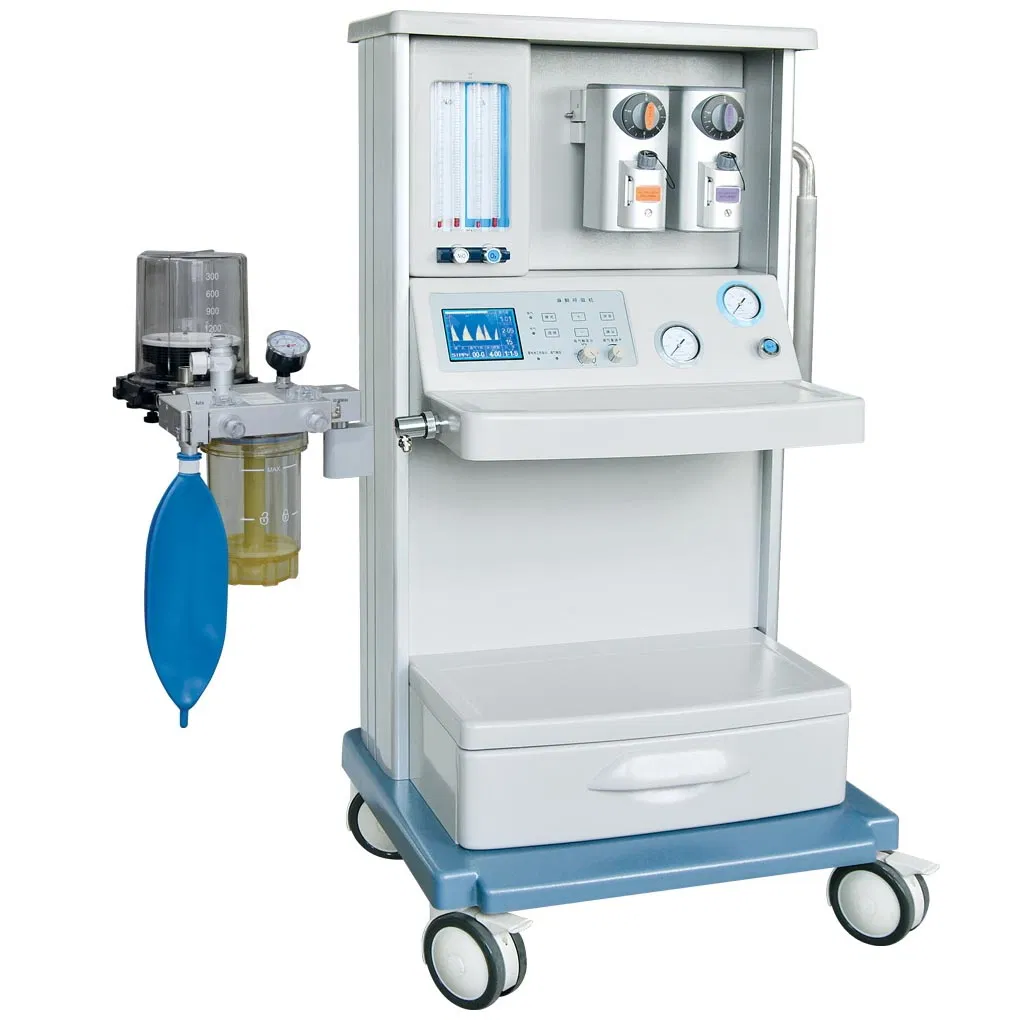

Anesthesia Machine Front

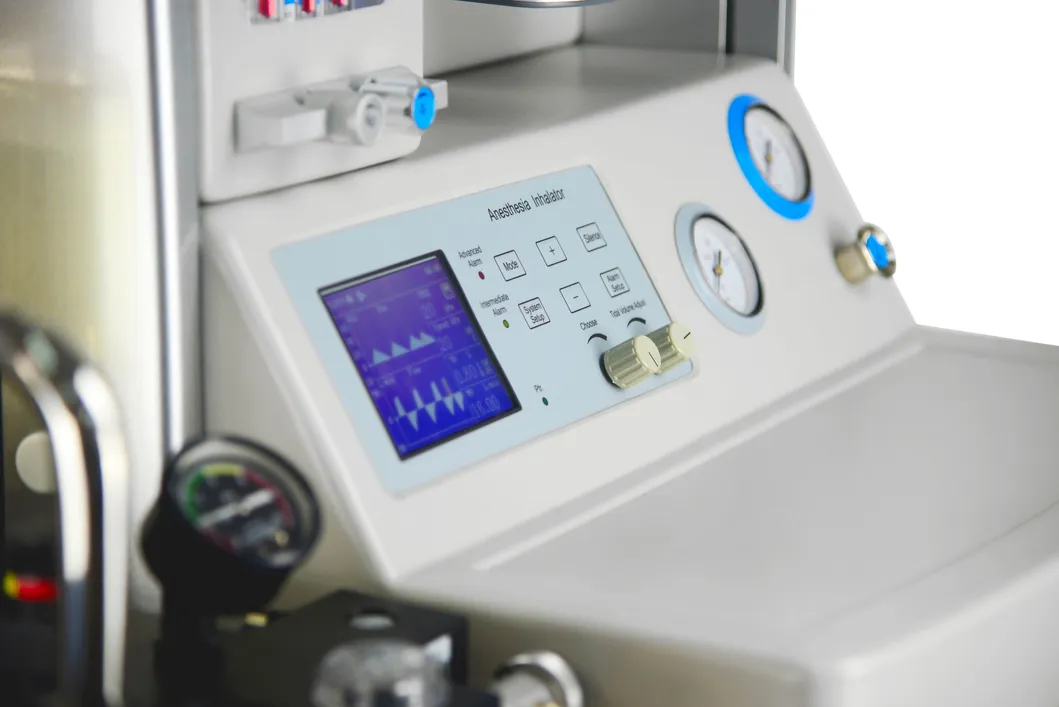

Anesthesia Machine Detail

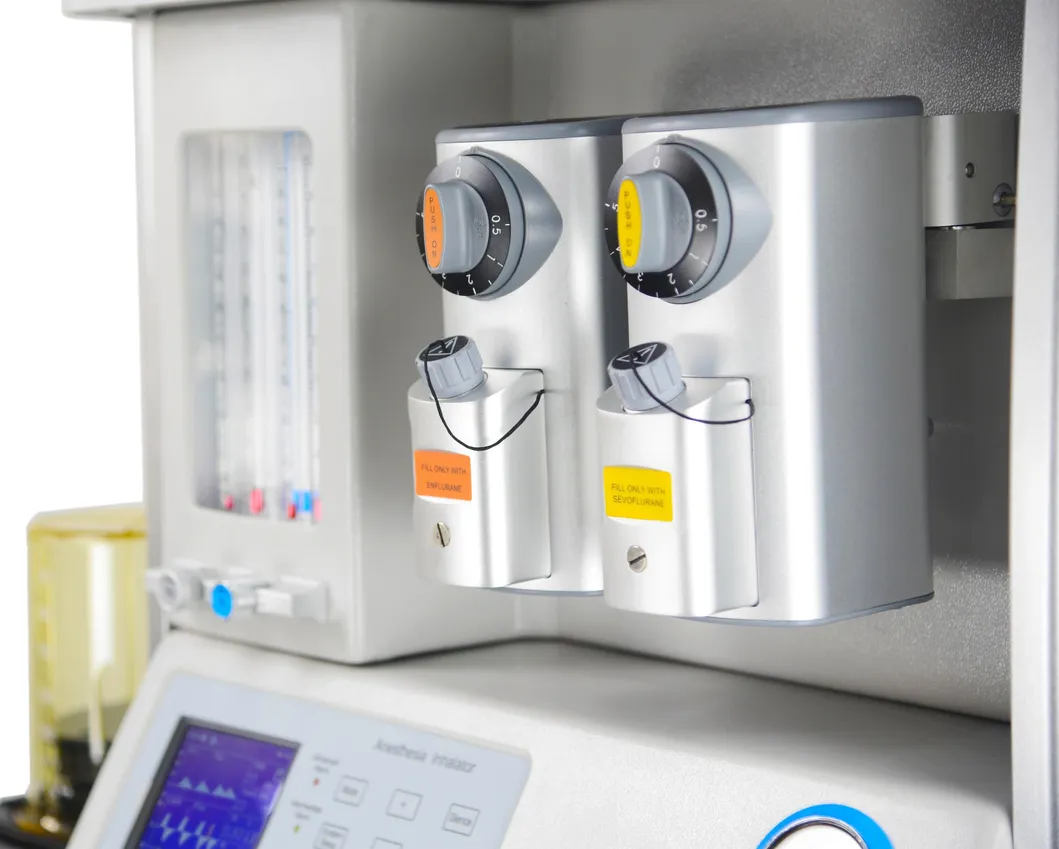

Anesthesia Machine Back
Technical Specifications
Feature Specification Details
ModelJINLING-01B Advanced Model
Display5.4 inch TFT display
Flowmeter RangeO2: 0.1-10L/min; N2O: 0.1-10L/min
Ventilation ModeIPPV, SIPPV, IMV, SIMV, MANUAL
Back-up PowerAt least 4 hours
Tidal VolumeAdjustable: 50-1500ml; Display: 0-2000ml
Respiratory Rate1-99bpm
I:E Ratio4:1 - 1:10 (Capable of inverse ratio ventilation)
Oxygen Supply Flow25~75L/min
Pressure Trigger-10-10cmH2O (Electronically controlled)
SIGH1 sigh breath every 80-120 breaths
Vaporizer SlotsDouble PA-I type slots (0-5% Concentration)
Specification Diagram 1
Specification Diagram 2
Frequently Asked Questions
Q1: What ventilation modes does the JINLING-01B support?
The machine supports multiple modes including IPPV, SIPPV, IMV, SIMV, and MANUAL to accommodate various clinical needs.
Q2: How long can the machine operate during a power failure?
It is equipped with a backup power supply that provides at least 4 hours of operation during AC power outages.
Q3: What types of vaporizers can be used with this equipment?
The system is compatible with Enflurane, Isoflurane, Sevoflurane, and Halothane vaporizers, featuring a double slot configuration.
Q4: Is there a safety mechanism for oxygen delivery?
Yes, it features a high-precision flowmeter with an interlocking oxygen-nitrous oxide supply system that ensures the oxygen concentration never drops below 21%.
Q5: What are the tidal volume and respiratory rate ranges?
The tidal volume is adjustable from 50ml to 1500ml, and the respiratory rate can be set between 1 and 99 breaths per minute (bpm).
Q6: What kind of alarms are included for patient safety?
The machine includes audible and visual alarms for tidal volume, airway pressure, asphyxia, power failure, and oxygen supply failure.
