✓Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open

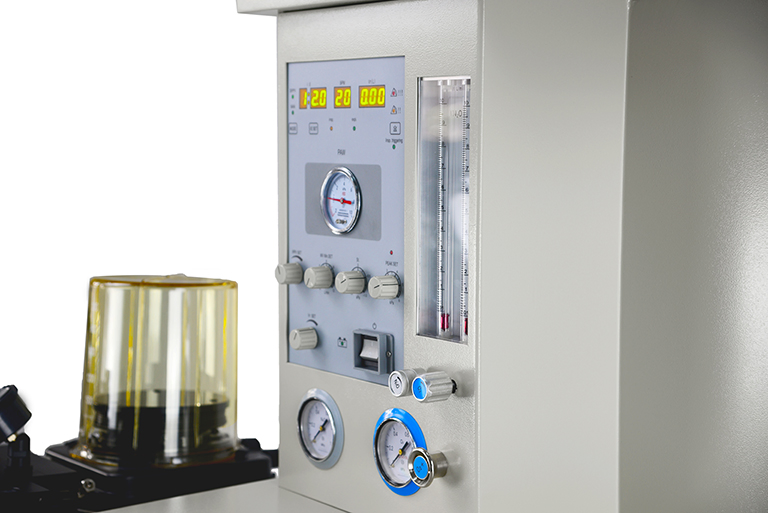

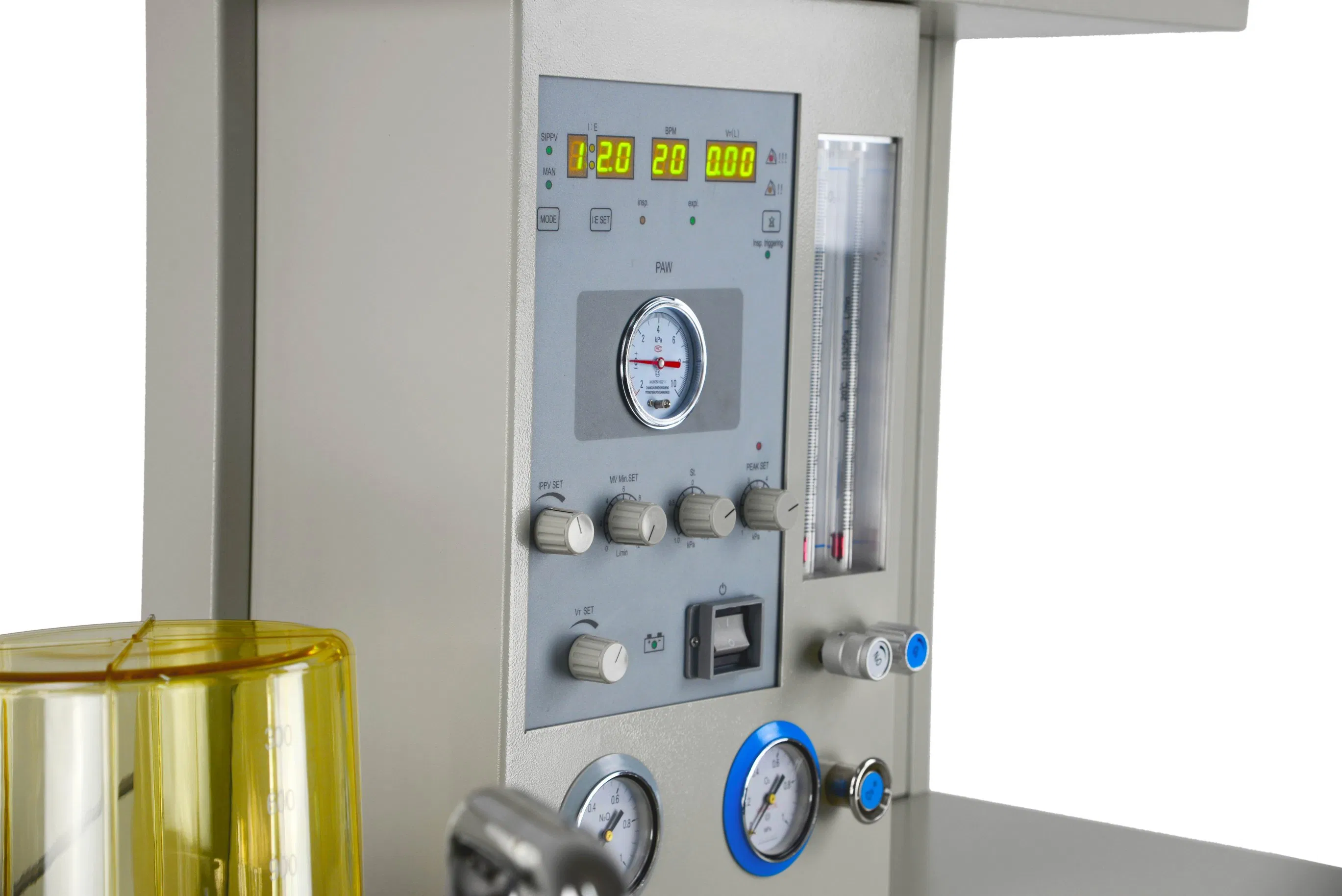

✓Anesthesia Ventilator: Built-in high visibility, wide angle LED alphanumeric data display
✓Respiratory Circuit: Standard integrated metallic modular circuit; high temperature disinfection support, easy to clean

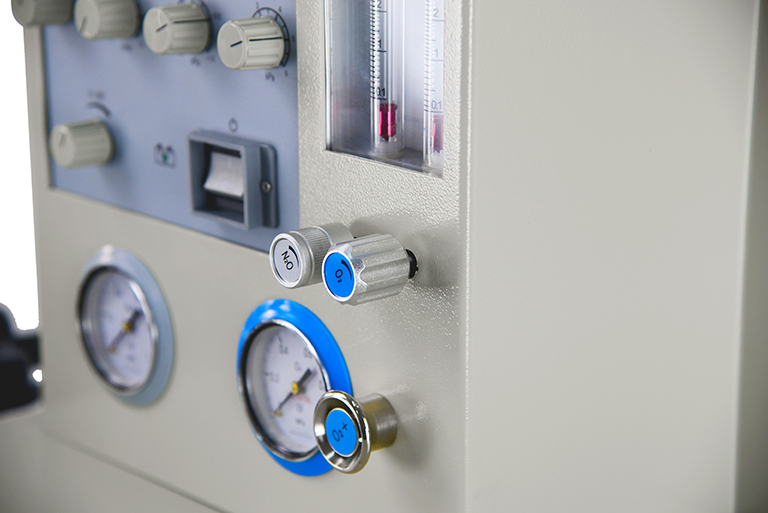

✓Flowmeter: High precision two tube flowmeter with interlocking O2-N2O supply (min 21% O2)
✓Power Support: Automatically converts to backup power mode during AC power outages
✓Safety Alarms: Audible and visual alarms for tidal volume, airway pressure, power/oxygen failure

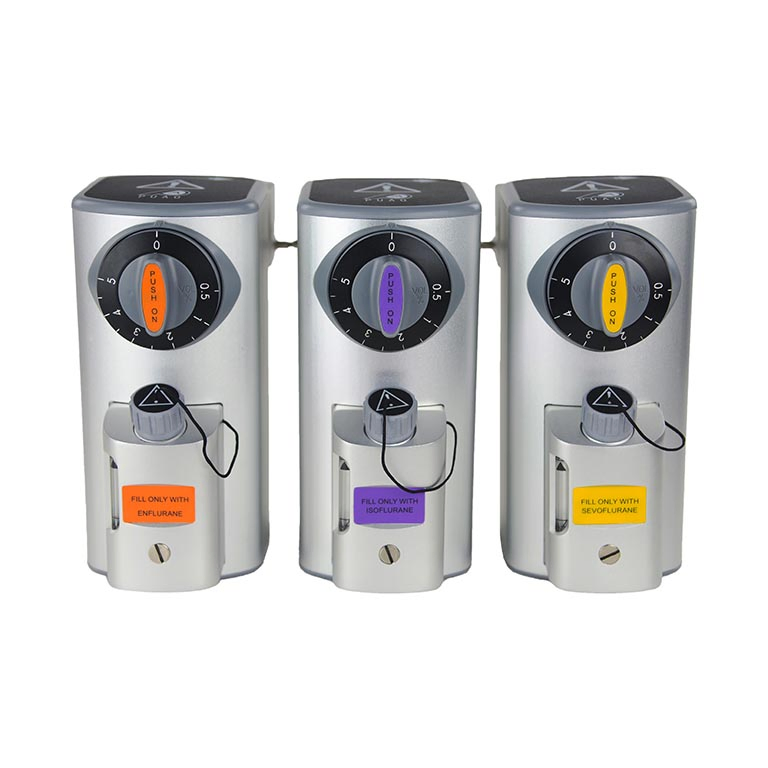

✓Vaporizer: Local assembly with imported components (Enflurane, Isoflurane, Sevoflurane)
Frequently Asked Questions
● What ventilation modes are supported by this anesthesia machine?
The machine supports several ventilation modes including IPPV, SIPPV, A/C, and Manual modes to suit different clinical needs.
● How long can the backup battery last during a power failure?
The system is equipped with an automatic back-up power supply that provides at least 4 hours of operation during AC power outages.
● Is the respiratory circuit easy to disinfect?
Yes, it features a standard integrated metallic modular respiratory circuit designed for high-temperature disinfection and easy cleaning to ensure gas sealing.
● What is the adjustable range for tidal volume?
The tidal volume is adjustable within a range of 50ml to 1500ml, with a display range of up to 2000ml.
● Does it include safety features for oxygen delivery?
Yes, the high-precision flowmeter is fitted with an interlocking oxygen-nitrous oxide supply system that guarantees oxygen output is never lower than 21%.
● What are the differences between the Standard and Advanced models?
The primary difference lies in the vaporizer slots: the Standard model features a single PA-80 type slot, while the Advanced model is equipped with double PA-80 type slots.
