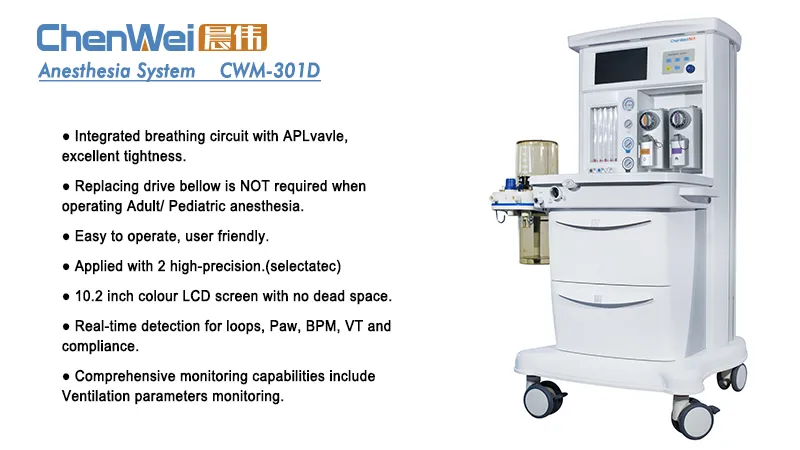

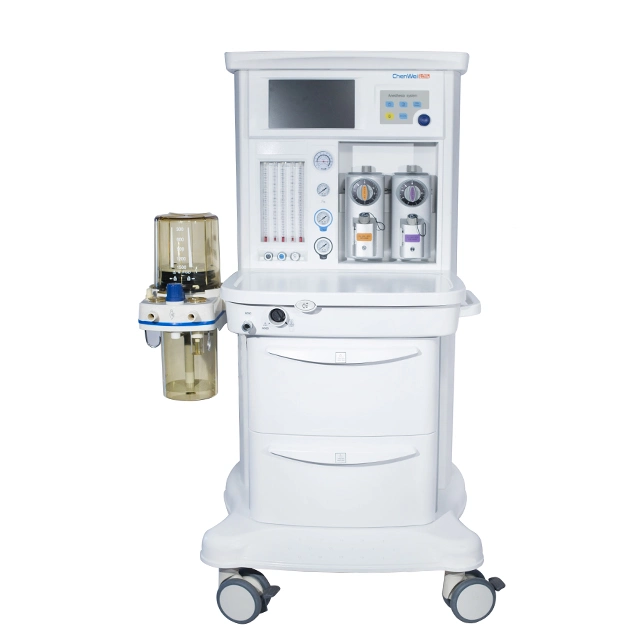

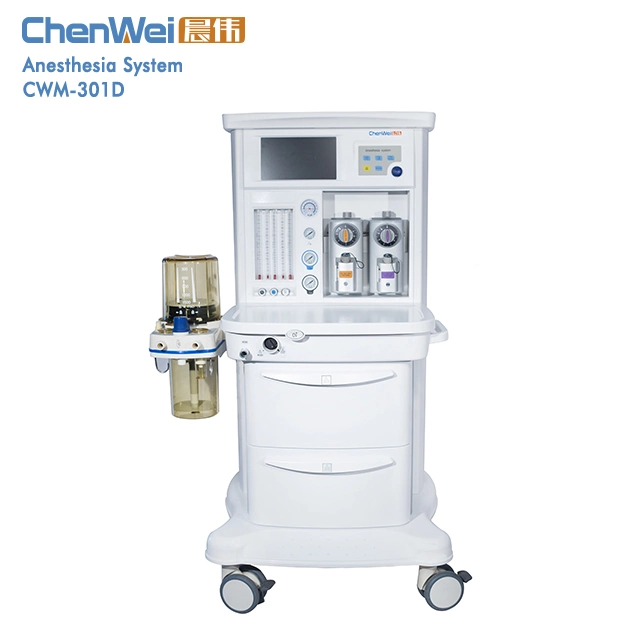

Hospital Used Exeelent Performance Anesthesia Machine (CWM-301D)
Hospital Used Exeelent Performance Anesthesia Machine (CWM-301D)
Hospital Used Exeelent Performance Anesthesia Machine (CWM-301D)
Hospital Used Exeelent Performance Anesthesia Machine (CWM-301D)
1 / 4
Hospital Used Exeelent Performance Anesthesia Machine (CWM-301D)
Hospital Used Exeelent Performance Anesthesia Machine (CWM-301D)
Hospital Used Exeelent Performance Anesthesia Machine (CWM-301D)
Hospital Used Exeelent Performance Anesthesia Machine (CWM-301D)

Hospital Used Exeelent Performance Anesthesia Machine (CWM-301D)

Customization: Available
Type: All Kinds of ICU Operating
Function: Analgesia
Send Inquiry

Product Description

Basic Specifications

Model NO.
CWM-301D
Theory
Electrotherapeutics
Certification
CE, ISO13485
LCD Display
With LCD Display
Group
Both Adult & Child
Applied for
Closed, Semi-Open Inhalation Anesthesia
APL Valve
Available
Power
220V AC 50Hz, Built-in Battery
Gas
O², N²O, Air
Origin
China
HS Code
9018907090
Capacity
5000PCS/Year

Product Overview

Power220V AC ± 10%, 50Hz ± 2%, built-in battery for backup
GasO², N²O, Air
Oxygen Flush25 to 75L/minute
ApplicationAdult and Child
APL ValveAvailable

Main Features

  • Applied for closed, semi-open inhalation anesthesia, controlled or assisted ventilation.
  • Monitoring and displaying patients' ventilation parameters.
  • Good air tightness, easy to be operated, cleaned and disinfected.
  • Concentration precisely controlled temperature, flow and pressure compensation technology.
  • Optional imported vaporizers of isoflurane, enflurane and sevoflurane provided as required.
  • Gas driven and electrical control with color LCD screen displaying monitoring parameters.

Technical Specifications

  • Ventilation modes: VCV, A/C, SIMV, MANUAL, PCV, PSV, STAND-BY.
  • Parameters monitoring: VT, MV, BPM, Paw, Lung compliance, Inspiratory Platform, FiO2.
  • Waveform display: Pressure-time, flow-time, Volume-time, pressure-volume, volume-time, flow-time loop.
  • Alarm Systems: Optimal third-class alarm unit for tidal volume, minute volume, airway pressure, apnea, O² concentration, power failure, and gas source failure.
  • Protection: Prompt for parameter limitations and protection for unreasonable parameter setting.

Product Visuals

Anesthesia Machine View 1

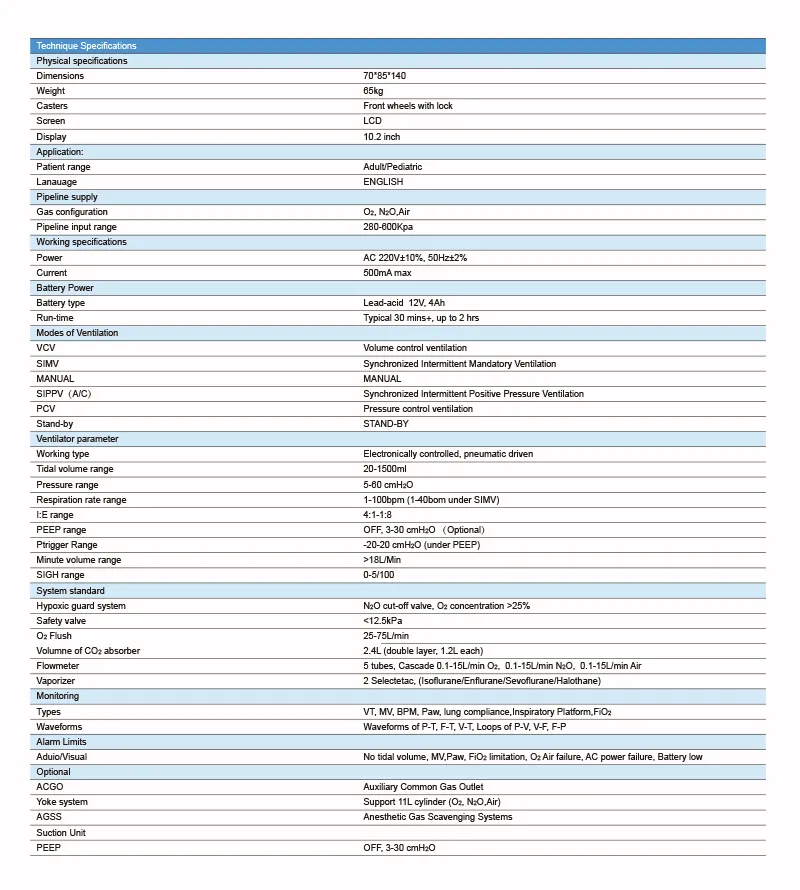

Anesthesia Machine View 2
Anesthesia Machine Detail 1
Anesthesia Machine Detail 2

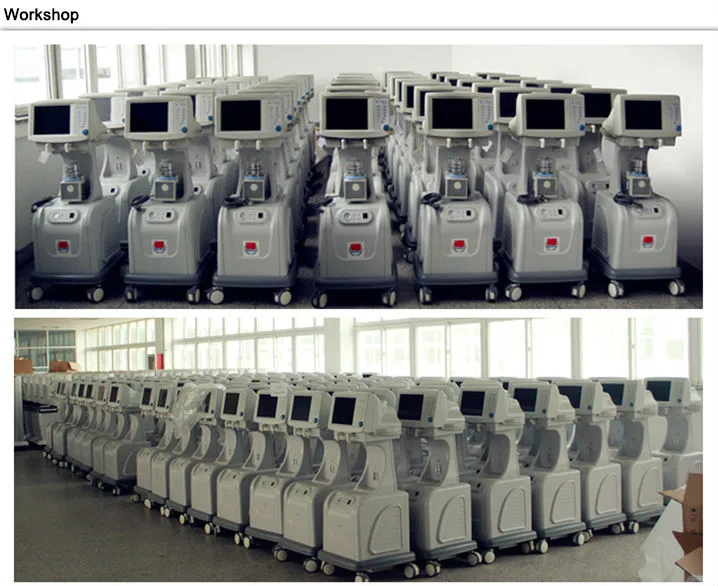

Anesthesia Machine Detail 3

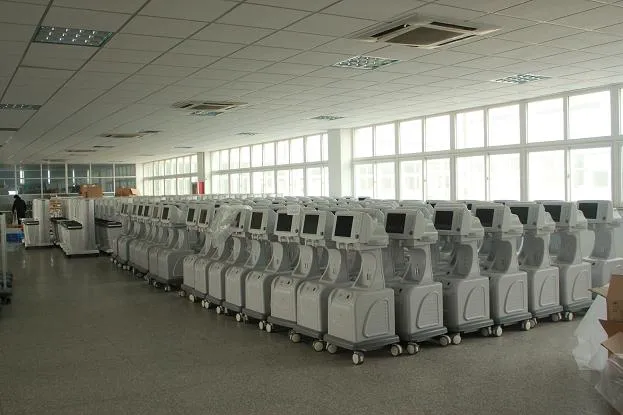

Anesthesia Machine Detail 4

Frequently Asked Questions

Q1: Which patient groups is the CWM-301D anesthesia machine suitable for?

The CWM-301D is designed for versatile use and is suitable for both adult and pediatric patients.

Q2: What ventilation modes are supported by this device?

The machine supports multiple ventilation modes including VCV, A/C, SIMV, MANUAL, PCV, PSV, and STAND-BY.

Q3: How does the machine handle power failures during surgery?

The device operates on 220V AC and includes a built-in battery for backup support to ensure continuous operation during power interruptions.

Q4: What types of gases are compatible with the CWM-301D?

It is compatible with Oxygen (O²), Nitrous Oxide (N²O), and medical-grade Air.

Q5: What safety monitoring features are included?

It features a color LCD for monitoring VT, MV, BPM, Paw, and FiO2, along with third-class alarms for apnea, low voltage, and pressure malfunctions.

Q6: Are there options for different anesthetic vaporizers?

Yes, optional imported vaporizers for isoflurane, enflurane, and sevoflurane can be provided as required.
