Cutting: Pure cutting for fine effects with fresh tissue surfaces and no scab.
2
Blend: Provides excellent coagulation while cutting, suitable for superficial tissue coagulation and endoscopy.
3
Coag 1 (Soft): Point coagulation for deeper tissue, reducing adhesion between electrode and tissue for better recovery.
4
Coag 2 (Strong): Surface coagulation with faster action and larger area coverage.
5
Bipolar Coag: Rapid bipolar electrocoagulation to minimize misoperation rates during surgery.
Advantages of LEEP Procedure
✔
Improved accuracy, controllability, and security for gynecologic uterine surgeries.
✔
Versatile treatment for various diseases including columnar ectopy and condylomata accuminata.
✔
Various electrode shapes prevent carbonization and preserve pathological tissue integrity.
✔
Spherical electrodes for efficient hemostasis without damaging nearby tissues.
Product Parameters

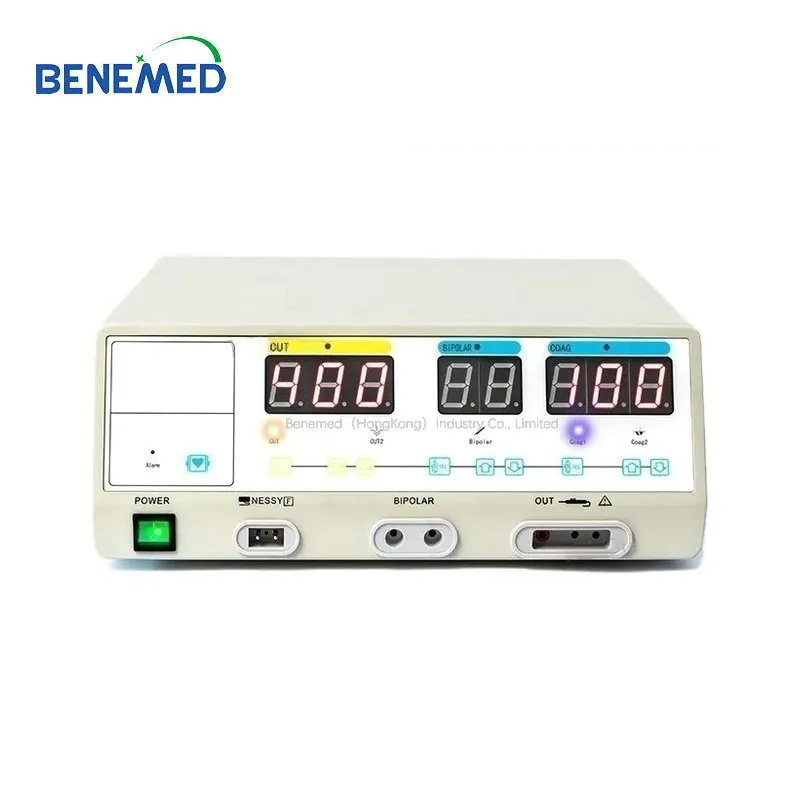

Electrosurgical Unit Specification
Ambient Temperature
10ºC~40ºC
Relative Humidity
30%~75%
Atmospheric Pressure
700hpa~1060hpa
Working Frequency
360kHz~460 kHz
Power Consumption
Less than 1000VA (Cutting: 200W)
Dimensions & Weight
550×460×270mm | N.W: 7KG

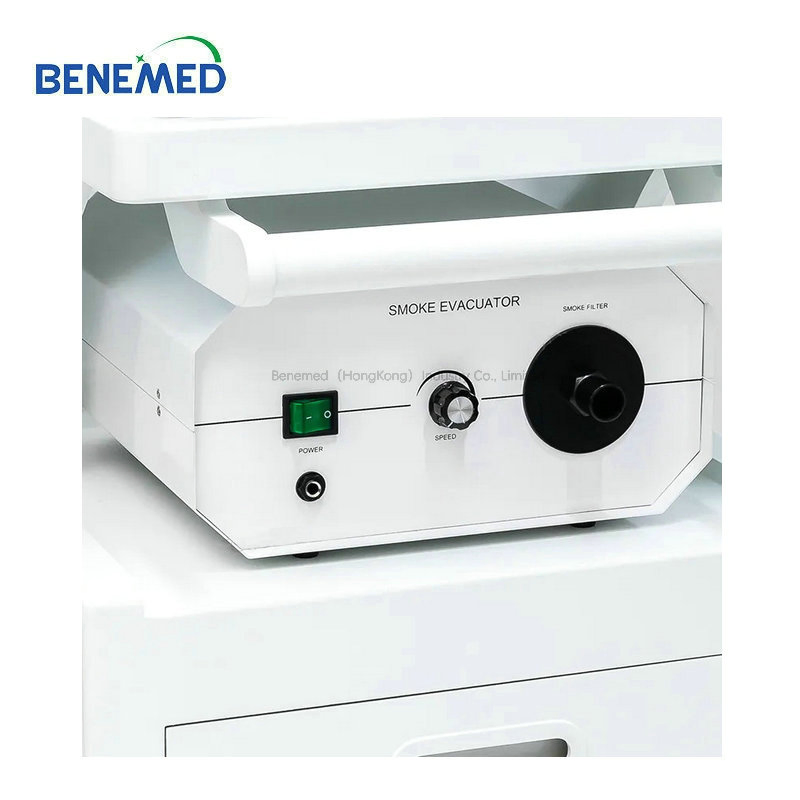

Smoking Device & Medical Cart
Noise Level
Max 40dB
Maximum Flow
0~200L/min (Adjustable)
Absorption Efficiency
> 95%

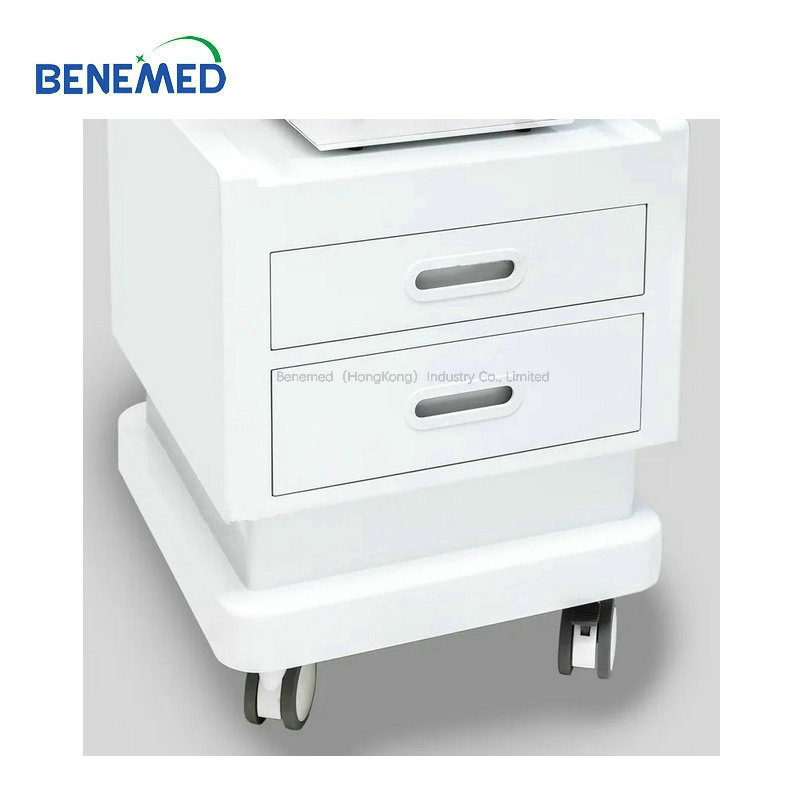

Medical Cart Volume
110×56×61cm
Cart Weight
N.W: 18.6KG | G.W: 29KG
Frequently Asked Questions
Q1: What are the primary cutting modes available on this LEEP knife?
The system offers pure cutting for fine tissue surfaces and a blend mode that provides simultaneous coagulation for a wider range of surgical applications.
Q2: How does the smoking device benefit the surgical environment?
The integrated smoking device has an absorption efficiency of over 95% and a maximum flow of 200L/min, significantly reducing surgical smoke and maintaining a clear field of vision.
Q3: Is the equipment compatible with endoscopic procedures?
Yes, the device is designed to be used with laparoscopes and hysteroscopes, making it suitable for advanced gynecological interventions.
Q4: What are the power and frequency specifications for the BM-LP019?
The unit operates on 220V (±22V) at 50Hz (±1Hz) and utilizes a working frequency range of 360kHz to 460 kHz.
Q5: What are the advantages of using spherical electrodes?
Spherical electrodes are primarily used for hemostasis. They are designed not to burn blood vessels or damage surrounding tissue, facilitating faster patient recovery.
