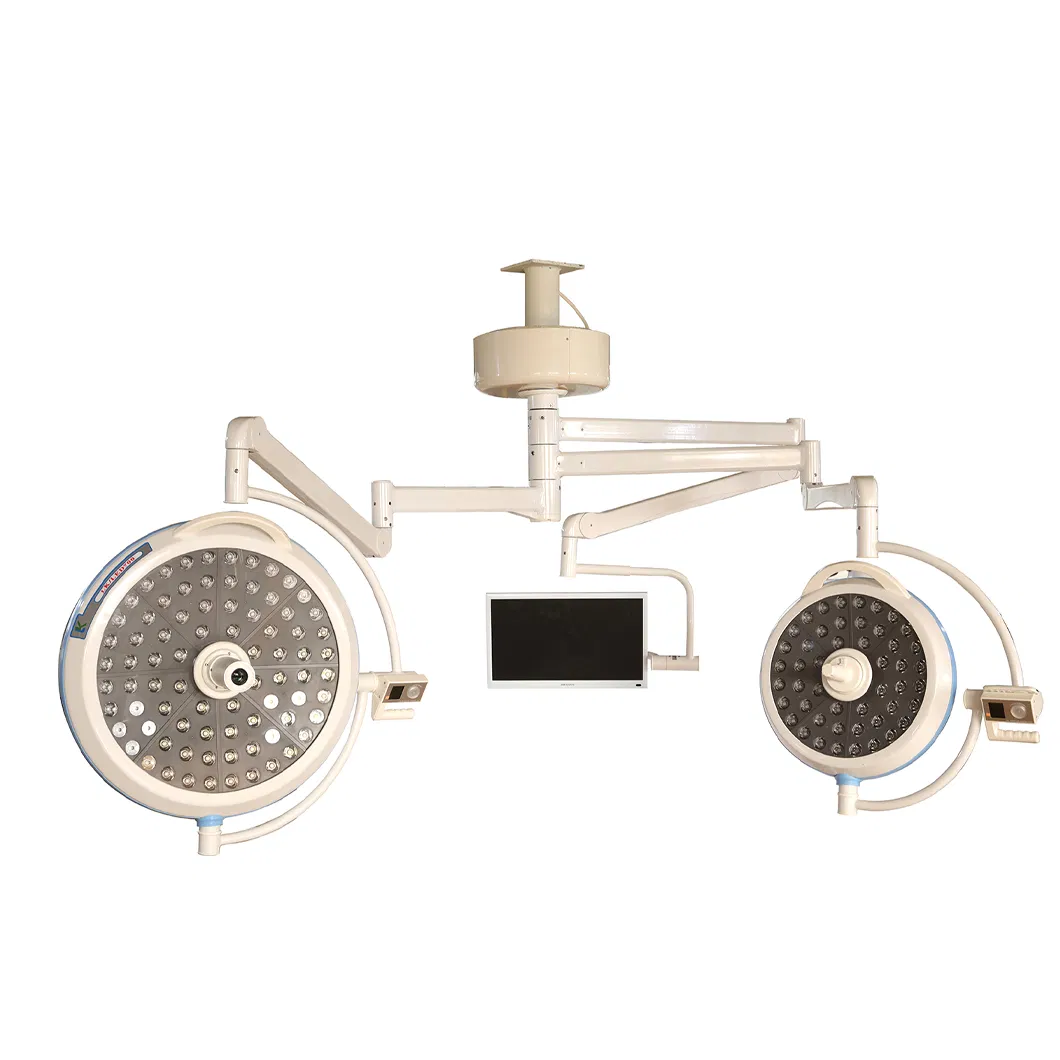

Hospital Double Heads Shadowless Surgical Operating Lamp LED Operation Light

1 / 4

Hospital Double Heads Shadowless Surgical Operating Lamp LED Operation Light

Customization:	Available
Type:	Operating Light
Certification:	CE, ISO13485

Send Inquiry

Product Description

🔹 Basic Info.

Model NO.

HLED-700/500E-TV

Group

All People

LCD Display

Without LCD Display

Lux

40000—160000/40000—160000

Spot Diameter (mm)

160-280

Transport Package

Carton

Origin

Jiangsu, China

Production Capacity

800 Piece/Month

💡 Product Description

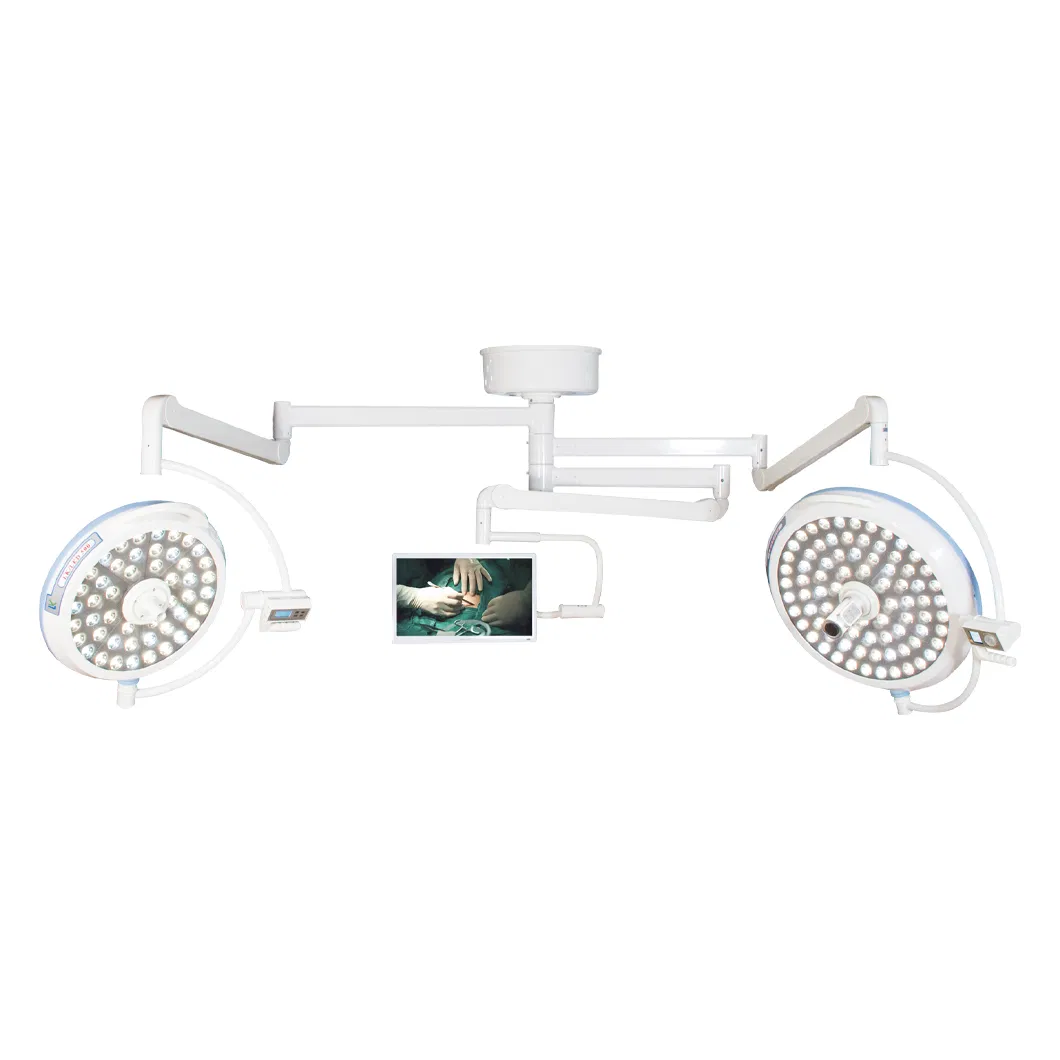

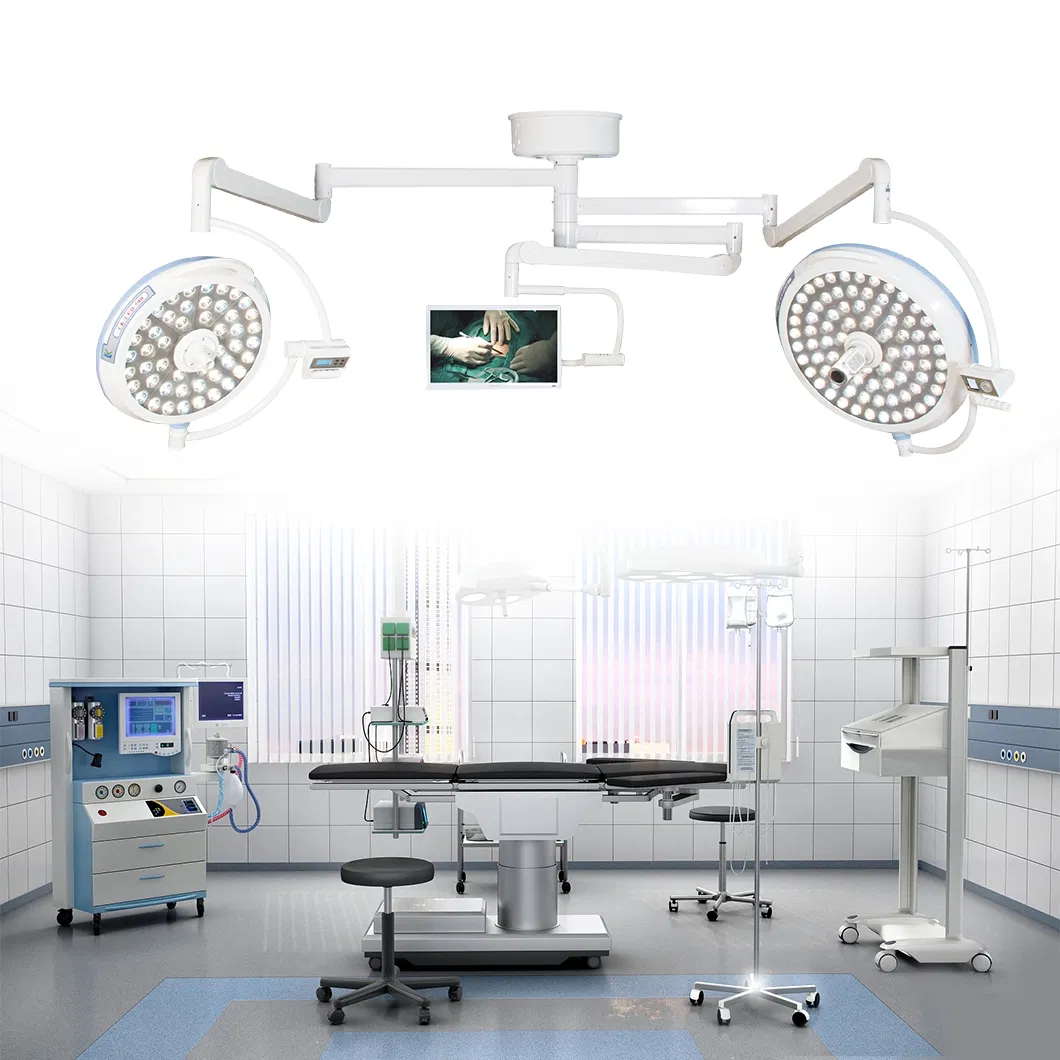

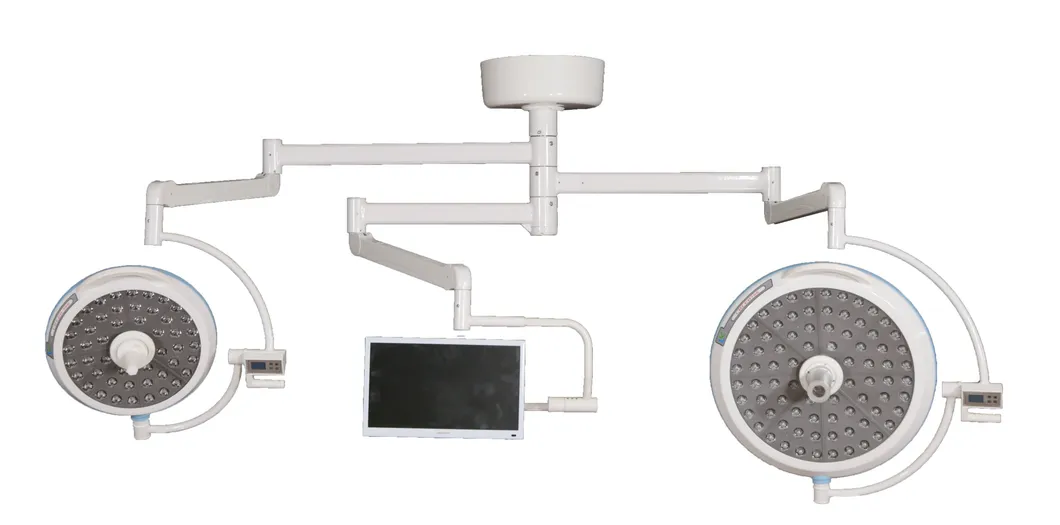

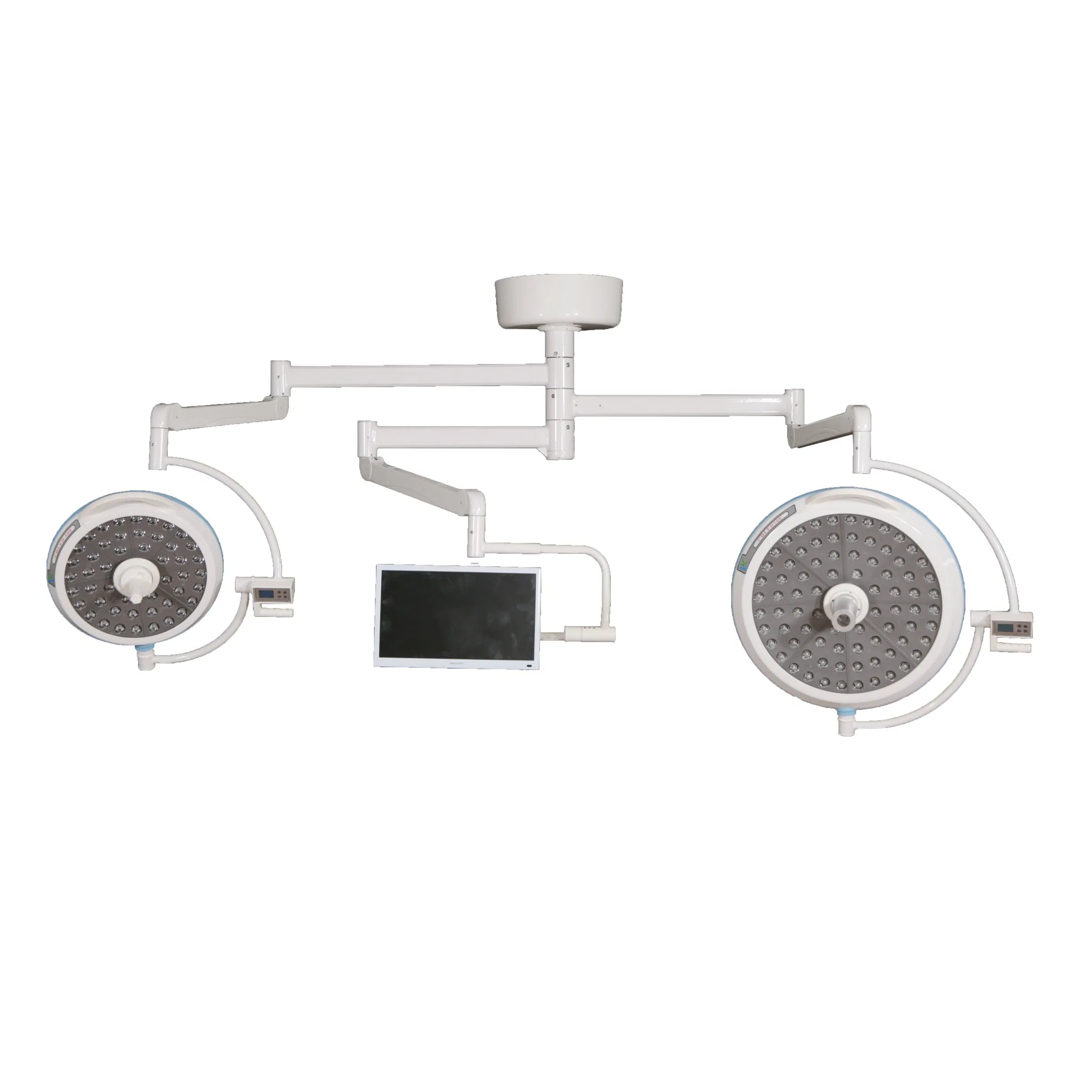

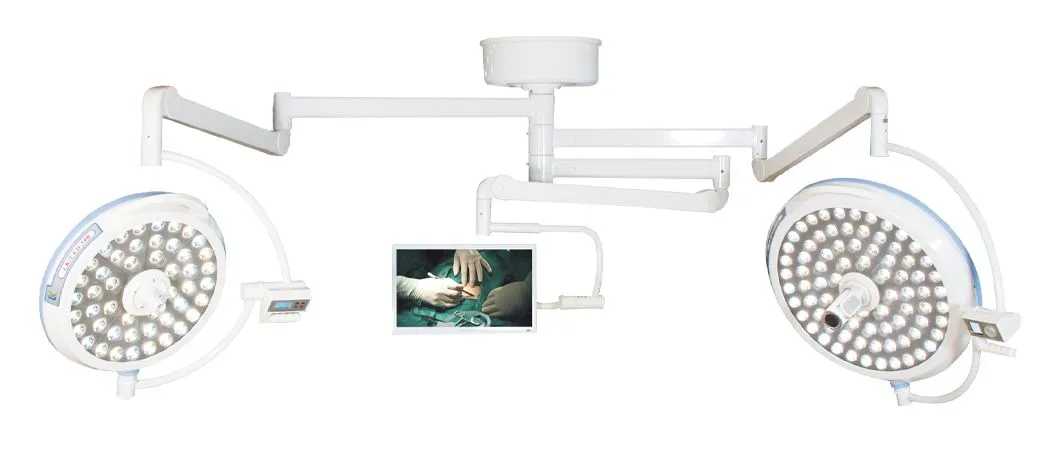

HLED-700/500E-TV Medical Ceiling Mount Led Operation Lamp

Extra long service life: Using a new type of LED cold light source, the life span can reach more than 60,000 hours without replacing the bulb.

Perfect cold light effect: No ultraviolet and infrared rays in the spectrum. Temperature rise of the doctor's head and wound area is ≤1°C.

Ideal appearance design: Streamlined round lamp head design conforms to aerodynamic principles, eliminating dead corners in purified air. Made of aluminum alloy for excellent heat dissipation.

Humanized interface design: Lighting brightness can be changed according to needs. Optional LED touch LCD control panel for illumination, color temperature, and brightness modes.

Super deep lighting: Concentrates the beam into a high-brightness uniform light column, ensuring soft and uniform deep focusing for surgery.

Color temperature adjustable: Six levels from 3000K to 6700K to make diagnosis more accurate and reduce eye fatigue.

Good suspension system: Lightweight balance arm with 360º rotation. Sterilized handle and fence handrail meet various posture needs during surgery.

Exquisite focusing system: Manual focusing technology with stepless function. Detachable handle can be sterilized by high temperature (≤134ºC).

Bright and uniform lighting: Maximum illumination can reach 160,000 LUX. Brightness is continuously controlled digitally.

Extremely low failure rate: Each LED module contains independent electronic control. Failure of a single LED does not affect the whole lamp head.

Low heat production: Emits almost no infrared or ultraviolet light, resulting in minimal heat generation.

Advanced camera system: High-quality camera systems installed at the disinfection handle with adjustable angles and no blind spots.

📊 Technical Parameters

Model	LK/LED-700/500
Number of LED bulbs	80/48
Illumination (Lux)	40000-160000/40000-160000
Color temperature (K)	3000-6700K adjustable
Spot diameter (mm)	160-280
Dimming system	Stepless dimming system
Color rendering index	≥96
Illumination depth (mm)	≥600
Surgeon's head temp rise (°C)	≤1
Operating field temp rise (°C)	≤2
Color reproduction index	≥97
Maximum irradiance	≤500 W/m2
Power supply voltage	220V/50Hz
Installation height	2.5m - 3m

❓ Frequently Asked Questions

What is the expected time of delivery?

Products are produced according to each specific order; the typical delivery period is 15 days after order confirmation. For small or sample orders, please check our ready stock availability for faster delivery.

How is the quality assurance handled?

We offer a one-year warranty starting from the time of shipment. For minor issues, free spare parts are provided. For serious problems, we offer free replacements. We also assist with claims against shipping or insurance companies if damage occurs during transport.

How competitive is the pricing?

Our prices are highly competitive within the same quality level, backed by over 20 years of experience in the field. We focus on providing top-quality products at sustainable prices globally.

Why do prices vary between similar-looking models?

Prices often reflect the quality of materials and the level of quality control. Products using cheaper materials or with less stringent quality checks are priced lower, even if the appearance or model number seems identical.

What are the accepted payment terms?

We accept T/T in advance, L/C, Western Union, PayPal, and MoneyGram.

Which shipping methods are available?

We work with major shipping lines like MAERSK, COSCO, and APL, as well as couriers like DHL, EMS, TNT, and UPS. We prioritize the buyer's preference and provide suggestions based on schedules and services.
