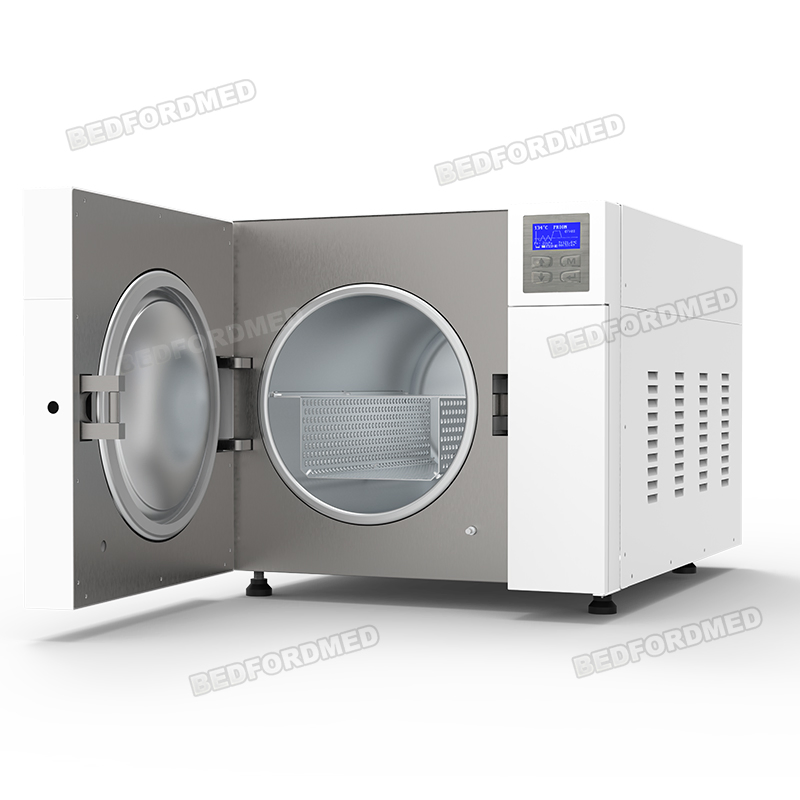

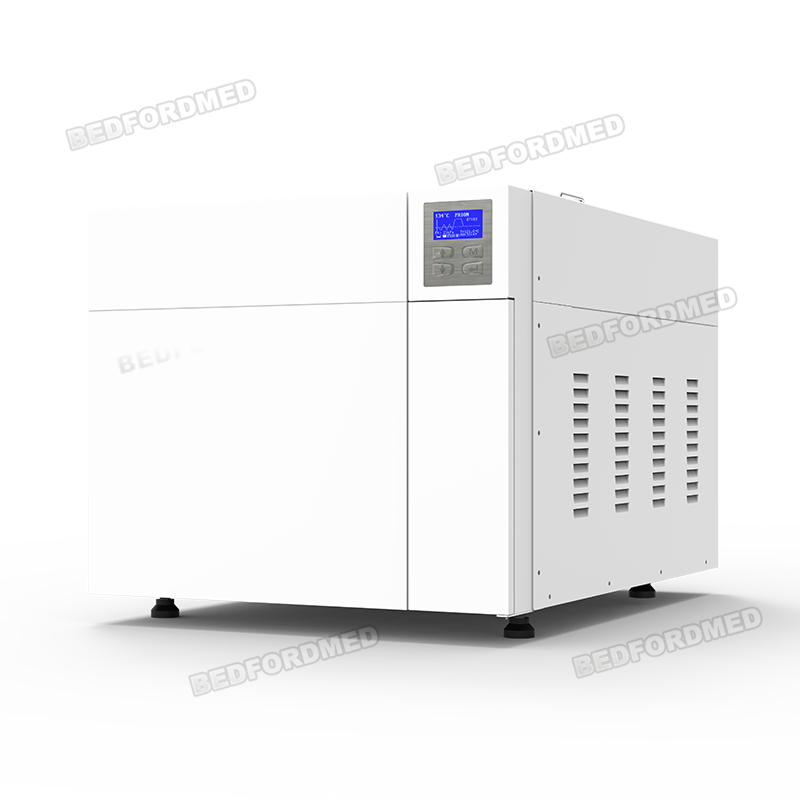

Hospital Bioclean Room Medical High-Standard Sterilization Equipment Ste-45t

Customization: Available
Theory: Autoclave
Type: Pressure Steam Sterilization Equipments

Product Description

Technical Specifications
Model NO. Sterilization Equipment STE-45T
Certification CE, FDA, ISO13485
Chamber Dimensions 319mm * 617mm
Electric Tension / Power 220V / 2800W
Material High-Grade Stainless Steel
LCD Display Equipped with Dynamic Graphical Display
Weight 120kg
Tray Configuration 3 Trays (Size: 240 x 540mm)
Safety Alarms Ultra High Temperature, Water Shortage, Door Locking, Error Codes
Programs Quick 134°C and more
Product Overview

The Autoclave STE-45T is a Class B autoclave in complete compliance with European Standard EN13060. Featuring a larger chamber capacity, it provides an ideal sterilization solution for oversized instruments or high-volume loads. This series is particularly popular for sterilizing dental implant instrument kits and is widely utilized in medical facilities, laboratories, and specialized clinics.

⚡
Efficient Performance

Utilizes an intelligent system that saves time and energy by providing a fast and complete sterilization cycle with full drying and convenient operation.

🛡️
Advanced Safety

Equipped with an automatic electric door locking system and multi-protection mechanisms for pressure, temperature, and electrical current.

🔇
Quiet Operation

Features a high-efficiency vacuum pump from Germany, ensuring superior sterilization results with very quiet working cycles.

🔍
Careful Design

Focuses on fine workmanship and fashion design, ensuring ease of operation and simplicity of maintenance.

Key Functionalities
  • Electronic Door System: Opened easily by pressing a button; utilizes a vacuum door closed system that seals properly with a soft push.

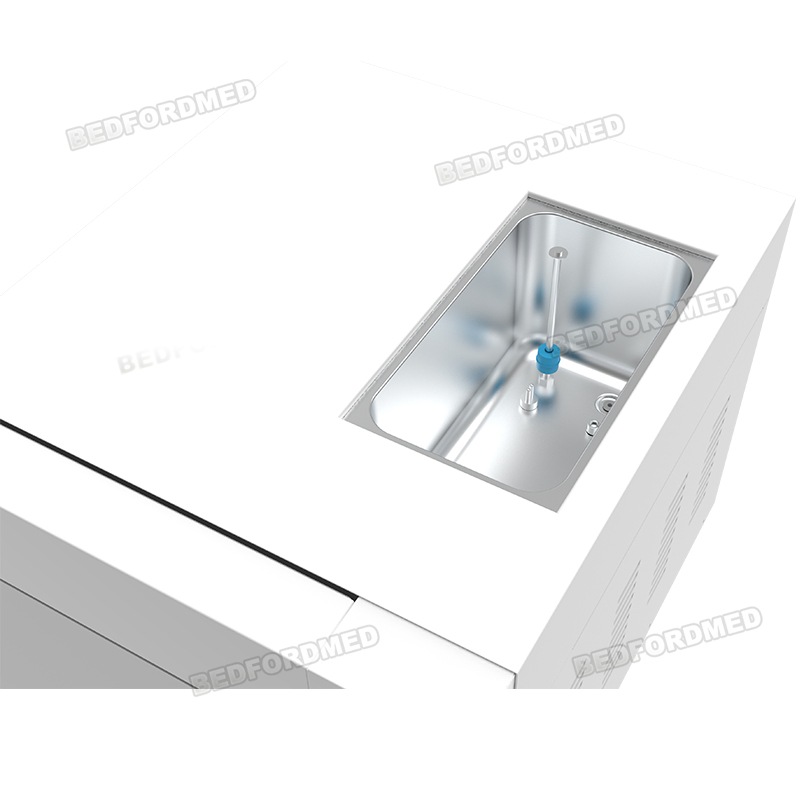

  • Large Capacity Reservoir: Stainless steel 8.5-liter tank allows for multiple sterilization cycles without constant refilling.
  • Multilingual Interface: LCD screen supports 15 languages and displays real-time data including time, temperature, and pressure.
  • Data Logging: Equipped with a USB 2.0 interface to record cycle data automatically. An internal printer is optional for physical reports.
  • Maintenance Friendly: Features a pulling-type drain connection for simple water drainage.
Product Visuals

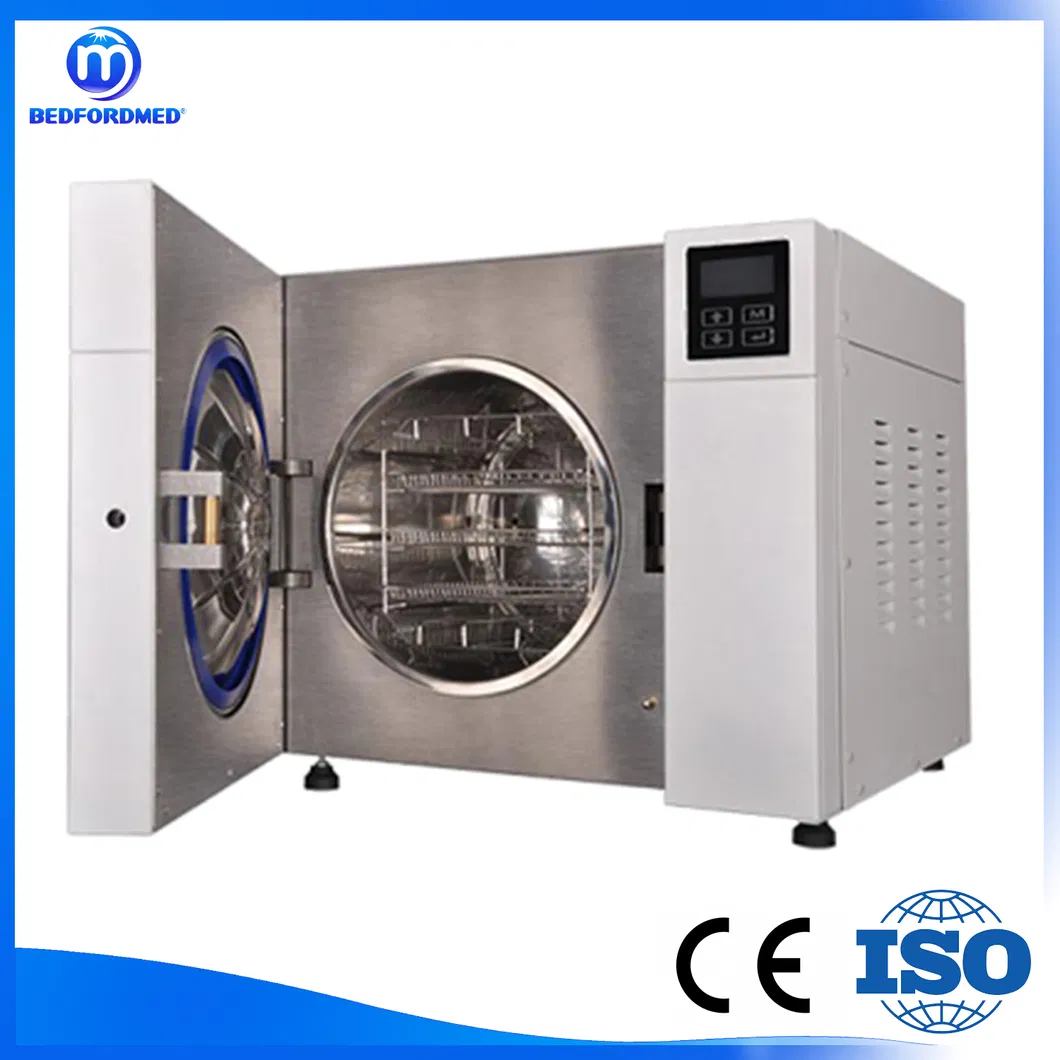

Medical High-Standard Sterilization Equipment Ste-45t
Sterilization details
Sterilization interface

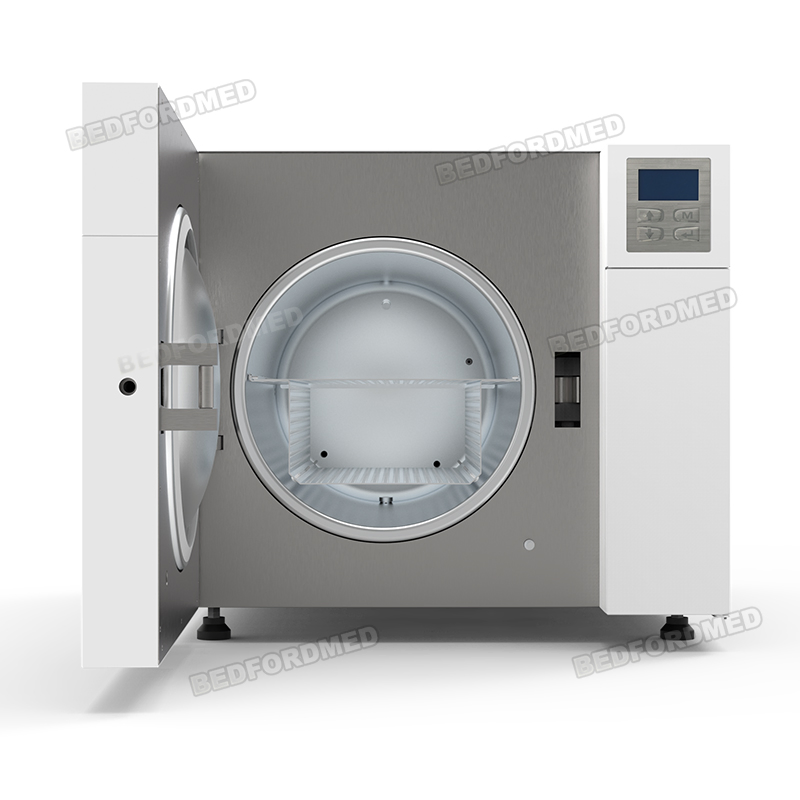

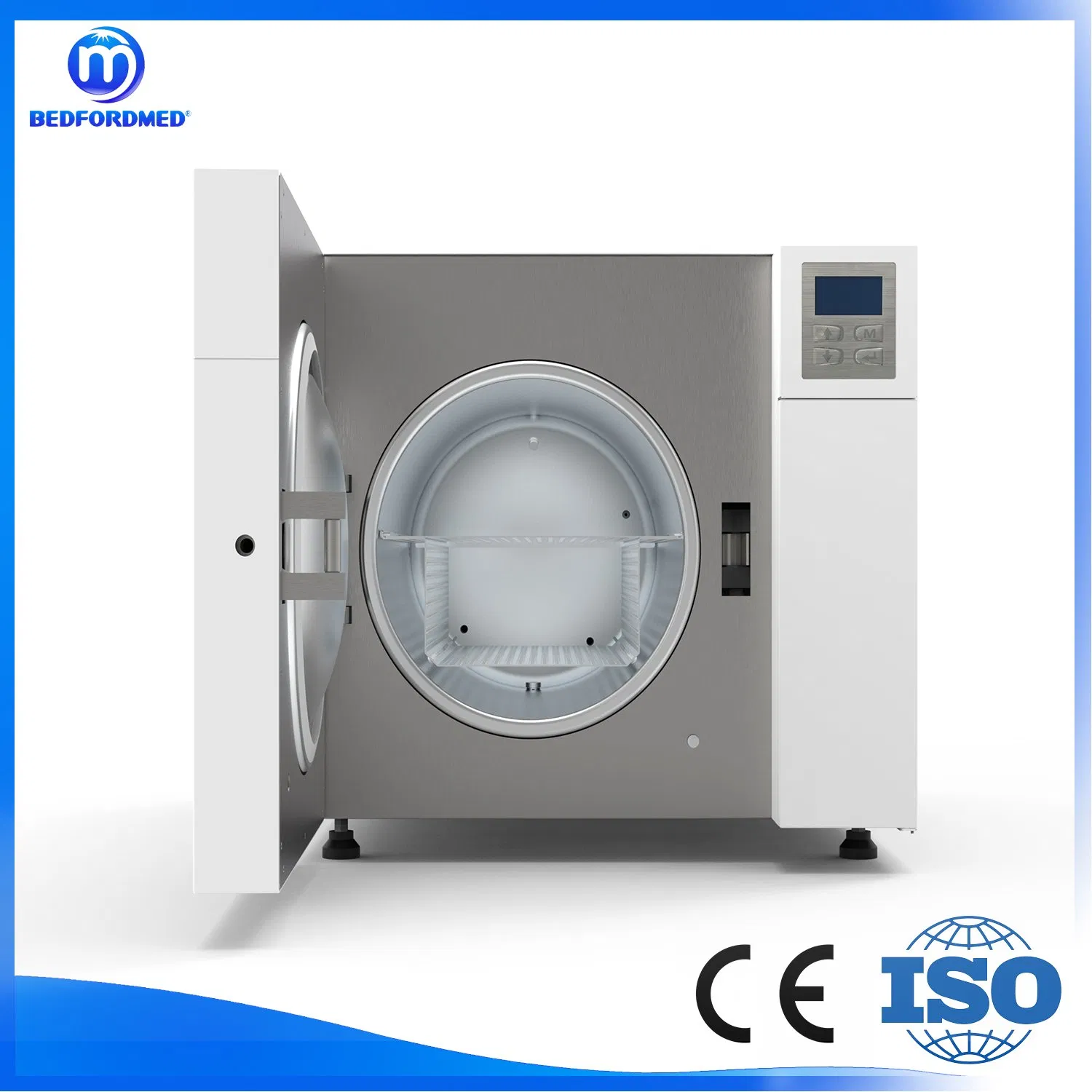

Internal chamber view

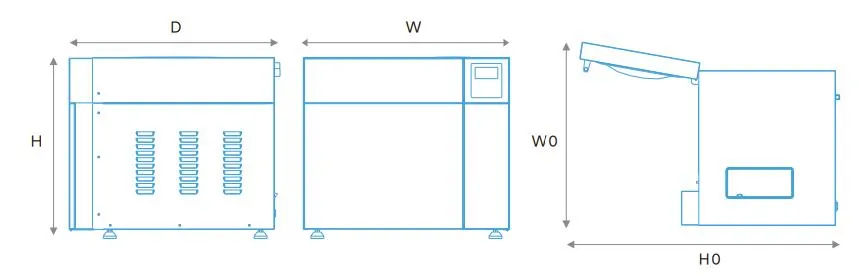

Equipment dimensions
Control panel
Frequently Asked Questions (FAQ)
1. What sterilization class does the STE-45T belong to?
The STE-45T is a Class B autoclave, fully compliant with the European Standard EN13060.
2. How large is the sterilization chamber?
The chamber dimensions are 319mm x 617mm, designed for larger instruments and higher capacity loads.
3. Can I track the sterilization records?
Yes, the device features a USB 2.0 interface for automatic data recording and an optional internal printer for end-of-cycle reports. It also stores the last 20 cycles internally.
4. What type of vacuum pump does it use?
It uses a high-efficiency vacuum pump from Germany, which ensures a quiet and effective sterilization process.
5. How does the safety door mechanism work?
The autoclave features an electronic door that opens via a button and a vacuum sealing system that locks properly with a soft push, backed by multi-protection electronic sensors.
6. What languages are supported on the display?
The LCD display supports 15 different languages to accommodate users from various countries and regions.
