| Model | TR-HMT-2500 | Condition | New |
| Certification | ISO, CE | Automation | Automatic |
| Process | High Temperature Steam Sterilizer | Screw Type | Twin-Screw |
| Tank Volume | 2.5m³ | Water Output | ≥200kg/H |
| Sterilizer Temp | ≥135℃ | Material | Q345R / SUS316 |
| Control System | PLC Automatic | Production Capacity | 5 sets/month |

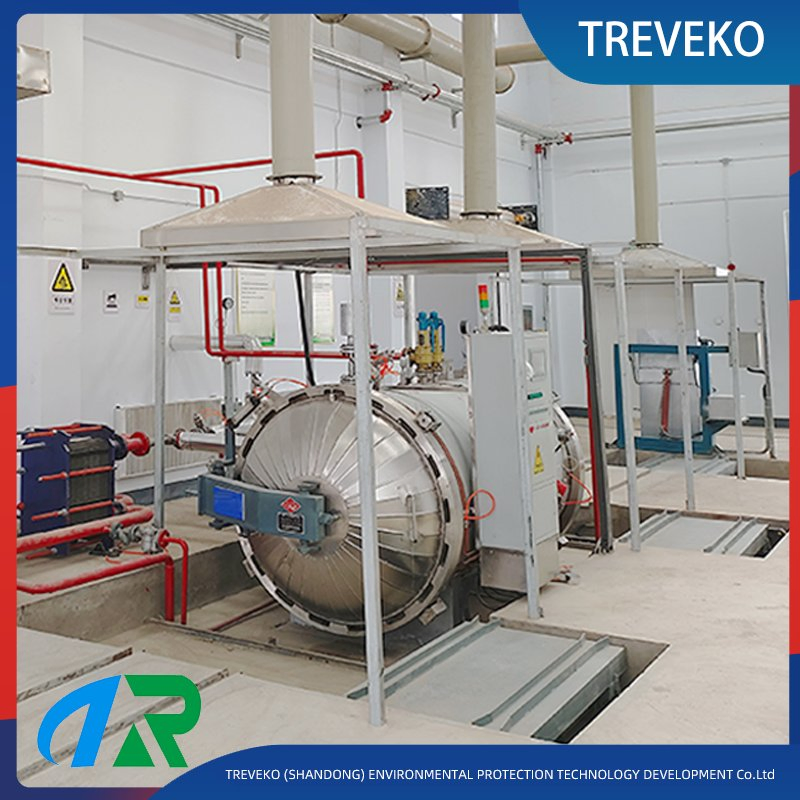

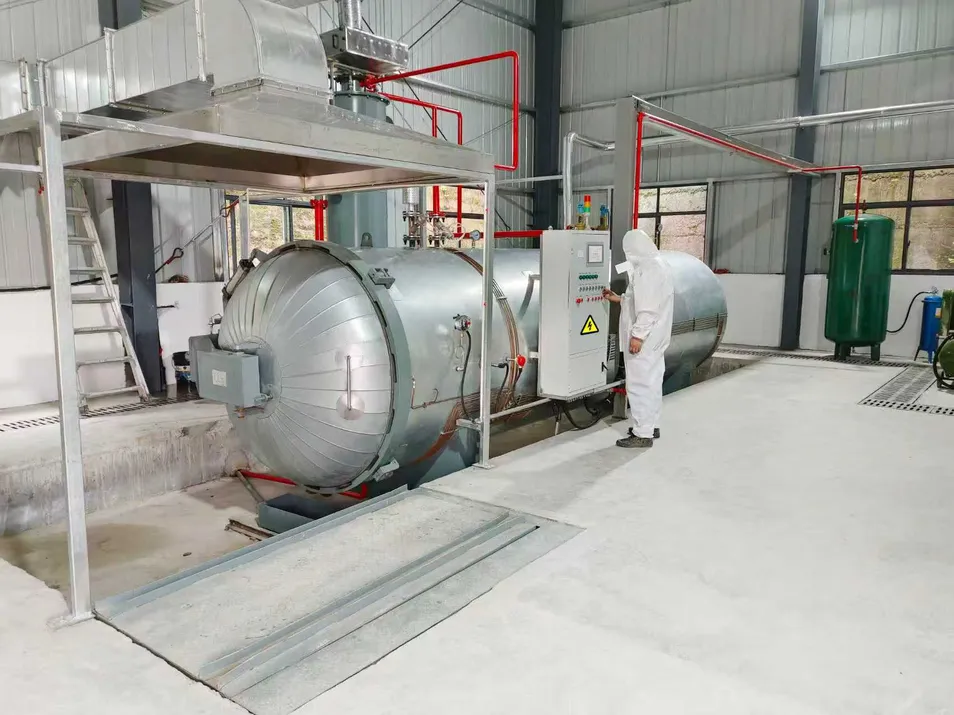

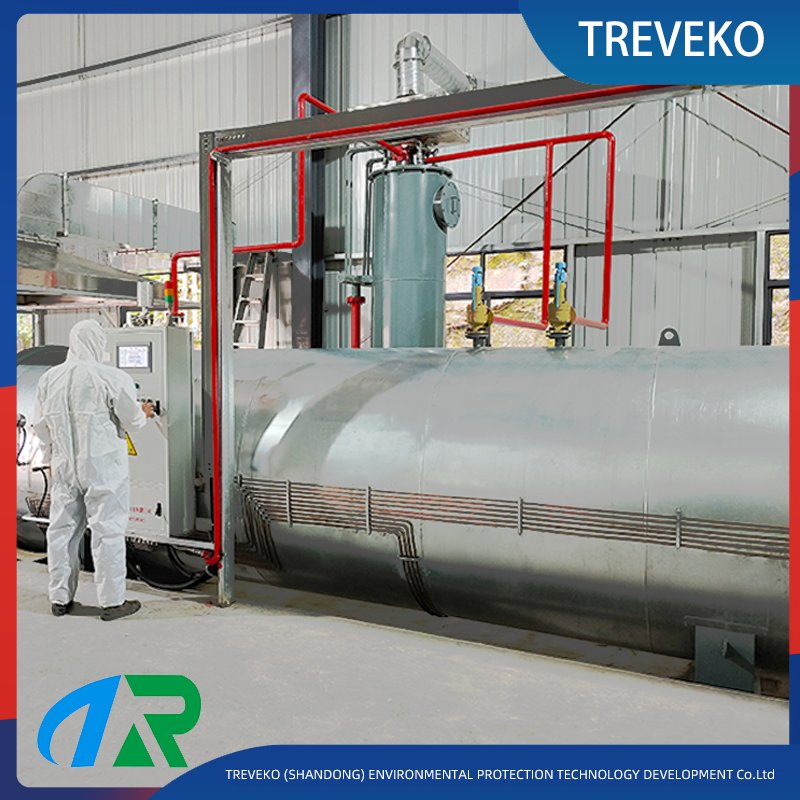

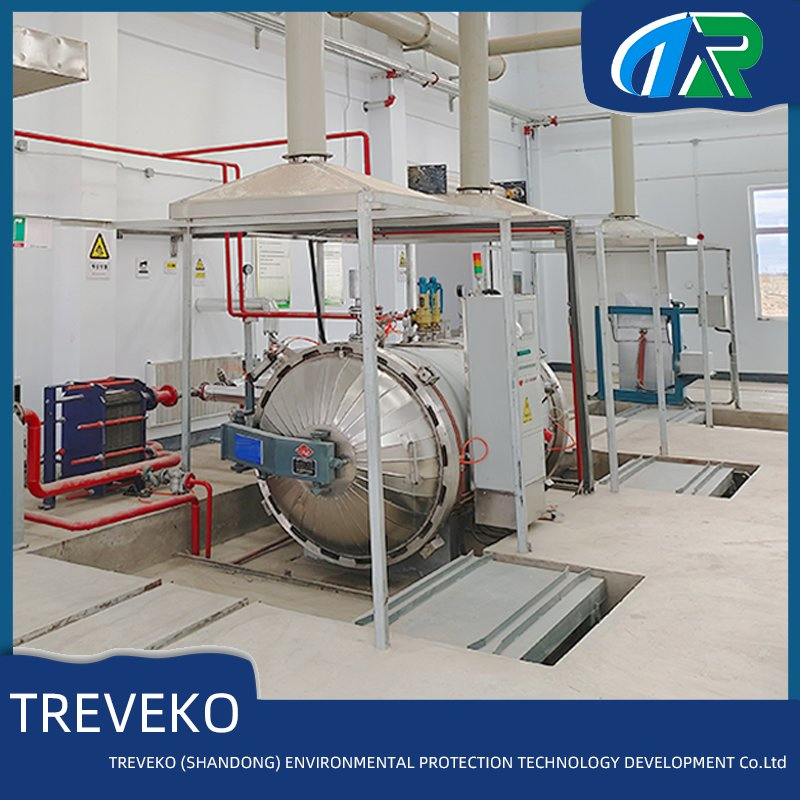

This equipment utilizes high-pressure saturated steam sterilization technology, strictly adhering to international technical specifications for medical waste treatment. The horizontal sealed tank ensures even steam distribution, achieving a killing rate of over 99.99% for pathogenic microorganisms like E. coli and hepatitis B virus.
Our system is designed for a wide range of applications, processing various solid medical waste with water content ≤80%, including dressings, laboratory consumables, and discarded specimens. The thickened pressure-resistant tank and precision sealing technology eliminate risks of steam leakage and secondary pollution, ensuring a safe, centralized treatment environment.

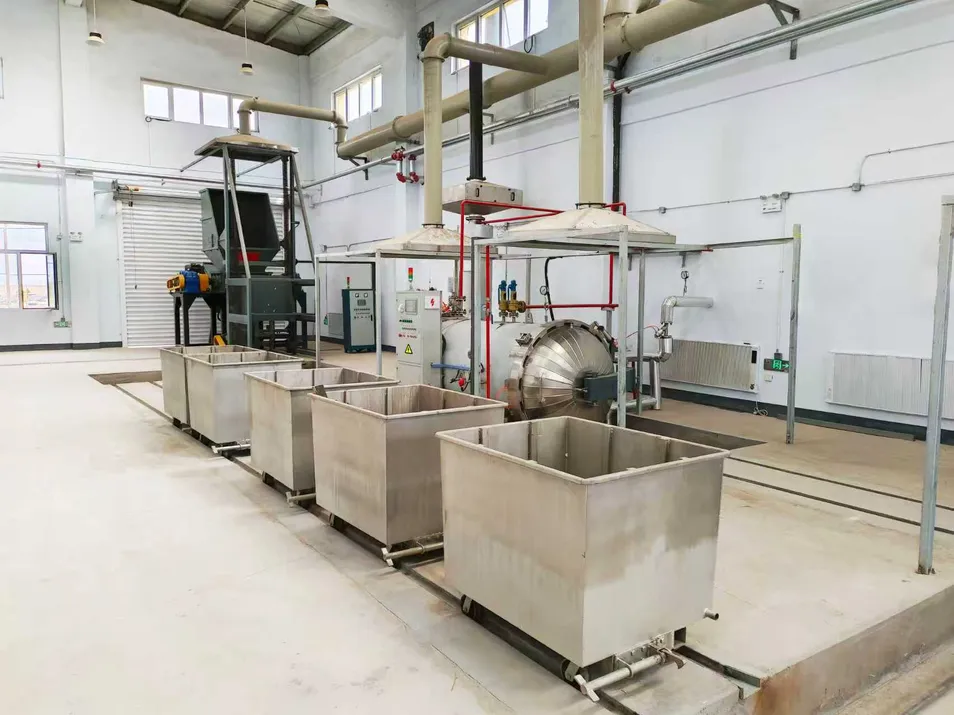

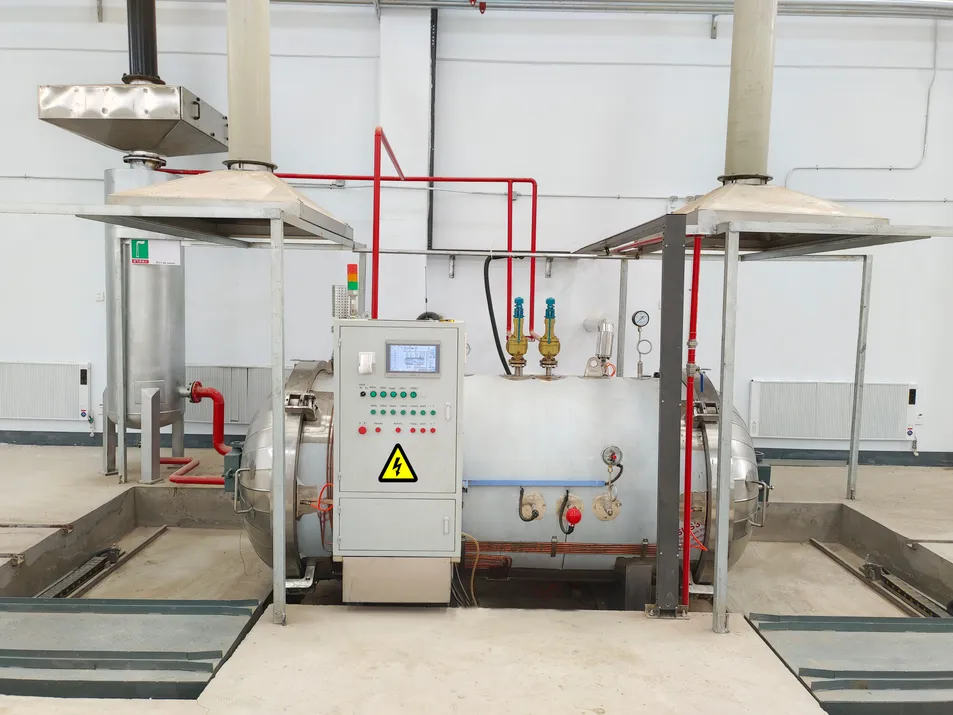

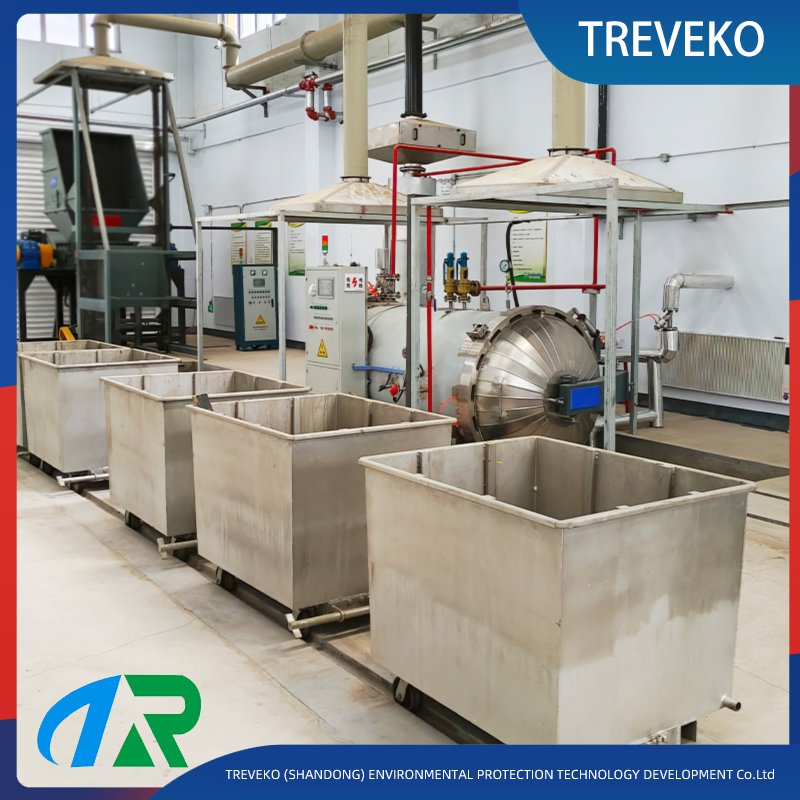

The complete sterilization set includes: High-pressure sterilization tank, transfer carts (2 units), air compressor, water softener/purifier, electric steam generator, induced draft fan, photo-oxidation equipment for gas treatment, and a PLC electrical control cabinet.
| System Unit | Project Item | 2.5T Type | 5T Type | 8T Type |
|---|---|---|---|---|
| Sterilization Tank | Volume | 2.5m³ | 10m³ | 12m³ |
| Water Softener | Power | 0.1KW | 0.2KW | 0.2KW |
| Steam Generator | Power | 72KW×2 | 180KW×2 | 180KW×2 |
| Air Compressor | Power | 7.5KW | 7.5KW | 7.5KW |
| Exhaust Fan | Power | 7.5KW | 7.5KW | 7.5KW |
We utilize industry-standard moisture-proof and rust-proof packaging. Heavy components are secured with wooden pallets and stretch film, while precision instruments are vacuum-sealed with cushioning foam. For large-scale equipment, on-site packaging and hoisting services are provided to ensure safe transit.
The high-temperature steam process, combined with our photocatalytic oxidation treatment, effectively removes biological odors, leaving the waste odorless and safe for subsequent disposal.
Yes. We support customization of core parameters including processing capacity (from 2.5m³ to 12m³+), overall dimensions, and control configurations.
It is designed for various solid medical wastes including disposable syringes, dressings, cotton balls, laboratory specimens, and animal medical waste with water content ≤80%.
The system achieves a killing rate of over 99.99% for common pathogenic microorganisms such as E. coli, Staphylococcus aureus, and various viruses.

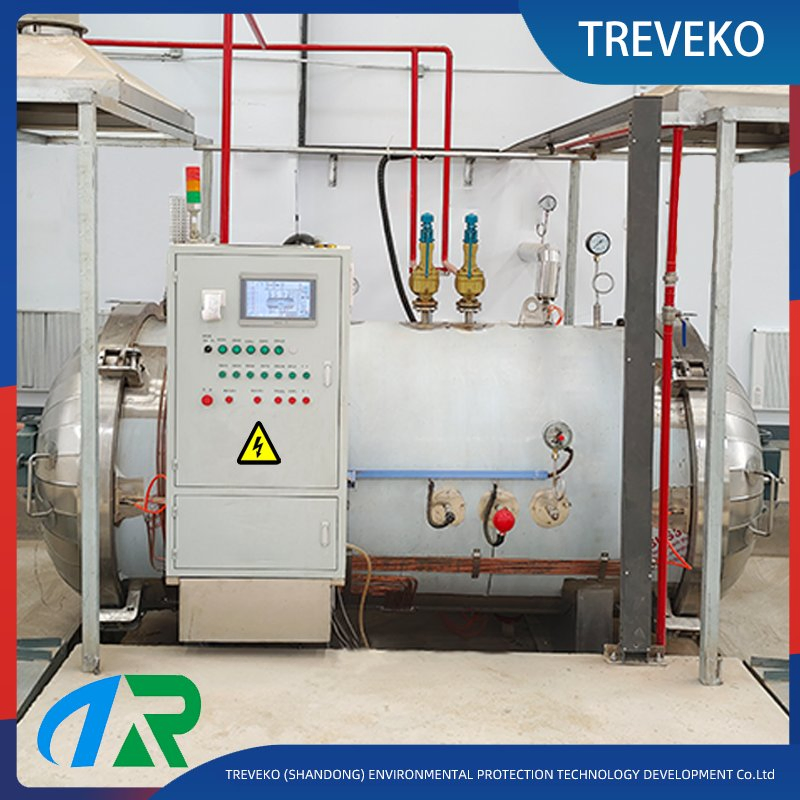

The equipment is fully automated using a PLC control system. Once loaded, the temperature, pressure, and duration are managed automatically without manual intervention.
We provide a 1-year warranty and offer repair services if any quality issues arise during the warranty period.
