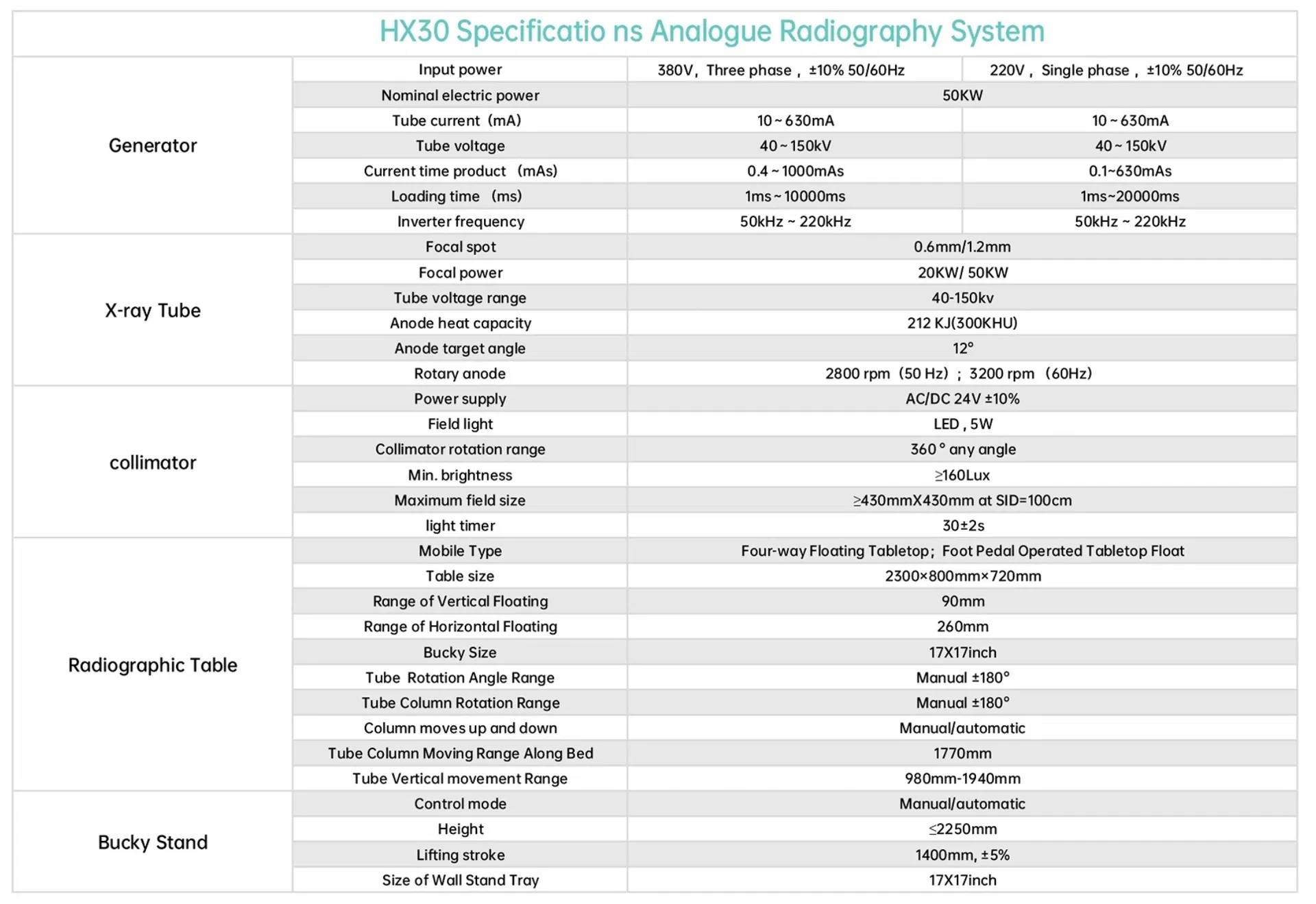

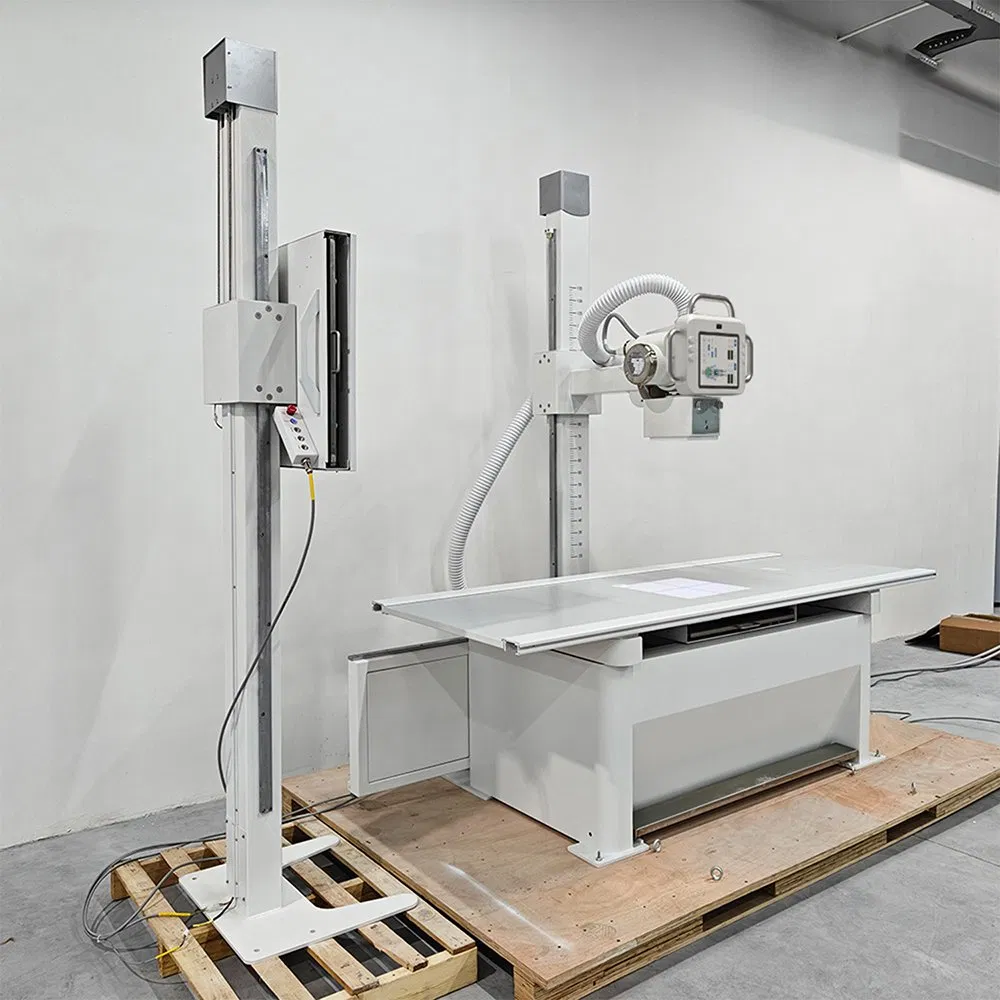

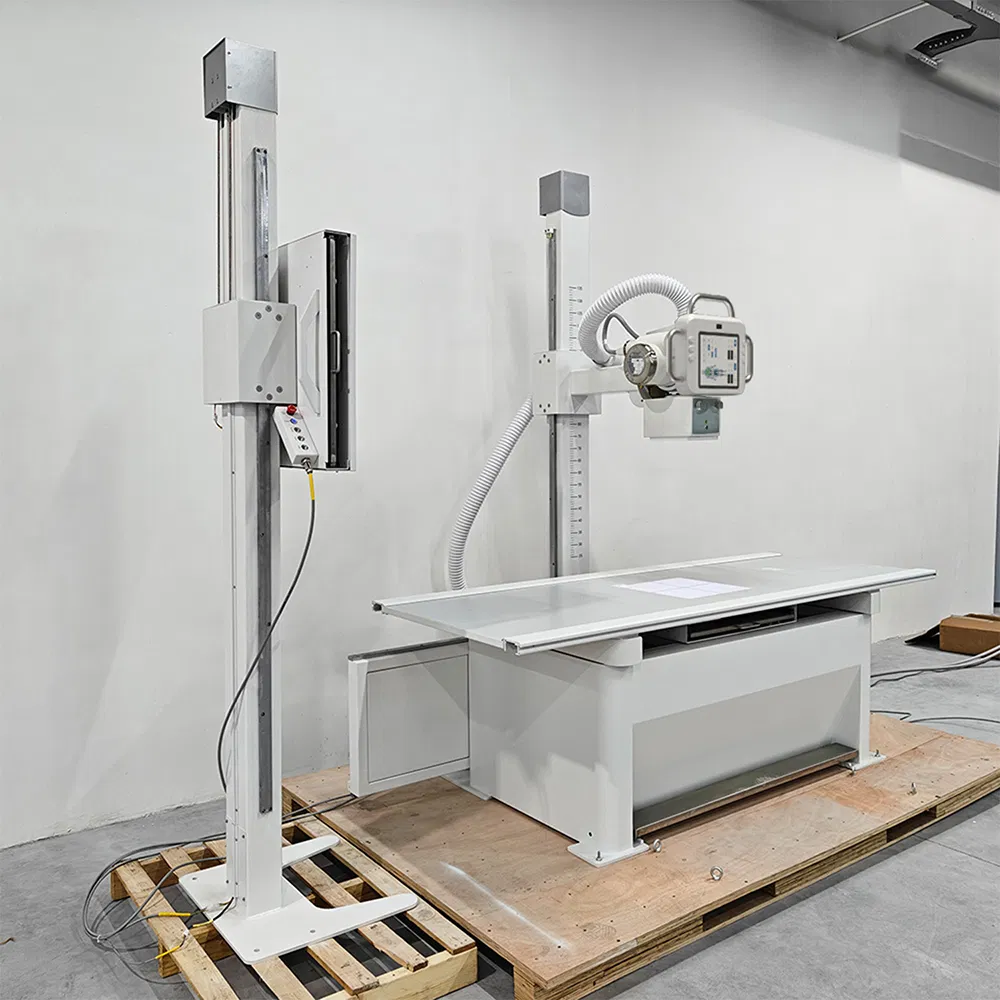

| Generator System | Details | |
|---|---|---|
| Main Generator | Input Power | 380VAVC, Three phase, ±10% 50/60Hz |
| Nominal Electric Power | 50KW | |
| Tube Current (mA) | 10 - 630mA | |
| Tube Voltage | 40 - 150kV | |
| Current Time Product | 0.4 - 1000mAs | |
| Loading Time | 1ms - 10000ms | |
| Inverter Frequency | 50kHz - 220kHz | |
| X-ray Tube Assembly | Details | |
| X-ray Tube | Focal Spot | 0.6mm / 1.2mm |
| Focal Power | 20KW / 50KW | |
| Anode Heat Capacity | 212 KJ (300KHU) | |
| Anode Target Angle | 12° | |
| Rotary Anode | 2800 rpm (50 Hz); 3200 rpm (60Hz) | |
| Voltage Range | 40-150kv | |
