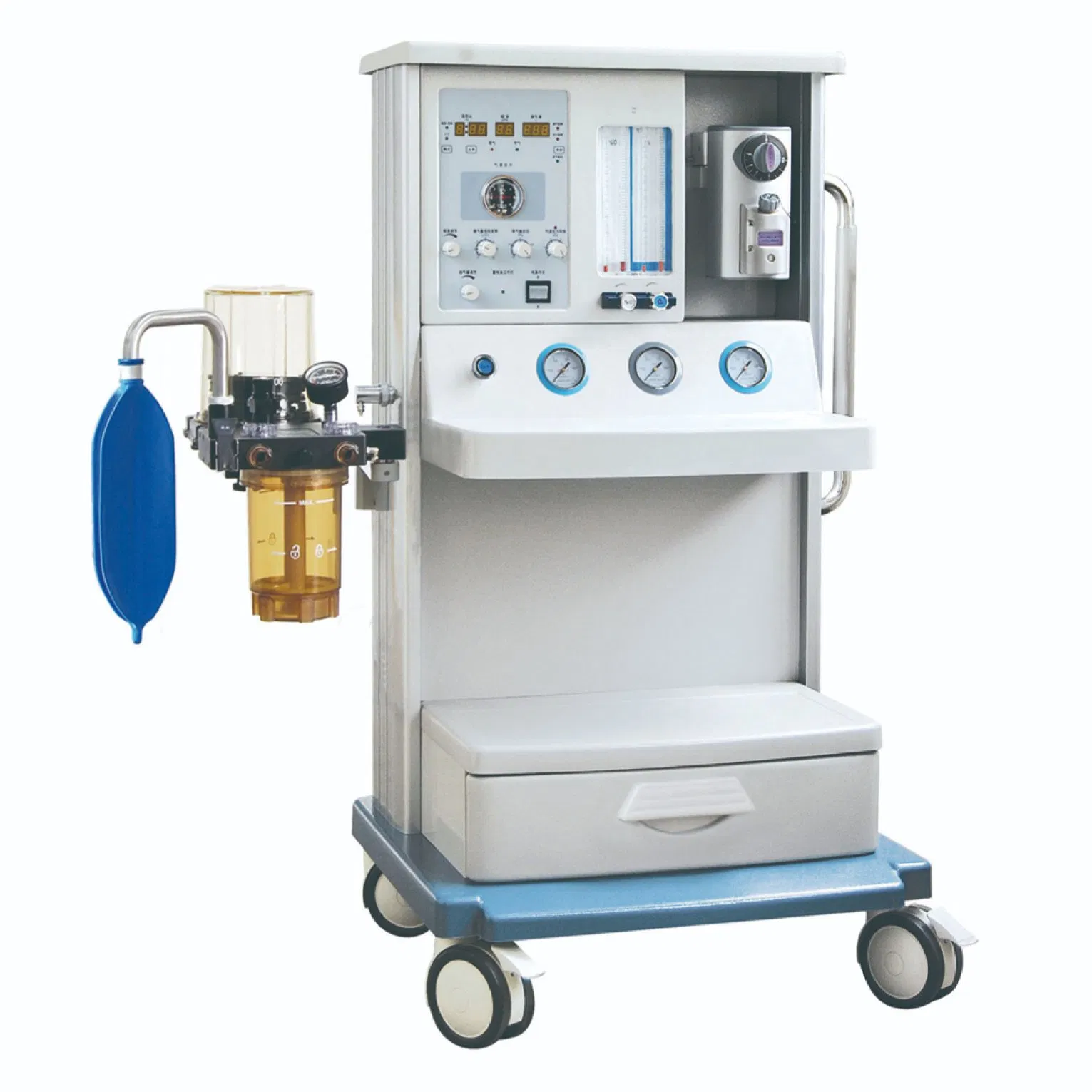

Ex-Factory High Precision Breathing Oxygen Universal Approved Anesthesia Machine
Ex-Factory High Precision Breathing Oxygen Universal Approved Anesthesia Machine
Ex-Factory High Precision Breathing Oxygen Universal Approved Anesthesia Machine
Ex-Factory High Precision Breathing Oxygen Universal Approved Anesthesia Machine
Ex-Factory High Precision Breathing Oxygen Universal Approved Anesthesia Machine
1 / 5
Ex-Factory High Precision Breathing Oxygen Universal Approved Anesthesia Machine
Ex-Factory High Precision Breathing Oxygen Universal Approved Anesthesia Machine
Ex-Factory High Precision Breathing Oxygen Universal Approved Anesthesia Machine
Ex-Factory High Precision Breathing Oxygen Universal Approved Anesthesia Machine
Ex-Factory High Precision Breathing Oxygen Universal Approved Anesthesia Machine

Ex-Factory High Precision Breathing Oxygen Universal Approved Anesthesia Machine

Customization: Available
Type: Anaesthesia Machine
Kind: Surgery
Send Inquiry

Product Description

Basic Specifications
Model NO.
JINLING 01
Certification
CE, ISO13485
Group
Adult
LCD Display
With LCD Display
Ventilation Mode
A/C, Ippv, Sippv, Manual
Tidal Volume
50-1500ml
(I:E) Ratio
1:1.5~1:3.0
Respiratory Rate
4~40 Bpm
O2 Flush
25-75 L/Min
Pressure Trigger
-10-10CMH2o
Vaporizer Conc.
0-5%
Absorber Volume
1.5L
Product Presentation
Anesthesia Machine View 1

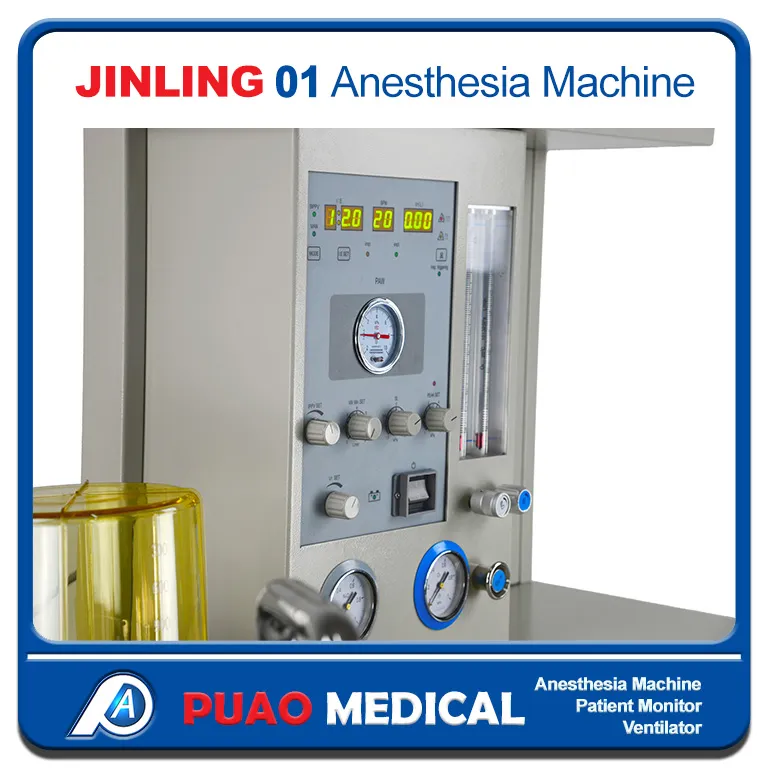

Anesthesia Machine View 2
Common Features
  • Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open
  • Anesthesia Ventilator: Built-in high visibility, wide angle LED alphanumeric data display
  • Standard integrated metallic modular respiratory circuit; high temperature disinfection support
  • High precision two tube flowmeter with interlocking O2-N2O supply (min 21% oxygen)
  • Power Failure Support: Automatically converts to backup power mode during outages
  • Equipped with infrared turbine flow sensor for stable and reliable gas flow measurement
  • Advanced rotating Na-lime tank using imported PPSU material (resistant to 134°C)
  • Self-compensating vaporizers (Enflurane, Isoflurane, Sevoflurane, Halothane optional)
Technical Specifications
Feature Standard Model Advanced Model
Display LED
Flowmeter Range O2: 0.1-10L/min; N2O: 0.1-10L/min
Ventilation Mode IPPV, SIPPV, MANUAL
Back-up Power At least 4 hours
Tidal Volume Adjustable: 50-1500ml (Display: 0-2000ml)
Respiratory Rate 4-40bpm
I:E Ratio 1:1.5-1:3.0
Vaporizer Slots Single PA-80 type slot Double PA-80 type slots
Anesthesia Machine Detail 1
Anesthesia Machine Detail 2
Frequently Asked Questions
What ventilation modes are available on this machine?
The machine supports IPPV (Intermittent Positive Pressure Ventilation), SIPPV (Synchronized Intermittent Positive Pressure Ventilation), and Manual modes to accommodate different clinical needs.
How long can the machine operate during a power failure?
It features an integrated backup power supply that provides at least 4 hours of continuous operation during AC power outages.
Is the respiratory circuit easy to clean and disinfect?
Yes, it utilizes a standard integrated metallic modular respiratory circuit designed for high-temperature disinfection and easy cleaning to maintain hygiene standards.
What safety mechanisms are in place for gas delivery?
The machine is equipped with an interlocking oxygen-nitrous oxide supply system that guarantees the oxygen concentration in the output is never lower than 21%.
What types of alarms does the system include?
It includes both audible and visual alarms for critical parameters such as tidal volume, airway pressure, power failure, and oxygen supply failure.
Can I use multiple types of vaporizers with this unit?
Yes, the unit supports Enflurane, Isoflurane, and Sevoflurane vaporizers, with Halothane available as an optional addition. The Advanced model specifically offers double vaporizer slots.
