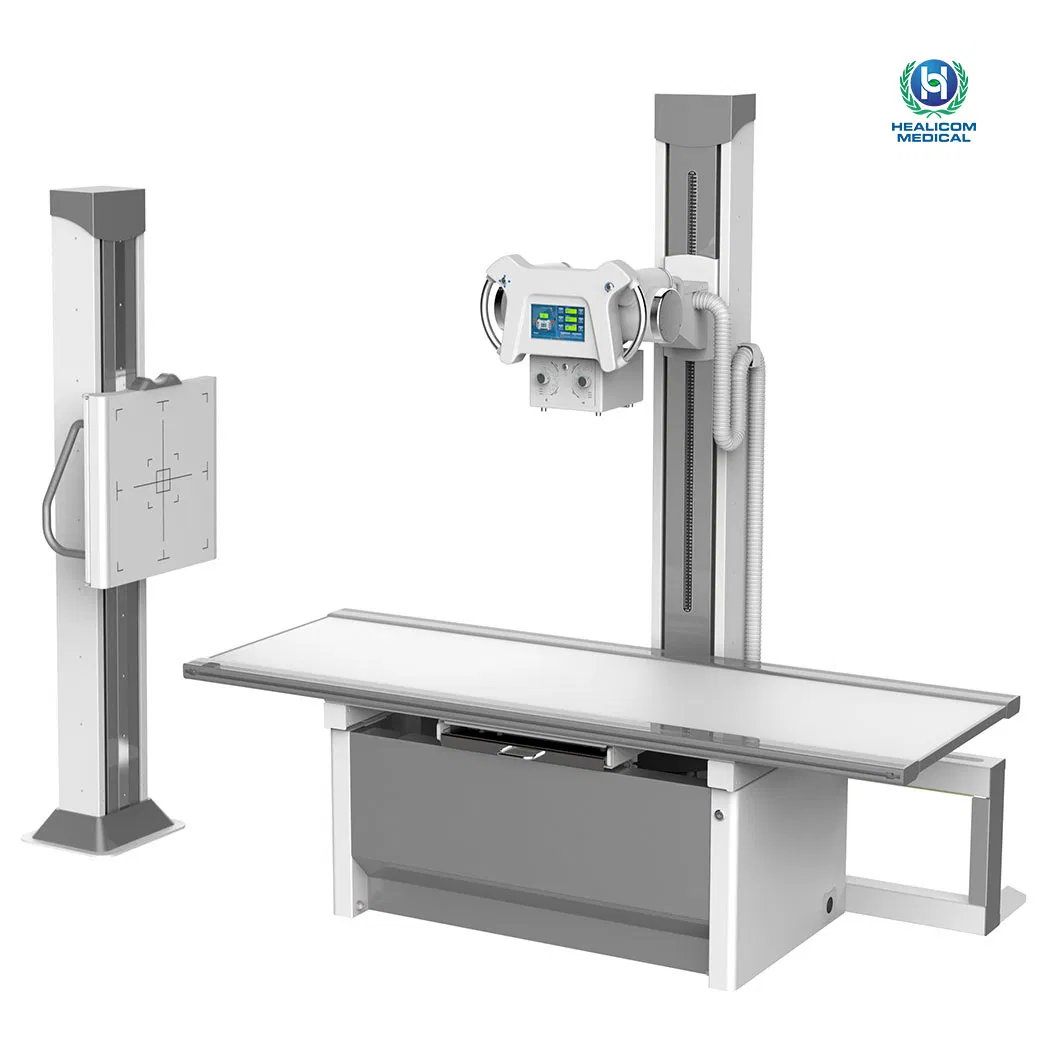

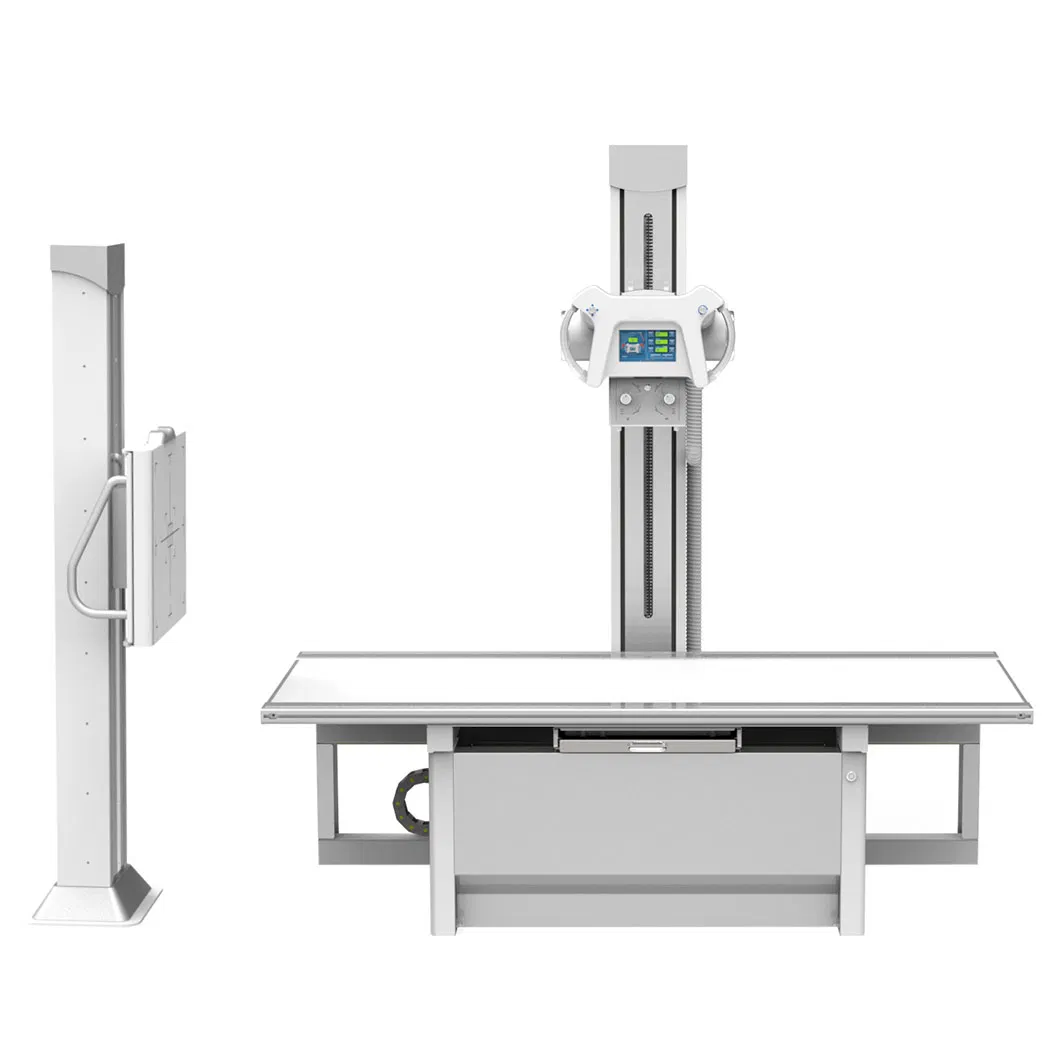

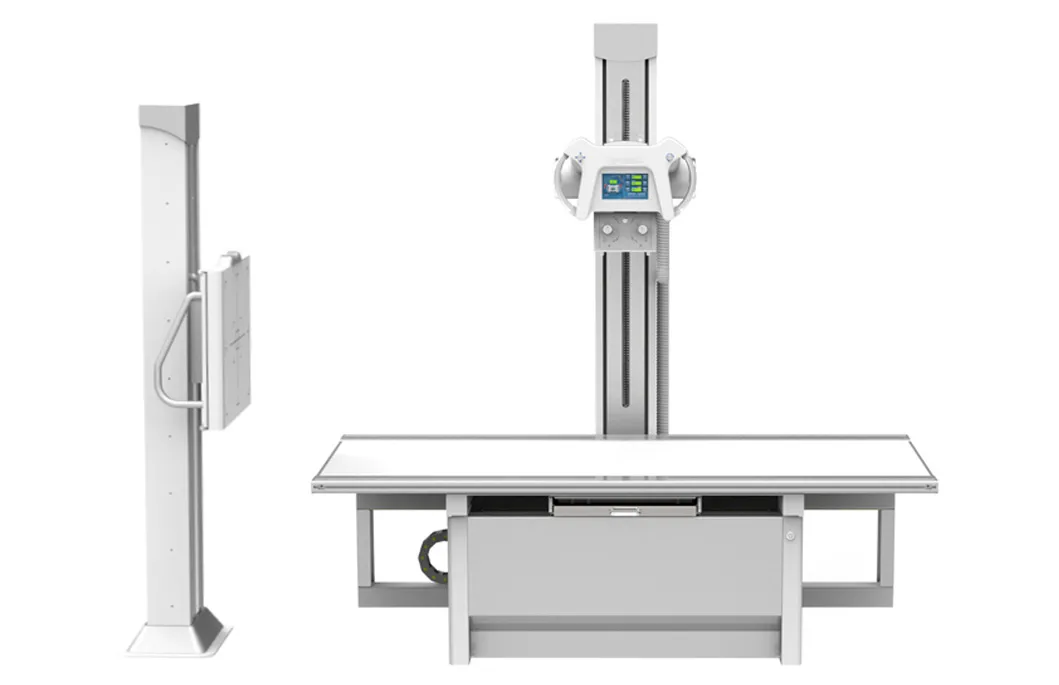

Medical Equipment High Frequency 50kw Digital Radiography Dr X Ray Machine

1 / 5

Medical Equipment High Frequency 50kw Digital Radiography Dr X Ray Machine

Customization:	Available
Classification:	Imaging Diagnostic Equipment
Type:	X Ray Equipment

Send Inquiry

Product Description

Basic Specifications

Model NO.

HX50R-A

Certification

CE, ISO13485

Radiography Tube Current

10mA ~ 630mA

Power Output

50kw

Power

AC380V ± 38V

Mas Range

0.1 ~630mas

Working Frequency

≥300kHz

Exposure Time

2ms ~ 6300ms

Production Capacity

500 Piece/Month

★

Product Description

High Frequency 50KW 630mA X-ray Radiography Machine

Application:
Applicable to orthopedics, emergency room, operating room, etc. Designed for medical diagnosis of human head, limbs, chest, spine, and lumbar spine.

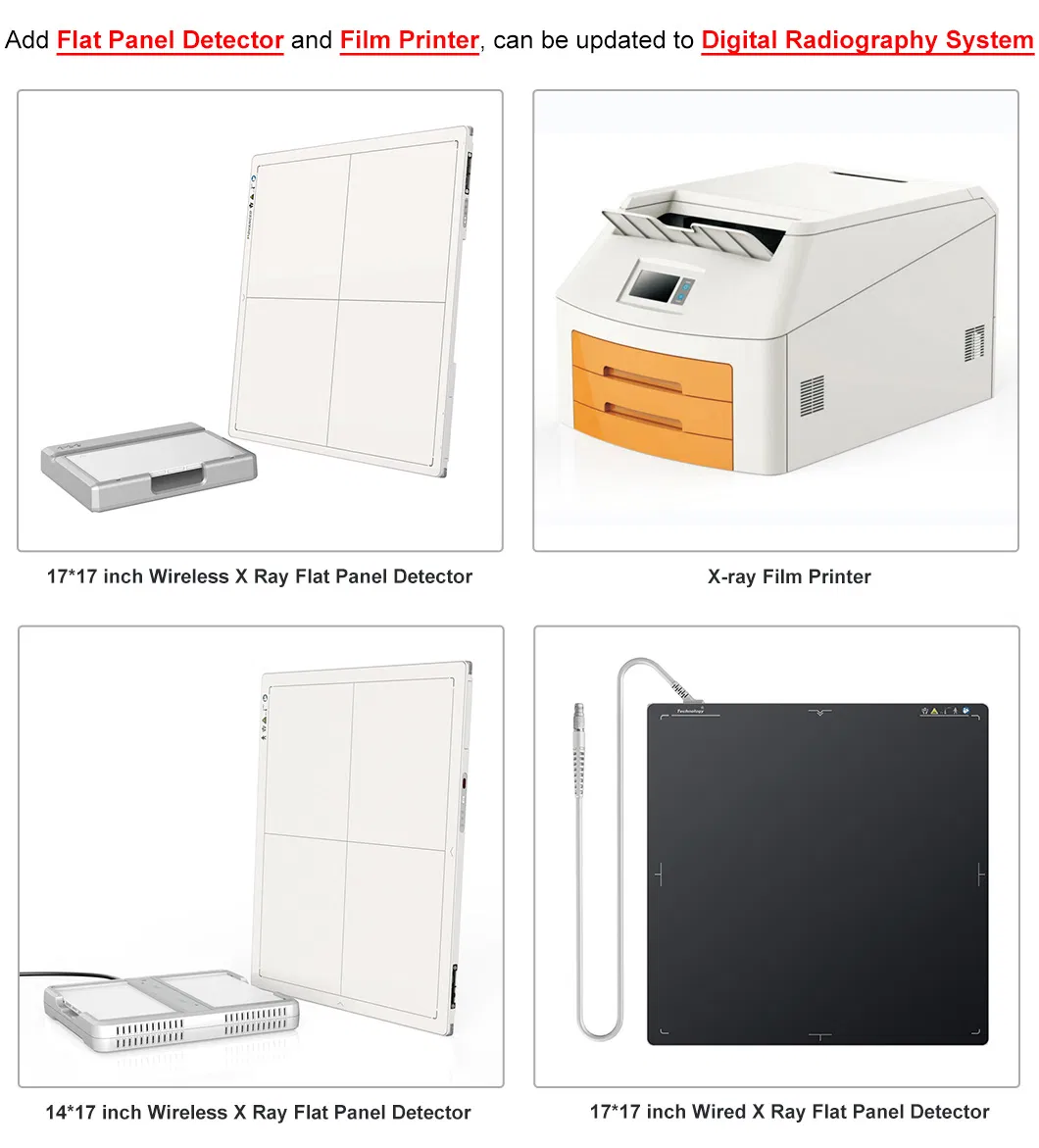

01. Expansion ReadyRich DR upgrade reserve interface.

02. Intelligent SafetyFault self-diagnosis and protection system.

03. Precise ControlAutomatic calibration of tube current.

04. Tube LongevityX-ray tube with filament dormancy function.

05. AEC FunctionAEC function with optional ionization chambers.

06. Dual-Loop ControlAnalog-digital double-loop control for simple operation.

07. High PowerStrong penetration, able to handle obese patients easily.

⚙

Technical Specifications

X-ray Generator & Console
Output Power	50KW
Power Voltage	380V±38V
kV range	40~150kV
mA range	10~630mA
mAs range	0.1 ~630mAs
Exposure time	0.002~6.3S

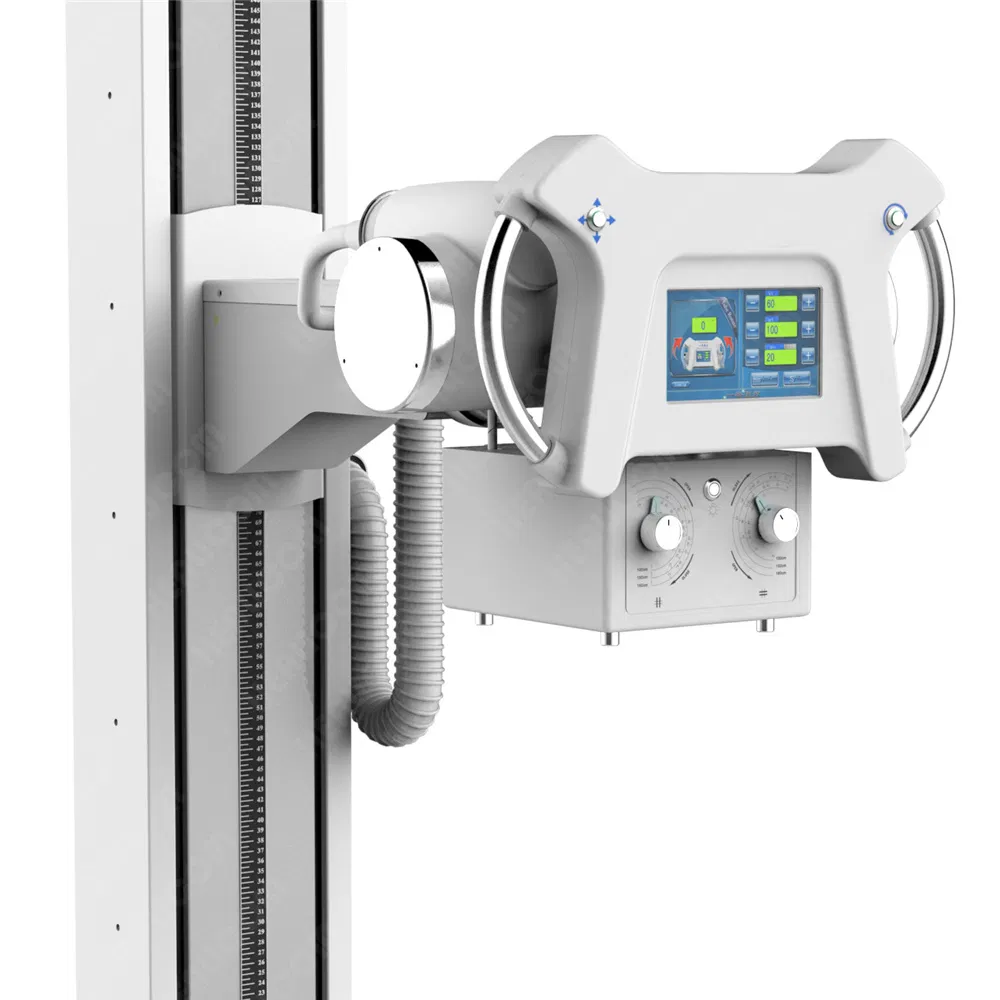

X-ray Tube
Anode Heat Storage Capacity	240kHU
Small focus / Large focus	0.6 / 1.2
Anode speed	3000r/min
Radiographic Table & Stand
Top Table Size	2100X800X650mm
Table longitudinal movement	≥900mm
Vertical moving range (Stand)	≥1200mm
Bucky Size	18X18 inch

📷

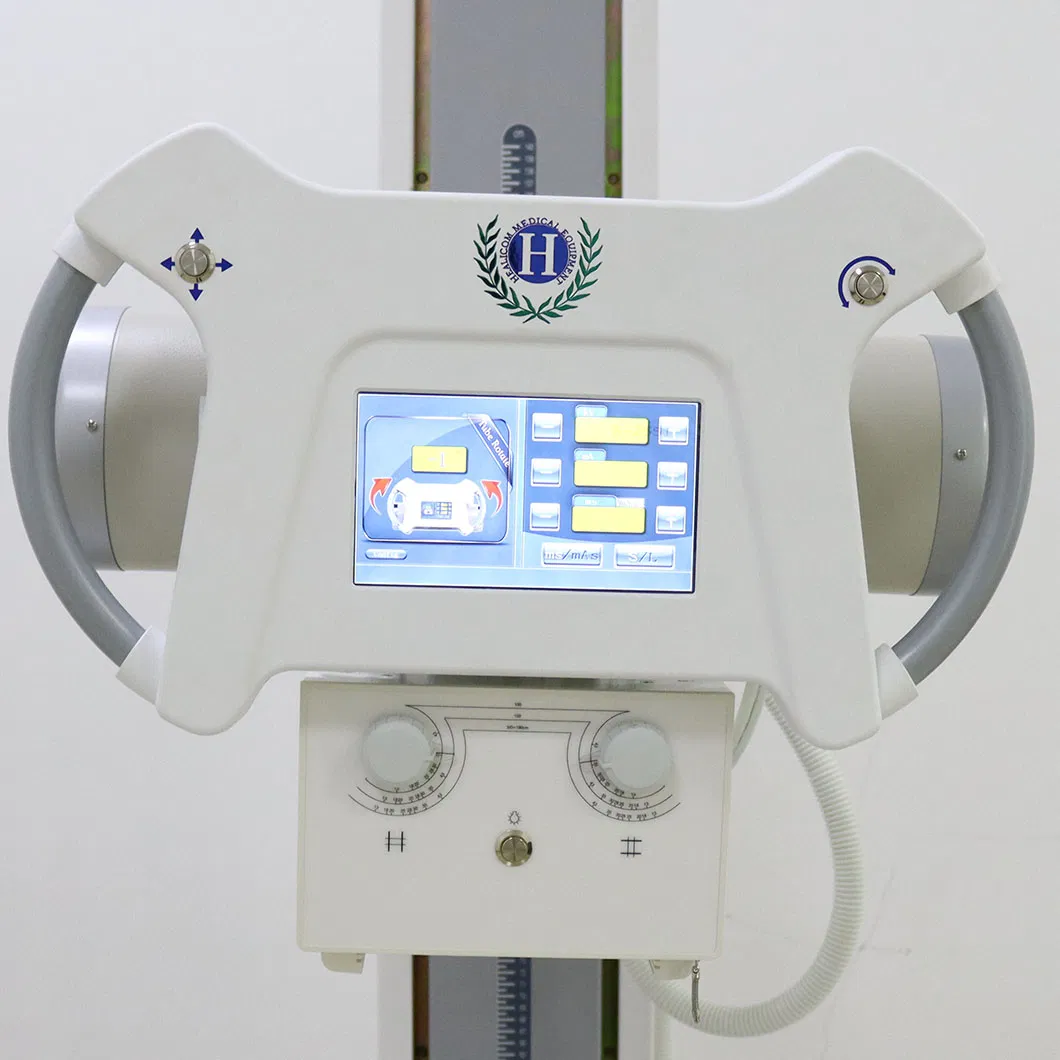

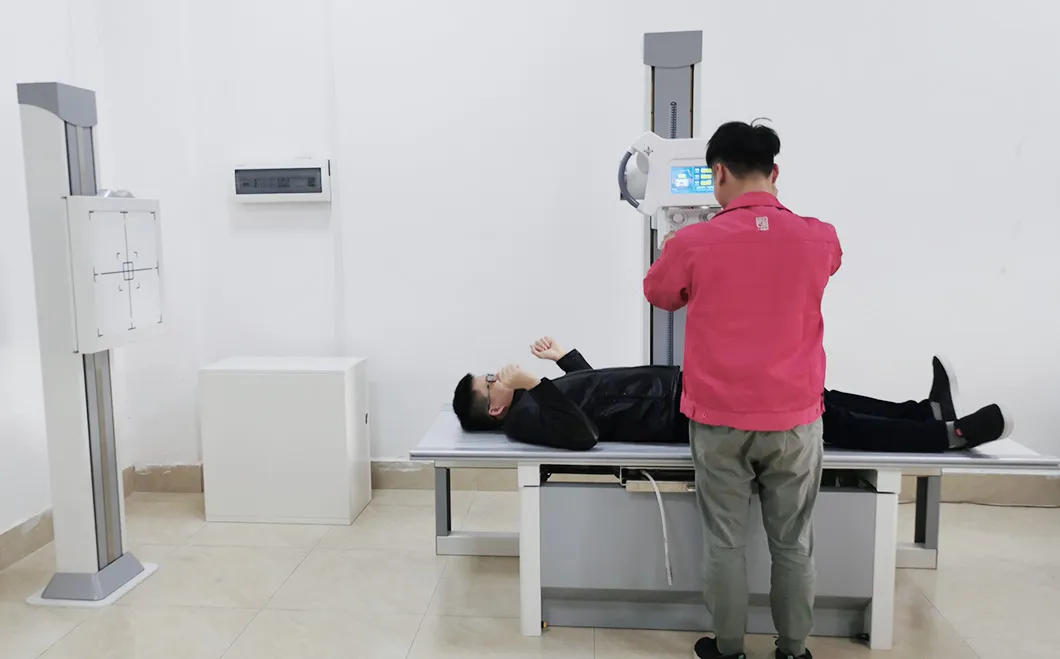

Detailed View & Clinical Images

✔

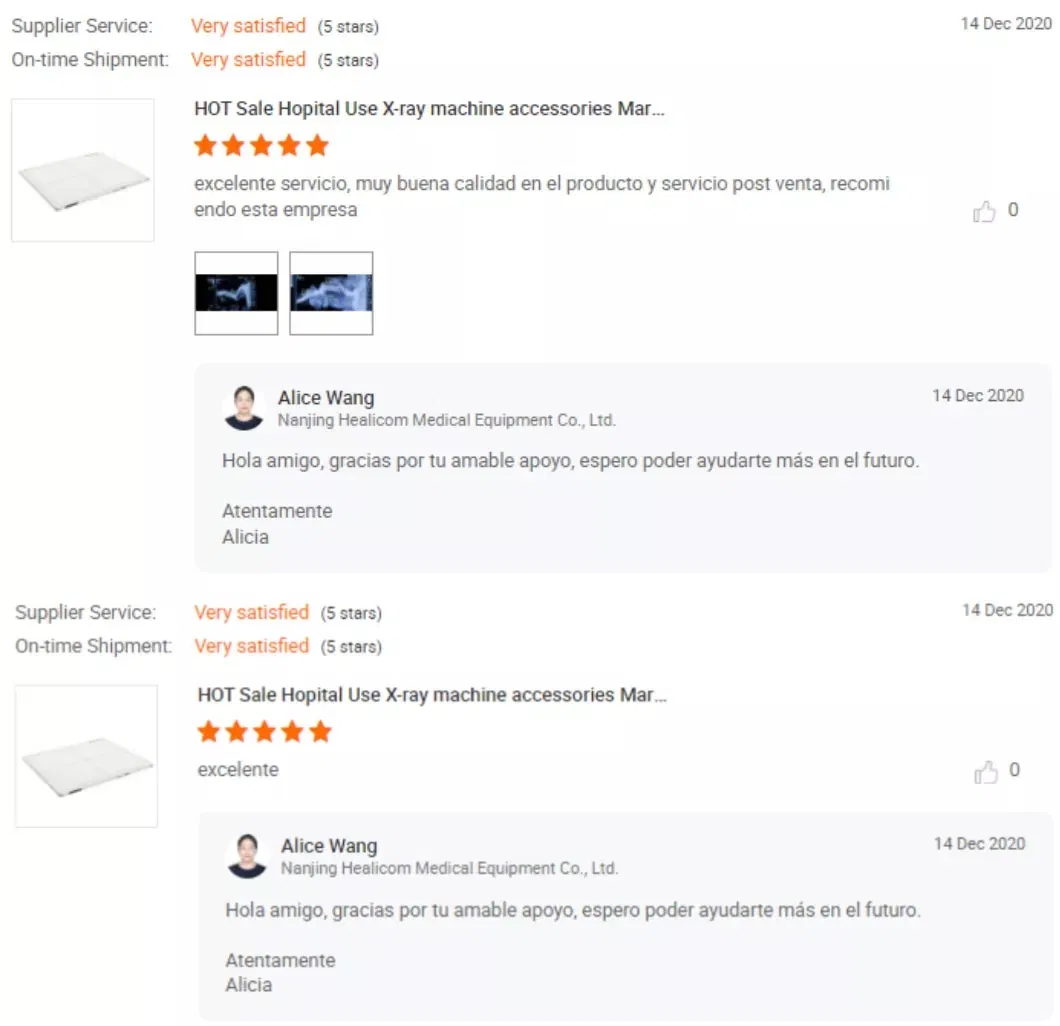

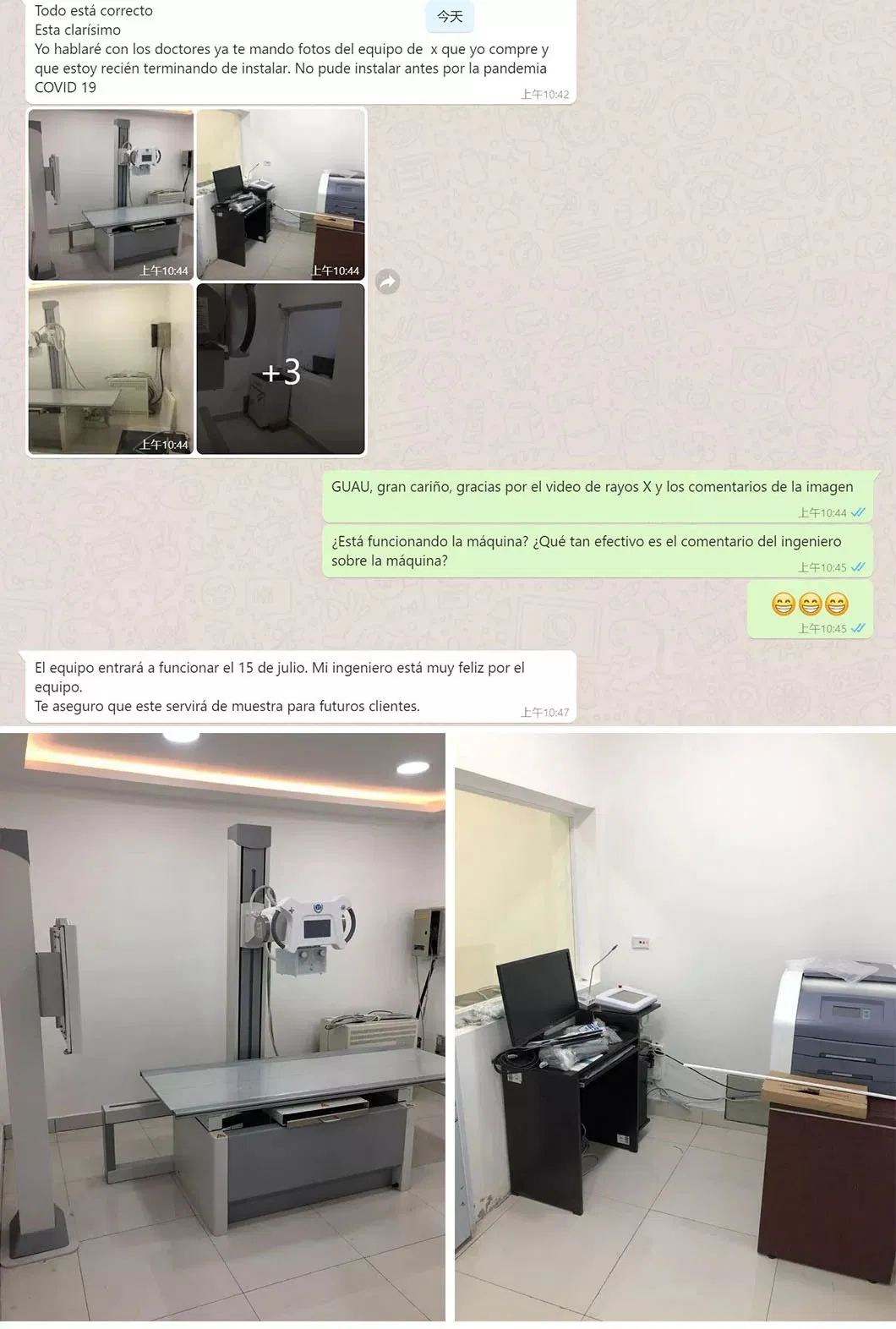

Customer Evaluation & Workshop

📋

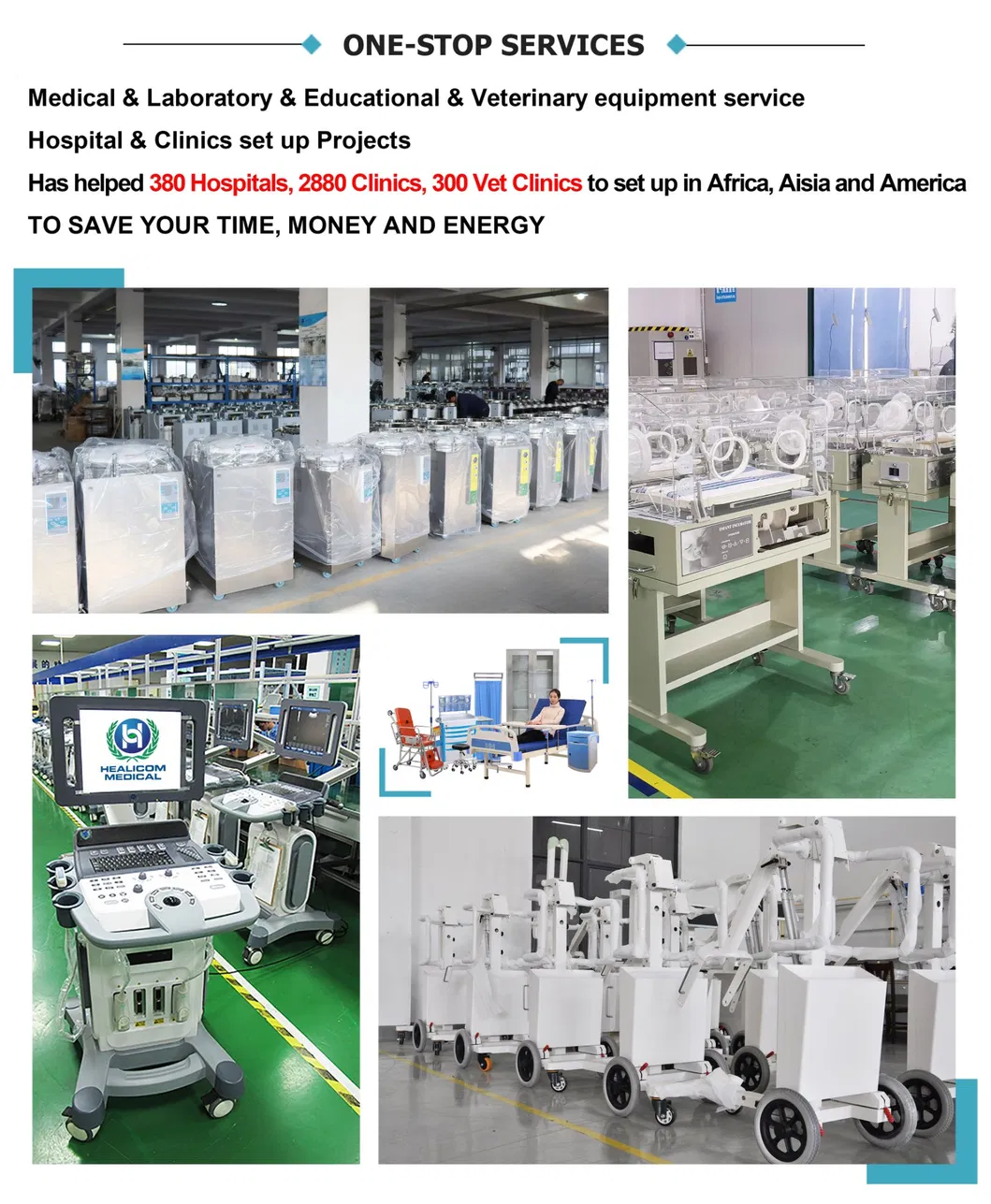

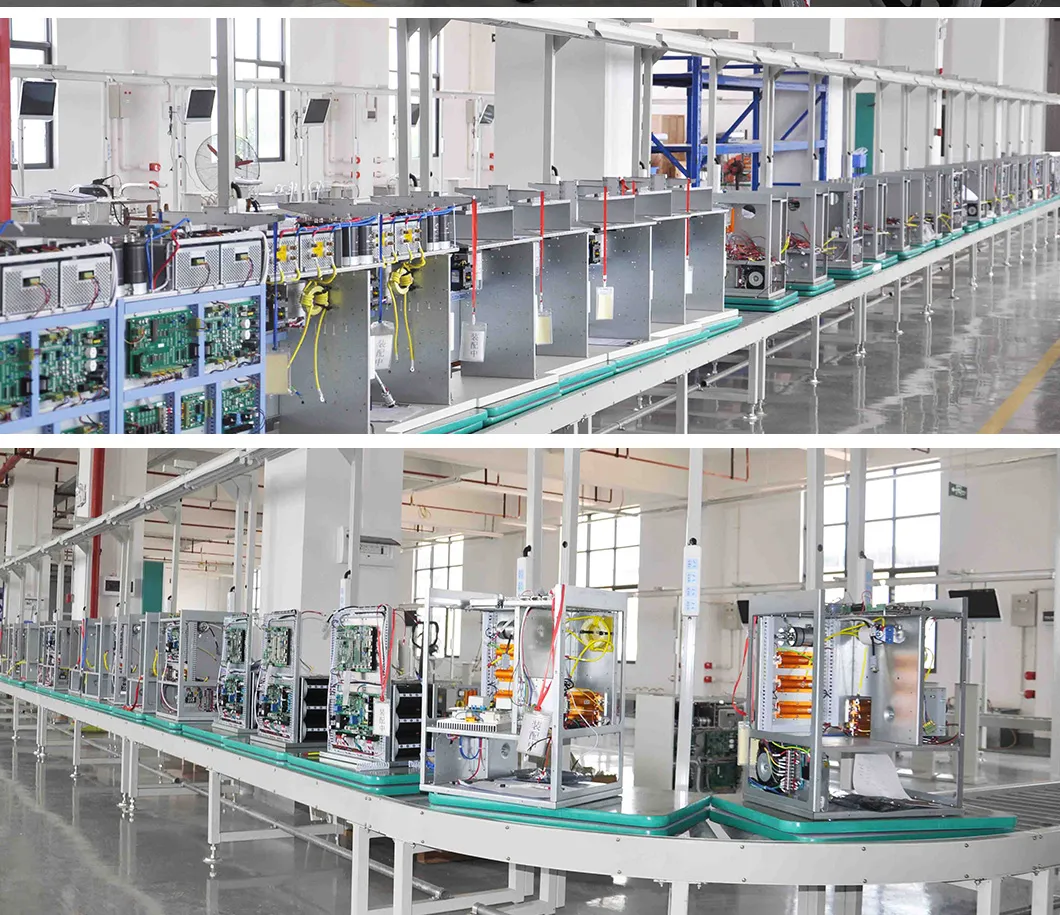

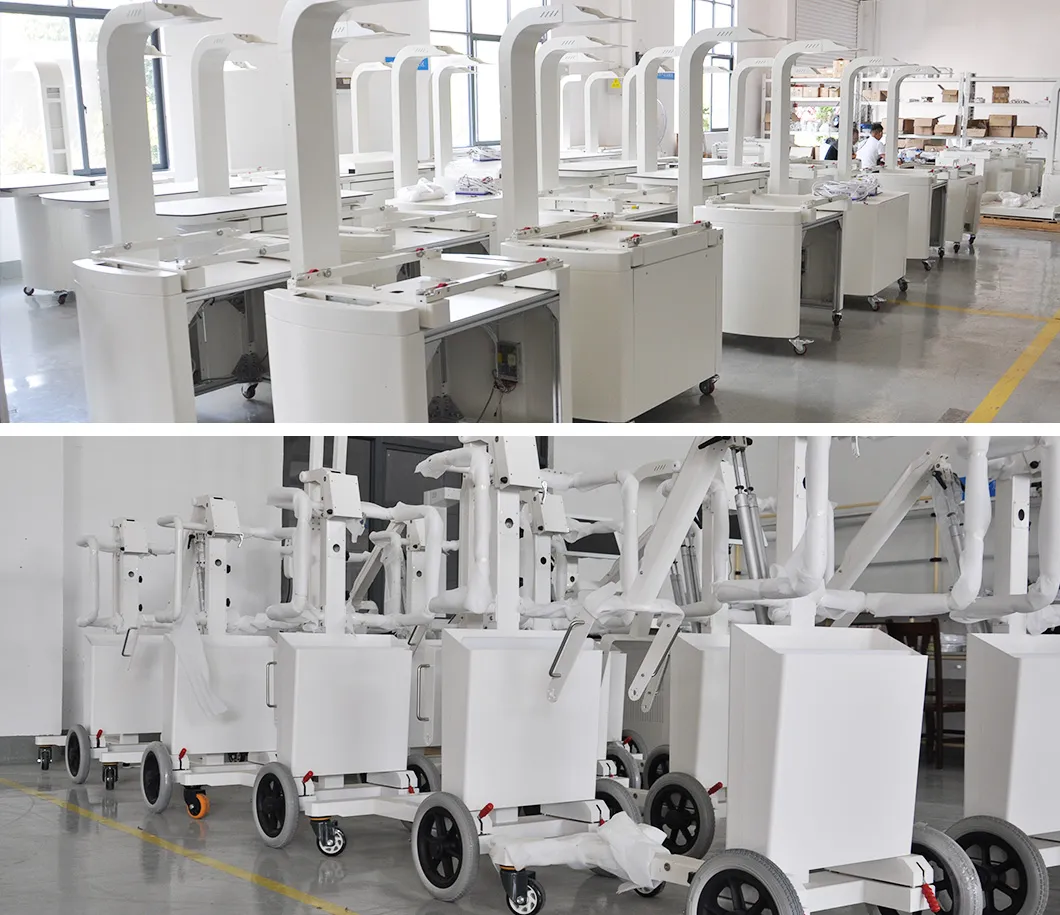

Professional Production

Frequently Asked Questions

What about the price level?

Our prices are highly competitive within the same quality bracket. Having served this field for over 20 years, we prioritize providing top-quality products at sustainable prices globally.

Why do some prices vary significantly between suppliers for similar-looking models?

While appearance may be similar, internal components and material quality differ. Products using premium materials and undergoing strict quality control maintain higher long-term reliability compared to cheaper alternatives.

What is the standard delivery time?

Production generally takes 15 days following order confirmation. For small or sample orders, we may have ready stock available for immediate dispatch.

What kind of quality assurance is provided?

We offer a one-year warranty starting from the date of shipment. This includes free spare parts for minor repairs and complete replacements for serious equipment issues.

What are the accepted payment terms?

We support multiple payment methods including T/T, Credit Card, L/C, Western Union, PayPal, and MoneyGram.

Do you provide technical support for installation?

Yes, we provide comprehensive technical guidance and documentation to assist with the setup and calibration of the X-ray system.
