High-Definition Medical Endoscopy Camera System for Gastroscopy and Colonoscopy
High-Definition Medical Endoscopy Camera System for Gastroscopy and Colonoscopy
High-Definition Medical Endoscopy Camera System for Gastroscopy and Colonoscopy
High-Definition Medical Endoscopy Camera System for Gastroscopy and Colonoscopy
High-Definition Medical Endoscopy Camera System for Gastroscopy and Colonoscopy
1 / 5
High-Definition Medical Endoscopy Camera System for Gastroscopy and Colonoscopy
High-Definition Medical Endoscopy Camera System for Gastroscopy and Colonoscopy
High-Definition Medical Endoscopy Camera System for Gastroscopy and Colonoscopy
High-Definition Medical Endoscopy Camera System for Gastroscopy and Colonoscopy
High-Definition Medical Endoscopy Camera System for Gastroscopy and Colonoscopy

High-Definition Medical Endoscopy Camera System for Gastroscopy and Colonoscopy

Customization: Available
Certification: CE
Product Name: Video Colonoscope and Gastroscope Set
Send Inquiry

Product Description

Basic Information

Model NO.
CK-CG100
Gastroscope
Working Channel 2.8mm
Colonoscope
Working Channel 3.7mm
Video Processor
HD Image with USB Record

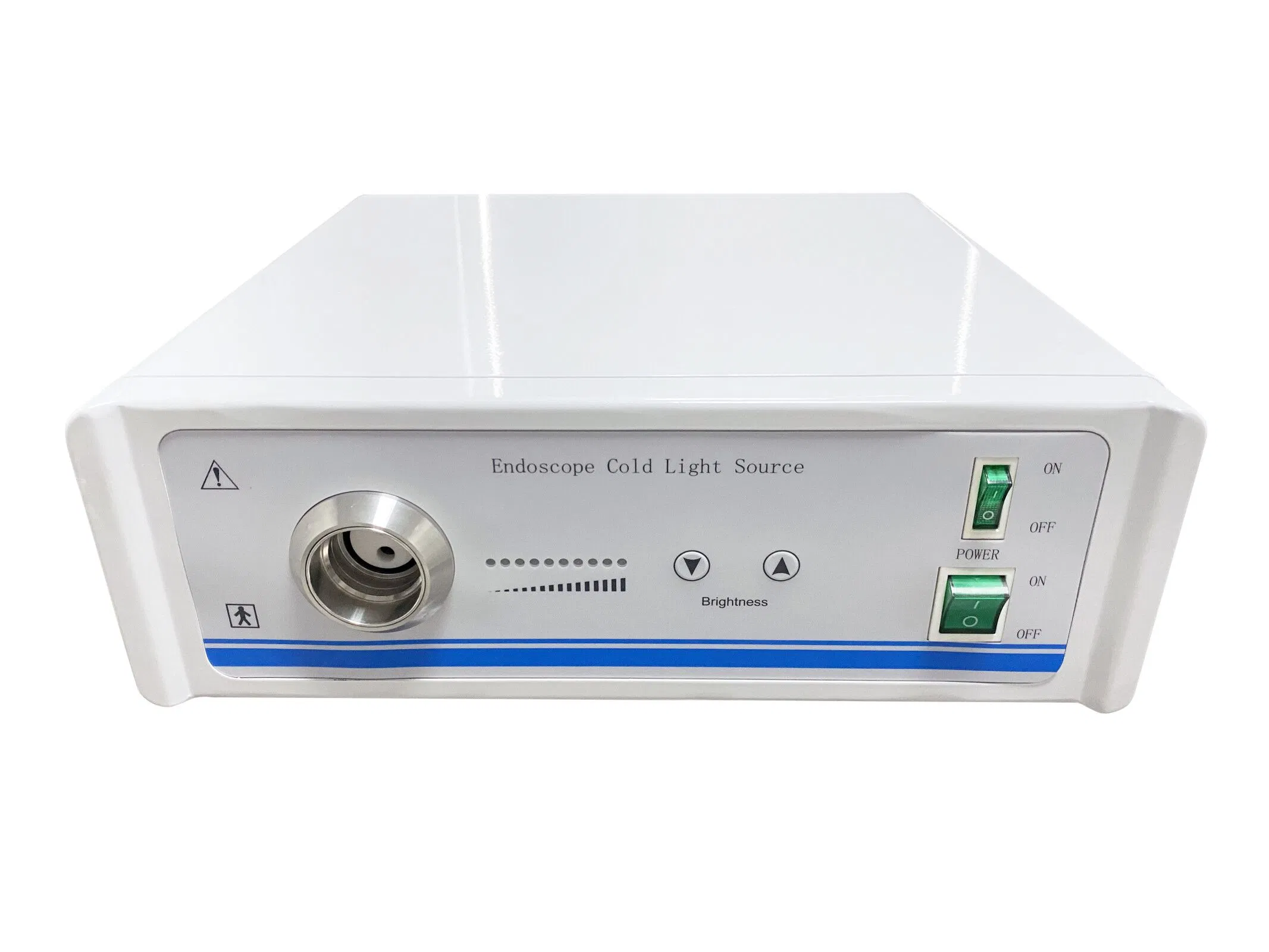

Light Source
LED Cold Light
Monitor
24" LCD
Warranty
1 Year
Capacity
300 Sets Per Month

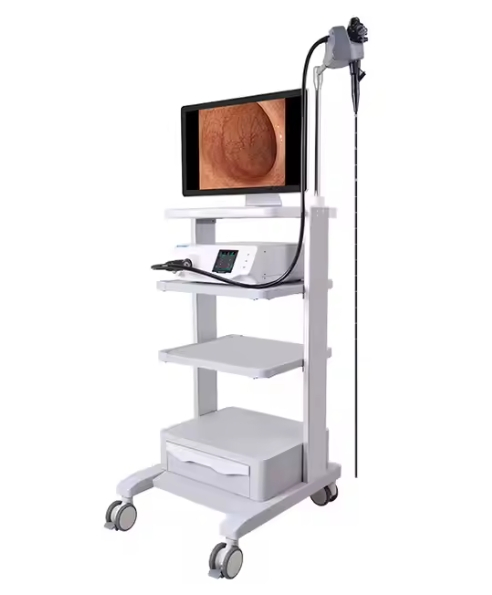

Video Colonoscope and Gastroscope Set

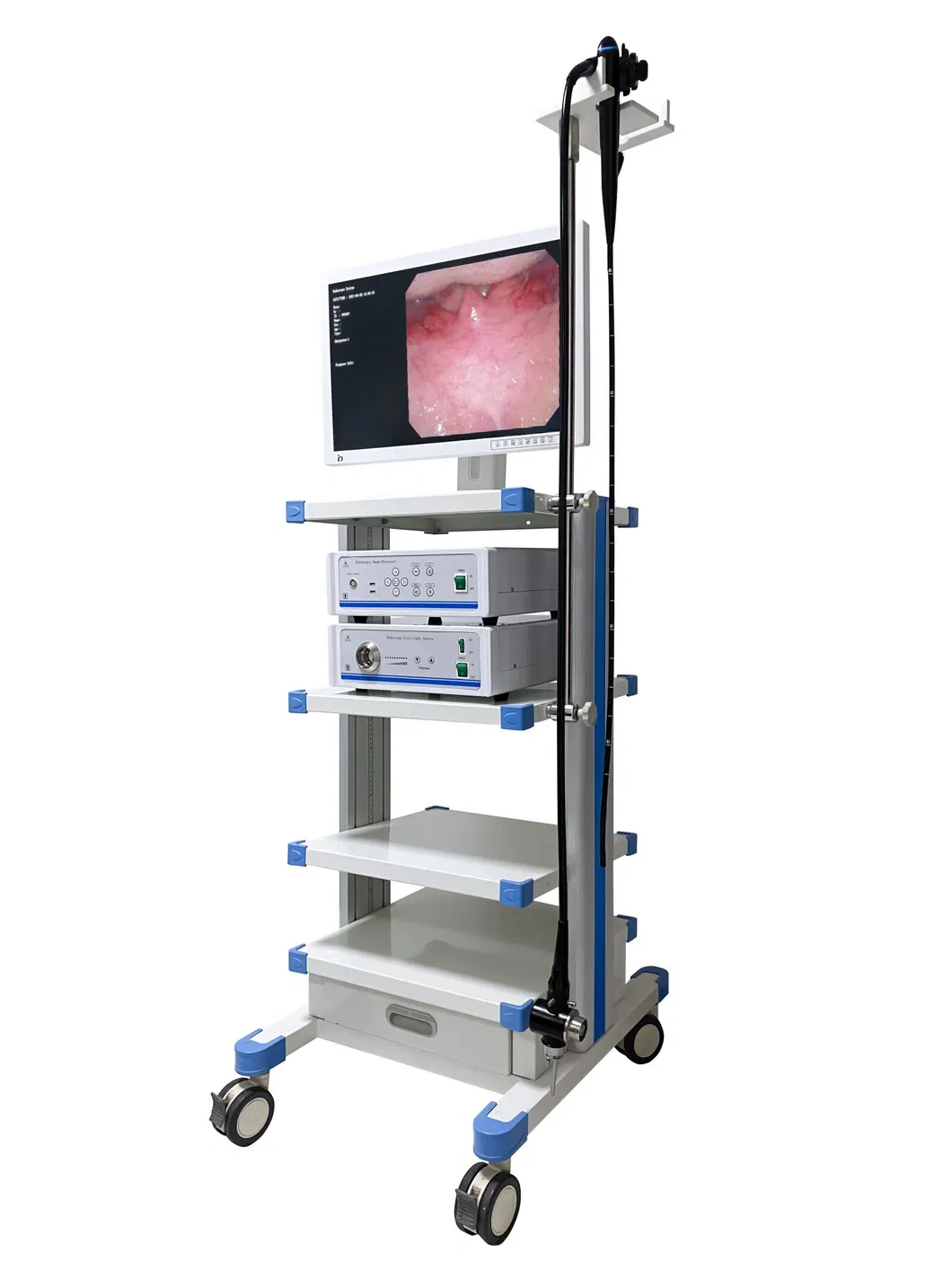

Video Endoscopy System

Product Specifications

Component Technical Parameters Qty

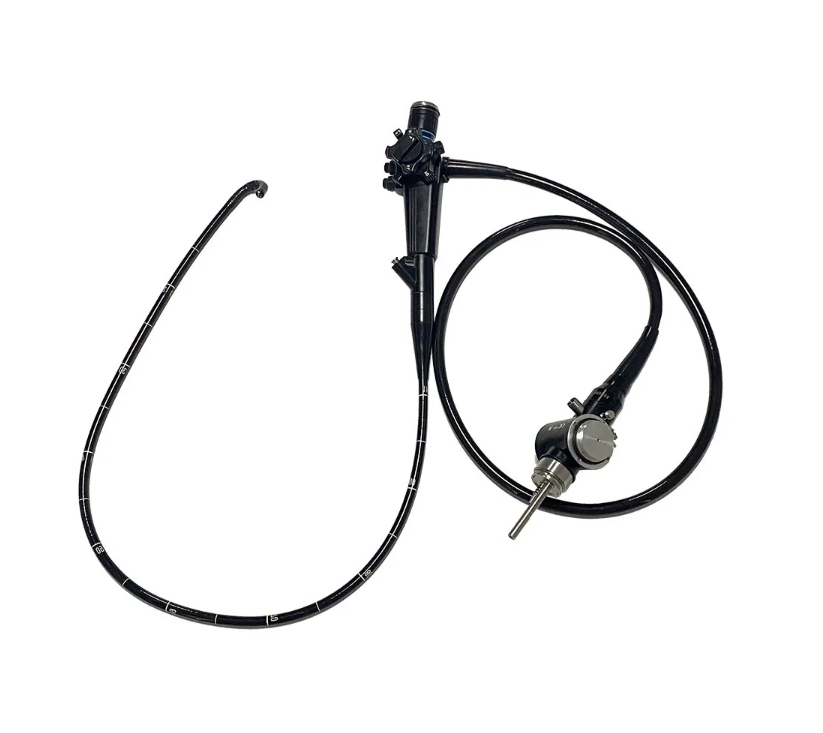

Video Gastroscope Insert tube: 9.6mm; Working channel: 2.8mm; Working length: 1050mm; Bending: U210°/D90°/L/R 100°; Resolution: 1,000,000 pixels CMOS 1

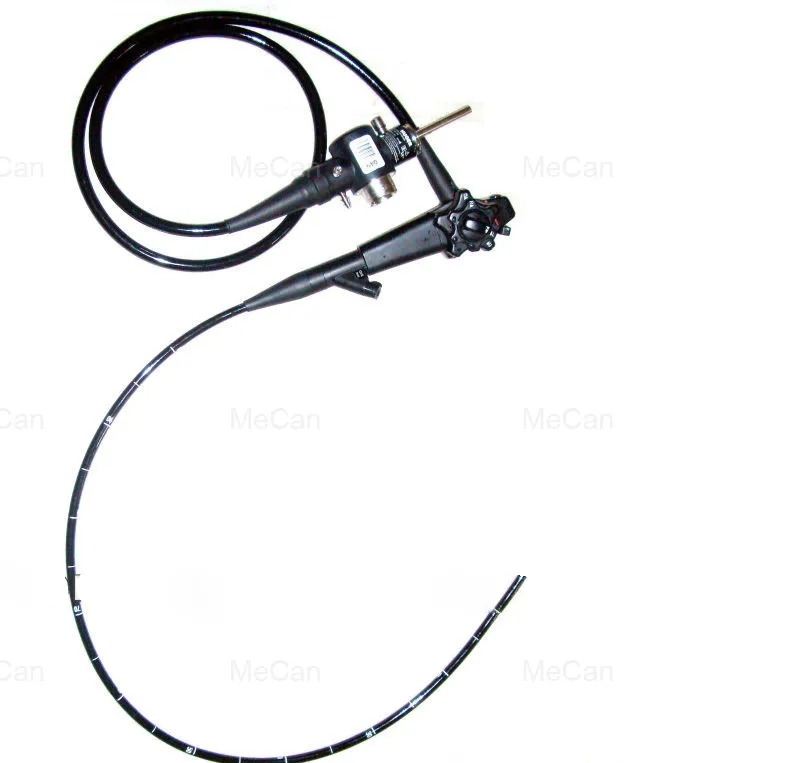

Video Colonoscope Insert tube: 12.8mm; Working channel: 3.7mm; Working length: 1350mm; Bending: U/D 180°/L/R 160°; Resolution: 1,000,000 pixels CMOS 1
HD Video Processor & LED Source 80W White LED; Color temp ≥5300K; Output: HDMI x2, DVI; 2 USB interfaces for record; Multi-language support (English, German, French, etc.) 1
LCD Monitor 24" Display; Resolution: 1920x1080; Ratio: 16:9; Brightness: 350 cd/m2; View Angle: 178° 1
Trolley Medical grade with drawer for accessories 1

Detailed Photos

Detail 1

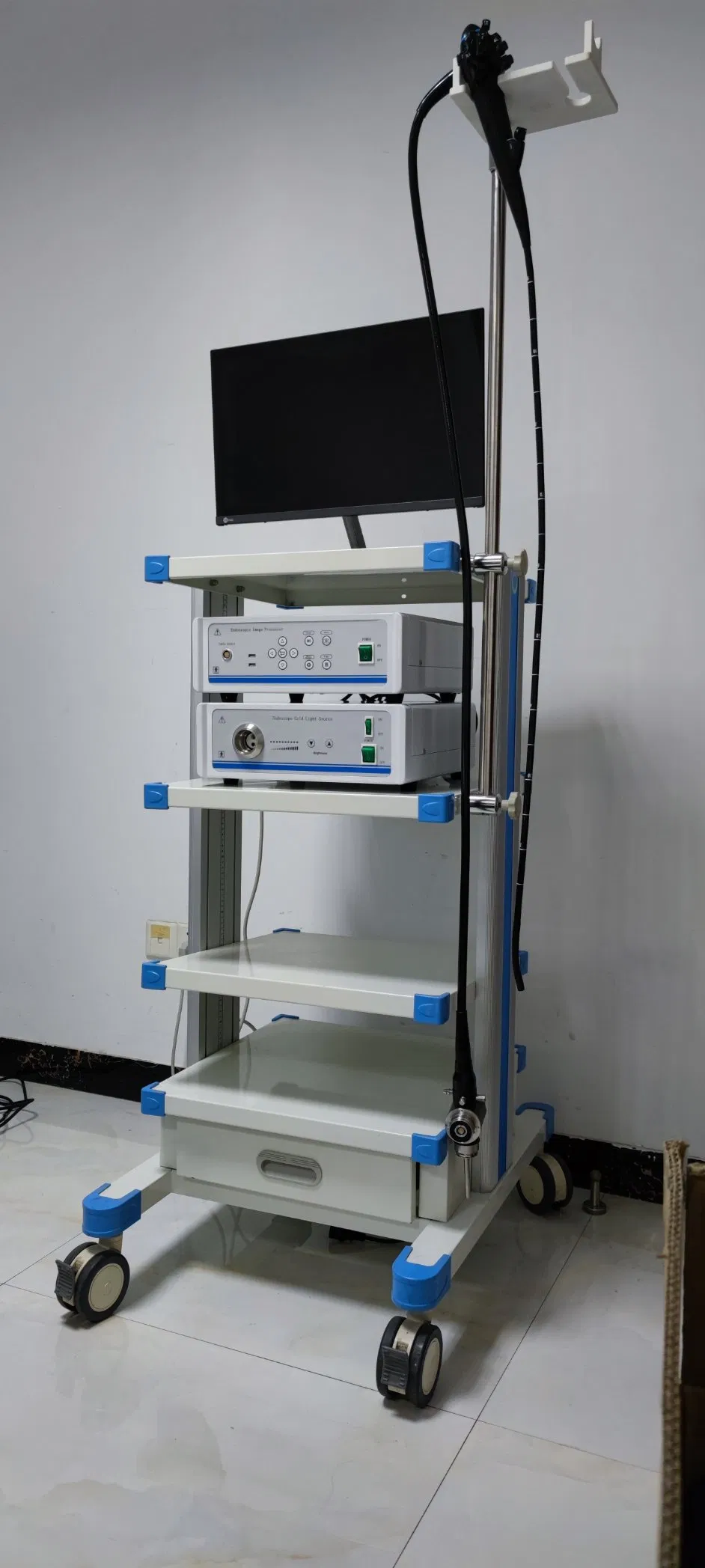

Detail 2

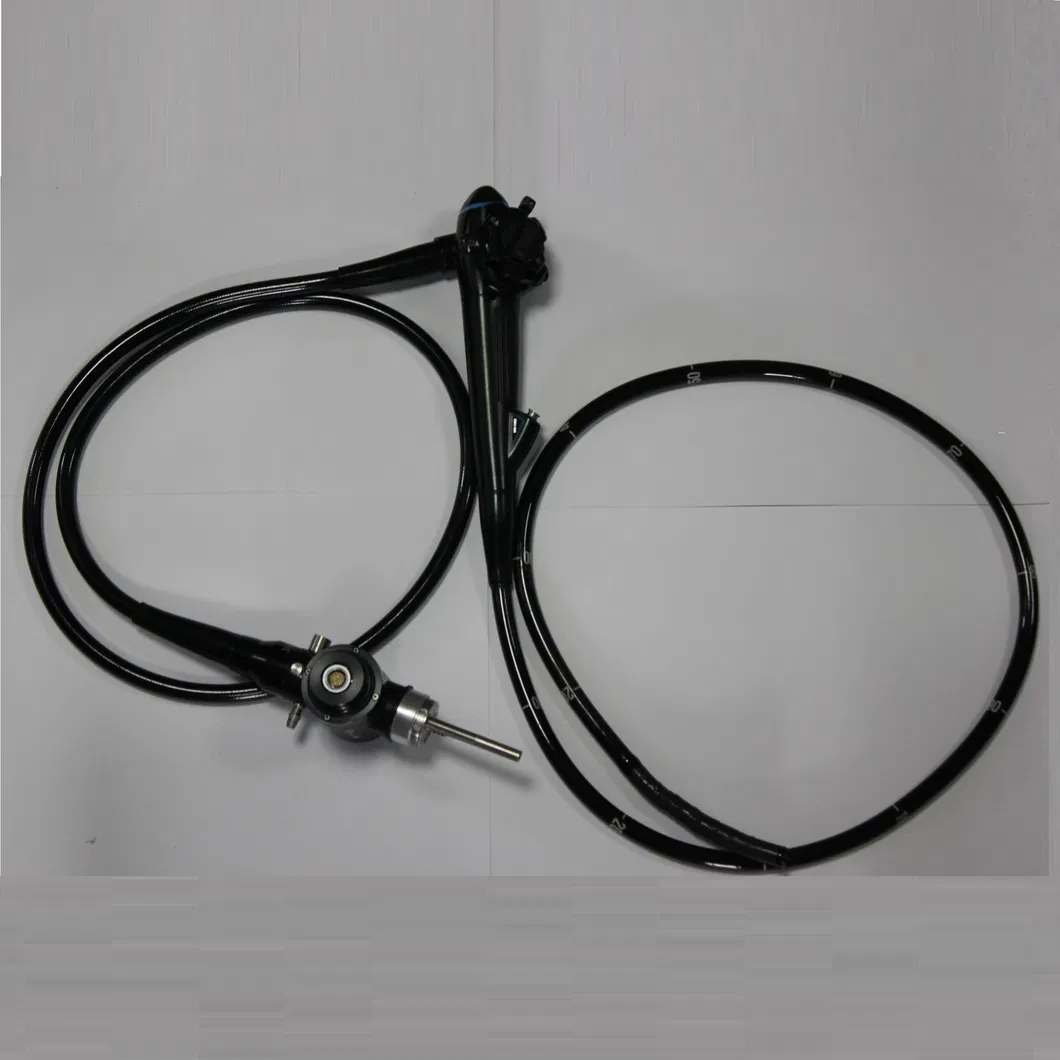

Detail 3

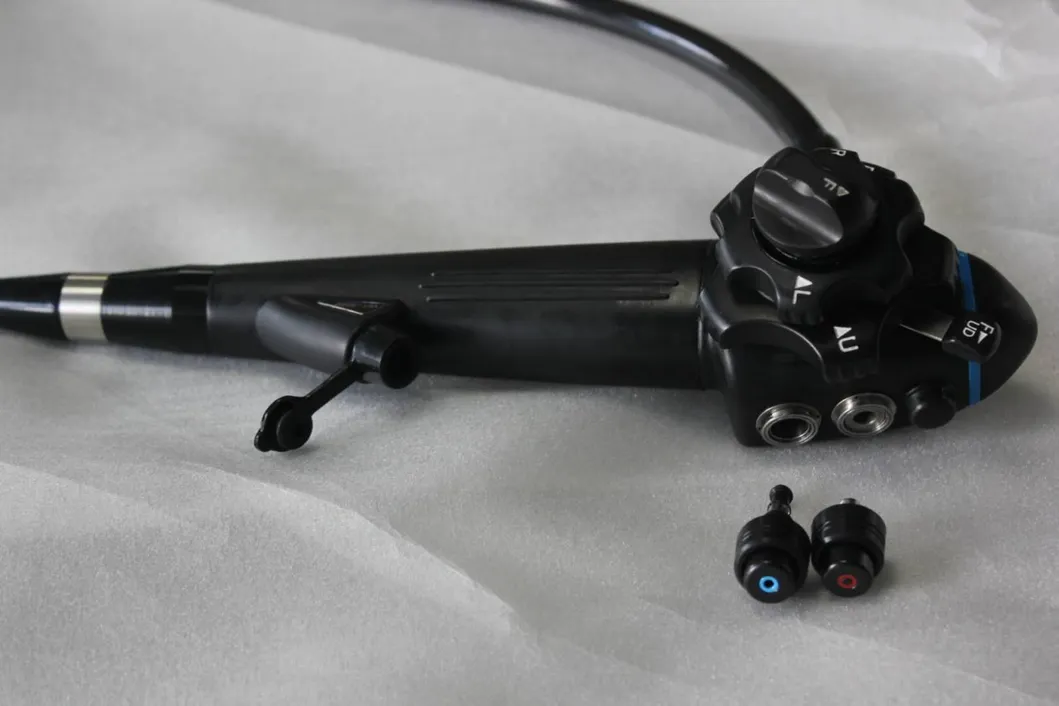

Detail 4

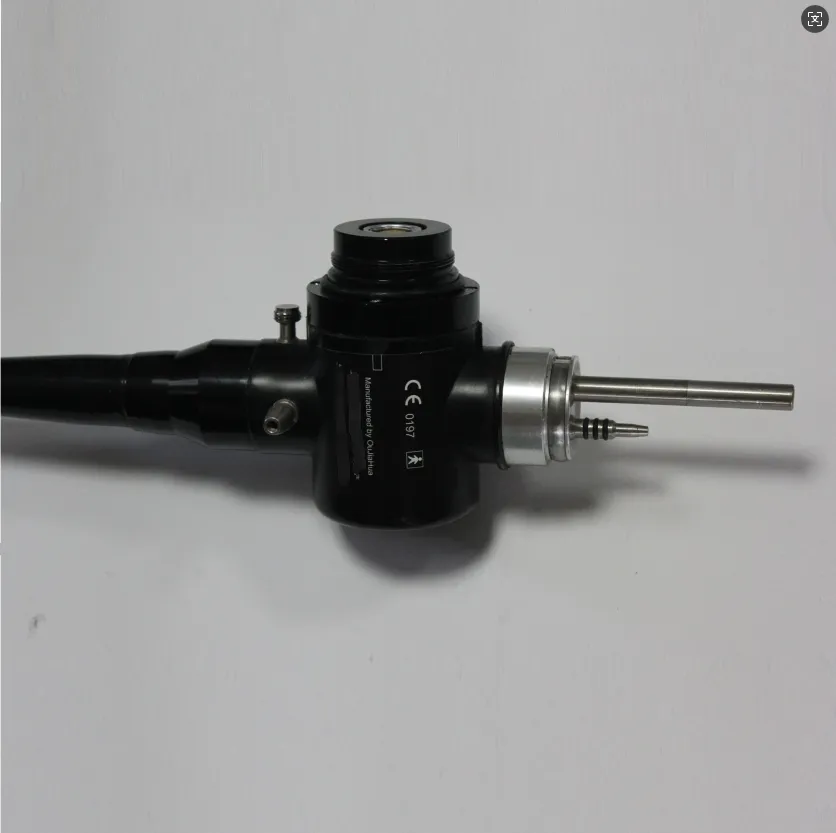

Detail 5

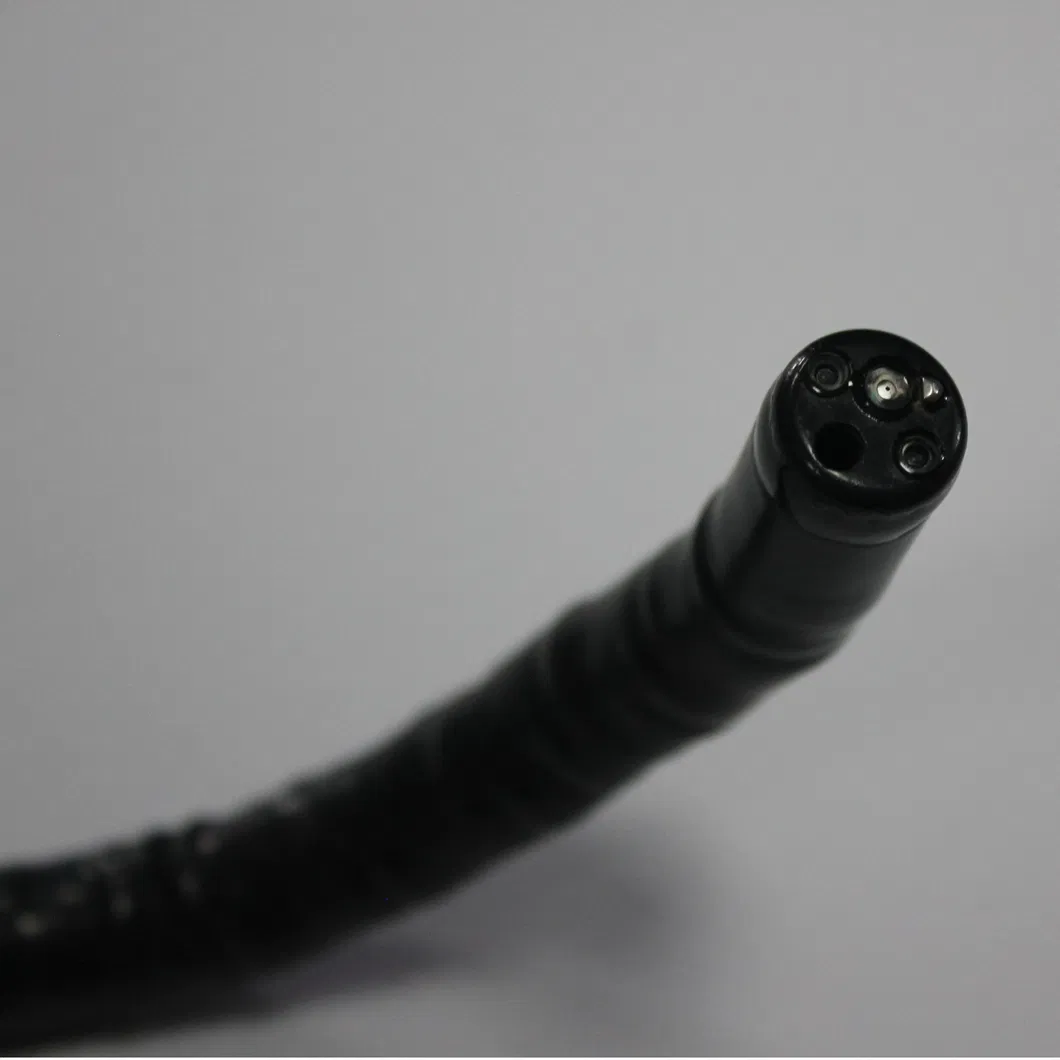

Detail 6

Professional Environment

Environment 1
Environment 2
Environment 3
Environment 4
Environment 5

Frequently Asked Questions

1. What is the image resolution of the endoscope?
The system utilizes a high-definition CMOS sensor providing 1,000,000 pixels for clear clinical observation.
2. Can I record procedures directly?
Yes, the video processor features dual USB interfaces specifically designed for capturing high-quality images and video recordings.
3. What are the diameters of the working channels?
The gastroscope has a 2.8mm working channel, while the colonoscope features a larger 3.7mm channel to support various surgical tools.
4. What type of lighting does the system use?
It uses a long-life 80W LED cold light source with a color temperature of ≥5300K, ensuring natural color reproduction and minimal heat.
5. Is the system compatible with international power standards?
Yes, the system supports a power range of 220-240V at 50-60HZ, making it suitable for various medical environments globally.
6. What languages are available in the operating system?
The system supports multiple languages including English, German, French, Spanish, Portuguese, Russian, and Chinese.
