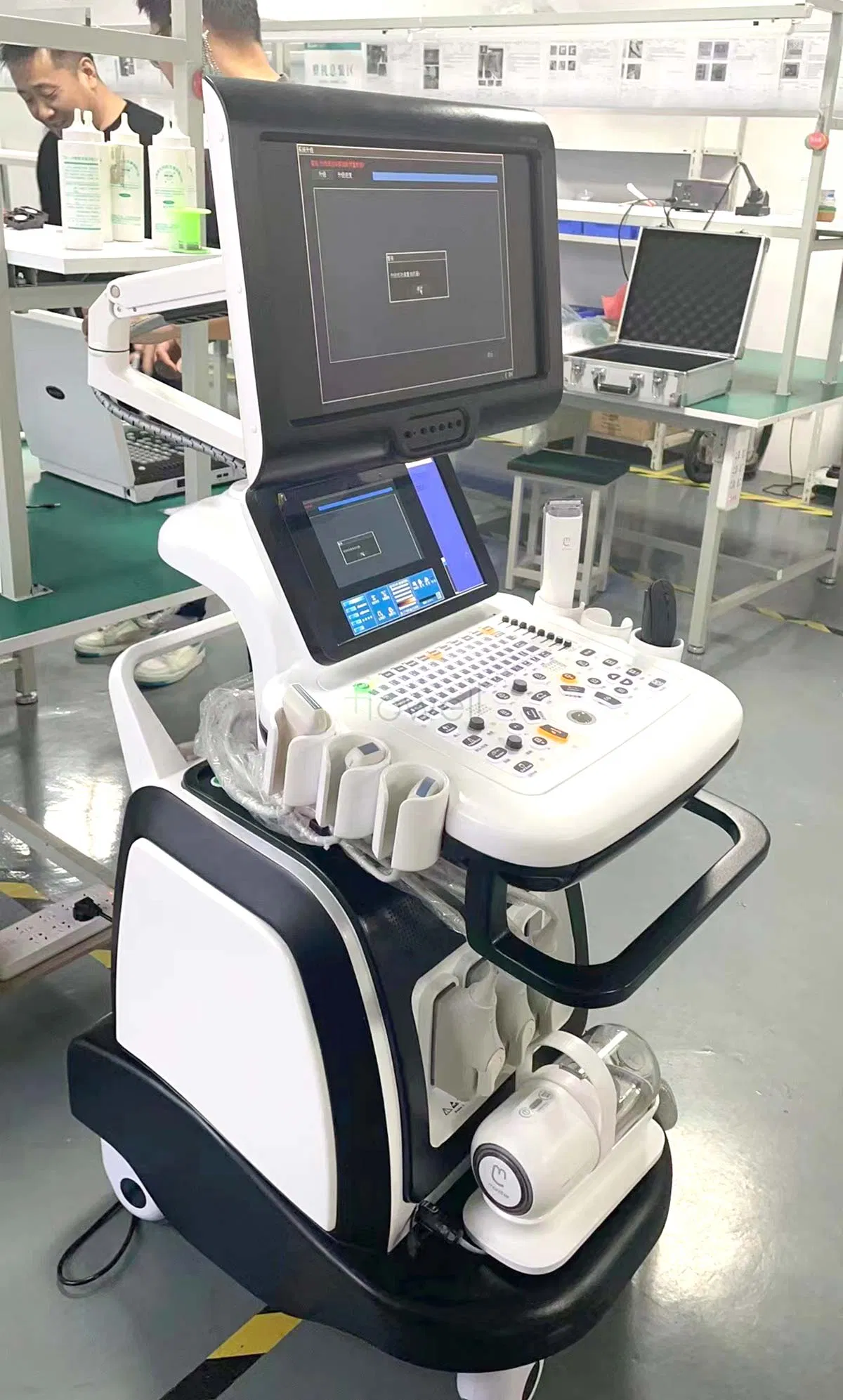

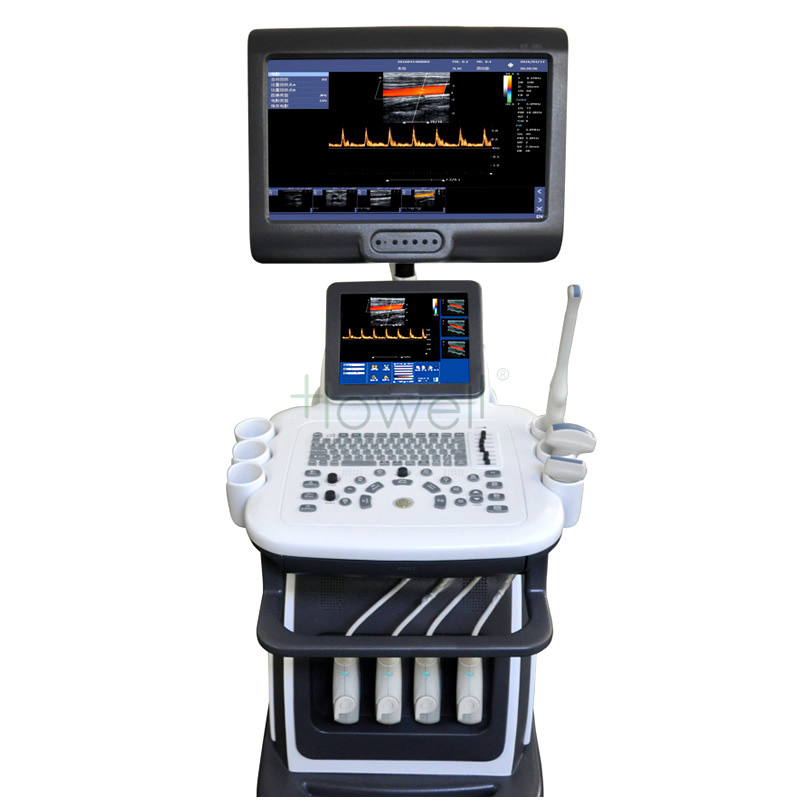

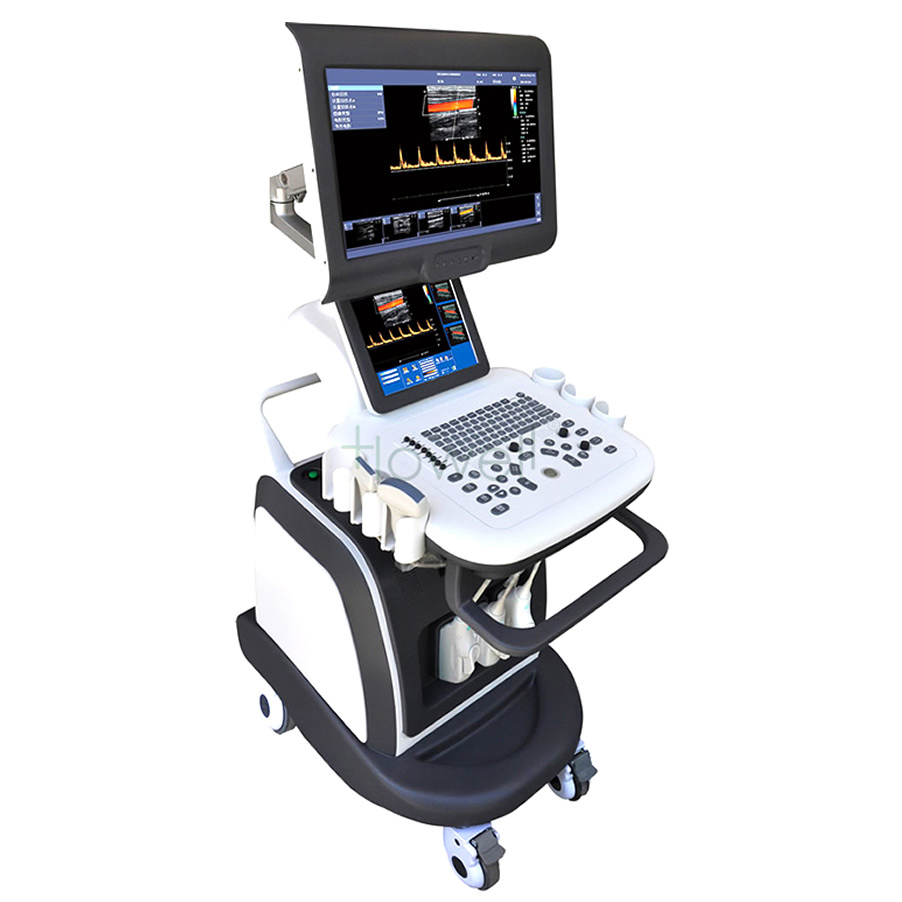

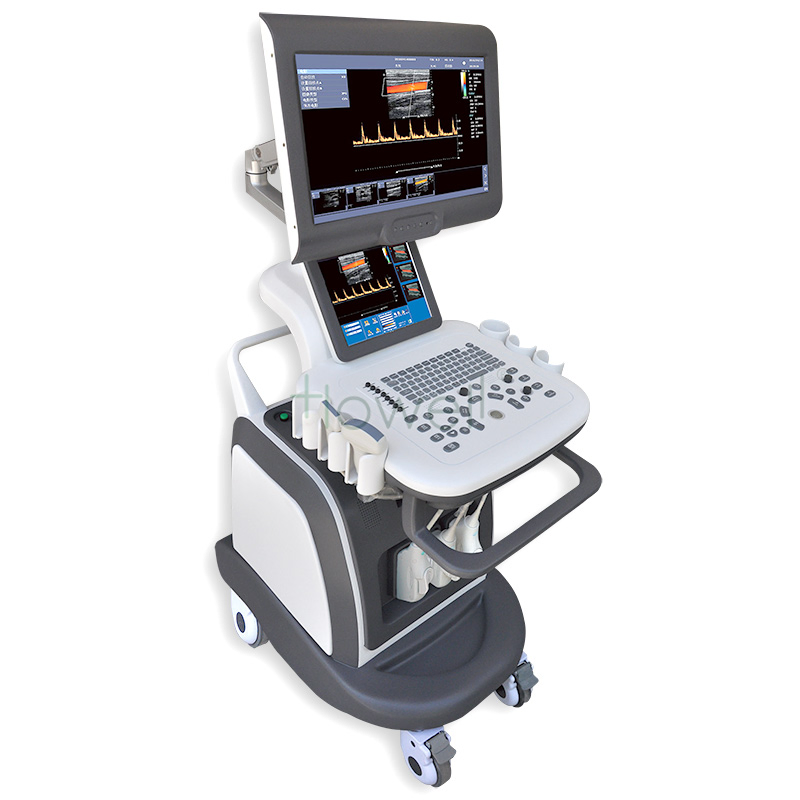

HE-S80 Color Doppler Ultrasound Diagnostic Device

1 / 5

HE-S80 Color Doppler Ultrasound Diagnostic Device

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model Number HE-S08

Origin China

Production Capacity 1000 sets / Month

Transport Package Land + Sea Transport

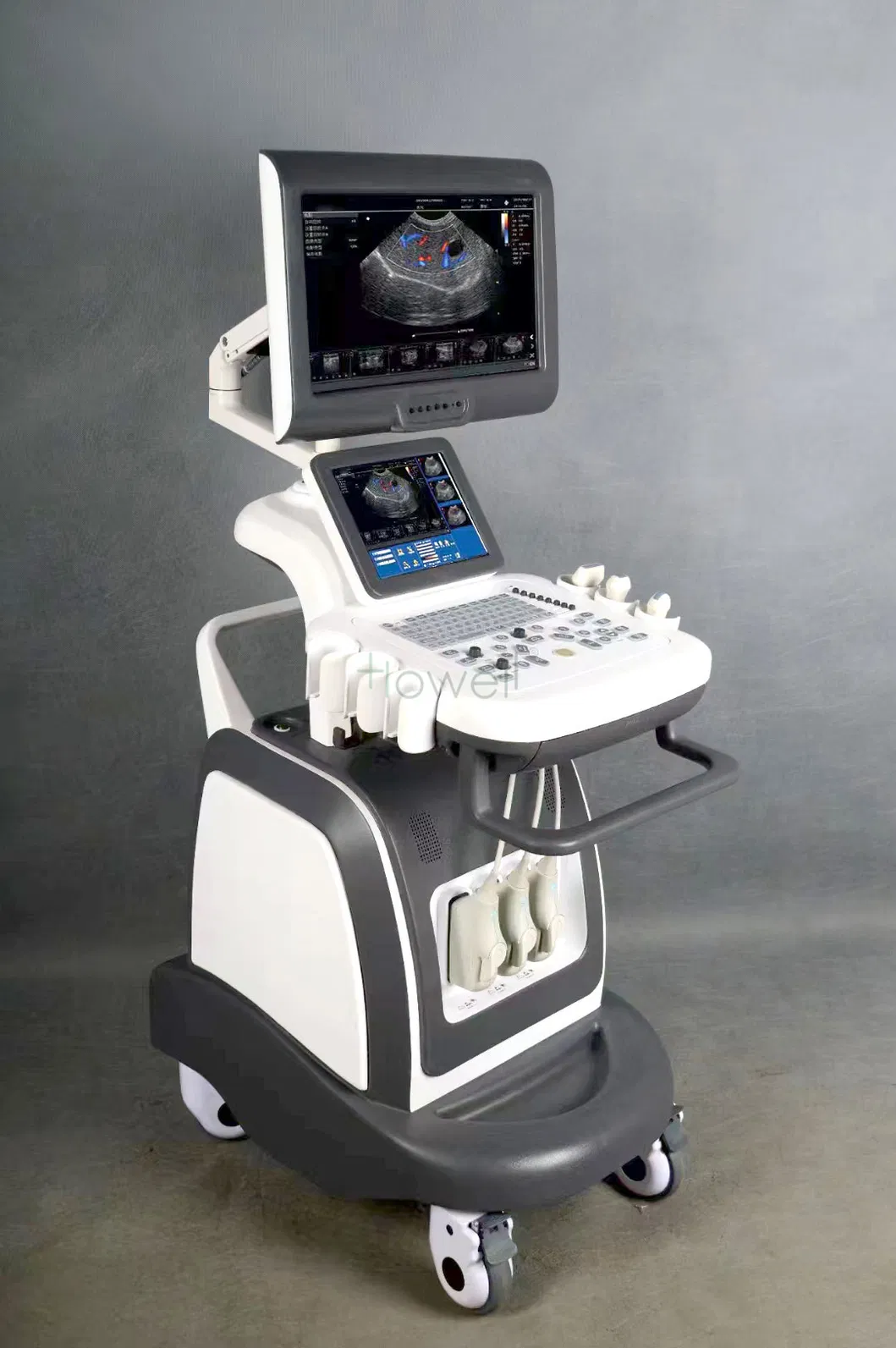

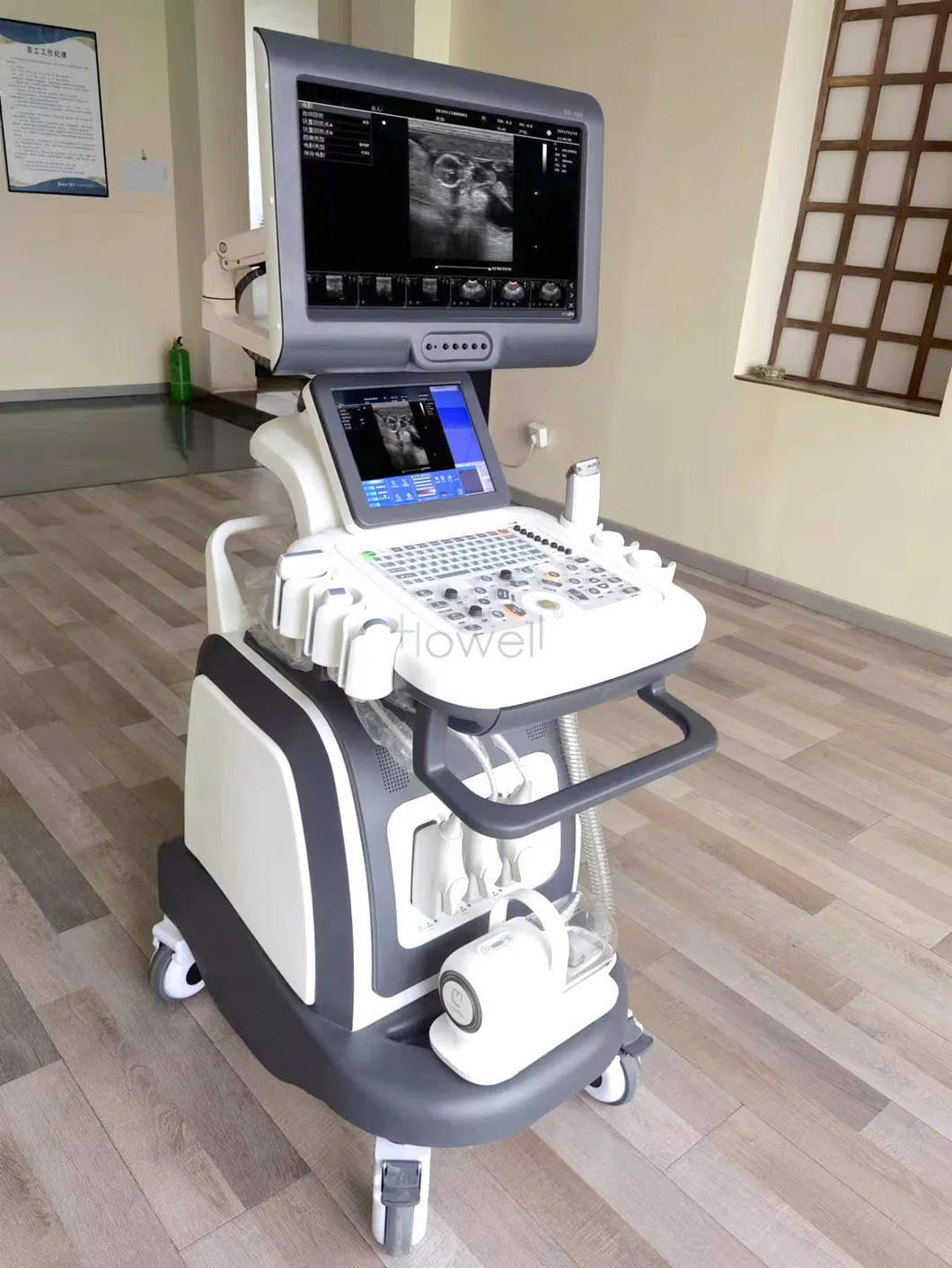

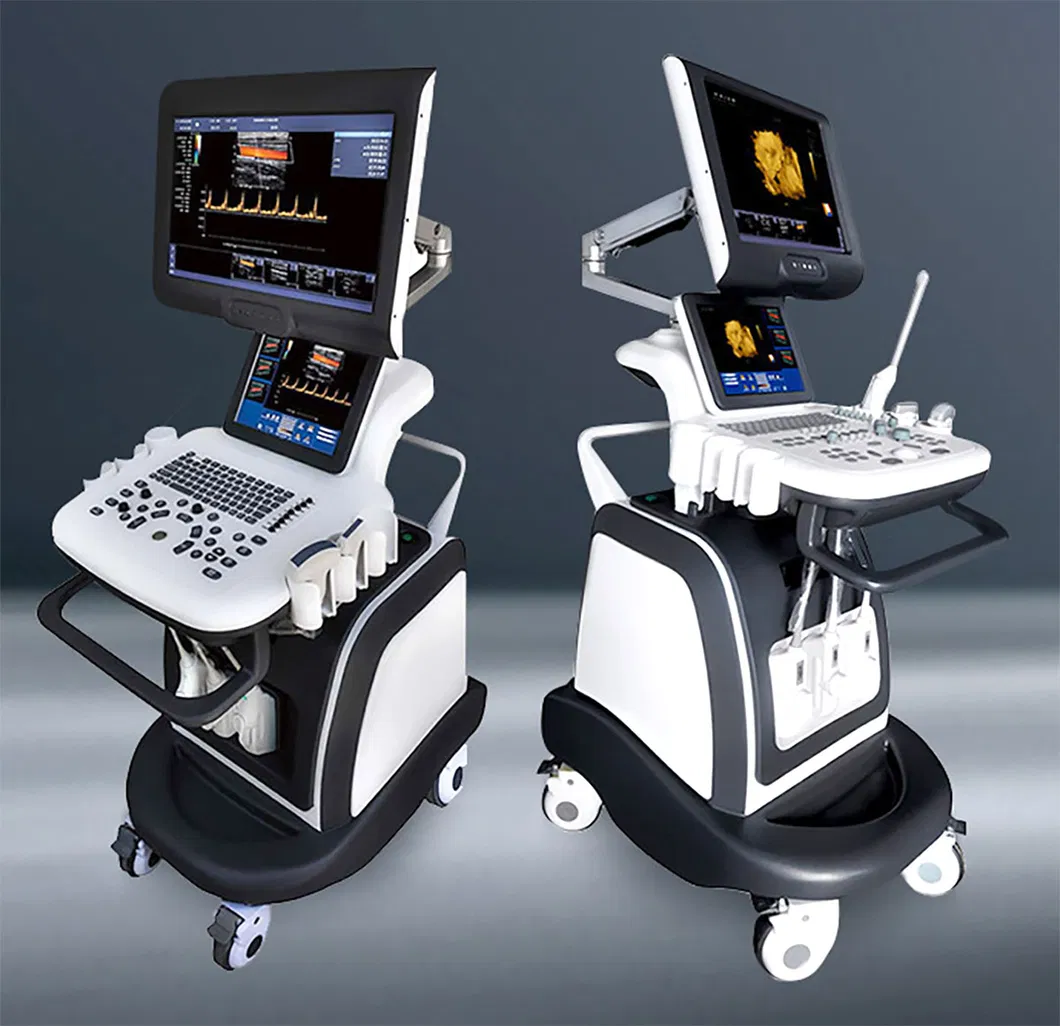

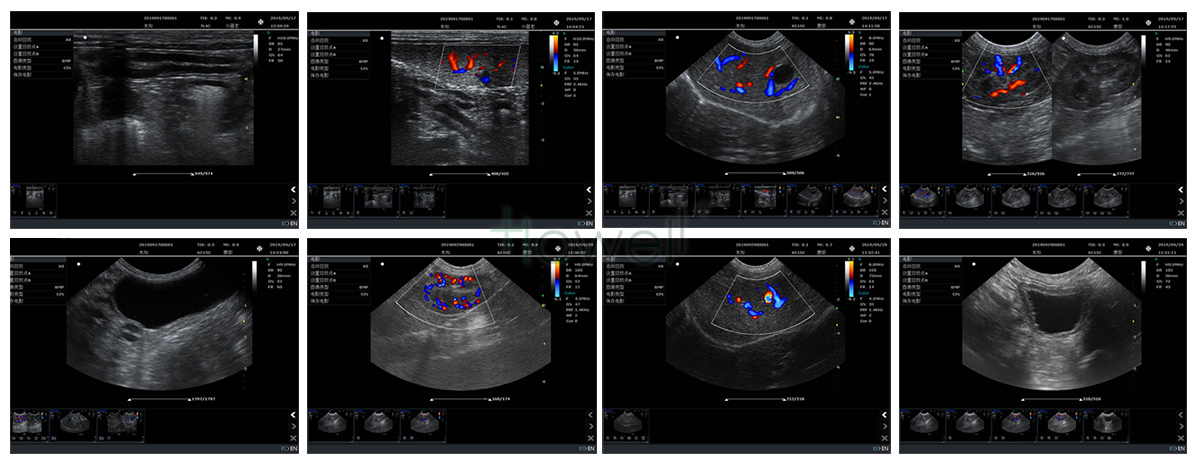

Product Visuals

Equipment Overview

Usage: Suitable for ultrasonic diagnostic examination of human abdomen, superficial and small organs, and peripheral blood vessels.

⚙️

Imaging Hardware
Physical Channels: ≥64
Probe Array Elements: ≥128

🖥️

Dual Display System
Main: 19-inch widescreen LCD
Auxiliary: 10.4-inch LCD touch screen

Dual Operating Systems & Telemedicine

Built-in independent dual systems: Ultrasound System + Windows 7 or above workstation. Supports independent operation (no switching required). Equipped with Wifi and application software for remote medical services, image/video transmission, expert guidance, and online training.

Technical Parameters

Fully Digital Imaging Technology

Multi-beam synthesis
Real-time dynamic focus imaging point by point
Pulse inverse harmonic composite imaging
Space composite & Image enhancement

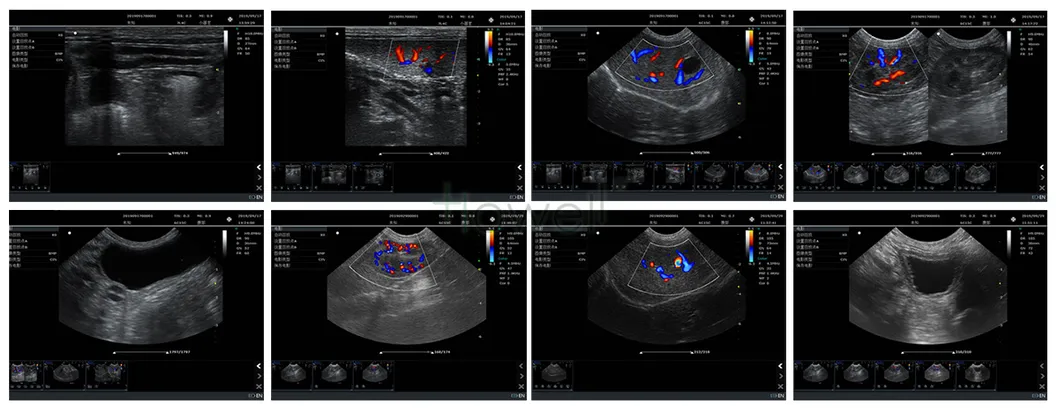

Imaging & Display Modes

Modes: B, M, Color (Doppler), PDI (Power Doppler), PW (Pulse Doppler)

Display Layouts: B, B+B, 4B, B+M, M, B+Color, B+PDI, B+PW, PW, B+Color+PW, B+PDI+PW, B/BC dual real-time

Supported Probes

Types: Convex, Linear, Intracavitary, Micro convex, Rectal, Superconducting visual flow, Phased array cardiac
Frequency: 2.5-10.0MHz
Probe Sockets: ≥4

B Mode Parameters Grayscale mapping: ≥15 files Noise suppression: ≥8 files Maximum scanning depth: ≥320mm Image flip: Up/Down, Left/Right	PW Mode Parameters SV size: 1.0-8.0mm adjustable PRF: 0.7kHz to 9.3KHz (16 files) Correction Angle: -85° to 85° Doppler sound: ≥20 files
Storage & Connectivity Formats: JPG, BMP, FRM, CIN, AVI Standard: DICOM 3.0 compliant Hard Disk: ≥500GB	Measurement Packages Abdomen, GYN, OB, Small Organs Heart, Blood Vessels, Urology Pediatric & growth curve analysis

Standard Configuration

Full digital Color Doppler host (500G HDD) - 1 set
3.5Mhz Variable frequency convex array probe - 1 pc
7.5Mhz Variable frequency linear array probe - 1 pc
Built-in Win7 telemedicine workstation - 1 set
Wireless keyboard and mouse - 1 set
User manuals and qualification documents - 1 set

Frequently Asked Questions

Q1: What clinical applications is this ultrasound device designed for?

The equipment is optimized for diagnostic examinations of the human abdomen, peripheral blood vessels, and superficial or small organs.

Q2: Does the system support telemedicine and remote guidance?

Yes, it features a built-in workstation with Wifi connectivity, allowing for real-time video transmission and expert remote guidance.

Q3: How many probes can be connected to the HE-S08 at once?

The system is equipped with 4 probe sockets, supporting a wide range of probes from 2.5MHz to 10.0MHz.

Q4: What are the display specifications of this model?

It uses a dual-screen setup: a 19-inch high-resolution widescreen LCD as the main monitor and a 10.4-inch LCD touch screen for auxiliary operations.

Q5: What imaging modes are available?

The device supports B, M, Color Doppler, Power Doppler (PDI), and Pulse Doppler (PW) modes, including various combined display modes.

Q6: How is patient data managed and stored?

Data is managed through a built-in workstation with a 500GB hard drive. It supports DICOM 3.0 and multiple image/video formats like JPG, BMP, and AVI.
