Gastroscope and Colonoscope Medical Gastrointestinal Endoscopy System

Customization:	Available
Type:	Electrosurgical
Application:	Emr-ESD-Ercp

Send Inquiry

Product Description

Basic Information

Feature

Reusable

Group

Children and Adult

Function

Flexible

Language

Multi Language

Model

CV170/190/290, Ect

Imaging

Evis Lucera Elite

Trolley

Wm-Np2

Package

Wooden Box

★

Product Description

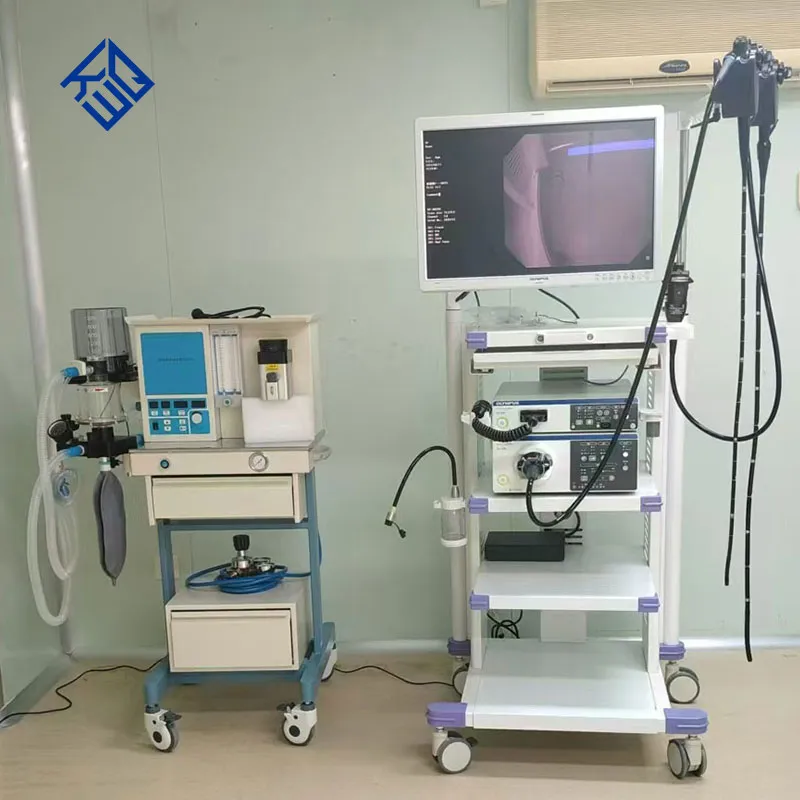

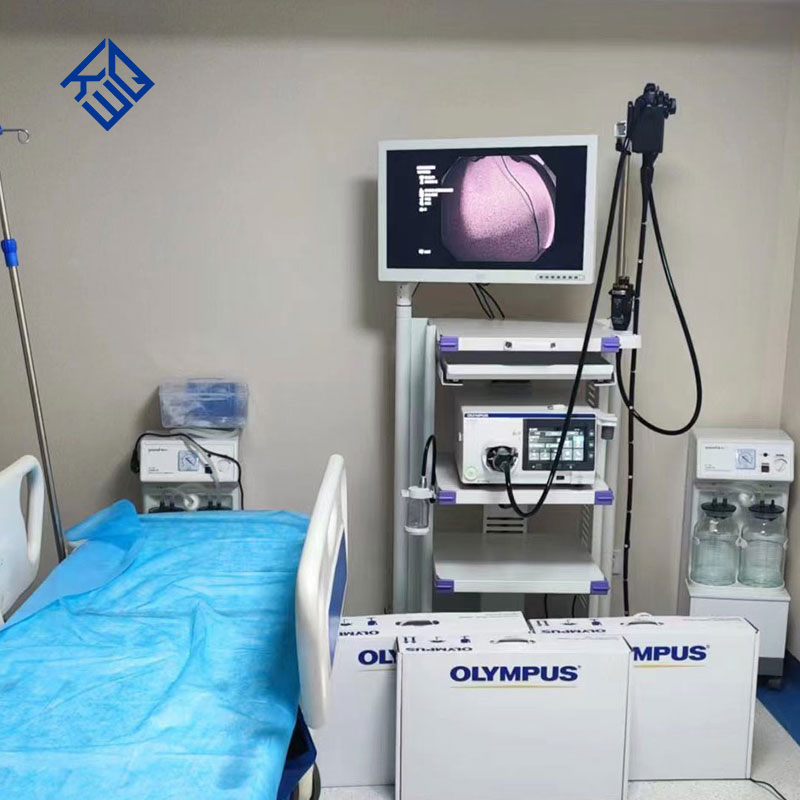

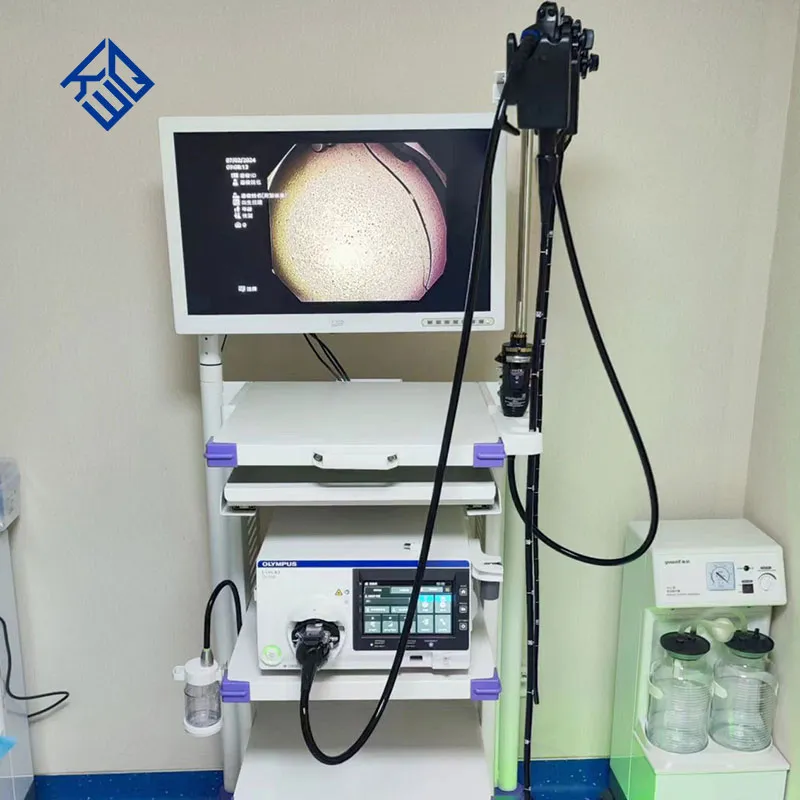

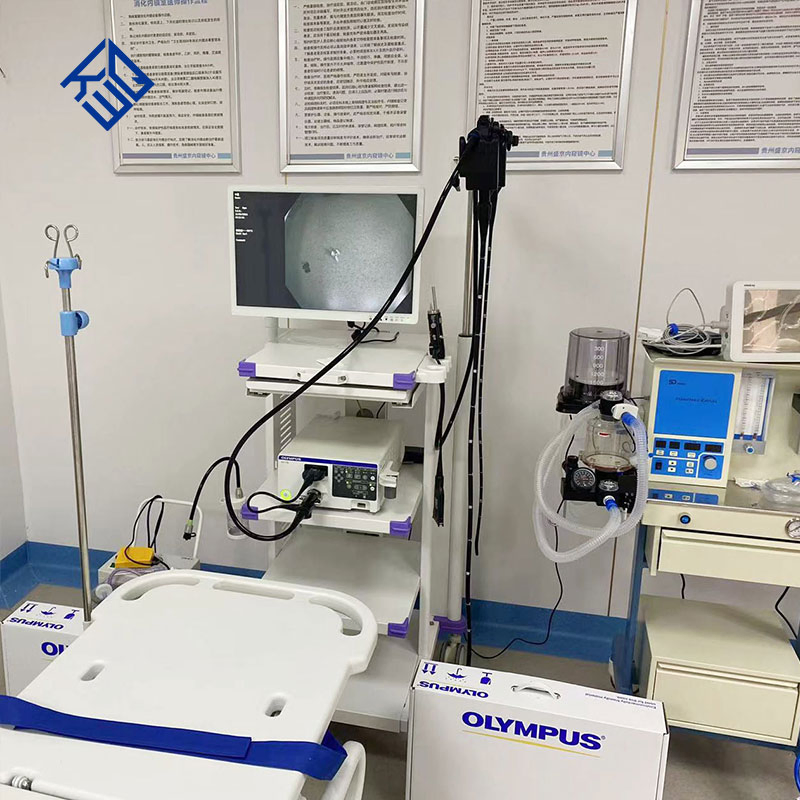

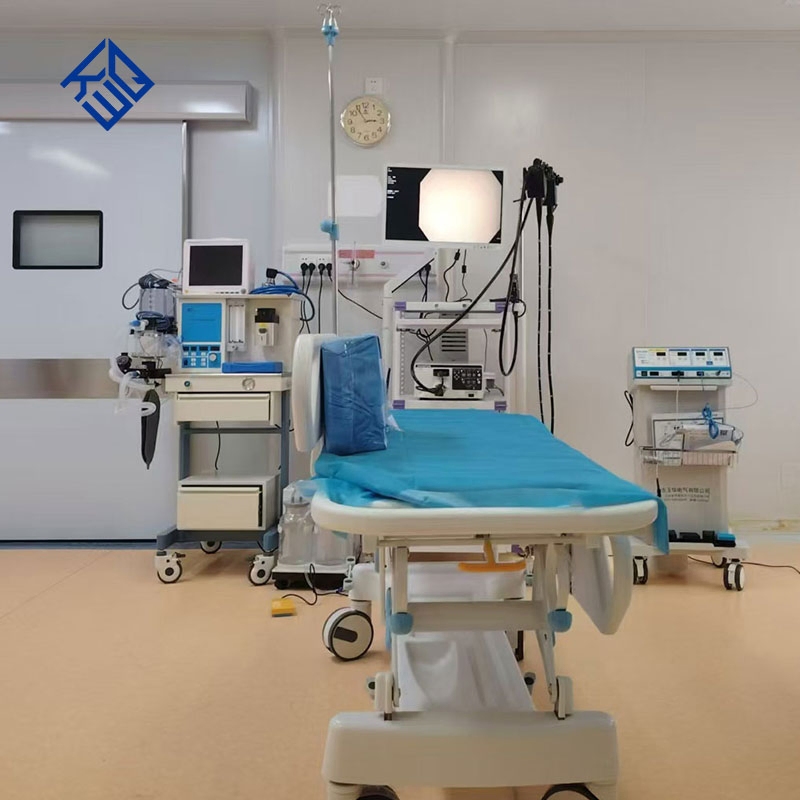

CV-290 + CLV-290SL + GIF-HQ290 + CF-HQ290I System

A New Standard for High-definition Upper Gastrointestinal Tract Endoscopes with Further Improved Approachability and Operability.

✔

Product Features

Improved Approach to Lesions	Rapid Hemostasis Support	HD Imaging Excellence

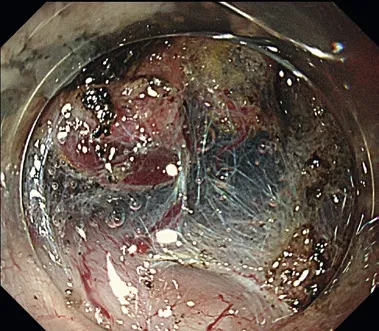

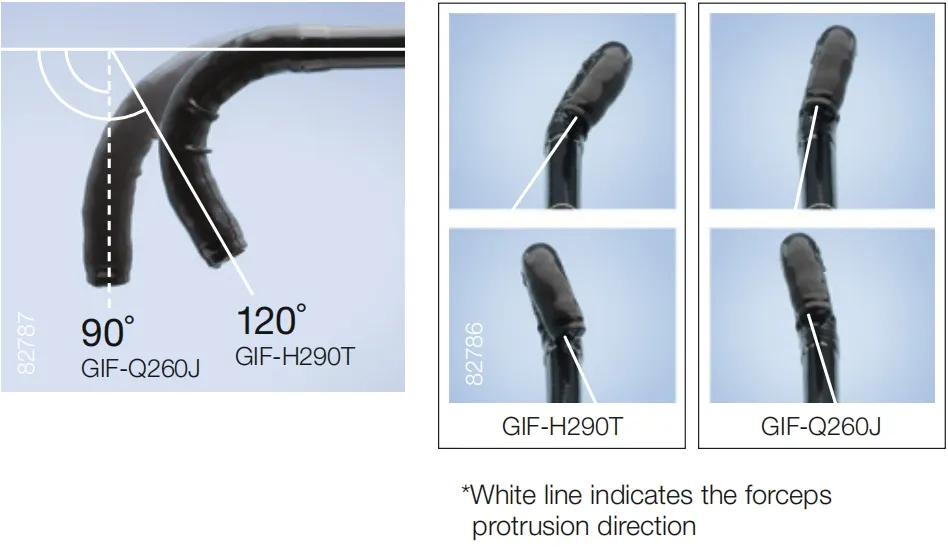

The down angle of the GIF-H290T has been expanded to 120˚ from 90˚. Moveable range during up angle position is extended for easier lesion approachability.	Features an improved position of the auxiliary water channel close to the instrument channel for smooth operation and adjustment-free water supply.	Equipped with a high-definition CCD, high-resolution HD images are provided to lead to significant improvement in treatment accuracy.

⚙

Technical Parameters

Optical System	Field of view	140º
	Direction of view	0° (Forward viewing)
	Depth of field	3-100 mm
Insertion Section	Distal end outer diameter	9.8 mm
	Insertion tube outer diameter	9.9 mm
	Working length	1030 mm
	Minimum visible distance	3 mm
Bending Section	Angulation range	Up 210º / Down 120º / Right 100º / Left 100º
System Total	Total Length	1350 mm

Frequently Asked Questions

1. Which video systems is this endoscopy equipment compatible with? The system is compatible with EVIS LUCERA ELITE series, including the CV-290 Video System Center and CLV-290SL/CLV-290 Xenon Light Sources.

2. What are the main improvements in the bending section? The down angle has been significantly expanded to 120˚ (up from 90˚), and the lateral moveable range during up-angling has been extended for better lesion access.

3. Does this system support high-definition imaging? Yes, it is equipped with a high-definition CCD that provides high-resolution HD images for superior clinical clarity and treatment accuracy.

4. How does the auxiliary water channel assist during procedures? The auxiliary water channel is positioned close to the instrument channel, allowing for rapid hemostasis by supplying water directly to the site without needing to adjust the scope position.

5. What is the insertion tube diameter for the gastroscope? The distal end outer diameter is 9.8 mm, and the insertion tube outer diameter is 9.9 mm, maintaining a slim profile for patient comfort.

6. Is this equipment suitable for both pediatric and adult patients? Yes, the device is designed for use across both children and adult patient groups.
