Customization: Available
Classification: Imaging Diagnostic Equipment
Type: Ultrasound Scanner
Send Inquiry

Product Description

📋 Basic Information
Model NO.ODU5
CertificationCE, ISO13485
ApplicationEyes
Scan ModeA Scan / B Scan
Usefor Human
Display10.4-inch LCD
HS Code90181210
Capacity1,000 PCS/Year
🔍 Product Overview

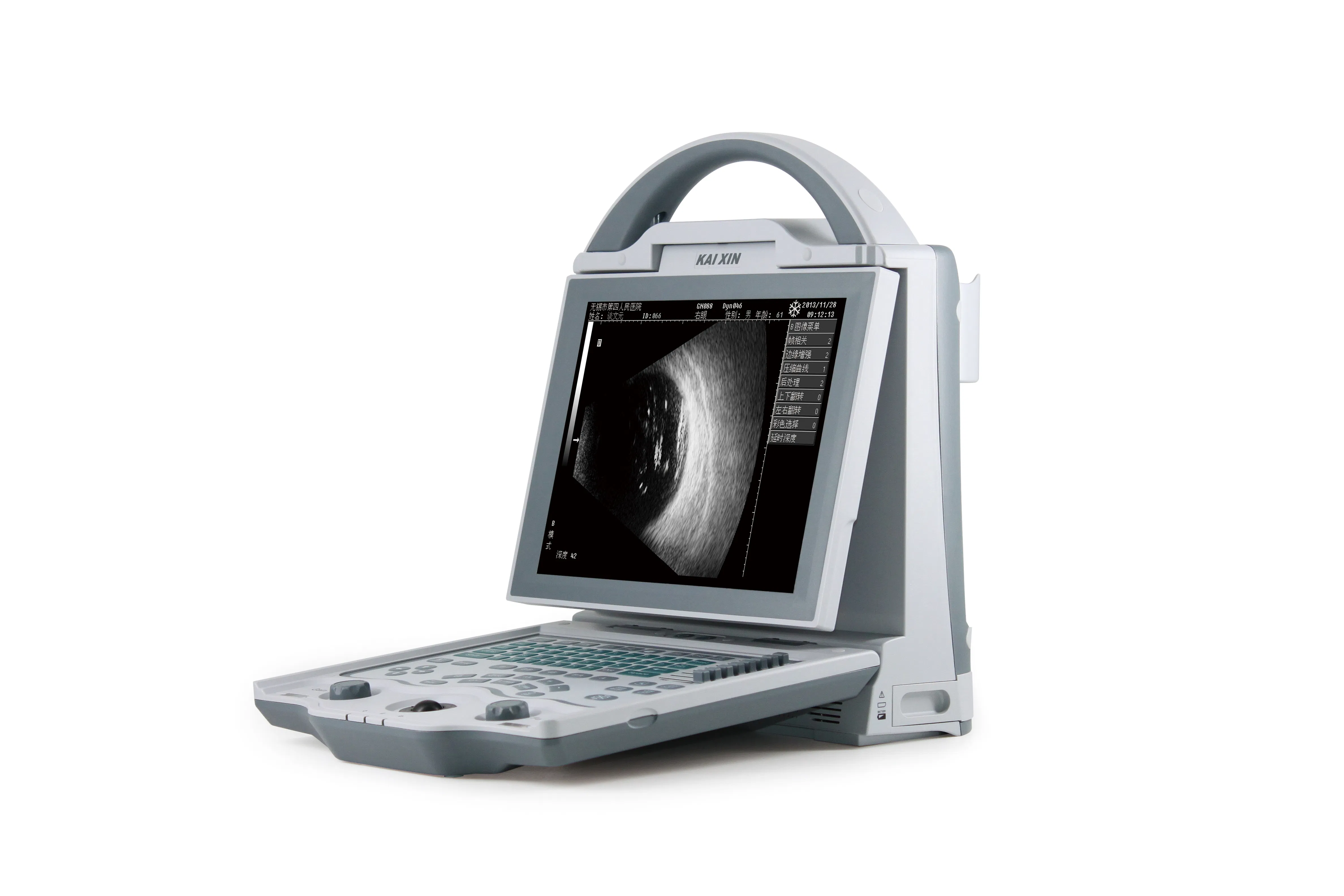

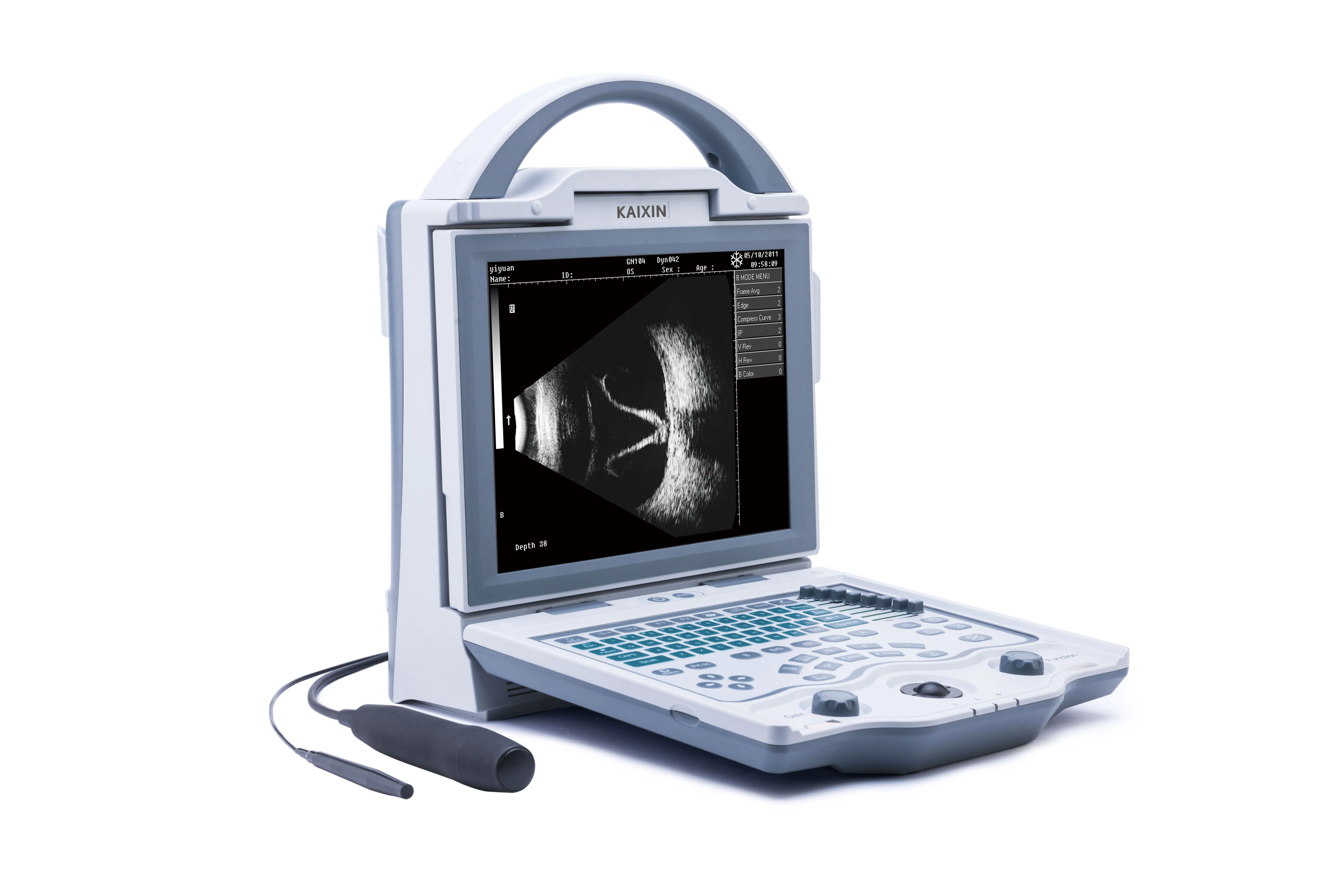

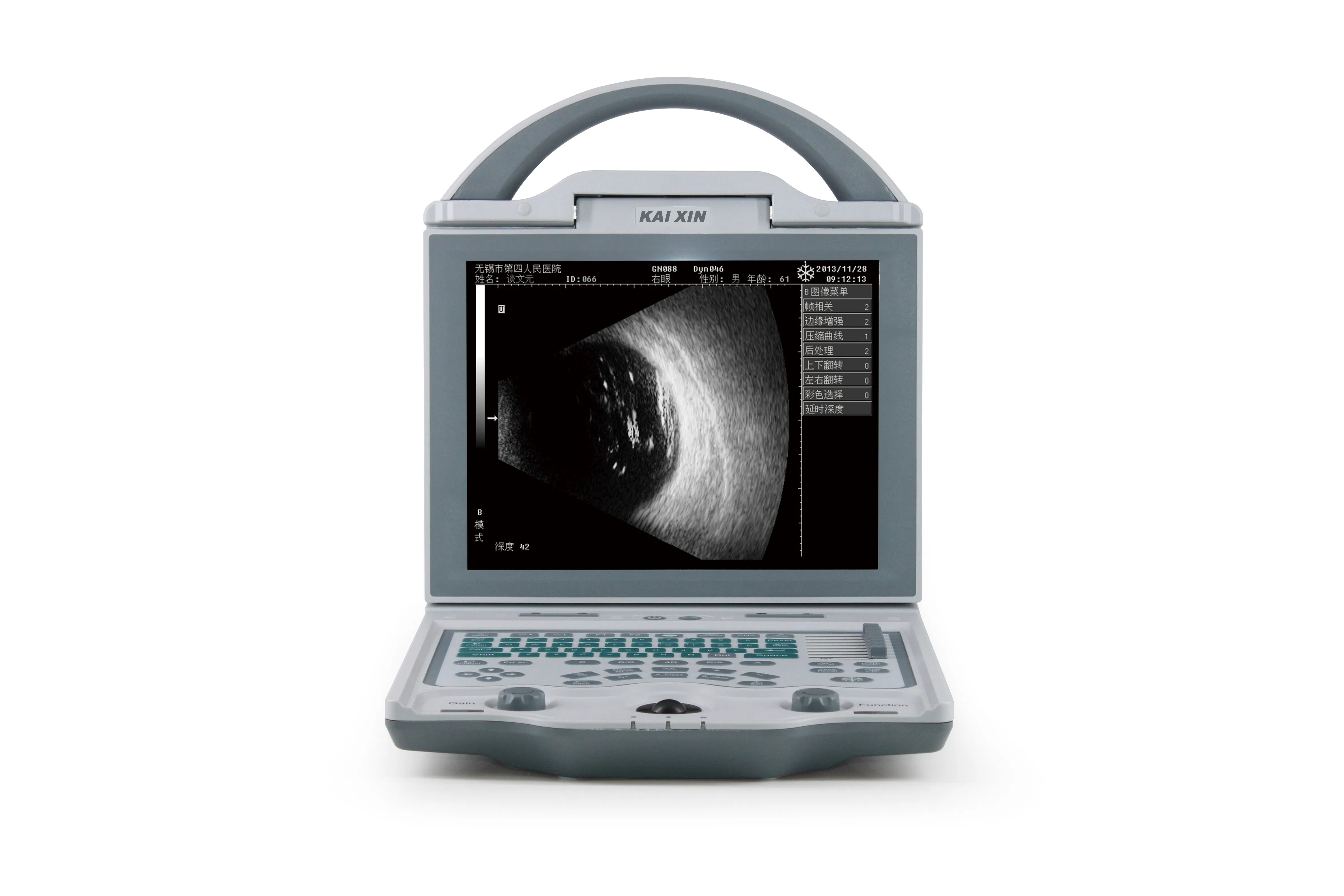

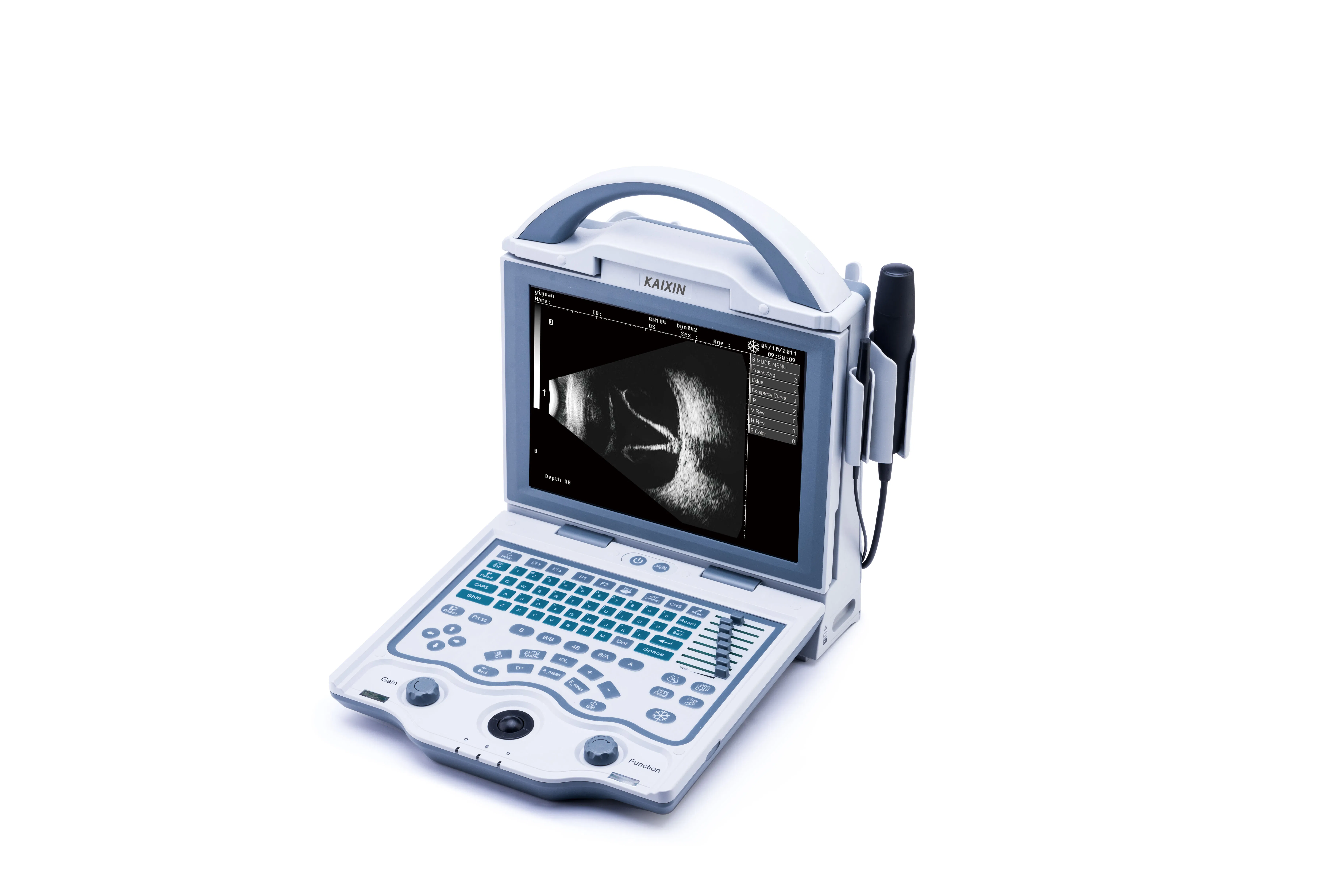

Advanced Ophthalmic A/B Scan ODU5

General Parameters
  • Features cutting-edge ARM9 Embedded Control Systems and FPGA signal processing systems.
  • Equipped with a vivid 10.4-inch high-resolution LCD screen for superior visibility.
  • User-friendly menu with bilingual operation options: Chinese and English.
  • Dual probe sockets for enhanced versatility and functionality.
  • A-mode probe: 10MHz, featuring an imported probe with fixation light for precision.
  • B-mode probe: 10MHz, equipped with an imported transducer for reliability.
  • Display modes include B, B/B, 4B, B/A, and A for comprehensive imaging options.
  • Gain range adjustable from 0 to 120dB for refined imaging control.
  • Dynamic range from 30 to 100dB, both visual and adjustable.
  • Supports 256 grayscale levels for detailed image clarity.
  • Intelligent TGC adjustment across 8 segments for customizable image tuning.
  • Built-in 4GB D disk for extensive data, image, and report storage.
  • Comprehensive report functions: print screen, IOL report, case report with images.
A-Scan Technical Specifications
Resolution0.01mm
Gain Adjustable0-120dB
Measurement Range12-43mm (1640m/s)
Accuracy±0.02mm
Eye ModeNormal/Aphakia/Dense Cataract/***, Acrylic & Silicon for Pseudo Phakic eyes
Measuring ModeContact and Immersion, automatic and manual
Measurement MethodsSingle-point measurement; five-point measurement (under A mode)
CalculationStd. deviation, average, auto measuring 8 groups, results correctable
IOL FormulaSRK-II, SRK-T, BINKHORST, HOLLADAY, HOFFER-Q, HAIGIS
B-Scan Technical Specifications
Scan ModeHigh accuracy stepping motor drive sector scan
Scan Angle53°
Display Depth0~56mm
Gray Scale256
Frame Correlation4
Edge Enhancement4
Image Storage100 frames permanent image storage
General MeasurementDistance, circumference, area (trace/ellipse), volume, angle, histogram, stenosis

Standard Configuration

No.Item
1Main unit (1 pc)
210MHz mechanical sector B probe (1 pc)
310MHz A probe (1 pc)
4Network cable (1 pc)

Optional Configuration

No.Item
1Large lithium battery 4400mAh

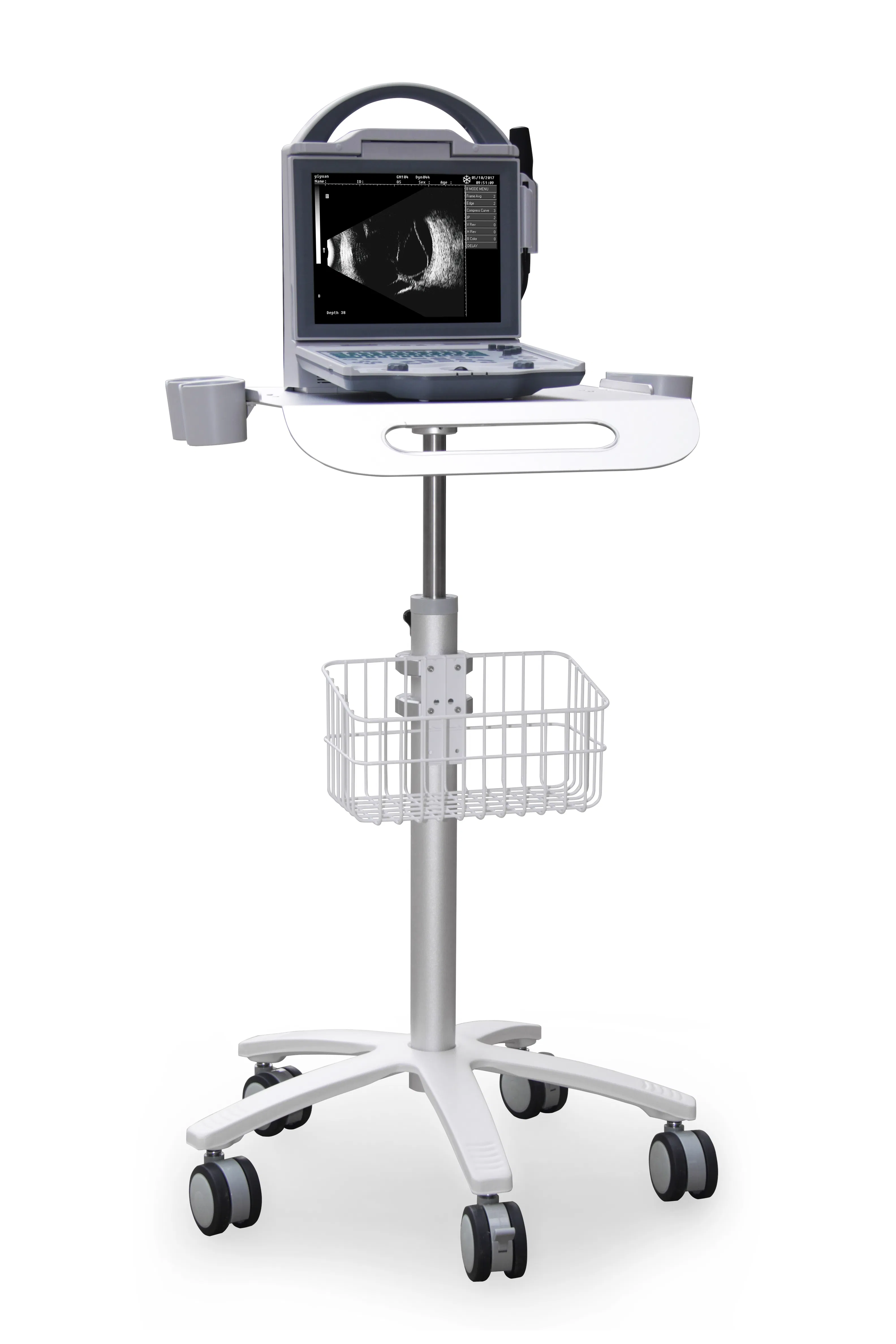

2Trolley
3Ethernet switch
4Foot switch
Ophthalmic A/B Scan Device View 1
Ophthalmic A/B Scan Device View 2
Frequently Asked Questions
What are the primary applications of the ODU5?
The ODU5 is designed specifically for ophthalmic use in eye hospitals, providing both A-scan and B-scan modes for detailed eye measurements and imaging.
Does the device support different eye modes for A-scan?
Yes, it includes modes for normal eyes, aphakia, dense cataracts, and pseudo-phakic eyes (Acrylic & Silicon).
What is the display quality of the unit?
The device features a 10.4-inch high-resolution LCD screen with 256 grayscale levels for superior diagnostic clarity.
Can I store patient data and images directly on the device?
Yes, it has a built-in 4GB disk for extensive storage of data, images, and clinical reports, plus a 100-frame permanent storage for B-scan images.
What IOL calculation formulas are available?
The ODU5 supports standard formulas including SRK-II, SRK-T, BINKHORST, HOLLADAY, HOFFER-Q, and HAIGIS.
Is the device portable for different clinic settings?
While the main unit is compact, you can opt for a trolley and a 4400mAh lithium battery for enhanced mobility and operation in various settings.
