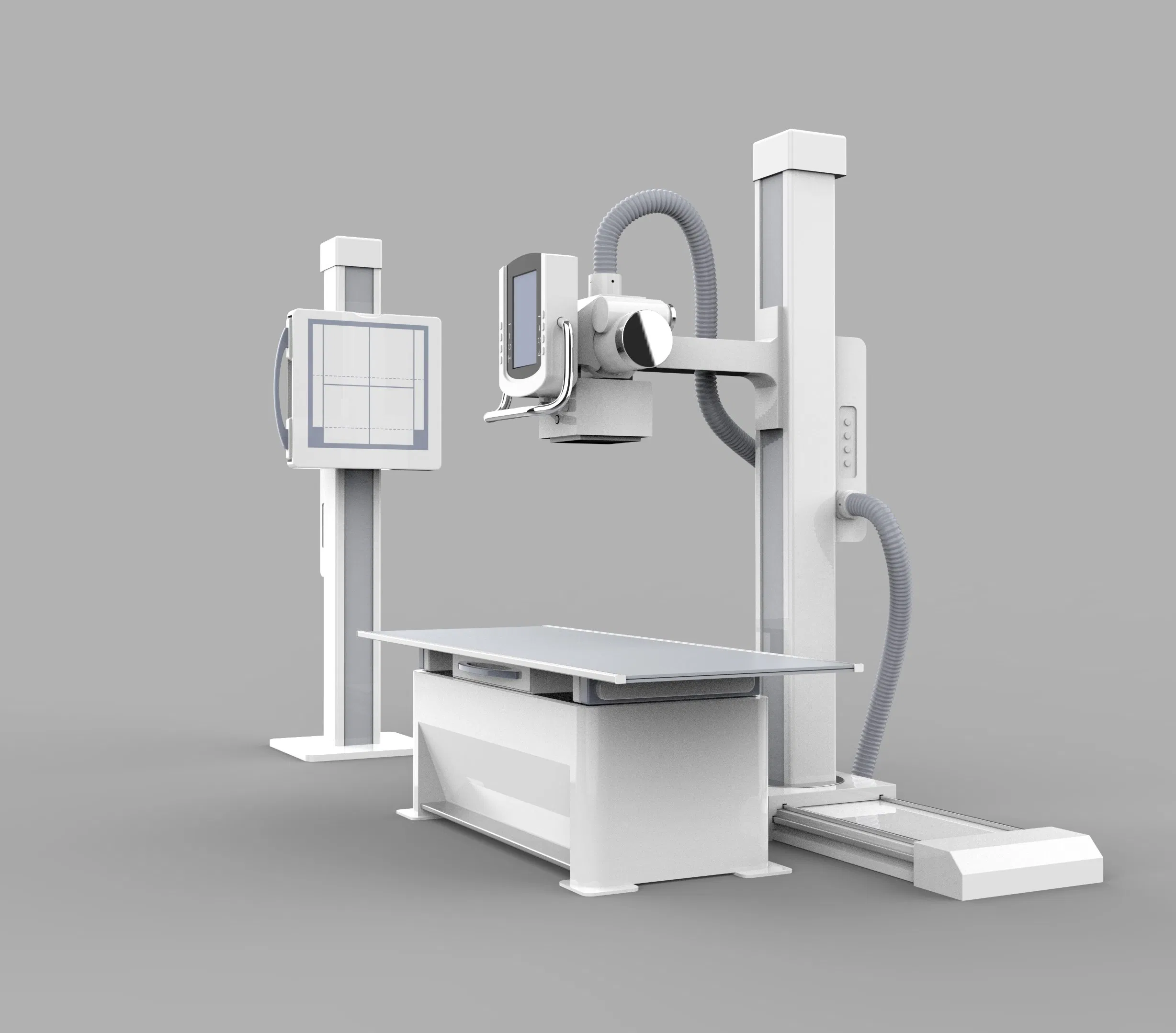

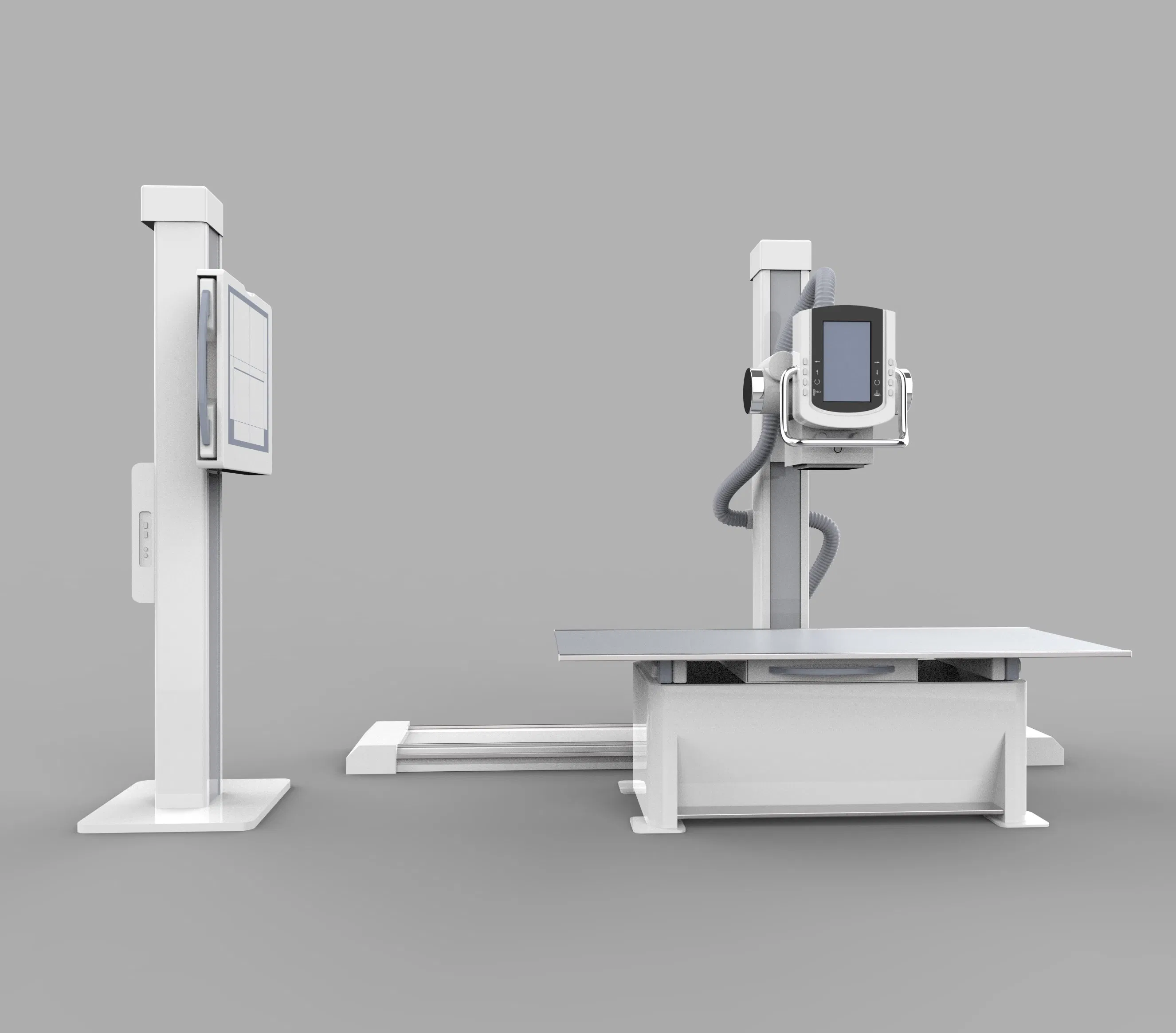

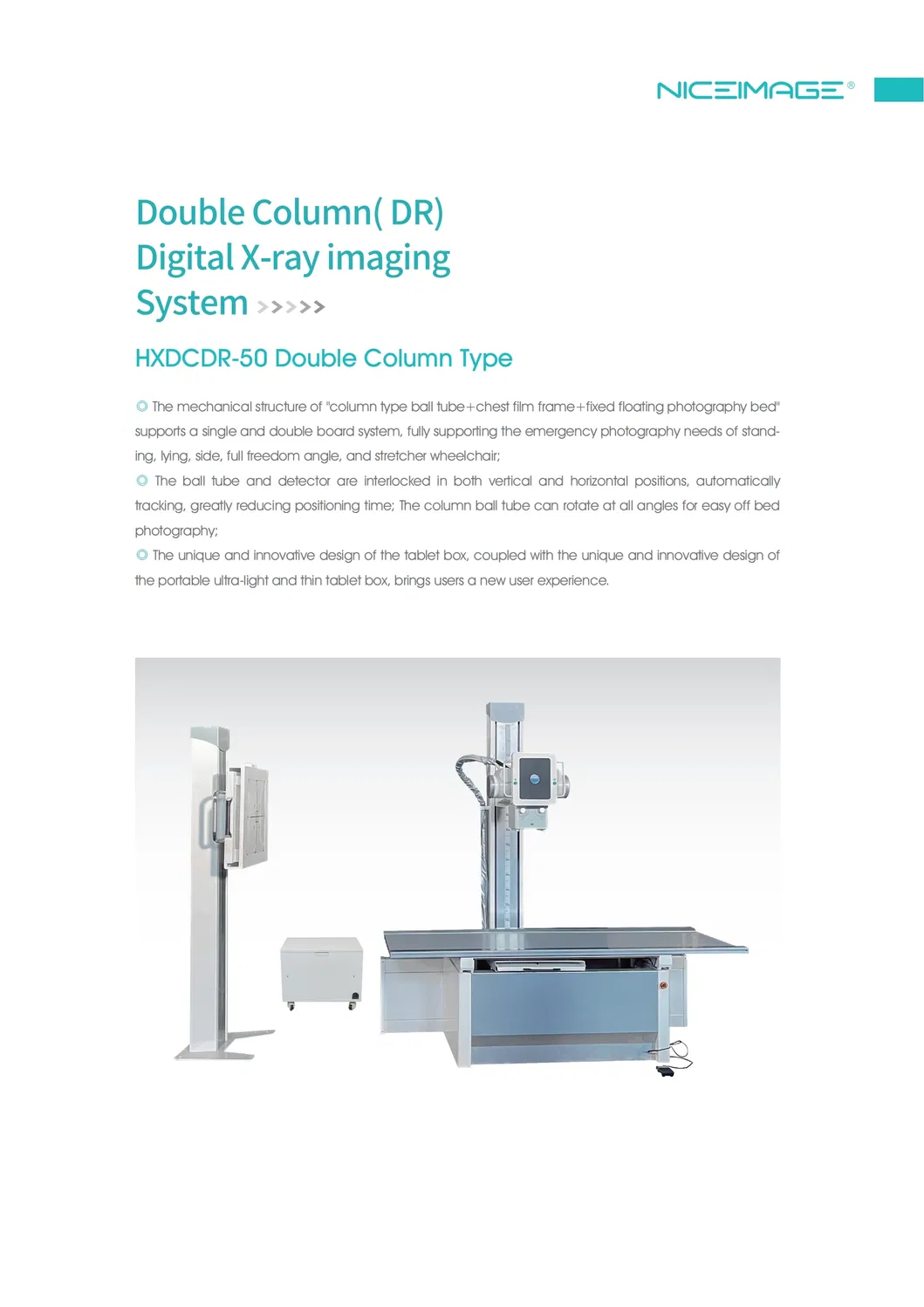

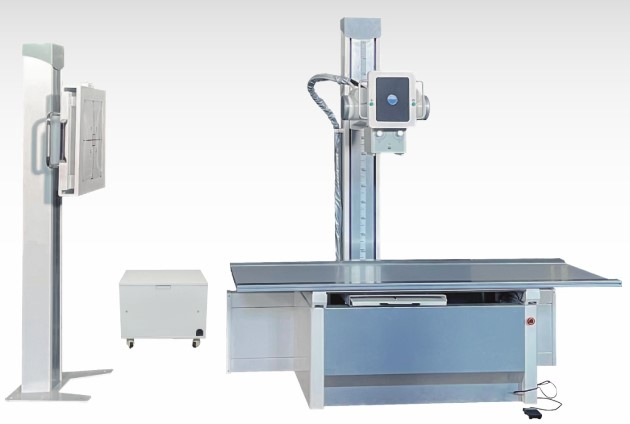

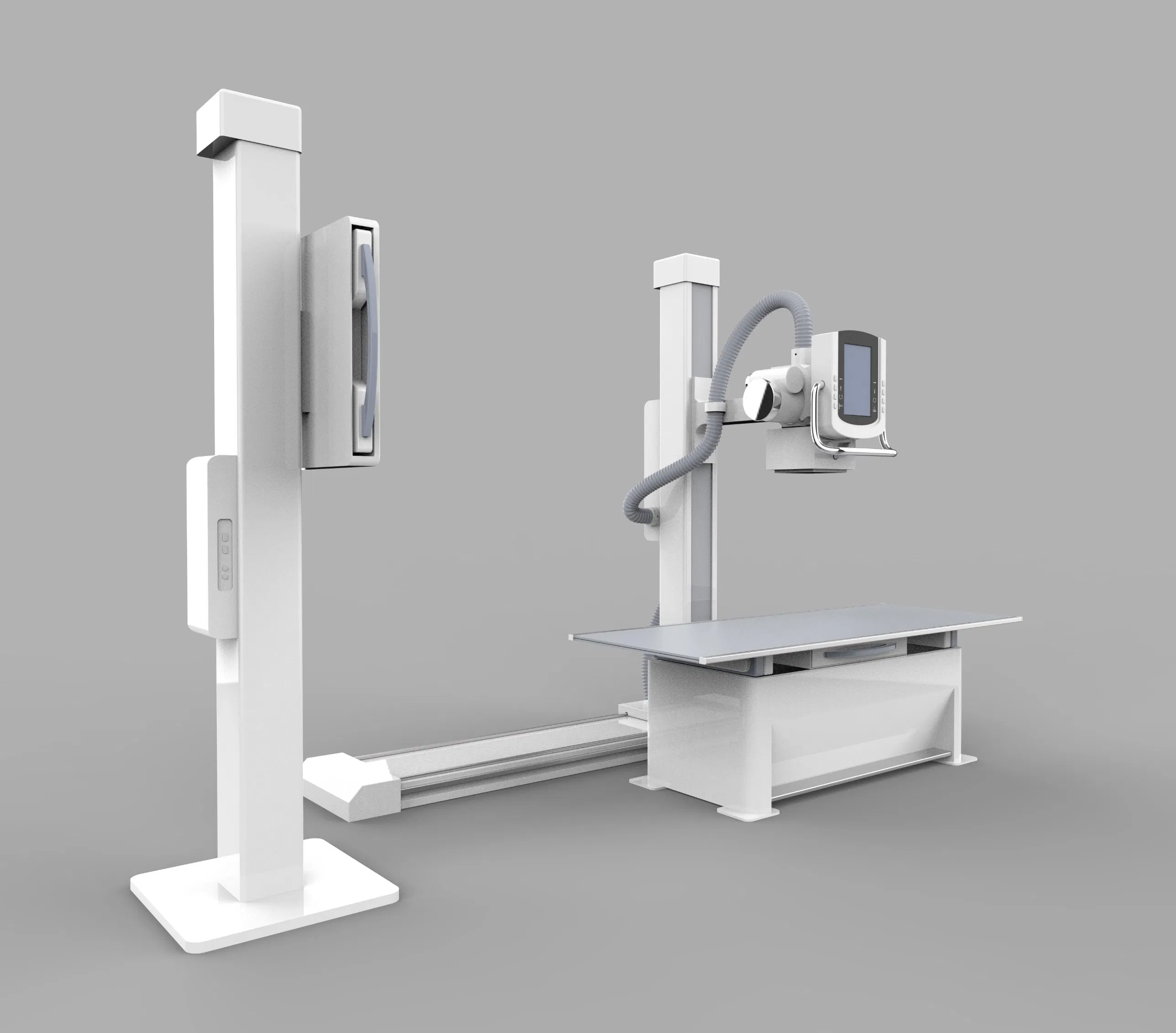

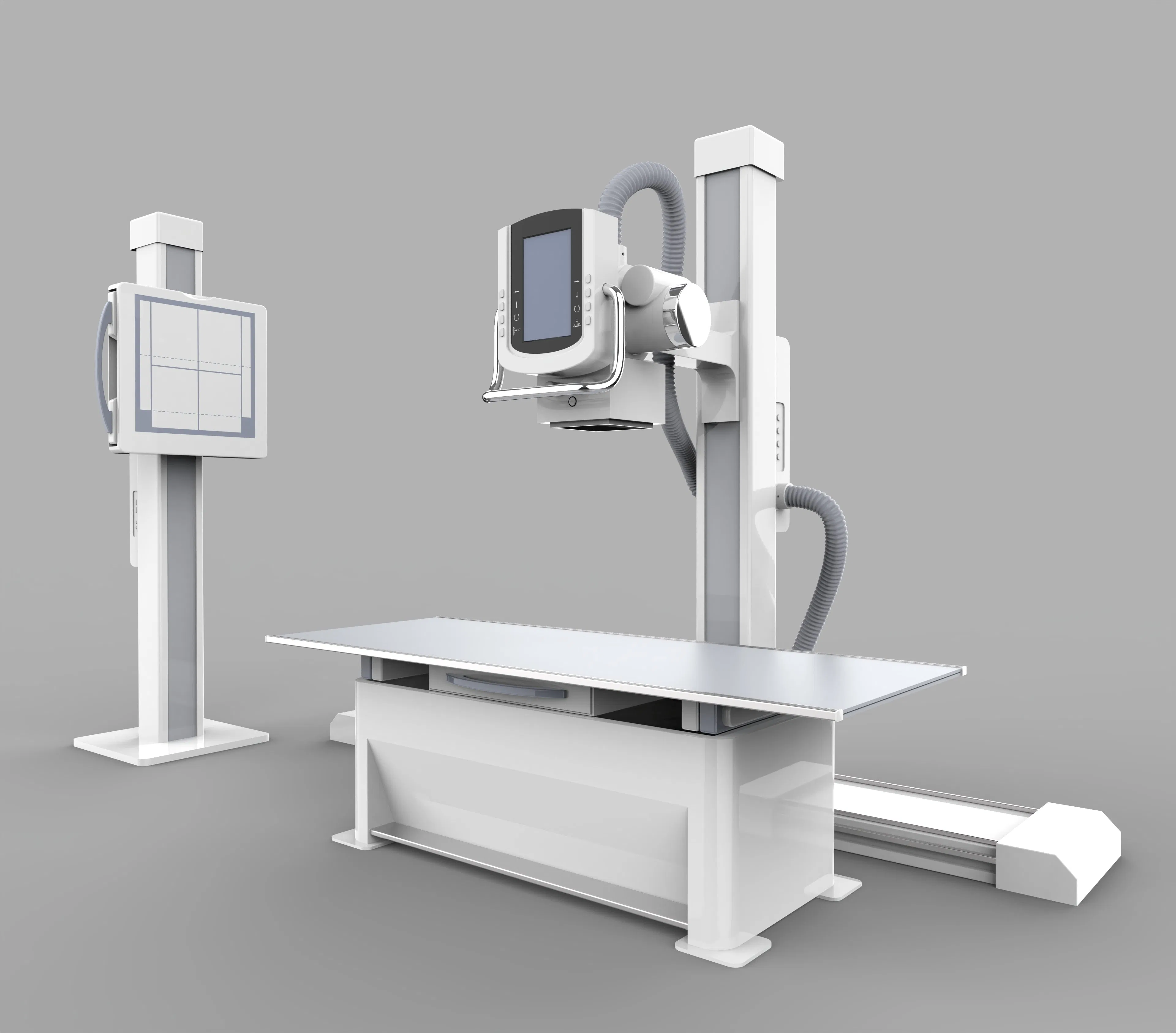

The mechanical structure of "column type ball tube+chest film frame+fixed floating photography bed" supports a single and double board system, fully supporting the emergency photography needs of standing, lying, side, full freedom angle, and stretcher wheelchair.
The ball tube and detector are interlocked in both vertical and horizontal positions, automatically tracking, greatly reducing positioning time; The column ball tube can rotate at all angles for easy off bed photography.
The unique and innovative design of the tablet box, coupled with the unique and innovative design of the portable ultra-light and thin tablet box, brings users a new user experience.

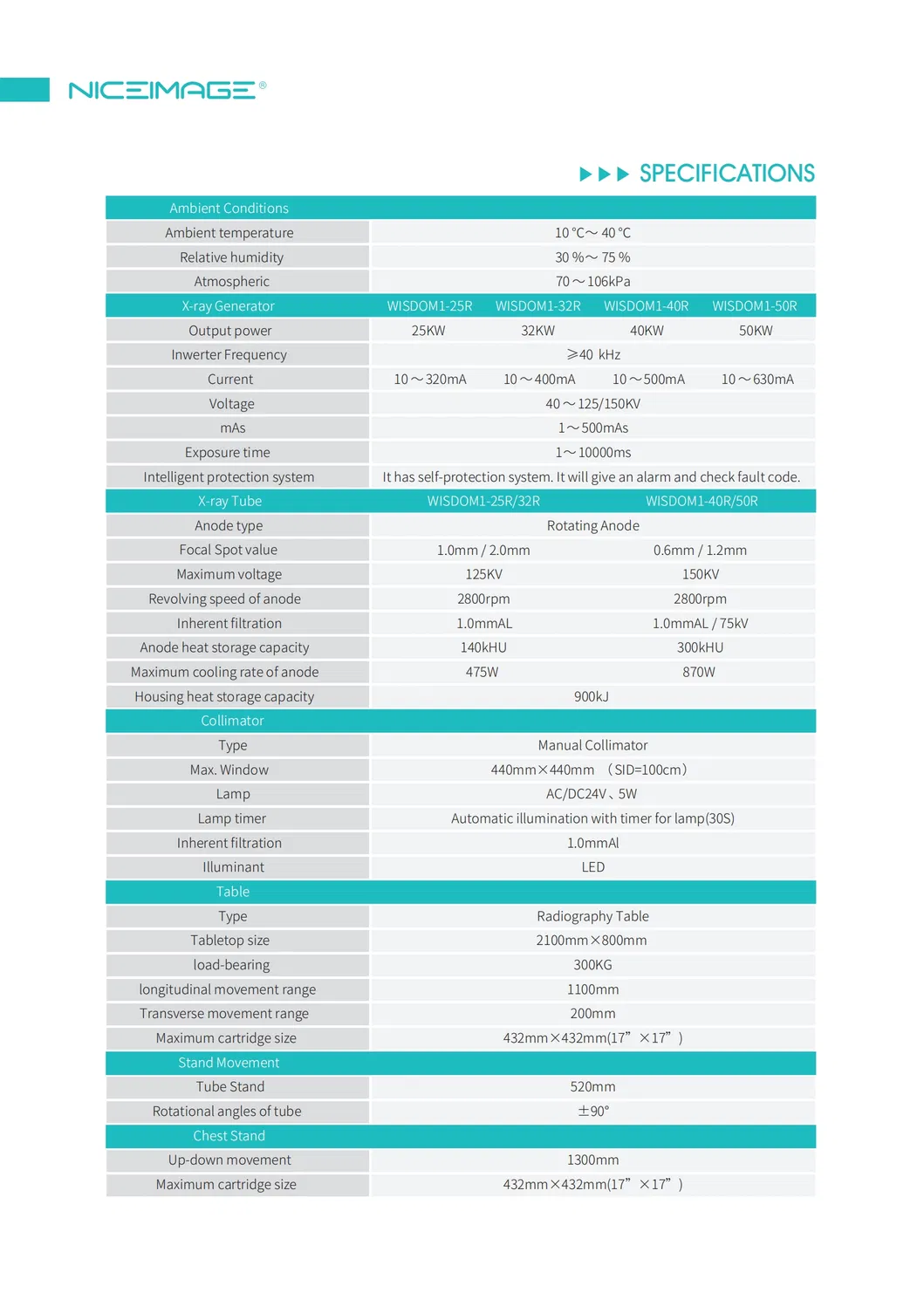

| X-ray Generator & Parameters | ||||
|---|---|---|---|---|
| Ambient temperature | 10°C-40°C | |||
| X-ray Generator | WISDOM1-25R | WISDOM1-32R | WISDOM1-40R | WISDOM1-50R |
| Output power | 25kW | 32kW | 40kW | 50kW |
| Current | 10~320mA | 10~400mA | 10~500mA | 10~630mA |
| Voltage | 40~125/150kV | |||
| Inverter Frequency | ≥40 kHz | |||
| Mechanical System | ||||
| Tabletop size | 2100mm x 800mm | |||
| Load-bearing | 300kg | |||
| Tube Stand Movement | 520mm | |||
| Rotational angles | ±90° | |||
