Usage: It is used for continuous infusion during clinical ease-pain treatment, to relieve or lenitive pain.
| Type | Product Code | Max Capacity (ml) | Flow Rate (ml/h) | Bolus (ml/time) | Time Lock-out (min) |
|---|---|---|---|---|---|
| Without Bolus | CBI-M100 | 100 | 2.0/3.0/4.0/5.0 | / | / |
| Without Bolus | CBI-M275 | 275 | 2.0/3.0/4.0/5.0 | / | / |
| With Bolus | CBI+PCA-M100 | 100 | 2.0/3.0/4.0/5.0 | 0.5 | 15 |
| With Bolus | CBI+PCA-M275 | 275 | 2.0/3.0/4.0/5.0 | 0.5 | 15 |
| Multirate | CBI+PCA-MR100 | 100 | 2-4-6-8 | 0.5 | 15 |
| Multirate | CBI+PCA-MR275 | 275 | 2-4-6-8 | 0.5 | 15 |

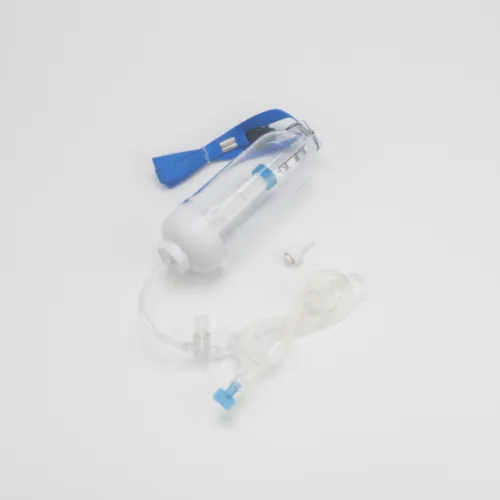

CBI Type (Without Bolus)
Single Speed, 60ml-275ml

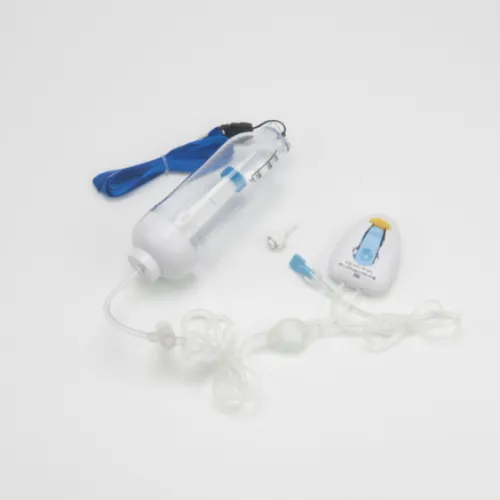

CBI+PCA Type (With Bolus)
Patient-Controlled Analgesia

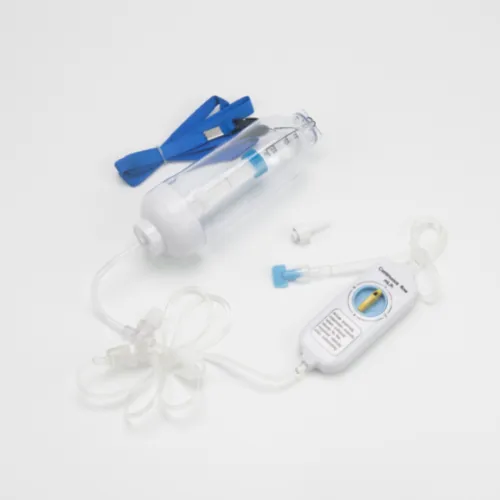

Multirate Type
Four-speeds Controller

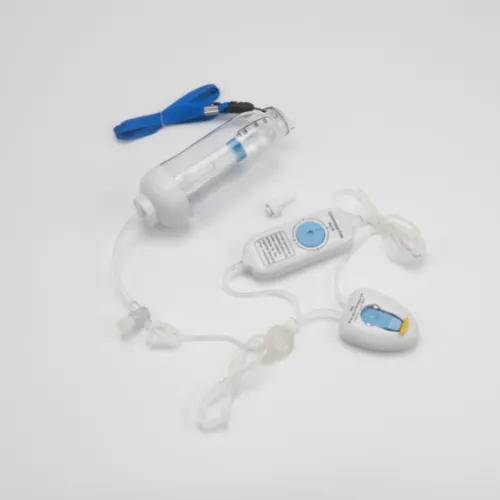

Multirate Type (With Bolus)
PCA & Multirate Controller

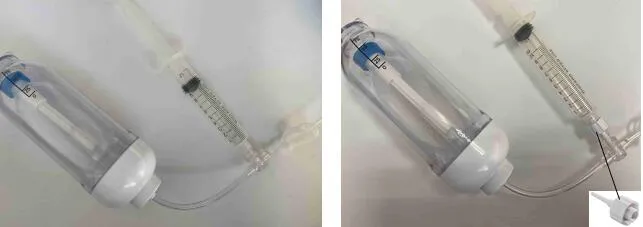

Close the clip, use a syringe to add medicine into reservoir from injection set. Connect the white set with syringe to make medicine return to syringe, to dispenser different drug into the reservoir.
Departments: Emergency room, Operating room, Pediatrics, Obstetrics and Gynecology, Hematology department, Internal operation and General operation.
Clinical Application: Widely used for continuous infusion of liquid medicine such as blood pressure medication, anticoagulants, hormones, oxytocin, chemotherapy, and analgesics.

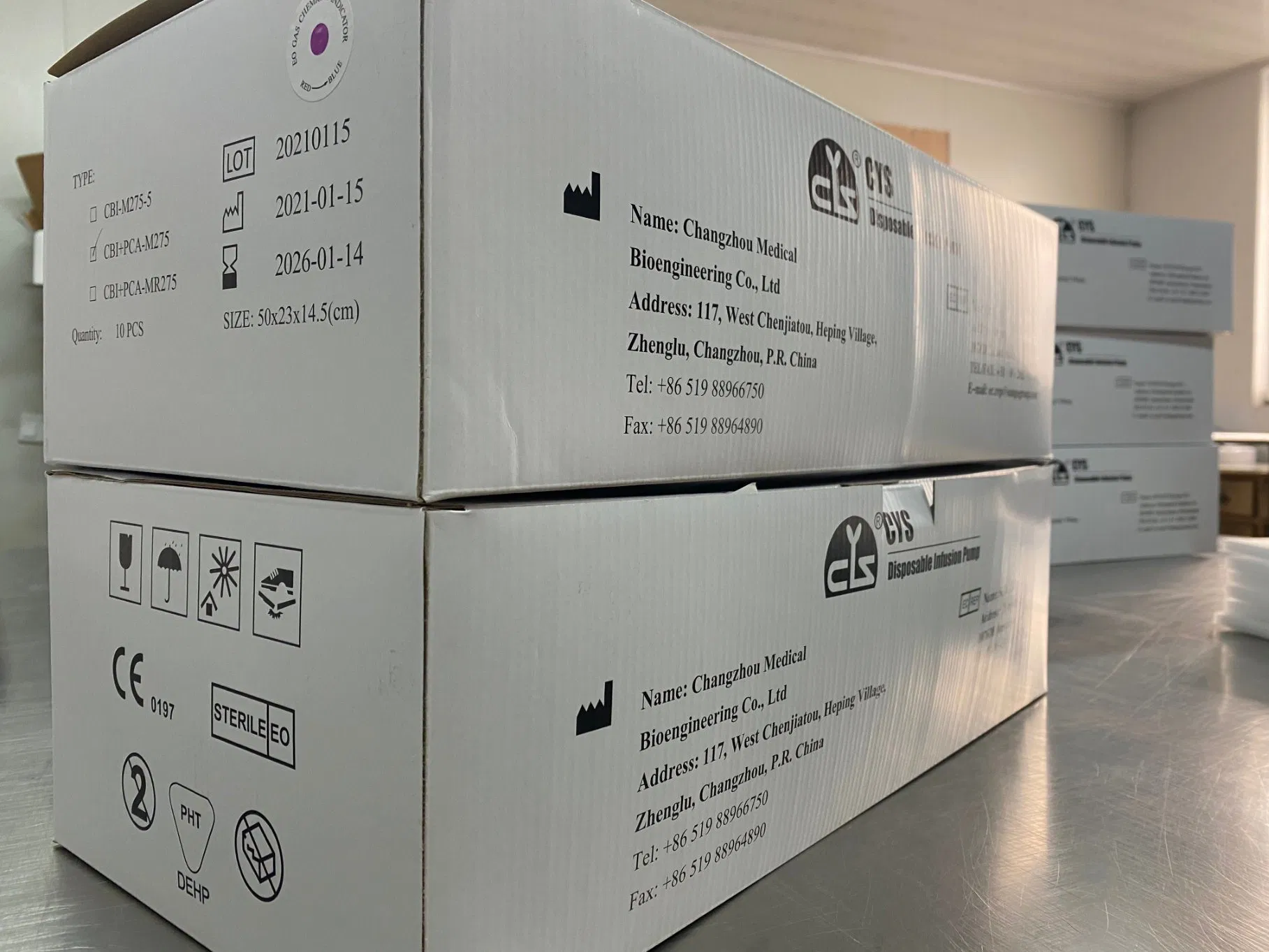

CE 0197 | ISO 13485 | Free Sales Certificate | CFDA Registration Certificate
It is primarily used for continuous infusion of liquid medicines to manage pain during clinical treatments, chemotherapy, or labor analgesia.
CBI provides a constant infusion rate (Single Speed), while PCA (Patient-Controlled Analgesia) includes a bolus function allowing patients to self-administer additional doses within safe limits.
Adjustment is available on "Multirate" models which feature a controller to select between four different speeds (e.g., 2-4-6-8 ml/h).
Yes, the pump includes an integrated filter that effectively screens out air bubbles, germs, and particles to prevent dose blockage.
The reservoir is made of medical-grade silicone, the glue is German world-class quality, and the product is DEHP-free, ensuring high clinical safety.
The product has a quality guarantee period of five years from the date of manufacture when stored under proper conditions.
