| Model NO. | YSX500D(YSF50DR-B3) |
| Time Range | 2ms - 10s |
| Mas | 0.1mas - 630mas |
| Working Frequency | ≥ 400kHz |
| Control Panel | LCD Touch Screen |
| Max. Tube Voltage | 150kv |
| Focus | Small Focus: 0.6mm; Big Focus: 1.2mm |
| Anode Input Power | Small Focus 19kw, Big Focus 50kw |
| Target Angle | 12° |
| Anode Speed | 2800rpm |
| Heat Capacity | 150khu |
| Transport Package | Plywood Case |
| Origin | China |
| Production Capacity | 1000 PCS/Year |

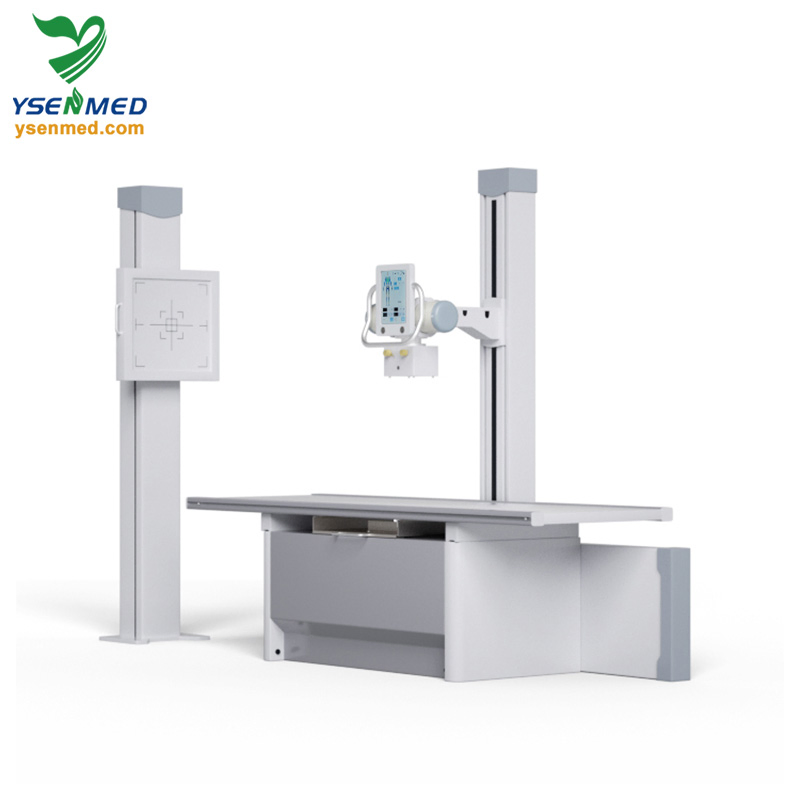

Featuring a max voltage of 150kV with dual focus options (0.6mm/1.2mm). The anode input power reaches up to 50kW with a target angle of 12° and 2800rpm rotation speed, ensuring efficient heat management (150kHU capacity).

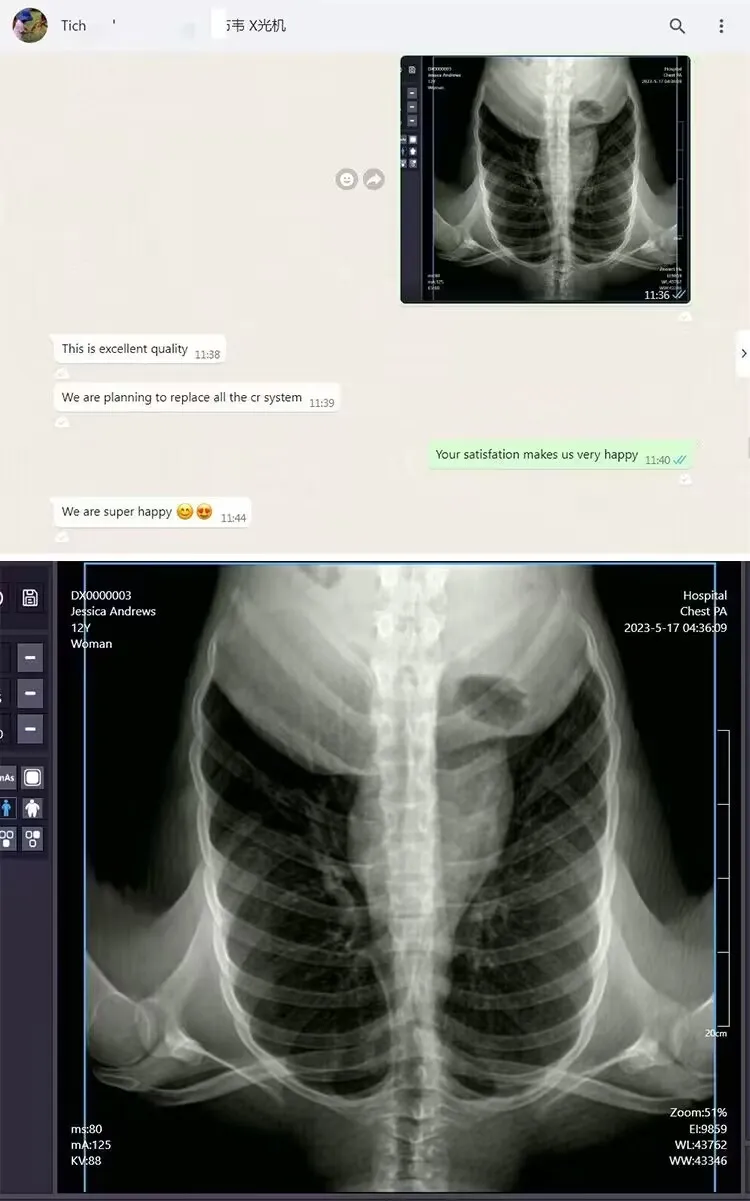

Equipped with GOS & Csl technology, the 14x17 inch detector provides high-resolution imaging with a 140μm pixel size and 16Bit A/D conversion for precise medical diagnostics.

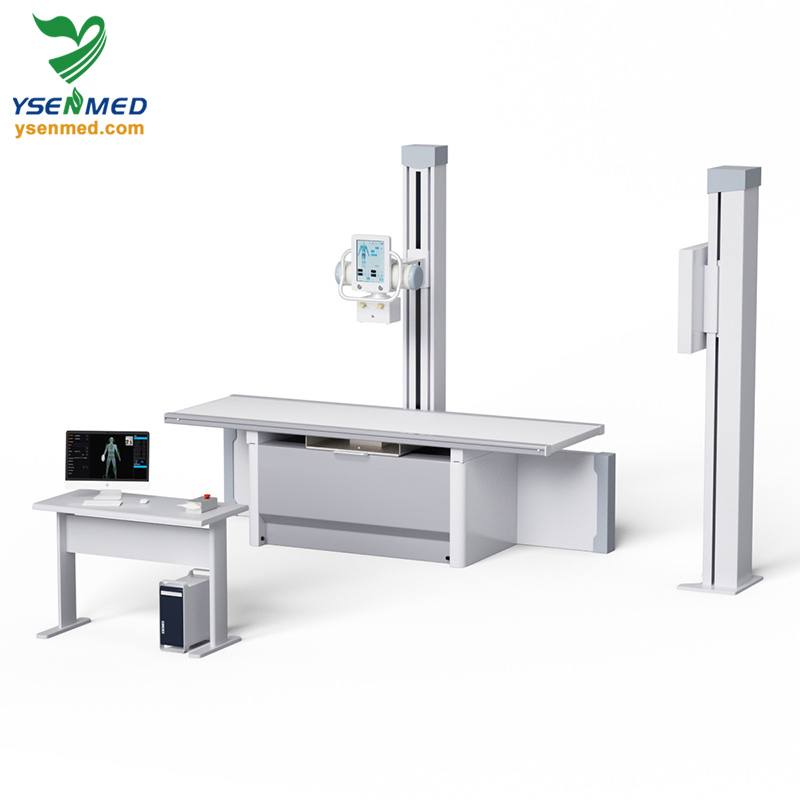

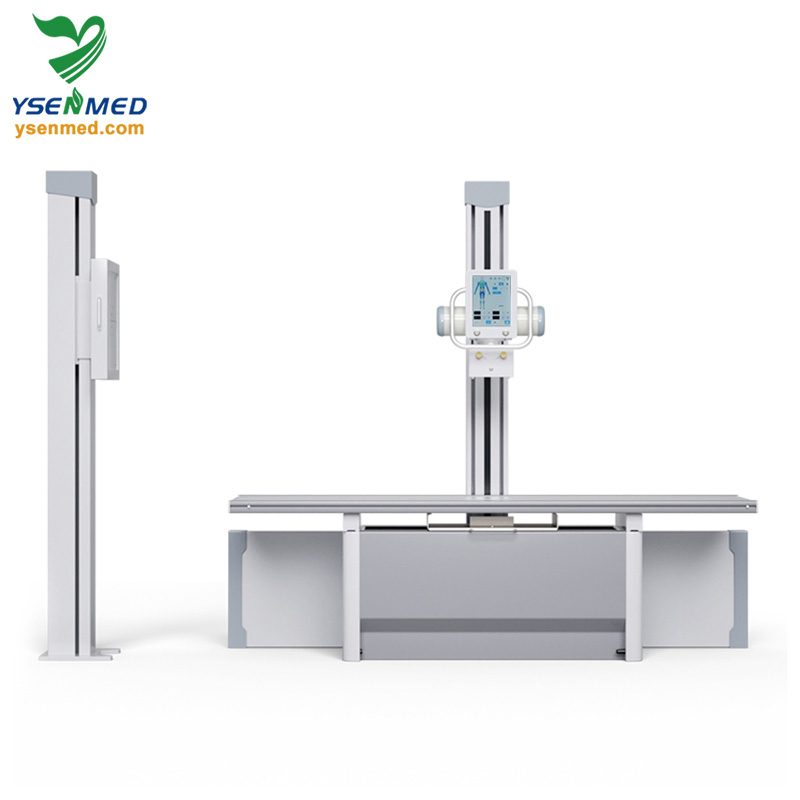

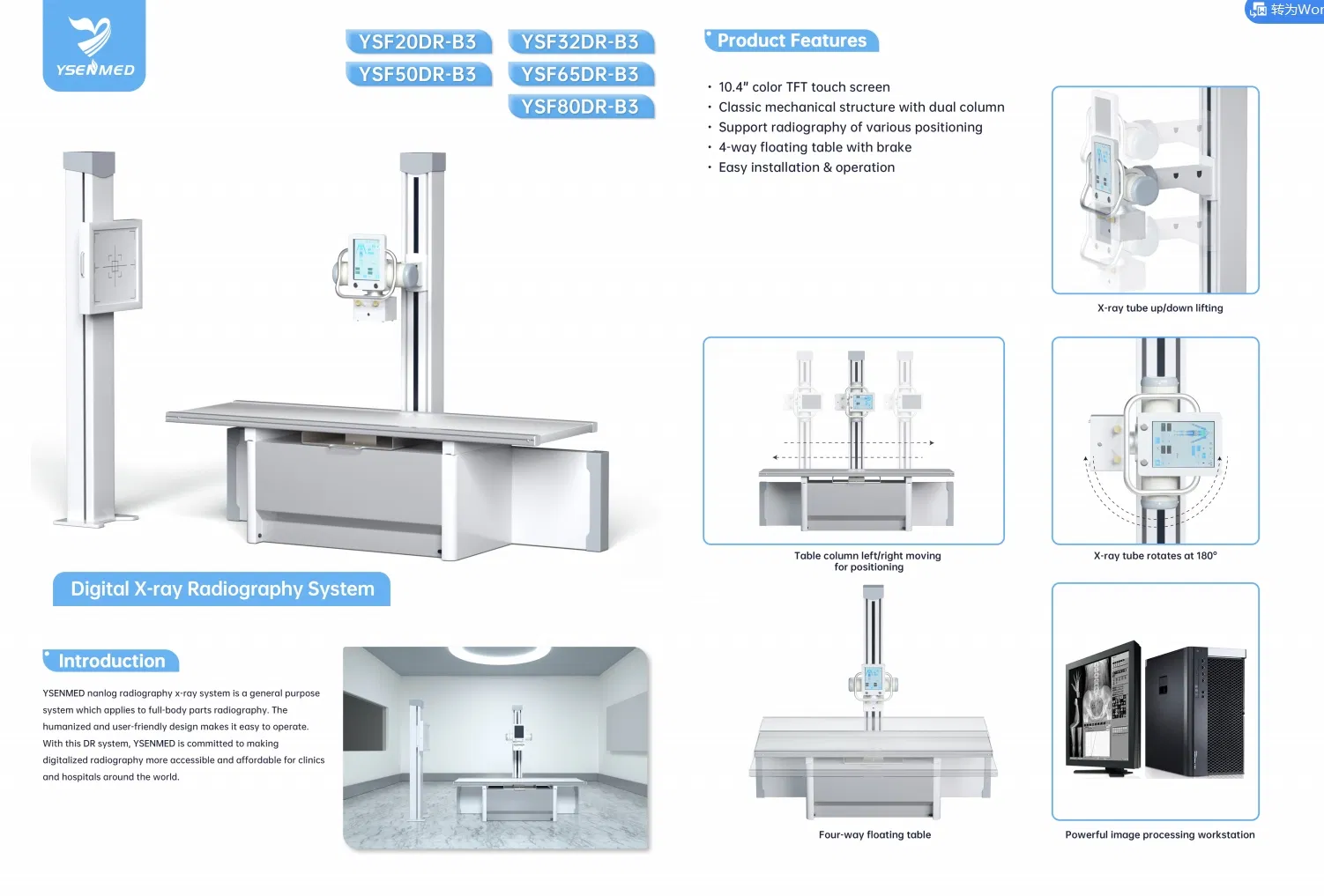

Large table size (2100mm × 825mm × 655mm) with electromagnetic locking and pedal switch control. The tube column offers ±180° rotation and extensive moving ranges for flexible positioning.
| NO. | Part Names | Qty | Remarks |
|---|---|---|---|
| 1 | High Frequency Generator | 1 pc | - |
| 2 | Control Panel | 1 pc | - |
| 3 | X-ray Tube | 1 set | - |
| 4 | Collimator | 1 pc | - |
| 5 | Flat Panel Detector with Software | 1 set | 14*17 |

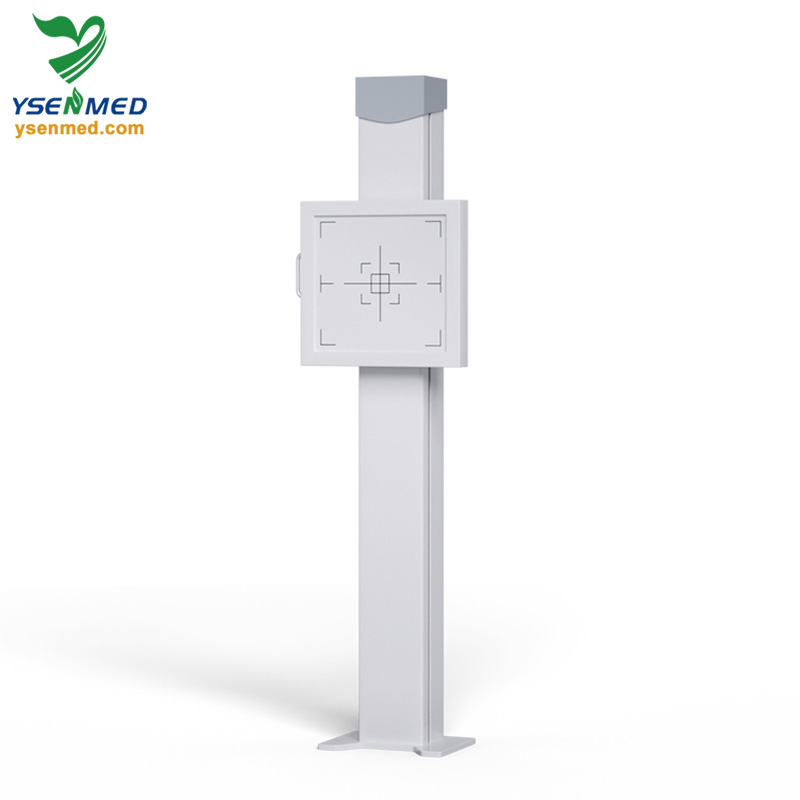

| 6 | Bucky Stand | 1 pc | - |
| 7 | Radiography Table | 1 pc | - |
| 8 | Workstation (Computer) | 1 set | - |
| 9 | Grid | 2 pc | 18"×18" JPI |
| 10 | High Voltage Cable | 1 pair | 75kV |

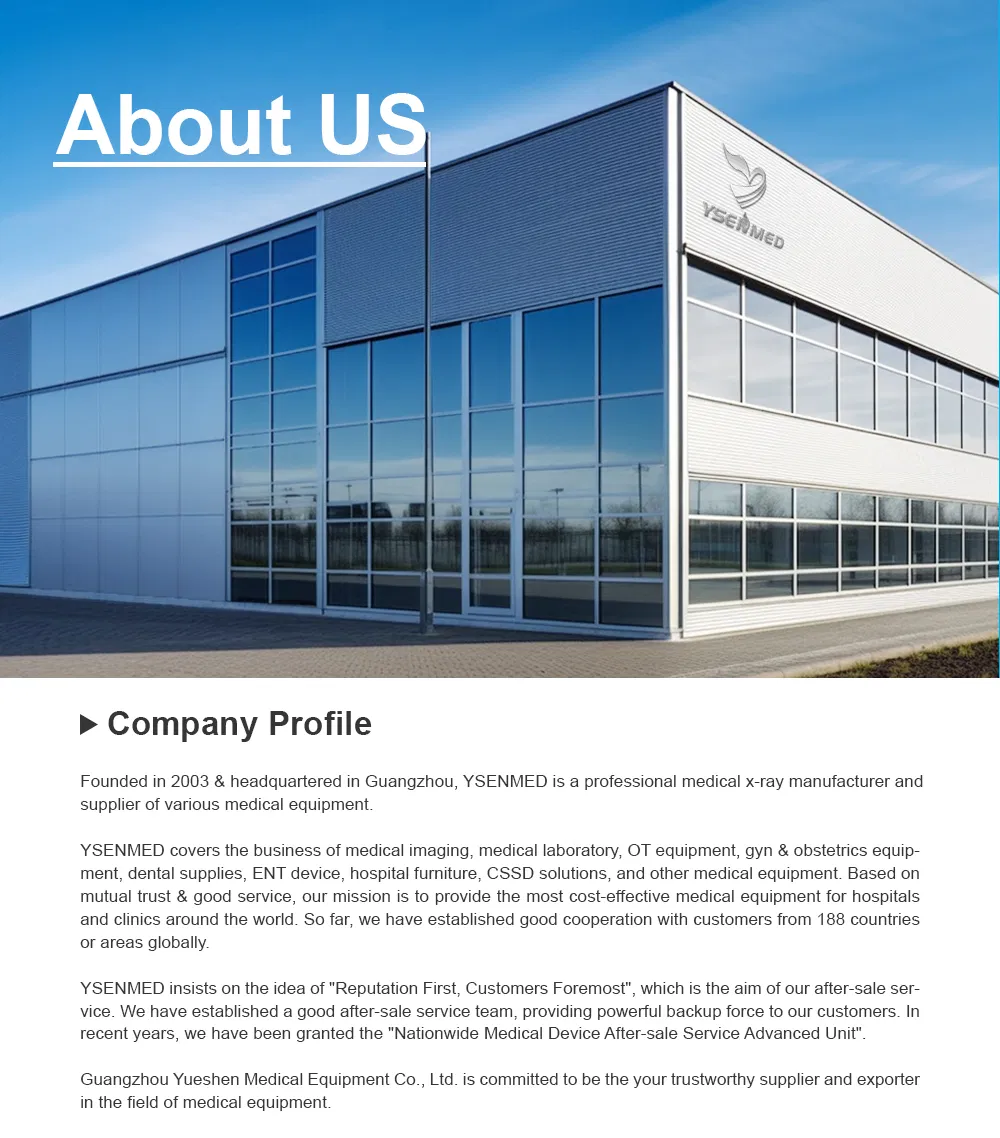

Our company is a professional supplier of medical equipment, specialized in the R&D and sale of high-end medical devices, particularly in the field of medical x-ray radiography systems. With decades of experience, we provide a comprehensive range of imaging solutions, laboratory instruments, and operation room equipment to hospitals and clinics worldwide.
