Compact Electric Peristaltic Infusion Pump for Clinics and Emergencies

Customization:	Available
Classification:	Surgical Equipment
Type:	First-Aid Devices

Basic Information

Model NO.

UM-SP-S25

Certification

ISO13485, CE

Warranty

1 Year

Power Source

Electric (220V 50Hz)

Product Name

Infusion Pump

Instrument Classification

Class II

Feature

Economical & Portable

Work Mode

Continuous Working

Production Capacity

50,000 PCS/Month

Product Description

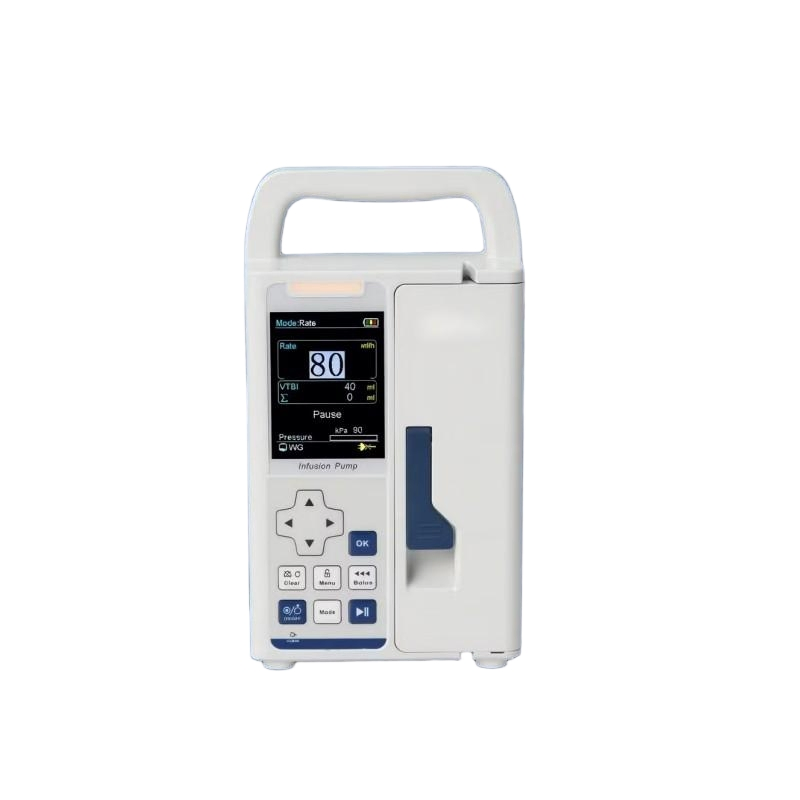

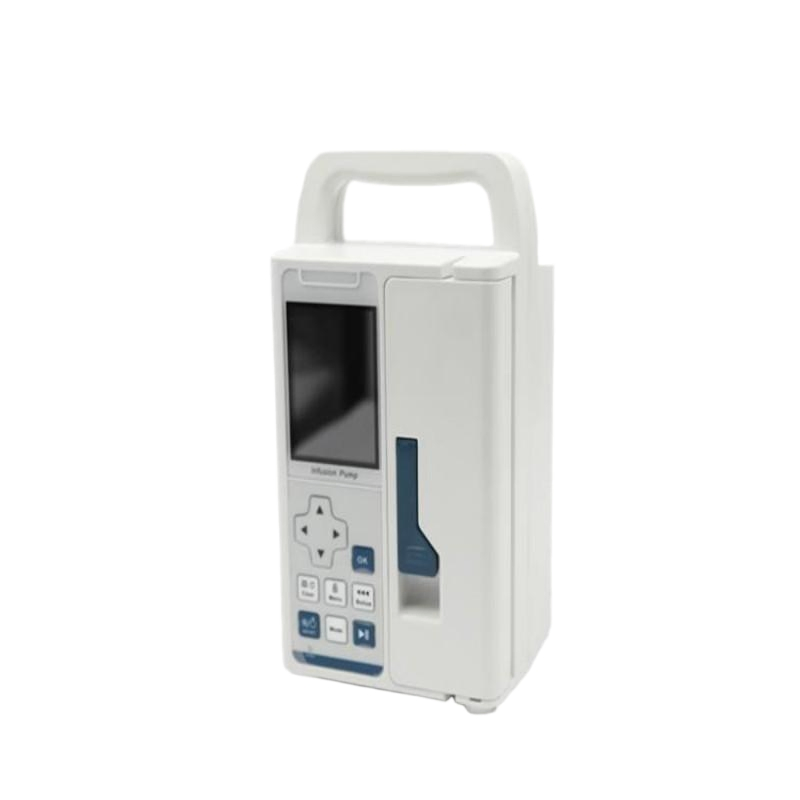

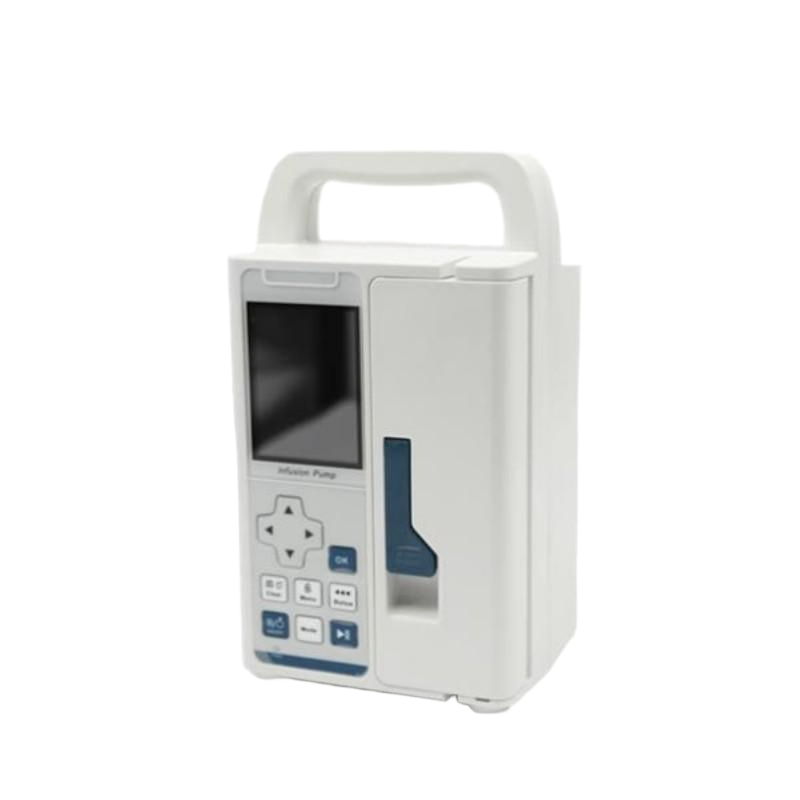

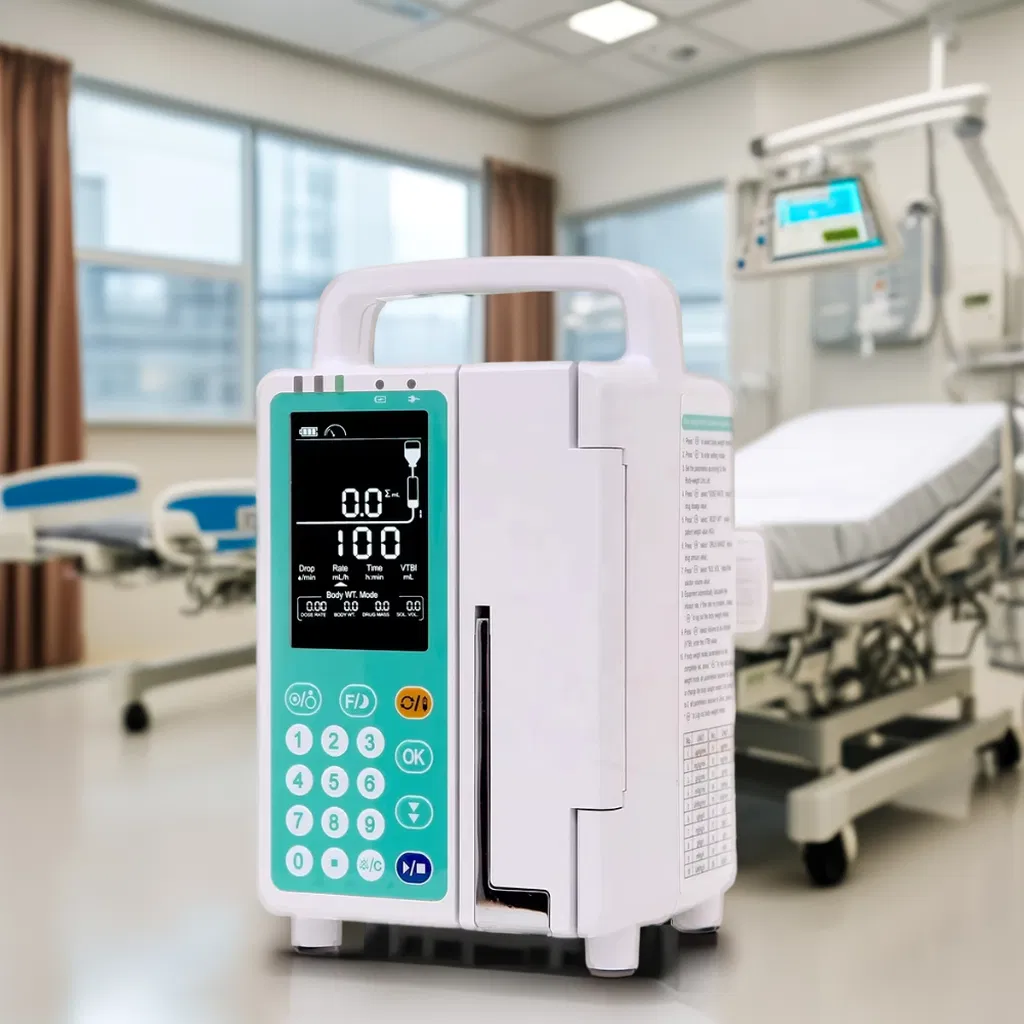

Clinical Portable Infusion Pump

3.5 Inch Volumetric IV Fingertip Peristaltic Pump made of high-quality Electric Metal Material, specifically designed for ICU, NICU, and OT environments.

Clear Vision: 3.5 inch LCD screen for clear vision within 5 meters.
Night Mode: One-button night mode design for enhanced patient comfort.
Versatile Modes: Multiple modes including Rate, Time-Rate, Volume-Rate, and more to satisfy clinical needs.
High Compatibility: System can calibrate and customize up to 5 different brands of I.V. sets.
Safety Standards: Numeric and intuitive interface optimized for critical care usage.

Parameters		Technical Specifications
Infusion Principle		Fingertip Peristaltic Pump
I.V. Set Compatibility		Open System (3.8mm-4.2mm diameter sets)
Flow Rate Range		0.1-1200ml/h
Infusion Modes		Rate, Time, Volume, Drop, Body Weight
Drug Library		20 drug list with code display
Accuracy		±5%
K.V.O Rate		1ml/h-5ml/h (Programmable)
Internal Battery		Lithium battery (11.1/2000mAh), >4 hours backup
Dimensions & Weight		13×17.5×23 cm; 2Kg

Key Selling Points

Precision Delivery: Features a powerful fingertip peristaltic pump ensuring precise medication delivery.
Durable Design: Engineered for precision and durability with continuous flow rates up to 1200ml/h.
Clinical Protection: Class II, Type CF, and IPX4 rated, providing resistance to water splashes and meeting safety standards.
Universal Power: Supports AC 100V-240V, making it ideal for clinics, hospitals, and emergency situations worldwide.

Certifications & Shipping

Service & Quality

Frequently Asked Questions

1. How do you ensure the quality of the infusion pumps?

We maintain strict quality control by providing a pre-production sample before mass production and performing a final inspection before every shipment.

2. What types of I.V. sets are compatible with this device?

The system is an open system, compatible with all brands of qualified PVC or TPE I.V. sets with an external diameter of 3.8mm to 4.2mm.

3. What is the battery life for portable use?

The pump is equipped with a high-capacity Lithium battery (11.1V/2000mAh) that provides more than 4 hours of continuous working backup.

4. Can this pump be used in an ambulance?

Yes, it features an optional Ambulance DC 12V function, making it highly versatile for both hospital and emergency transport use.

5. What safety alarms are included in the system?

The device includes both visible and audible alarms for Air-in-line, Occlusion, Door Open, VTBI Completion, Low Battery, Motor Malfunction, and AC Disconnection.

6. Is technical support available after purchase?

Yes, we provide trusted online technical support and a 1-year warranty to ensure continuous operation of your medical equipment.
