Colposcope Colposcopy Colposcope HD Digital Video Colposcope for Gynecology Colposcopy

1 / 5

Colposcope Colposcopy Colposcope HD Digital Video Colposcope for Gynecology Colposcopy

Customization:	Available
Classification:	Video Colposcope for Gynecology
Type:	Video Colposcope for Gynecology

Send Inquiry

Product Description

📋 Basic Information

Model NO.:

LTO-2000

Certification:

CE, ISO13485

Group:

Human

Product:

Video Colposcope for Gynecology

Package:

Standard Export Pack (1pcs/carton)

Capacity:

1000 units/Month

🔍 Product Overview

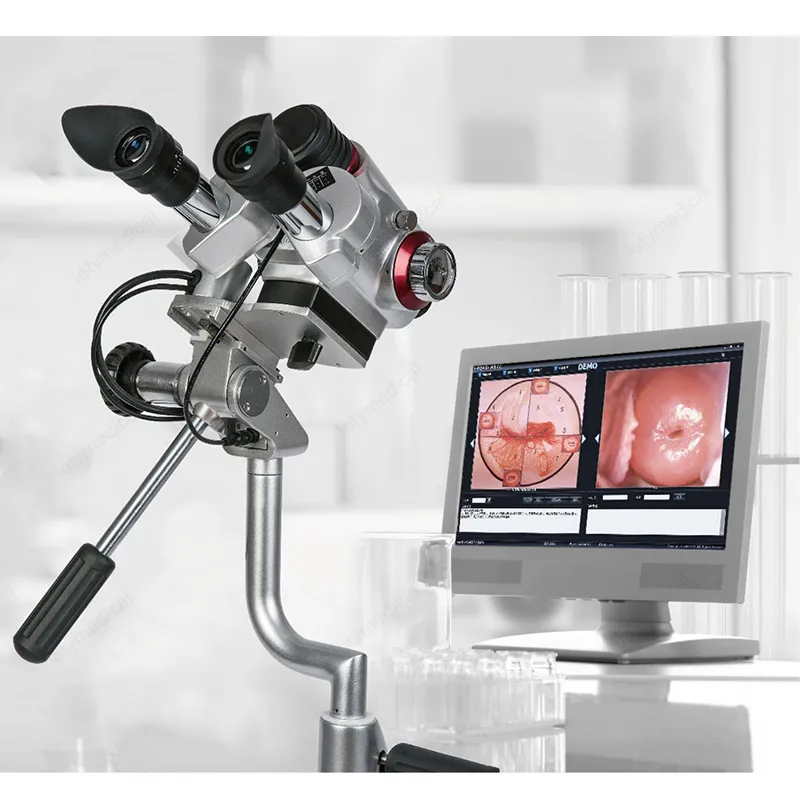

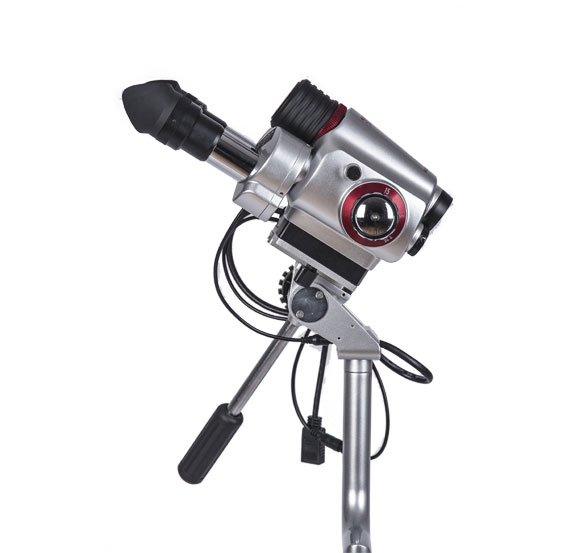

Colposcope HD Digital Video Colposcope For Gynecology

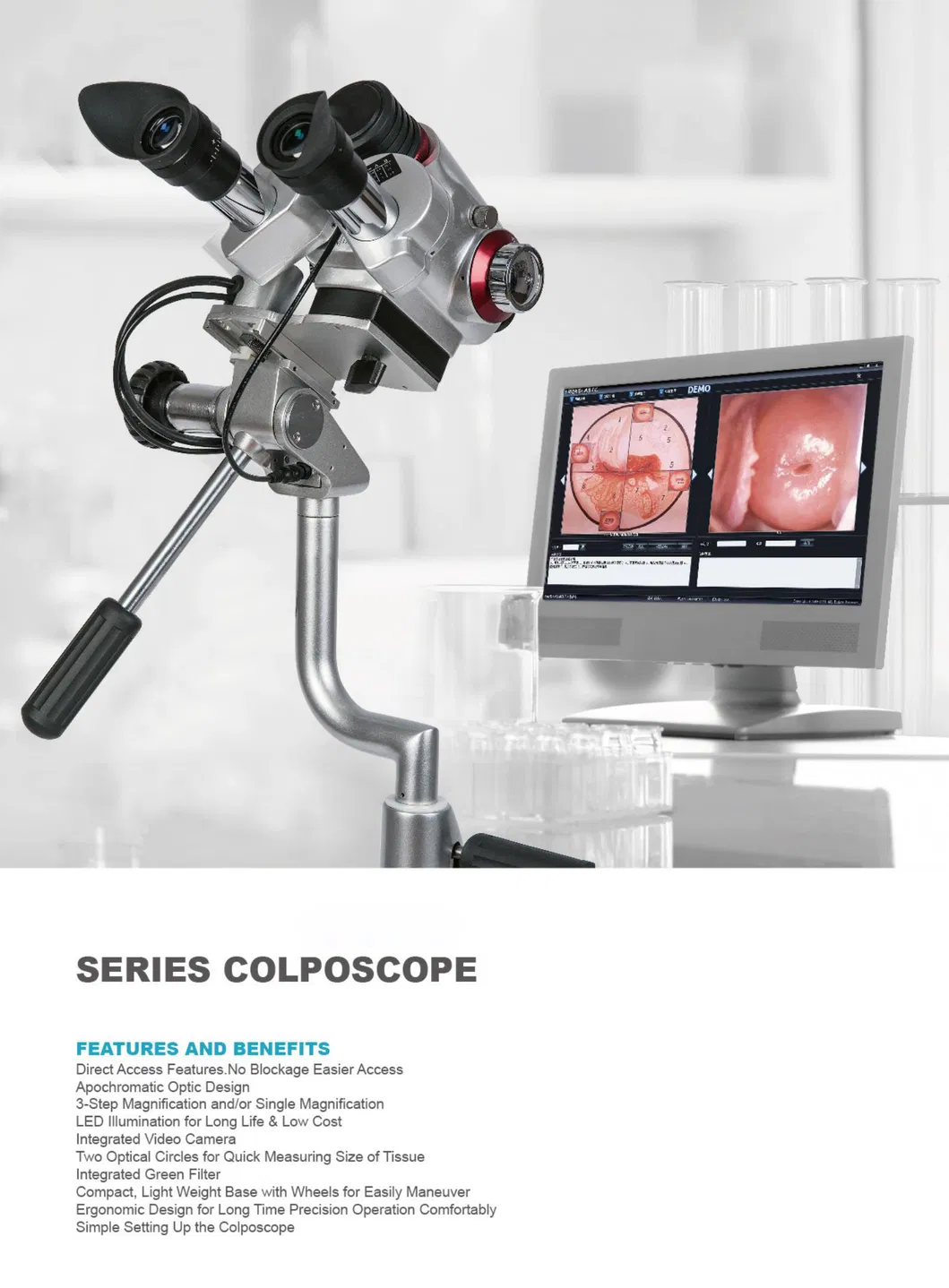

⭐ Features and Benefits

▶ Direct Access Features: No Blockage, Easier Access

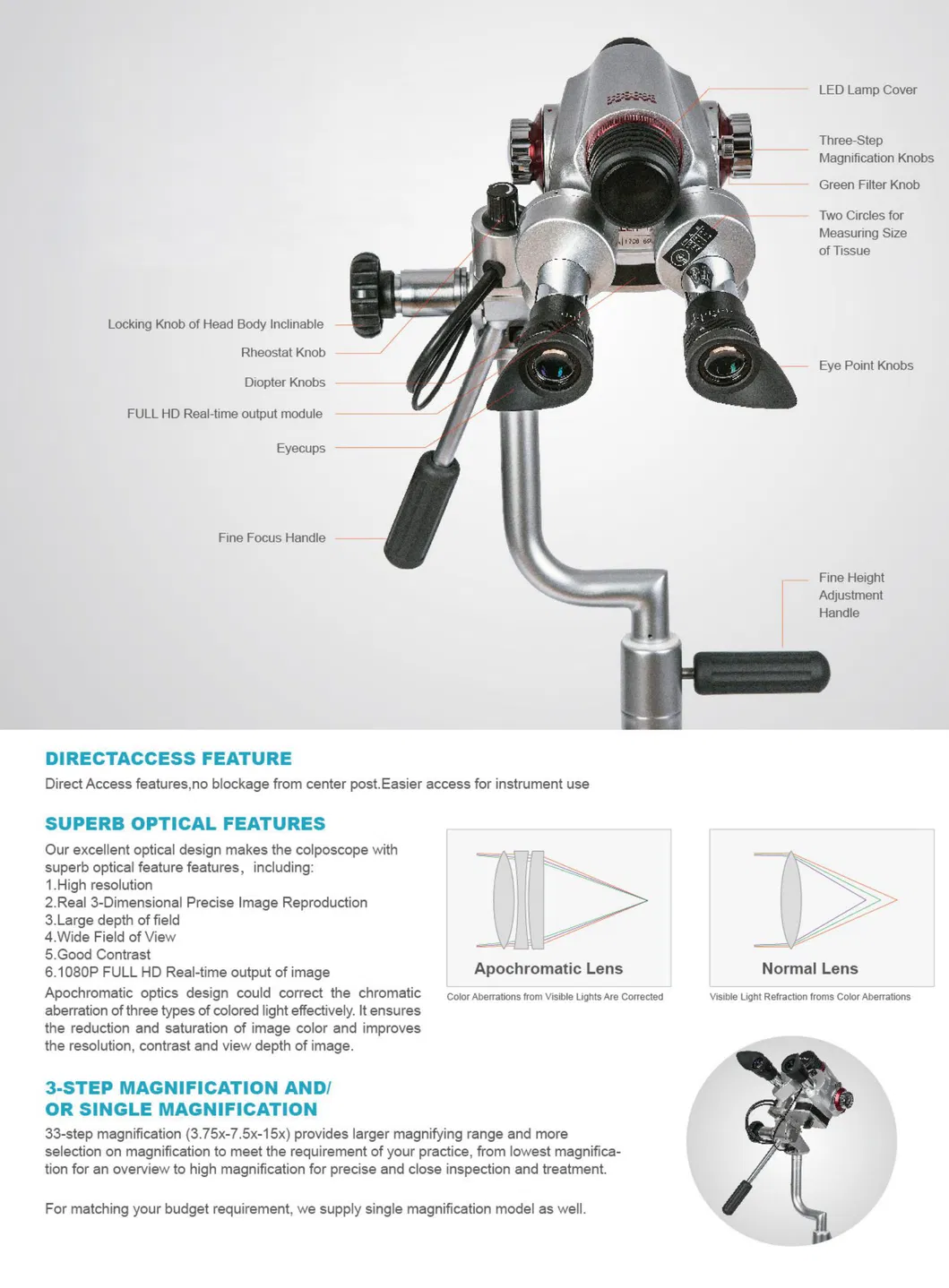

▶ Apochromatic Optic Design

▶ 3-Step Magnification and/or Single Magnification

▶ LED Illumination for Long Life & Low Cost

▶ Integrated Video Camera

▶ Integrated Green Filter for Enhanced Contrast

▶ Ergonomic Design for Long Time Precision Operation

▶ Compact, Light Weight Base with Wheels

📊 Technical Specifications

1. Total magnification: 3.75x, 7.5x, 15x (3-step) / 7.5x (Single models)

2. Focal length: 300mm

3. Field of View: 79mm, 39mm, 19mm diameter

4. Depth of Field: 4.5mm, 1.13mm, 0.76mm

5. Light intensity: > 30,000 LUX

6. Individually adjustable eyepiece: 16.7×

7. Right eyepiece with built-in measuring circles

8. Built-in rheostat for brightness adjustment

9. User-selectable built-in green filter

10. Working Height: 975mm to 1135mm

11. Height adjustment: Two (Gross/Fine) handles

12. Power Supply: 100V to 240V

❓ Frequently Asked Questions

🔹 What are the magnification options for the LTO-2000?

The system offers 3-step magnification levels of 3.75x, 7.5x, and 15x to provide detailed observation.

🔹 Does it include a green filter?

Yes, it features a built-in green filter that can be selected by the user to enhance tissue contrast during examinations.

🔹 What is the light source used in this colposcope?

It utilizes high-intensity LED illumination (>30,000 LUX), which provides long life and low maintenance costs.

🔹 Is the working height adjustable?

Yes, the working height is adjustable between 975mm and 1135mm using gross and fine adjustment handles.

🔹 Can I measure the size of the observed tissue?

The right eyepiece is designed with built-in circles specifically for quick measuring of the size of the tissue being viewed.

🔹 What power supply is required for operation?

The unit supports a wide range of power supplies from 100V to 240V, making it compatible with various global standards.
