Basic Specifications
Model NO.
CWM-301D
Certification
CE, ISO13485
LCD Display
10.1'' Color Touch Screen
Group
Adult and Children
Transport Package
Standard Export Packing
Origin
China
HS Code
9018907090
Production Capacity
5000PCS/Year
Product Description

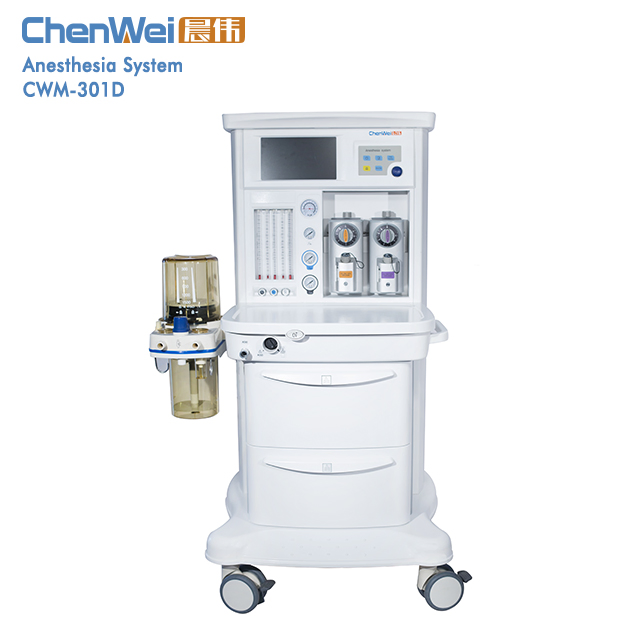

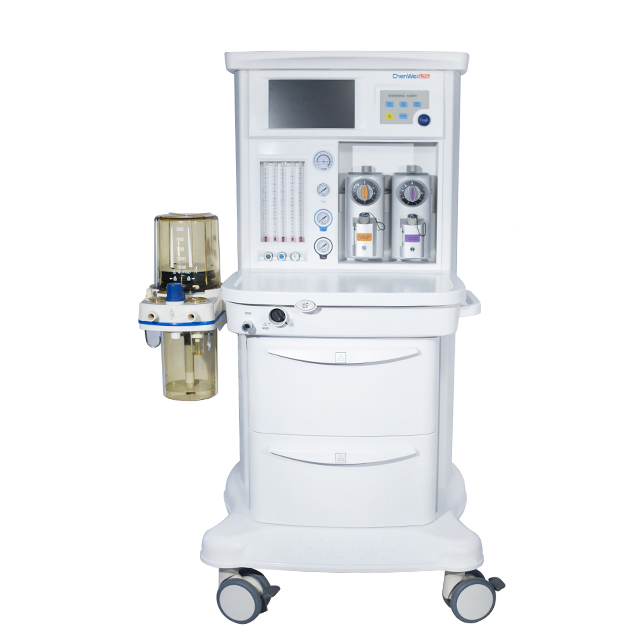

Anesthesia Machine (CWM-301D): Highly versatile system designed for closed and semi-open inhalation anesthesia, supporting both controlled and assisted ventilation for pediatric and adult patients.

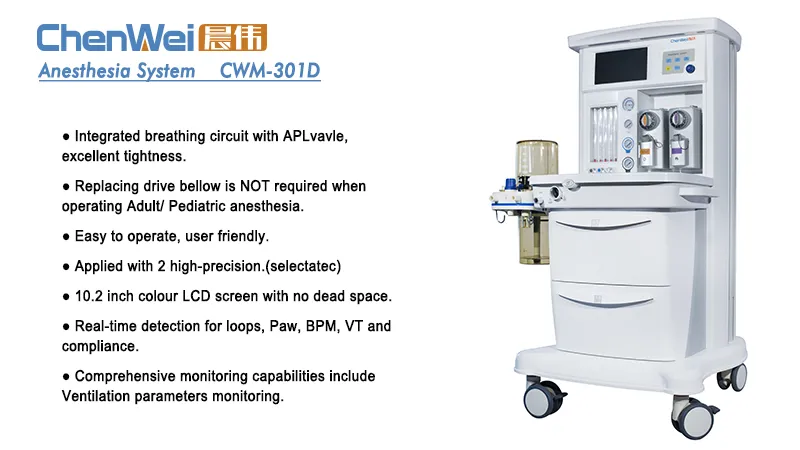

Main Features:
- 10.1'' color LCD touch screen for intuitive operation.
- Equipped with APL valve for safety.
- Excellent air tightness, easy to operate, clean, and disinfect.
- Advanced concentration control with temperature, flow, and pressure compensation technology.
- Optional imported vaporizers (Isoflurane, Enflurane, Sevoflurane) available.
- Gas driven and electrical control system.

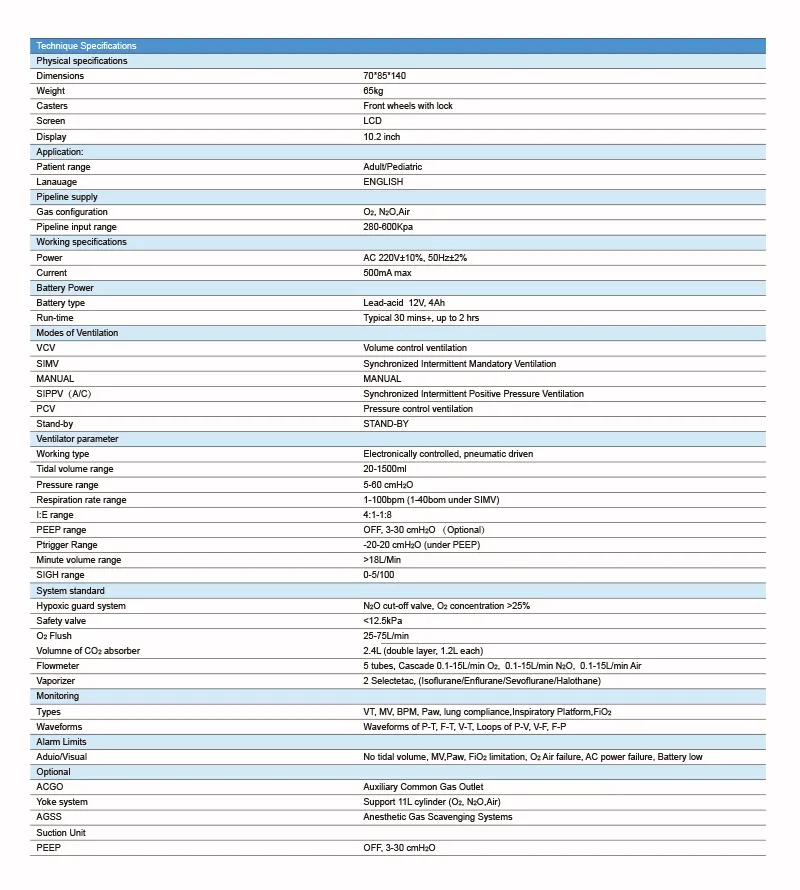

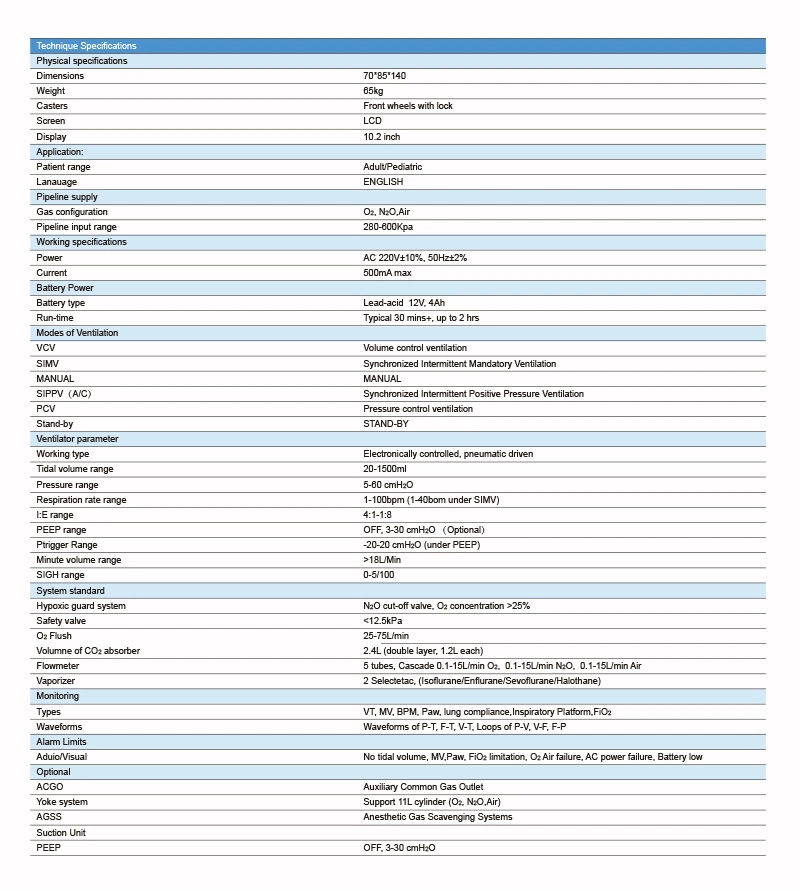

Main Specifications:
Power Source220V AC ± 10%, 50Hz ± 2%, built-in backup battery
Gas SupplyO², N² O, Air
Oxygen Flush25 to 75L/minute
Ventilation ModesVCV, A/C, SIMV, MANUAL, PCV, PSV, STAND-BY
Monitoring & Waveforms:
Parameters: VT, MV, BPM, Paw, Lung compliance, Inspiratory platform, FiO2.
Waveforms: Pressure-time, Flow-time, Volume-time, Pressure-volume loop, Volume-time loop, Flow-volume loop.
Alarm & Safety Systems:
Third-class alarm unit covering: Tidal volume (high/low), Minute volume (high/low), Airway pressure (high/low), Apnea, O² Concentration (high/low), Low voltage, AC power failure, Gas source failure, and Airway malfunction. Includes parameter limitation prompts and protection against unreasonable settings.
Frequently Asked Questions
What patient groups is the CWM-301D suitable for?
The CWM-301D Anesthesia Machine is designed to be versatile, supporting both adult and pediatric patients.
Does this machine have a backup power source?
Yes, it features a built-in backup battery to ensure continuous operation during AC power failures.
Which ventilation modes does the CWM-301D support?
It supports multiple modes including VCV, A/C, SIMV, MANUAL, PCV, PSV, and STAND-BY.
What type of display does it use for monitoring?
It is equipped with a high-definition 10.1'' color LCD touch screen for real-time monitoring of parameters and waveforms.
Can the machine handle different types of anesthetic gases?
Yes, the machine provides options for imported vaporizers including Isoflurane, Enflurane, and Sevoflurane as required.
What safety features are included in the alarm system?
It includes a third-class alarm unit that monitors tidal volume, airway pressure, apnea, oxygen concentration, and gas source failure to ensure patient safety.
