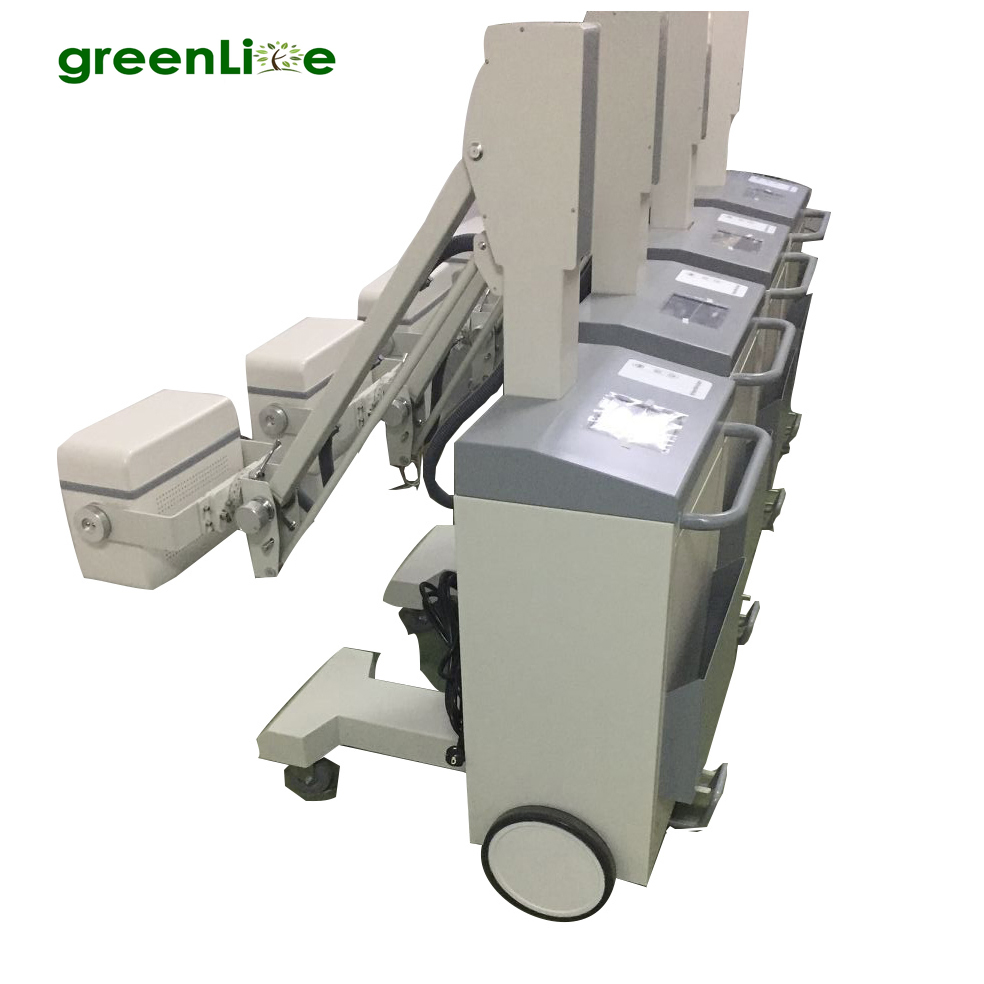

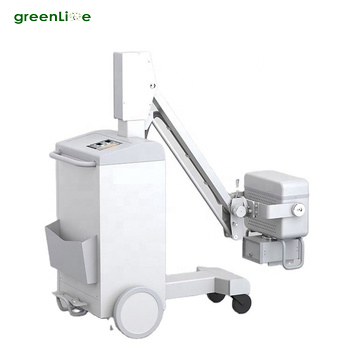

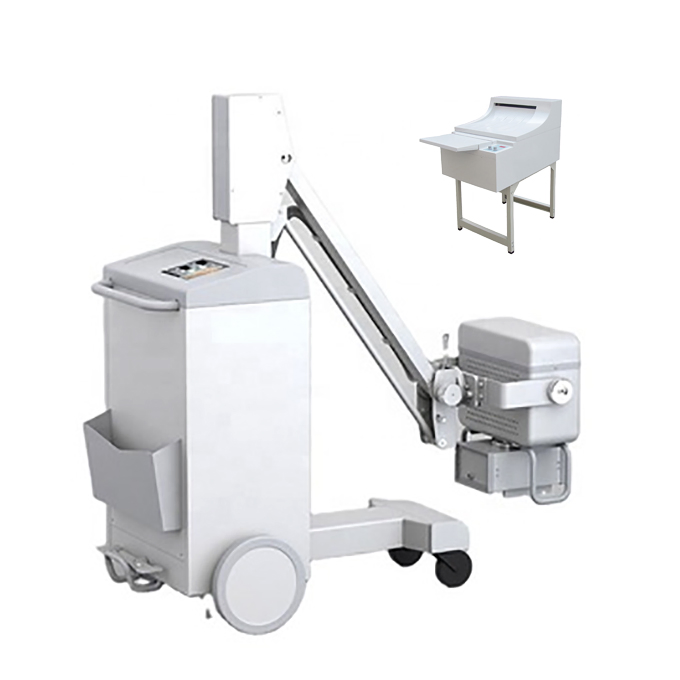

Manufacturer CE ISO Approved Xm101f Medical Digital Radiography 5kw 100mA High Frequency Mobile Imaging X Ray Unit X-ray Machine with 8 Inch Touch Screen

1 / 5

Manufacturer CE ISO Approved Xm101f Medical Digital Radiography 5kw 100mA High Frequency Mobile Imaging X Ray Unit X-ray Machine with 8 Inch Touch Screen

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋

Overview - Basic Info

Model NO.	XM101F
Scale	Medium
Power Output	5.0kw
Thermal Capacity	600kj
Tube Voltage	40-120kv
Ma	32-100mA
Mas	1-200mas
Focus	1.5mm
Inverter Frequency	60kHz
X-ray Tube	Fixed Anode
Power Supply	220V/50Hz
Warranty	1 Year
OEM	Acceptable
Screen	8" Touch-Screen
Origin	China

🔍

Product Description

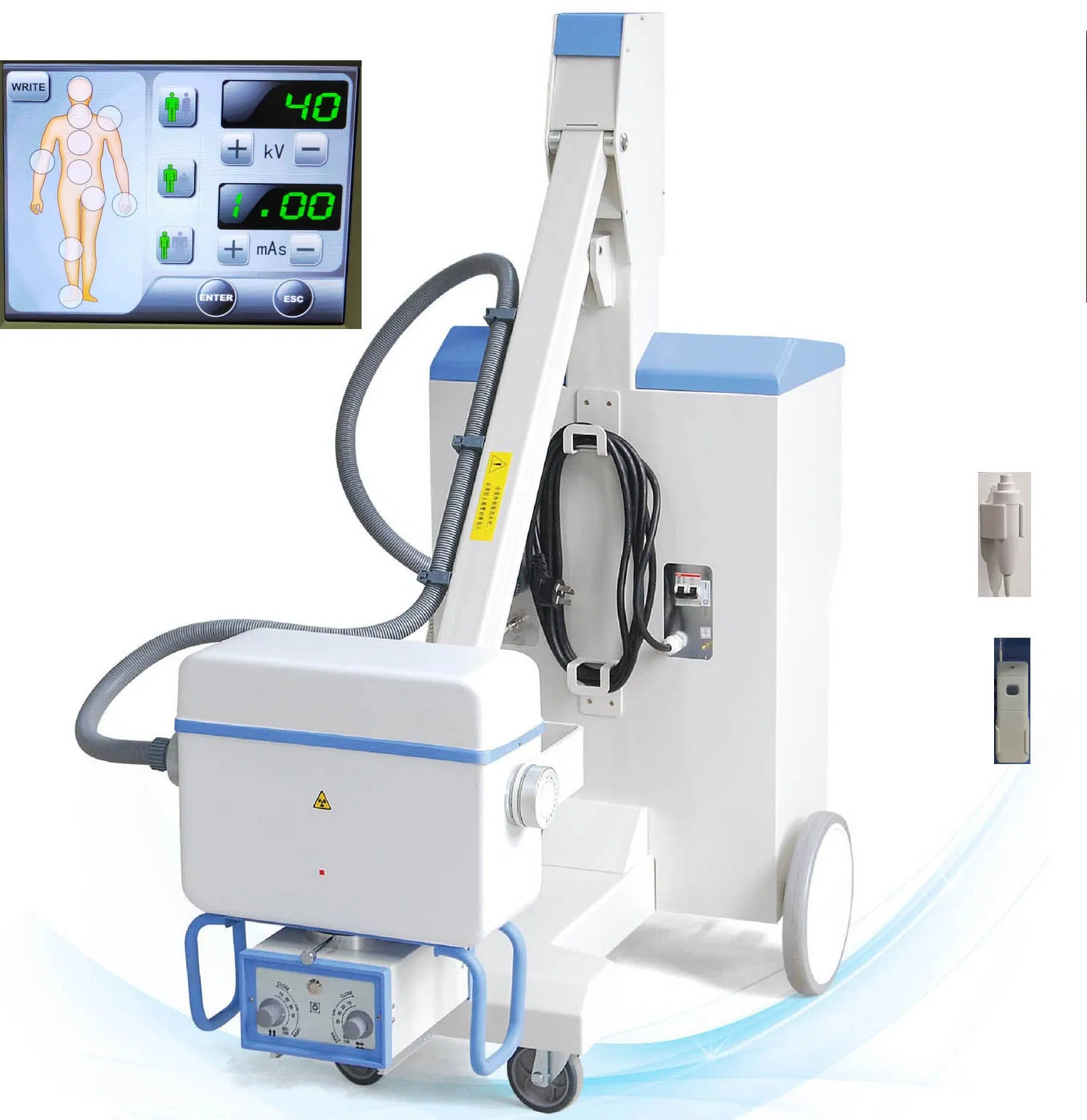

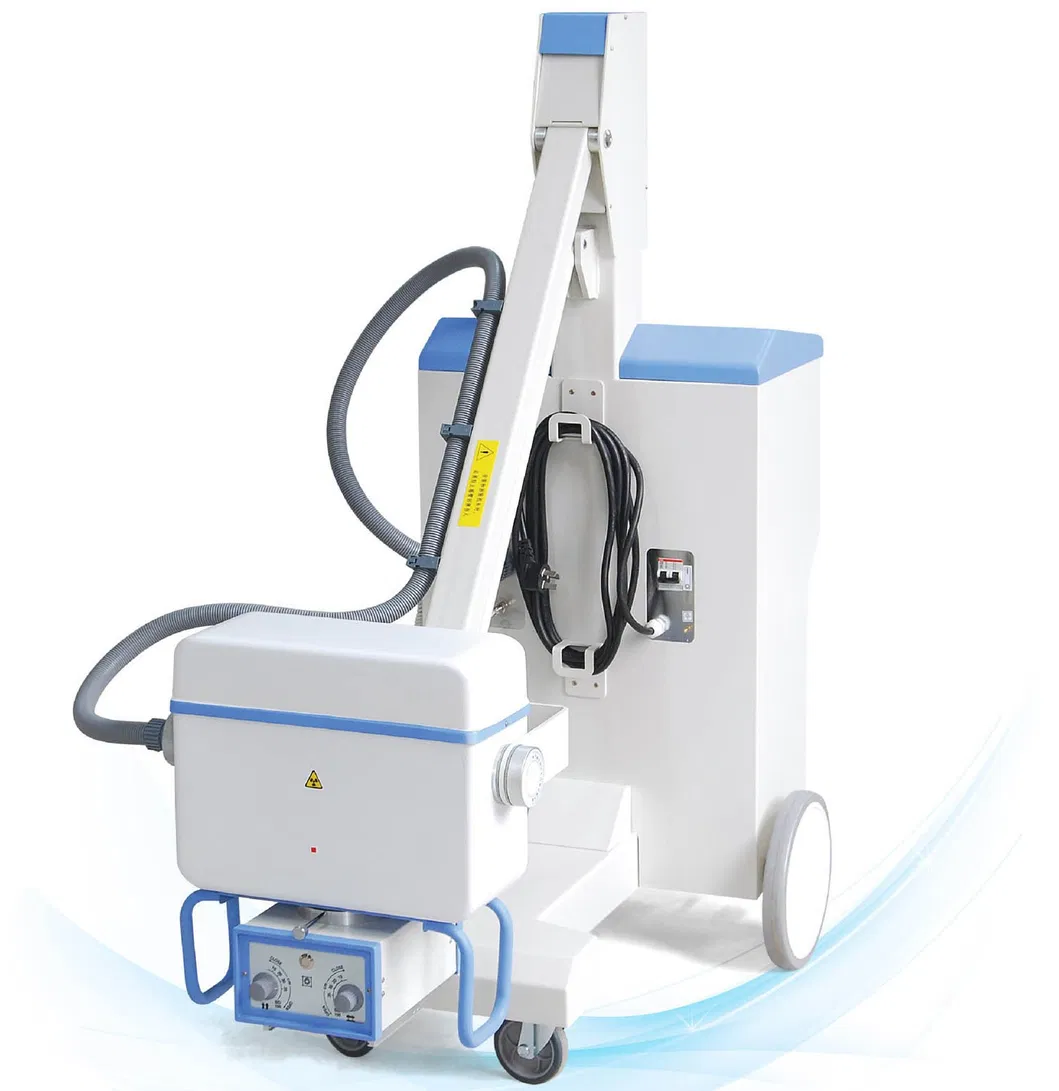

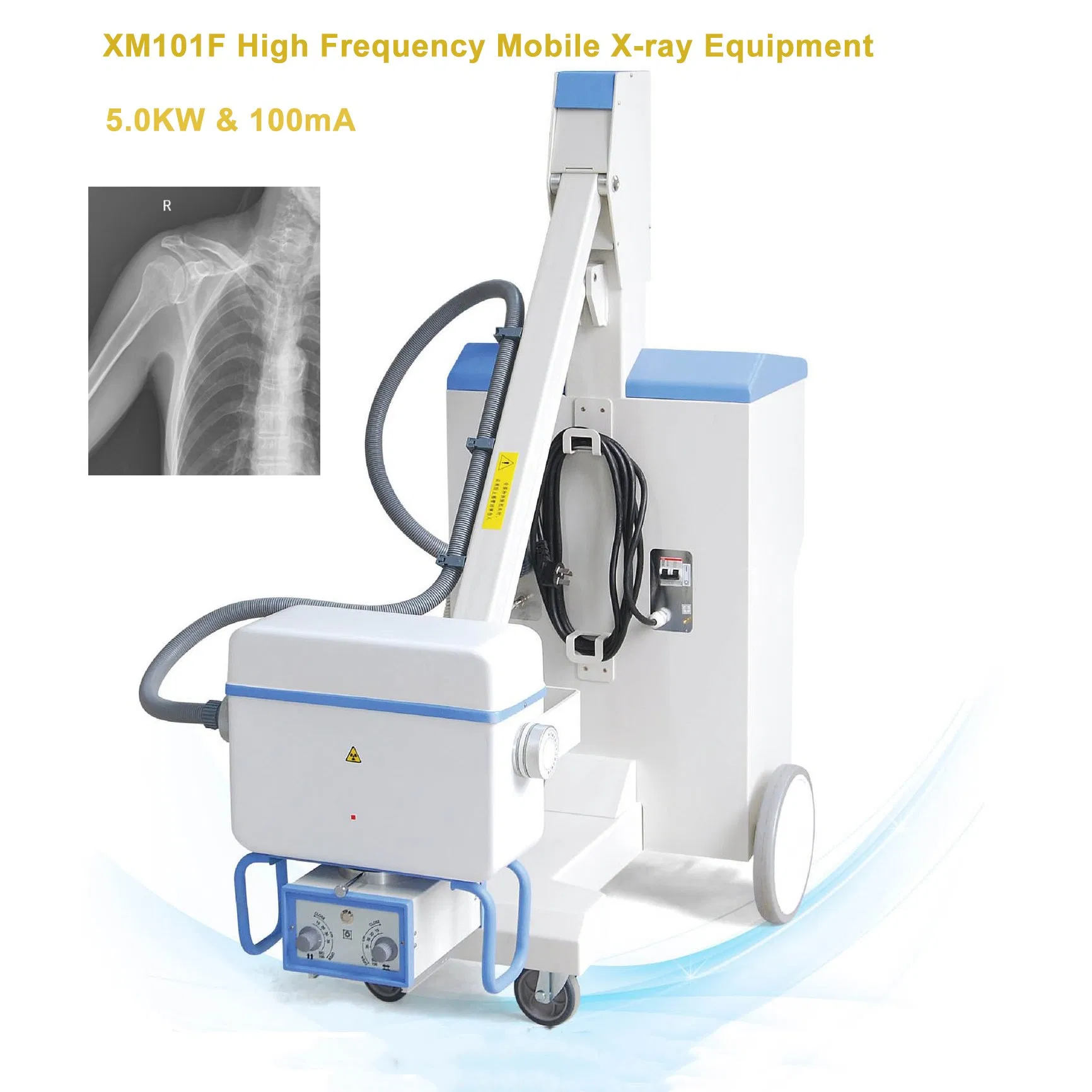

XM101F High Frequency Mobile X-ray Equipment

Main Specification:
Power output: 5.0KW. Thermal capacity: 600KJ.
Tube voltage: 40~120KV (interval 1KV). mA: 32~100mA. mAs: 1~200mAs (47 steps).

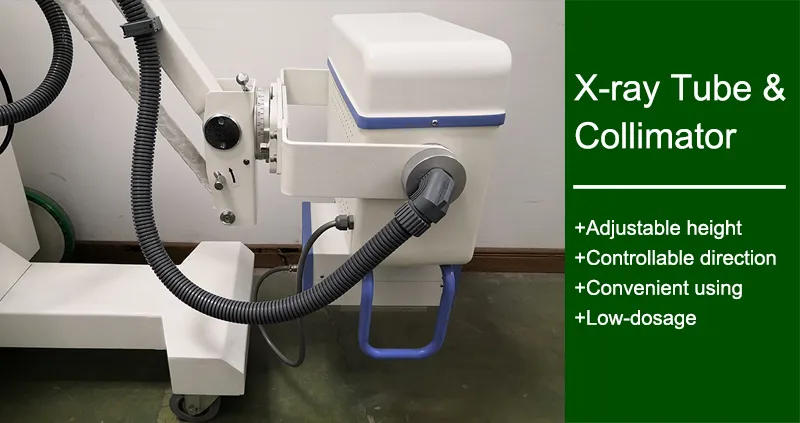

Inverter frequency: 60KHz. X-ray Tube: Fixed anode. Focus: 1.5mm.
Power supply: 220V/50Hz, or 220V/60Hz, or 110V/60Hz.

Voltage Range	Current	Exposure
40-49 kV	100mA	200mAs
50-59 kV	71mA	180mAs
60-69 kV	63mA	160mAs
70-79 kV	60mA	125mAs
80-89 kV	56mA	110mAs
90-120 kV	32-50mA	80-100mAs

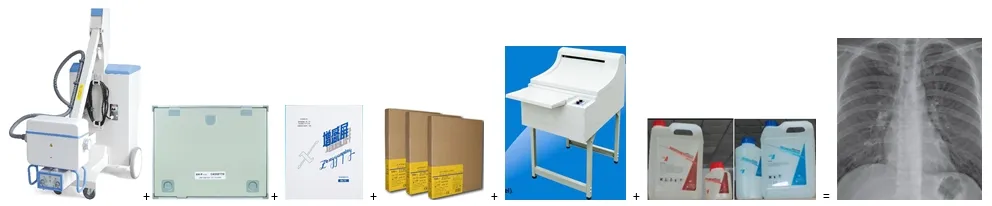

Method 1: Film Cassette System

XM101F used with X-ray Film Cassette, Processor, and Developer. Ideal for generating traditional X-ray film images.

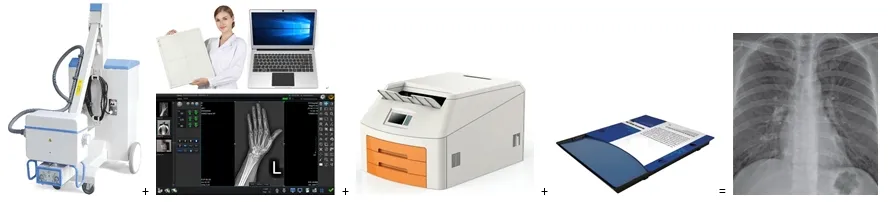

Method 2: DR System (Digital)

XM101F used with Flat Panel Detector (FPD) and DR Software. Transfer images directly to a laptop for editing and digital printing.

👍

Recommended Products

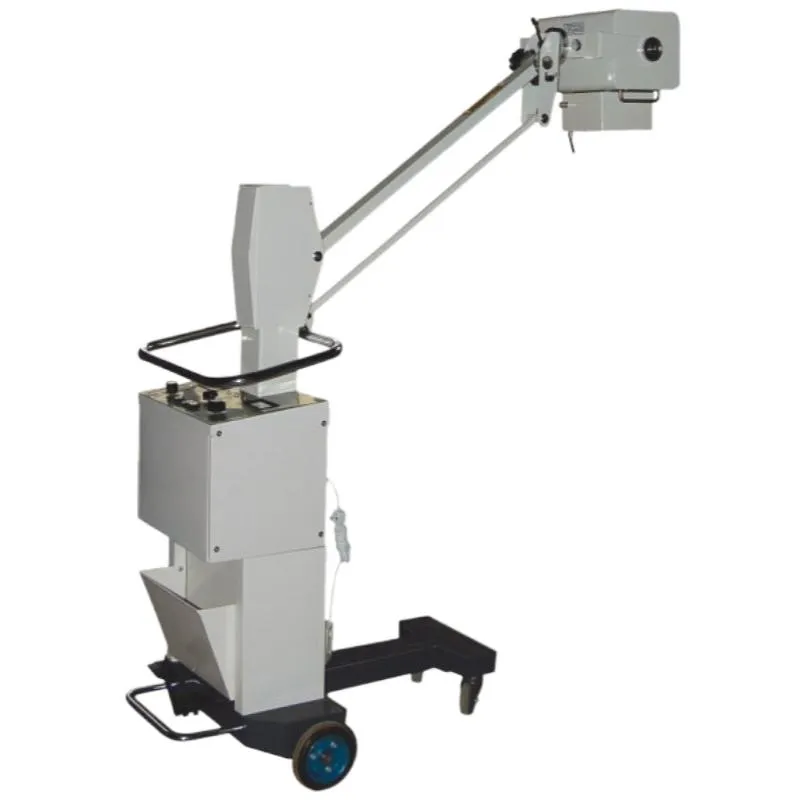

XM-105: Normal frequency, max 50mA. Mainly for arms and legs.

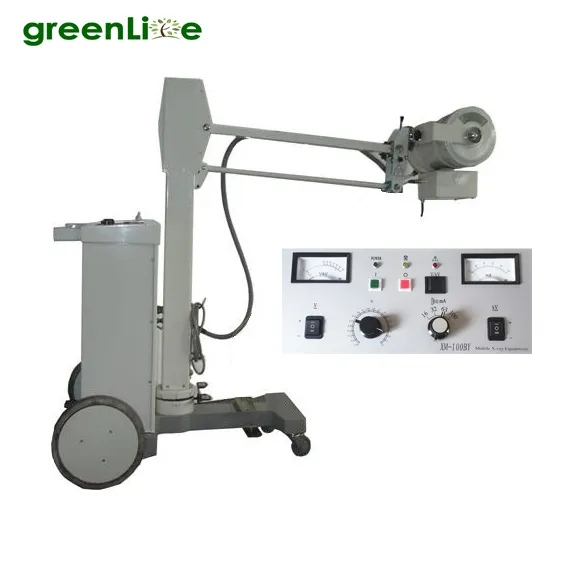

XM-100BY: Normal frequency, max 100mA. For limbs.
XM101F: High frequency, max 100mA, 200mAs, touch screen. Perfect for arms, legs & chest.

🎖

Our Advantages & Company Profile

🚚

Delivery & Feedback

❓

Frequently Asked Questions

1. What is the lead time for delivery?

The lead time is approximately 1-15 days, depending on your order quantity and specific requests.

2. What warranty is provided for the X-ray machine?

We provide a 1-year warranty for the machine. If any spare parts are damaged due to quality issues within the warranty period, we provide replacements free of charge.

3. Do you accept custom branding or OEM?

Yes, we accept OEM and ODM orders. We can print your logo on the product and customize the company information on the packaging and nameplates.

4. What payment and trade terms do you offer?

We support multiple payment methods including T/T, Western Union, and PayPal. Trade terms include EXW, FOB, CIF, DDP, and more.

5. How is technical assistance handled?

Simple issues can be solved via the User's Manual. For complex problems, we provide technical support and inspection solutions within 2 working days of feedback.

6. Do you provide training for the equipment?

We offer free training at our factory. Alternatively, if on-site installation and training are required in your country, arrangements can be made for our engineers to travel to your location.
