Anesthesia Machine with CE

Customization:	Available
Type:	Anaesthesia Machine
Kind:	Surgical Operation

Send Inquiry

Product Description

Basic Specifications

Model NO.

MJ-560B1

Certification

CE, ISO13485

Group

Adult & Children

LCD Display

With LCD Display

Gas Choice

Halothane, Enflurane, Isoflurane, Sevoflurane

Gas Source

O2, N2O: 0.27~0.55MPa

Tidal Volume

50~1500ml

Rate

4~80 Bpm

Product Overview

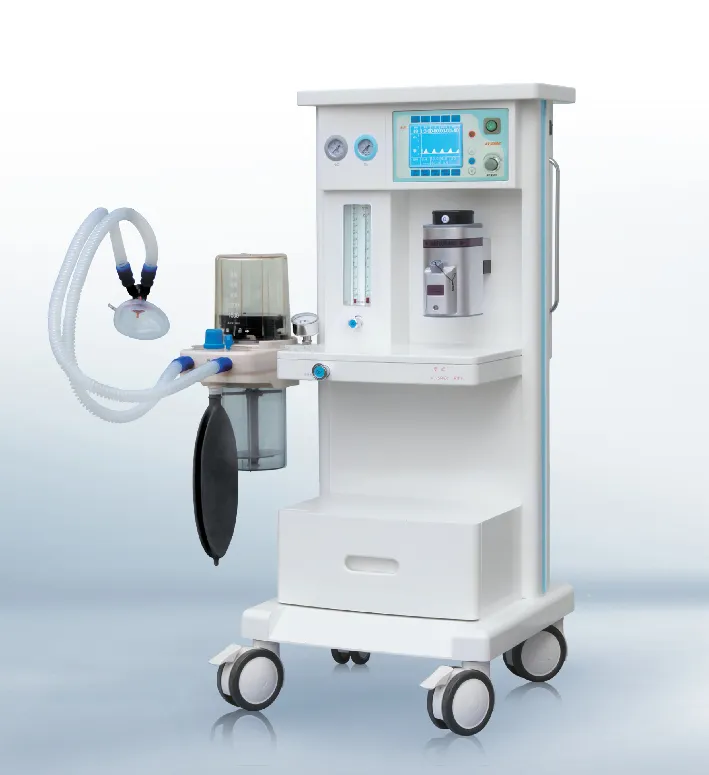

MJ-560B1 Anesthesia Machine (Simple Type) with CE Certification

The MJ-560B1 is a high-precision anesthesia system designed for safety and reliability. Its high-precision Vaporizer ensures stable concentration output with automatic compensation for pressure, temperature, and flow rate.

Reliable pneumatic transmission system for consistent performance.
Economic and proper configuration of technologies for versatile clinical use.
Modularized design allowing for future upgrades based on clinical requirements.
Main body constructed from high-strength engineering plastic—lightweight, durable, and corrosion-resistant.

Technical Parameters

Anesthesia System Components

Flow Meter	O2: 0.1~1.0L/min \| 1.1~10L/min
Rapid Oxygen Supply	25~75L/min
Low Oxygen Alarm	Sound alarm when oxygen pressure < 0.2MPa
Vaporizer Range	0~5 vol% (Automatic Compensation)
Respiratory Circuit	All-close, semi-close, semi-open
APL Valve Pressure	0.5~7 kPa

Ventilator Specifications

Display	High-definition 4.8" LCD Screen
Ventilation Mode	IPPV, MANUAL
I:E Ratio	2:1 ~ 1:4
Pressure Range	1.0~6.0 kPa
Monitoring	Tidal volume, Ventilation volume, IPPV rate, I/E, Peak airway pressure, Waveform

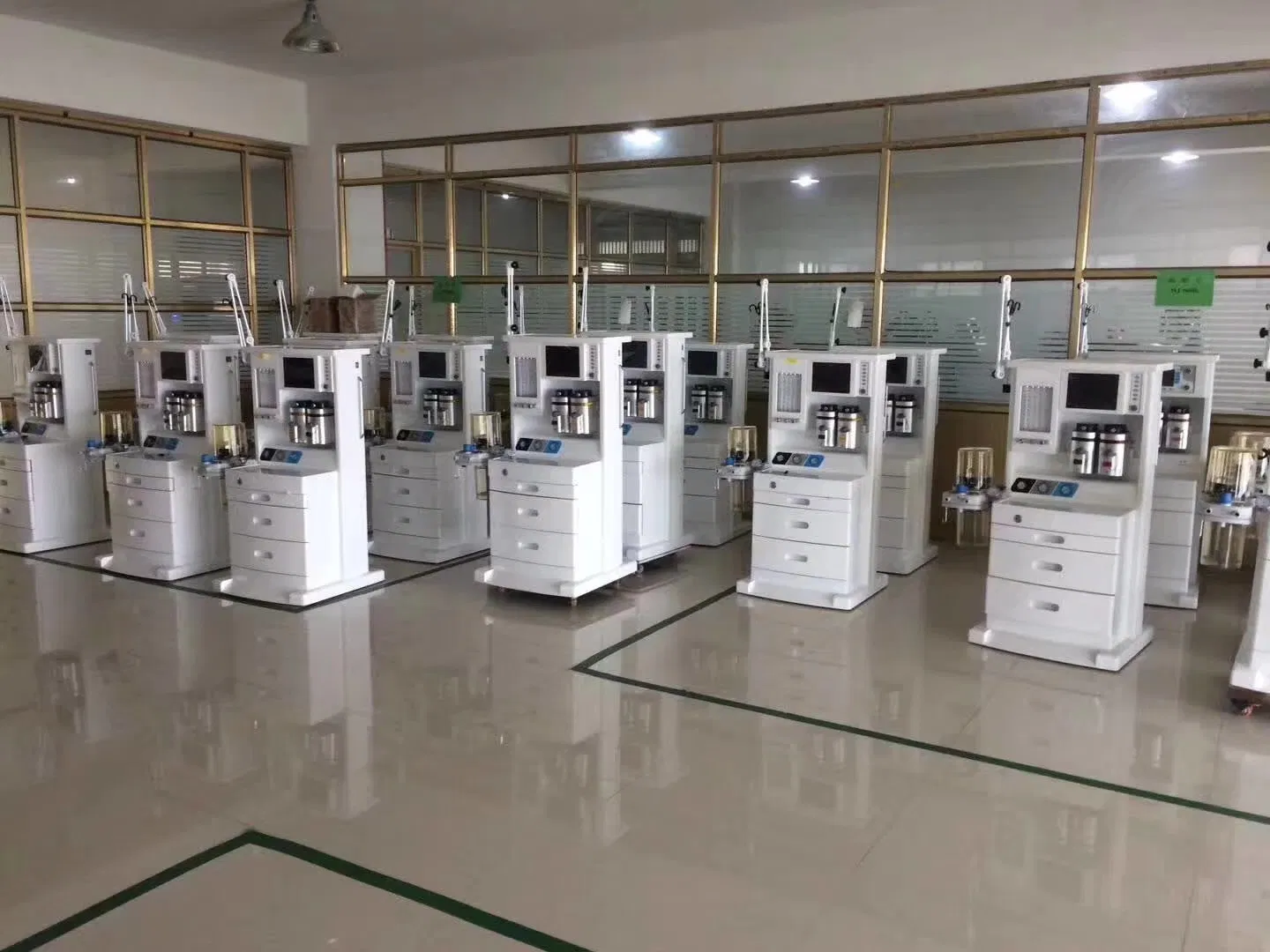

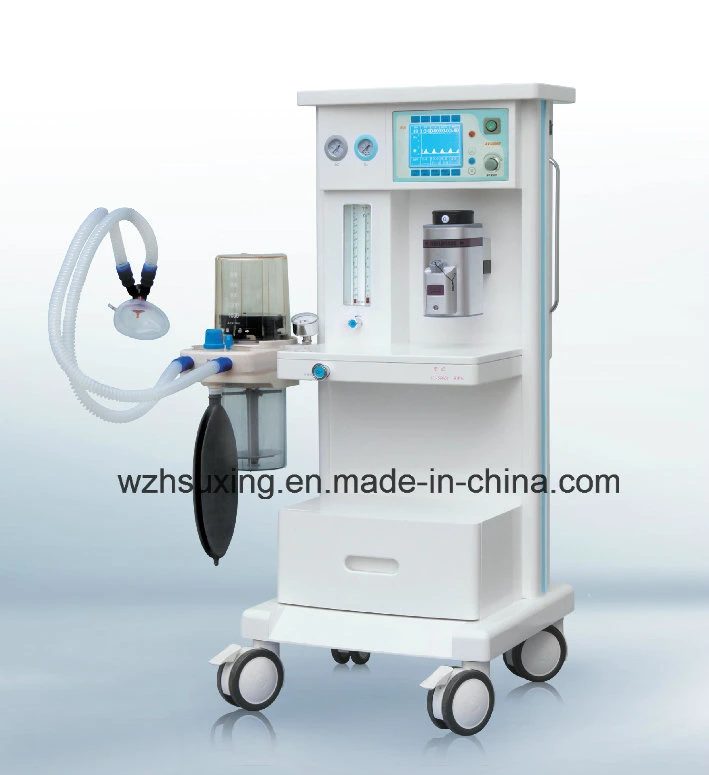

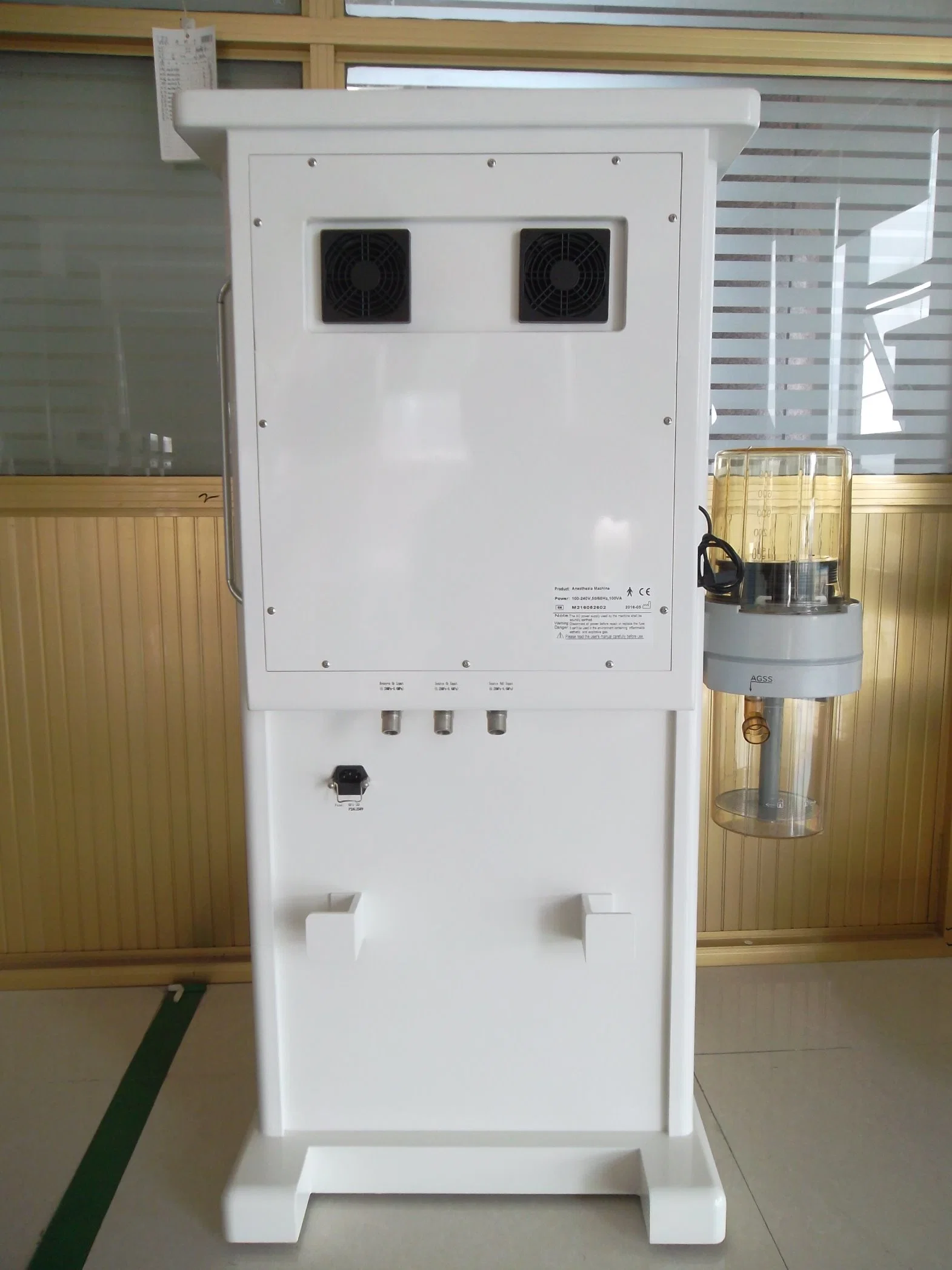

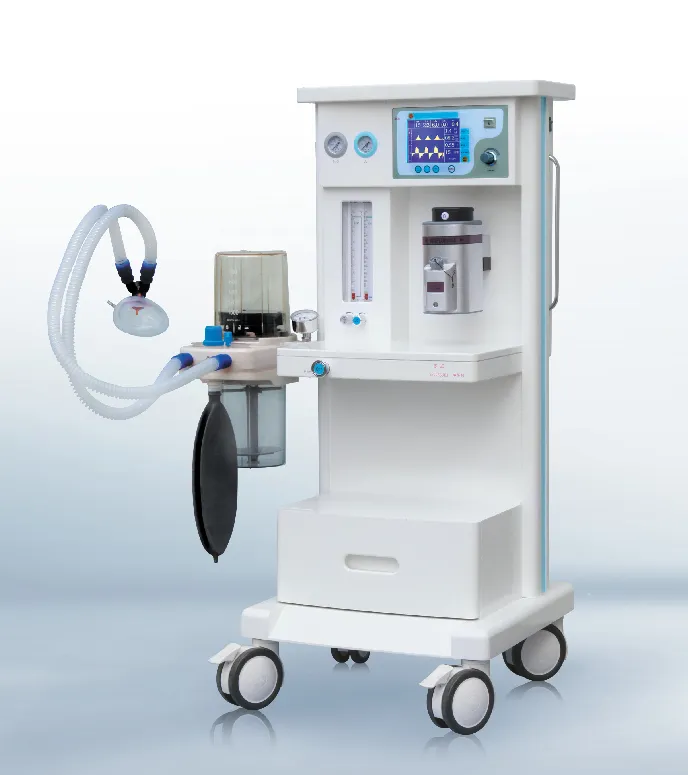

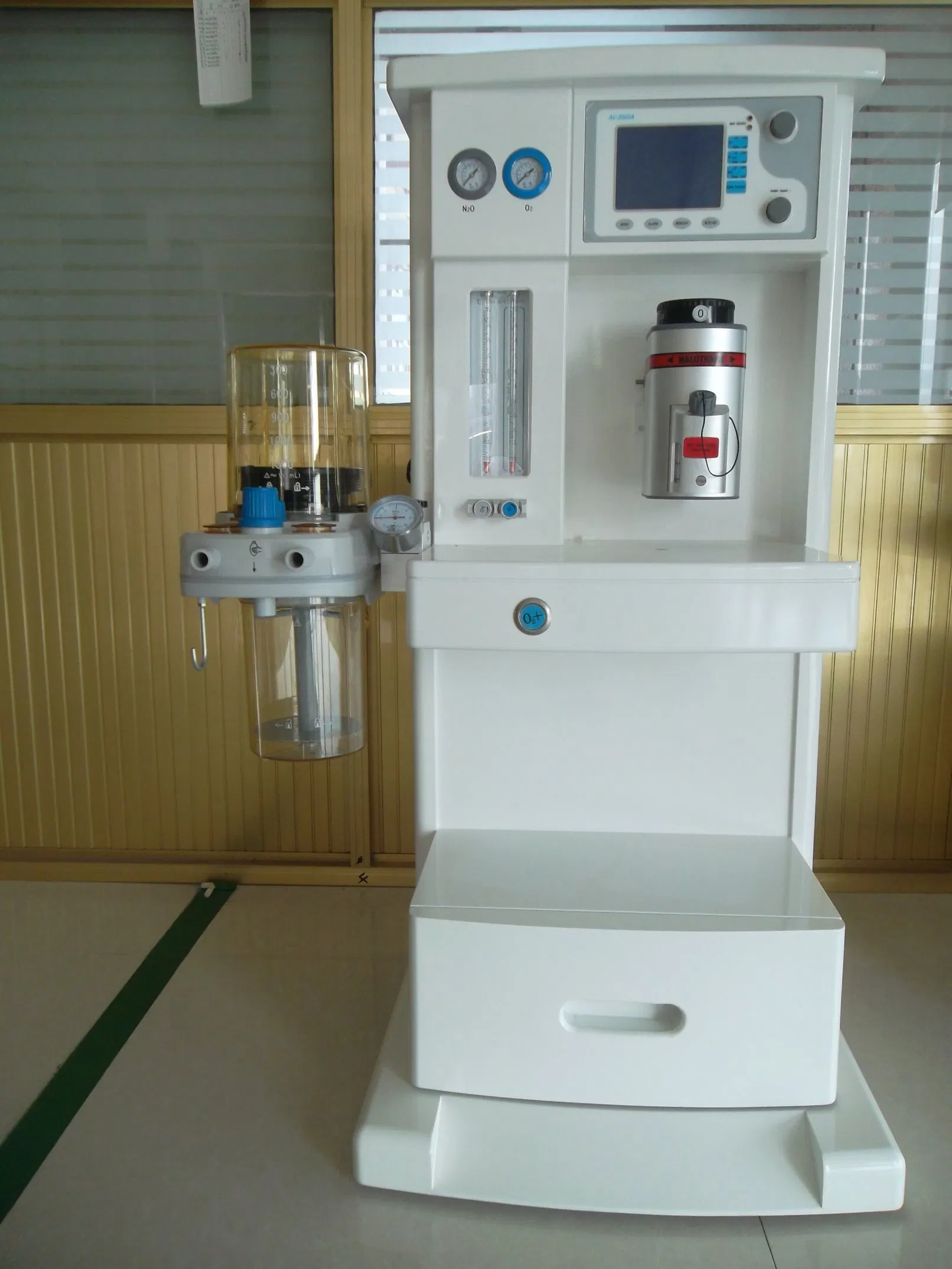

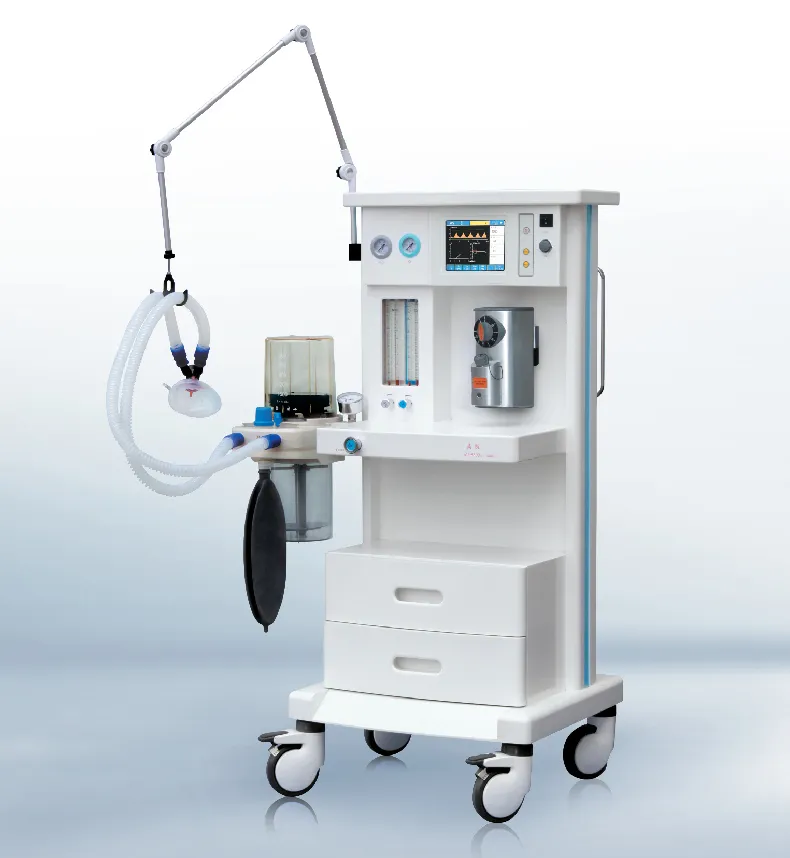

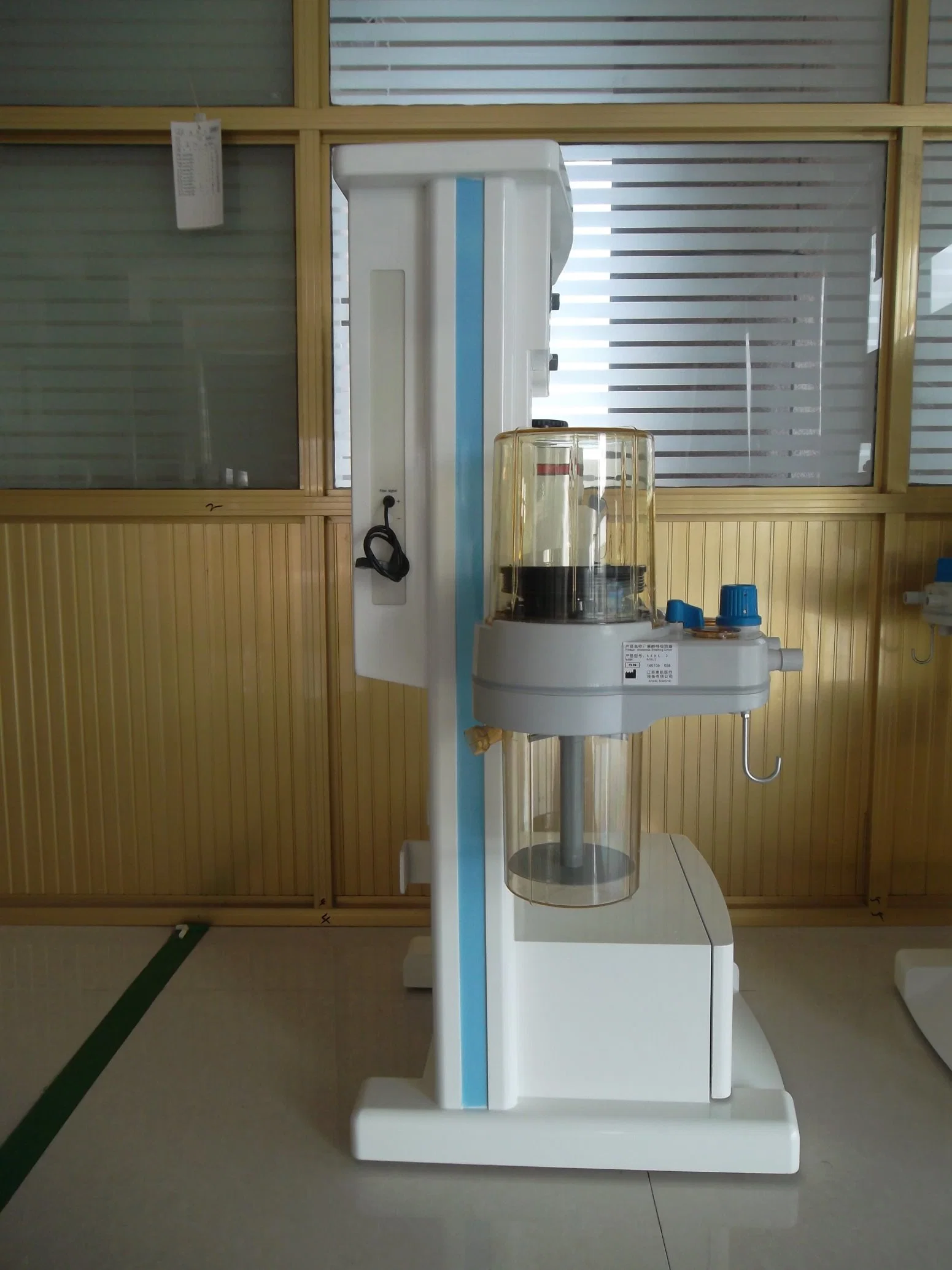

Product Gallery

Frequently Asked Questions

Is the MJ-560B1 suitable for pediatric use?

Yes, the machine is designed for both adult and pediatric application, featuring a tidal volume range starting from 50ml and compatible respiratory bellows for children.

What safety alarms are integrated into the system?

The system includes a low oxygen pressure alarm that triggers an audible sound when the pressure falls below 0.2MPa, along with comprehensive ventilation monitoring.

Which anesthetic gases can be used with the vaporizer?

The high-precision vaporizer can be configured for Halothane, Enflurane, Isoflurane, or Sevoflurane, depending on clinical requirements.

What are the main display features of the ventilator?

It features a 4.8-inch high-definition LCD screen that displays ventilation parameters including tidal volume, airway pressure, and pressure-time waveforms.

Does the vaporizer support automatic compensation?

Yes, the vaporizer provides automatic compensation for pressure, temperature, and flow rate to ensure a stable and accurate concentration output.
