This medical device is designed for continuous infusion during clinical ease-pain treatment, specifically used to relieve or lenitive pain effectively.
| Type | Product Code | Max Capacity (ml) | Flow Rate (ml/h) | Bolus (ml/time) | Time Lock-out (min) |
|---|---|---|---|---|---|
| Without Bolus | CBI-M60 | 60 | 2.0/3.0/4.0/5.0 | / | / |
| CBI-M100 | 100 | 2.0/3.0/4.0/5.0 | / | / | |
| CBI-M150 | 150 | 2.0/3.0/4.0/5.0 | / | / | |
| CBI-M200 | 200 | 2.0/3.0/4.0/5.0 | / | / | |
| CBI-M275 | 275 | 2.0/3.0/4.0/5.0 | / | / | |
| With Bolus | CBI+PCA-M60 | 60 | 2.0/3.0/4.0/5.0 | 0.5 | 15 |
| CBI+PCA-M100 | 100 | 2.0/3.0/4.0/5.0 | 0.5 | 15 | |
| CBI+PCA-M150 | 150 | 2.0/3.0/4.0/5.0 | 0.5 | 15 | |
| CBI+PCA-M200 | 200 | 2.0/3.0/4.0/5.0 | 0.5 | 15 | |
| CBI+PCA-M275 | 275 | 2.0/3.0/4.0/5.0 | 0.5 | 15 | |
| Multirate | CBI+PCA-MR60 | 60 | 2-4-6-8 | 0.5 | 15 |
| CBI+PCA-MR100 | 100 | 2-4-6-8 | 0.5 | 15 | |
| CBI+PCA-MR150 | 150 | 2-4-6-8 | 0.5 | 15 | |
| CBI+PCA-MR200 | 200 | 2-4-6-8 | 0.5 | 15 | |
| CBI+PCA-MR275 | 275 | 2-4-6-8 | 0.5 | 15 |
Pump with constant infusion rate - SINGLE SPEED
Volume: 60ml, 100ml, 200ml, 275ml
Flow Rate: 2ml/h, 3ml/h, 4ml/h, 5ml/h...
Ideal for fixed administration of painkillers and chemotherapy drugs.

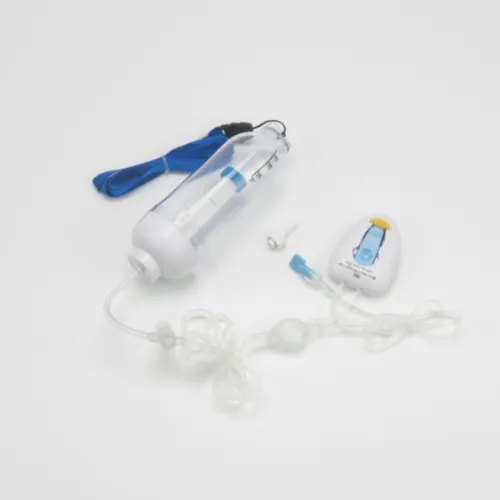

Pump with Patient-Controlled Analgesia - SINGLE SPEED
PCA: 0.5ml/15min | Volume: 0.5ml | Lock-time: 15 min
Pump volumes available up to 275ml for sustained analgesia.

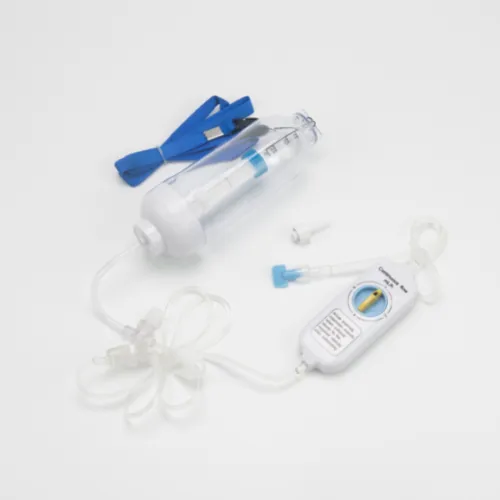

Pump with Multirate Controller - FOUR SPEEDS
Flow Rate Selection: 0-14 ml/h (e.g., 1/2/3/4; 2/4/6/8; 4/6/8/10; 6/8/10/12...)
Highly flexible for variable dosing requirements in chemotherapy or pain management.

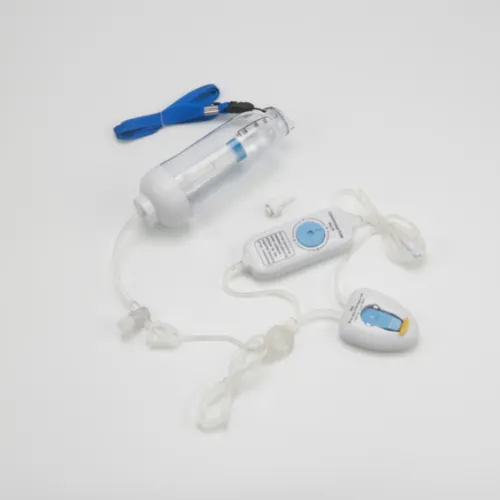

Combined PCA & Multirate Controller - FOUR SPEEDS
Combines patient-controlled dosing with adjustable background infusion rates.

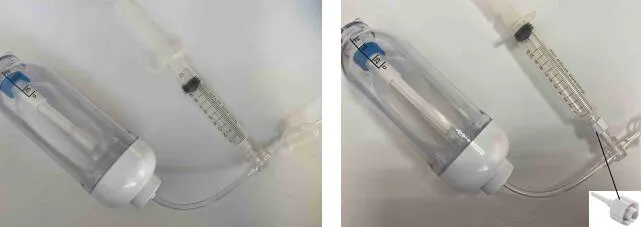

Close the clip, use a syringe to add medicine into reservoir from injection set, repeated steps until the specified volume is injected. Connect the white set with syringe to make medicine return to syringe, to dispenser different drug into the reservoir.
Emergency room, Operating room, Pediatrics, Obstetrics and Gynecology, Hematology department, Internal operation and General operation.
Widely used for continuous infusion of liquid medicine such as blood pressure medication, anticoagulants, hormones, oxytocin, chemotherapy drugs, and analgesics.
• Volume must not exceed 10% of the marked maximum volume.
• Strictly prohibited for use with Adrenalin and Calcium Antagonists (CAT).
• Not suitable for fat-soluble drugs (e.g., Fat Emulsion).
• The product is DEHP-free.
A: It is used for continuous infusion of liquid medicines to manage clinical pain, chemotherapy, and other treatments requiring slow, sustained delivery.
A: The pumps come in several nominal volumes including 60ml, 100ml, 150ml, 200ml, and 275ml.

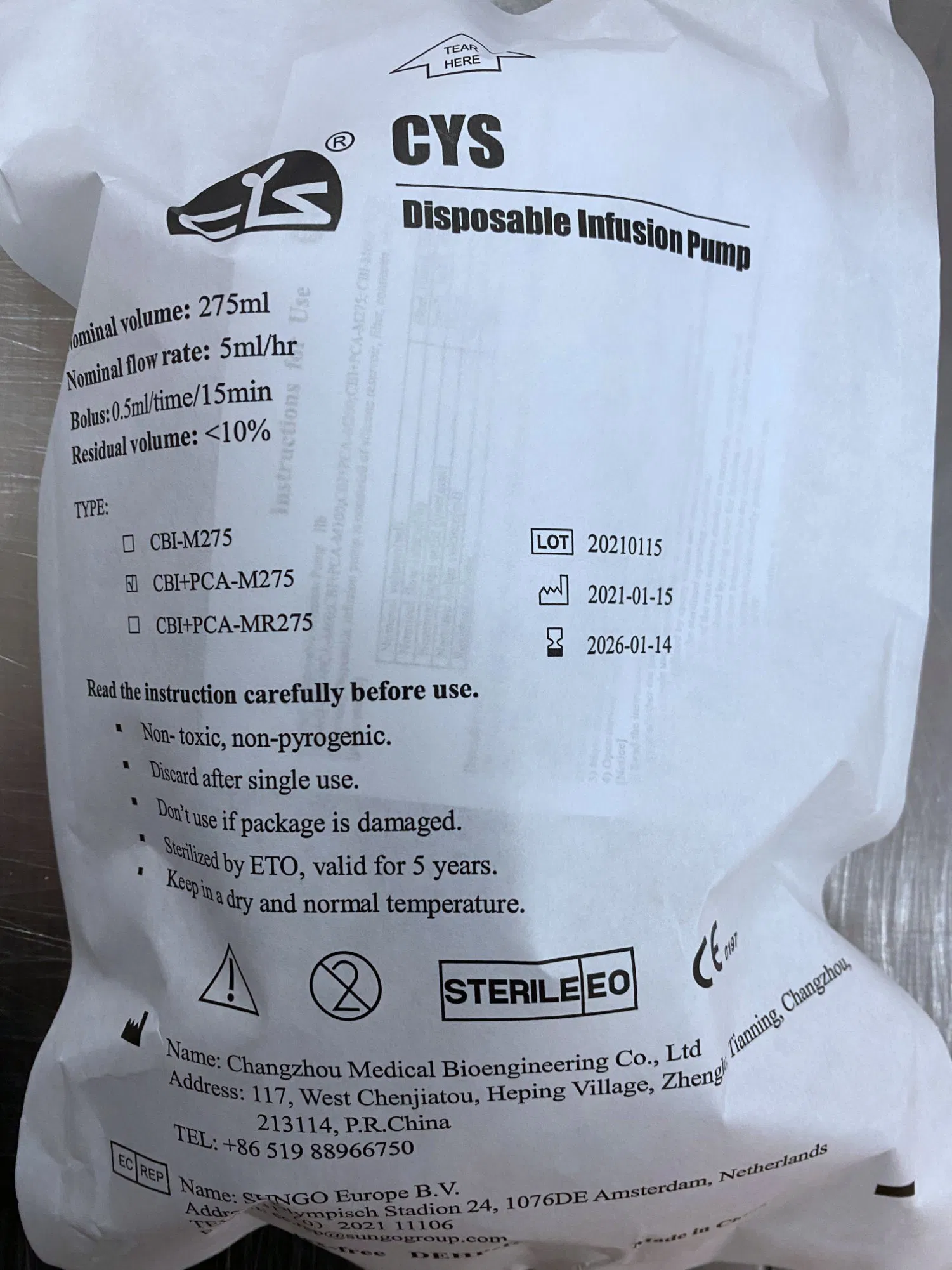

A: The product undergoes Ethylene Oxide (EO) sterilization to ensure clinical safety.
A: Yes, we offer "Multirate" models that feature a controller with four different speed settings (e.g., 2/4/6/8 ml/h).
A: The product has a quality guarantee period of five years.
A: Yes, Adrenalin, Calcium Antagonists (CAT), and fat-soluble drugs like Fat Emulsion are strictly prohibited.
