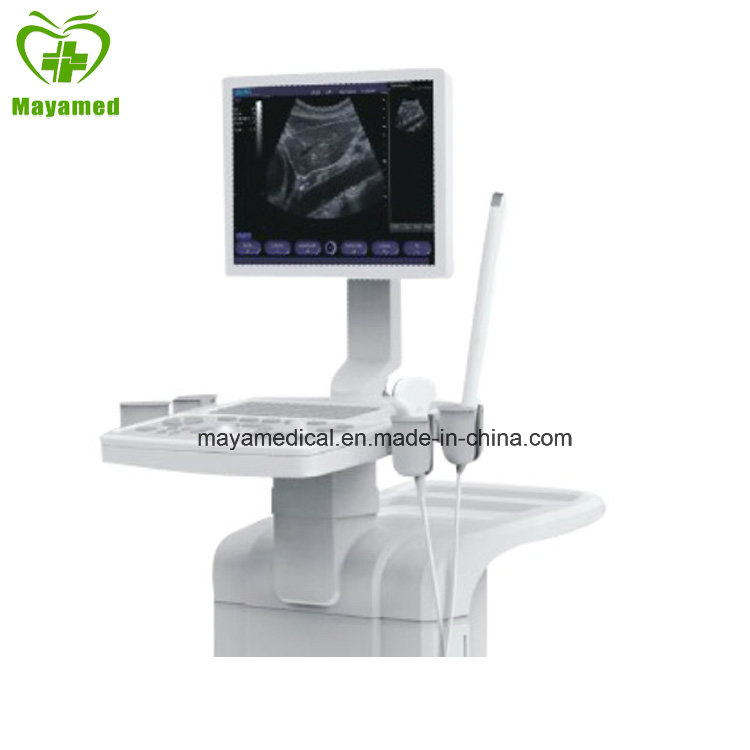

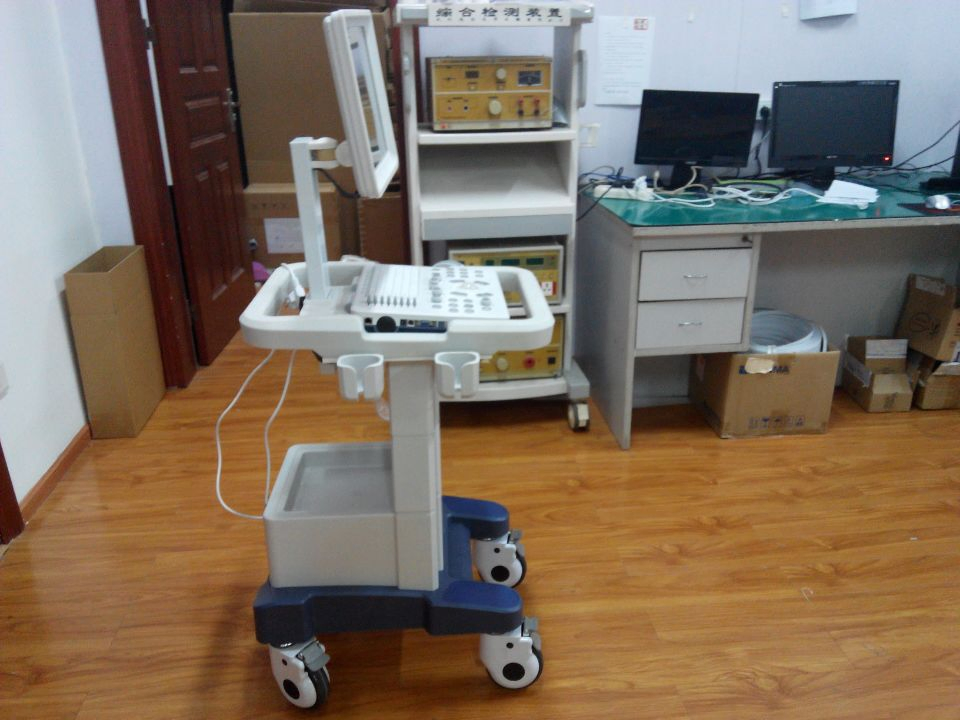

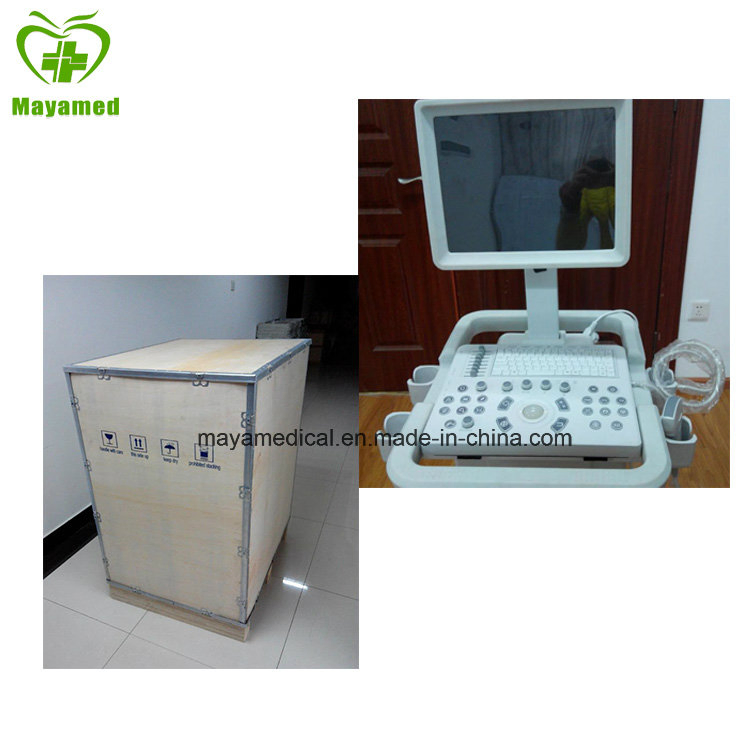

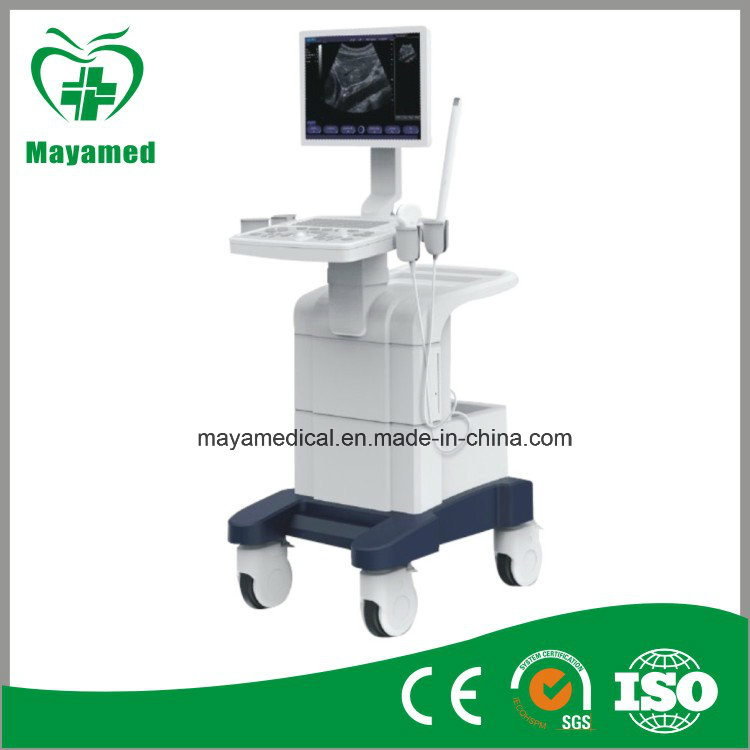

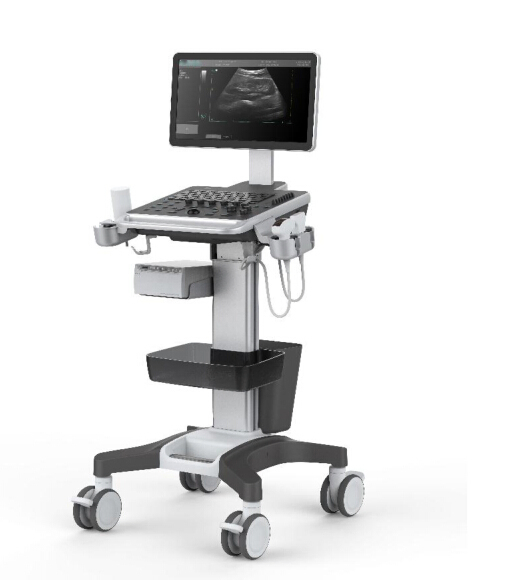

My-A022 B-Mode Digital Ultrasounic Diagnostic Imaging System
My-A022 B-Mode Digital Ultrasounic Diagnostic Imaging System
My-A022 B-Mode Digital Ultrasounic Diagnostic Imaging System
My-A022 B-Mode Digital Ultrasounic Diagnostic Imaging System
My-A022 B-Mode Digital Ultrasounic Diagnostic Imaging System
1 / 5
My-A022 B-Mode Digital Ultrasounic Diagnostic Imaging System
My-A022 B-Mode Digital Ultrasounic Diagnostic Imaging System
My-A022 B-Mode Digital Ultrasounic Diagnostic Imaging System
My-A022 B-Mode Digital Ultrasounic Diagnostic Imaging System
My-A022 B-Mode Digital Ultrasounic Diagnostic Imaging System

My-A022 B-Mode Digital Ultrasounic Diagnostic Imaging System

Customization: Available
Classification: Physiological Functions of Diagnosis and Monitoring Equipment
Type: Ultrasound Scanner
Send Inquiry

Product Description

Basic Information
Model NO.
MY-A022
Certification
CE, MSDS, ISO13485
Name
B Mode Ultrasound Scanner
Display
15" LCD Monitor
Frequency
2-11MHz
Scanning Depth
300mm
Gray Scale
256
Modes
B, M, 2B, B/M, 4B
Cine-Loop
334 Frame Memory
Net Weight
Approx. 20kg
Product Description
B-Mode Digital Ultrasonic Diagnostic Imaging System

A high-definition medical imaging solution featuring wide-angle technology and panoramic focusing for precise clinical diagnostics.

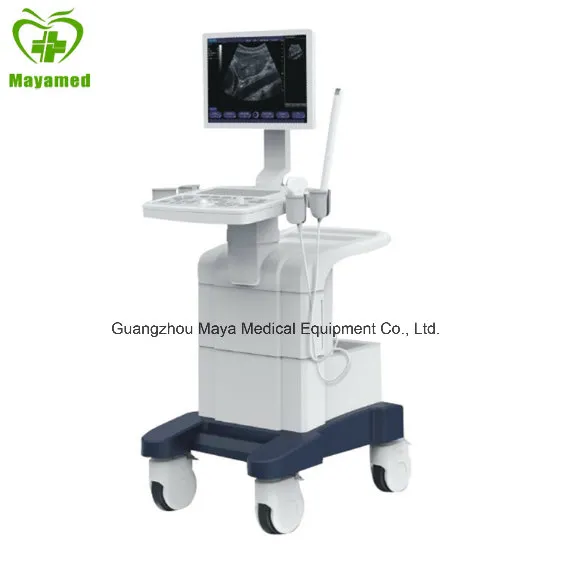

Digital Ultrasound Diagnostic Imaging System
Advanced Technology
Cloud processing, 8-segment TGC, and panoramic focusing technology.
Imaging Quality
Tissue Specific Imaging (TSI) and Tissue Harmonic Imaging (THI).
Operation Modes
Supports B, M, 2B, B/M, 4B with Gray Map and Colorize Map options.
Technical Specifications

Imaging Processing:

Wide-angle imaging Rolling M technology Noise suppression Image enhancement Pan Zoom

Connectivity & Ports:

  • 2 Active Transducer Connector Ports
  • 2 USB Ports
  • 1 Networking Port (RJ45)
  • Video Output & Equipotential Terminal

Software Packages:

Abdomen, Obstetrics (OB), Gynecology, and Small Parts.

System Configuration
Standard Configuration Main Unit, 15" LCD (1024*768), 2 USB ports, Measurement software packages
Probes Options 3.5 MHz Convex, 7.5 MHz Linear, 6.5 MHz Trans-vaginal, 5.0 MHz Micro-convex
Power Supply AC 100-240V 50/60Hz <80VA
Dimensions Main Unit: 750mm(W) x 480mm(L) x 1225mm(H)
Frequently Asked Questions
1. What display monitor is used in this ultrasound system?
The system is equipped with a high-resolution 15-inch LCD monitor with a resolution of 1024*768 pixels.
2. What are the supported scanning modes?
It supports multiple modes including B, M, 2B, B/M, and 4B for versatile diagnostic applications.
3. What is the maximum scanning depth of the MY-A022?
The system offers a maximum scanning depth of up to 300mm.
4. Which clinical applications is this scanner suitable for?
The system includes software packages for Abdomen, OB, Gynecology, Small Parts, and Vascular applications.
5. Does it support external data transfer?
Yes, it features 2 USB ports and 1 networking port for easy data export and connectivity.
6. What type of imaging enhancement technologies are included?
It features Tissue Harmonic Imaging (THI), Cloud processing technology, noise suppression, and Tissue Specific Imaging (TSI).
