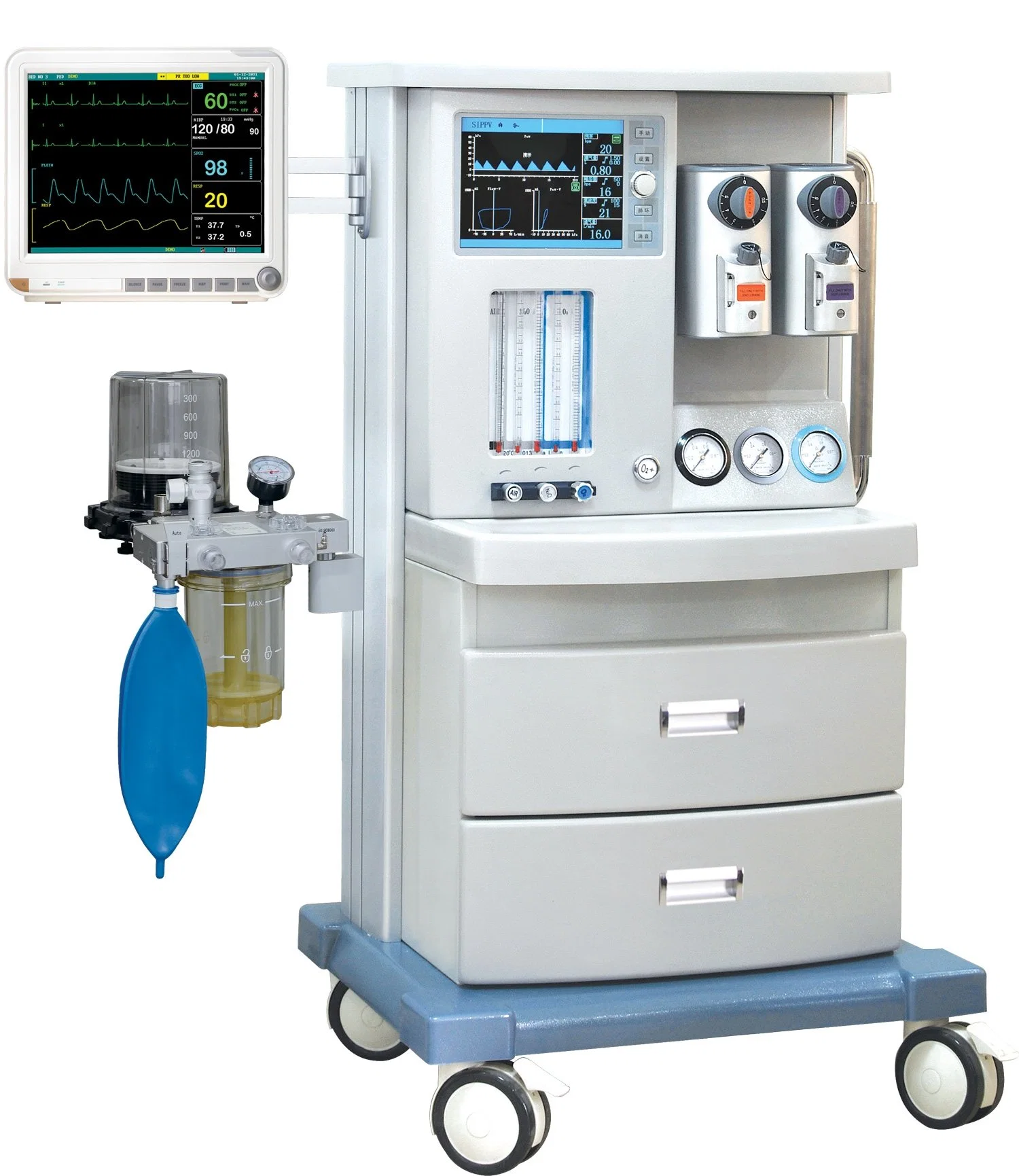

Cheap Price Medical Equipment Operating Room Anesthesia Machine
Cheap Price Medical Equipment Operating Room Anesthesia Machine
Cheap Price Medical Equipment Operating Room Anesthesia Machine
Cheap Price Medical Equipment Operating Room Anesthesia Machine
Cheap Price Medical Equipment Operating Room Anesthesia Machine
1 / 5
Cheap Price Medical Equipment Operating Room Anesthesia Machine
Cheap Price Medical Equipment Operating Room Anesthesia Machine
Cheap Price Medical Equipment Operating Room Anesthesia Machine
Cheap Price Medical Equipment Operating Room Anesthesia Machine
Cheap Price Medical Equipment Operating Room Anesthesia Machine

Cheap Price Medical Equipment Operating Room Anesthesia Machine

Customization: Available
Type: Anaesthesia Machine
Kind: Operation Room
Send Inquiry

Product Description

Basic Info

Model NO.
JINLING-850
Certification
ISO13485
Group
Adult and Children
LCD Display
8.4 inch Color TFT
Ventilation Mode
IPPV, SIPPV, VCV, PCV, IMV, SIMV, Manual
Tidal Volume
20-1500ml
Respiratory Rate
1-100bpm
PEEP Range
0-20CMH2o
Production Capacity
500 Unit/Month

Operating Room Anesthesia Machine Medical Equipment

Anesthesia Machine Display
Medical Equipment Detail

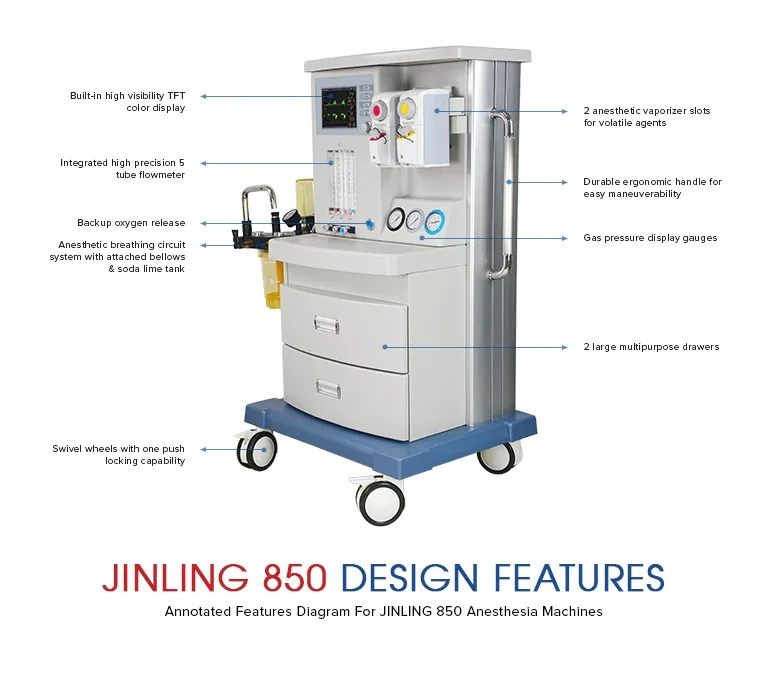

Common Features

Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open.
Built-in 8.4 inch color TFT display: Able to display Pressure-Time, Frequency-Time, Pressure-Volume and Frequency-Volume waveforms.

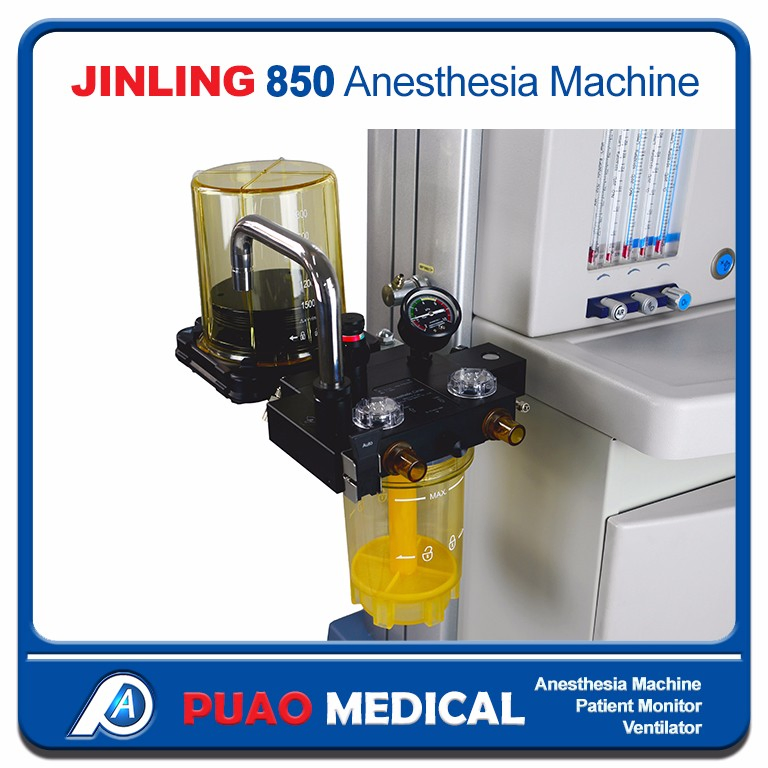

Integrated metallic modular respiratory circuit: High temperature disinfection safe, easy to clean and seal.
Power Failure Support: Automatically converts to backup power mode during AC power outages.

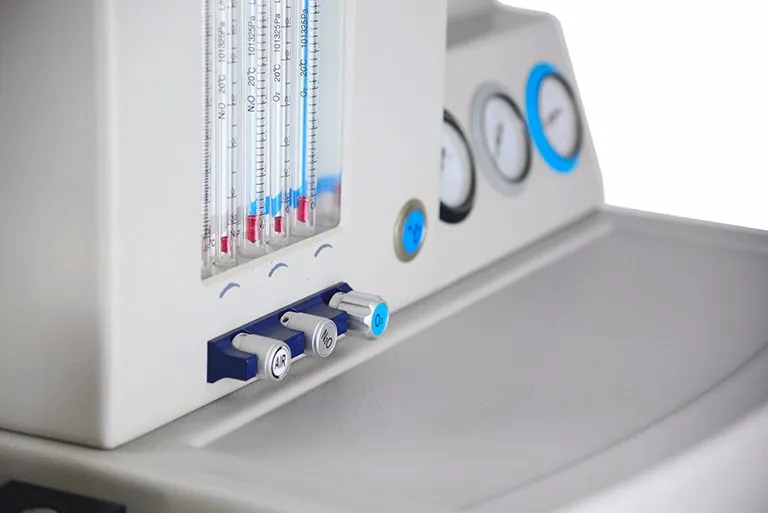

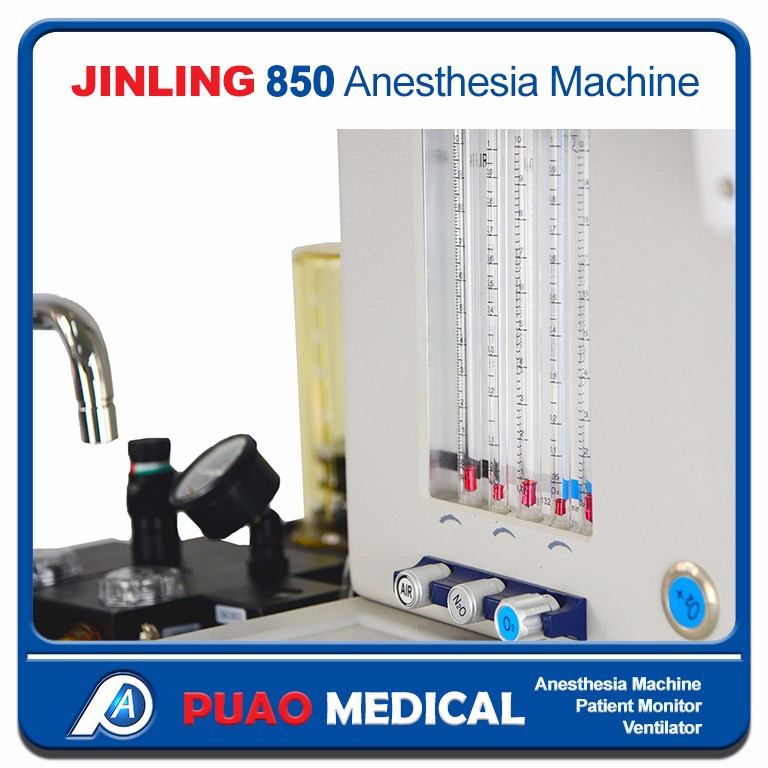

High precision five tube flowmeter: Guaranteed oxygen output never lower than 21%.
Alarms: Audible and visual alarms for tidal volume, airway pressure, oxygen concentration, and more.
Advanced APL valve: Suitable for low and ultra-low flow anesthesia.

Specifications

Parameter Details
ModelJinling-850 (Standard Model)
Flowmeter RangeO2: 0.1-10L/min; N2O: 0.1-10L/min; Air: 0.1-10L/min
Ventilation ModeIPPV, SIPPV, VCV, PCV, IMV, SIMV, MANUAL, Standby
Back-up Power SupplyAt least 4 hours
Tidal Volume RangeAdjustable: 20-1500ml; Display: 0-2000ml
Respiratory Rate1-100bpm
I:E Ratio8:1-1:10
PEEP Range0-20cmH2O (electronically controlled)
SIGH1 sigh breath in every 80-120 breaths
Technical Layout
Anesthesia Components

Frequently Asked Questions

What kind of display does the JINLING-850 have?
The machine is equipped with a built-in 8.4-inch color TFT display that shows multiple waveforms including Pressure-Time and Pressure-Volume.
Does this machine work during a power outage?
Yes, it features an automatic conversion to backup power mode, providing at least 4 hours of operation during AC power failures.
What is the tidal volume range for patient care?
The tidal volume is adjustable from 20ml to 1500ml, making it suitable for both adult and pediatric patients.
Is the respiratory circuit easy to maintain?
Yes, it uses a standard integrated metallic modular respiratory circuit which is easy to clean and supports high-temperature disinfection.
What safety alarms are included?
It includes comprehensive audible and visual alarms for tidal volume, airway pressure, oxygen concentration, asphyxia, and power or oxygen failure.
What ventilation modes are available?
It supports multiple modes including IPPV, SIPPV, VCV, PCV, IMV, SIMV, and Manual mode for versatile clinical use.
