Advanced X-ray Imaging System for Superior Diagnostic Precision

Customization: Available
After-sales Service: Online
Warranty: 12 Months

Product Description

i

Basic Specifications

Model NO.
MY-XD-4016
Portable
Non Portable
Form
Flatbed
Type
Conveying X-ray Detector
Certification
CE, ISO
Display
17-Inch Touch Screen
Conveyor Speed
5~60m/Min
Max Capacity
10kg
Protection
Conveyor IP66, Others IP40
Material
SUS304

Product Description

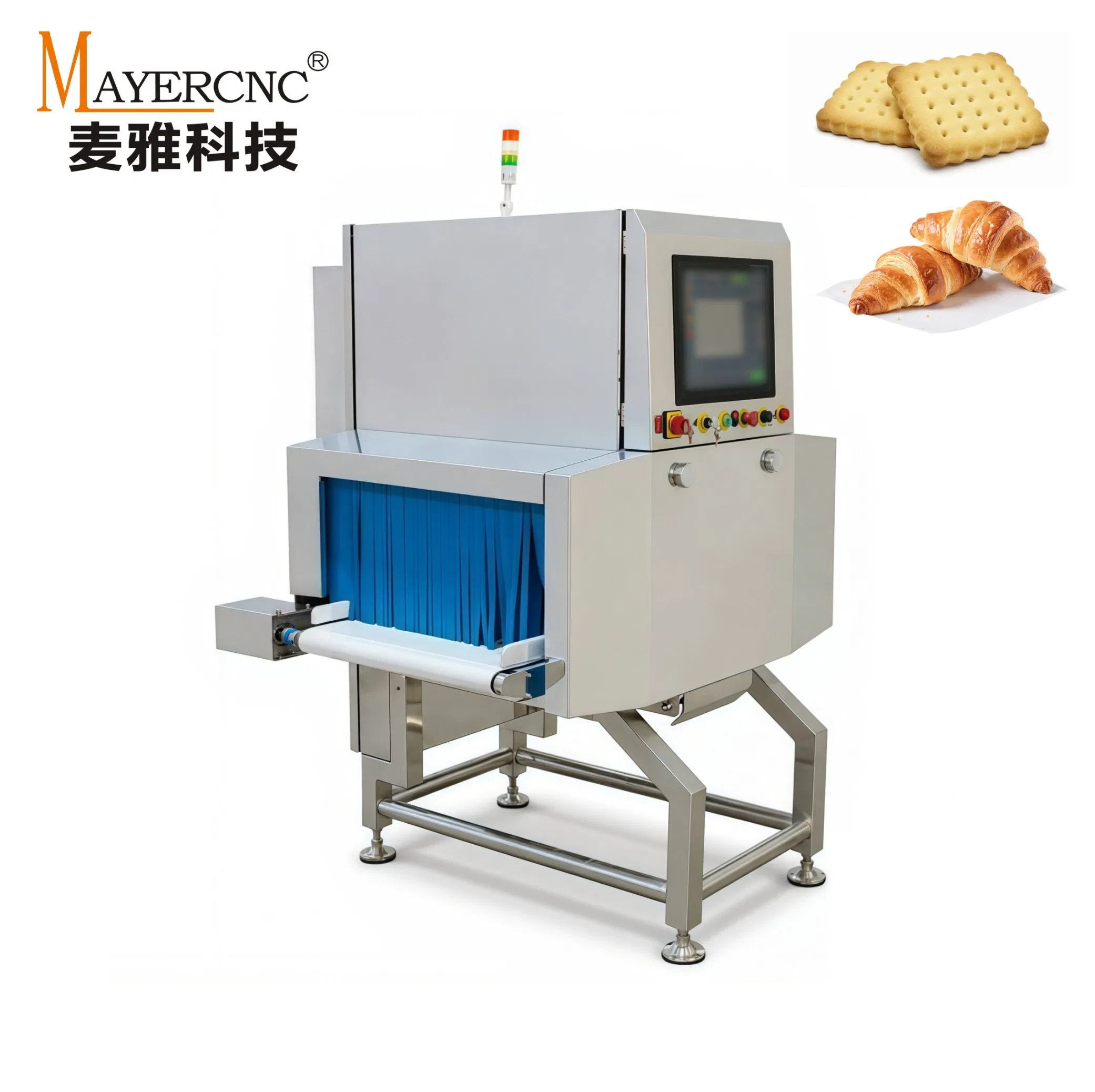

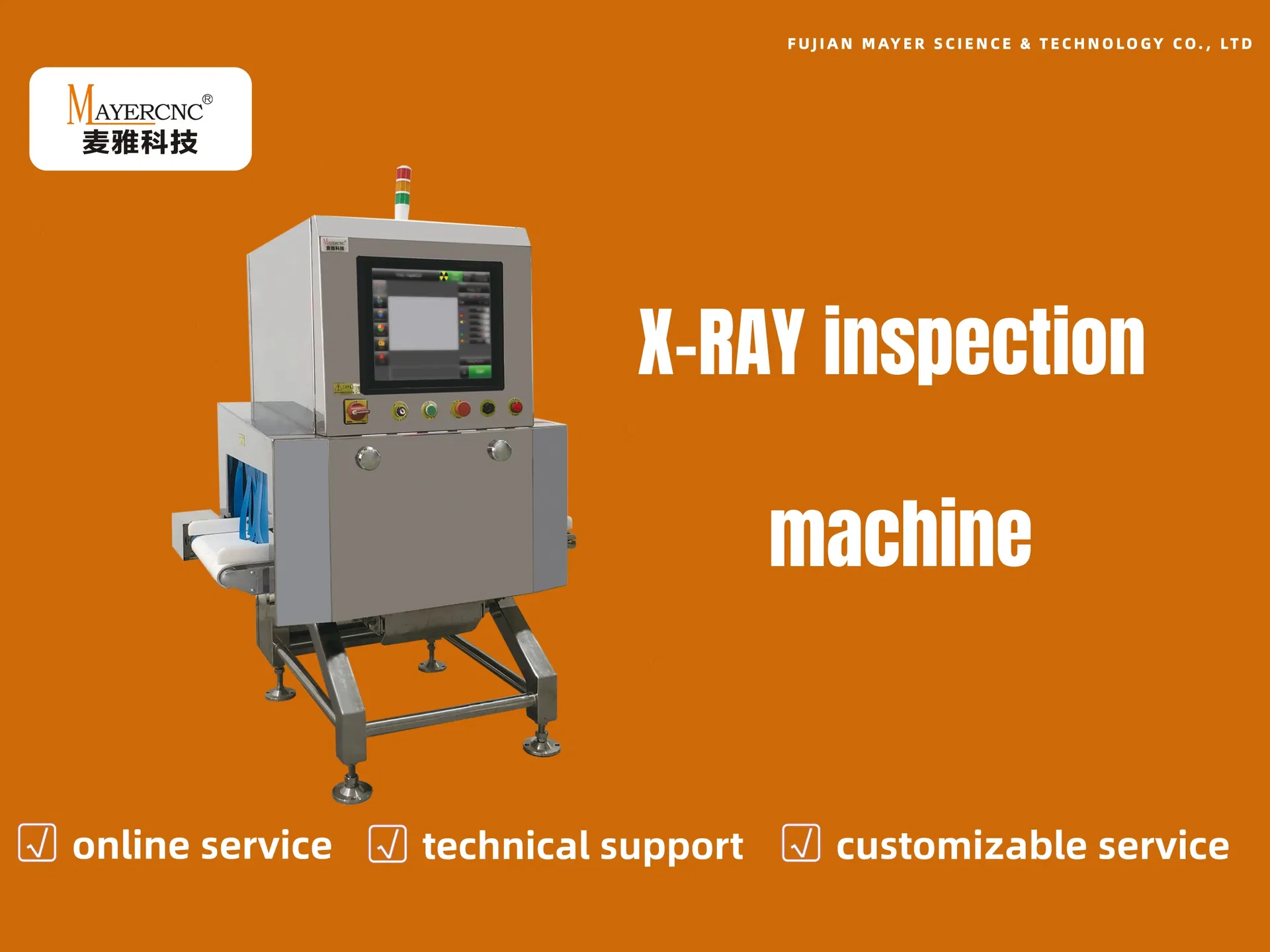

X-ray Imaging System

X-ray metal detectors are critical safety equipment in modern food production lines. Its core function is to use the penetrating power of X-rays to efficiently detect various physical foreign matter mixed in food. It not only includes all metals such as iron, stainless steel, copper, and aluminum, but can also effectively identify non-metallic impurities such as glass, ceramics, gravel, hard plastic, and high-density bones.

Specially designed for small and medium-sized packaged dairy products, snack foods, meat products, baked goods, quick-frozen products, and fruit and vegetable products.

Core Advantages

  • 01. High-Precision Inspection: Detects metallic and non-metallic foreign objects like glass, stone, and bone.
  • 02. Efficient Automation: Integrates with automatic rejection systems for real-time defective product removal.
  • 03. Wide Adaptability: Suitable for cans, glass bottles, and aluminum foil packaging.
  • 04. AI Algorithm: Guided automated learning for quick new product setup and precision matching.
  • 05. Remote Support: 4G connectivity for rapid technical support and fault alerts.

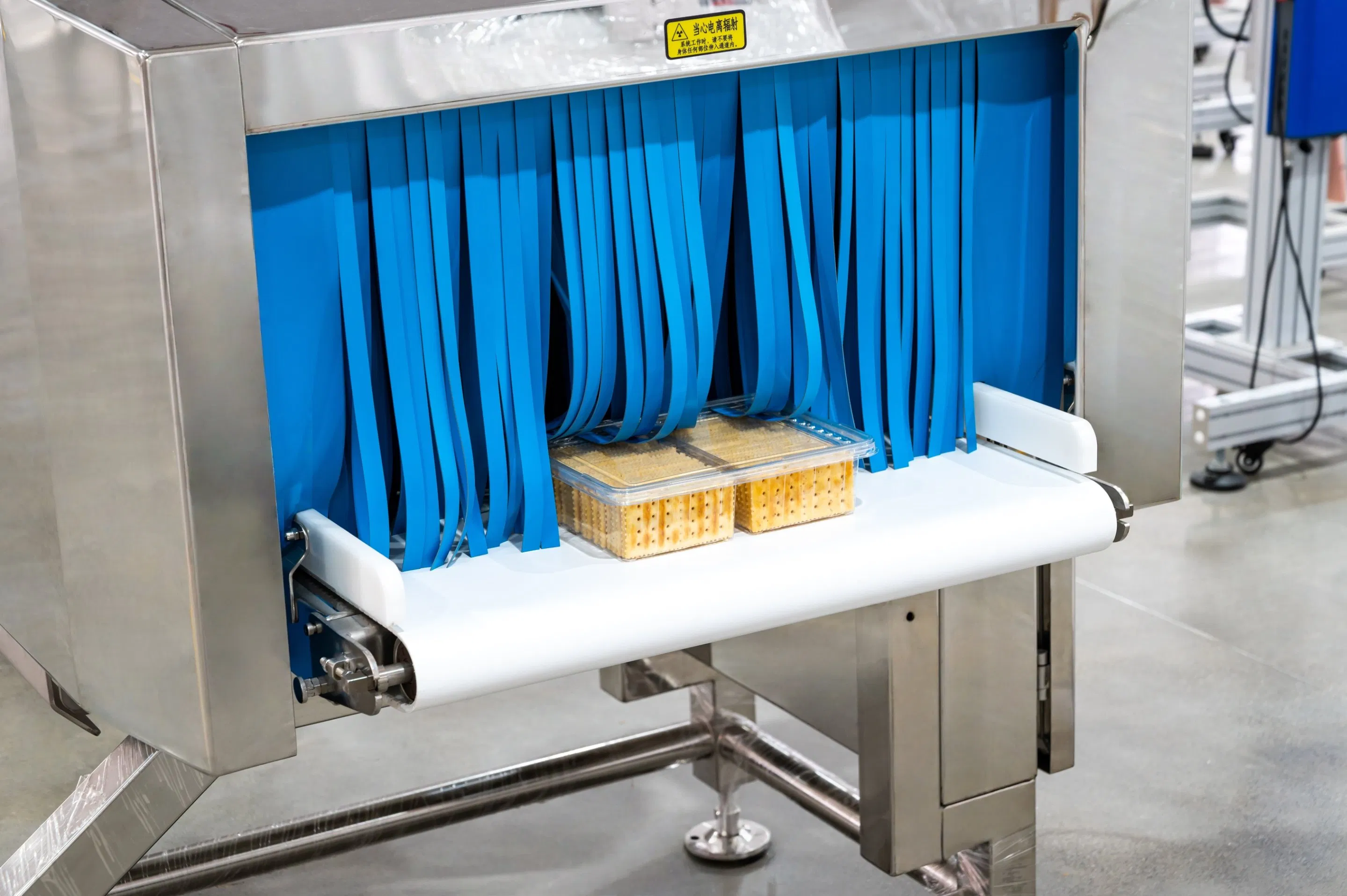

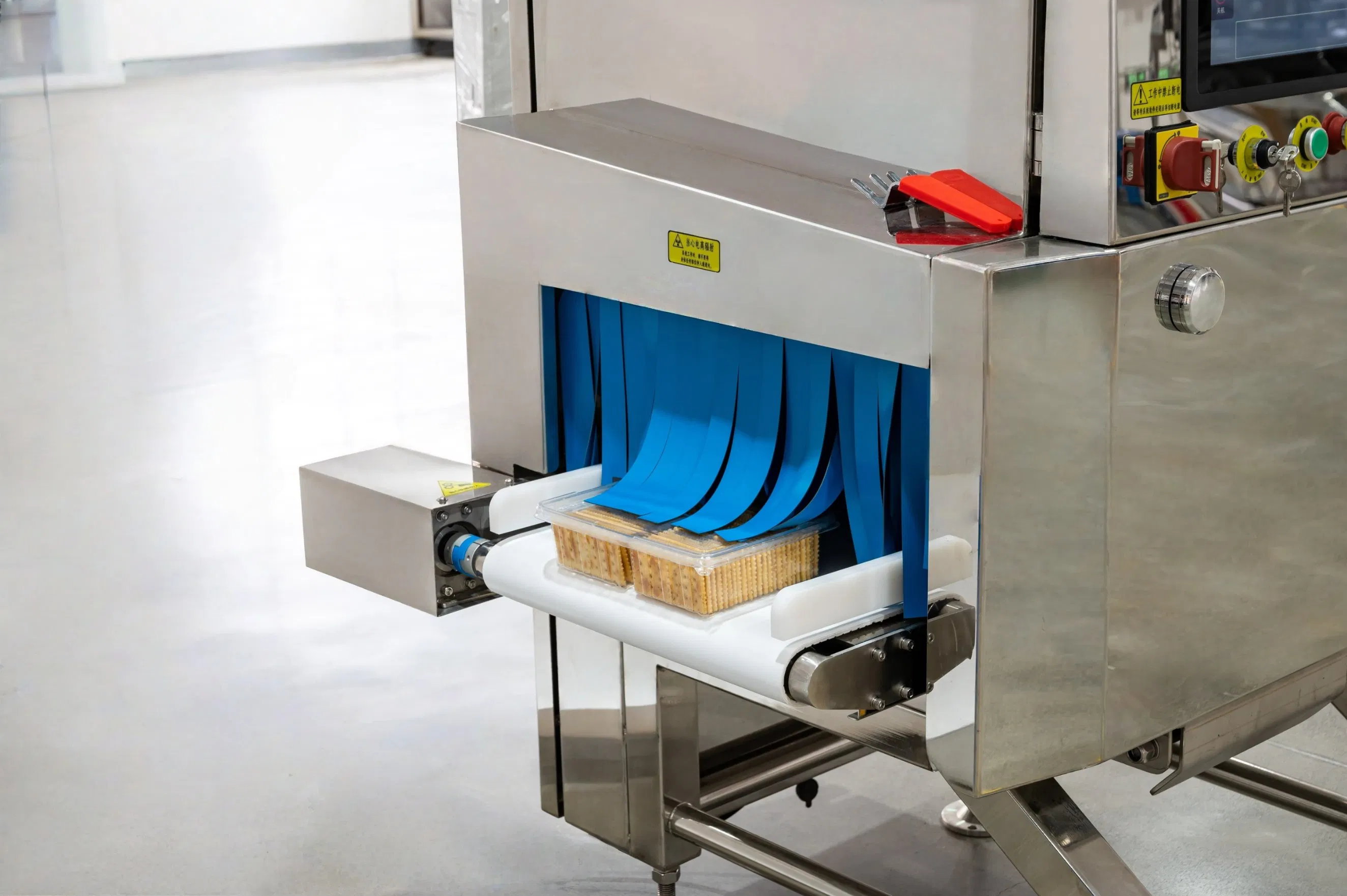

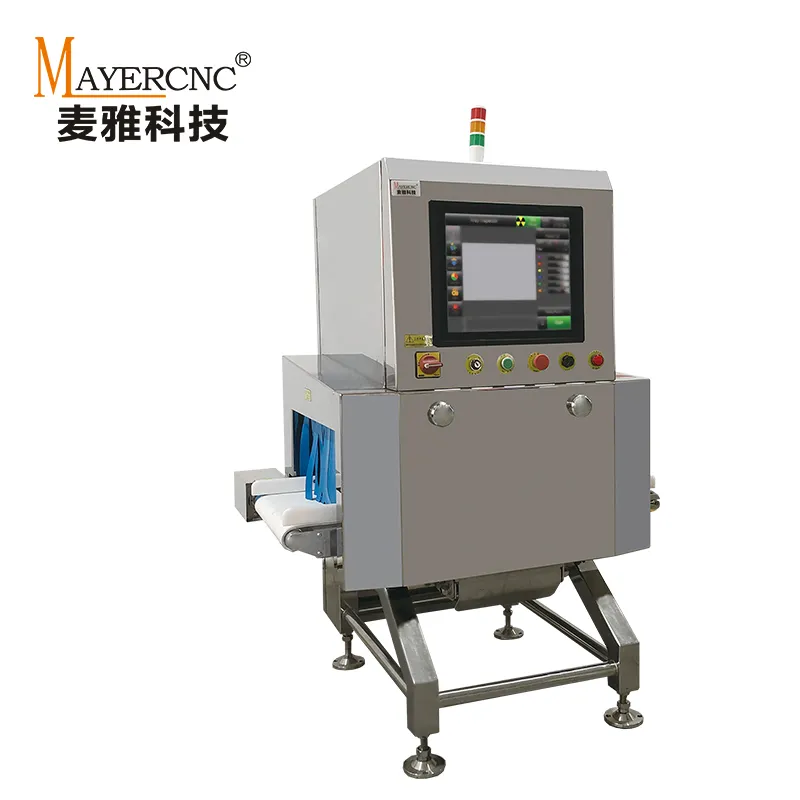

Product Details
📋

Technical Specification

Model Number MY-XD-2412 MY-XD-4016
Ray source150W210W
Detection accuracyStainless steel ball: 0.3mm, stainless steel wire: 0.2*2mm, ceramic glass ball: 1.0mm
Operating systemLinux
Display17-inch touch LCD screen
Conveyor speed5~60m/min
Max Product Weight5Kg10Kg
Max Product Size (WxH)240mm x 120mm400mm x 160mm
Power supplyAC220V, 50Hz-60Hz
Equipment material304 Stainless Steel
HT

Industrial Solutions

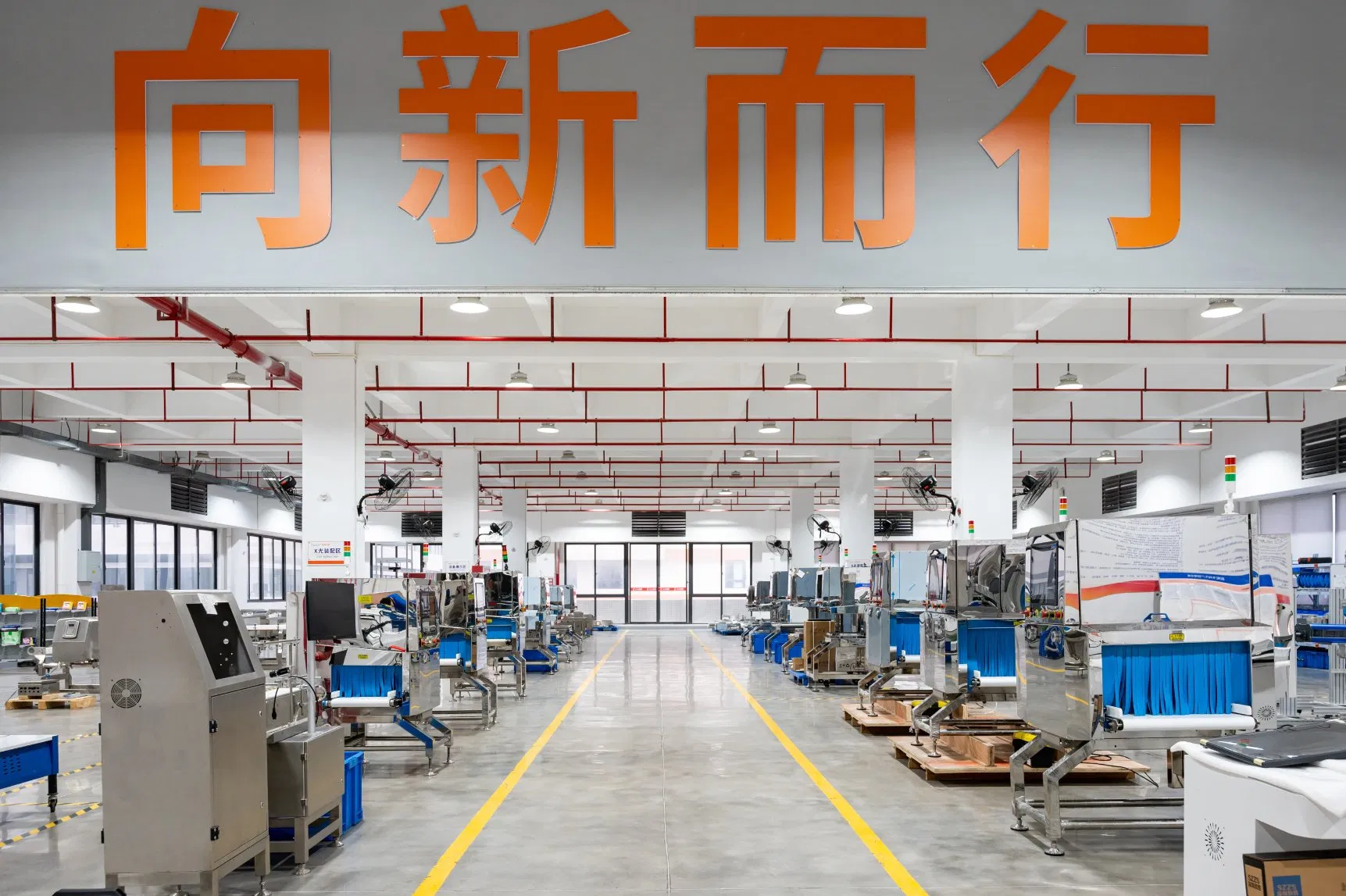

Production Facility

Specializing in the research, development, and production of metal foreign body detection, weight detection, and X-ray inspection equipment. As a high-tech enterprise since 2008, the products are widely used in food, hygiene products, textiles, and pharmaceuticals.

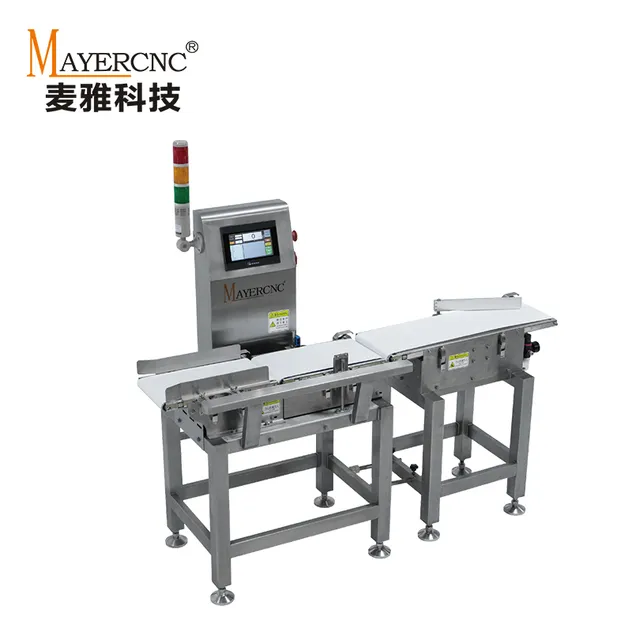

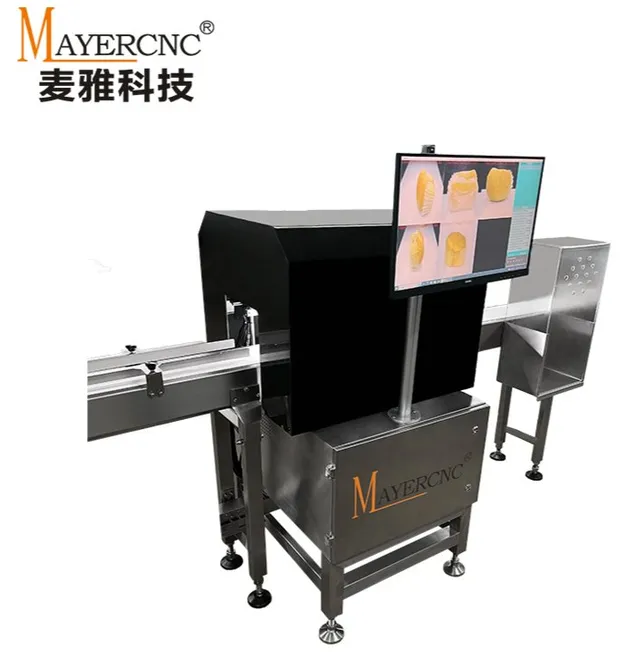

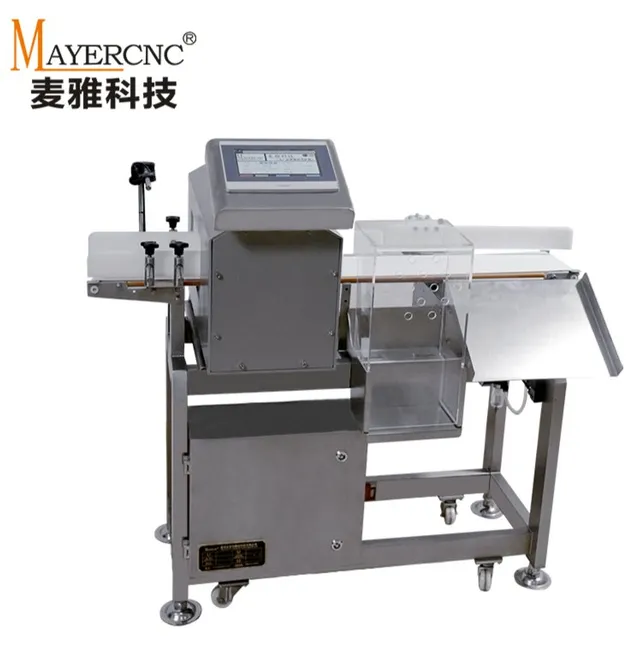

Metal Detector Checkweigher Visual Inspection

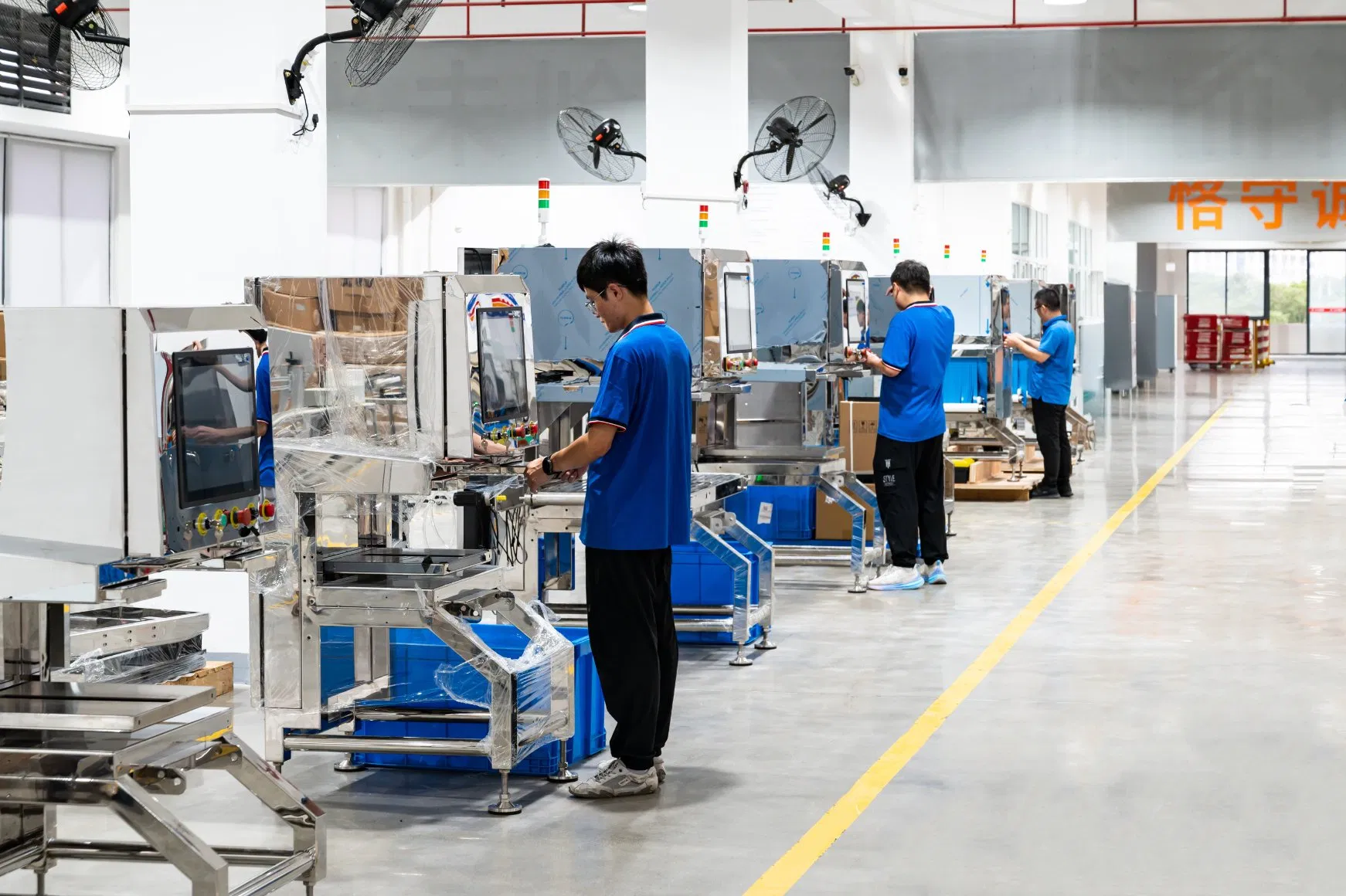

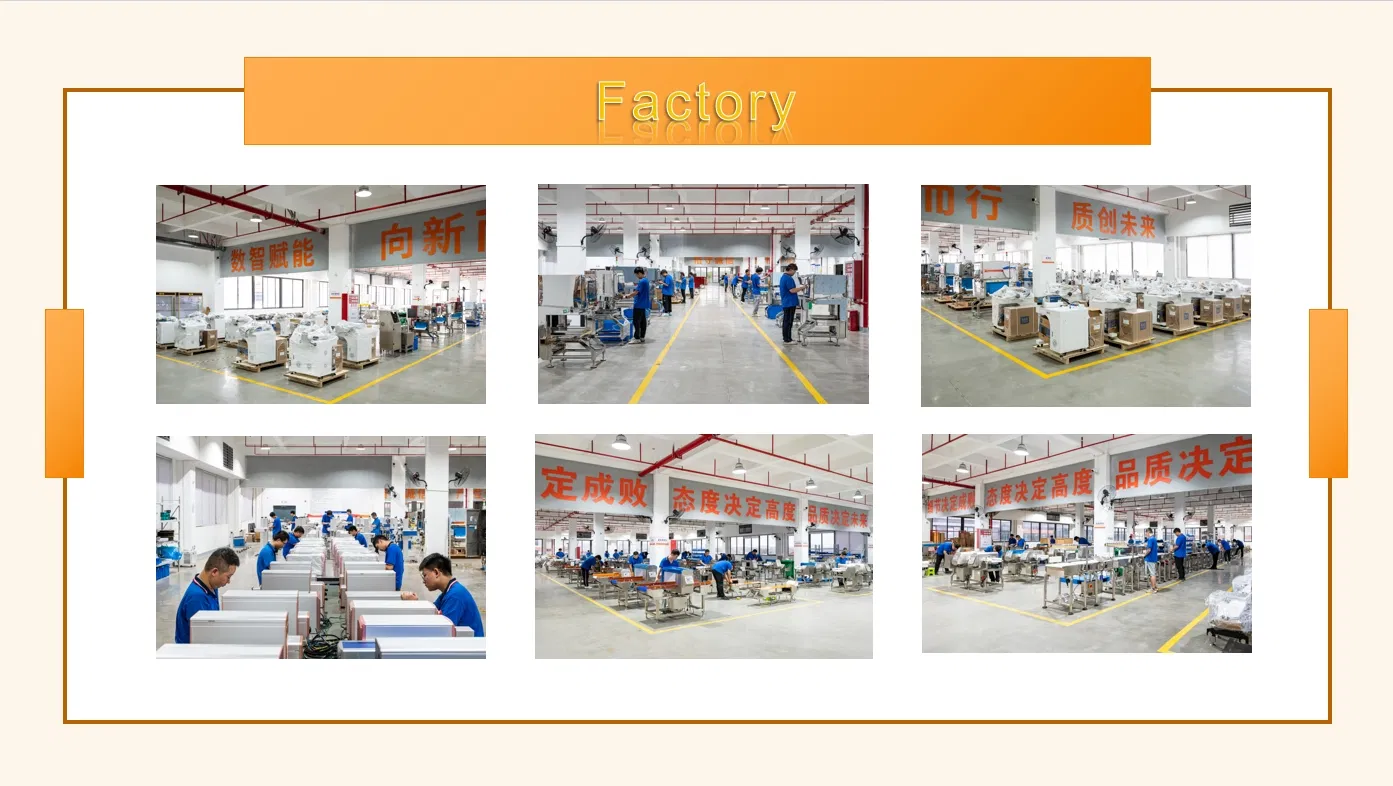

Factory Scene 1
Factory Scene 2
?

Frequently Asked Questions

Are you a manufacturer?
Yes, we were established in 2008 and have over 18 years of experience in the professional design and production of testing equipment.
What are your main products?
Our main products include metal detectors, checkweighers, X-ray foreign body detection systems, and vision inspection systems.
Do you accept customization?
Absolutely. All of our products can be customized according to your specific product characteristics and requirements.
How do I operate the machine?
The machines feature a user-friendly LCD display with multi-language menus (English/Chinese) and simple operation as per the manual.
What is the warranty period?
We provide a one-year warranty on our equipment.
Do you provide technical assistance after delivery?
Yes, our after-sales team provides remote technical support, installation guidance, and training sessions via instant communication.
