Advanced Surgical Ceiling Light for Hospital Operating Rooms
Advanced Surgical Ceiling Light for Hospital Operating Rooms
Advanced Surgical Ceiling Light for Hospital Operating Rooms
Advanced Surgical Ceiling Light for Hospital Operating Rooms
Advanced Surgical Ceiling Light for Hospital Operating Rooms
1 / 5
Advanced Surgical Ceiling Light for Hospital Operating Rooms
Advanced Surgical Ceiling Light for Hospital Operating Rooms
Advanced Surgical Ceiling Light for Hospital Operating Rooms
Advanced Surgical Ceiling Light for Hospital Operating Rooms
Advanced Surgical Ceiling Light for Hospital Operating Rooms

Advanced Surgical Ceiling Light for Hospital Operating Rooms

Customization: Available
Illumination Intensity Ec @30cm Distance: 140, 000lux± 20%
Color Rendering Index Ra: 96
Send Inquiry

Product Description

📋
Basic Information
Model NO.
LED minor operation light KS-Q10-02A white mobile
Lamphead Diameter
260mm*230mm
Color Temp.
3500-5000K (Touch Sensitive)
Light Source
10 LEDs in Osram
LED Life
50,000 Hours
Power
15W
Input Voltage
110V-265V 50/60Hz
Material
Aluminium Spring Arm
Origin
China
HS Code
9405429000
🖼️
Product Showcase

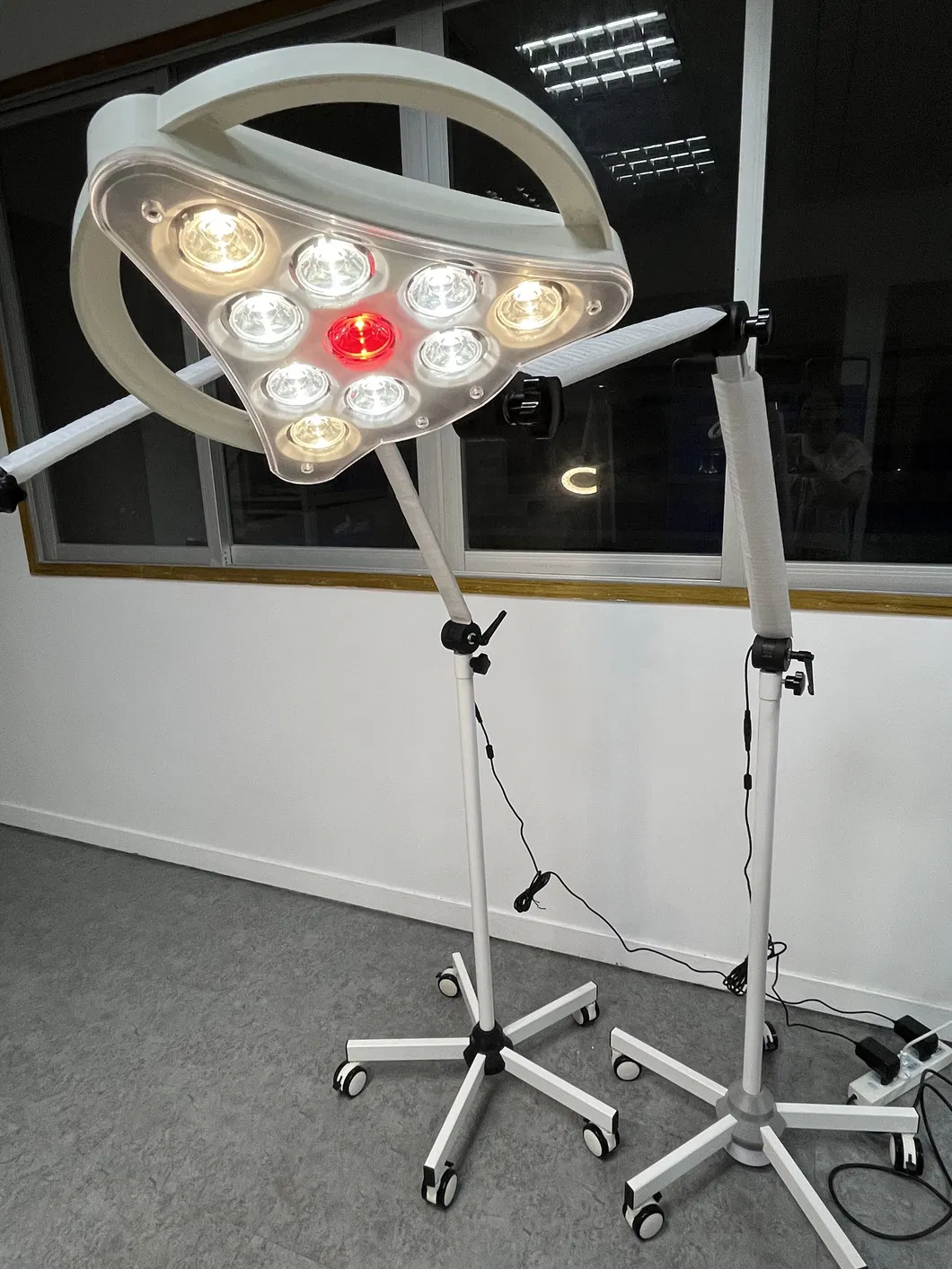

Medical Operation Lamp

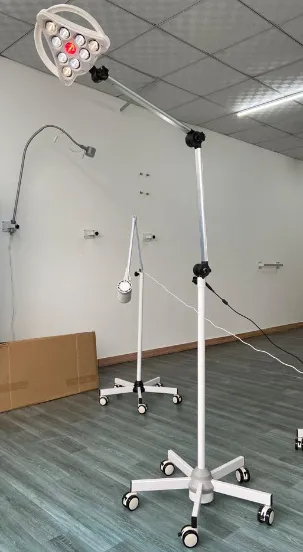

Mobile Stand Light
🔍
Detailed Photos
Detail 1

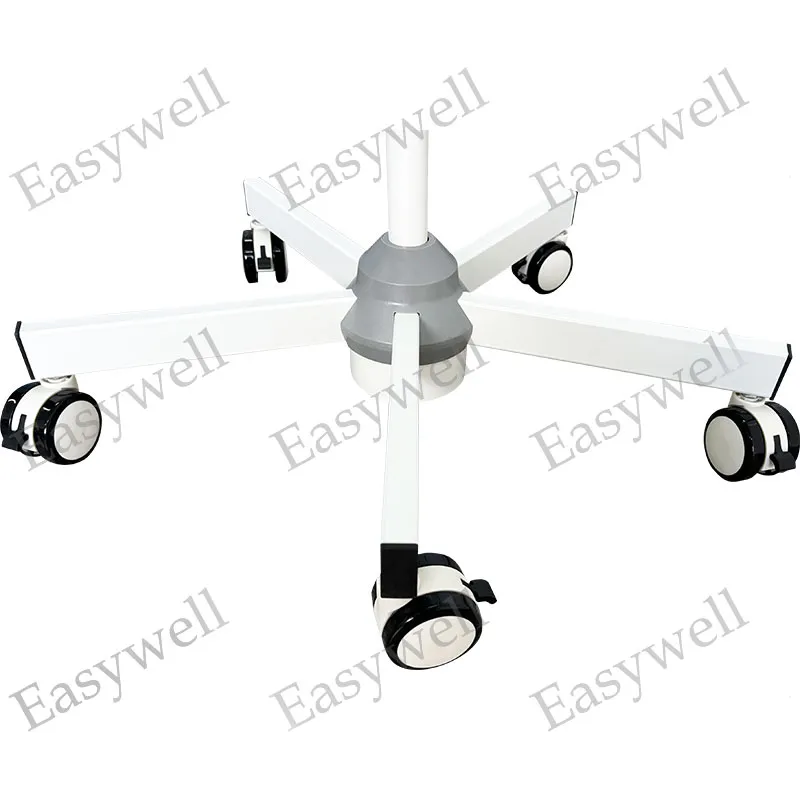

Detail 2

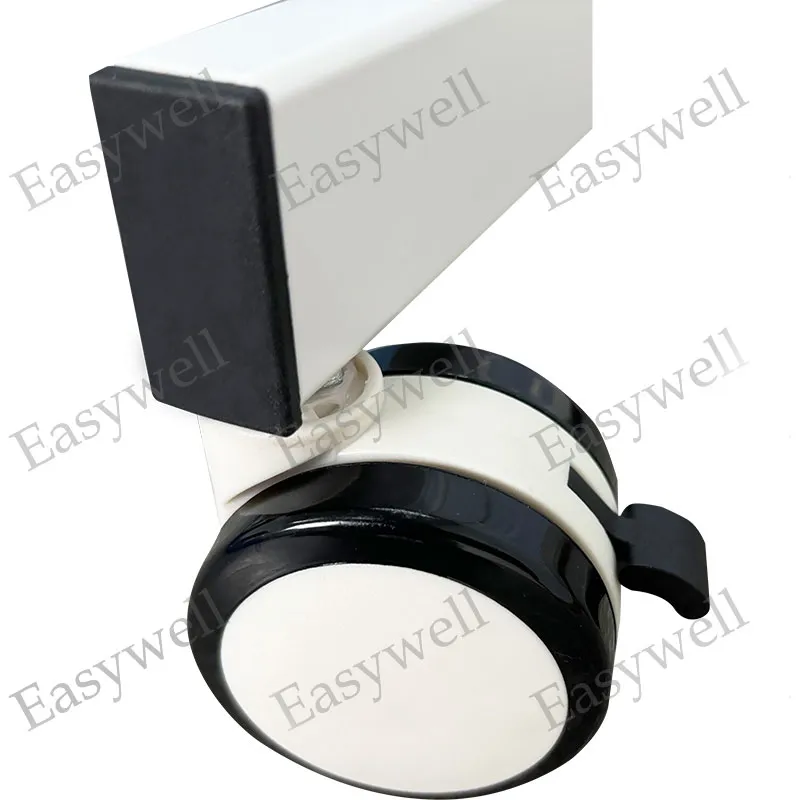

Detail 3
💡
Product Description & Key Features
  • IR-free Technology: LED light source reduces heat sensation for both patient and doctor.
  • Extreme Longevity: LED service life is 40 times longer than traditional halogen bulbs.
  • Daylight Quality: Provides natural illumination for truer tissue color rendition and accurate diagnosis.
  • Adjustable Contrast: Color temperature can be tuned for optimal sensitivity during procedures.

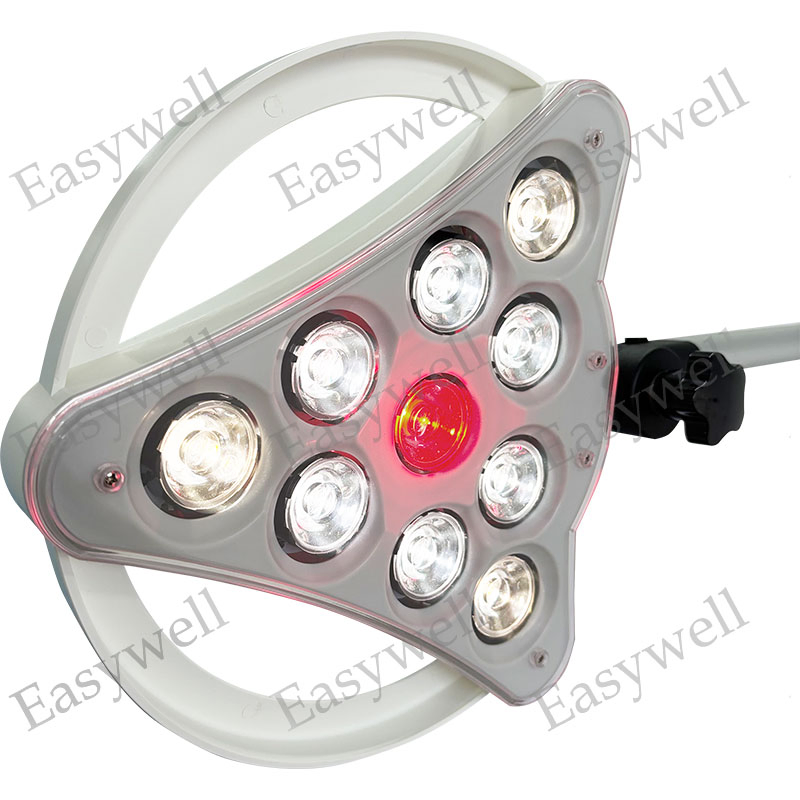

  • Integrated Design: Plastic lamphead with 10 integrated LED bulbs and 360-degree rotation.
  • Precision Control: Full digital touch control for both illumination intensity and color temperature.
  • Robust Arm: Full aluminum articulated spring arm with brushed and electric oxidation surface.
  • Red Tissue Enhancement: New R9 rendering index helps complement red color differences for better surgery authenticity.

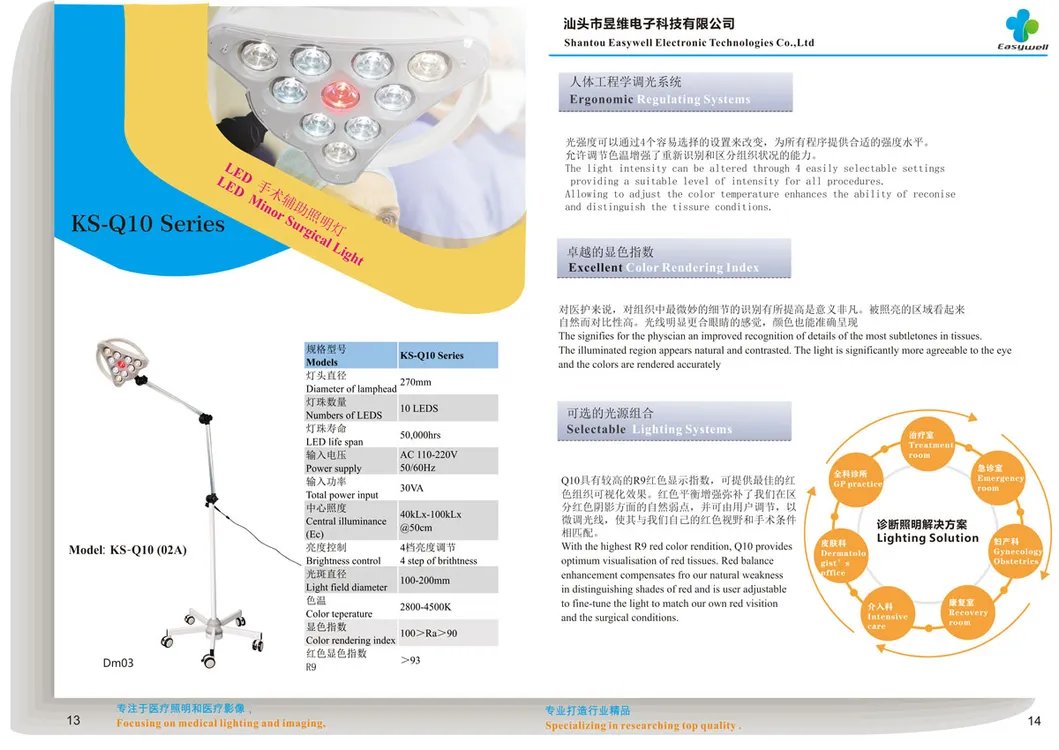

Spectral Analysis
📊
Technical Parameters
Parameter KS-Q10-02 Series Specifications
External Lamphead Diameter277mm
Balanced ArmAluminum articulated spring arm
Input Voltage100-240V
Illumination intensity @30cm140,000 Lux ± 20%
Illumination intensity @50cm120,000 Lux ± 20%
Color Temperature3500-5000K Adjustable
Color Rendering Index (Ra)96
Red Color Rendering (R9)97
Number of LEDs10
LED Lifespan≥ 50,000 hours
Power Consumption30 VA
Mounting OptionsMobile, Wall, Ceiling, Battery Back-up
Emergency Power (Optional)3500mAh, up to 6 hours usage
🌍
Packaging & Global Markets
Packaging

Export Percentage: >95%

Main Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, and Western Europe. Exported to more than 90 countries with successful government tenders in Mexico, Egypt, India, France, Kenya, and South Africa.

Services:
• Support customization based on special requests
• OEM services available
• Custom LOGO printing available

📜
Certifications & Exhibition
Exhibition
Certifications

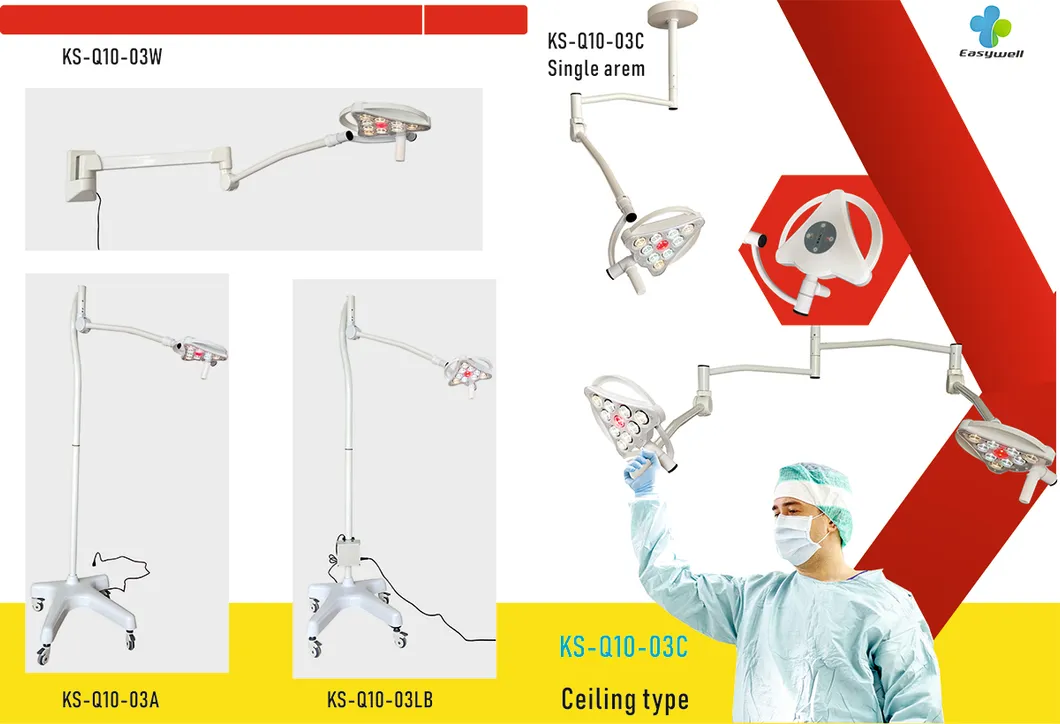

Product Range
❓
Frequently Asked Questions
What is the expected lifespan of the LED light source?
The LED modules are designed for extreme longevity, with an average service life of over 50,000 hours, which is approximately 40 times longer than traditional halogen bulbs.
Can the color temperature be adjusted?
Yes, the color temperature is adjustable from 3500K to 5000K via a touch-sensitive control panel, allowing for optimal contrast depending on the medical procedure.
Does this light generate a lot of heat during operations?
No, the unit utilizes IR-free LED technology which significantly reduces the sensation of heat for both the medical professional and the patient.
What mounting configurations are available for the KS-Q10 series?
This series is highly versatile and can be configured for mobile use (with a base), wall mounting, table clamping, or ceiling mounting.
Is there an emergency power option for the mobile unit?
Yes, an optional 3500mAh battery backup system is available, providing approximately 6 hours of continuous use in case of power failure.
What is the R9 rendering index mentioned in the features?
The R9 index specifically enhances the rendering of red tissues, providing better authenticity and clarity when working on red-colored biological structures during surgery.
